Model Kenmore C970-645023 RANGE – Common Parts & Diagrams

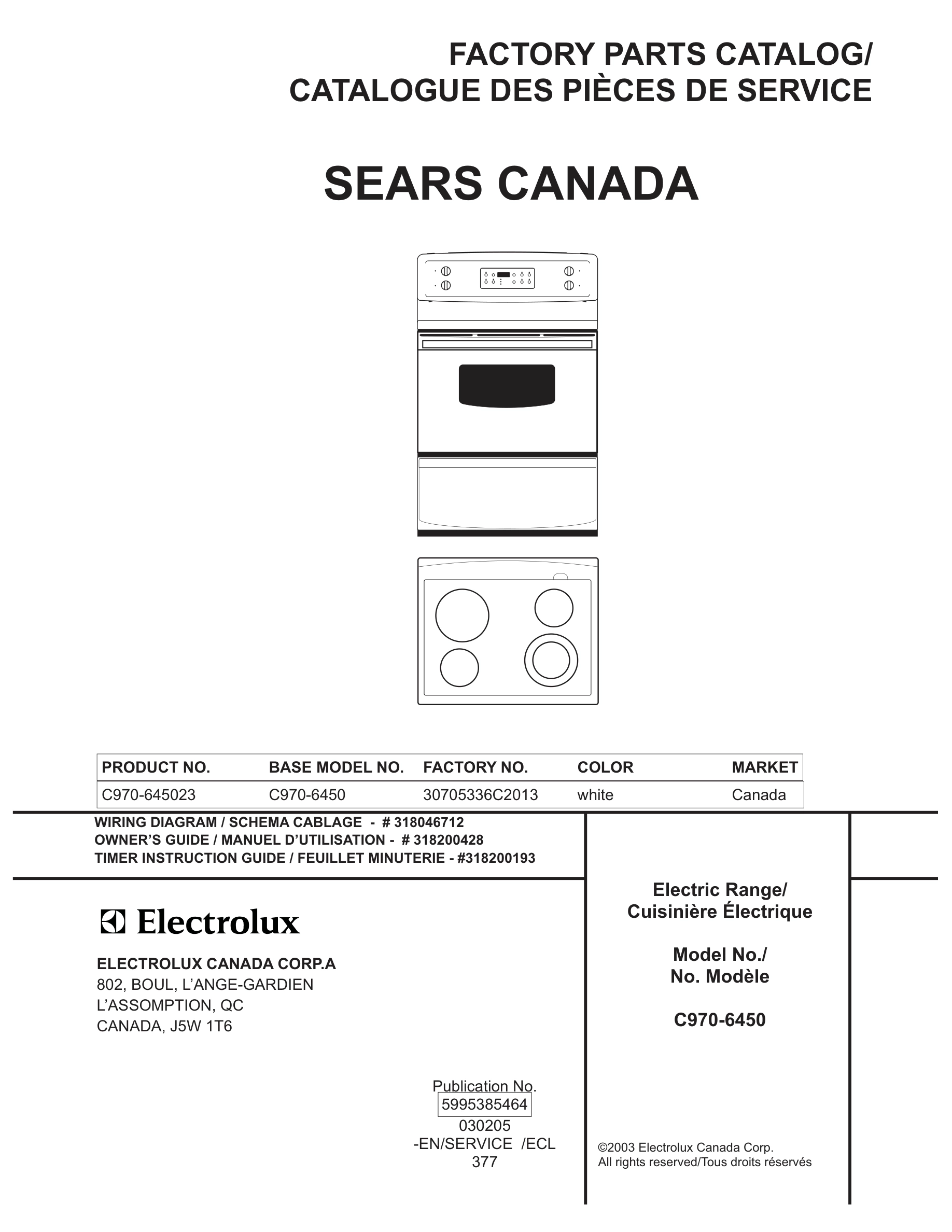

01 - COVER

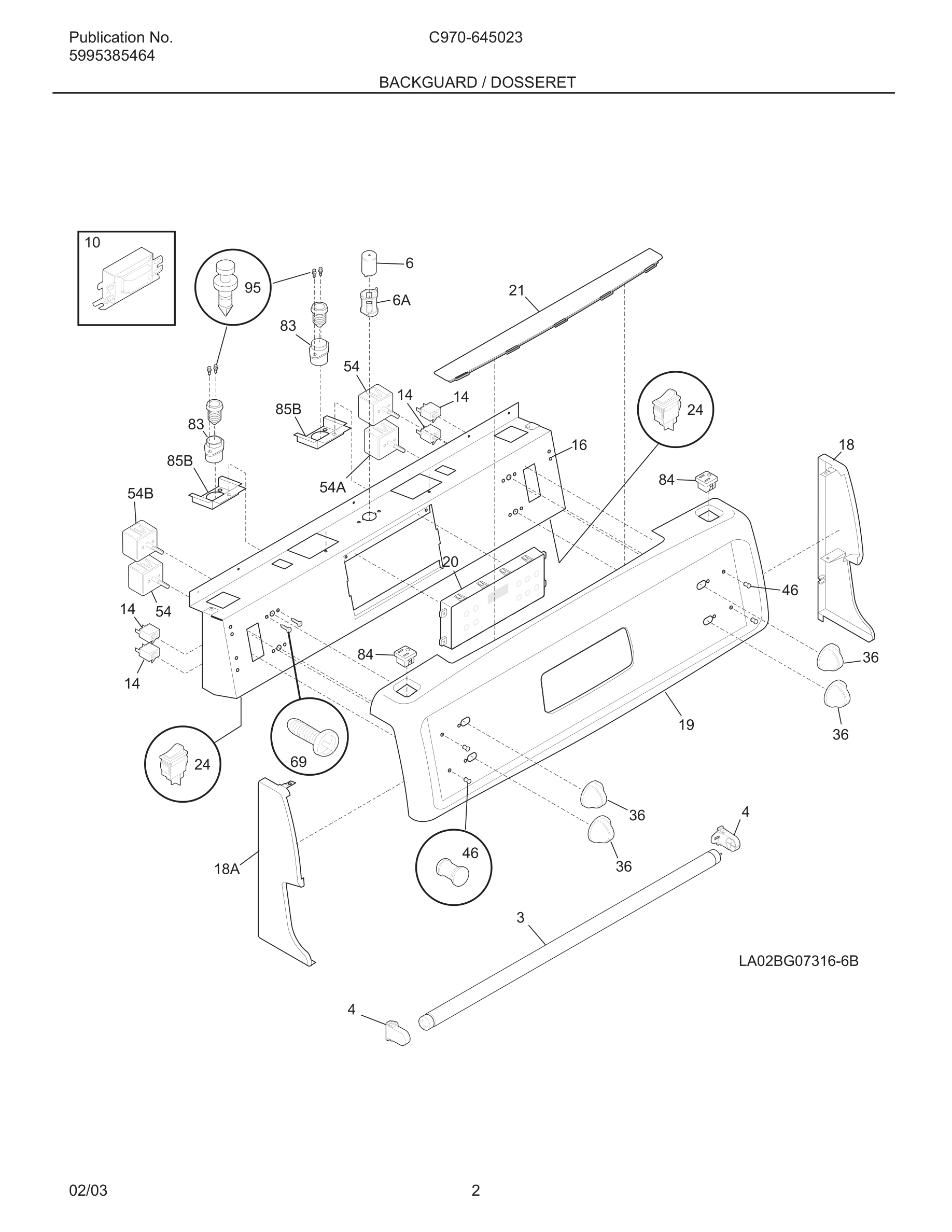

03 - BACKGUARD / DOSSERET

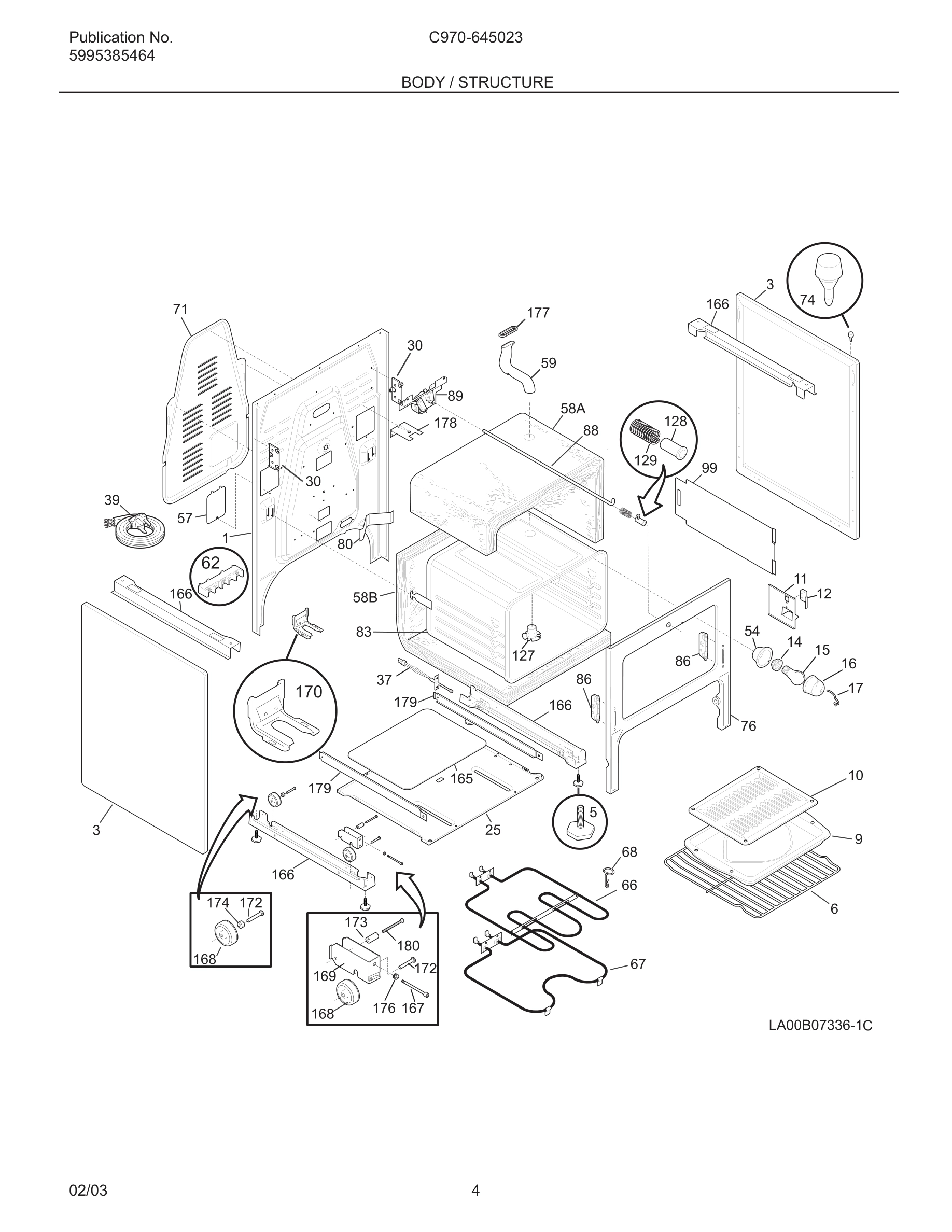

05 - BODY / STRUCTURE

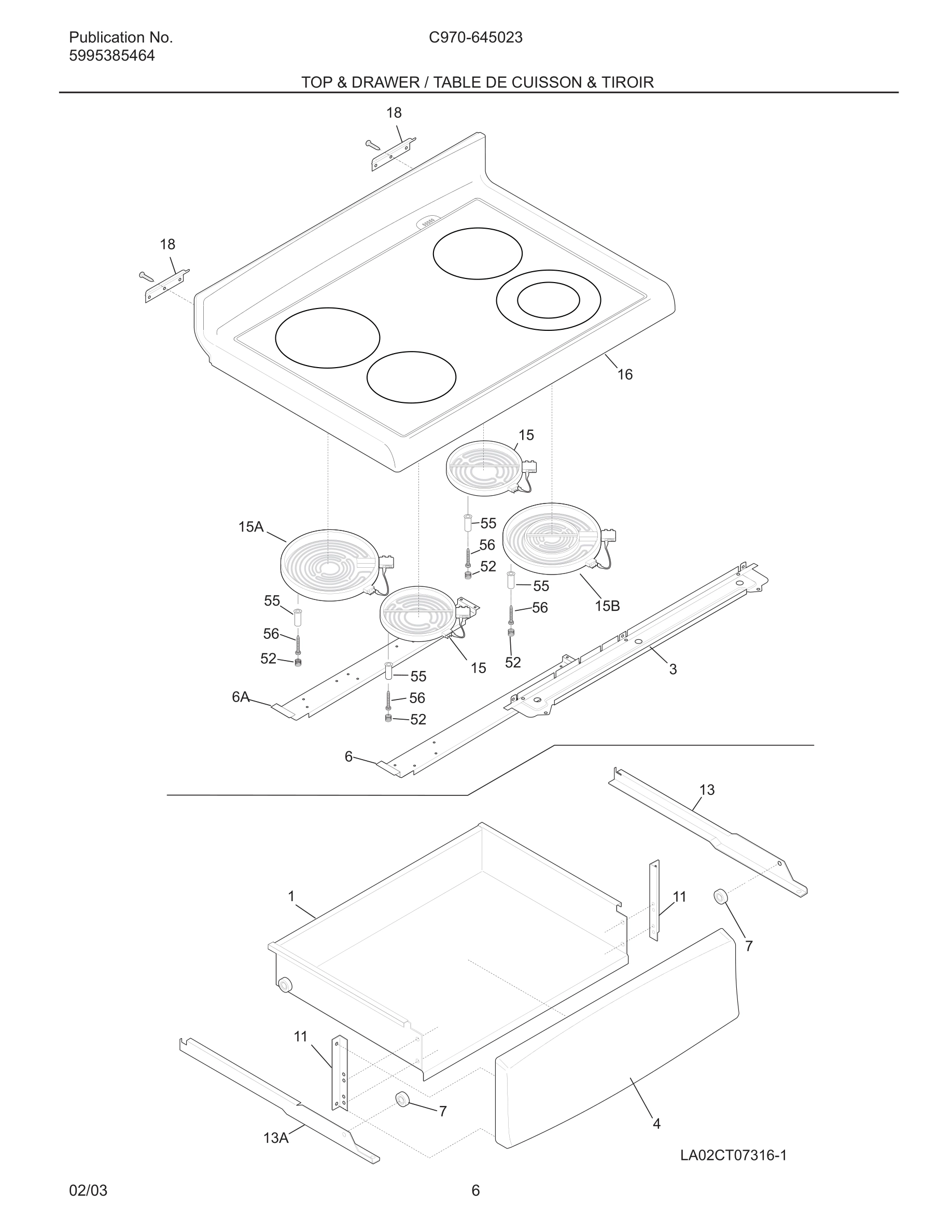

07 - TOP & DRAWER / TABLE DE CUISSON & TIROIR

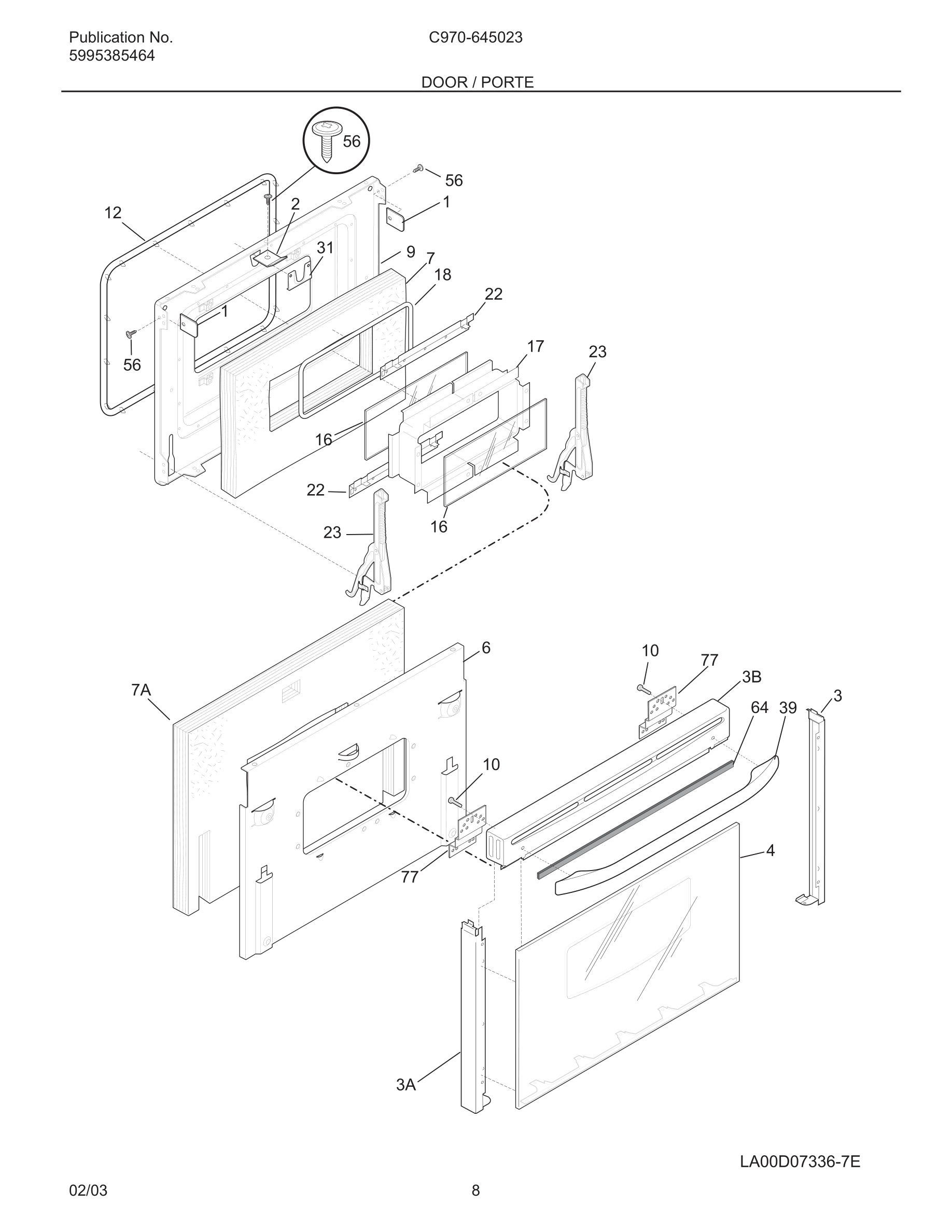

09 - DOOR / PORTE

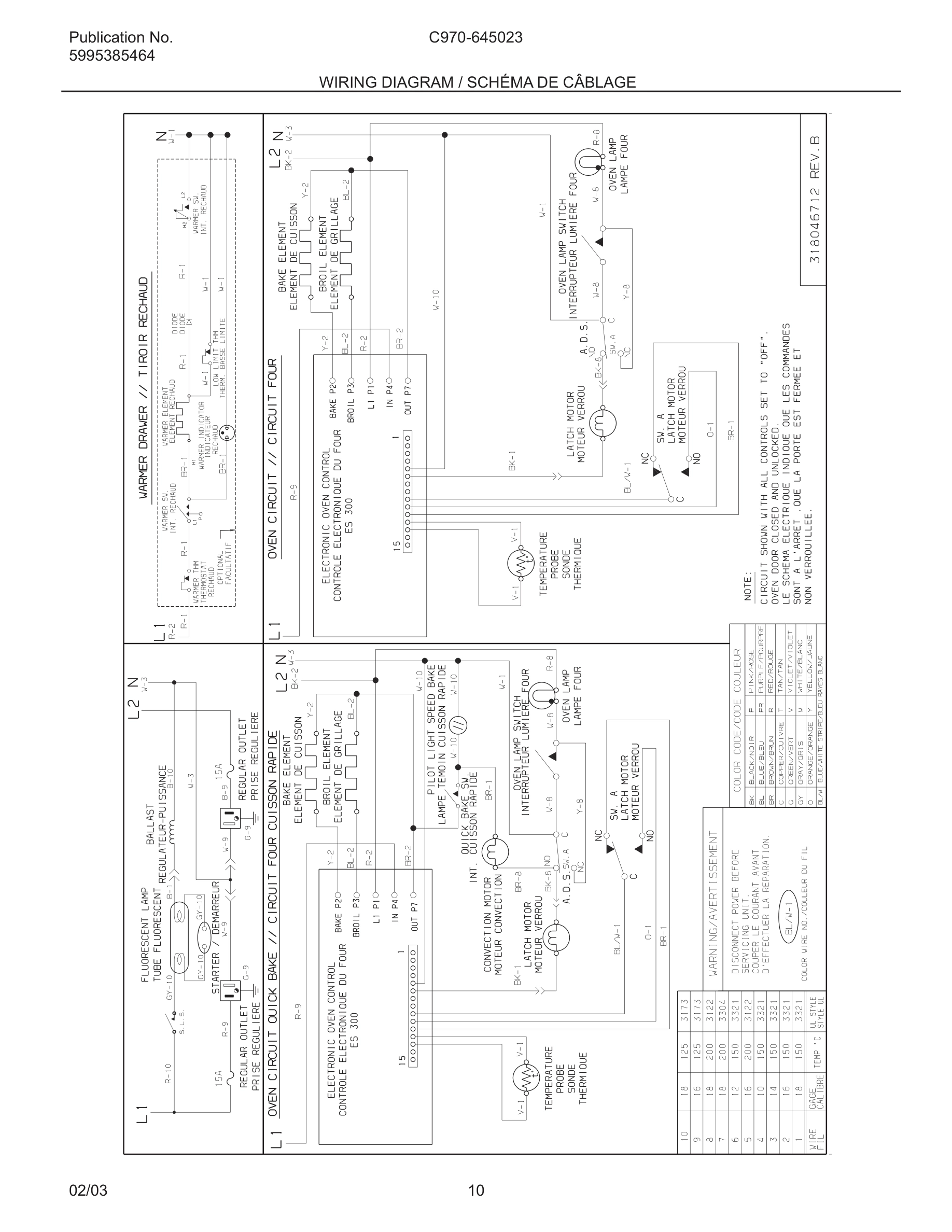

10 - WIRING DIAGRAM
Common parts from model Kenmore C970-645023 RANGE
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Drawer WCI 318107103 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
3
Support,main top WCI 318144321 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318178322 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318178323 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 318044301 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187717 Contact Us For Availability
5
Screw,leveling WCI 318175503 Contact Us For Availability
6
Bracket,element WCI 318180702 Contact Us For Availability
6
Shield,insullation ,black ,door WCI 318057031 Contact Us For Availability
6#
Starter,lamp WCI 5308068062 Contact Us For Availability
6A
Bracket,element WCI 318180712 Contact Us For Availability
7
Spacer WCI 318014800 Contact Us For Availability
7
Insulation,oven door WCI 318133706 Contact Us For Availability
7A
Insulation,oven door ,cavity WCI 318133707 Contact Us For Availability
9
Liner,door WCI 318157013 Contact Us For Availability
11
Bracket,drawer support ,(2) WCI 318107500 Contact Us For Availability
12#
Switch,door ,oven light WCI 318089801 Contact Us For Availability
13
Channel,drawer ,RH WCI 318018100 Contact Us For Availability
13A
Channel,drawer ,LH WCI 318018101 Contact Us For Availability
16
Glass,oven door ,6.50 x 15.50 ,inner ,heat ba WCI 5303310533 Contact Us For Availability
16
Panel,main top ,glass ,black ,assembly WCI 318154525 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,oven door glass ,inner frame WCI 318139000 Contact Us For Availability
18
Hinge,main top panel ,(2) WCI 318074400 Contact Us For Availability
18
Gasket,door glass seal ,inner WCI 5303310531 Contact Us For Availability
22
Bar,glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
Shield,heat ,lower WCI 318108702 Contact Us For Availability
30
Bracket,hinge ,main top ,(2) WCI 318110800 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
36
Knob,control ,white WCI 316109106 Contact Us For Availability
39#
Cord,electric WCI 318113106 Contact Us For Availability
54
Housing,oven light WCI 5303310514 Contact Us For Availability
55
Spacer,element WCI 5303317178 Contact Us For Availability
56
Screw,element ,6 x ¾ WCI 5303317179 Contact Us For Availability
57
Cover,access WCI 318036500 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072522 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
71
Cover,wire WCI 318086600 Contact Us For Availability
74
Bumper,bodyside WCI 318141900 Contact Us For Availability
76
Frame,front ,wheels incl WCI 318108500 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
83
Liner,oven WCI 318109411 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
88
Rod,latch WCI 318118902 Contact Us For Availability
89#
Motor,latch assy ,w/brkt & switch WCI 318095938 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
89*
Switch,latch WCI 318120704 Contact Us For Availability
99
Deflector,heat ,side WCI 318126101 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
165
Plate,heat shield WCI 318003100 Contact Us For Availability
166
Bracket,base support WCI 318111000 Contact Us For Availability
167
Screw,socket head cap ,lock WCI 318147800 Contact Us For Availability
168
Roller WCI 08011155 Contact Us For Availability
169
Bracket,roller housing WCI 318147700 Contact Us For Availability
170
Anti-tip accessories WCI 5304405205 Contact Us For Availability
172
Rivet,roller shaft ,0.250 x 1.500 WCI 08011131 Contact Us For Availability
173
Spacer,lock ,nylon WCI 5304400434 Contact Us For Availability
174
Spacer,roller WCI 5303324511 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
178
Bracket,vent WCI 318125702 Contact Us For Availability
179
Bracket,external slide WCI 318144220 Contact Us For Availability
180
Screw,lock bracket ,10-24 x 2.00 WCI 5303285443 Contact Us For Availability
× ![]()
