Model Kenmore C970-445725 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD / DOSSERET

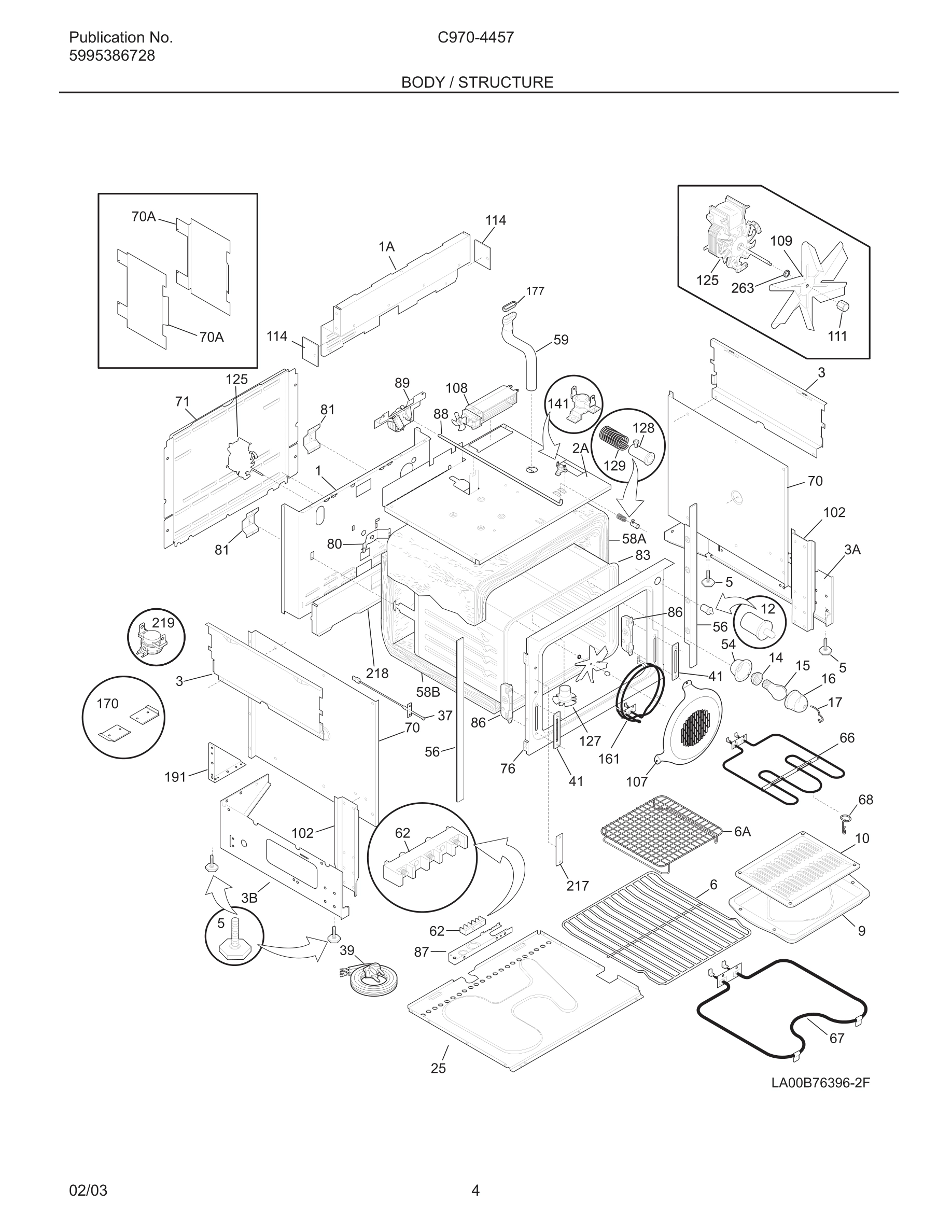

05 - BODY / STRUCTURE

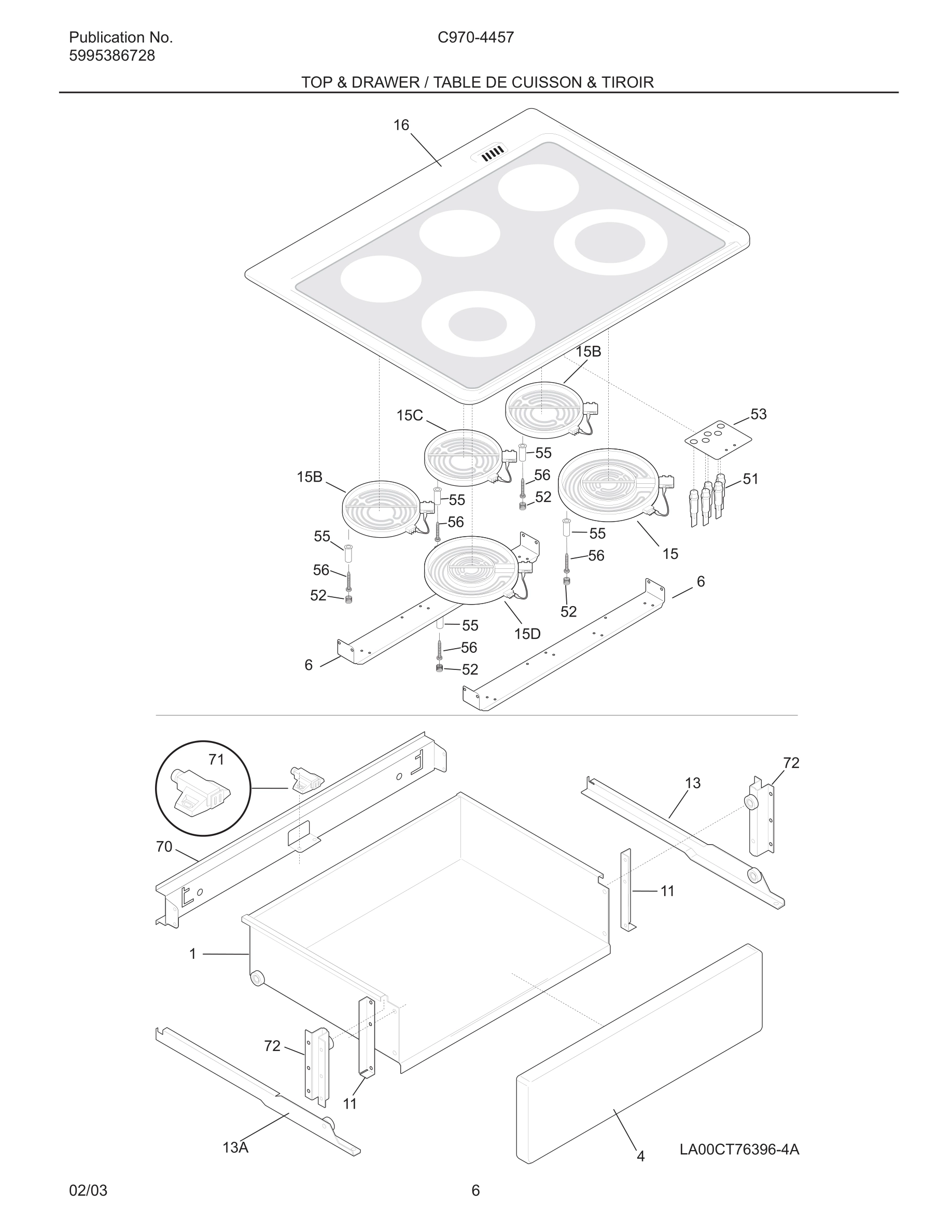

07 - TOP & DRAWER / TABLE DE CUISSON & TIROIR

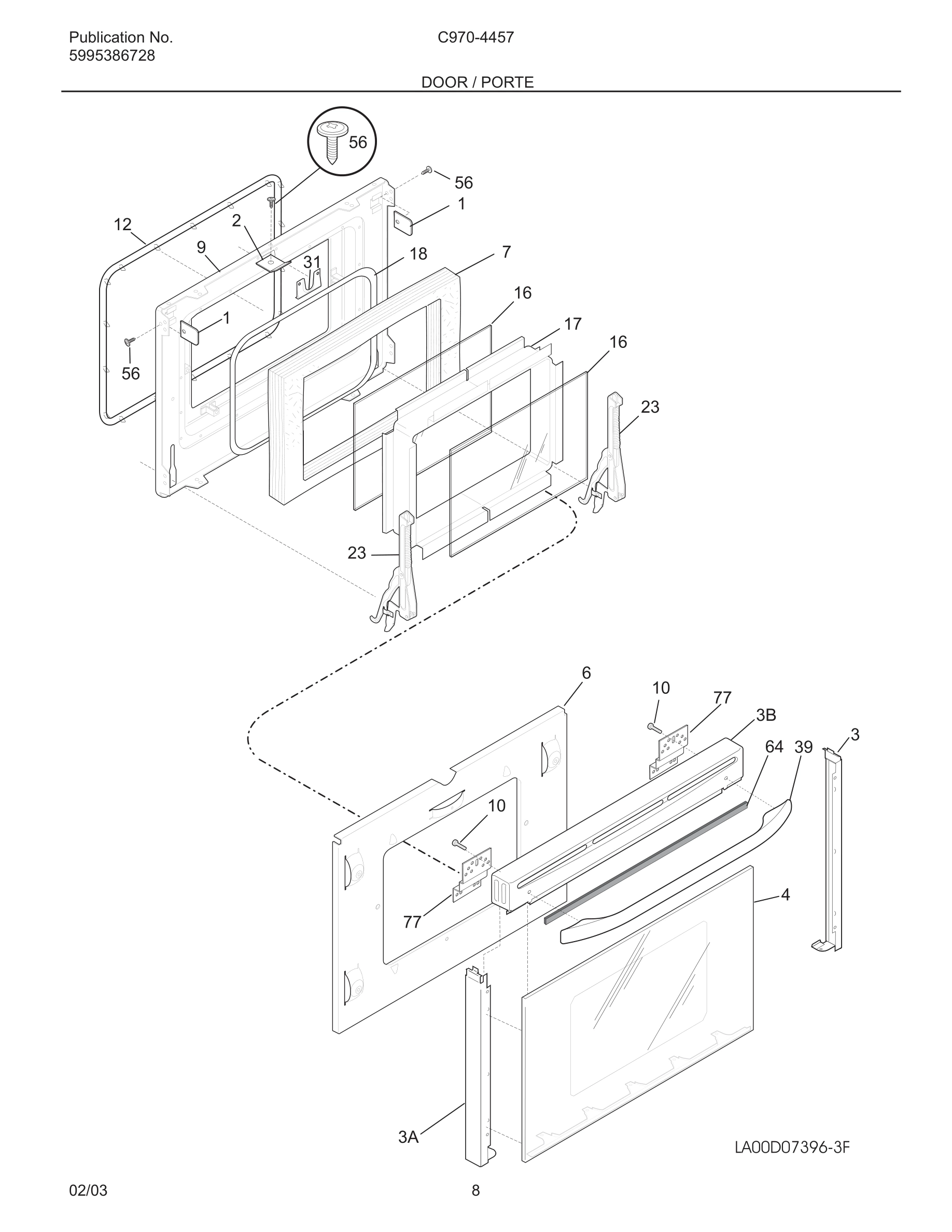

09 - DOOR / PORTE

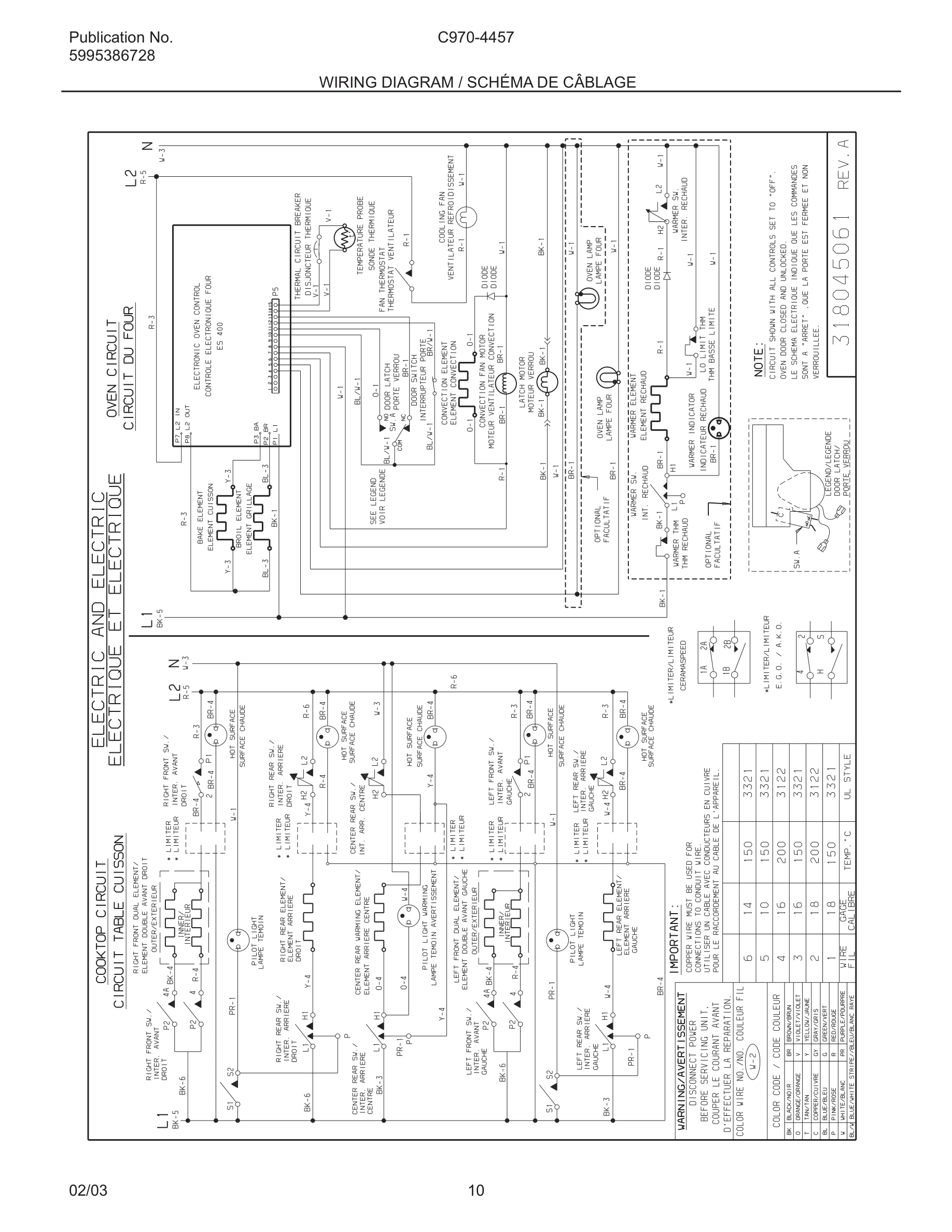

10 - WIRING DIAGRAM
Common parts from model Kenmore C970-445725 RANGE
*
Cap,plug WCI 5303325173 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187715 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 318134011 Contact Us For Availability
6
Support,element ,(2) WCI 318111103 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
11
Bracket,drawer WCI 5303311125 Contact Us For Availability
13
Channel,drawer ,RH WCI 5303311129 Contact Us For Availability
13A
Channel,drawer ,LH WCI 5303311130 Contact Us For Availability
15#
Element,surface ,6/9 ,700/2100W ,dual radiant WCI 318198910 Contact Us For Availability
15C#
Element,surface ,6/9 ,1000/2100w ,dual radian WCI 318198911 Contact Us For Availability
15D#
Element,warmer zone ,100W WCI 316098202 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Main Top,glass ,white/black WCI 318154722 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
31
Knob,control ,white WCI 316240800 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
53
Bracket,indicator light ,hot surface WCI 318125931 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
55
Spacer,element WCI 5303317178 Contact Us For Availability
56
Screw,element ,6 x 3/4 WCI 5303317179 Contact Us For Availability
56
Trim,oven ,white ,front WCI 318002612 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072502 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
70
Bracket,slide ,rear WCI 5303311143 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
71
Magnet & spring assy WCI 5303311144 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
76
Front,oven WCI 318124100 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven complete WCI 318089616 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
87
Plate,mounting WCI 318111801 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
102
Support,oven front WCI 5303311142 Contact Us For Availability
107
Cover,fan WCI 318219401 Contact Us For Availability
108#
Motor,blower WCI 318073012 Contact Us For Availability
114
Plate,filler WCI 318175100 Contact Us For Availability
125#
Motor,fan WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
161#
Element,convection ,2500 W WCI 318050710 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
217
Warning plate WCI 5303325528 Contact Us For Availability
218
Deflector WCI 318123901 Contact Us For Availability
219#
Thermostat,safety WCI 318003606 Contact Us For Availability
272
Tube,protector WCI 5303311207 Contact Us For Availability
× ![]()
