Model Kenmore C970-416183 OVEN – Common Parts & Diagrams

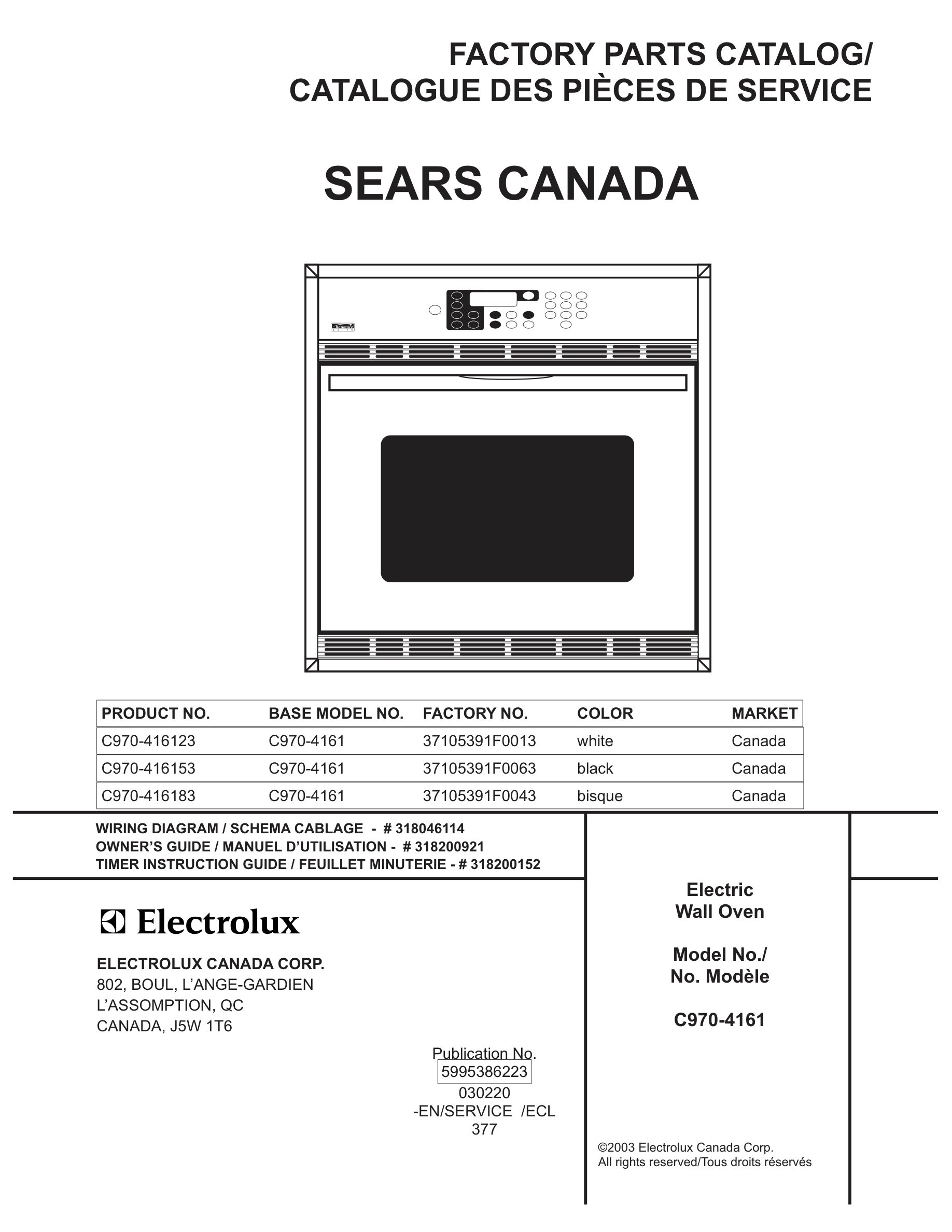

01 - COVER

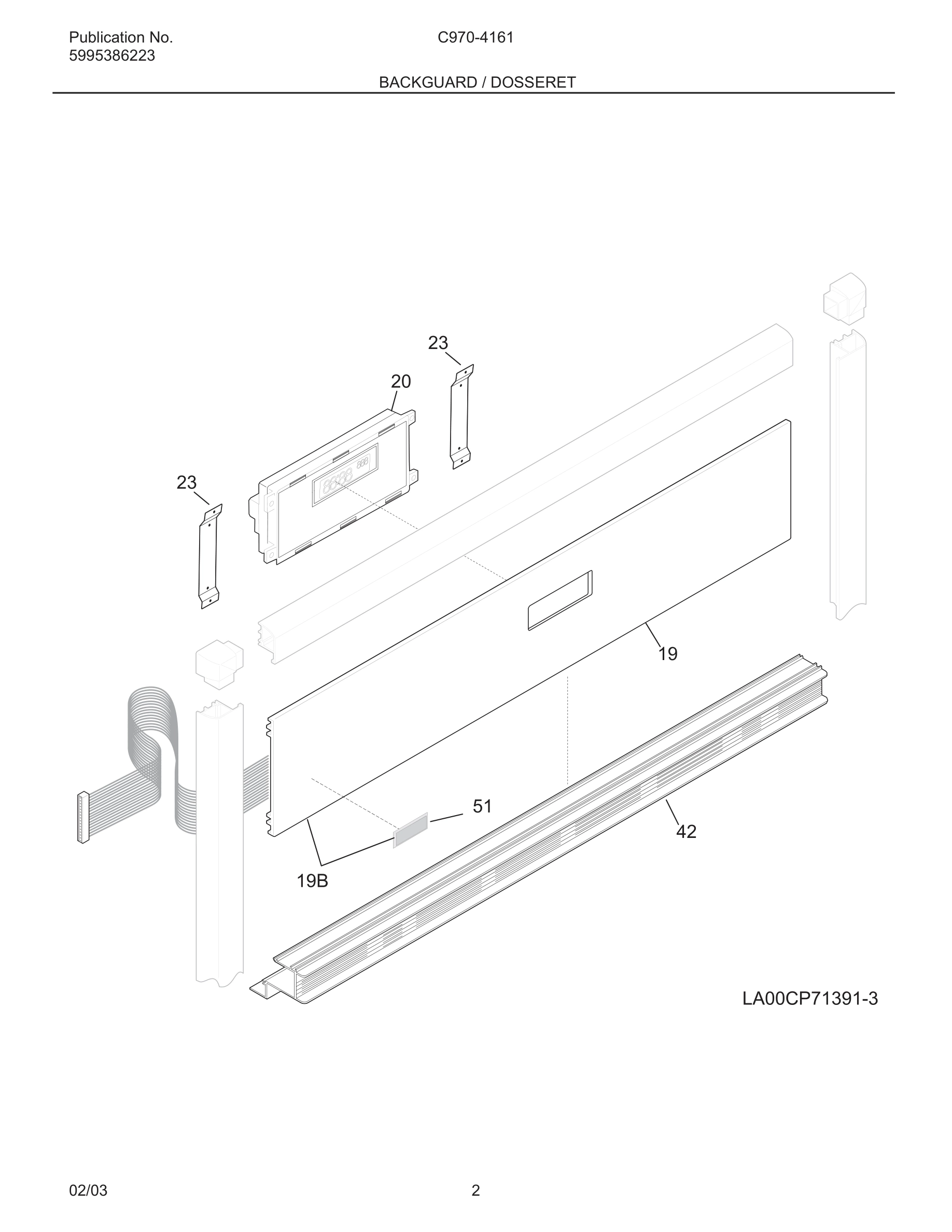

03 - BACKGUARD / DOSSERET

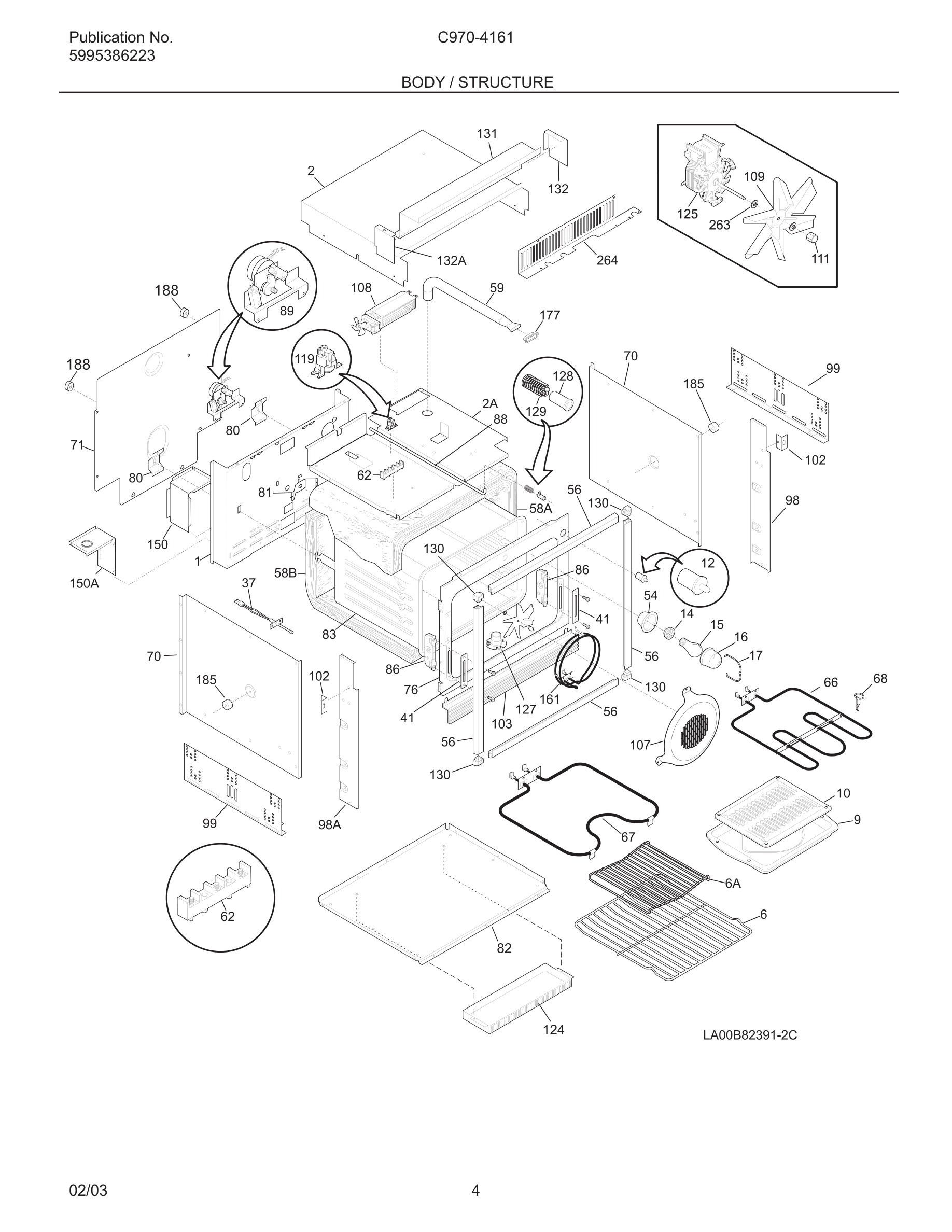

05 - BODY / STRUCTURE

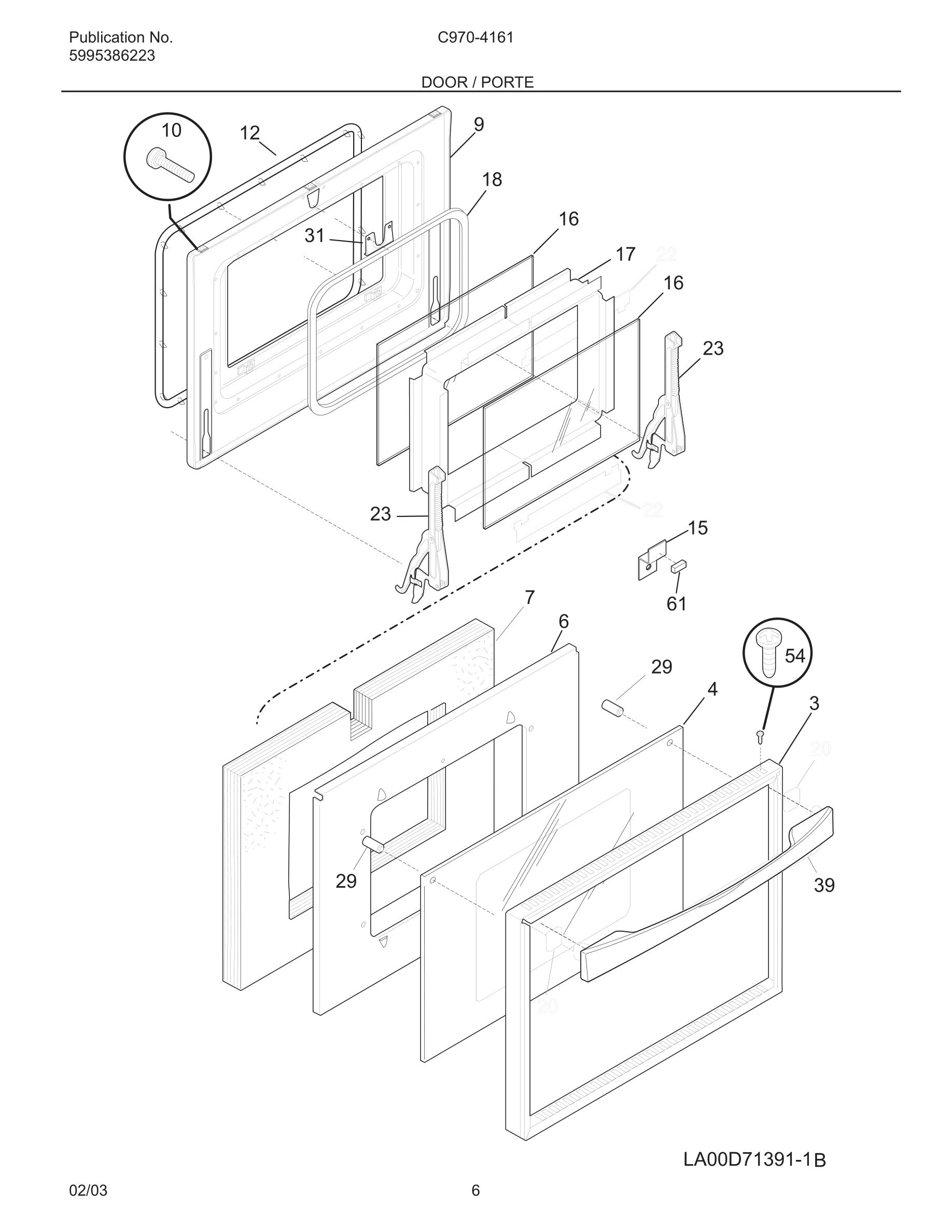

07 - DOOR / PORTE

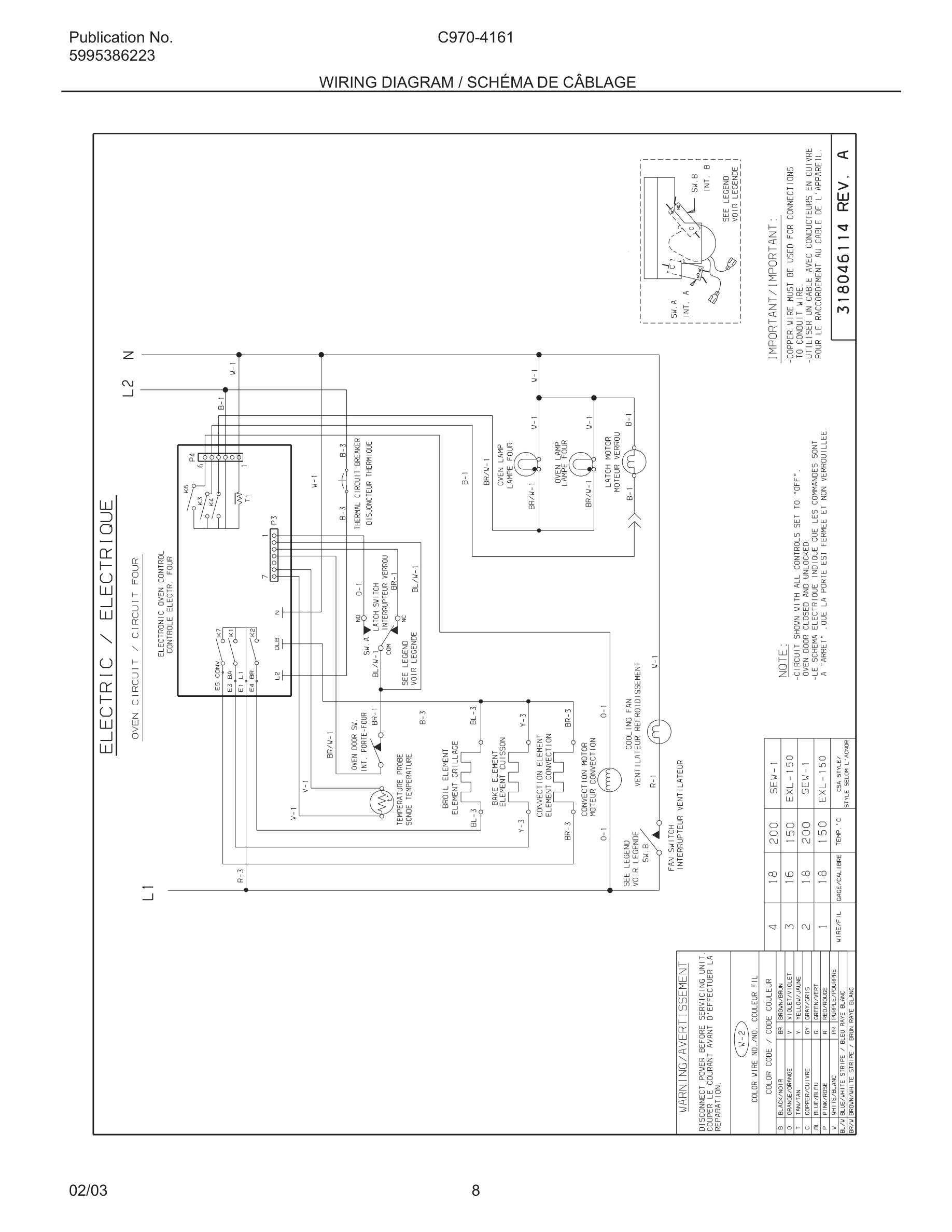

08 - WIRING DIAGRAM
Common parts from model Kenmore C970-416183 OVEN
3
Trim,oven door ,bisque WCI 318026131 Contact Us For Availability
4
Glass,oven door ,bisque ,outer WCI 318041313 Contact Us For Availability
6
Baffle,door WCI 318056813 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Liner,oven door WCI 318048610 Contact Us For Availability
10
Screw,10-12 X 2 5/8 ,handle WCI 5304417357 Contact Us For Availability
15
Bracket,glass ,(3) WCI 318091102 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
23
Hinge,oven door ,(2) WCI 5303311259 Contact Us For Availability
29
Spacer,door WCI 5304417163 Contact Us For Availability
31
Latch,door WCI 318065102 Contact Us For Availability
39
Handle,oven door ,bisque WCI 318223812 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
56
Trim,top & bottom ,bisque ,(4) WCI 318083508 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072504 Contact Us For Availability
61
Foam seal,(3) WCI 5303316982 Contact Us For Availability
70
Shield,insulation WCI 5303300142 Contact Us For Availability
71
Shield,wire WCI 318071201 Contact Us For Availability
76
Front,oven WCI 318056202 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
82
Shield,oven bottom WCI 318072302 Contact Us For Availability
83
Liner,oven assy WCI 318089617 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
88
Rod,latch WCI 5303311222 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
98
Trim,side ,inner,RH WCI 318029201 Contact Us For Availability
98A
Trim,side ,inner,LH WCI 318029203 Contact Us For Availability
99
Support,adjustable WCI 318055420 Contact Us For Availability
102
Support,oven front ,(2) WCI 318090900 Contact Us For Availability
103
Trim,base ,bisque WCI 318028504 Contact Us For Availability
107
Cover,fan WCI 318219401 Contact Us For Availability
108#
Motor,fan WCI 318073001 Contact Us For Availability
109
Blade,fan WCI 5303311203 Contact Us For Availability
124
Box,vent WCI 318076903 Contact Us For Availability
125*
Washer,motor ,convection WCI 318142100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
130
End Cap,trim ,bisque WCI 318070805 Contact Us For Availability
131
Cover,control housing WCI 318102301 Contact Us For Availability
132
End,cover ,RH ,control housing WCI 318101704 Contact Us For Availability
132A
End,cover ,LH ,control housing WCI 318101705 Contact Us For Availability
150
Bracket,support ,LH WCI 318072205 Contact Us For Availability
150A
Bracket,support ,RH WCI 318072204 Contact Us For Availability
177
Gasket,vent WCI 318053800 Contact Us For Availability
264
Shield,wire WCI 318143813 Contact Us For Availability
× ![]()
