Model Maytag C8TXNWFXW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

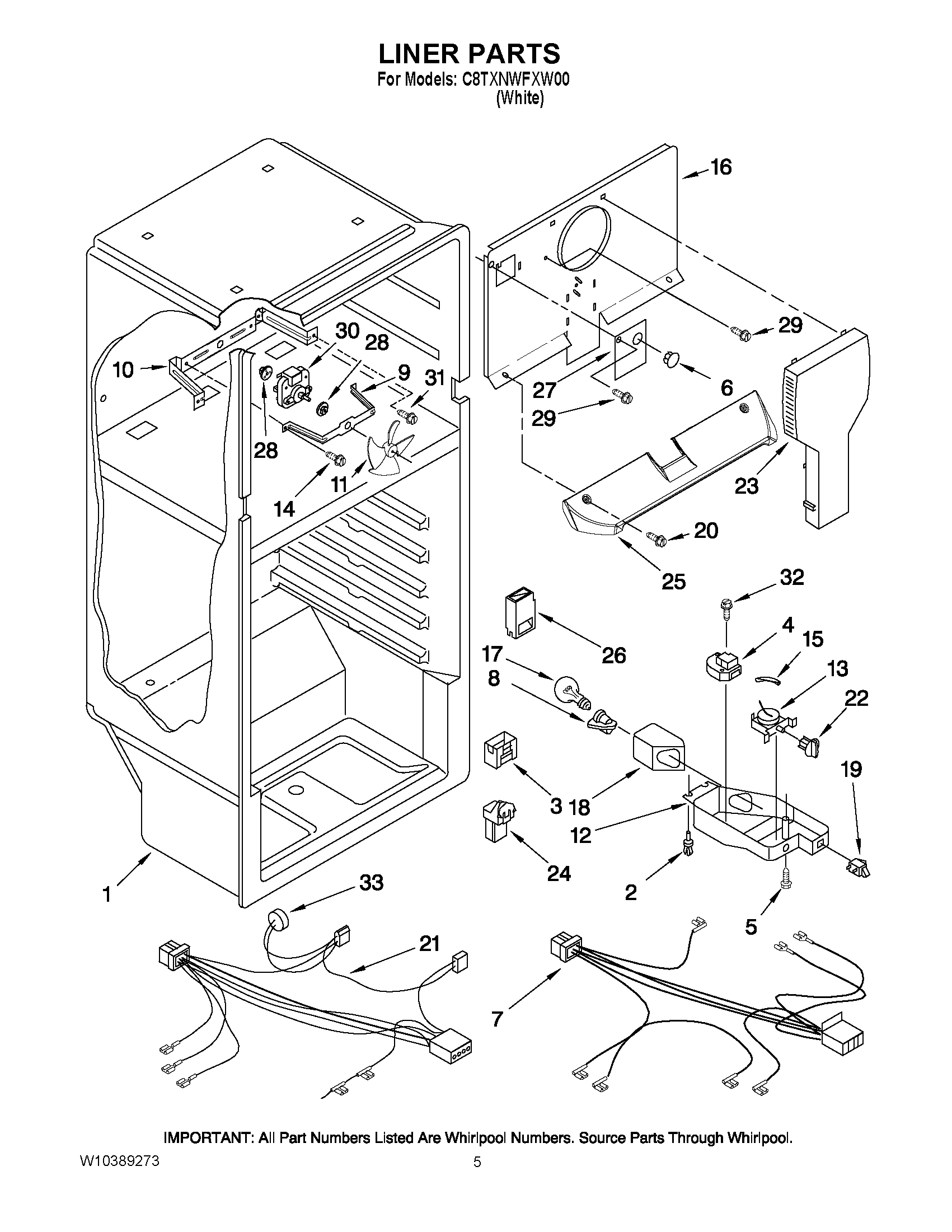

03 - LINER PARTS

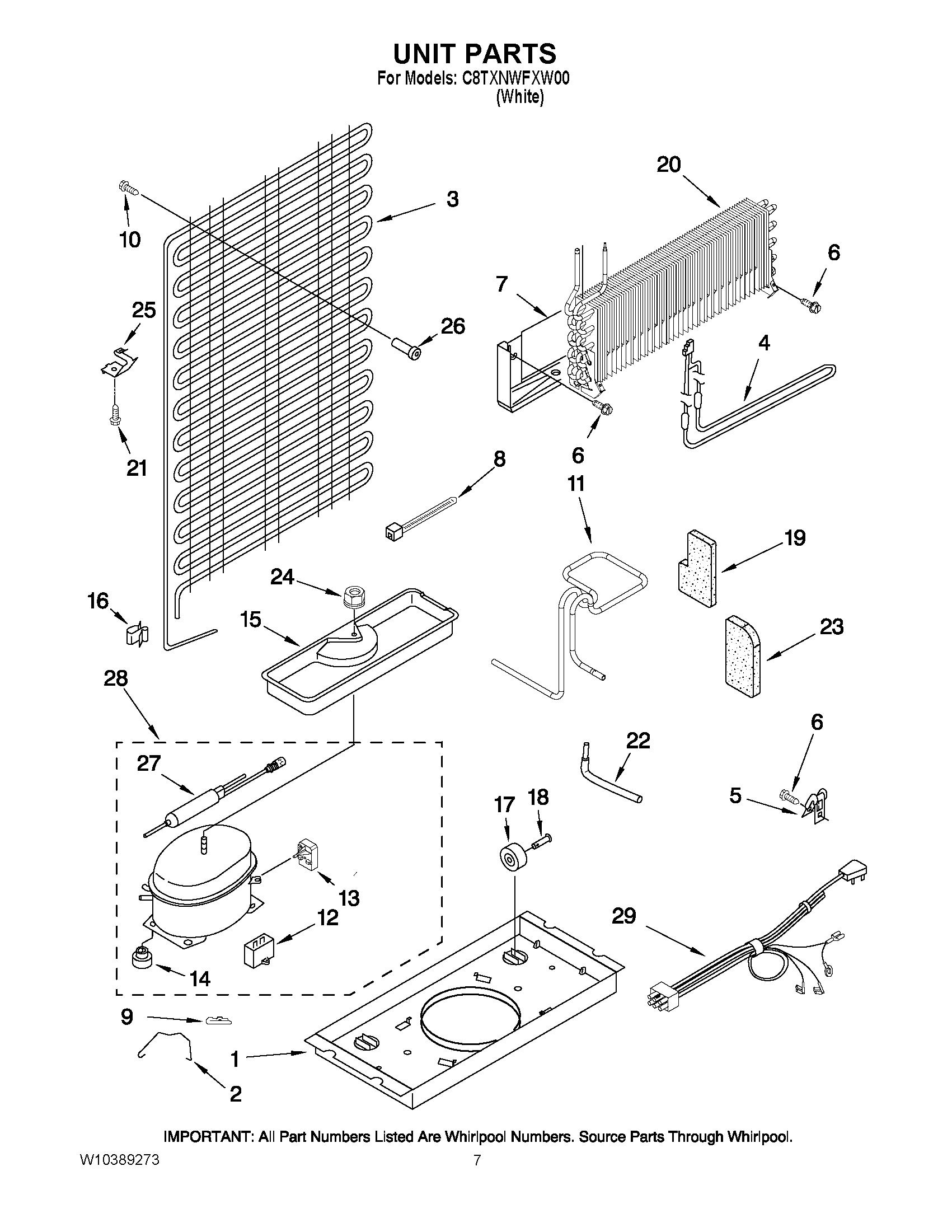

04 - UNIT PARTS

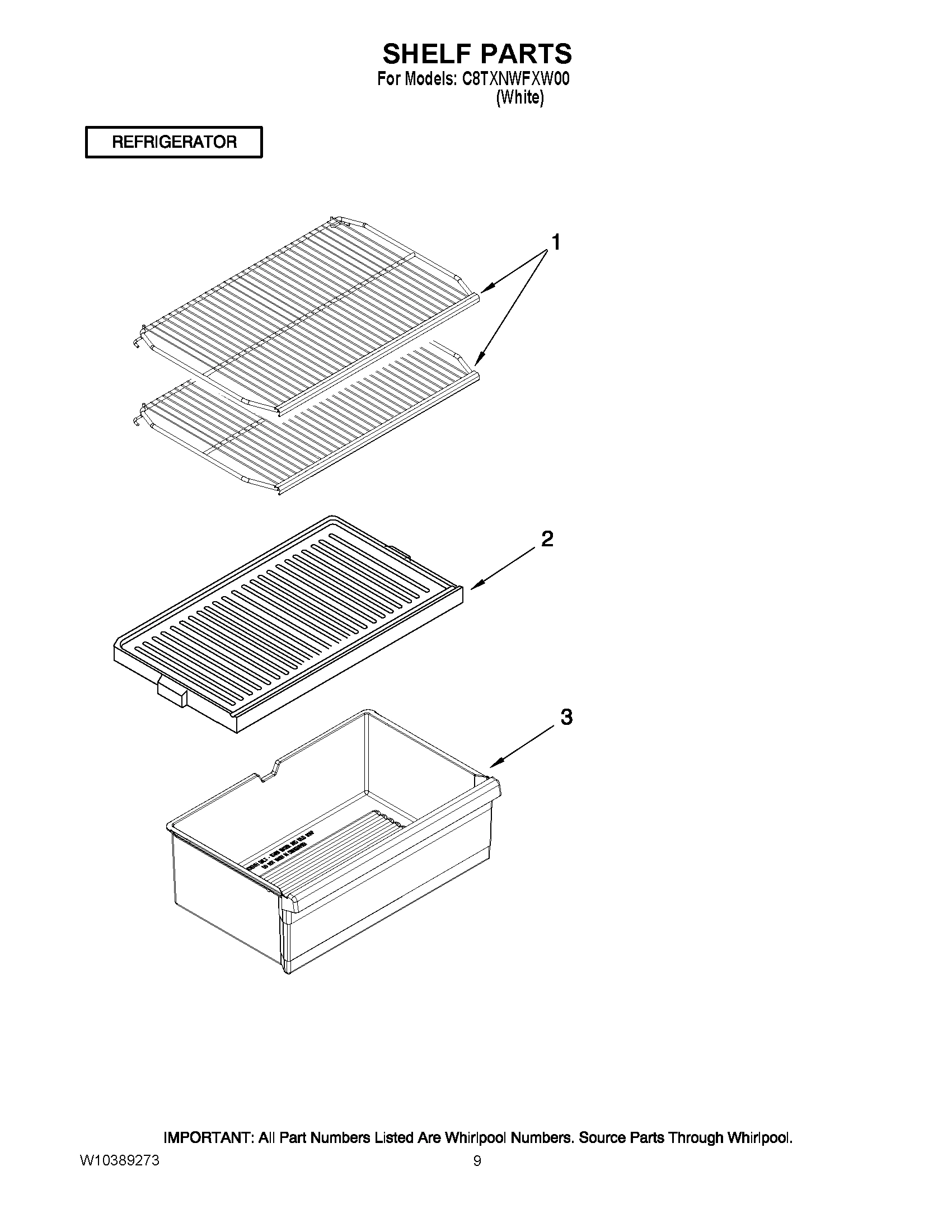

05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag C8TXNWFXW00 REFRIGERATOR
1
MAY 2326133 MAY 2326133 Contact Us For Availability
1
MAY W10287925 MAY W10287925 Contact Us For Availability
1
MAY W10294350 MAY W10294350 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES 9 & 12) (WHITE) MAY W10287921 Contact Us For Availability
1
MAY W10222451 MAY W10222451 Contact Us For Availability
1
SHELF MAY W10142522 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 488921 MAY 488921 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
STRAP, BALE MAY 2212996 Contact Us For Availability
2
MAY 9791600 MAY 9791600 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 8281206 MAY 8281206 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY W10219349 MAY W10219349 Contact Us For Availability
3
Crisper Pan MAY 2192009 Contact Us For Availability
4
Washer (7/64) MAY 487802 Contact Us For Availability
4
MAY 2212648 MAY 2212648 Contact Us For Availability
4
TIMER, DEFROST MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
5
Washer (1/16) MAY 487576 Contact Us For Availability
5
HANDLE, SNAP-IN MAY 984493 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 549193 MAY 549193 Contact Us For Availability
6
LEVELER SCREW MAY W10133299 Contact Us For Availability
6
PLUG-TRIM MAY 2195916 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
7
MAY 489497 MAY 489497 Contact Us For Availability
7
END CAP, TRIM MAY 2156003 Contact Us For Availability
7
WIRE ASSY. CONTROL BOX MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
8
MAY 2166086 MAY 2166086 Contact Us For Availability
8
MAY 2189202 MAY 2189202 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2263990 MAY 2263990 Contact Us For Availability
9
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
9
DOOR GASKET, MAGNETIC MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY 24364001 MAY 24364001 Contact Us For Availability
10
Hinge Butt, Btm MAY 2325482 Contact Us For Availability
10
Nameplate MAY 2326131 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 8533892 MAY 8533892 Contact Us For Availability
11
Hinge-Pin, Btm MAY 2325483 Contact Us For Availability
11
MAY W10234242 MAY W10234242 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY W10289688 MAY W10289688 Contact Us For Availability
12
MAY 2201567 MAY 2201567 Contact Us For Availability
12
MAY 2262054 MAY 2262054 Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
12
CAPACITATOR (SERVICE) MAY 2169373 Contact Us For Availability
12
Capacitator (Production) MAY 2264017 Contact Us For Availability
13
HOLE PLUG MAY 2201012 Contact Us For Availability
13
MAY 2266727 MAY 2266727 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10249964 Contact Us For Availability
13
START DEVICE, COMBINATION (START RELAY AND OV MAY W10330836 Contact Us For Availability
14
Corner Filler MAY 2166003 Contact Us For Availability
14
FREEZER DOOR (INCLUDES 12 & 16) (WHITE) MAY 2316343W Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
Grommet (Production) MAY 2264447 Contact Us For Availability
15
Hole Plug, Handle MAY 2189000 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY 2201801 MAY 2201801 Contact Us For Availability
16
Door Gasket, Magnetic MAY W10190031 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2266738 MAY 2266738 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
RIVET, AXLE MAY 2264756 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
Wedge-Evap. MAY 2262191 Contact Us For Availability
20
MAY 2262178 MAY 2262178 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
WIRING, FREEZER (INCLUDES ITEM 33) MAY W10290502 Contact Us For Availability
21
MAY 489442 MAY 489442 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
MAY VS20001 MAY VS20001 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 489153 MAY 489153 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2172892 MAY 2172892 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
MAY 2258452 MAY 2258452 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
DRIER (SEVRICE) MAY W10143759 Contact Us For Availability
27
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (AL MAY W10252075 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
WIRE ASSEMBLY UNIT MAY W10151654 Contact Us For Availability
30
MAY W10188389 MAY W10188389 Contact Us For Availability
32
Screw MAY 488693 Contact Us For Availability
33
MAY 2266067 MAY 2266067 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF94) MAY 2155469 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Biscuit ( MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
