  • Whirlpool C3408B1

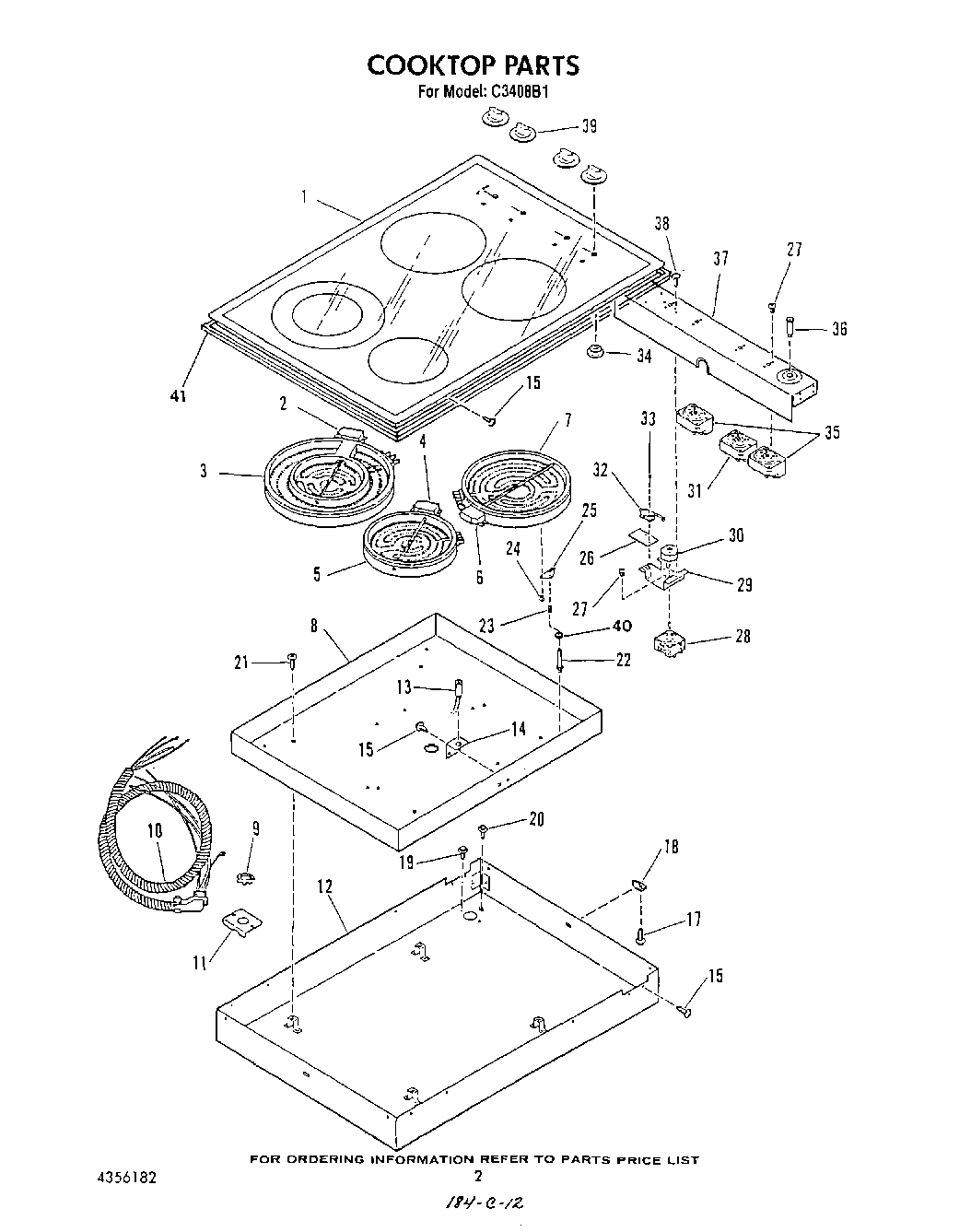

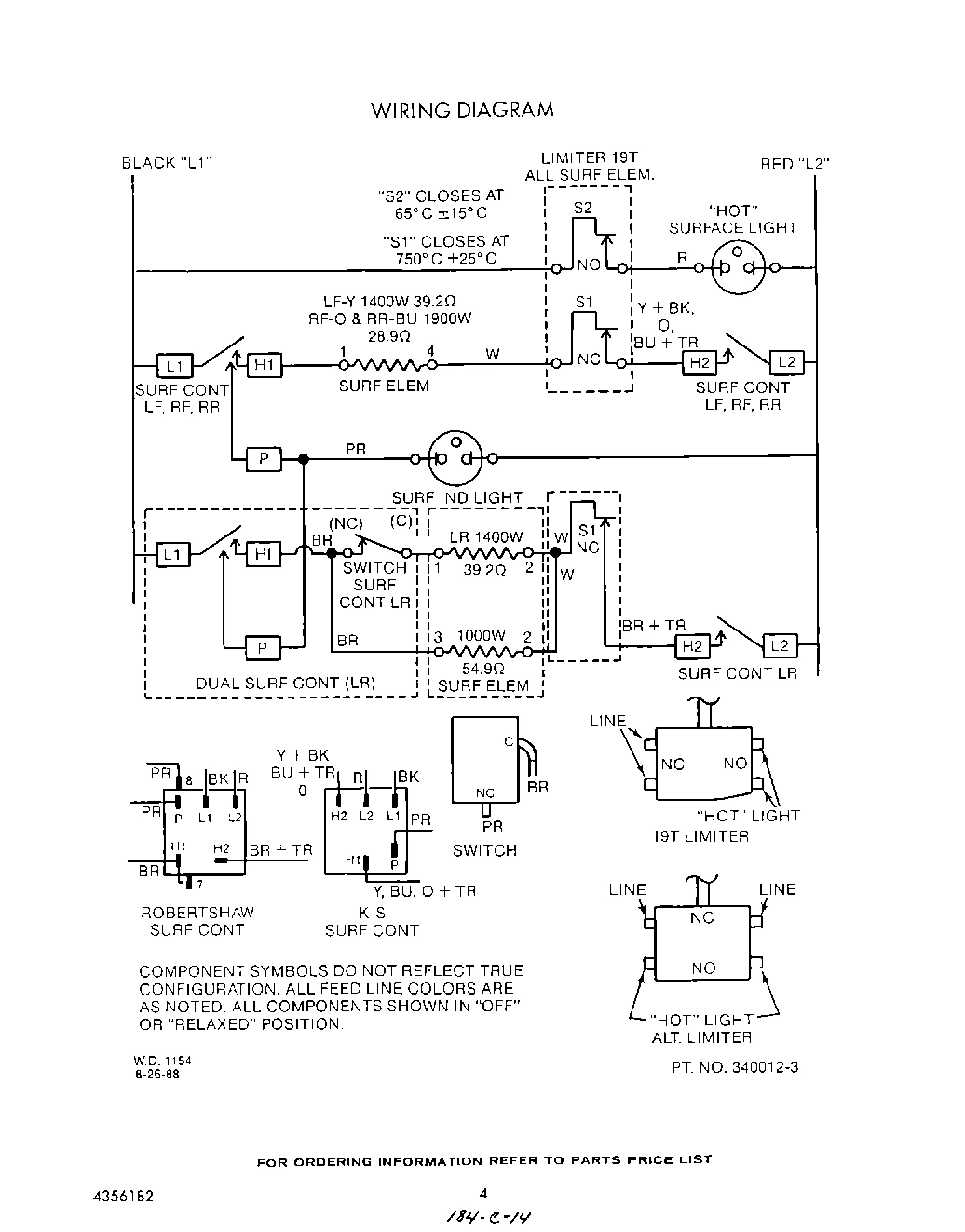

Model Whirlpool C3408B1 ELECTRIC COOK-TOP – Common Parts & Diagrams

xParts Not Shown On Illustration
xParts Not Shown On Illustration WPL ARI21156A1 Contact Us For Availability
View on Model
1
Harness, Wire (Wire, Main)
Harness, Wire (Wire, Main) WPL 4342719 Contact Us For Availability
View on Model
1
Cooktop, Glass
Cooktop, Glass WPL 4342692 Contact Us For Availability
View on Model
2
Flag Terminal 1/4``
Flag Terminal 1/4`` WPL 4342720 Contact Us For Availability
View on Model
2
Limit Control
Limit Control WPL 4342693 Contact Us For Availability
View on Model
3
Faston Terminal (3/16``)
Faston Terminal (3/16``) WPL 4342721 Contact Us For Availability
View on Model
3
Heater, Radiant- Left Rear
Heater, Radiant- Left Rear WPL 4342694 Contact Us For Availability
View on Model
4
Limit Control
Limit Control WPL 4342695 Contact Us For Availability
View on Model
5
Heater, Radiant- Left Front
Heater, Radiant- Left Front WPL 4342696 Contact Us For Availability
View on Model
6
Limit Control
Limit Control WPL 4342697 Contact Us For Availability
View on Model
7
Heater, Radiant- Rt. Rear-Rt. Front
Heater, Radiant- Rt. Rear-Rt. Front WPL 4342698 Contact Us For Availability
View on Model
8
Box, Burner
Box, Burner WPL 4342699 Contact Us For Availability
View on Model
9
Nut, Lock
Nut, Lock WPL 4324132 Contact Us For Availability
View on Model
10
Conduit-Wire Asm.
Conduit-Wire Asm. WPL 4342700 Contact Us For Availability
View on Model
11
Plate, Conduit
Plate, Conduit WPL 4336991 Contact Us For Availability
View on Model
12
Cover, Heater
Cover, Heater WPL 4342701 Contact Us For Availability
View on Model
13
Light, Indicator
Light, Indicator WPL 4342702 Contact Us For Availability
View on Model
14
Bracket, Light
Bracket, Light WPL 4342703 Contact Us For Availability
View on Model
15
Screw
Screw WPL 4337728 Contact Us For Availability
View on Model
17
Screw No.10-32x1`` (2 Req)
Screw No.10-32x1`` (2 Req) WPL 4327903 Contact Us For Availability
View on Model
18
Clip, Retainer
Clip, Retainer WPL 4337158 Contact Us For Availability
View on Model
20
Screw No.10-32x7/16
Screw No.10-32x7/16 WPL 4331573 Contact Us For Availability
View on Model
21
Screw, No.8-32 x 1/4
Screw, No.8-32 x 1/4 WPL 4333569 Contact Us For Availability
View on Model
22
Stud, Heater
Stud, Heater WPL 4342704 Contact Us For Availability
View on Model
23
Spring, Heater
Spring, Heater WPL 4342705 Contact Us For Availability
View on Model
24
Screw, (24)
Screw, (24) WPL 4336235 Contact Us For Availability
View on Model
25
Bracket, Heater
Bracket, Heater WPL 4342706 Contact Us For Availability
View on Model
26
Insulator
Insulator WPL 4338222 Contact Us For Availability
View on Model
27
Screw, No.8-32 x 1/4
Screw, No.8-32 x 1/4 WPL 4350281 Contact Us For Availability
View on Model
28
Switch, Infinite
Switch, Infinite WPL 4342865 Contact Us For Availability
View on Model
29
Bracket, Infinite Switch
Bracket, Infinite Switch WPL 4342708 Contact Us For Availability
View on Model
30
Switch, Cam
Switch, Cam WPL 4342709 Contact Us For Availability
View on Model
32
Switch, Micro
Switch, Micro WPL 4342711 Contact Us For Availability
View on Model
33
Screw
Screw WPL 4335881 Contact Us For Availability
View on Model
34
Seal, Infinite Control
Seal, Infinite Control WPL 4342712 Contact Us For Availability
View on Model
36
Light, Indicator
Light, Indicator WPL 4342714 Contact Us For Availability
View on Model
37
Mounting, Control Panel
Mounting, Control Panel WPL 4342715 Contact Us For Availability
View on Model
38
Screw
Screw WPL 4324445 Contact Us For Availability
View on Model
39
Knob, Infinite (4)
Knob, Infinite (4) WPL 4342716 Contact Us For Availability
View on Model
40
Washer
Washer WPL 4323647 Contact Us For Availability
View on Model
41
xOwners Manual
xOwners Manual WPL 4342717 Contact Us For Availability
View on Model
41
xInstallation Guide
xInstallation Guide WPL 4342718 Contact Us For Availability
View on Model
41
Barrier, Light
Barrier, Light WPL 4342866 Contact Us For Availability
View on Model
41
xRepair Parts List
xRepair Parts List WPL 4356182A Contact Us For Availability
View on Model
