Model Maytag C31100SAT GAS RANGE – Common Parts & Diagrams

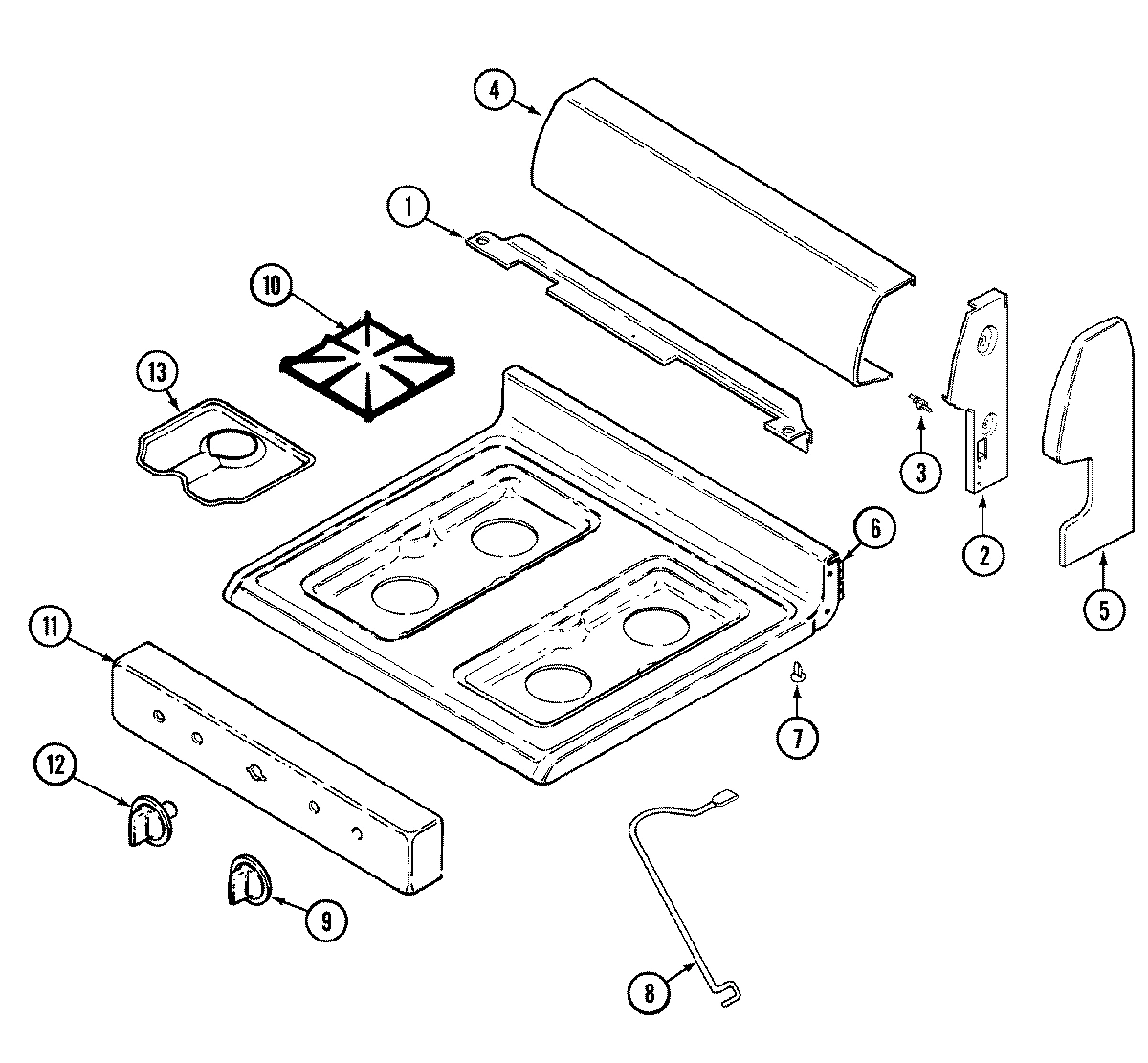

01 - CONTROL PANEL/TOP ASSEMBLY

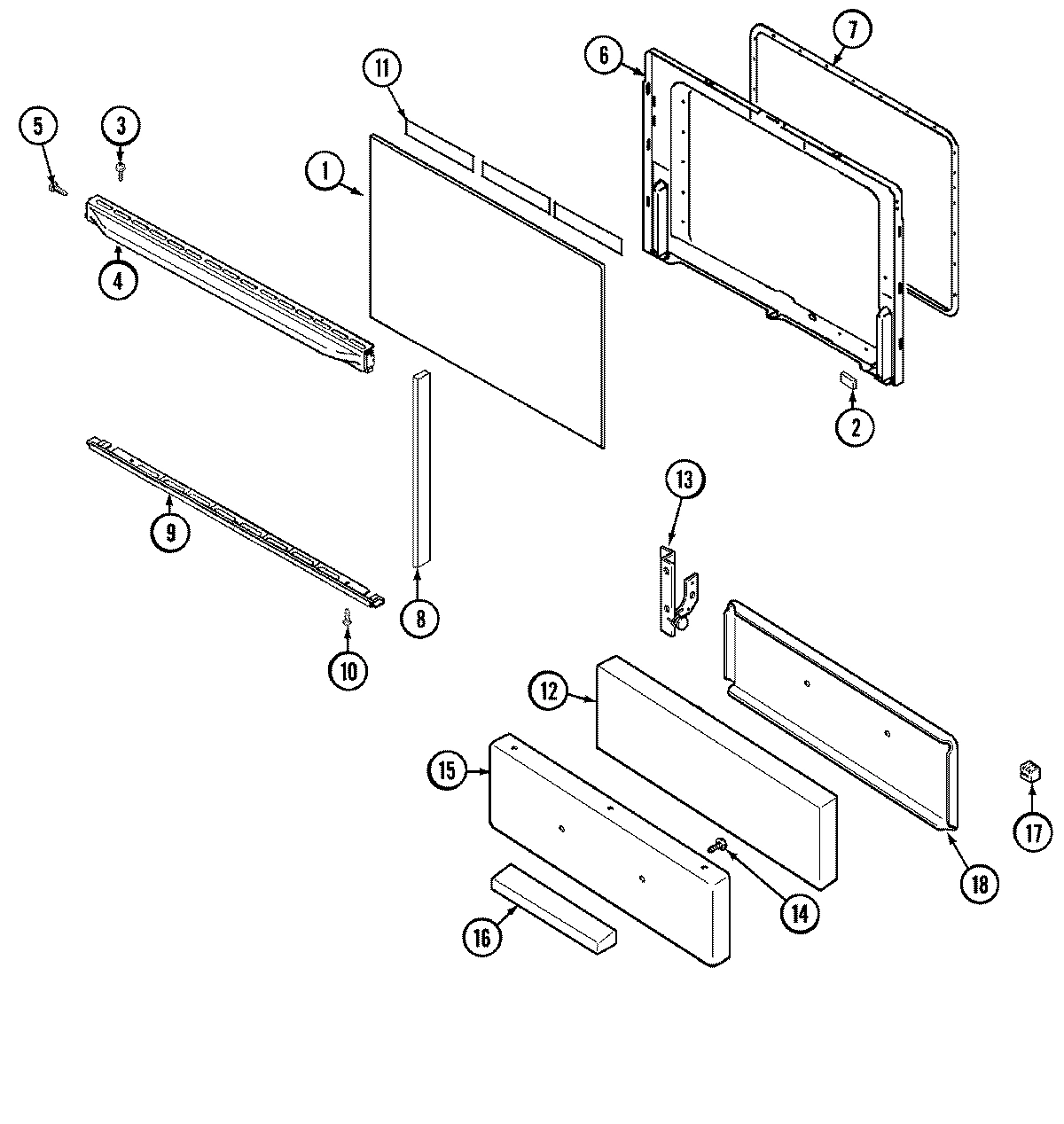

02 - DOOR/DRAWER (C31100SAx)
03 - GAS CONTROLS
04 - OVEN/BASE
Common parts from model Maytag C31100SAT GAS RANGE
1
MAY 7902P325-60 MAY 7902P325-60 Contact Us For Availability
1
MAY 74002424 MAY 74002424 Contact Us For Availability
1
MAY 74001064 MAY 74001064 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 74002383 MAY 74002383 Contact Us For Availability
2
MAY 74002433 MAY 74002433 Contact Us For Availability
3
MAY 7101P010-60 MAY 7101P010-60 Contact Us For Availability
3
MAY 74002425 MAY 74002425 Contact Us For Availability
3
MAY 74002311 MAY 74002311 Contact Us For Availability
4
MAY 74003429 MAY 74003429 Contact Us For Availability
4
MAY 1555222 MAY 1555222 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
5
MAY 74002406 MAY 74002406 Contact Us For Availability
5
MAY 74002407 MAY 74002407 Contact Us For Availability
5
MAY 74002432 MAY 74002432 Contact Us For Availability
5
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
5
MAY 7510P002-60 MAY 7510P002-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
6
MAY 74005049 MAY 74005049 Contact Us For Availability
6
MAY 74003240 MAY 74003240 Contact Us For Availability
6
MAY 7103P128-60 MAY 7103P128-60 Contact Us For Availability
6
MAY 74002426 MAY 74002426 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
8
MAY 74003430 MAY 74003430 Contact Us For Availability
8
MAY 74004084 MAY 74004084 Contact Us For Availability
8
MAY 74002435 MAY 74002435 Contact Us For Availability
8
MAY 74003007 MAY 74003007 Contact Us For Availability
9
MAY 74003332 MAY 74003332 Contact Us For Availability
9
MAY 74003432 MAY 74003432 Contact Us For Availability
9
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
11
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
11
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
11
MAY 74002411 MAY 74002411 Contact Us For Availability
11
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
11
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
11
MAY 7432P068-60 MAY 7432P068-60 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 74001814 MAY 74001814 Contact Us For Availability
12
MAY 3414F108-44 MAY 3414F108-44 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
13
MAY 74002398 MAY 74002398 Contact Us For Availability
13
MAY 1555261K MAY 1555261K Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74002428 MAY 74002428 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 74005046 MAY 74005046 Contact Us For Availability
15
MAY 12001100 MAY 12001100 Contact Us For Availability
15
MAY 74001062 MAY 74001062 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 74001820 MAY 74001820 Contact Us For Availability
16
MAY 1555251 MAY 1555251 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
MAY 74002397 MAY 74002397 Contact Us For Availability
18
MAY 74007553 MAY 74007553 Contact Us For Availability
NI
MAY 16008701 MAY 16008701 Contact Us For Availability
NI
MAY 16010161 MAY 16010161 Contact Us For Availability
NI
MAY 74004367 MAY 74004367 Contact Us For Availability
NI
MAY 8113P434-60 MAY 8113P434-60 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
× ![]()
