Model Whirlpool C31100SAAP GAS RANGE – Common Parts & Diagrams

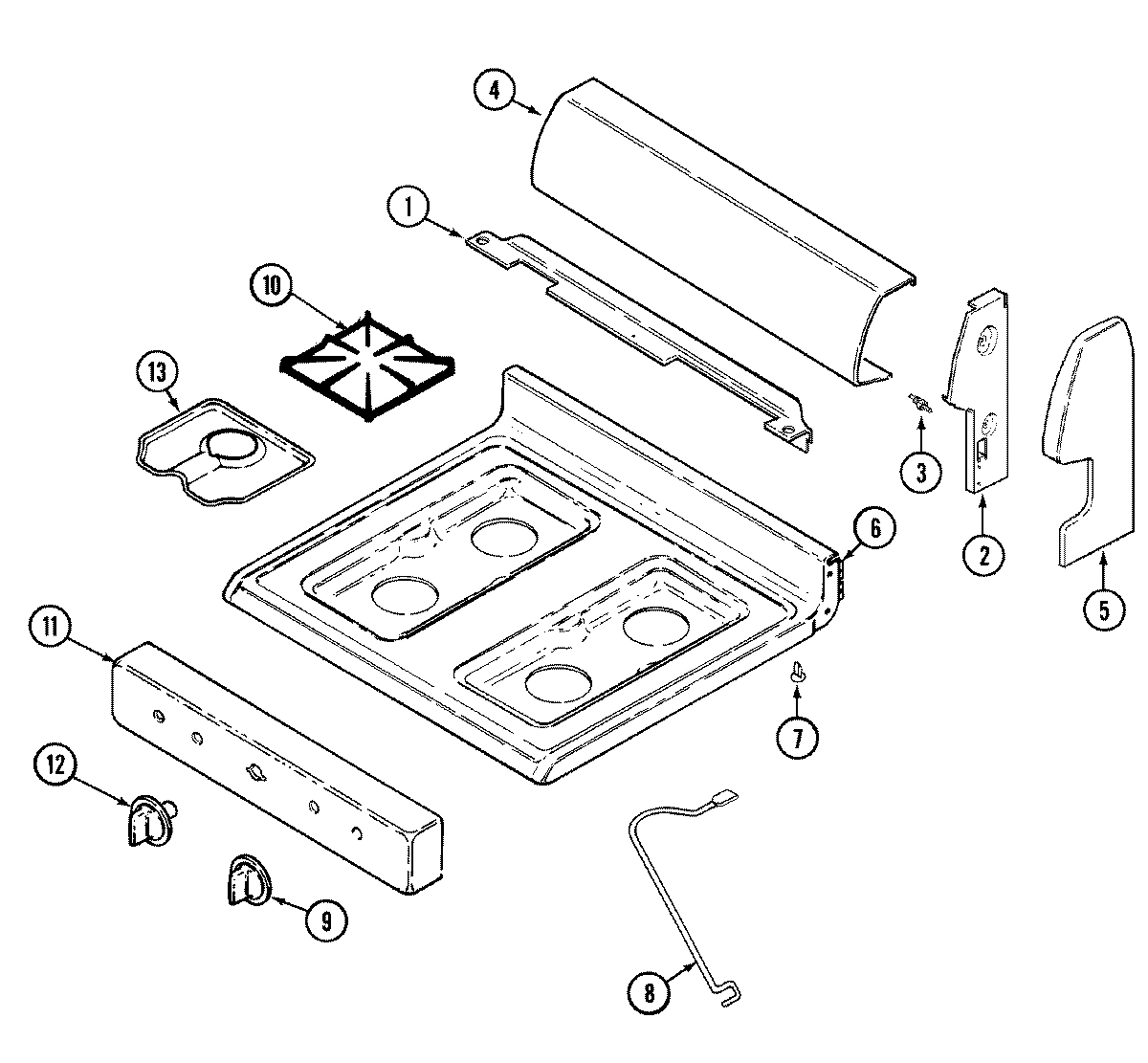

02 - CONTROL PANEL/TOP ASSEMBLY

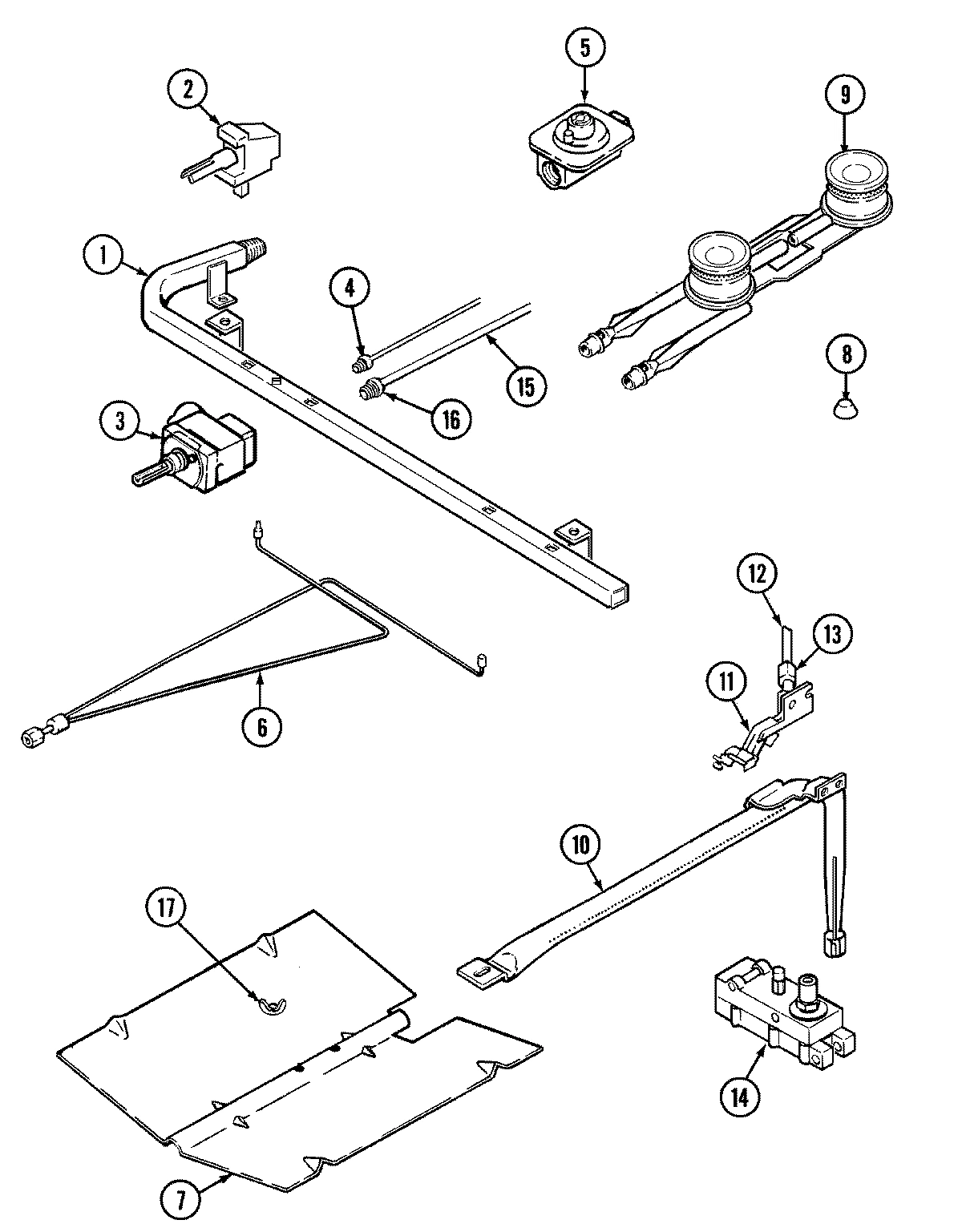

04 - GAS CONTROLS

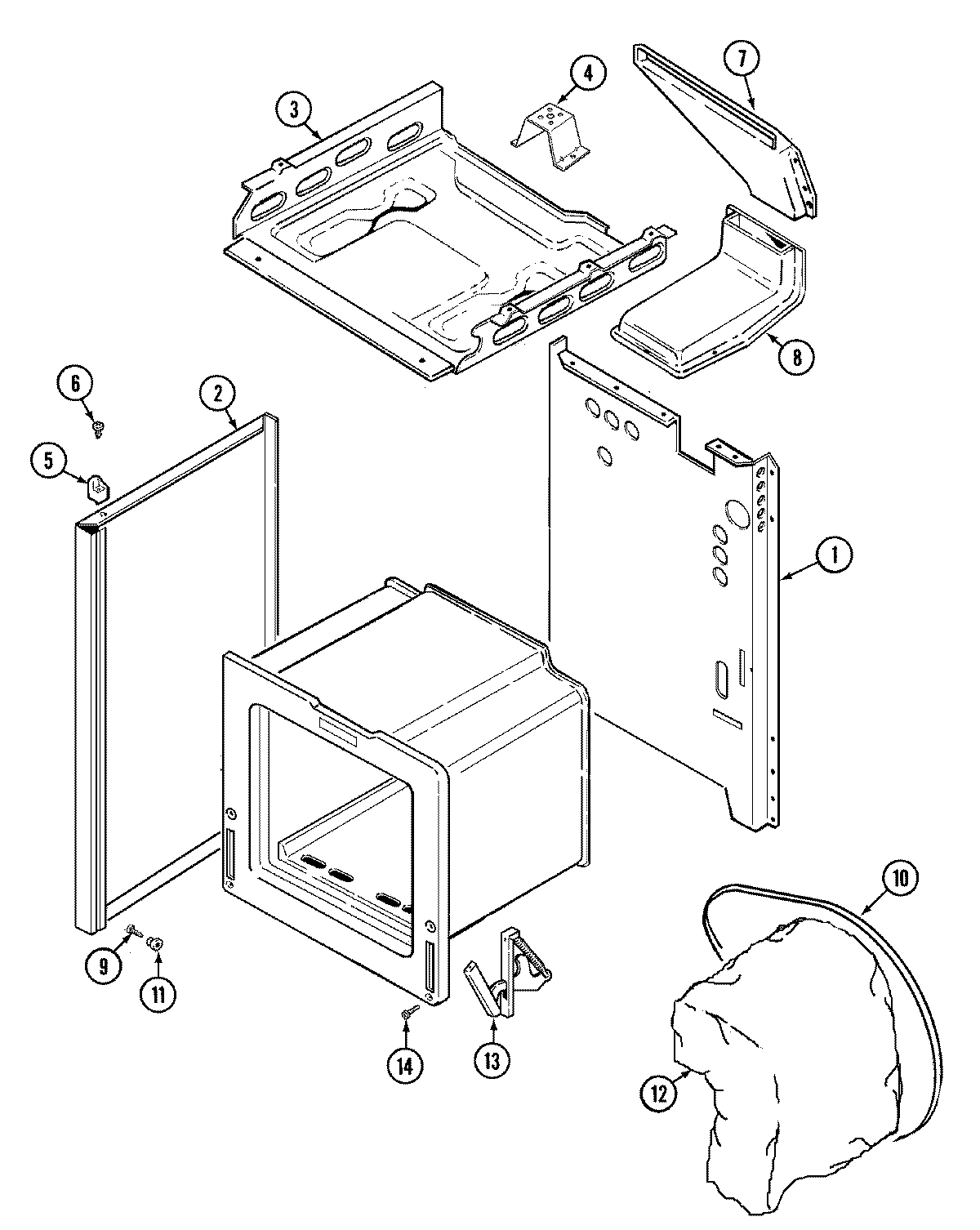

01 - BODY

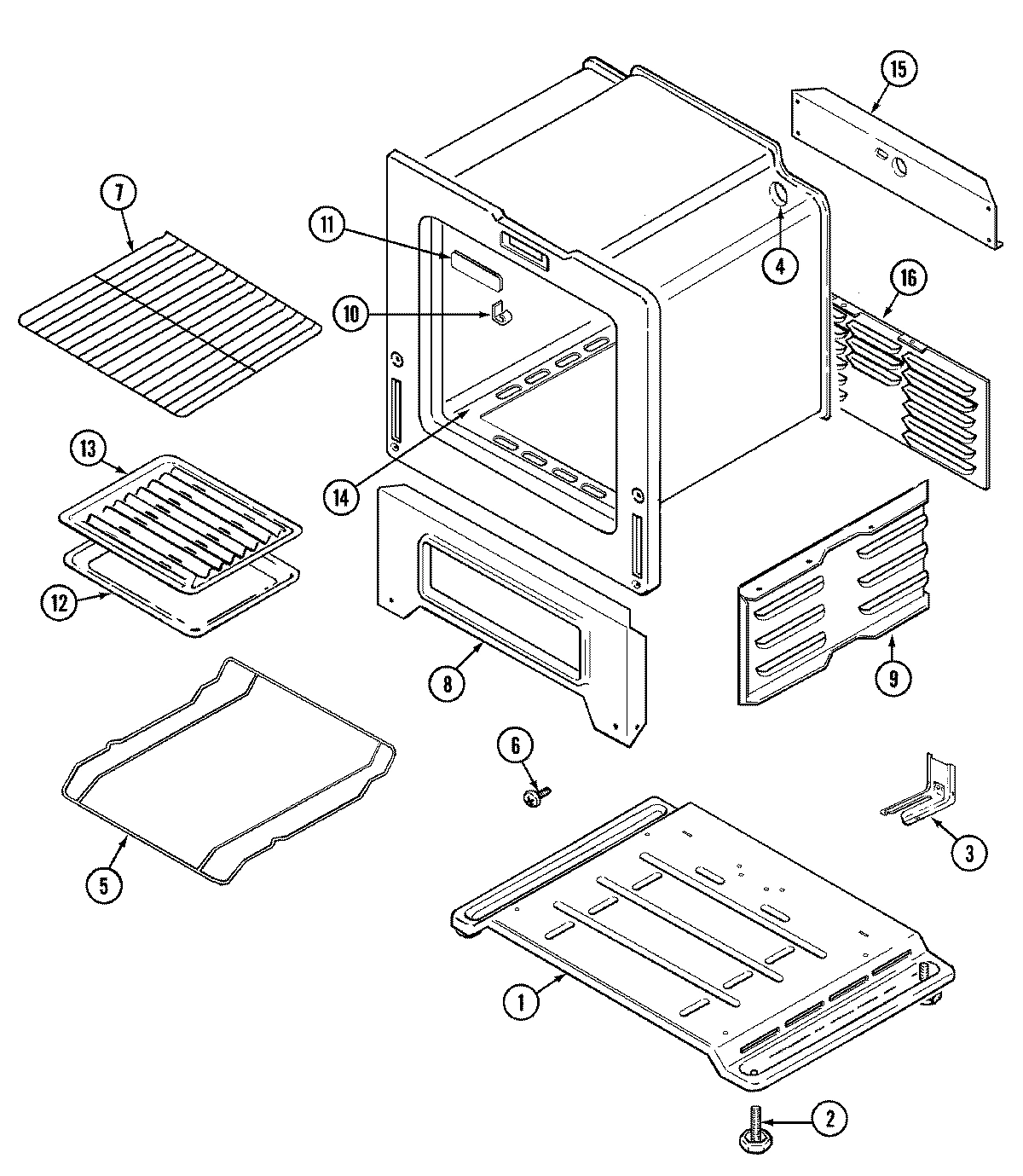

05 - OVEN/BASE

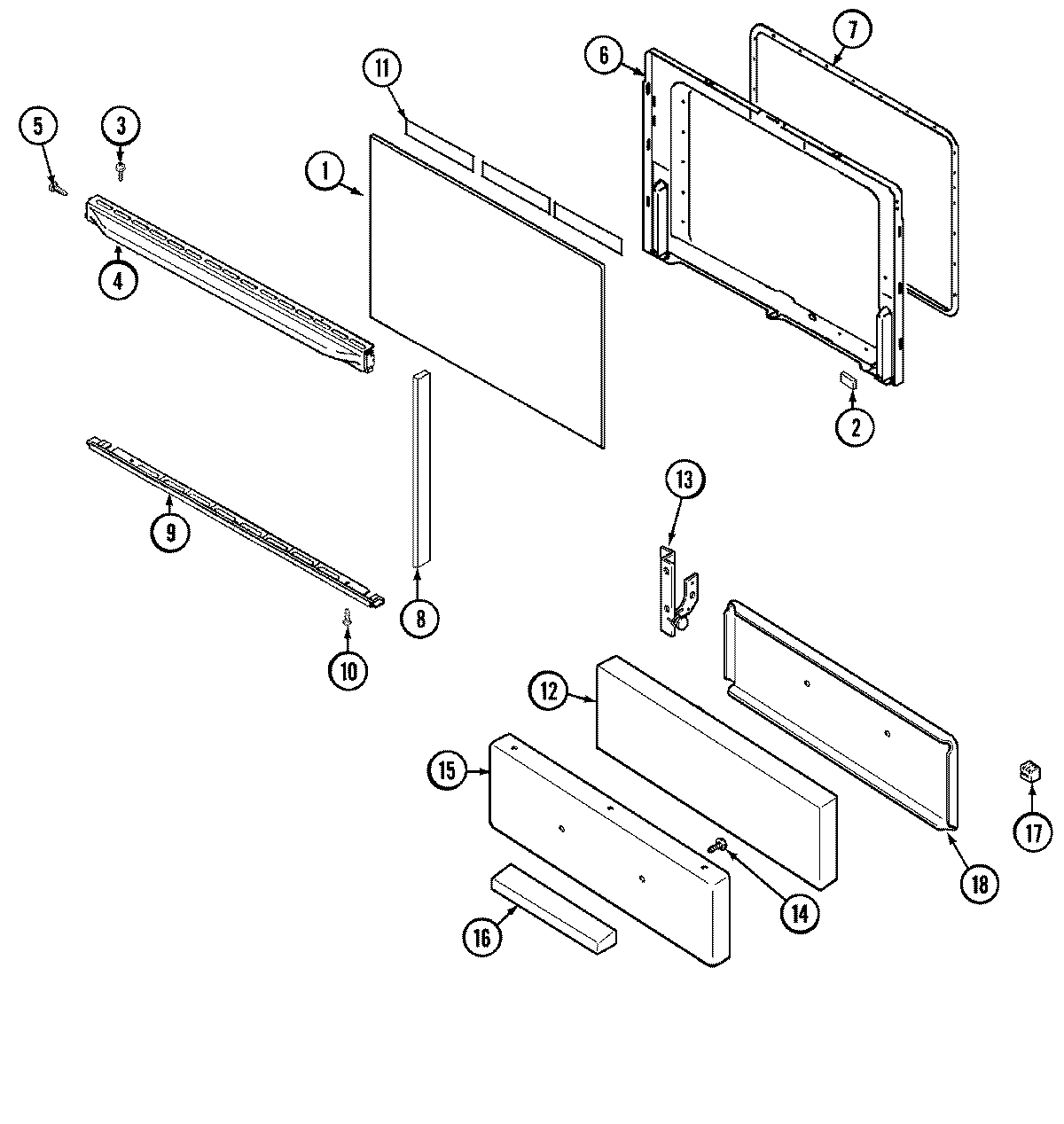

03 - DOOR/DRAWER
Common parts from model Whirlpool C31100SAAP GAS RANGE
1
SHIELD, VENT DEFLECTOR WPL 74002401 Contact Us For Availability
1
CLIP, SPACER WPL 74002409 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002424 Contact Us For Availability
1
BACK, MAIN WPL 74002364 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
BASE, MAIN WPL 74002372 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
2
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
2
BRACKET, PANEL (LT) WPL 74002402 Contact Us For Availability
2
BRACKET, PANEL (RT) WPL 74002403 Contact Us For Availability
2
VALVE, BURNER (LP) WPL 74002673 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
PIN, MAIN TOP HINGE WPL 74002404 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 74002425 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 74002430 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002427 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
5
END CAP, PANEL (LT-BLK) WPL 74002406 Contact Us For Availability
5
END CAP, PANEL (RT-BLK) WPL 74002407 Contact Us For Availability
5
SCREW (1 3/16``-BLK) WPL 74002432 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00160 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
6
TOP, MAIN (ALM) WPL 74002422 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P12860 Contact Us For Availability
6
PILOT TUBING, TOP BURNER (LP) WPL 74002660 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
LINING, DOOR WPL 74002396 Contact Us For Availability
6
LINING, DOOR WPL 74003240 Contact Us For Availability
7
BAFFLE, OVEN BOTTOM WPL 3601F22945 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002412 Contact Us For Availability
7
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
8
SUPPORT, TOP WPL 74001170 Contact Us For Availability
8
CONE, BURNER PILOT WPL 74002435 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
FRONT, OVEN (LWR) WPL 74002327 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
8
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
9
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
9
BURNER, TOP WPL 74002392 Contact Us For Availability
9
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
9
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
10
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
PANEL, MANIFOLD (BLK) WPL 74002411 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
COVER, DOOR LOCK WPL 7718P01360 Contact Us For Availability
11
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
12
INSULATION, OVEN BACK WPL 74002371 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
13
DRIP BOWL KIT (ACCESSORY) WPL 5401A43360 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
HINGE WPL 7106P05560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
14
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
14
VALVE, OVEN (LP) WPL 74002672 Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
15
KIT, TUBING W/LOXIT (3/8``) WPL 12001100 Contact Us For Availability
15
TUBING, OVEN VALVE (3/8``) WPL 74001062 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
PANEL, DRAWER (ALM) WPL 74002316 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
17
GLIDE WPL 8016P01560 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
18
LINING, DRAWER WPL 74002397 Contact Us For Availability
NI
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
NI
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74002355 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
× ![]()
