Model Whirlpool C31000PAT GAS RANGE – Common Parts & Diagrams

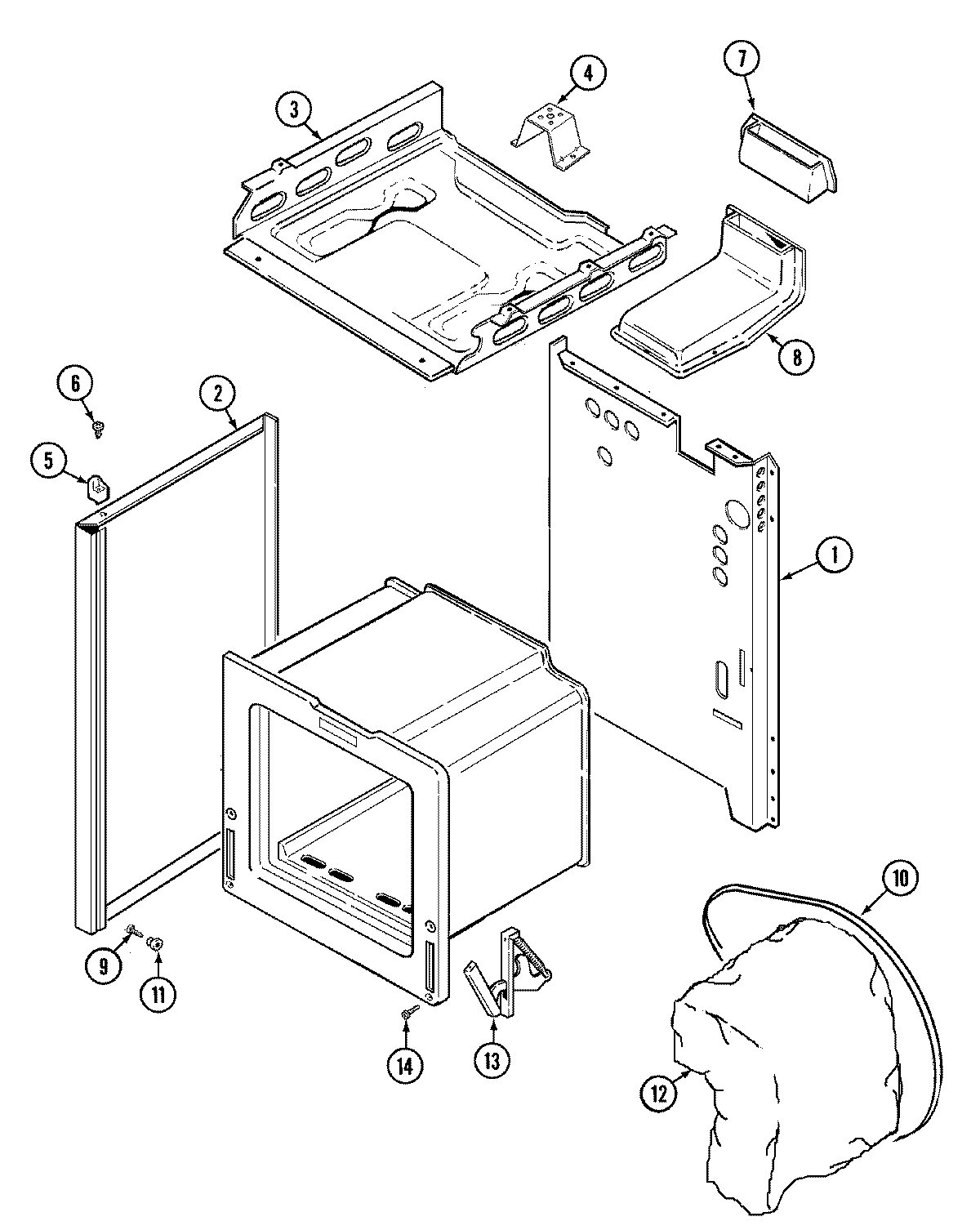

01 - BODY

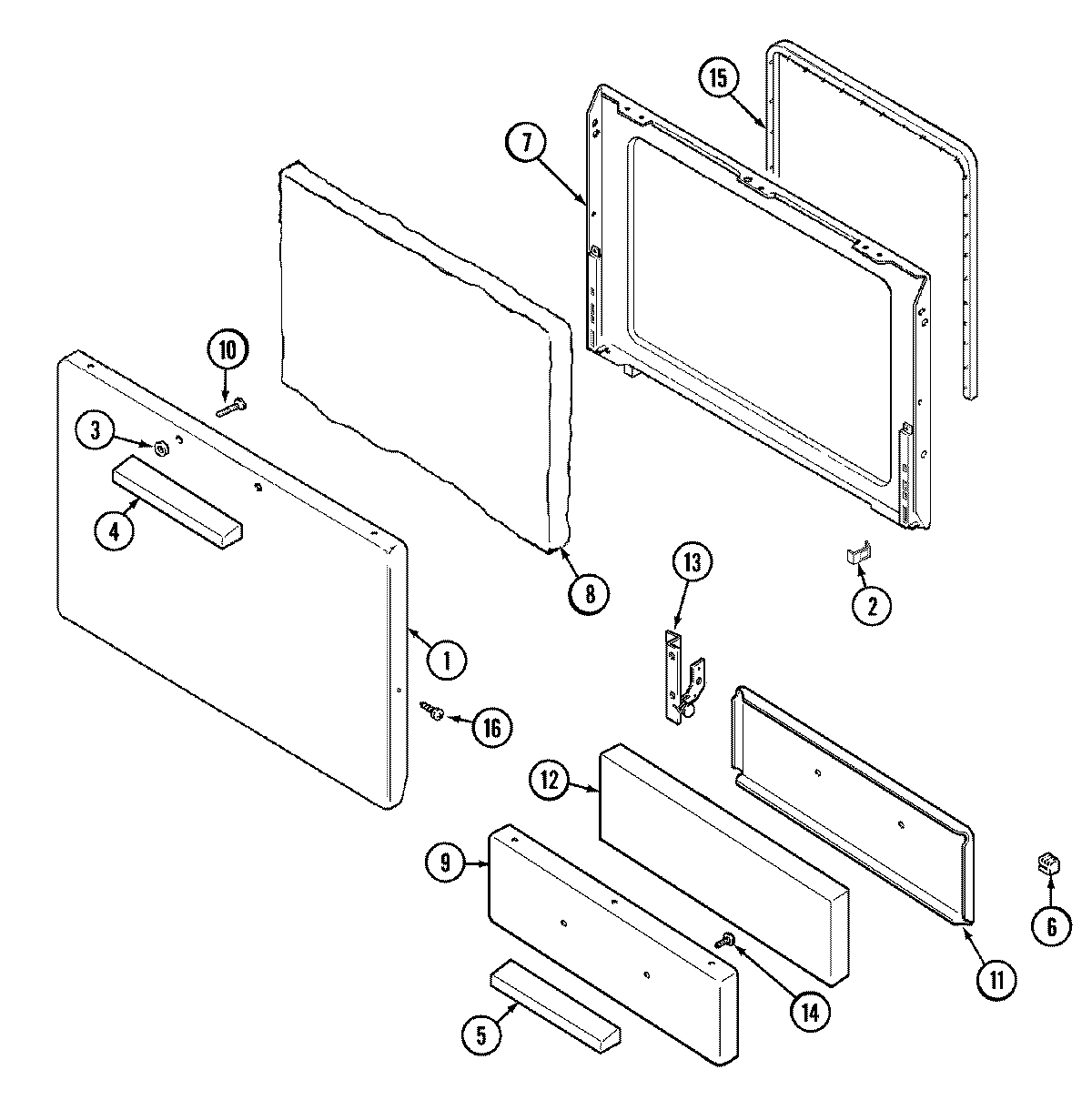

02 - DOOR/DRAWER

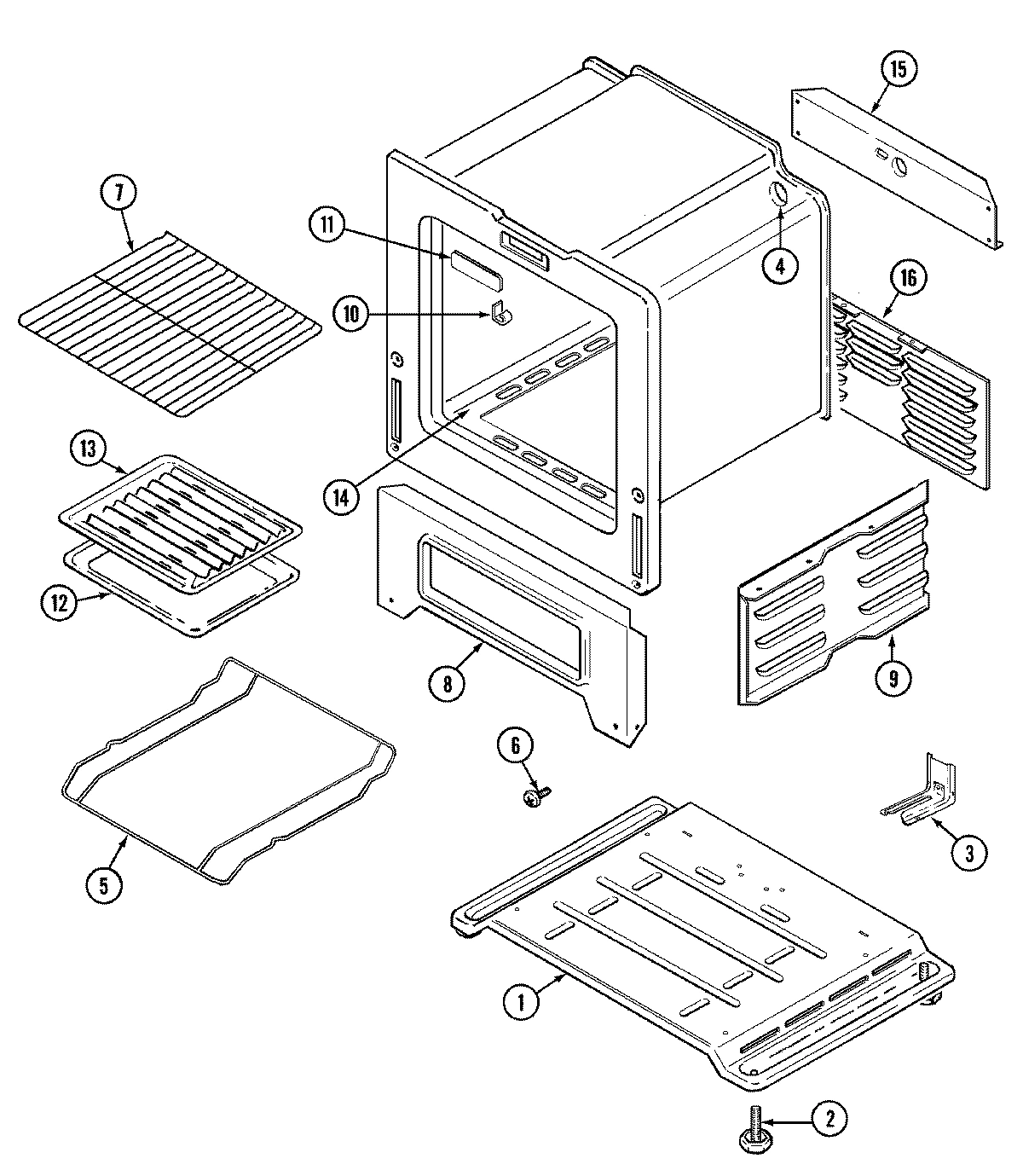

04 - OVEN/BASE

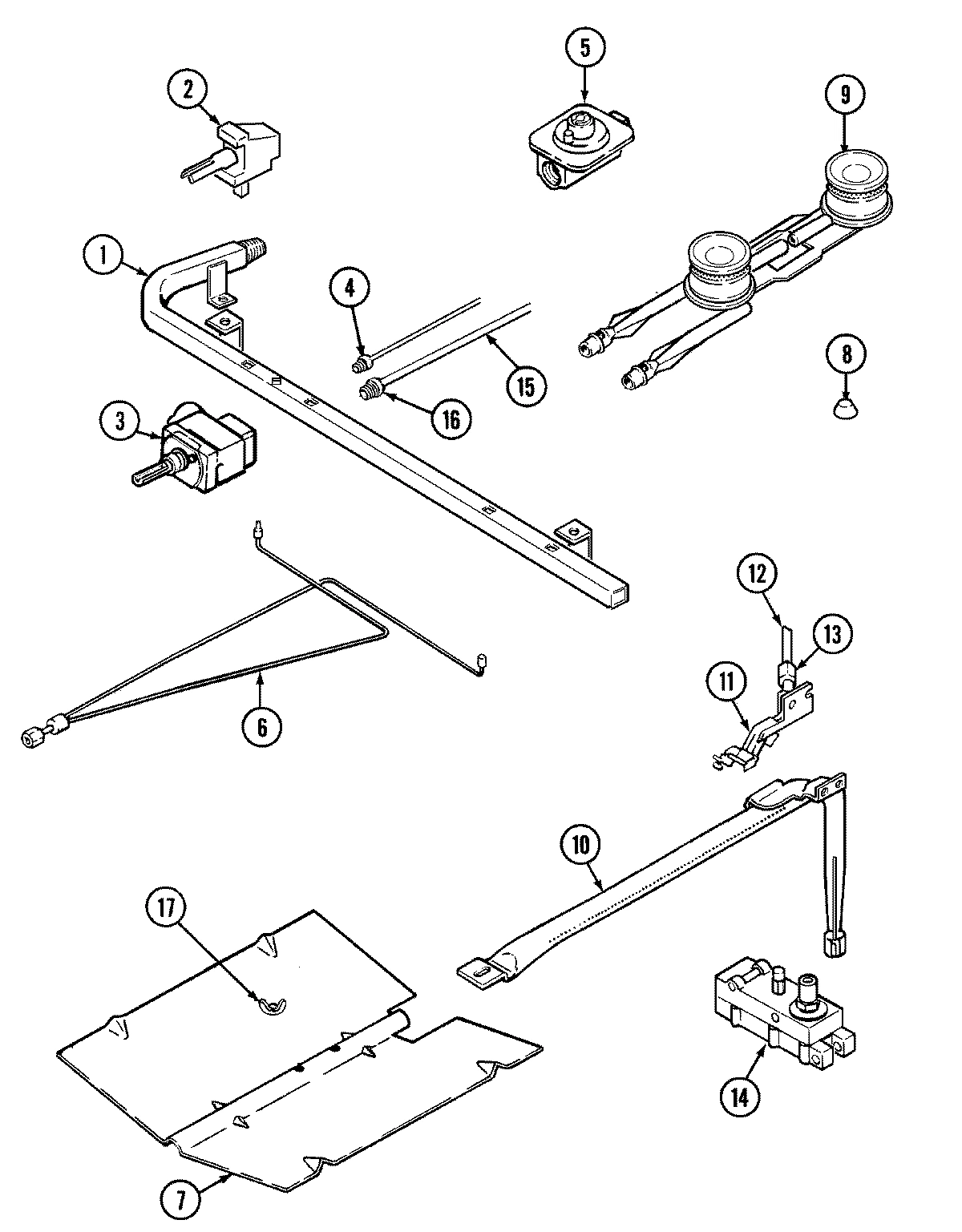

03 - GAS CONTROLS
Common parts from model Whirlpool C31000PAT GAS RANGE
1
BACK, MAIN WPL 74003451 Contact Us For Availability
1
BACK, MAIN WPL 74006548 Contact Us For Availability
1
GROMMET WPL 8008P01060 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
PANEL, DOOR (BSQ) WPL 74005048 Contact Us For Availability
1
BASE, MAIN WPL 74001064 Contact Us For Availability
1
PIPE, MANIFOLD WPL 74002424 Contact Us For Availability
2
PANEL, SIDE (BSQ) WPL 74004965 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
KIT, VALVE (MUELLER) WPL 12002286 Contact Us For Availability
2
VALVE, BURNER WPL 74002383 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
3
SCREW WPL 7101P35260 Contact Us For Availability
3
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
3
THERMOSTAT WPL 74002425 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74002427 Contact Us For Availability
4
SUPPORT, TOP BURNER WPL 74010150 Contact Us For Availability
4
COVER, HOLE WPL 74002380 Contact Us For Availability
4
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
5
RACK, BROILER WPL 74002381 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
GLIDE WPL 8016P01560 Contact Us For Availability
6
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
6
NUT, TOP PILOT WPL 7103P12860 Contact Us For Availability
6
PILOT, BURNER WPL 74002426 Contact Us For Availability
7
EXTENSION, VENT BOX WPL 74002366 Contact Us For Availability
7
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
7
LINING, DOOR WPL 74003240 Contact Us For Availability
7
BAFFLE, OVEN BURNER WPL 74002393 Contact Us For Availability
8
BOX, VENT WPL 74002367 Contact Us For Availability
8
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
8
OVEN FRONT, LOWER WPL 74003007 Contact Us For Availability
8
CONE, BURNER PILOT WPL 74002435 Contact Us For Availability
9
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
9
PANEL, DRAWER (BSQ) WPL 74005046 Contact Us For Availability
9
SIDE, BROILER (RT) WPL 74002374 Contact Us For Availability
9
SIDE, BROILER (LT) WPL 74002375 Contact Us For Availability
9
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
9
BURNER, TOP WPL 74003332 Contact Us For Availability
9
BURNER, TOP (REAR) WPL 74010148 Contact Us For Availability
9
BURNER, TOP (FRT) WPL 74010149 Contact Us For Availability
10
STRAP, INSULATION RETAINER WPL 74002369 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
BURNER, OVEN WPL 74002434 Contact Us For Availability
11
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
11
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
11
LINING, DRAWER WPL 74002397 Contact Us For Availability
11
LINING, DRAWER WPL 74007553 Contact Us For Availability
11
PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability
11
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 74002370 Contact Us For Availability
12
INSULATION, OVEN BACK WPL 74002634 Contact Us For Availability
12
INSULATION, BROILER DRAWER WPL 74001814 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
TUBING 3/16`` SUB WPL 3414F10844 Contact Us For Availability
13
HINGE, DRAWER WPL 74002398 Contact Us For Availability
13
HINGE, DRAWER WPL 74007560 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
14
BOTTOM, OVEN WPL 74002376 Contact Us For Availability
14
CLIP, OVEN BOTTOM WPL 74002377 Contact Us For Availability
14
VALVE, OVEN WPL 74002428 Contact Us For Availability
15
SEAL, DOOR WPL 7212P04360 Contact Us For Availability
15
SHIELD, BROILER (BK) WPL 74002378 Contact Us For Availability
15
TUBING, OVEN VALVE (3/8``) WPL 74001062 Contact Us For Availability
16
BACK, BROILER WPL 74002379 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
NUT, WING WPL 7103P03060 Contact Us For Availability
× ![]()
