Model Whirlpool C206W ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - BLOWER PLENUM
02 - BURNER BOX ASSEMBLY

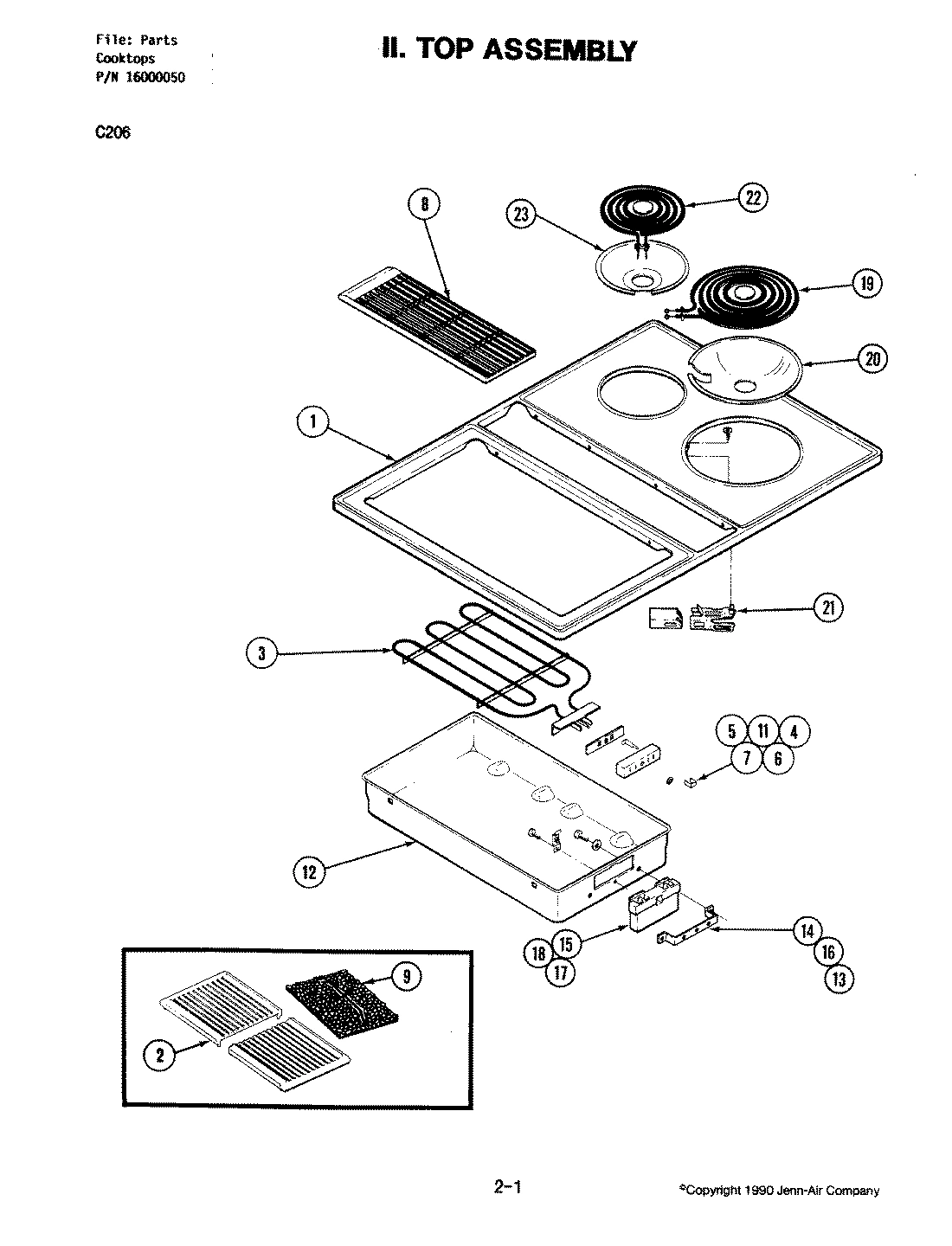

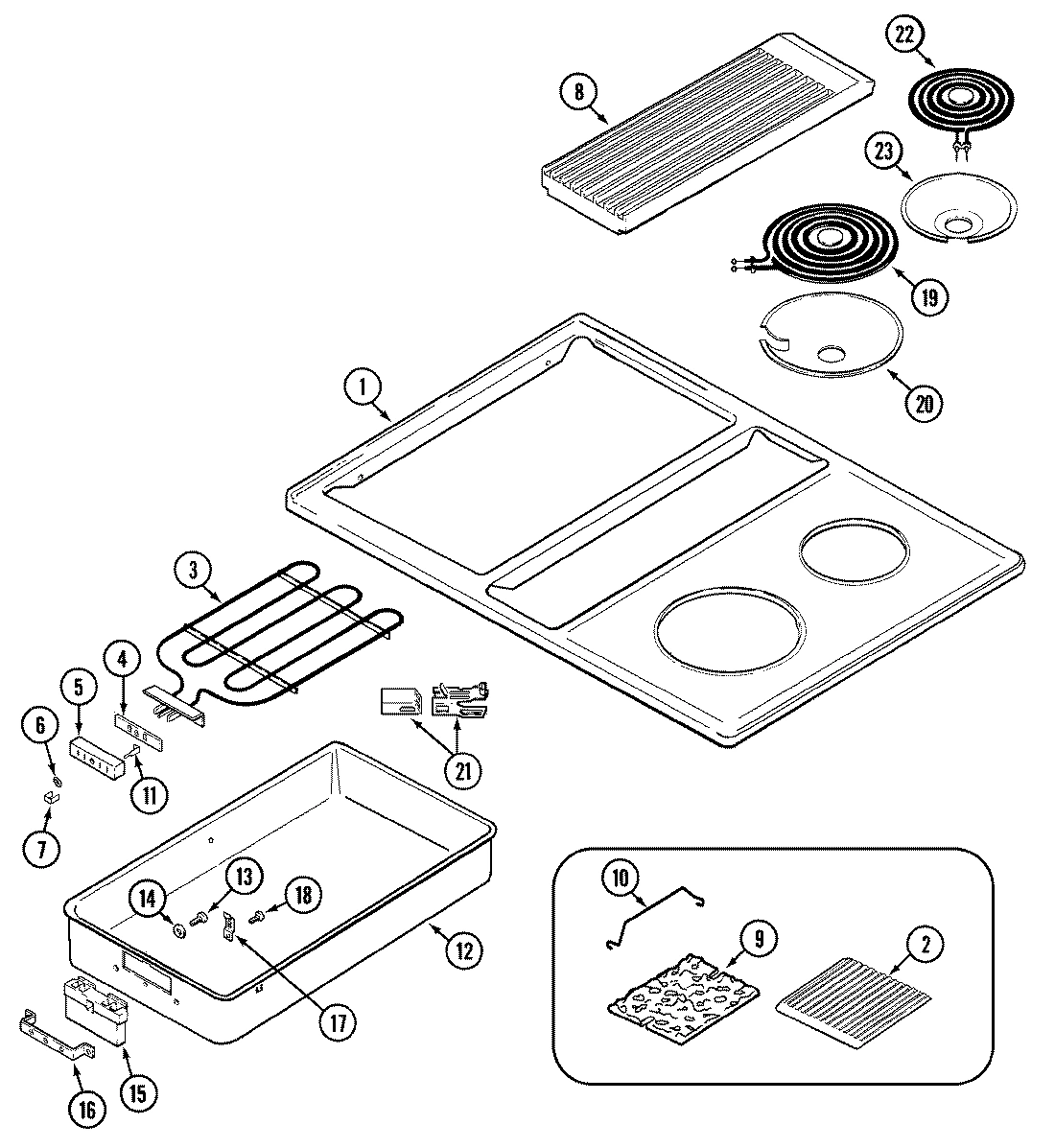

04 - TOP ASSEMBLY (C206)
03 - TOP ASSEMBLY
Common parts from model Whirlpool C206W ELECTRIC COOK-TOP
1
INSERT, BURNER BOX WPL Y707822 Contact Us For Availability
1
TOP WPL 704101 Contact Us For Availability
1
TOP, MAIN (STLS) WPL 71001575 Contact Us For Availability
1
TOP, COMBO (WHT) WPL Y04100292 Contact Us For Availability
2
SCREW WPL Y707402 Contact Us For Availability
2
GRATE, GRILL WPL 703905 Contact Us For Availability
3
PALNUT WPL 703293 Contact Us For Availability
3
PAD, SPACER WPL 715938 Contact Us For Availability
3
ELEMENT, COMPLETE WPL Y712619 Contact Us For Availability
3
ELEMENT, COMPLETE 240V WPL 703345 Contact Us For Availability
4
INSULATOR WPL Y700449 Contact Us For Availability
5
BRACKET, TOP SUPPORT WPL 703008 Contact Us For Availability
6
BURNER BOX ASSEMBLY WPL 712507 Contact Us For Availability
7
CLIP, RETAINER WPL Y700503 Contact Us For Availability
7
CLIP, SHUNT WPL Y700450 Contact Us For Availability
8
PLATE, COVER WPL Y707681 Contact Us For Availability
8
SCREW WPL Y707121 Contact Us For Availability
8
GRILL, AIR (BLK) WPL 703926 Contact Us For Availability
8
GRILL, AIR (WHT) WPL Y704603 Contact Us For Availability
9
MOTOR, BLOWER WPL Y705032 Contact Us For Availability
9
PLATE, ROCK WPL 708929 Contact Us For Availability
10
SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability
10
LID, JAR WPL Y707870 Contact Us For Availability
11
BAND, MOTOR WPL Y707393 Contact Us For Availability
11
INSULATOR WPL 707746 Contact Us For Availability
12
PAN, GRILL (LT) WPL 701955 Contact Us For Availability
12
WIRE, VIOLET WPL 703799 Contact Us For Availability
12
WIRE KIT WPL 712356 Contact Us For Availability
12
CONTACT/WIRE ASSY. (BLU-RT) WPL Y701489 Contact Us For Availability
12
WIRE, YELLOW WPL Y703576 Contact Us For Availability
12
WIRE, BROWN WPL Y712197 Contact Us For Availability
12
WIRE, YELLOW WPL Y712200 Contact Us For Availability
12
WIRE, VIOLET WPL Y712203 Contact Us For Availability
13
SCREW WPL 707407 Contact Us For Availability
13
BAFFLE WPL 715439 Contact Us For Availability
14
NUT WPL 707161 Contact Us For Availability
14
WASHER WPL Y707664 Contact Us For Availability
14
LIMITER, THERMAL WPL Y704127 Contact Us For Availability
15
BUSHING WPL 712311 Contact Us For Availability
16
FOAM, URETHANE WPL Y715957 Contact Us For Availability
16
BRACKET WPL Y702698 Contact Us For Availability
17
CONNECTOR WPL 707766 Contact Us For Availability
17
COVER, MOTOR WPL Y704968 Contact Us For Availability
18
CLAMP, CABLE WPL 715780 Contact Us For Availability
18
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
BALANCE CLIP WPL 700518 Contact Us For Availability
20
CABLE, WIRE ASSEMBLY WPL 704363 Contact Us For Availability
20
BAL CLIP 010 WPL 715955 Contact Us For Availability
20
CLIP WPL Y707335 Contact Us For Availability
20
MOTOR COVER ASSY WPL Y712550 Contact Us For Availability
NI
BUSHING WPL Y707695 Contact Us For Availability
× ![]()
