Model Whirlpool C15HAPB1 ICE MACHINE – Common Parts & Diagrams

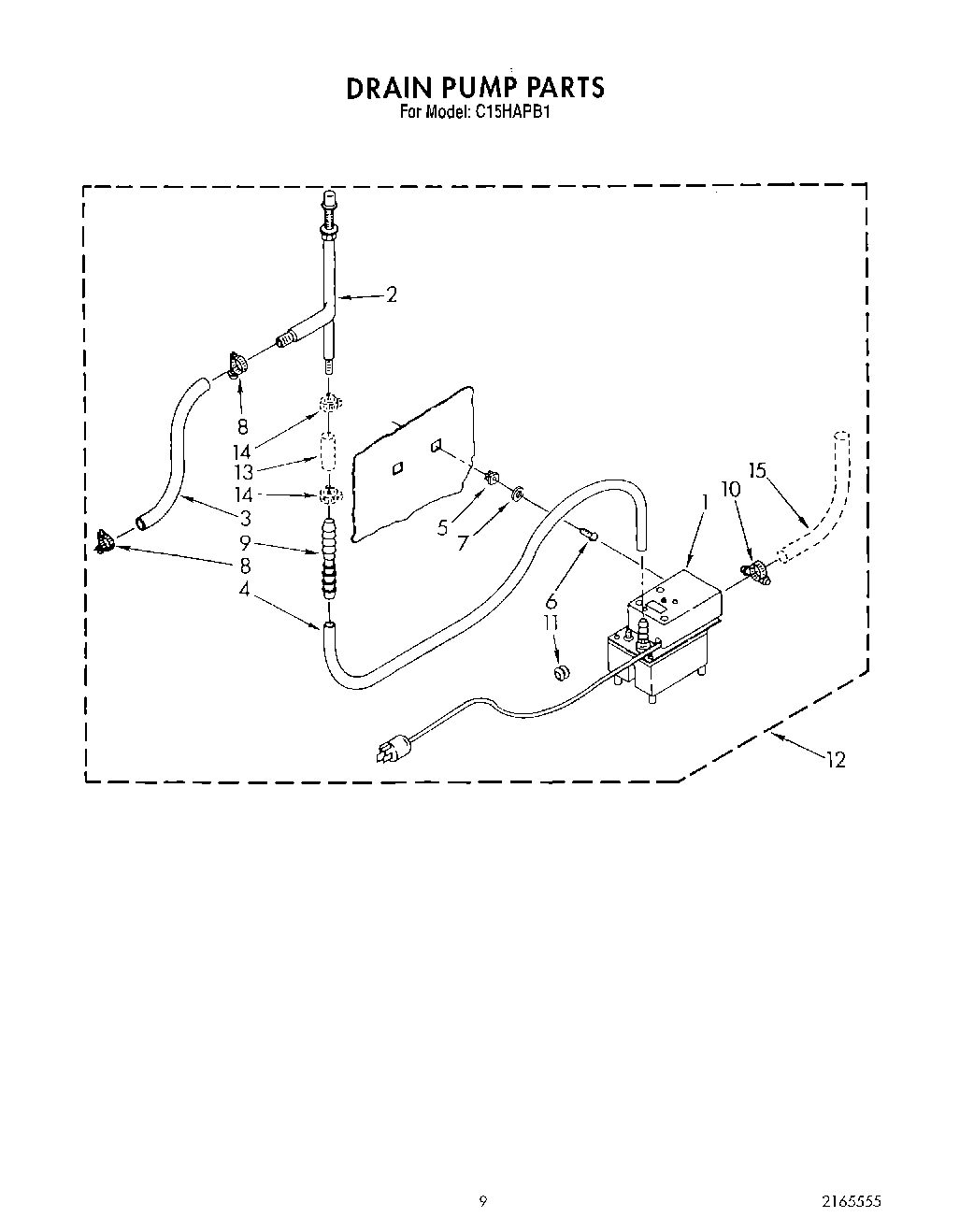

04 - DRAIN PUMP

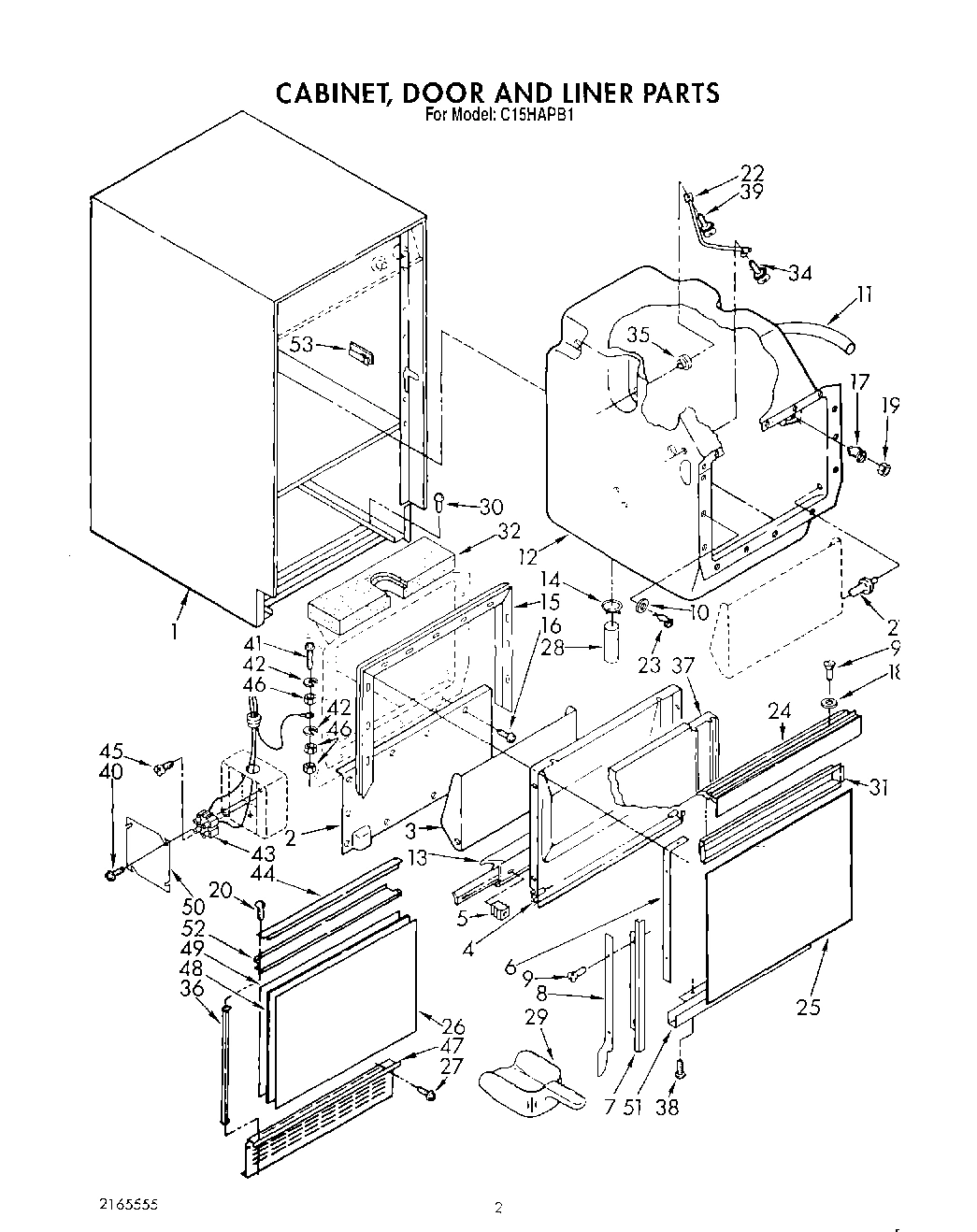

02 - CABINET, DOOR AND LINER, LITERATURE
03 - UNIT
Common parts from model Whirlpool C15HAPB1 ICE MACHINE
WPL LIT216555 WPL LIT216555 Contact Us For Availability
WPL LIT759292 WPL LIT759292 Contact Us For Availability
1
Shell WPL 759285 Contact Us For Availability
1
Shroud WPL 757955 Contact Us For Availability
2
Front, Shell WPL 758652 Contact Us For Availability
2
Screw, 10-32 x 3/8 WPL 680811 Contact Us For Availability
3
Door, Inner Bin WPL 756330 Contact Us For Availability
4
Liner, Door WPL 758655 Contact Us For Availability
4
Motor, Fan WPL 593821 Contact Us For Availability
5
Plug, Hinge WPL 593192 Contact Us For Availability
5
Bracket WPL 560817 Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
7
Trim, Door (2) WPL 759272 Contact Us For Availability
7
Compressor WPL 598180 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
8
Screw (4) WPL 680233 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
Washer (4) WPL 595230 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
Sleeve (4) WPL 585564 Contact Us For Availability
11
Bushing, Cord WPL 758919 Contact Us For Availability
11
Tube, Water Fill WPL 759213 Contact Us For Availability
11
Grommet (4) WPL 596355 Contact Us For Availability
12
Pump, Condensate Drain (Complete Kit) WPL 758840 Contact Us For Availability
12
Liner (Includes Illus. 17, 18, 19, 20 & 21) WPL 756350 Contact Us For Availability
12
Spring, Overload WPL 549086 Contact Us For Availability
13
Gasket, Bottom WPL 758169 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
14
Clamp, Coil Retainer WPL 564234 Contact Us For Availability
15
Hose, 1/2 I.D. x 12`` (Bin To Pump) WPL 593369 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
Coil, Solenoid WPL 593639 Contact Us For Availability
16
Valve, Body WPL 598086 Contact Us For Availability
17
Grommet WPL 596807 Contact Us For Availability
18
Washer, Plastic 1/4 WPL 681613 Contact Us For Availability
18
Overload WPL 598196 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
20
Relay WPL 598195 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
21
Case, Relay WPL 560849 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
22
Cover Strap WPL 549342 Contact Us For Availability
23
Clip, Panel (12) WPL 596812 Contact Us For Availability
24
Pull, Door WPL 758662 Contact Us For Availability
24
Condenser WPL 756299 Contact Us For Availability
25
Panel, Exterior WPL 758746 Contact Us For Availability
25
Accumulator WPL 756298 Contact Us For Availability
26
Panel, Outer WPL 758720 Contact Us For Availability
27
Deflector, Front WPL 758811 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
30
Base, Unit WPL 758810 Contact Us For Availability
31
Insert, Handle WPL 758752 Contact Us For Availability
32
Insulation WPL 756891 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
34
Screw (Compressor Ground) WPL 681187 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
36
Trim, Sides (2) WPL 758713 Contact Us For Availability
37
Insulation, Door WPL 758608 Contact Us For Availability
38
Screw WPL 681196 Contact Us For Availability
39
Thumbscrew WPL 681419 Contact Us For Availability
40
Retainer WPL 486214 Contact Us For Availability
41
Screw, 1/4-20 x 1-1/4 WPL 681333 Contact Us For Availability
42
Lockwasher (3) WPL 668347 Contact Us For Availability
43
Terminal, Connector WPL 938329 Contact Us For Availability
44
Trim, Top And Bottom (2) WPL 758716 Contact Us For Availability
46
Nut, 1/4 Hex (3) WPL 680637 Contact Us For Availability
47
Grill, Front WPL 758769 Contact Us For Availability
48
Panel, Filler WPL 758770 Contact Us For Availability
49
Panel, Inner WPL 758771 Contact Us For Availability
50
Cover, Box WPL 573468 Contact Us For Availability
51
Trim, Door (Lower) WPL 755677 Contact Us For Availability
52
WPL 978029 WPL 978029 Contact Us For Availability
52
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
52
Harness, Cabinet WPL 758406 Contact Us For Availability
52
Instructions, Installation WPL 758518 Contact Us For Availability
52
Support, Front WPL 758718 Contact Us For Availability
52
Retainer, Wire WPL 758844 Contact Us For Availability
52
Blend, Thinner WPL 799351 Contact Us For Availability
52
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
