Model Ipso BU050N Dryer – Common Parts & Diagrams

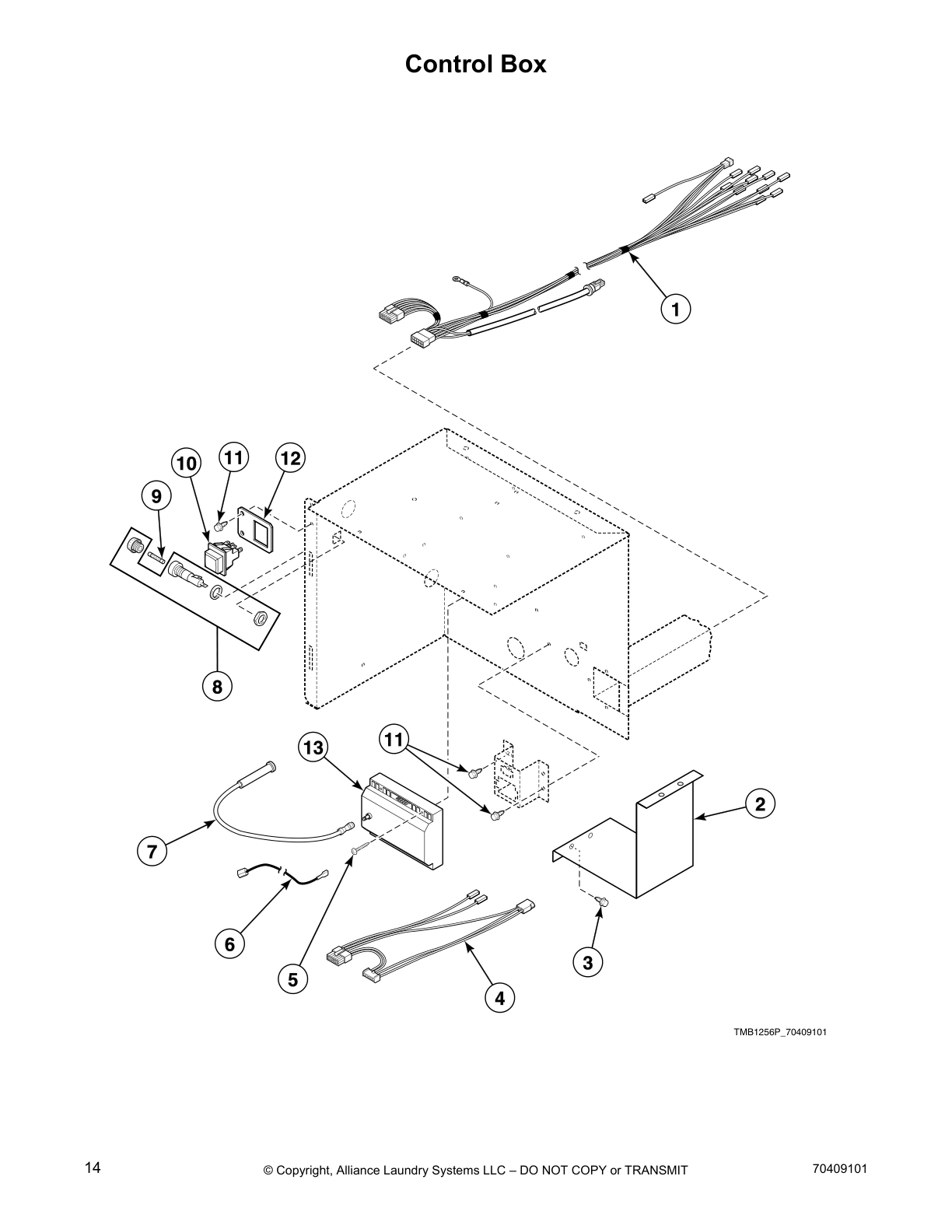

Control Box

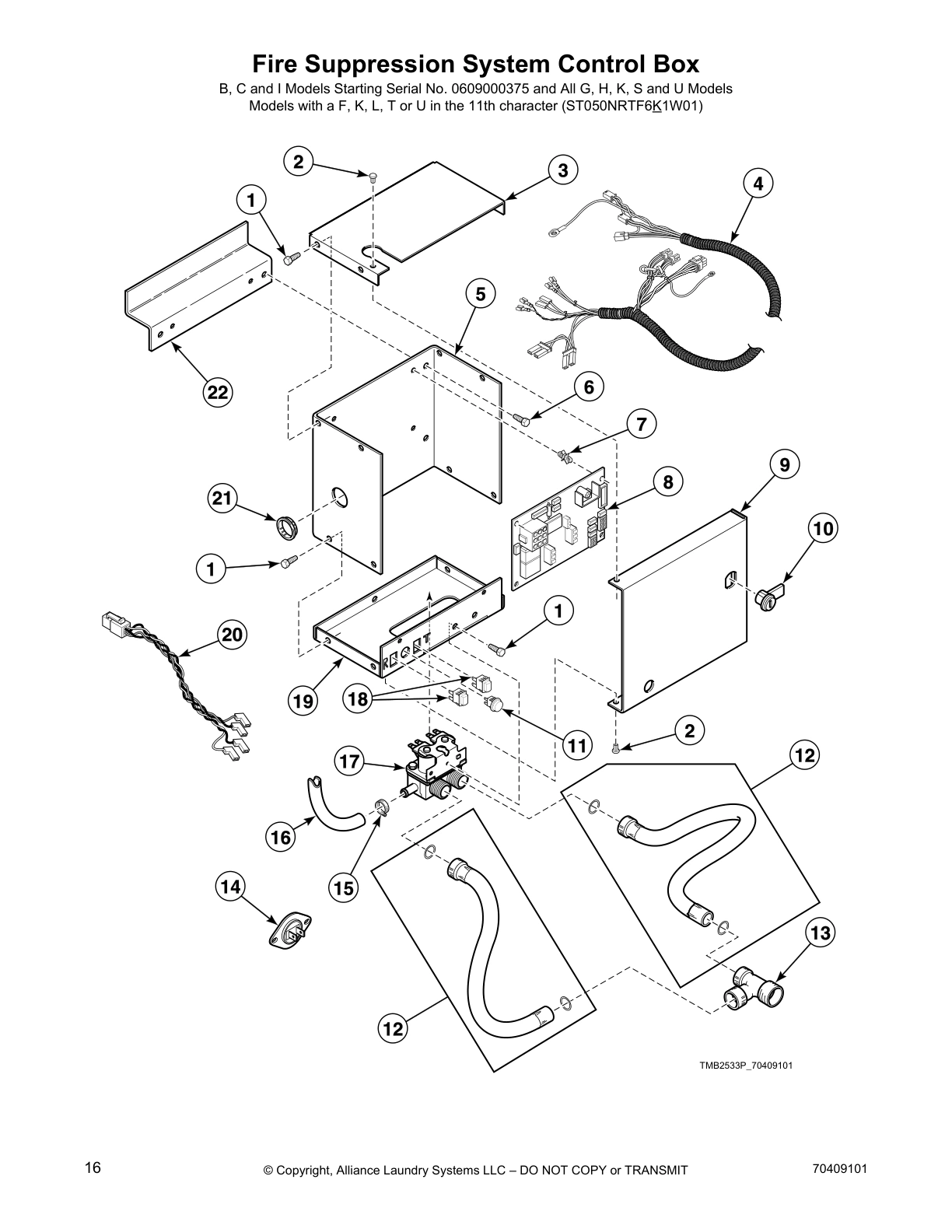

Fire Suppression System Control Box

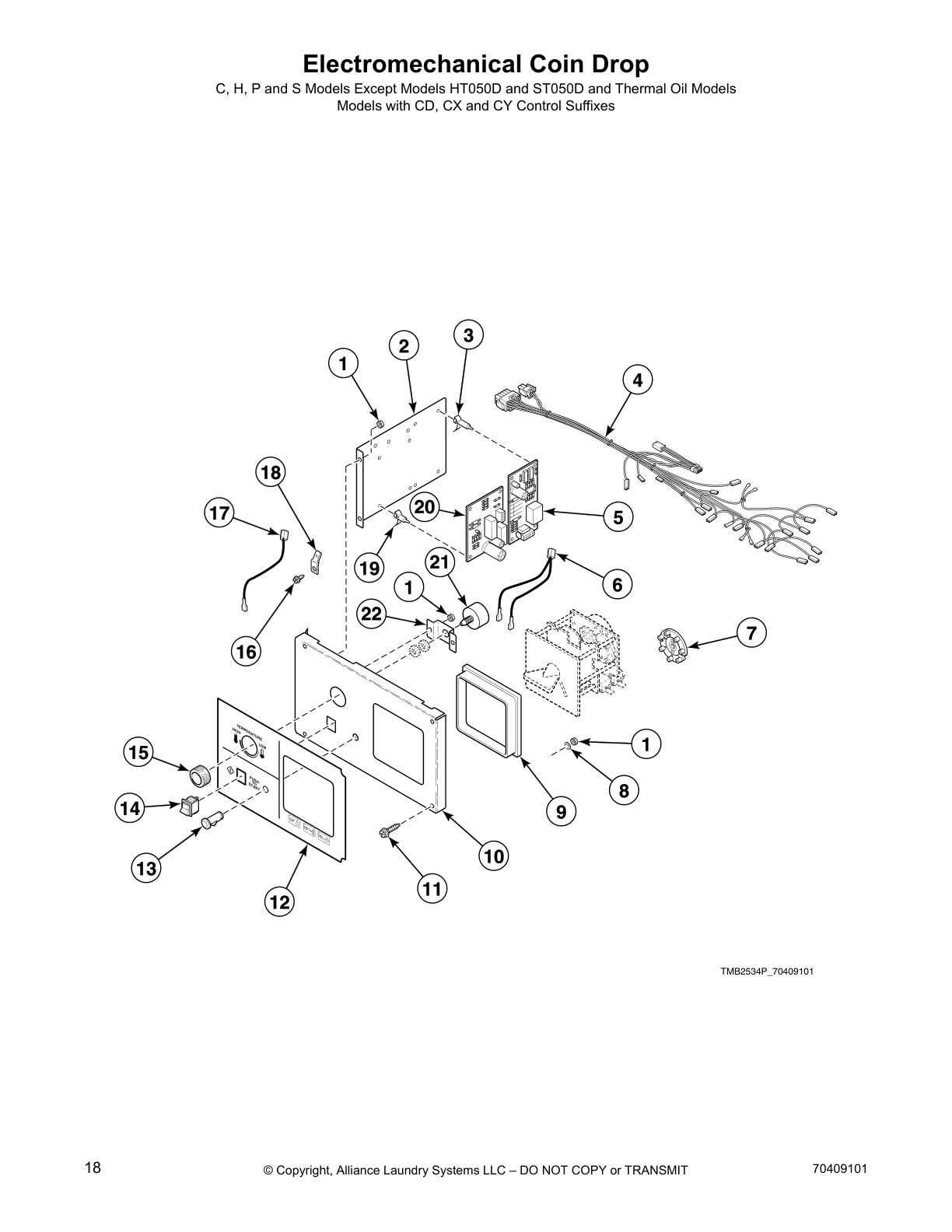

Electromechanical Coin Drop

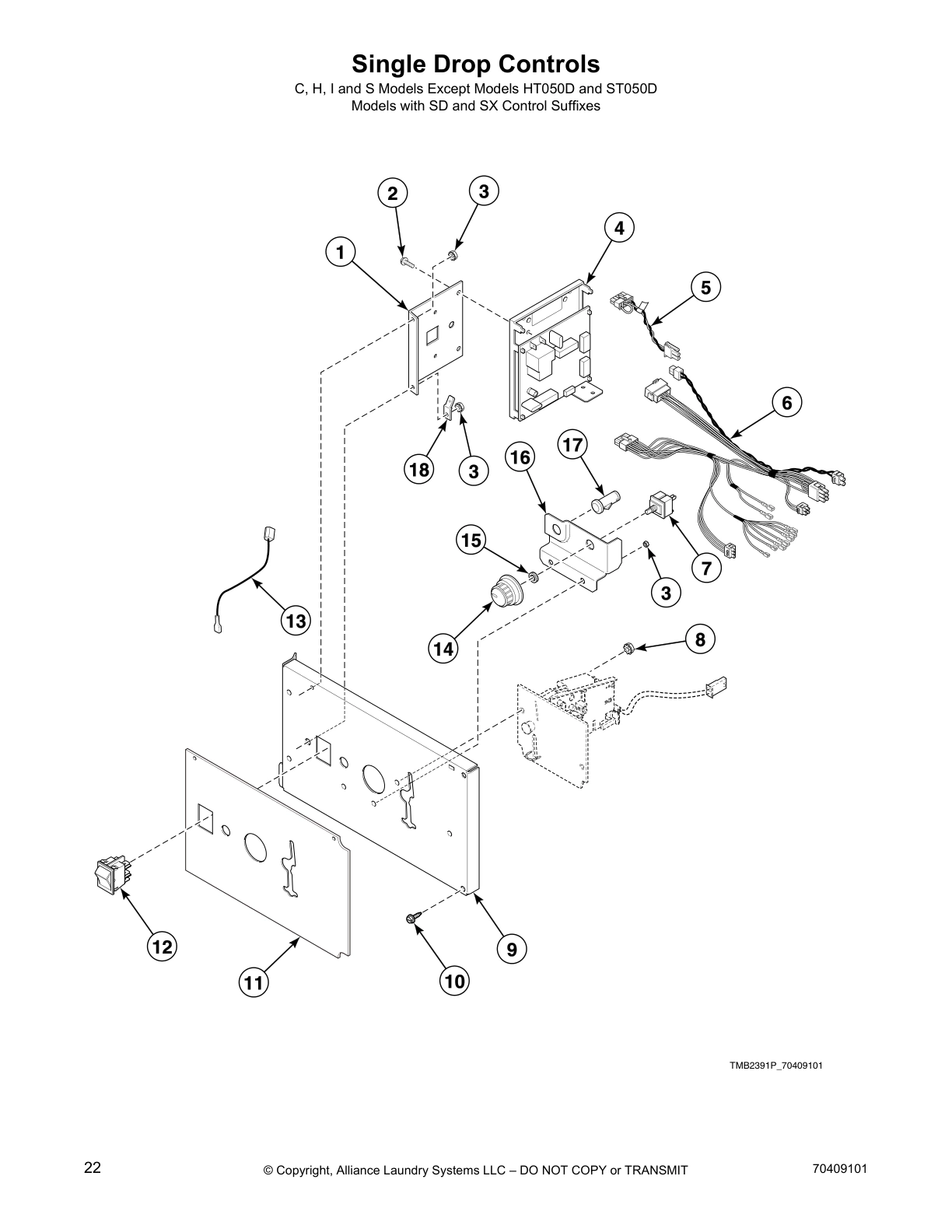

Single Drop Controls

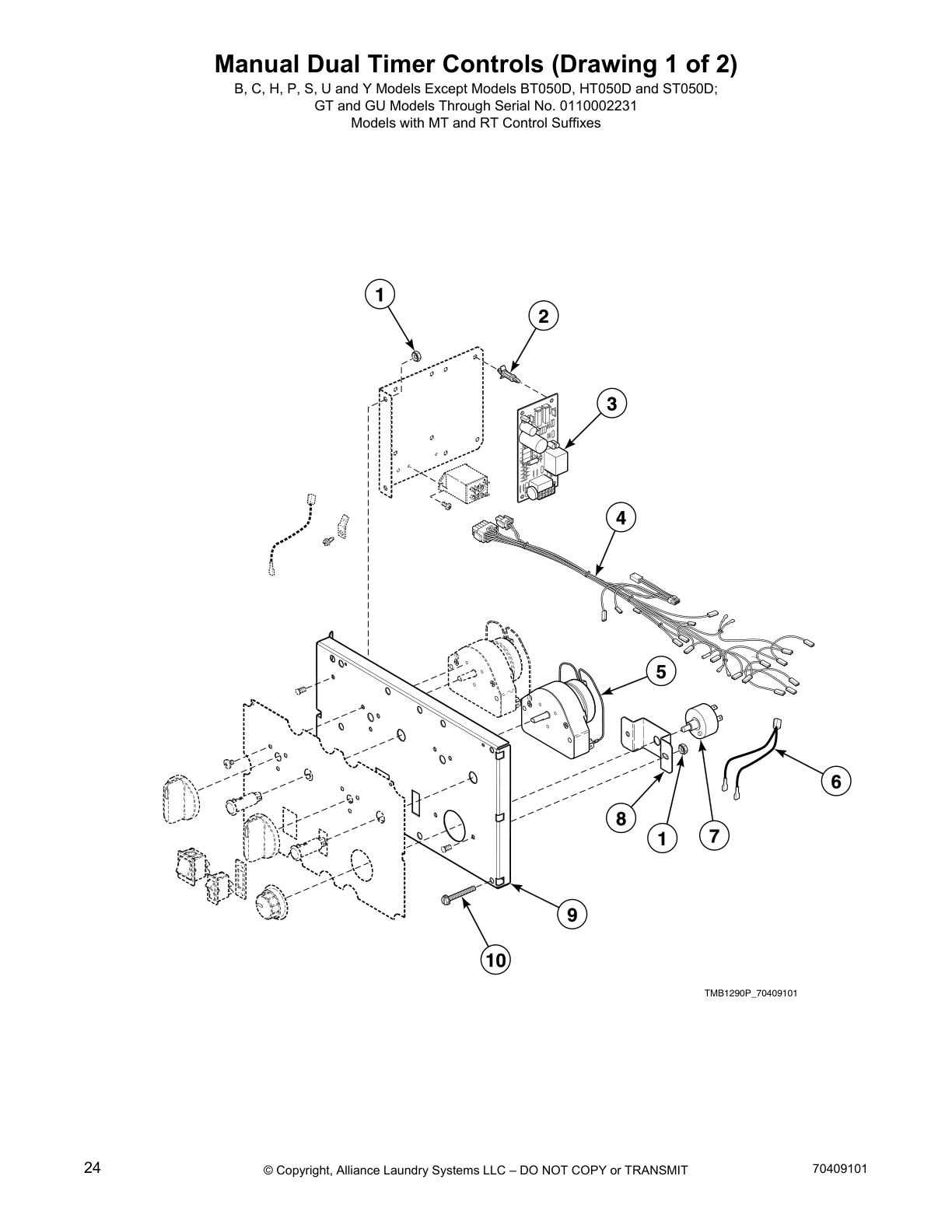

Manual Dual Timer Controls (Drawing 1 of 2)

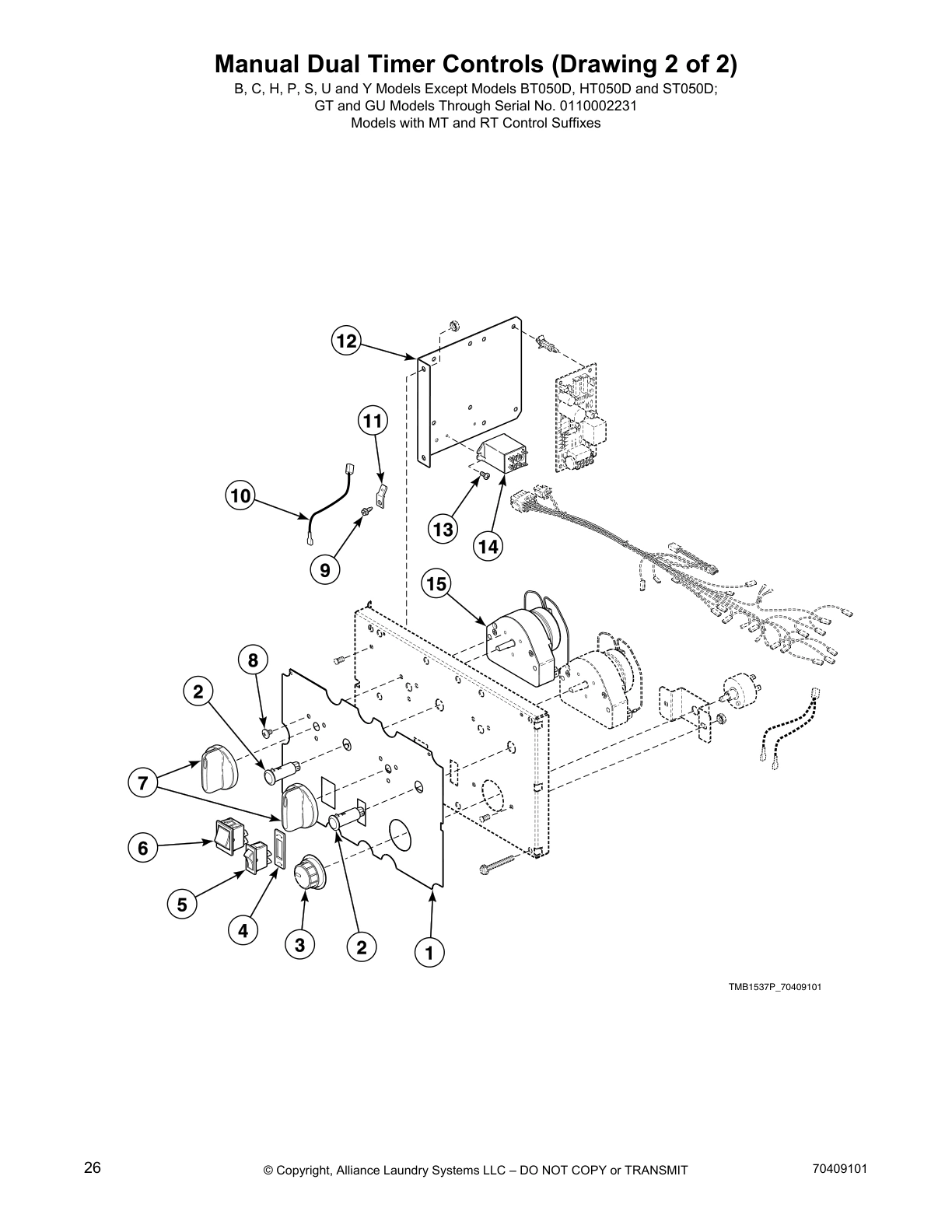

Manual Dual Timer Controls (Drawing 2 of 2)

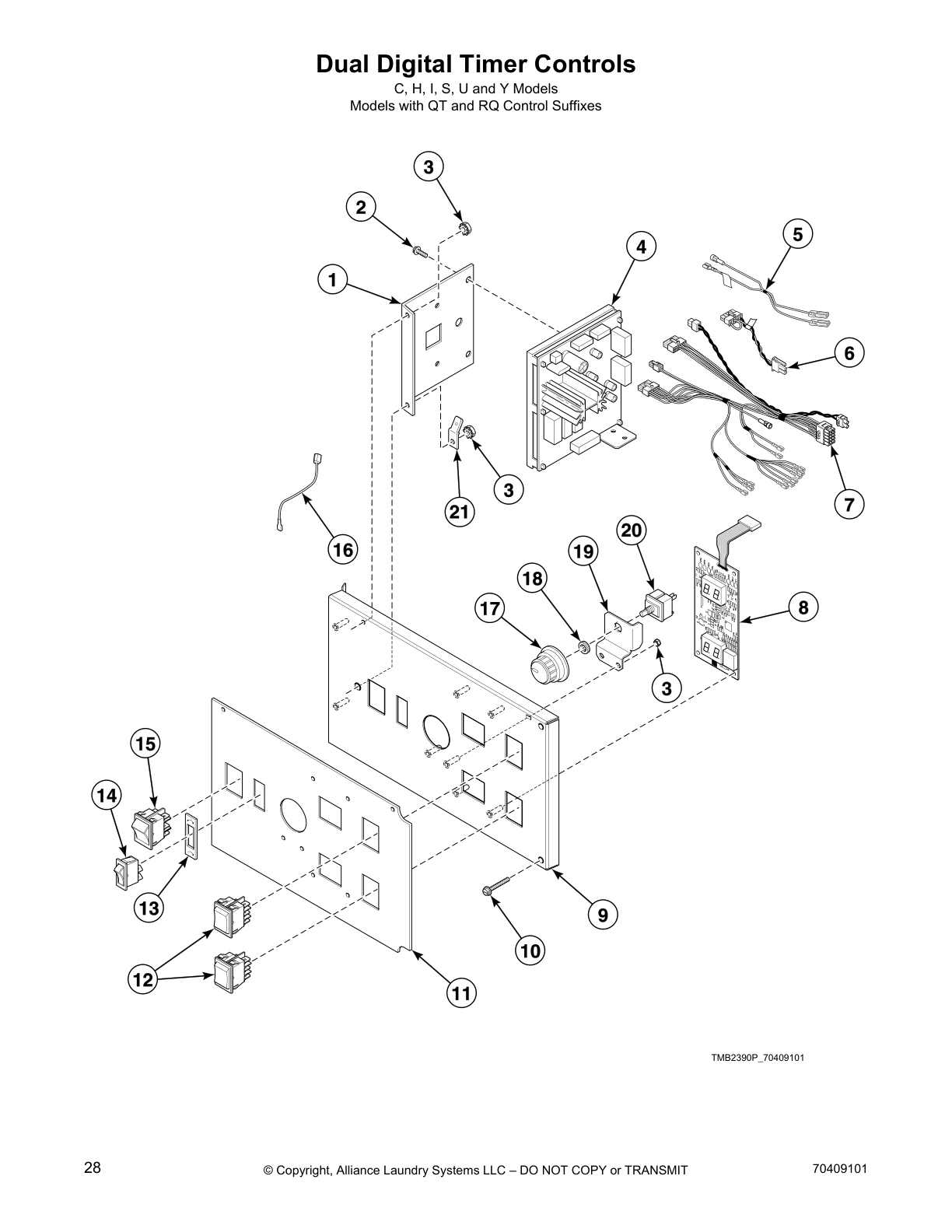

Dual Digital Timer Controls

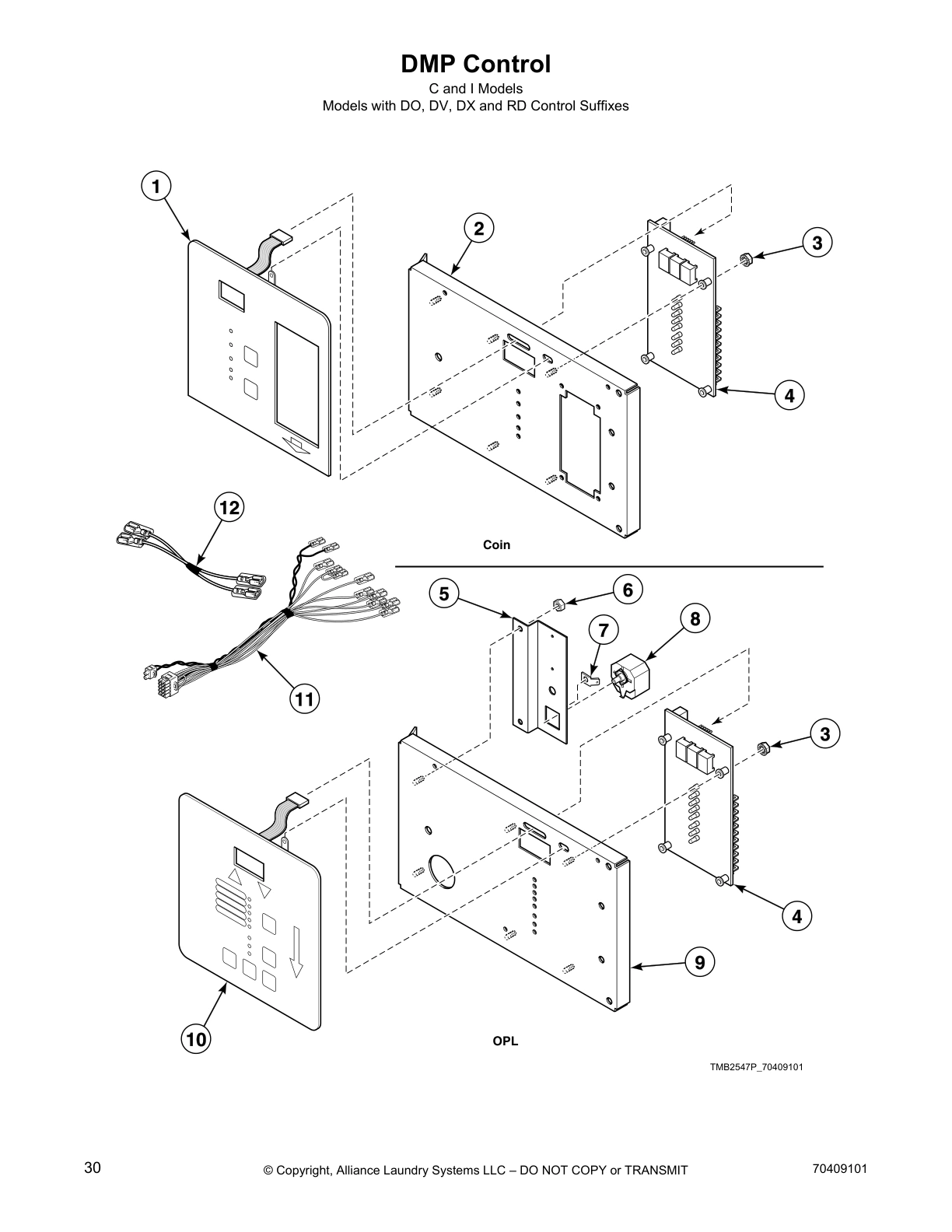

DMP Control

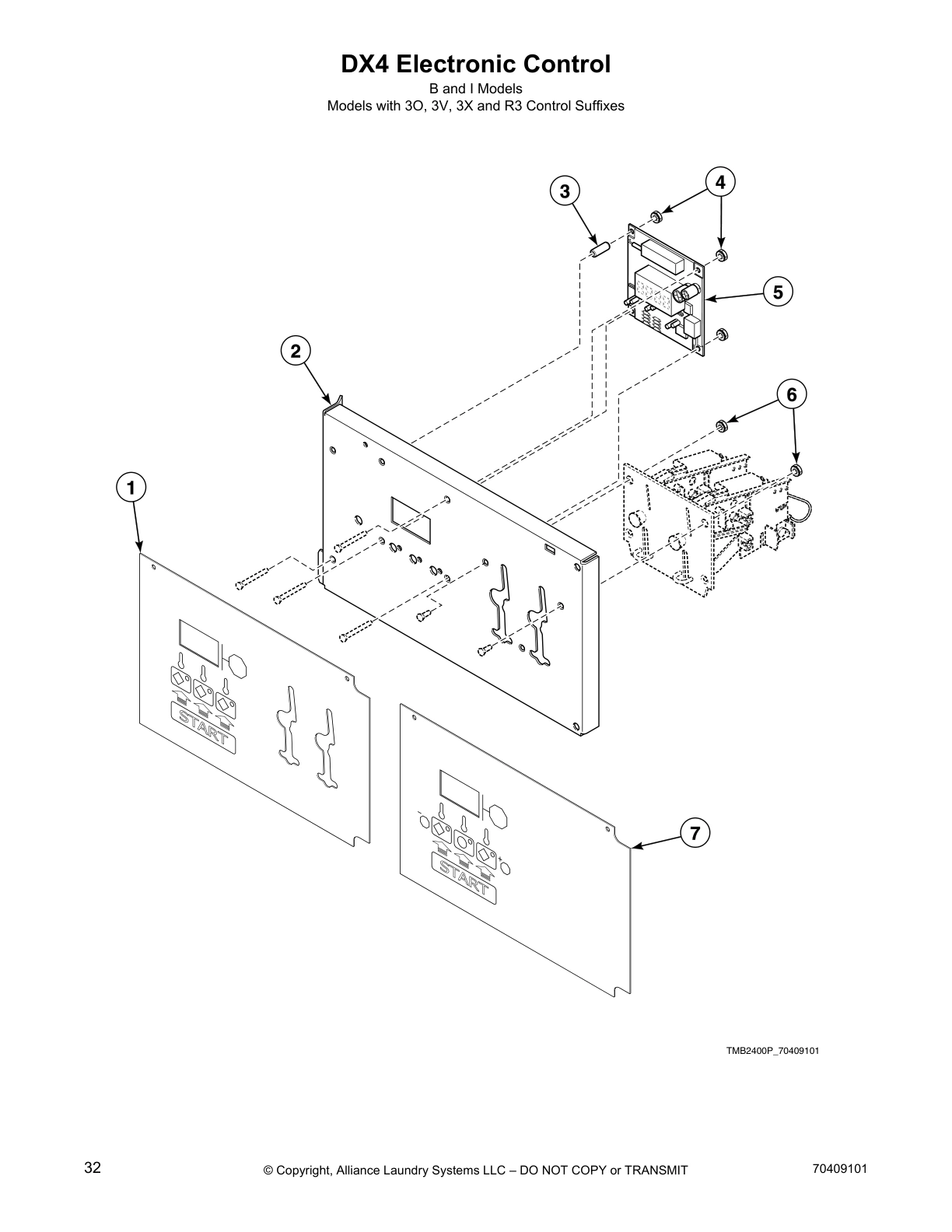

DX4 Electronic Control

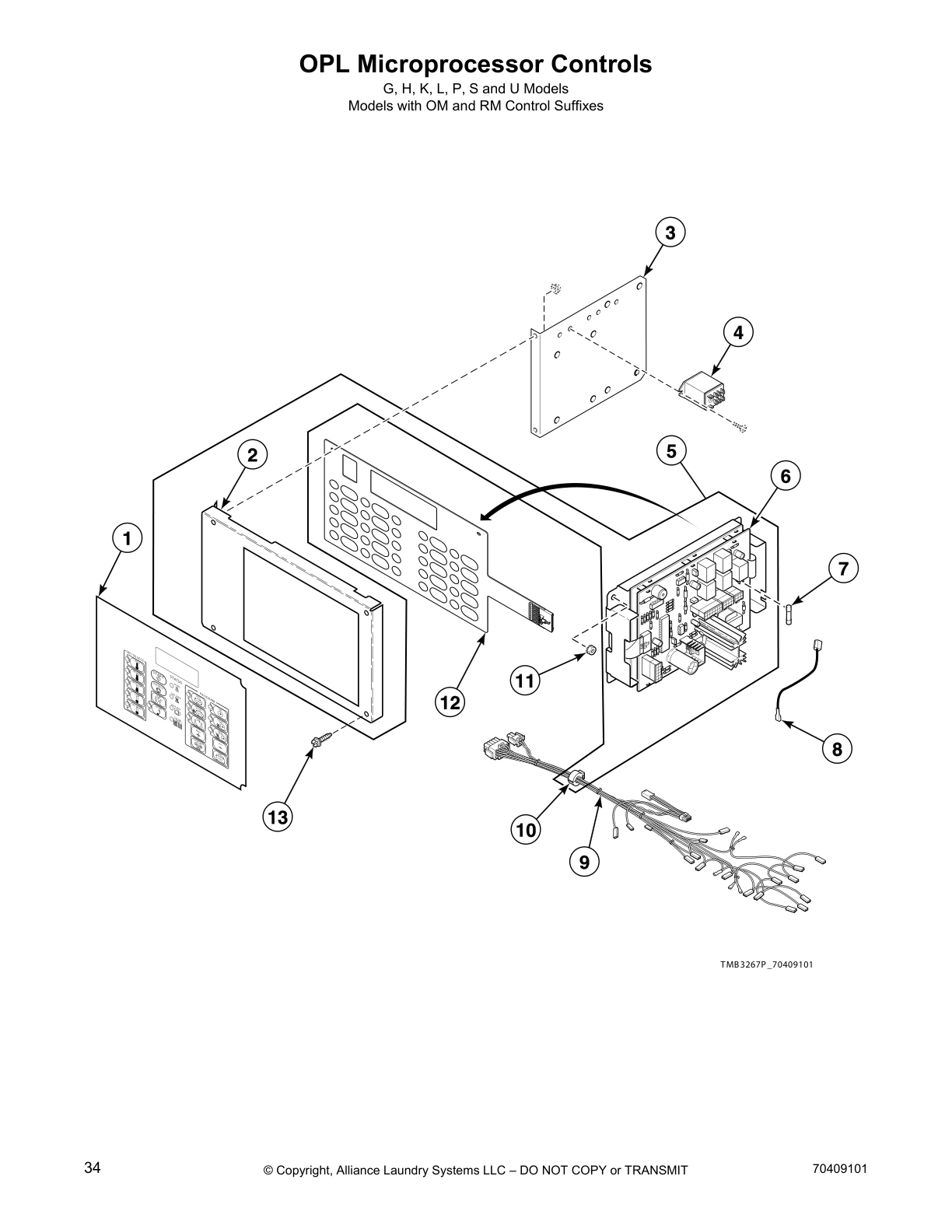

OPL Microprocessor Controls

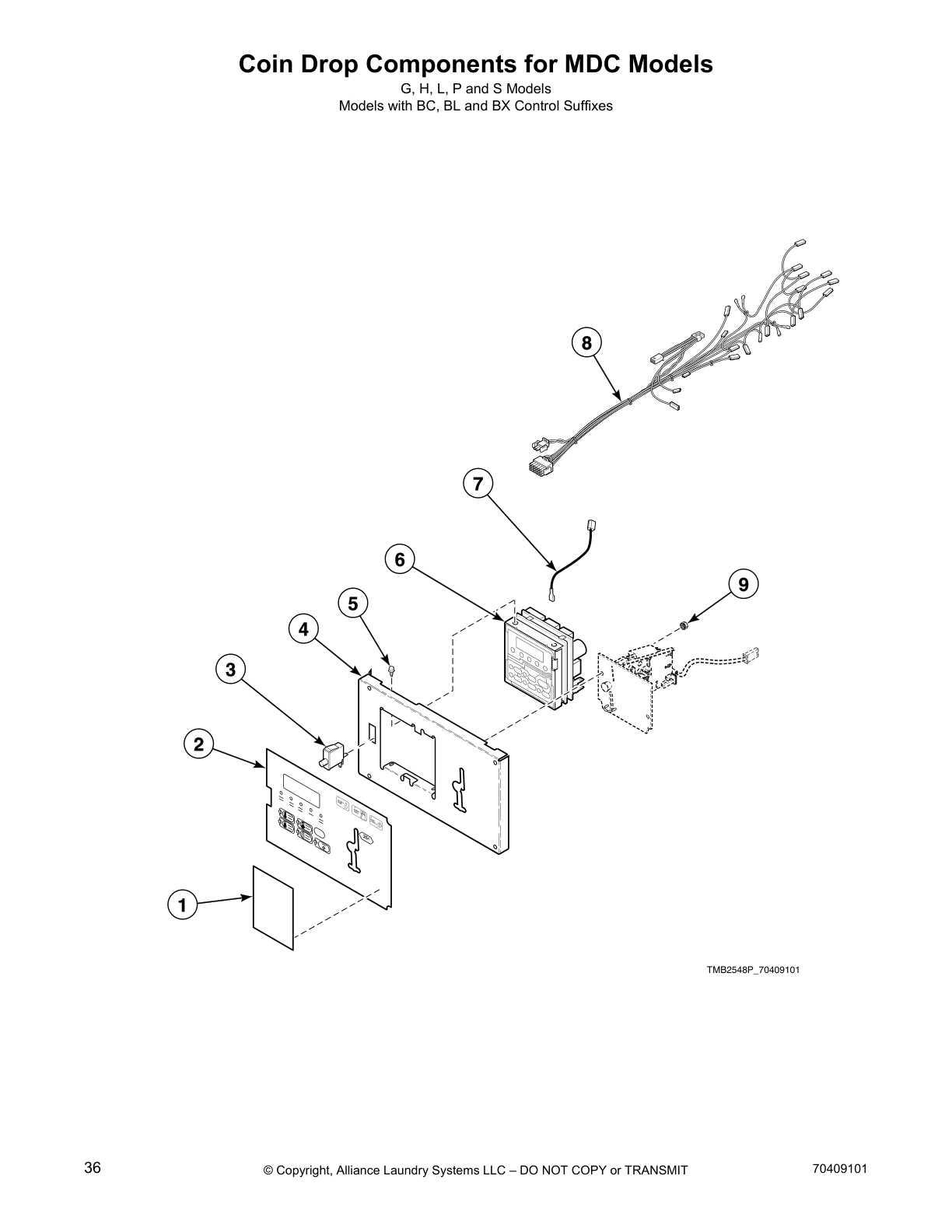

Coin Drop Components for MDC Models

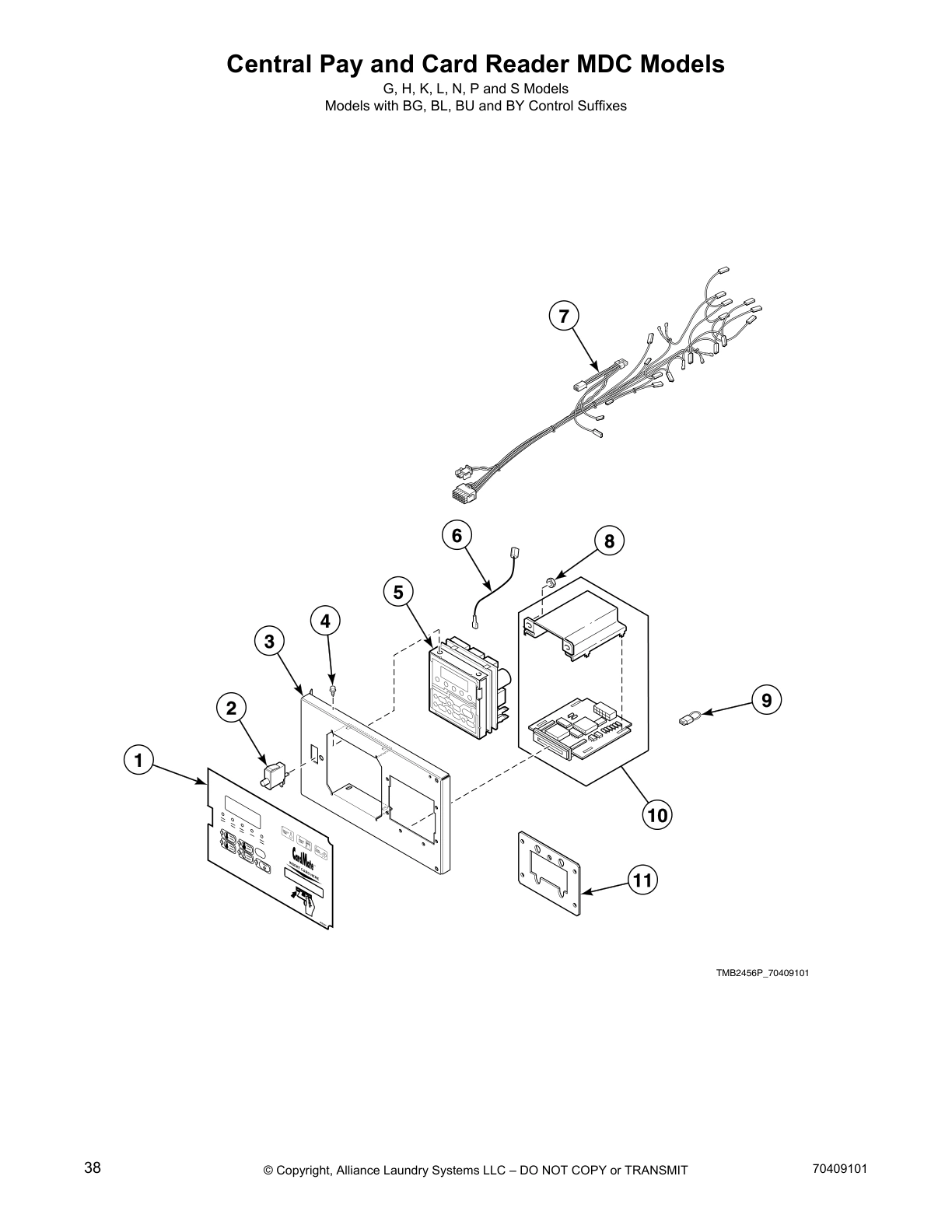

Central Pay and Card Reader MDC Models

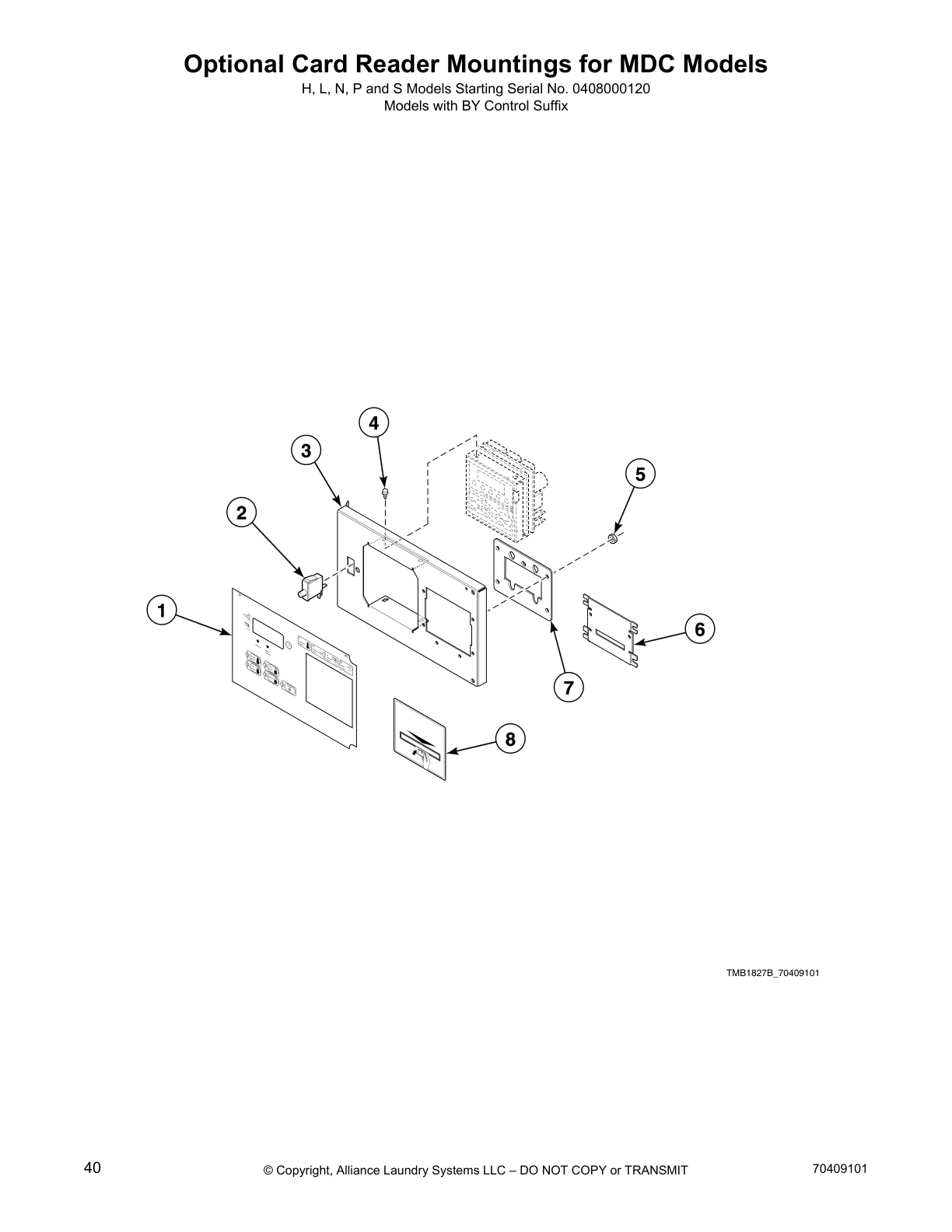

Optional Card Reader Mountings for MDC Models

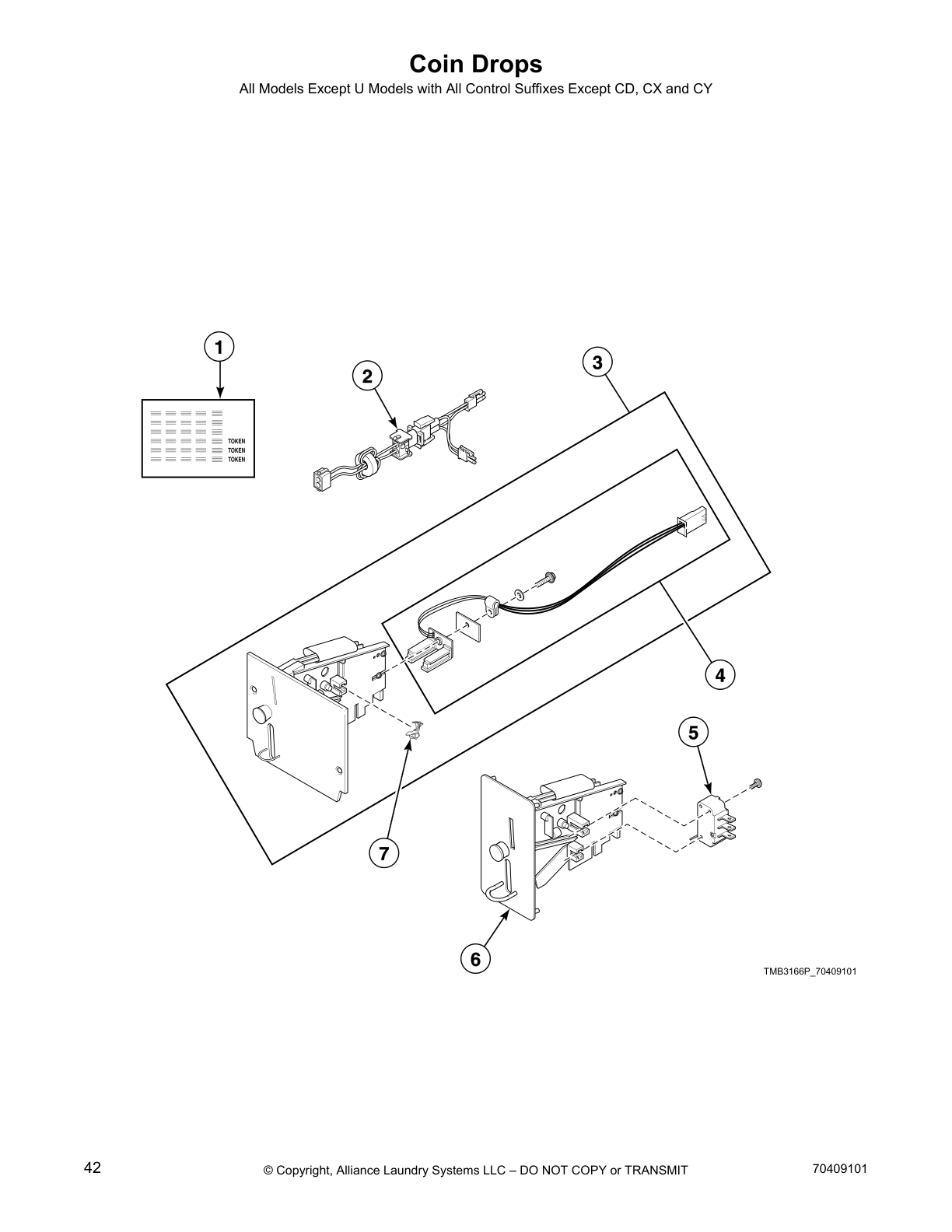

Coin Drops

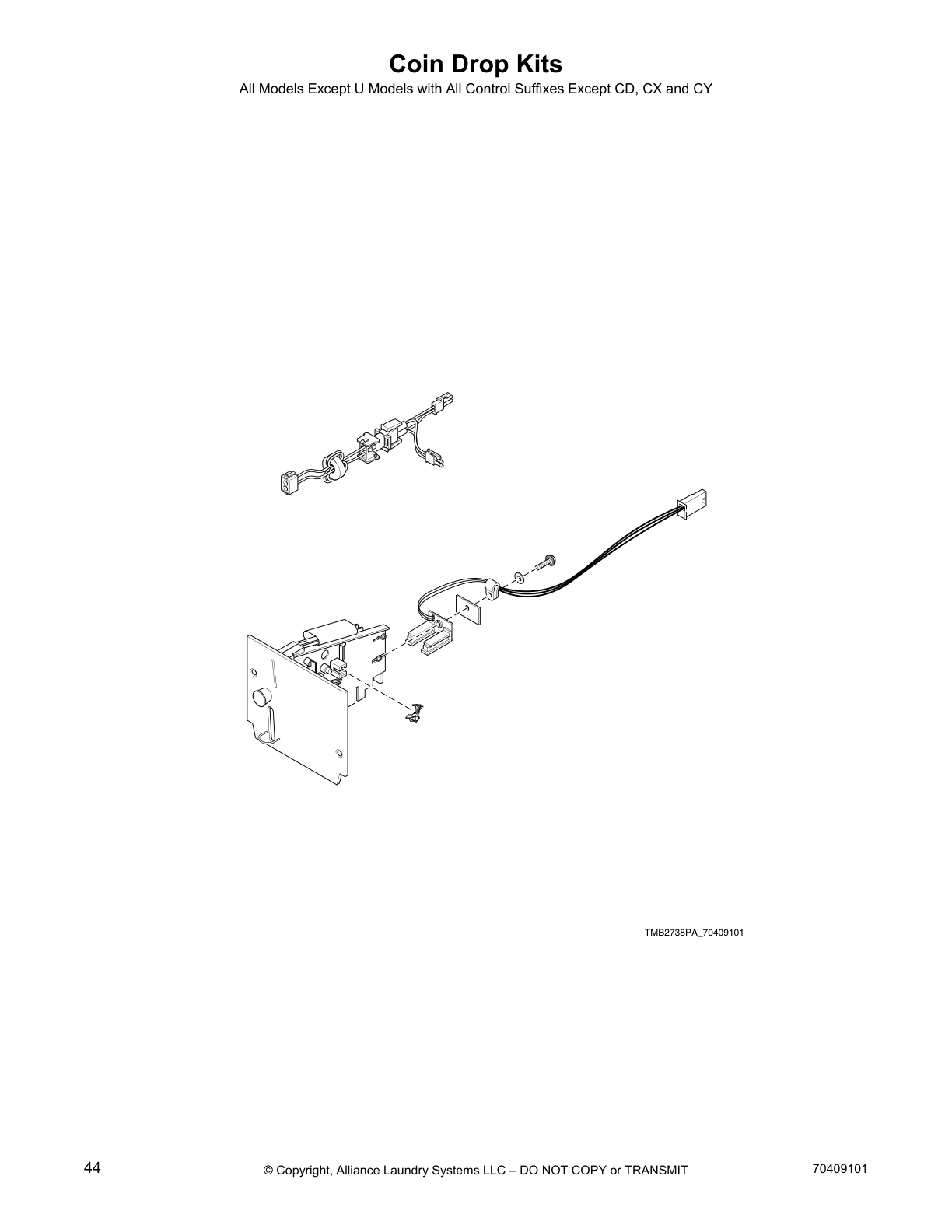

Coin Drop Kits

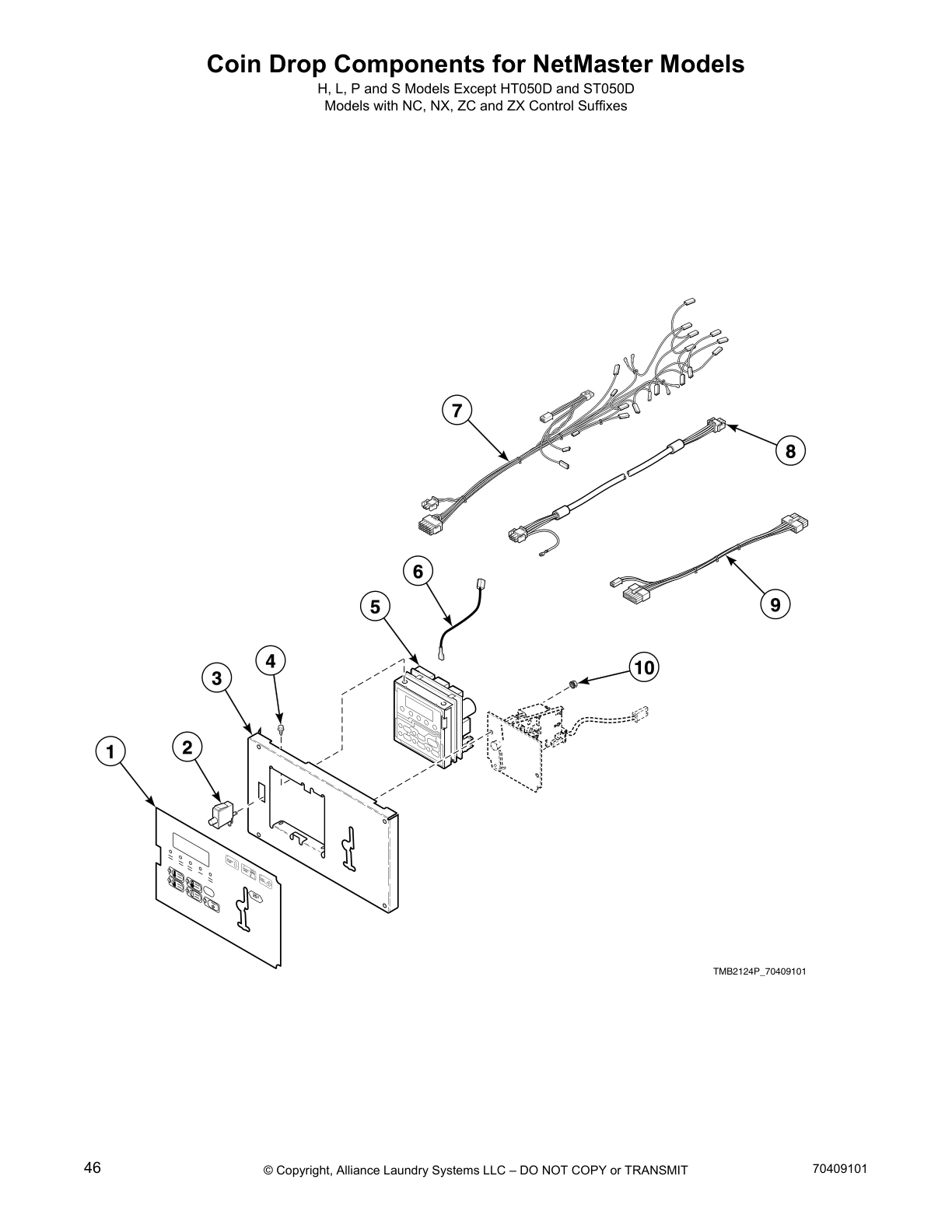

Coin Drop Components for NetMaster Models

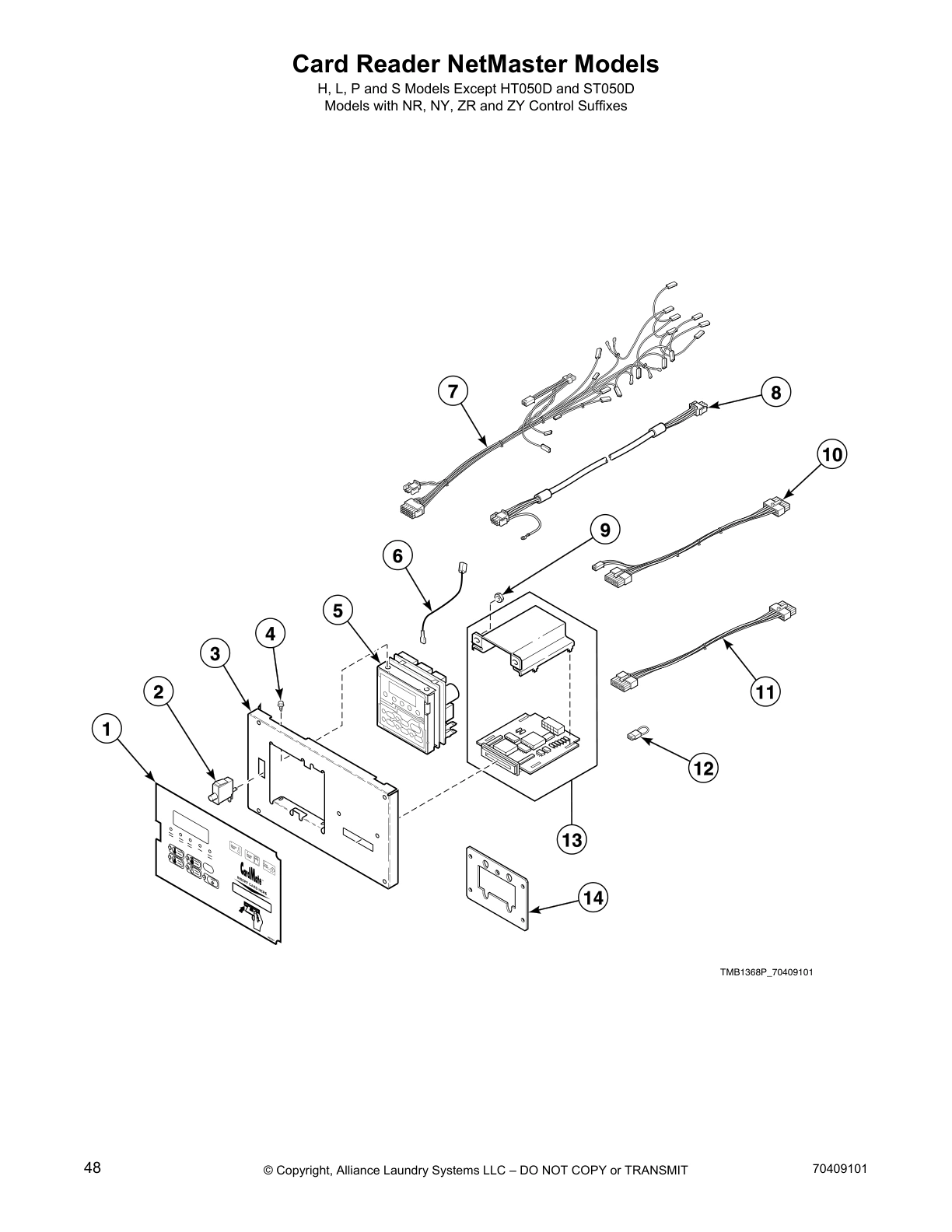

Card Reader NetMaster Models

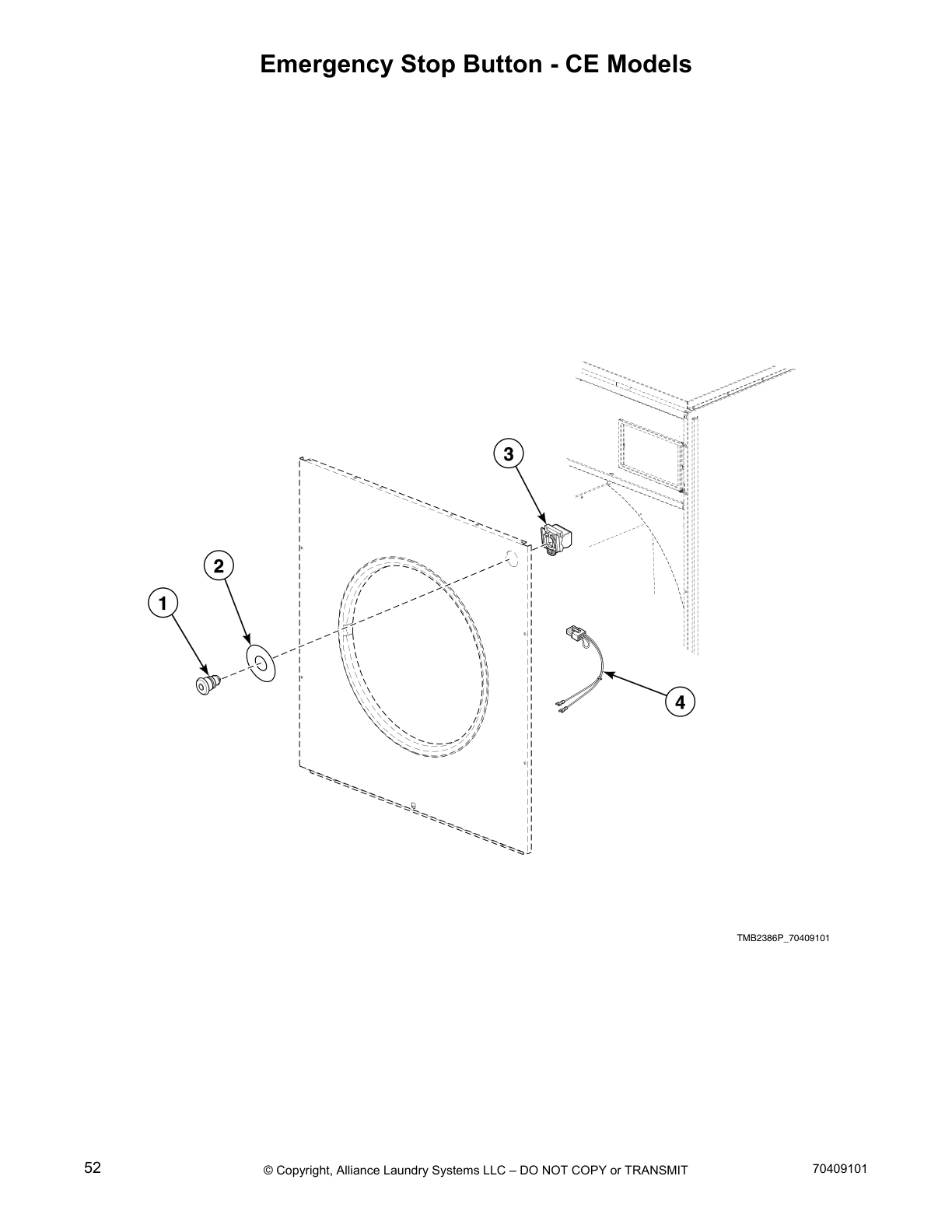

Emergency Stop Button - CE Models

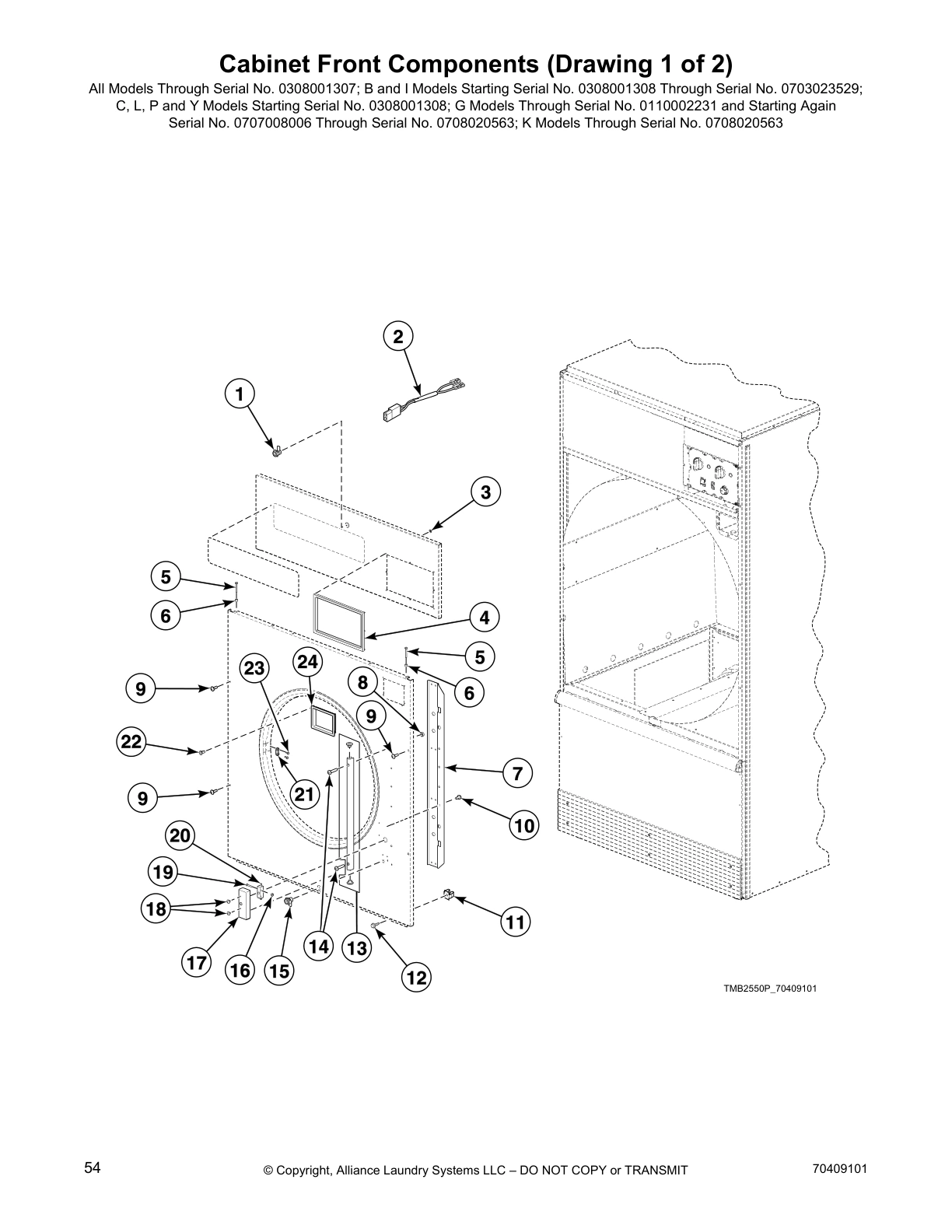

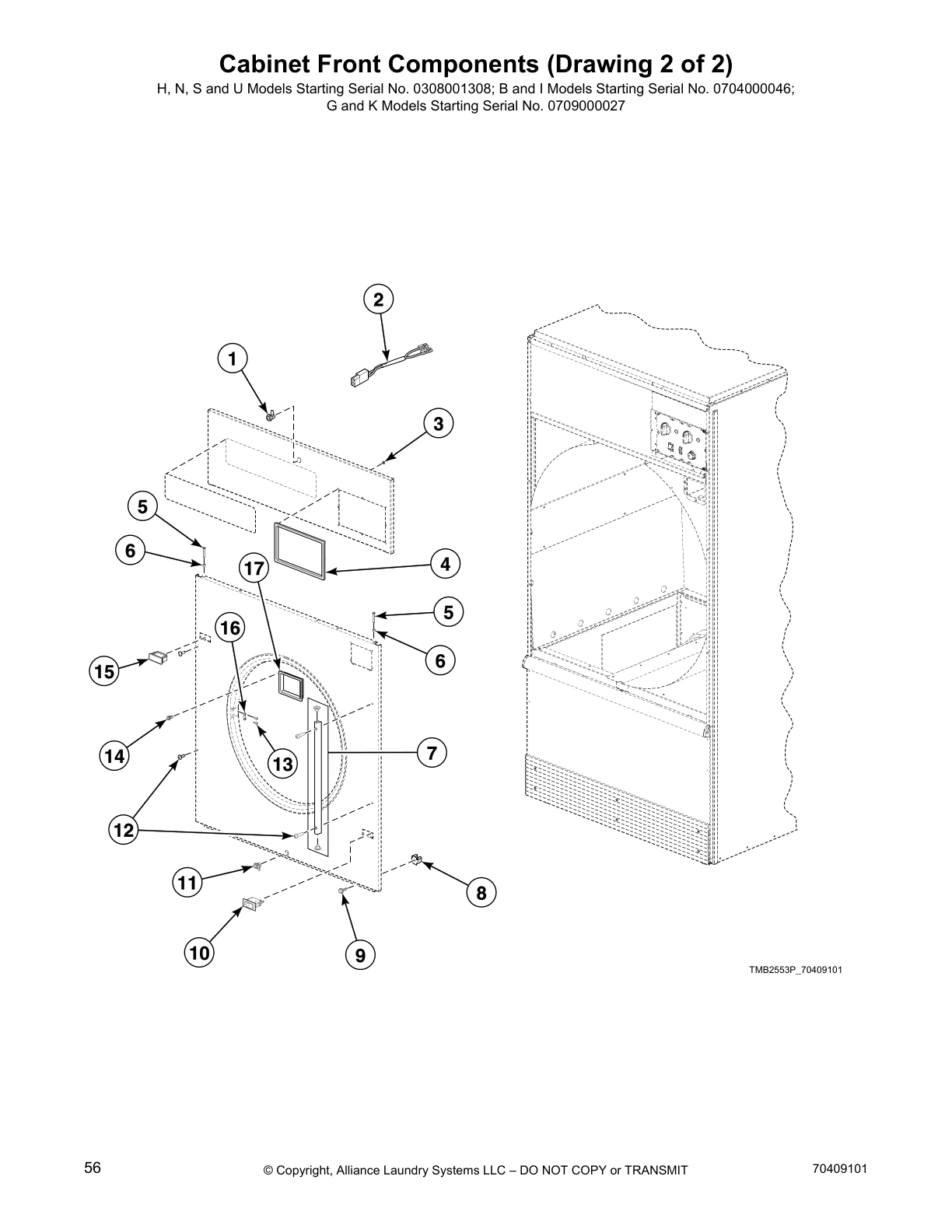

Cabinet Front Components (Drawing 1 of 2)
Cabinet Front Components (Drawing 2 of 2)

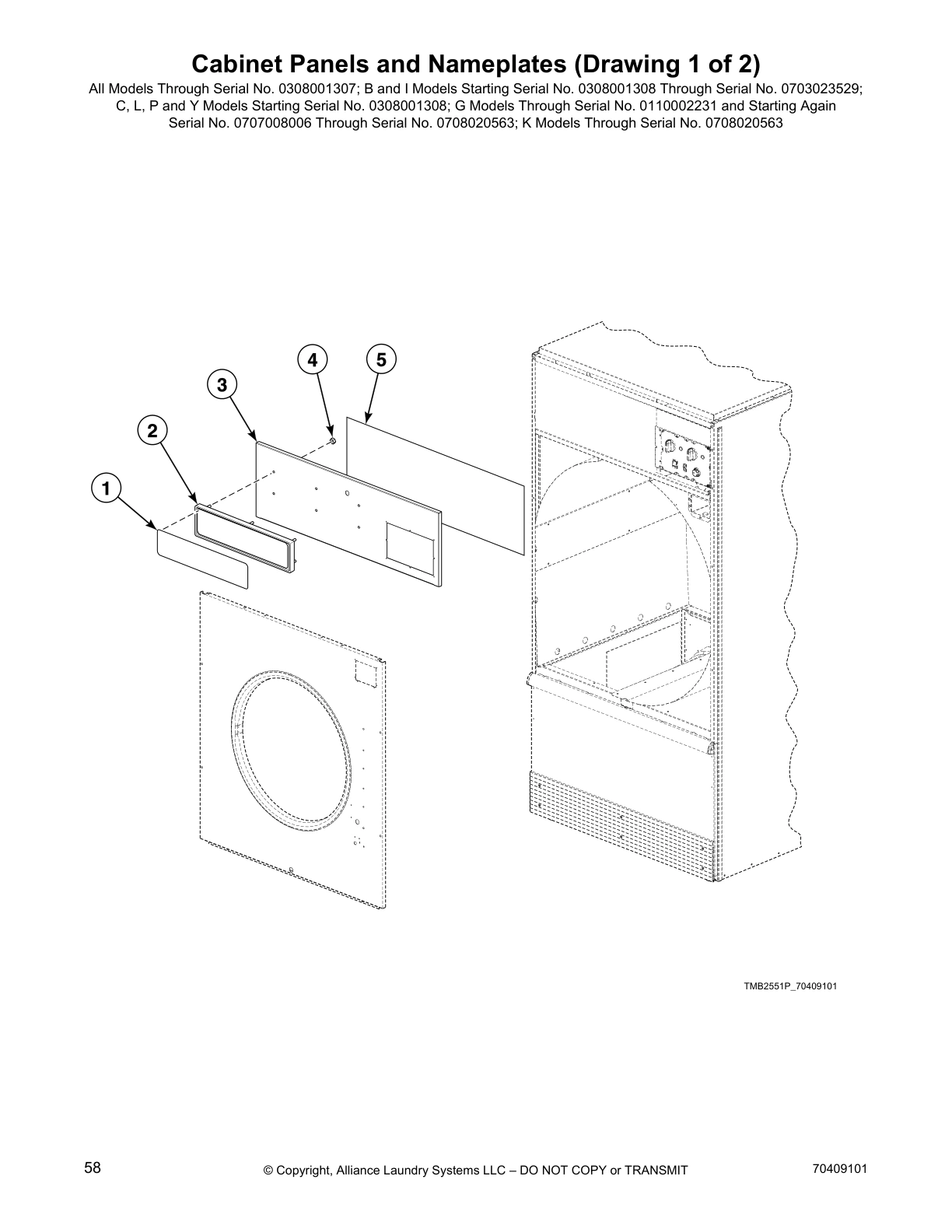

Cabinet Panels and Nameplates (Drawing 1 of 2)

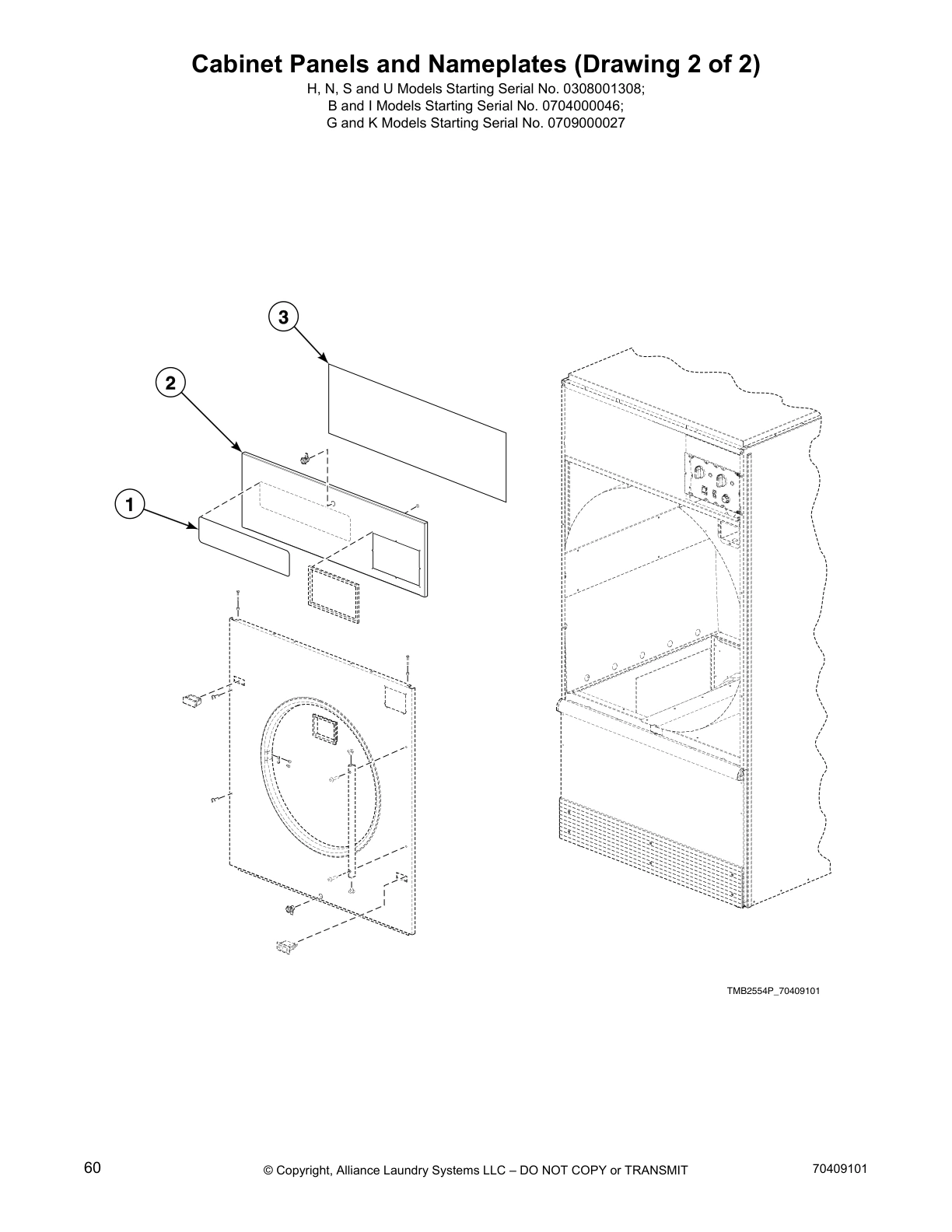

Cabinet Panels and Nameplates (Drawing 2 of 2)

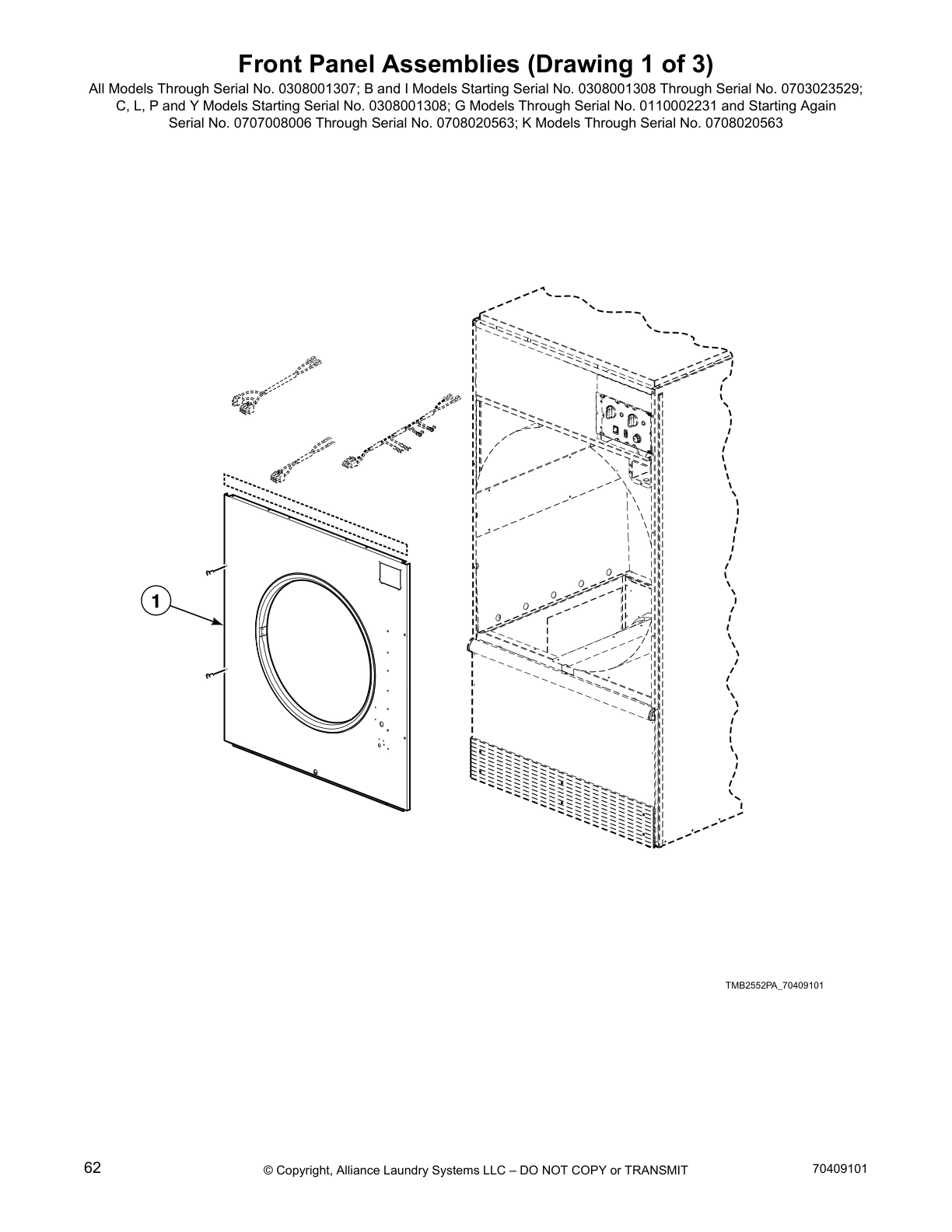

Front Panel Assemblies (Drawing 1 of 3)

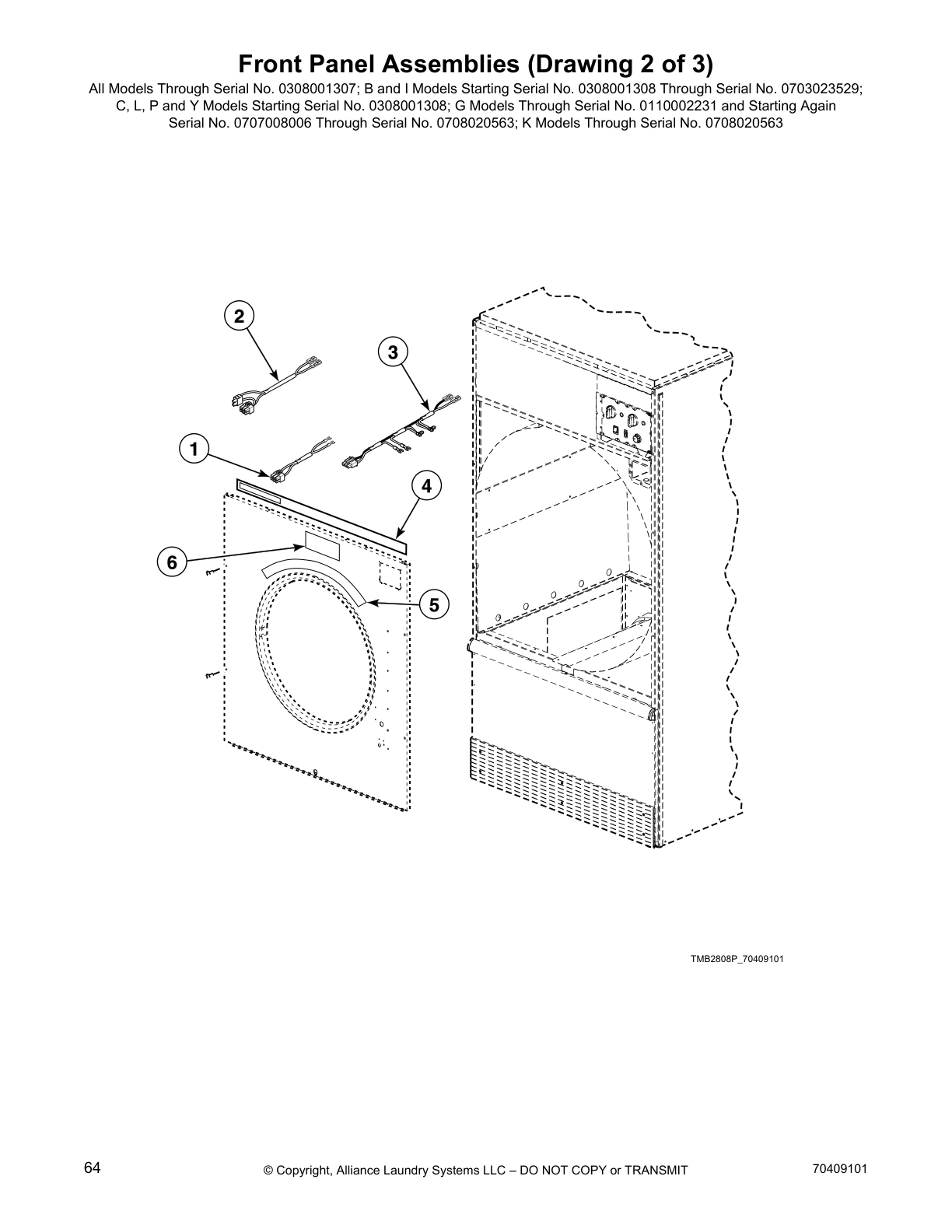

Front Panel Assemblies (Drawing 2 of 3)

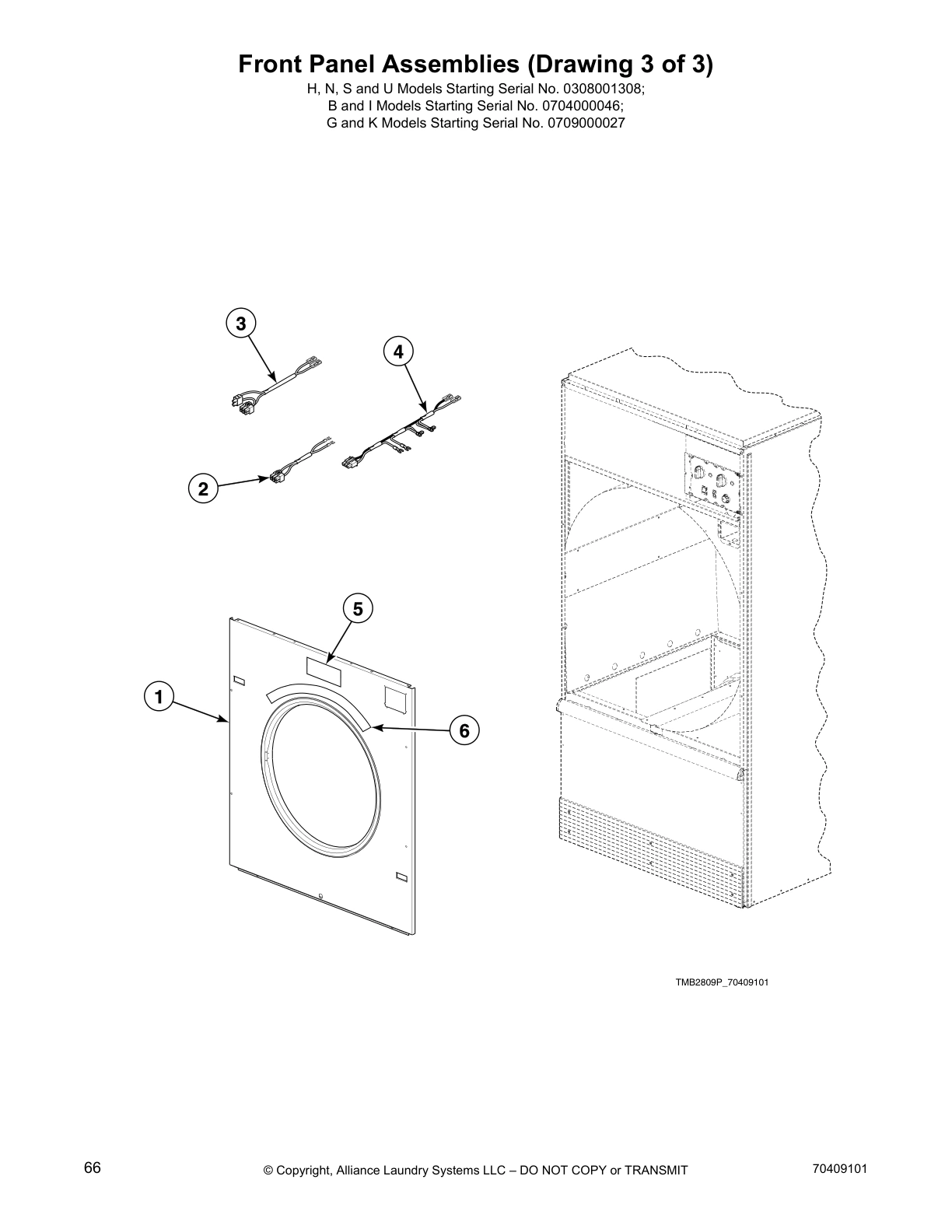

Front Panel Assemblies (Drawing 3 of 3)

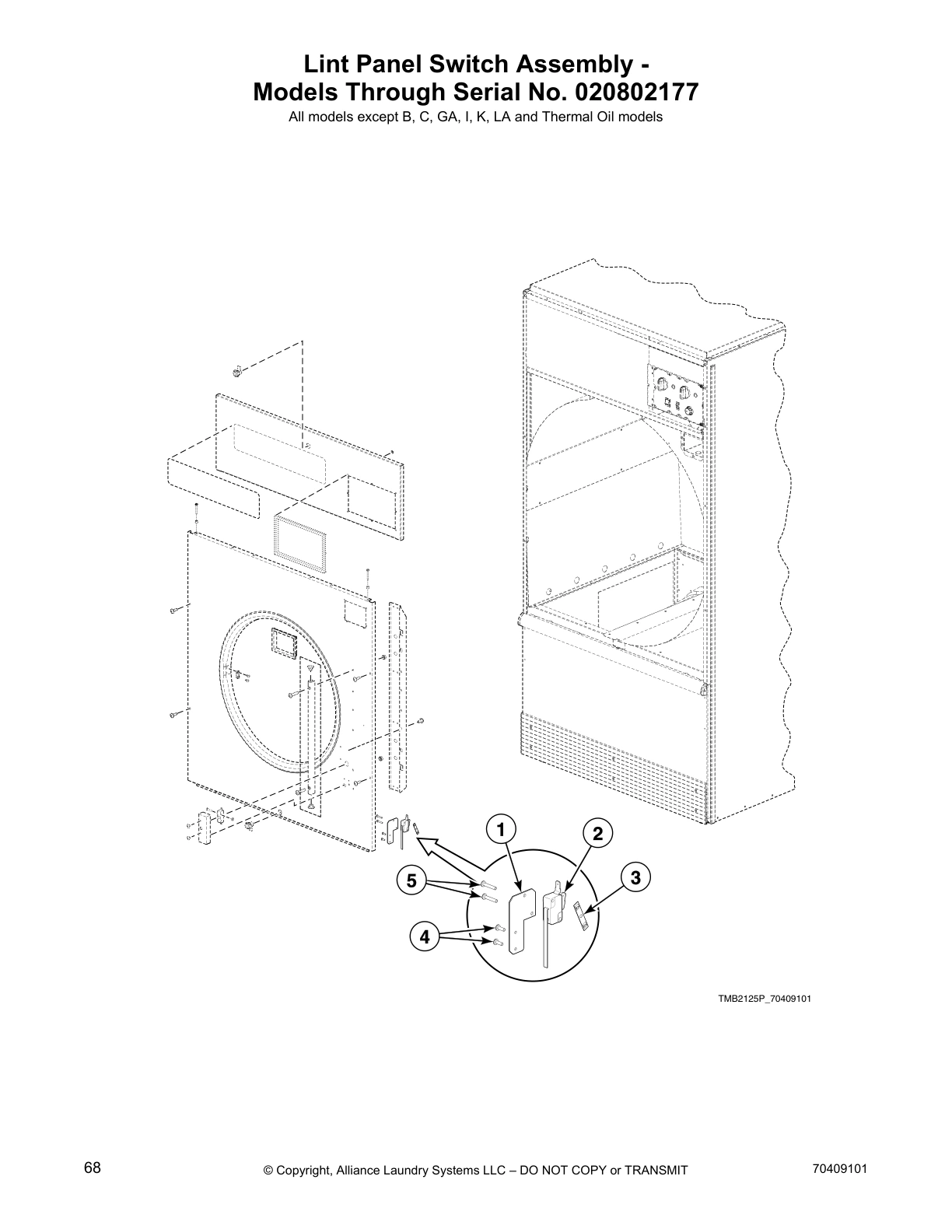

Lint Panel Switch Assembly -
Models Through Serial No. 020802177

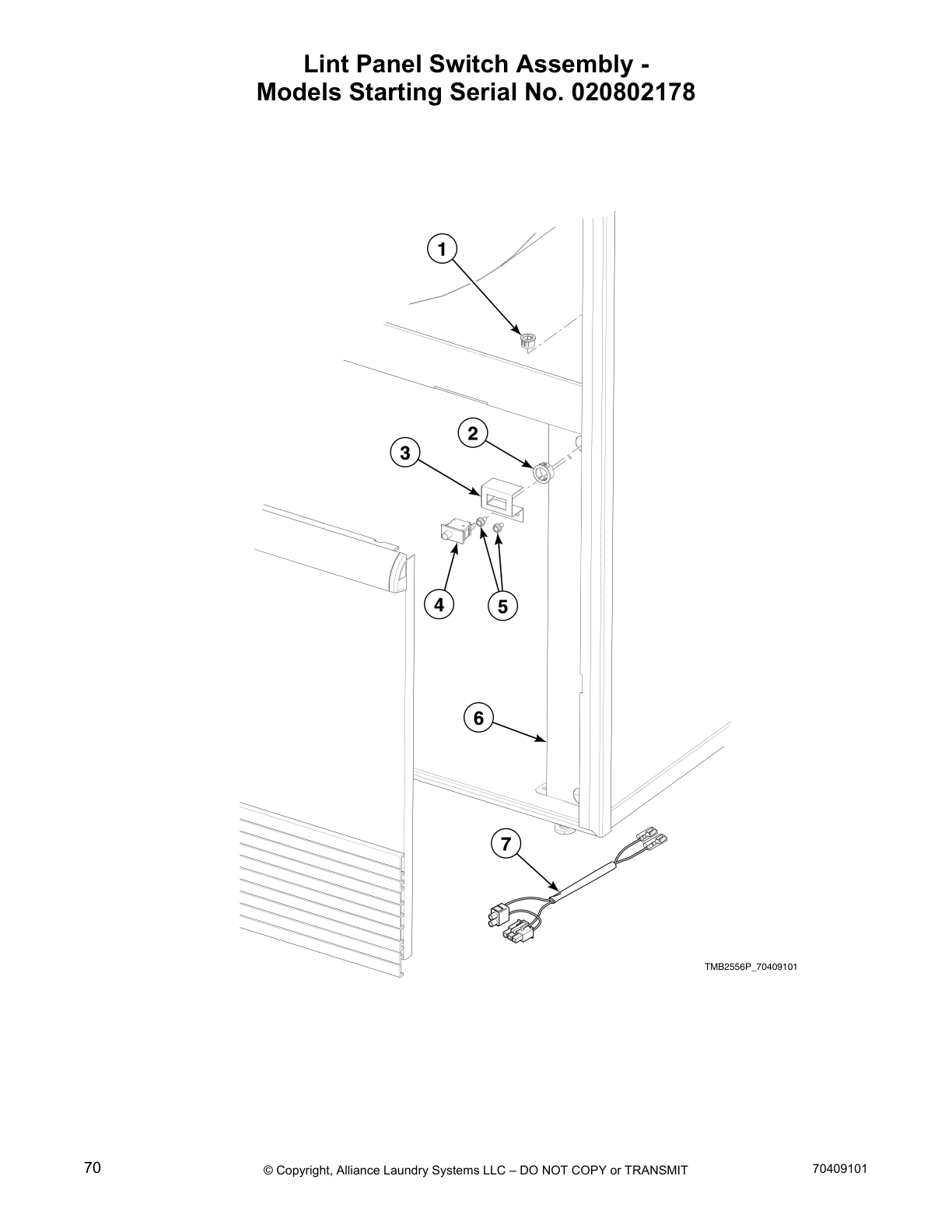

Lint Panel Switch Assembly -
Models Starting Serial No. 020802178

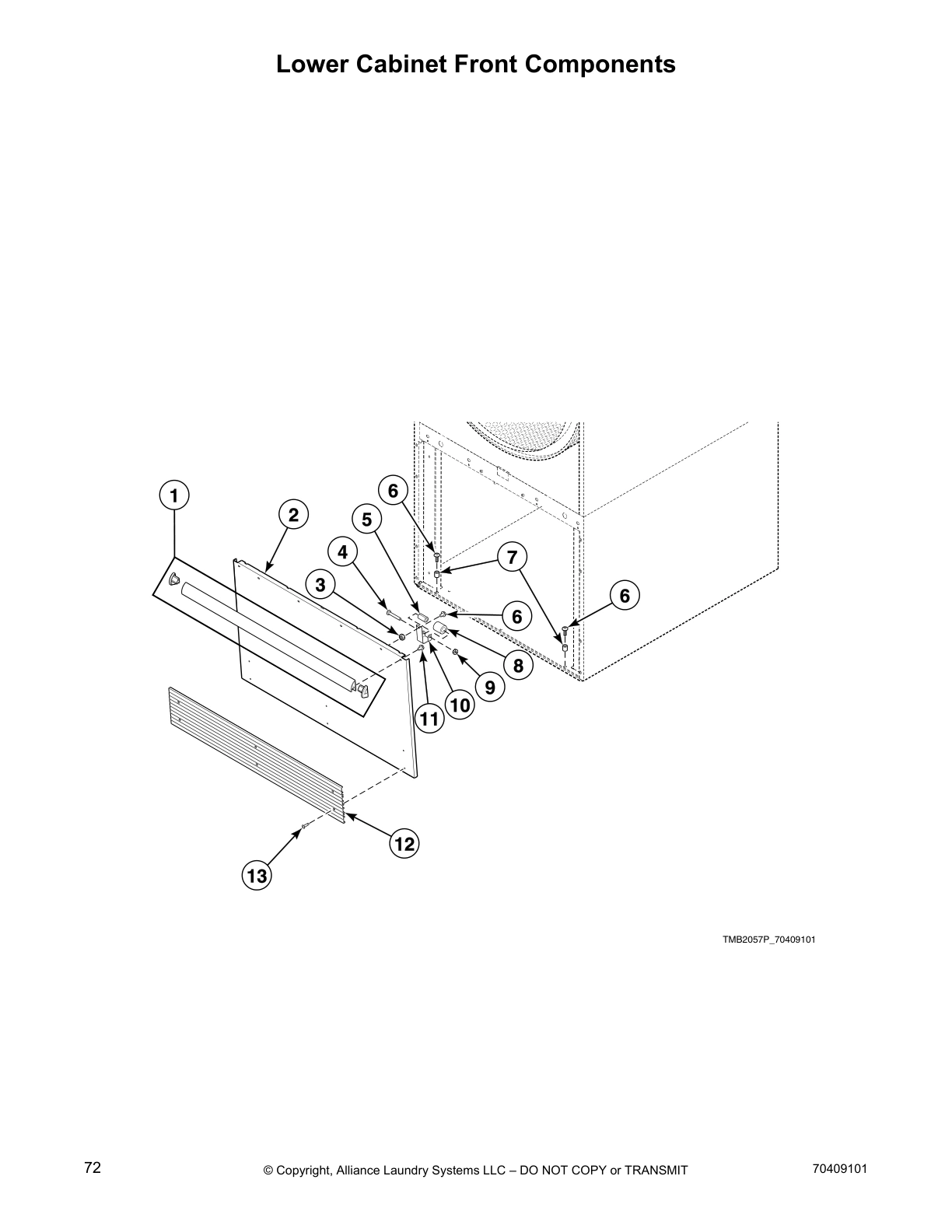

Lower Cabinet Front Components

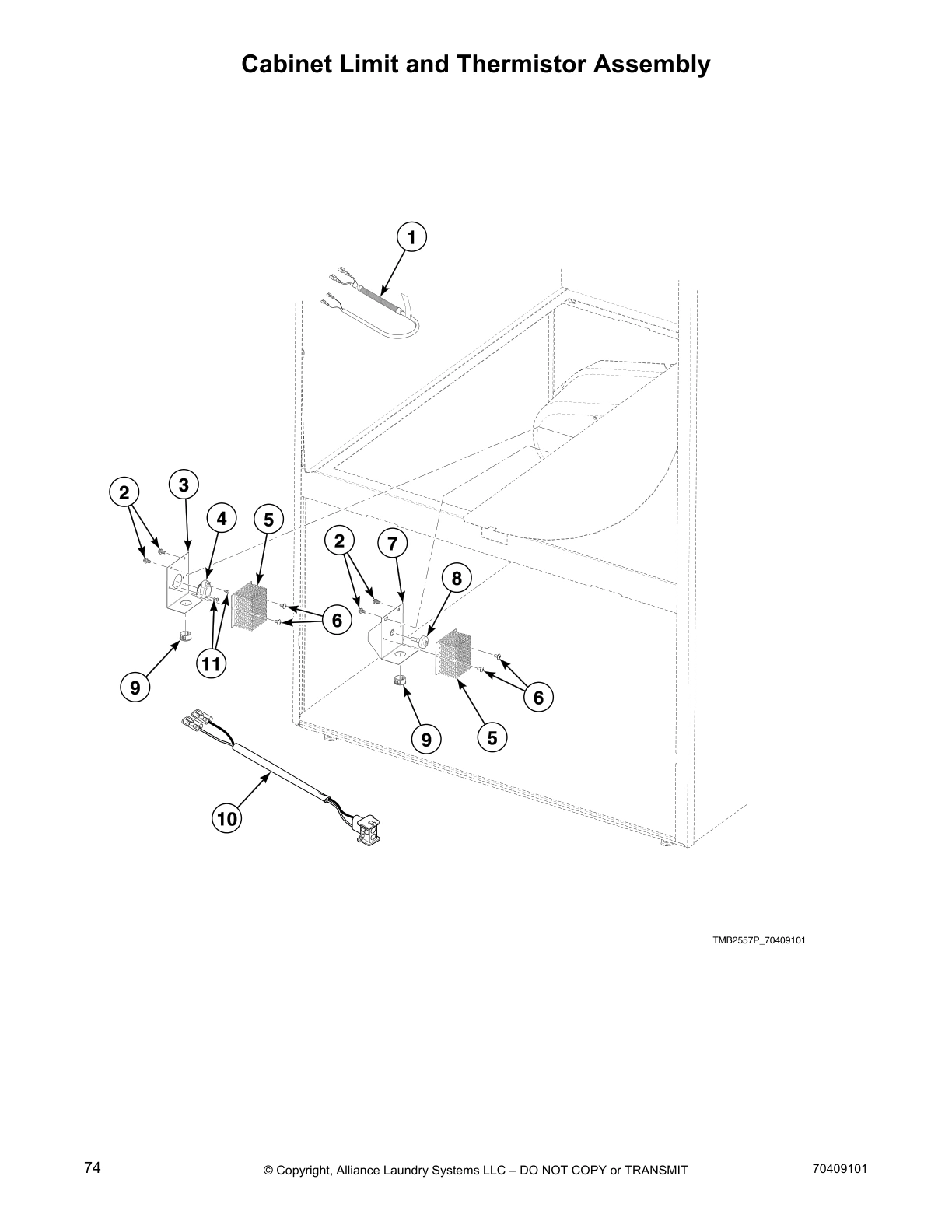

Cabinet Limit and Thermistor Assembly

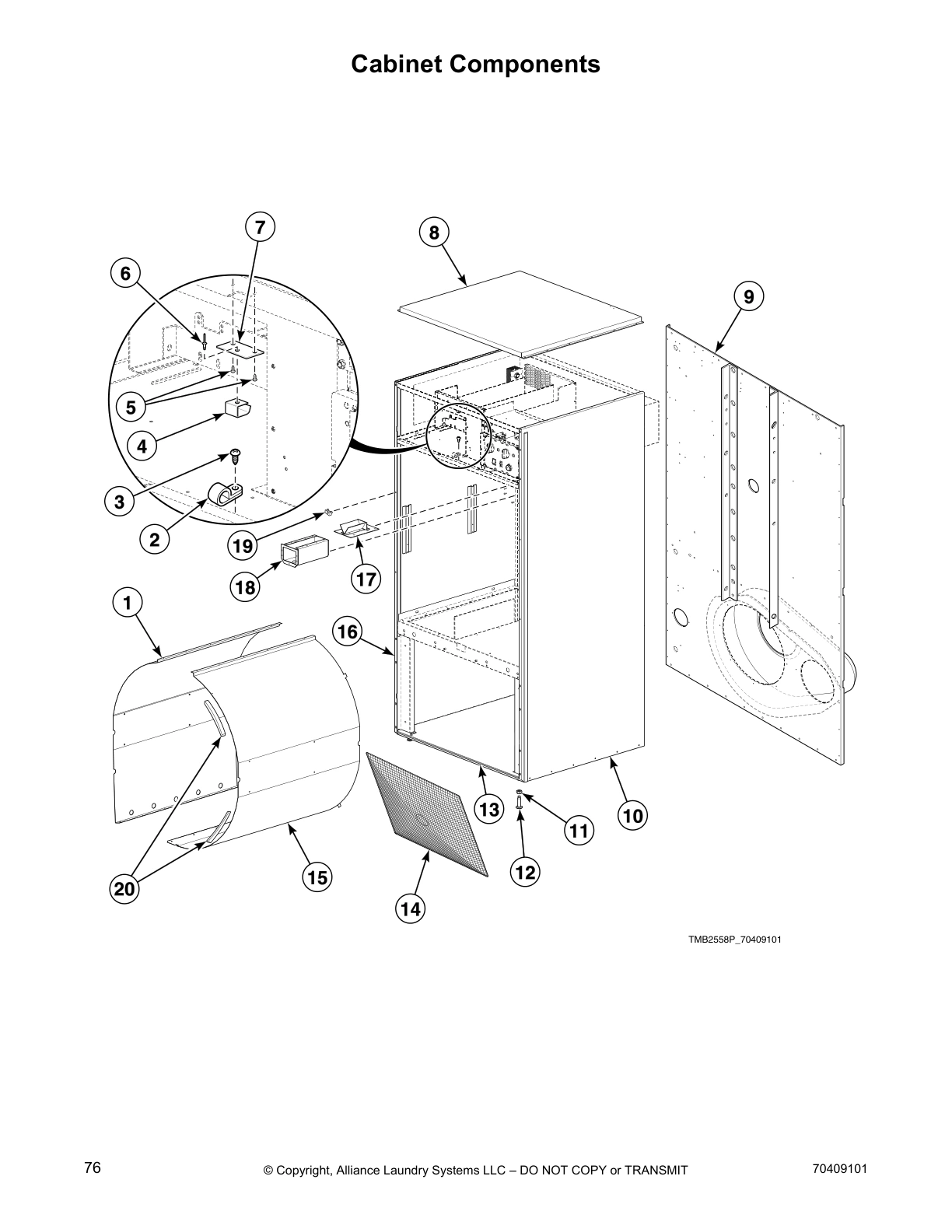

Cabinet Components

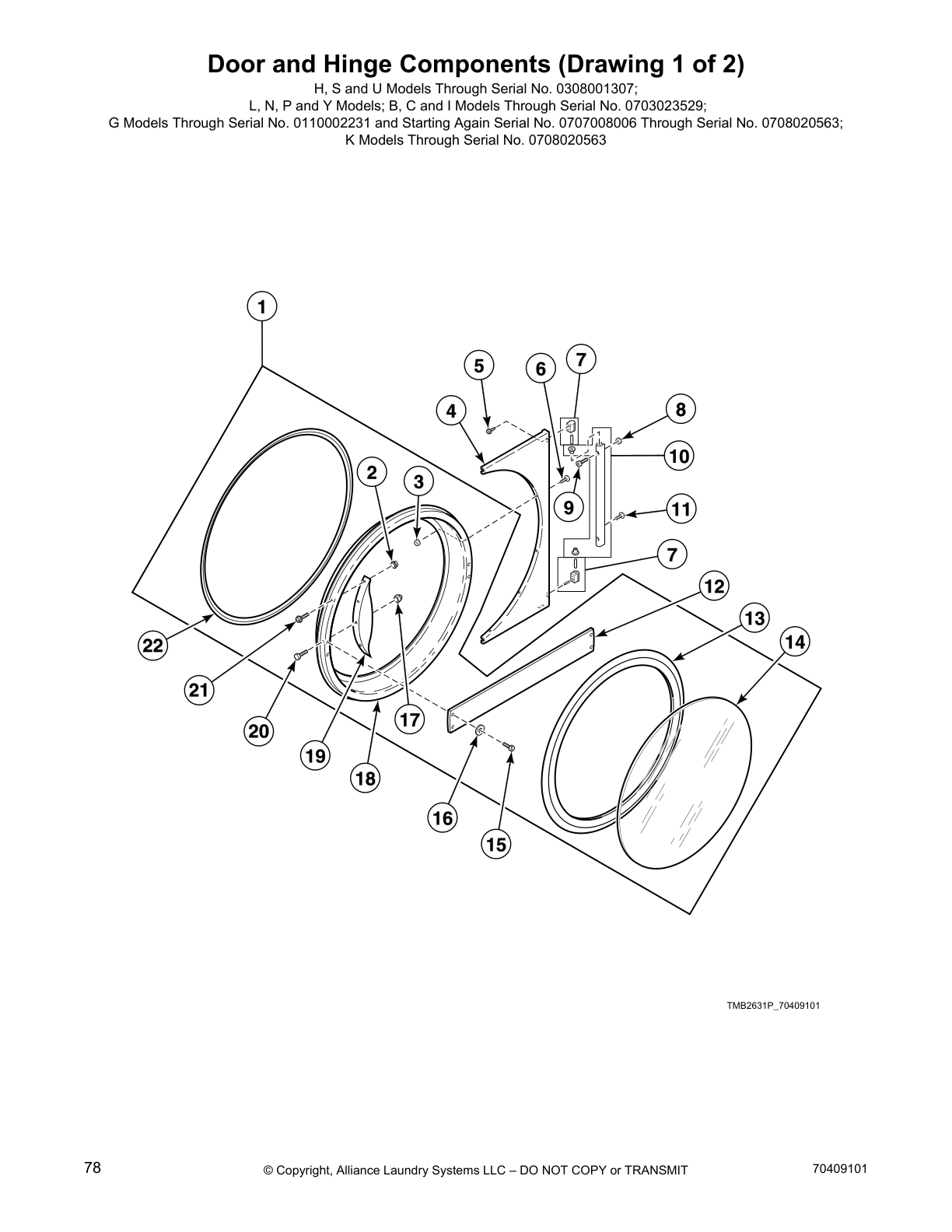

Door and Hinge Components (Drawing 1 of 2)

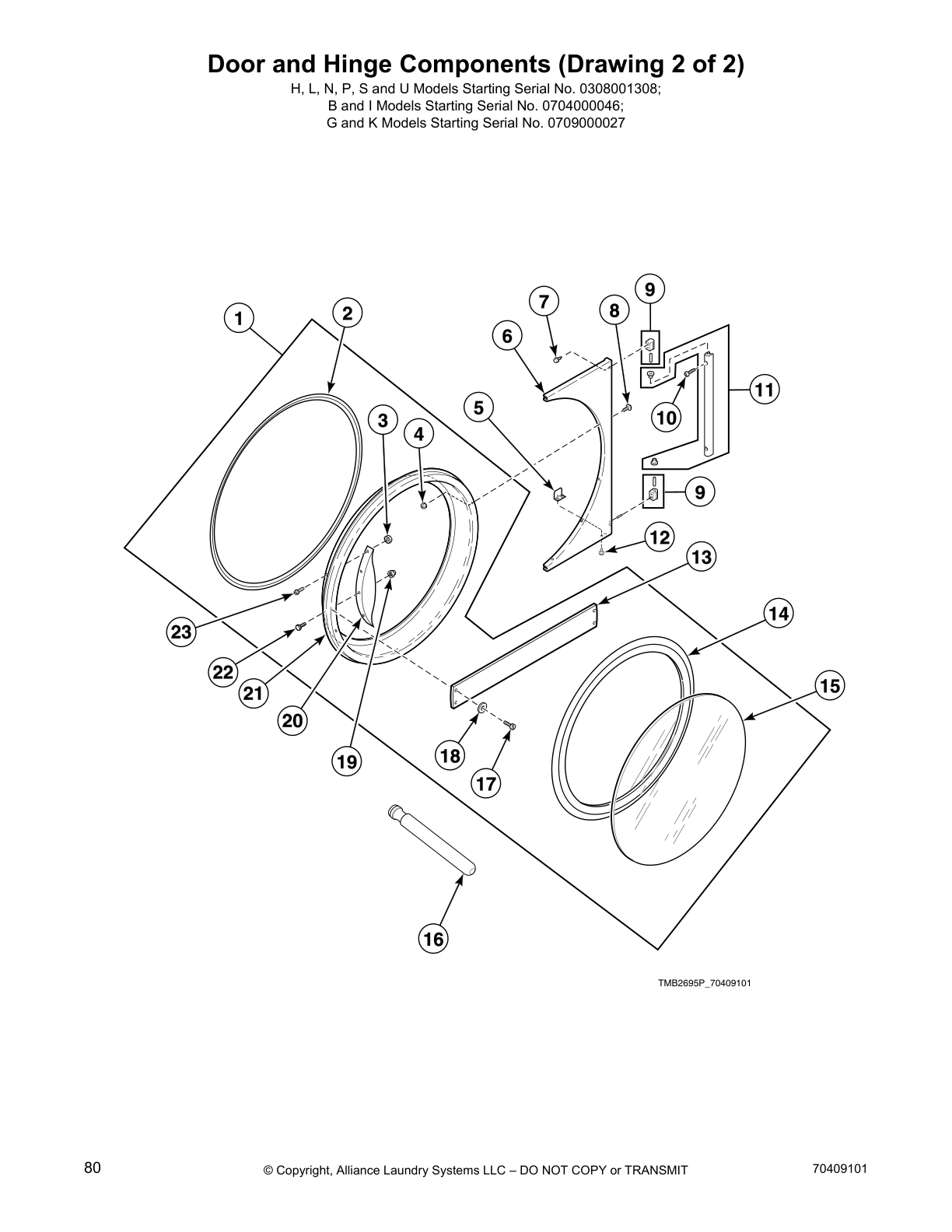

Door and Hinge Components (Drawing 2 of 2)

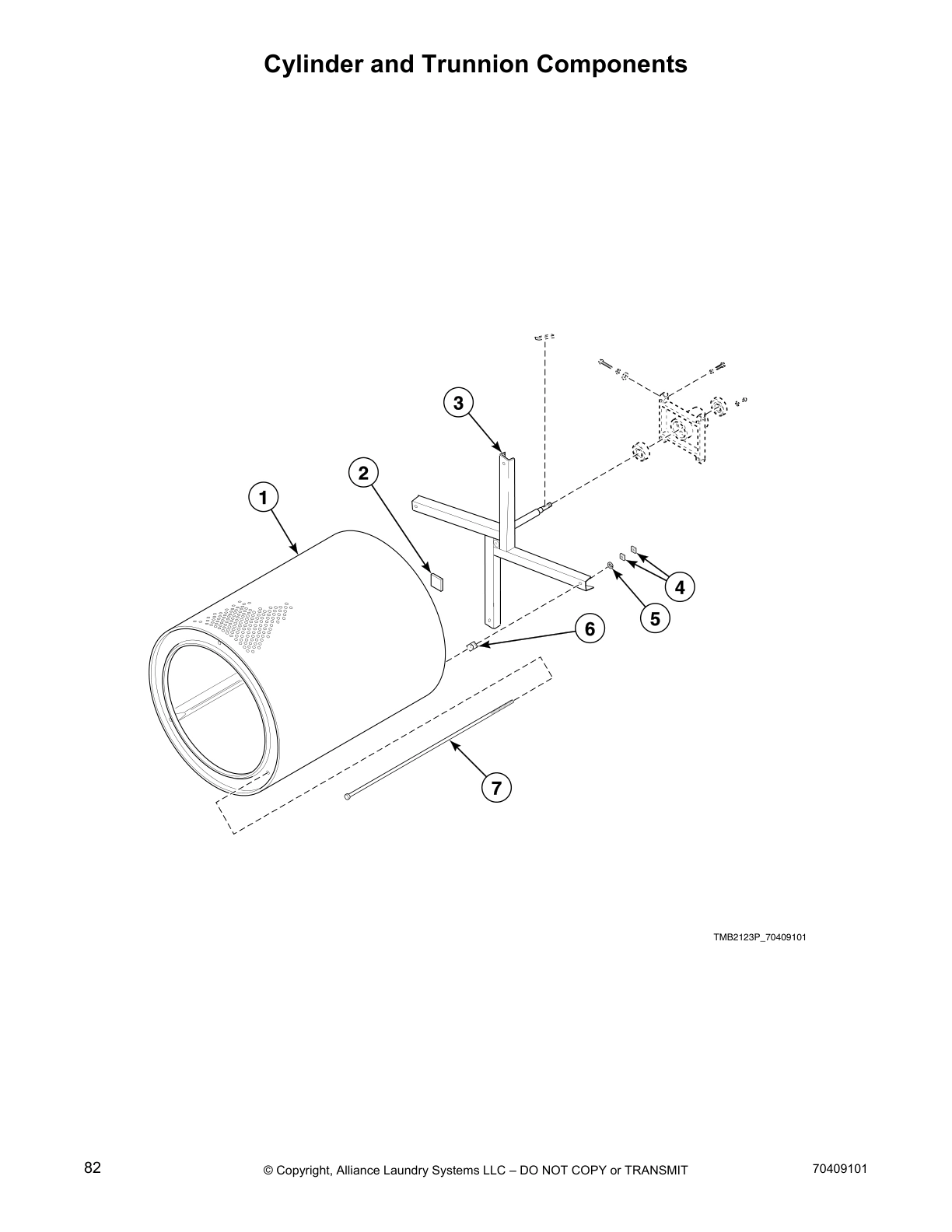

Cylinder and Trunnion Components

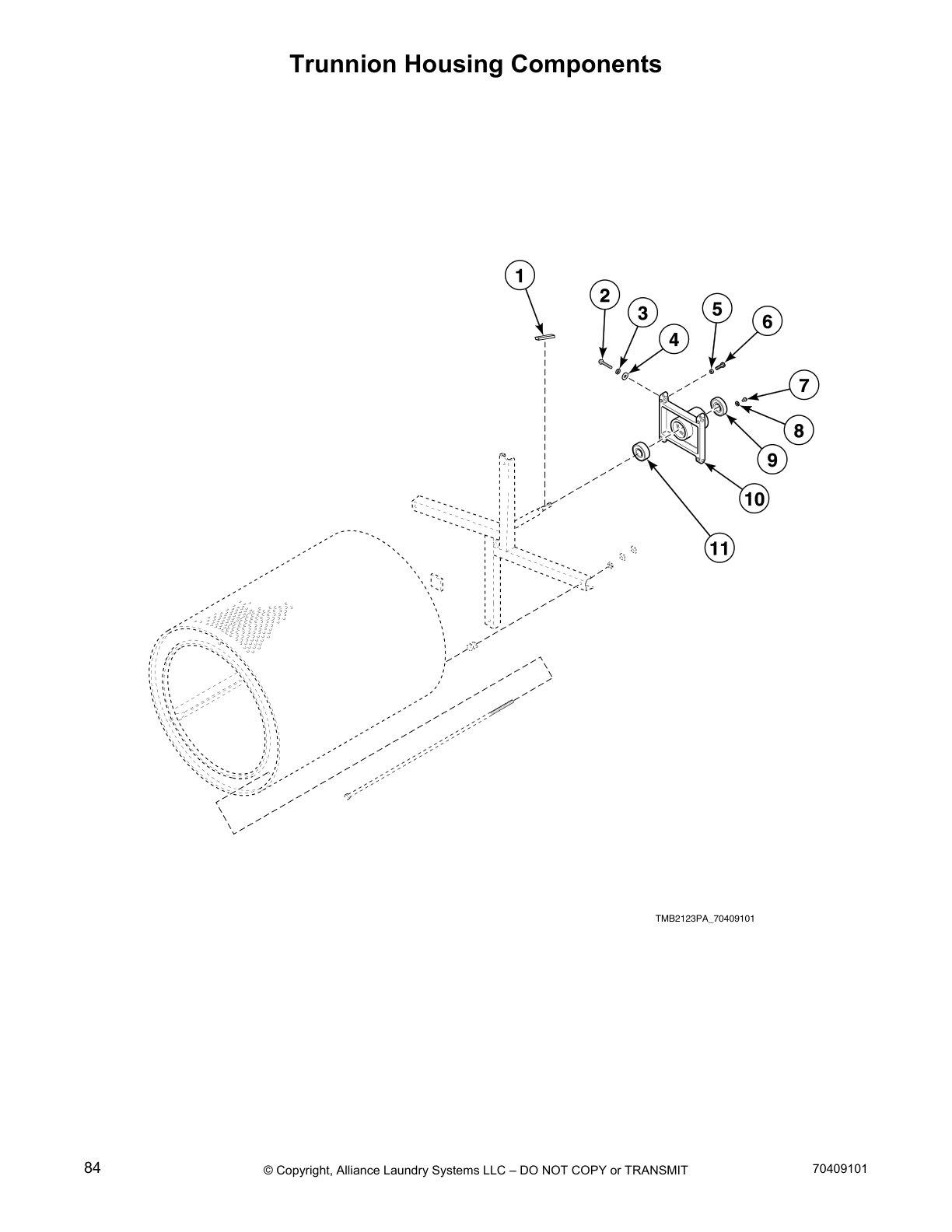

Trunnion Housing Components

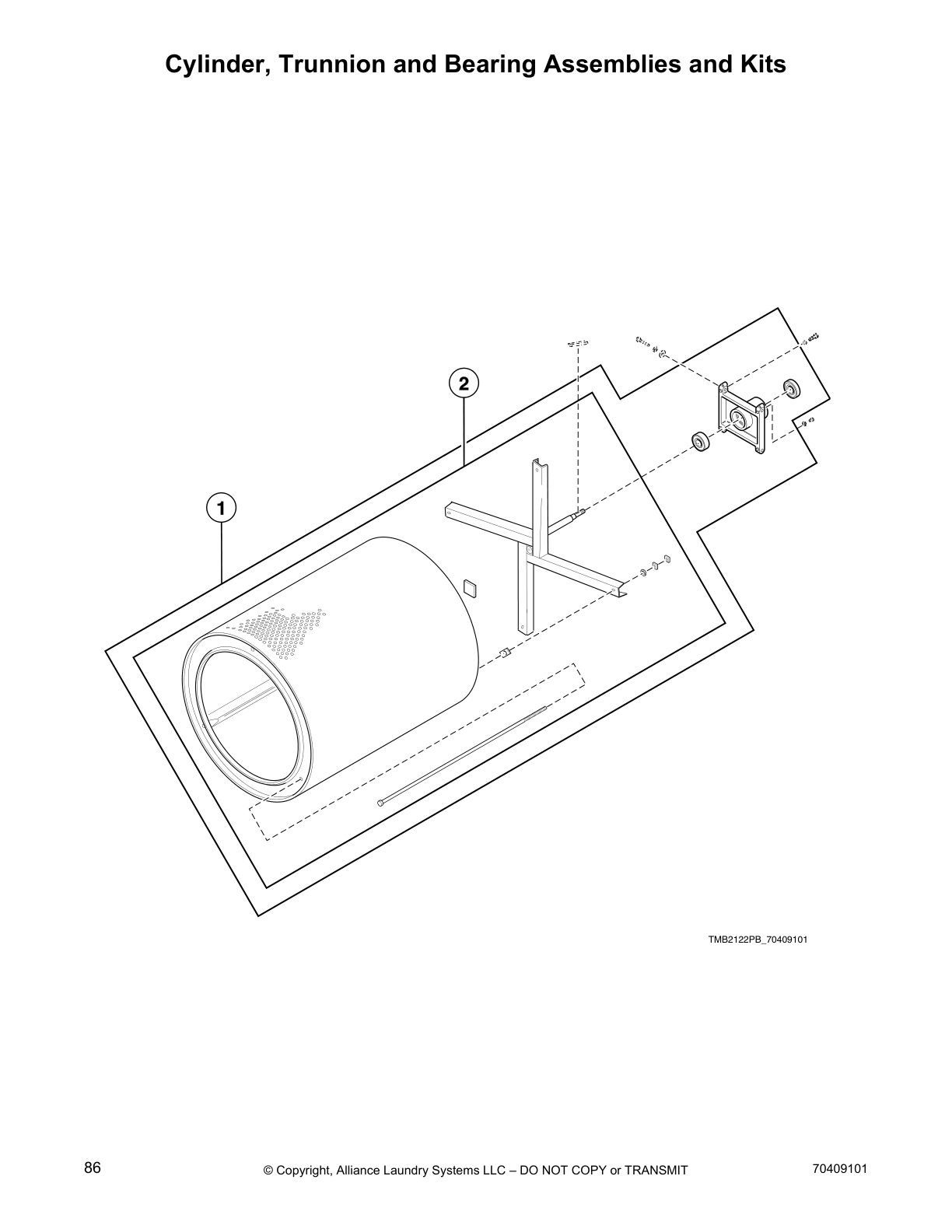

Cylinder, Trunnion and Bearing Assemblies and Kits

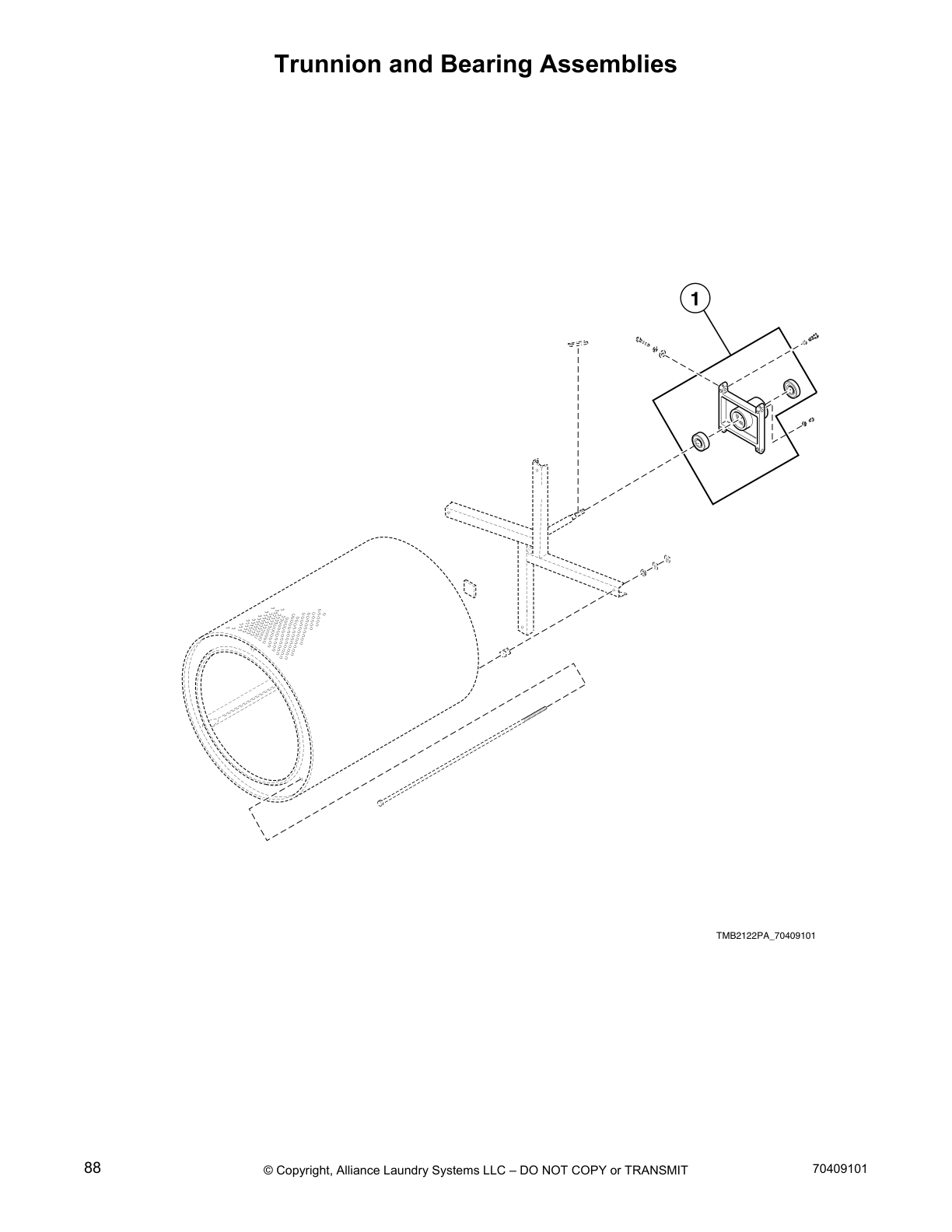

Trunnion and Bearing Assemblies

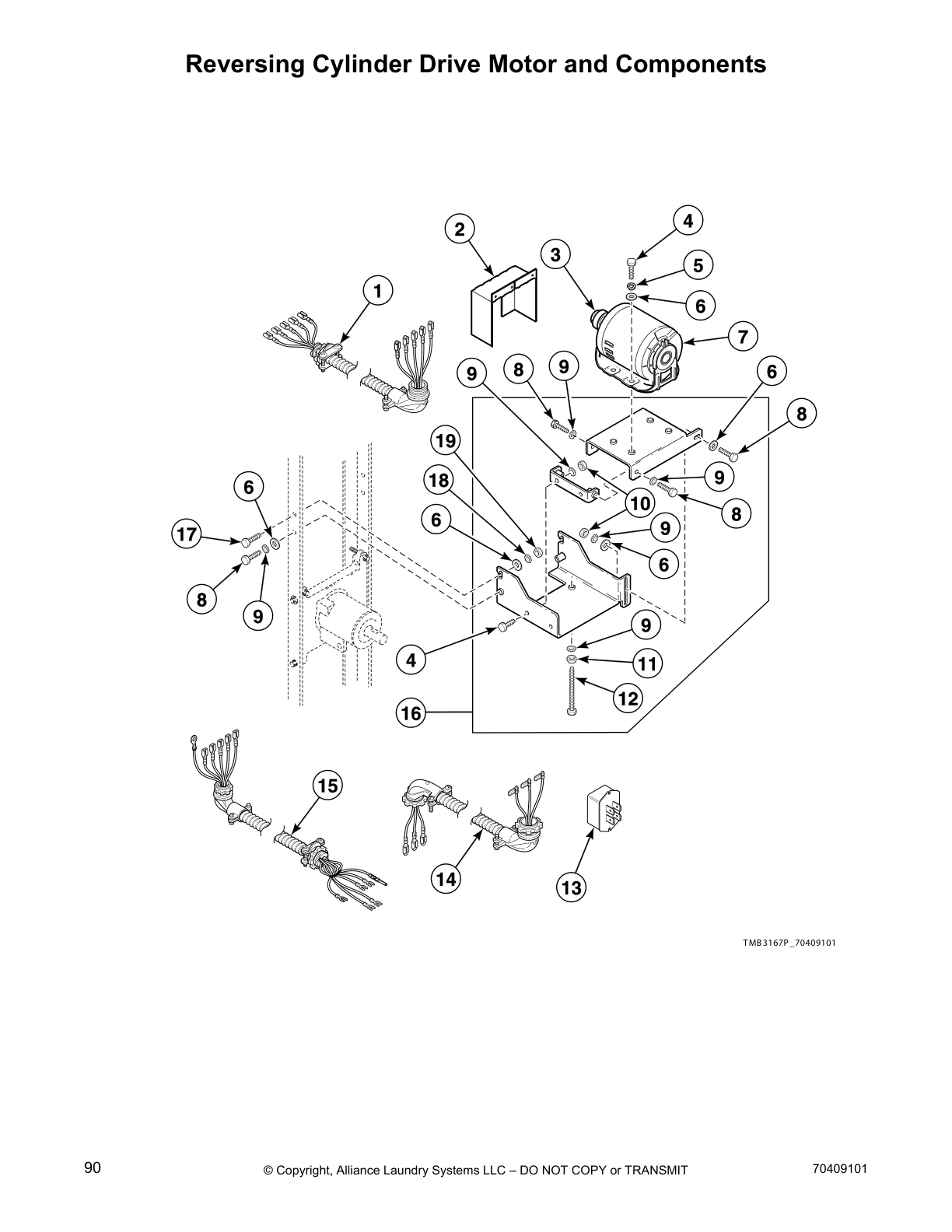

Reversing Cylinder Drive Motor and Components

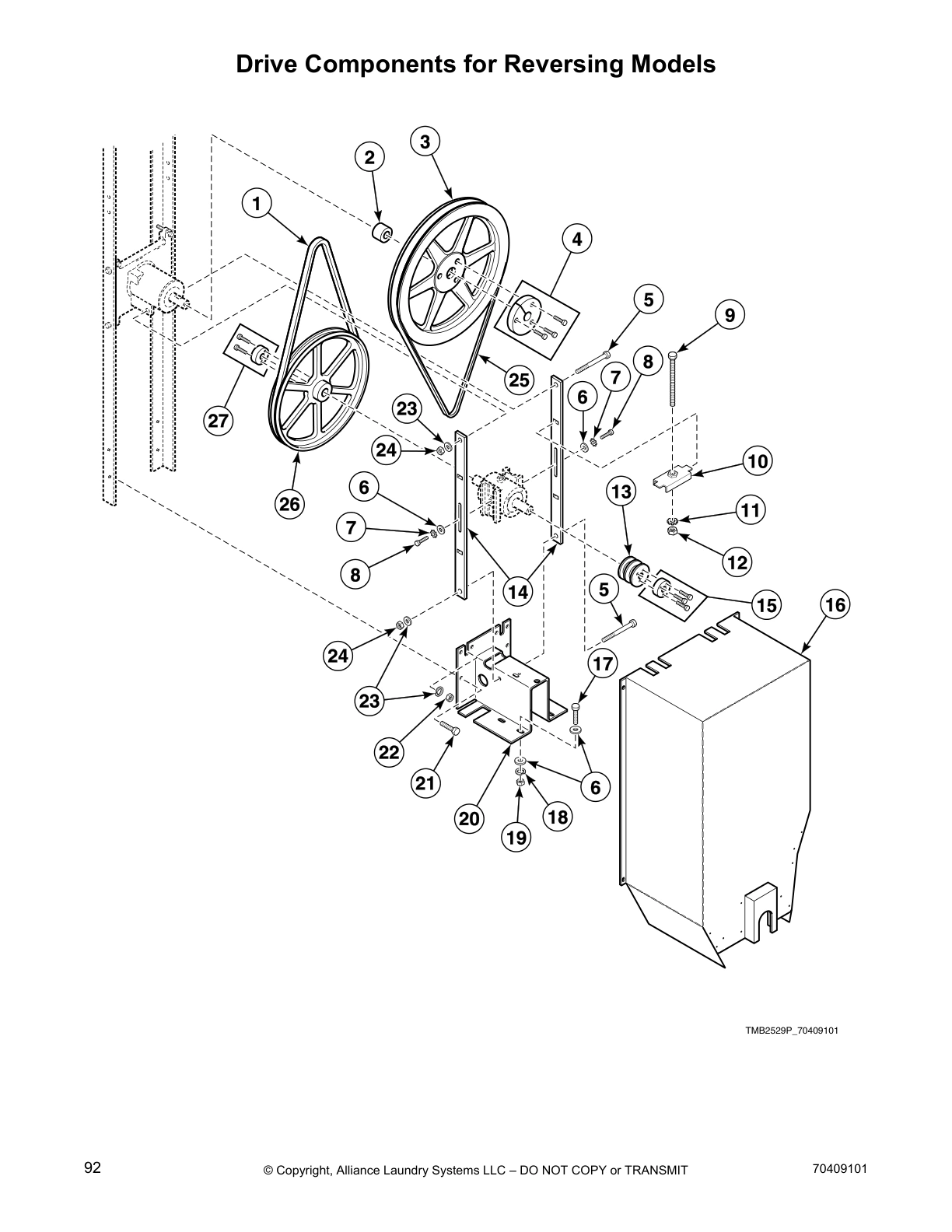

Drive Components for Reversing Models

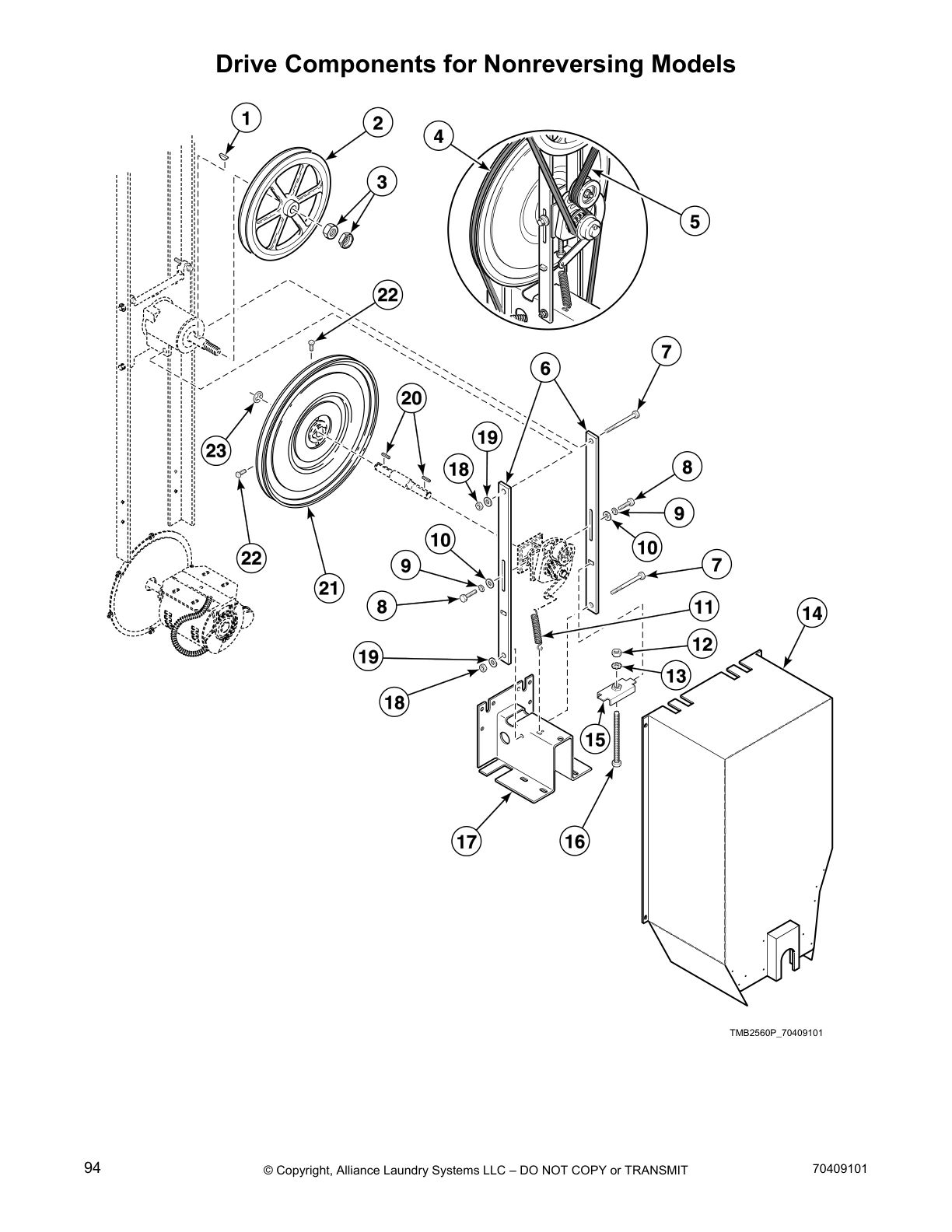

Drive Components for Nonreversing Models

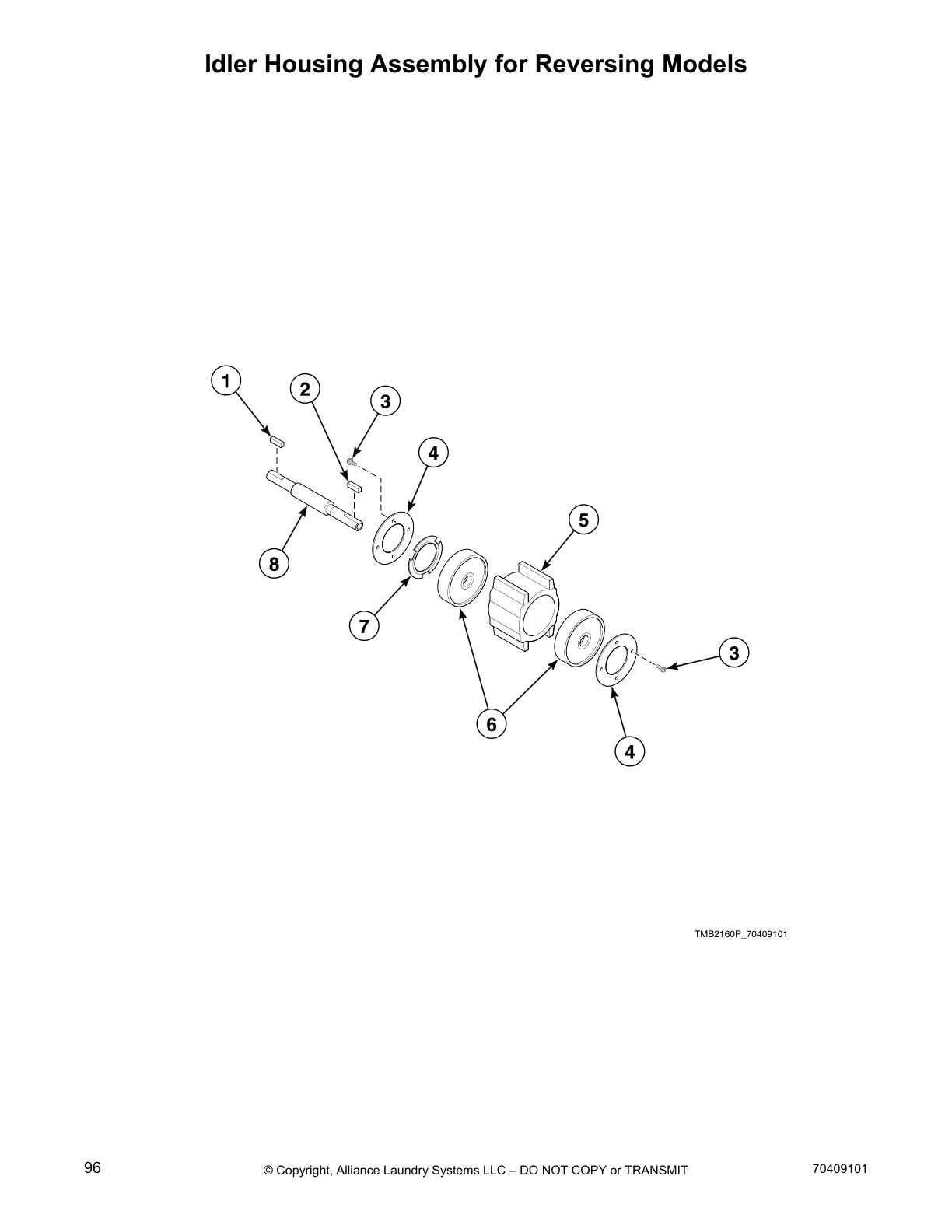

Idler Housing Assembly for Reversing Models

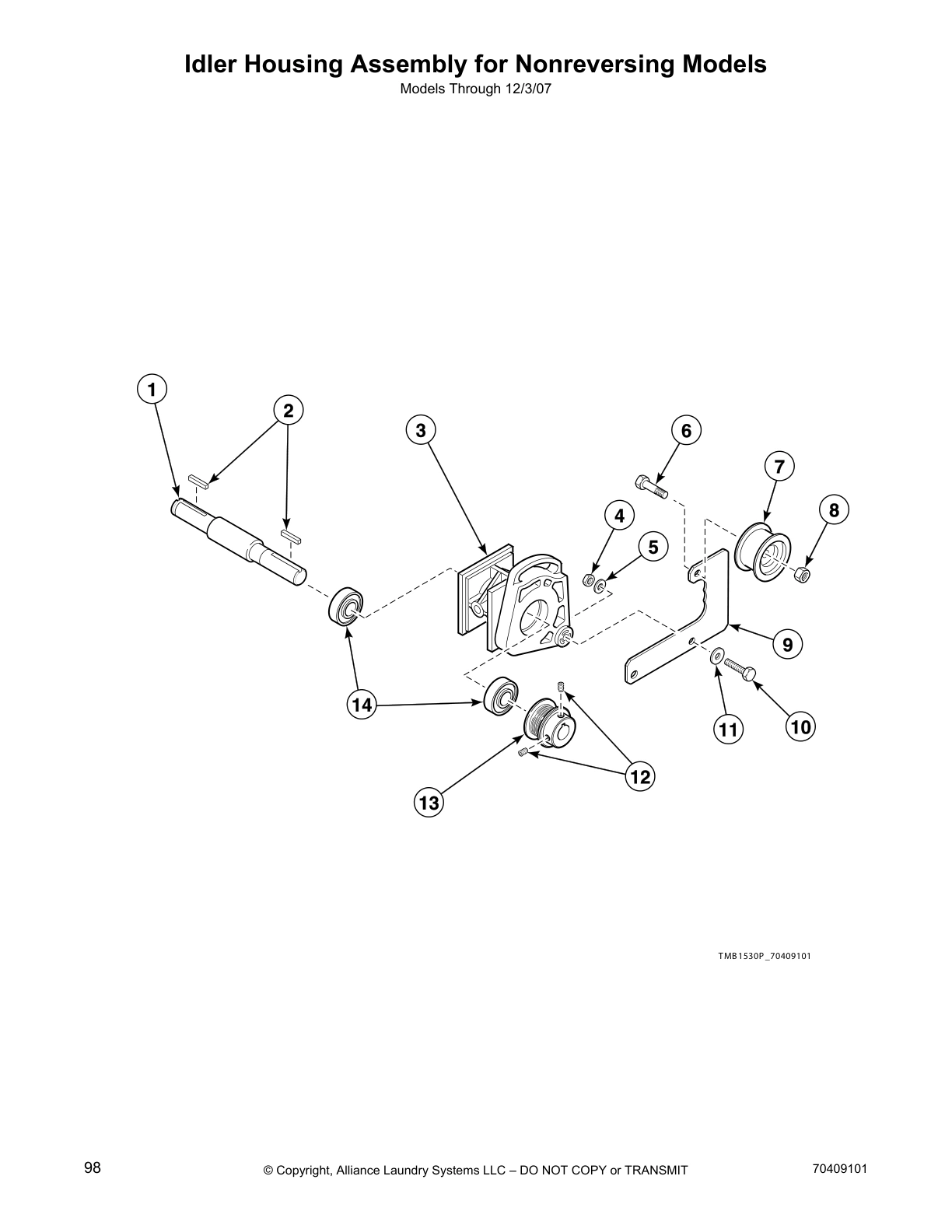

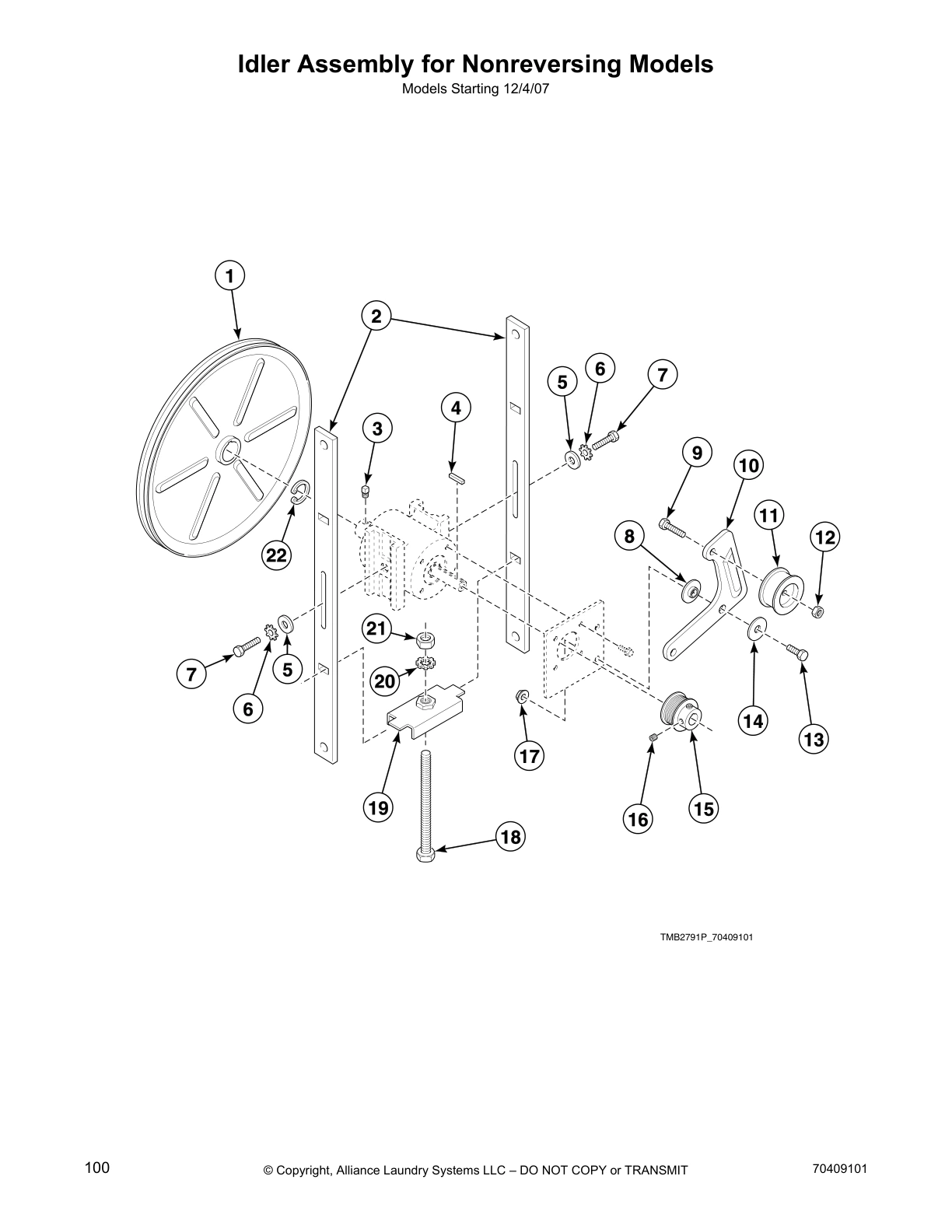

Idler Housing Assembly for Nonreversing Models
Idler Assembly for Nonreversing Models

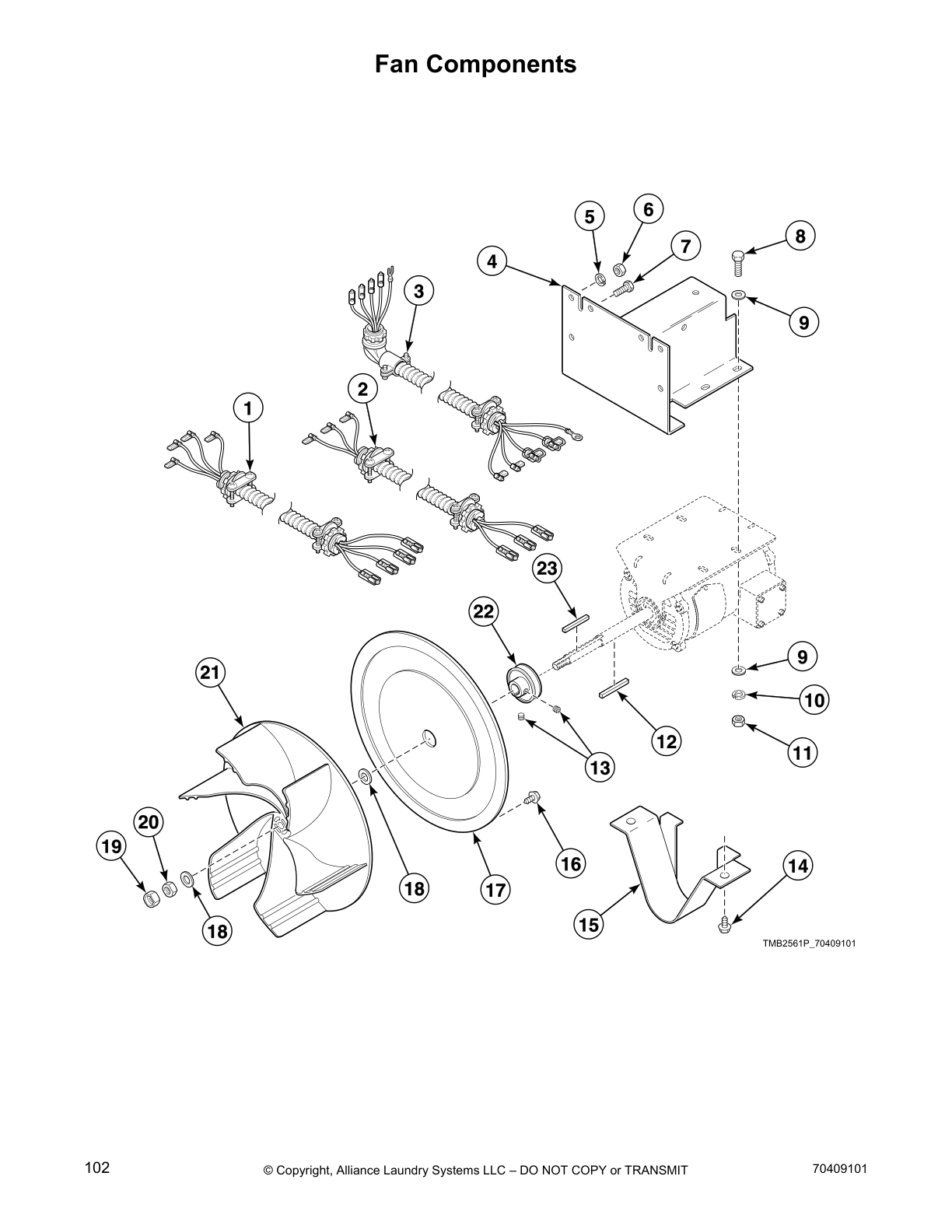

Fan Components

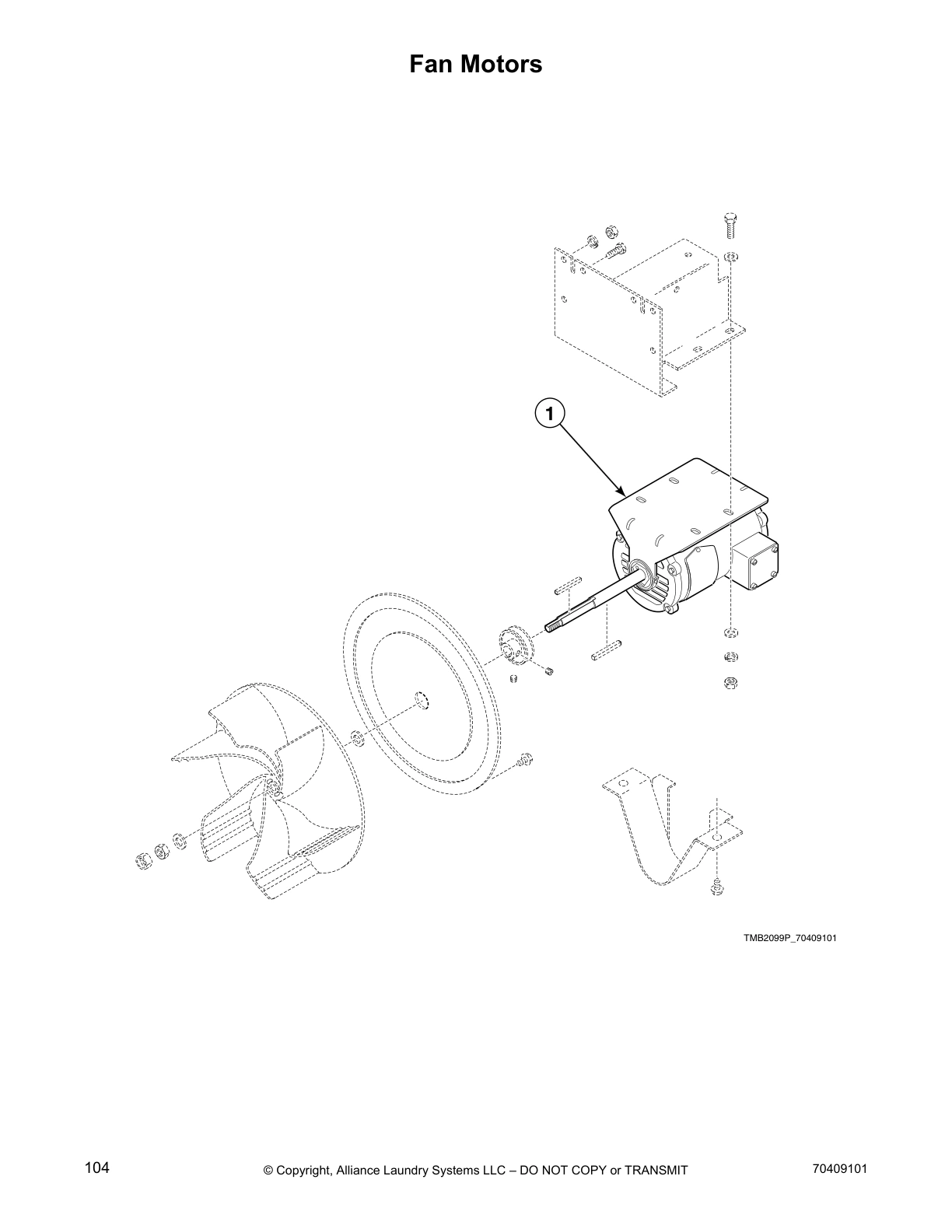

Fan Motors

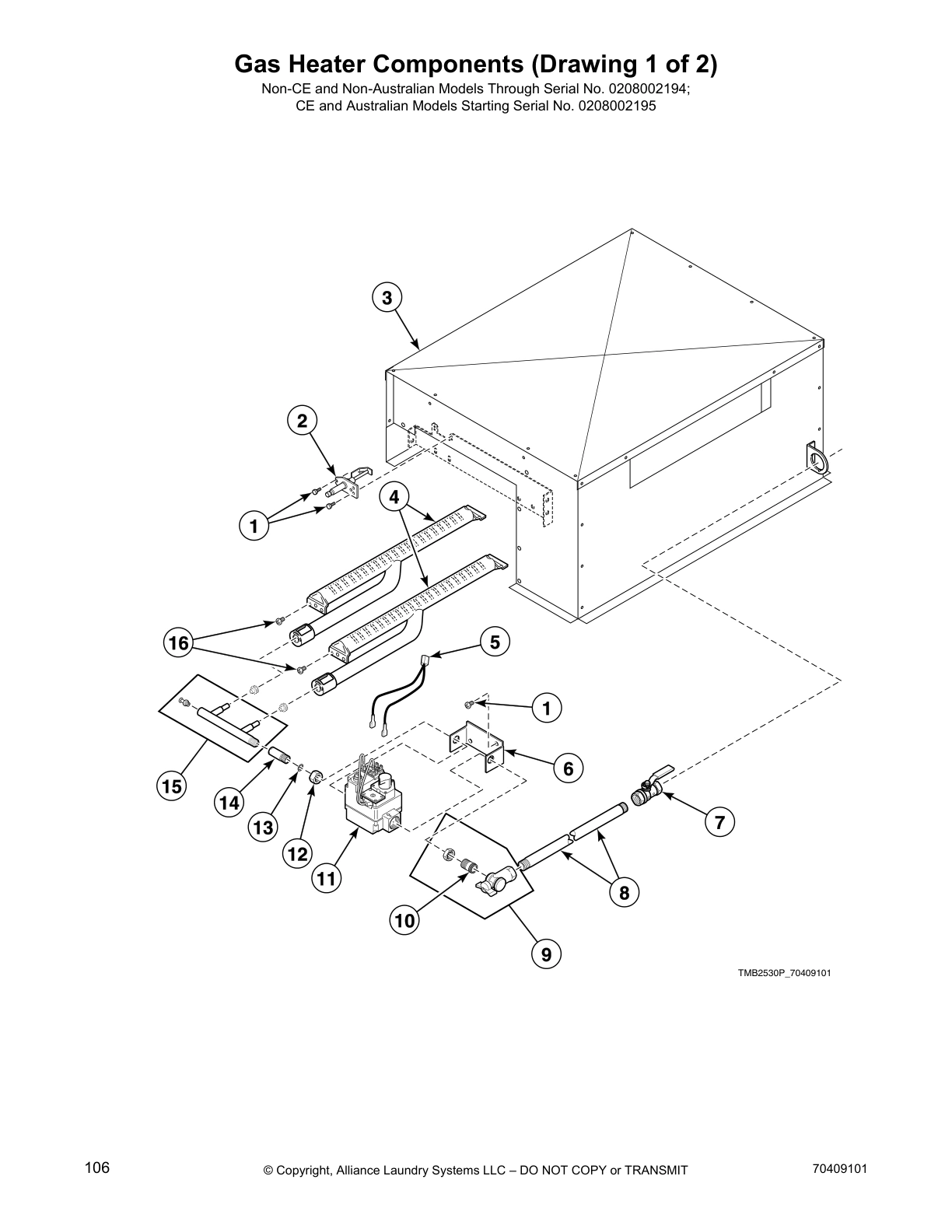

Gas Heater Components (Drawing 1 of 2)

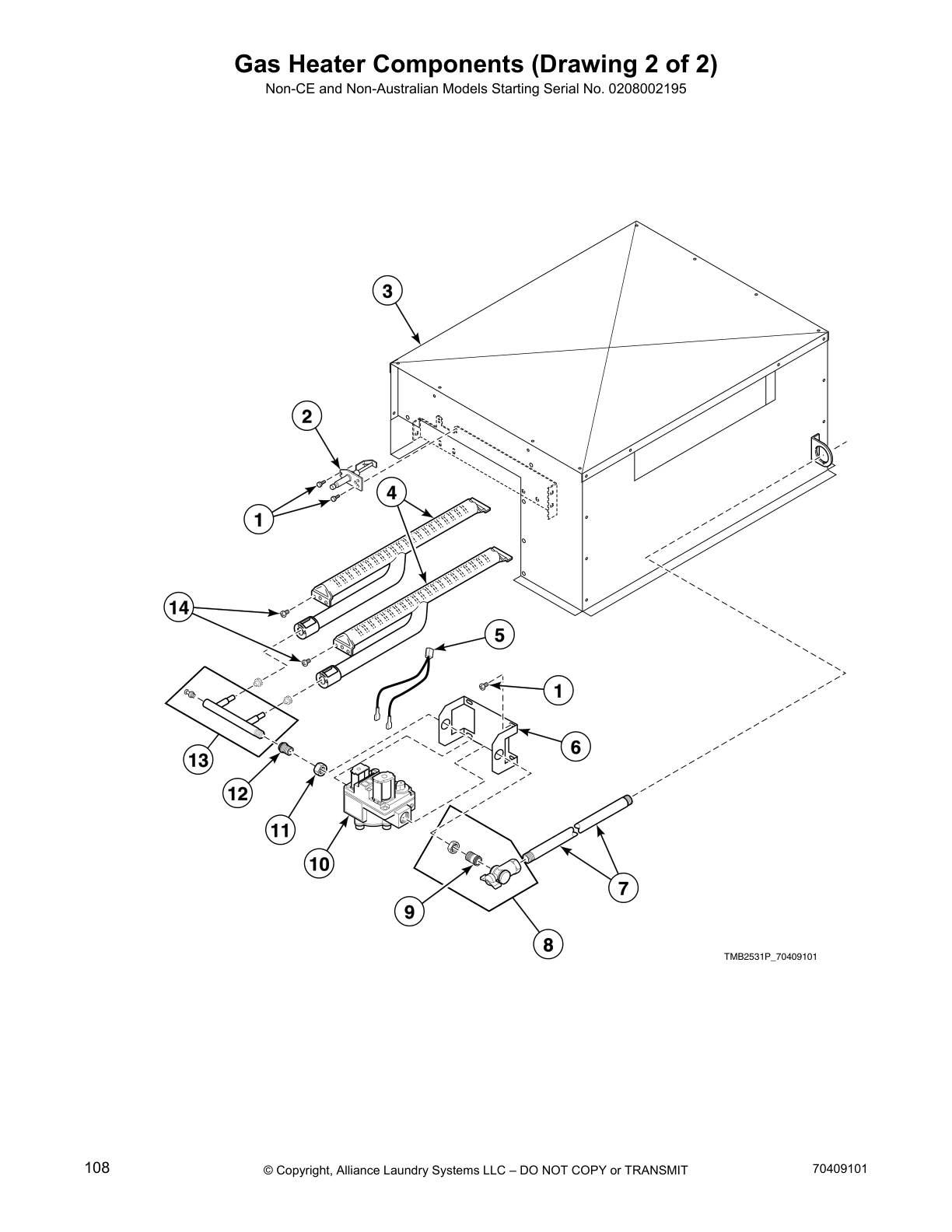

Gas Heater Components (Drawing 2 of 2)

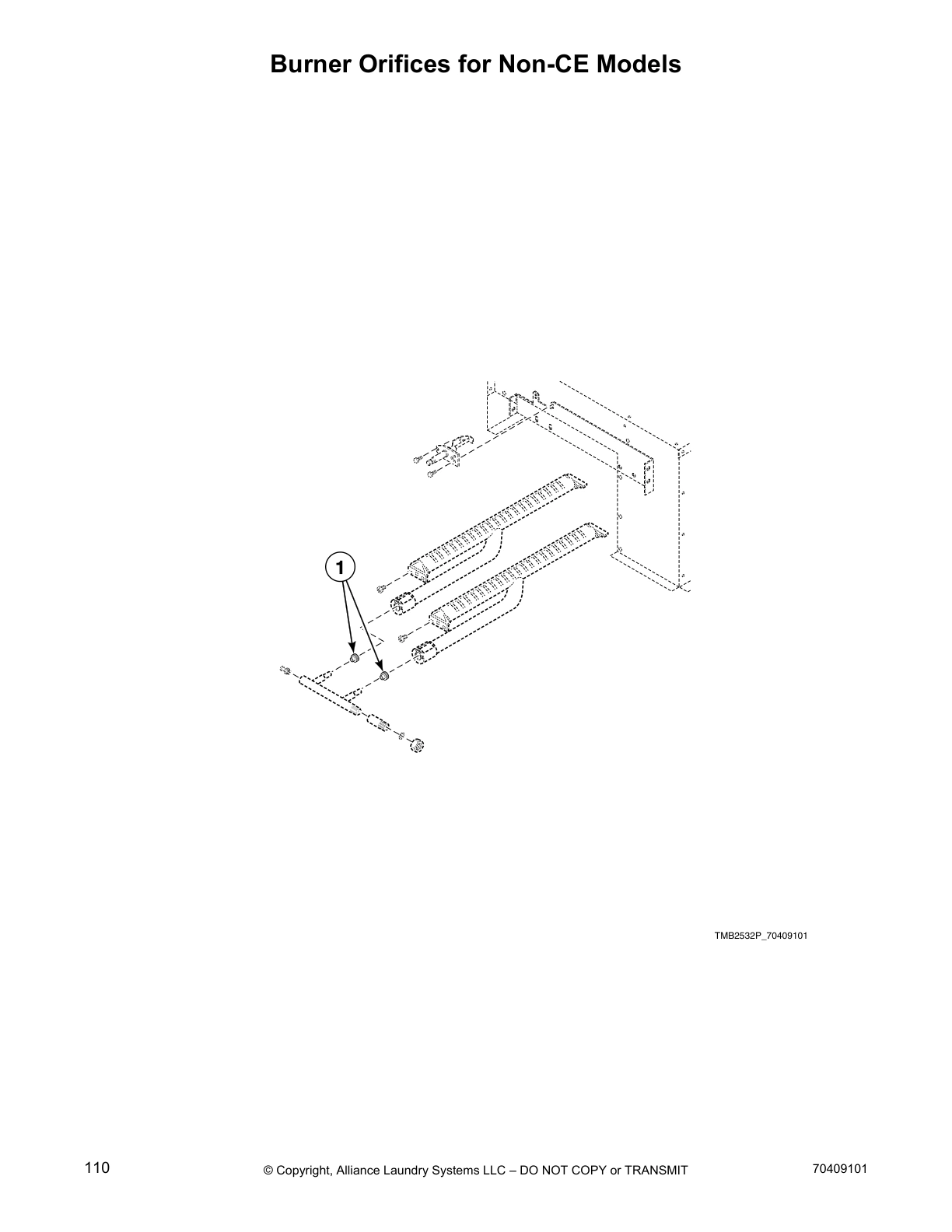

Burner Orifices for Non-CE Models

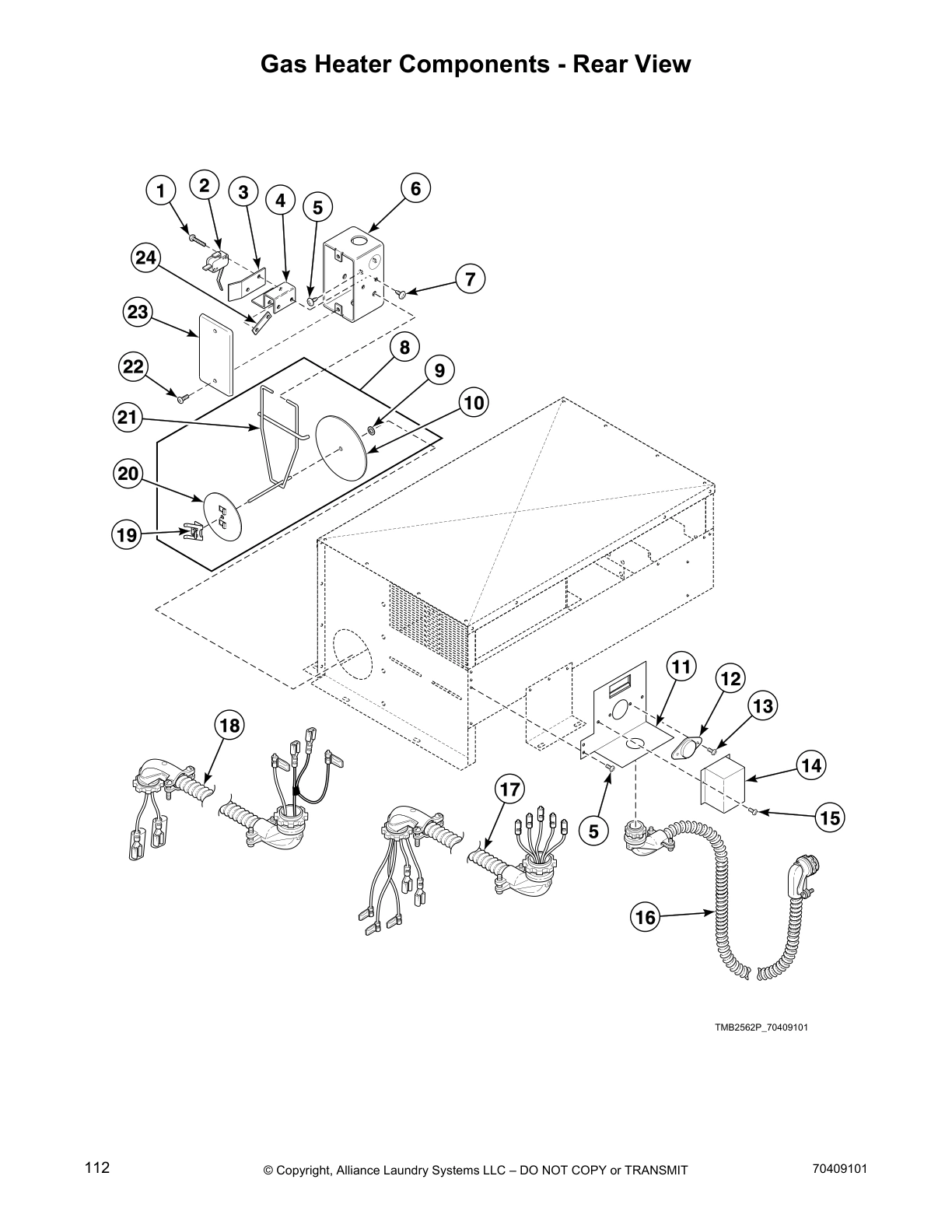

Gas Heater Components - Rear View

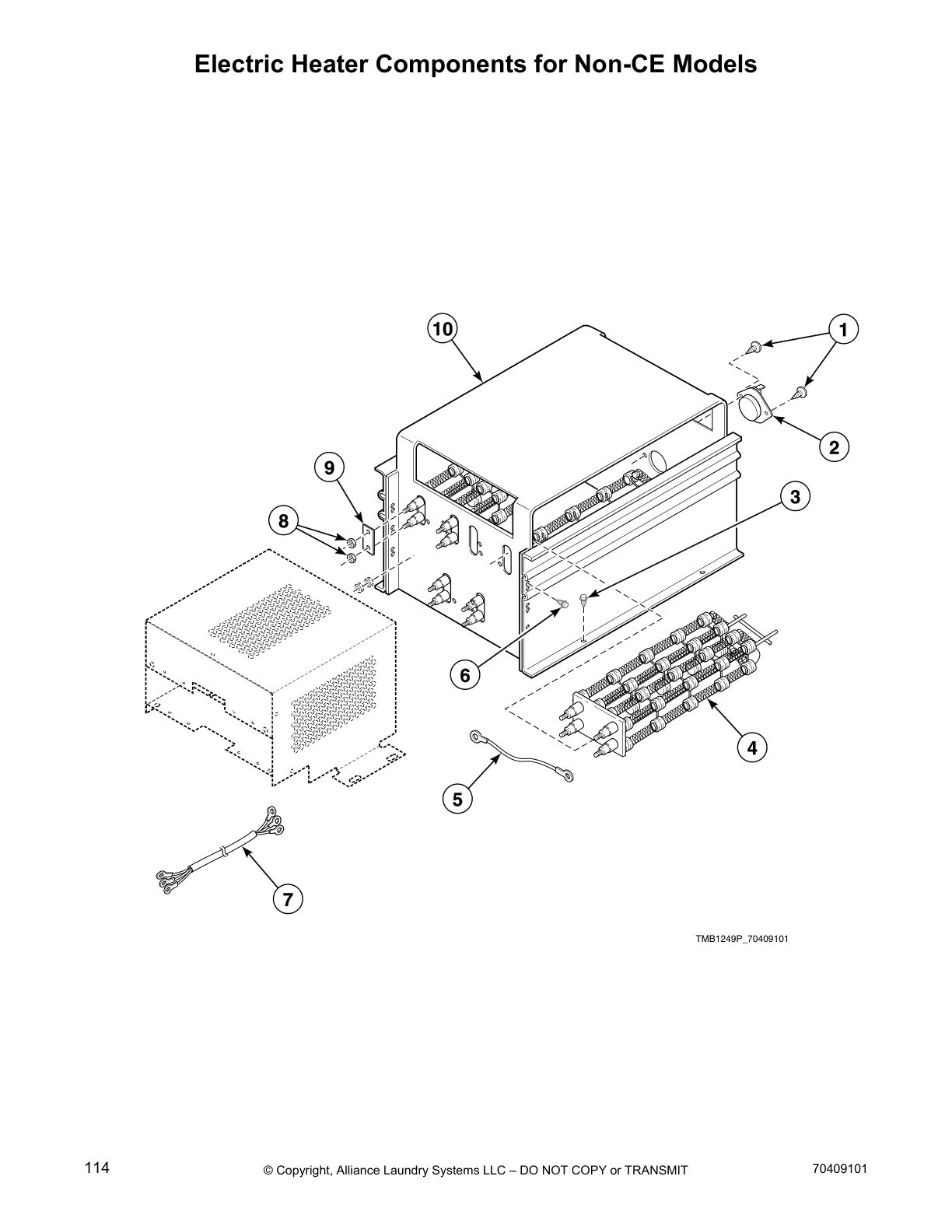

Electric Heater Components for Non-CE Models

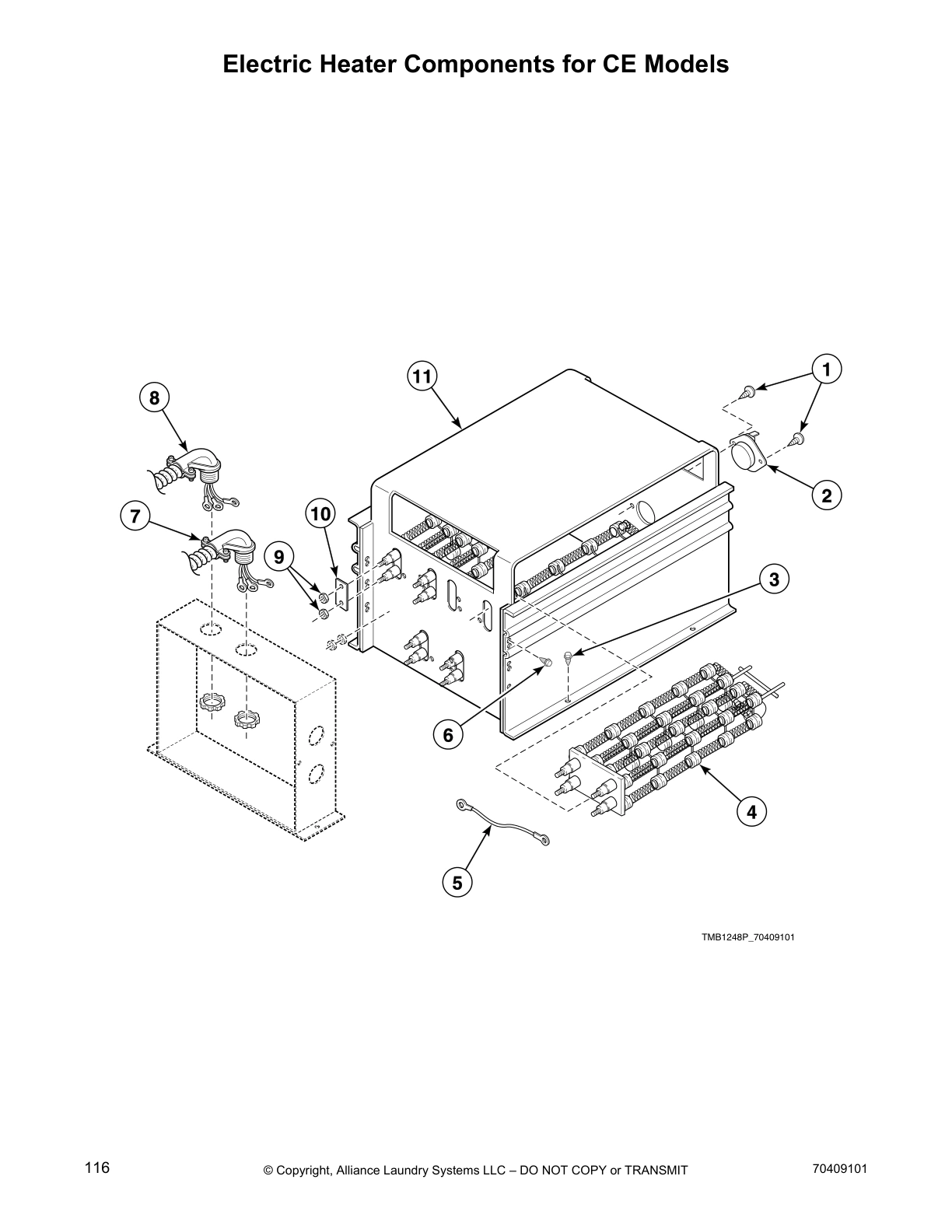

Electric Heater Components for CE Models

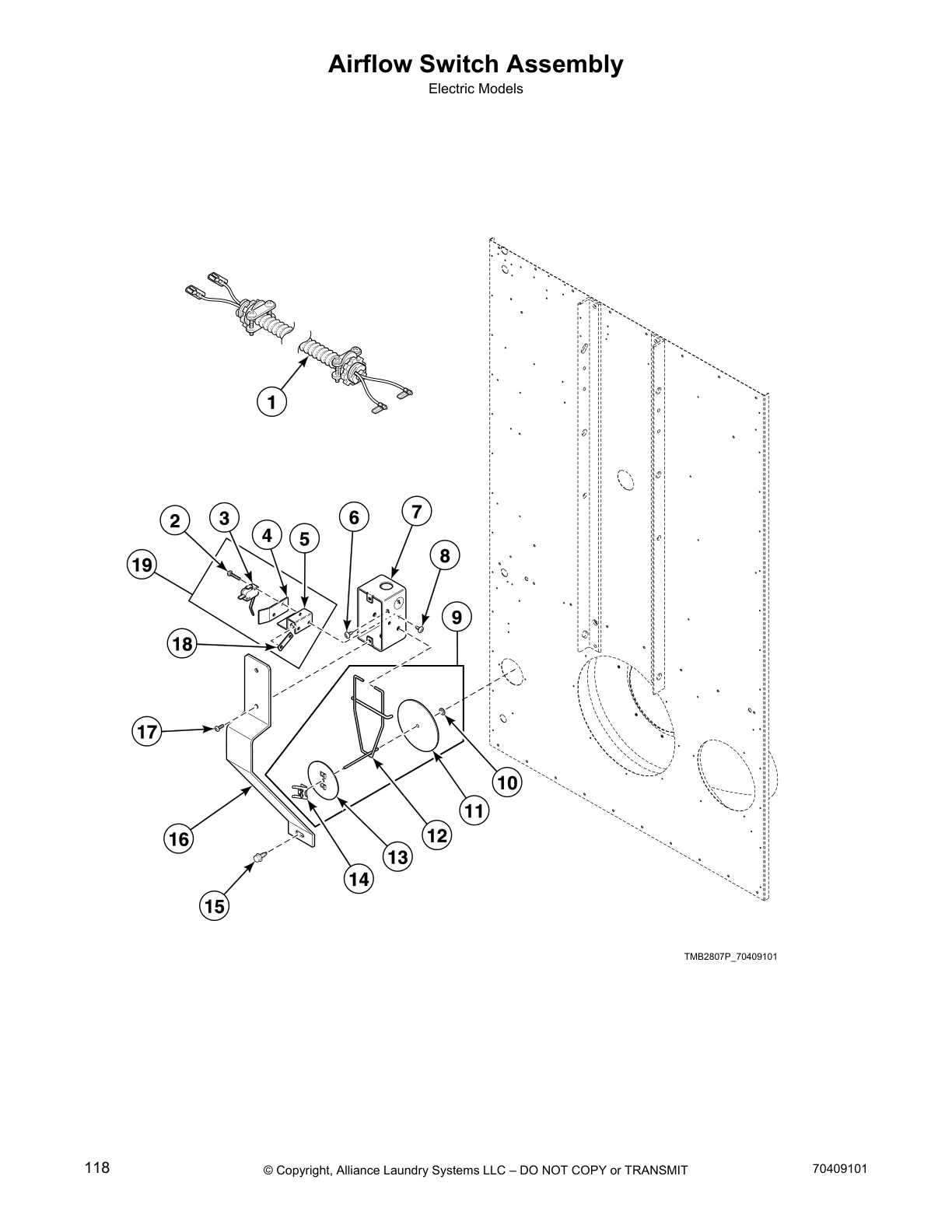

Airflow Switch Assembly

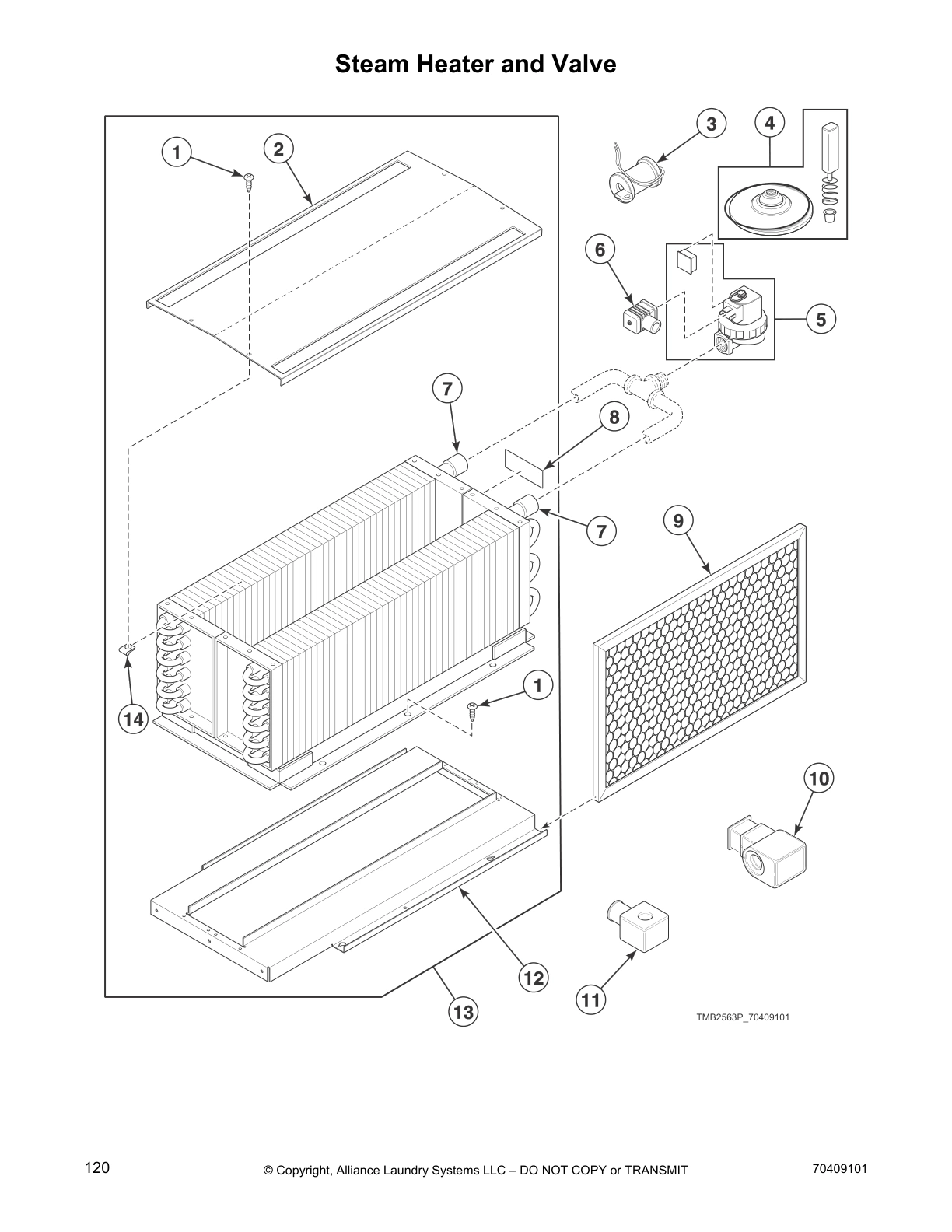

Steam Heater and Valve

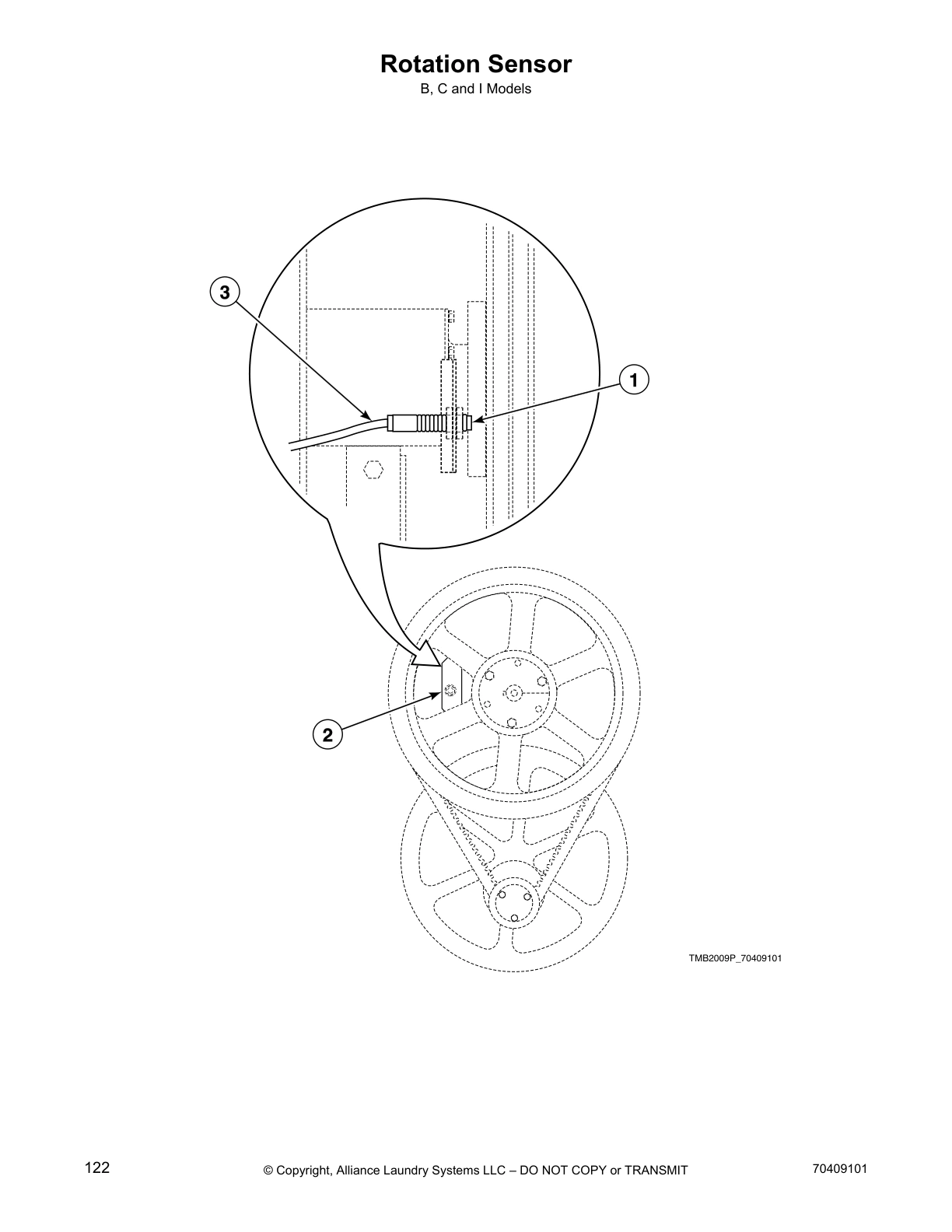

Rotation Sensor

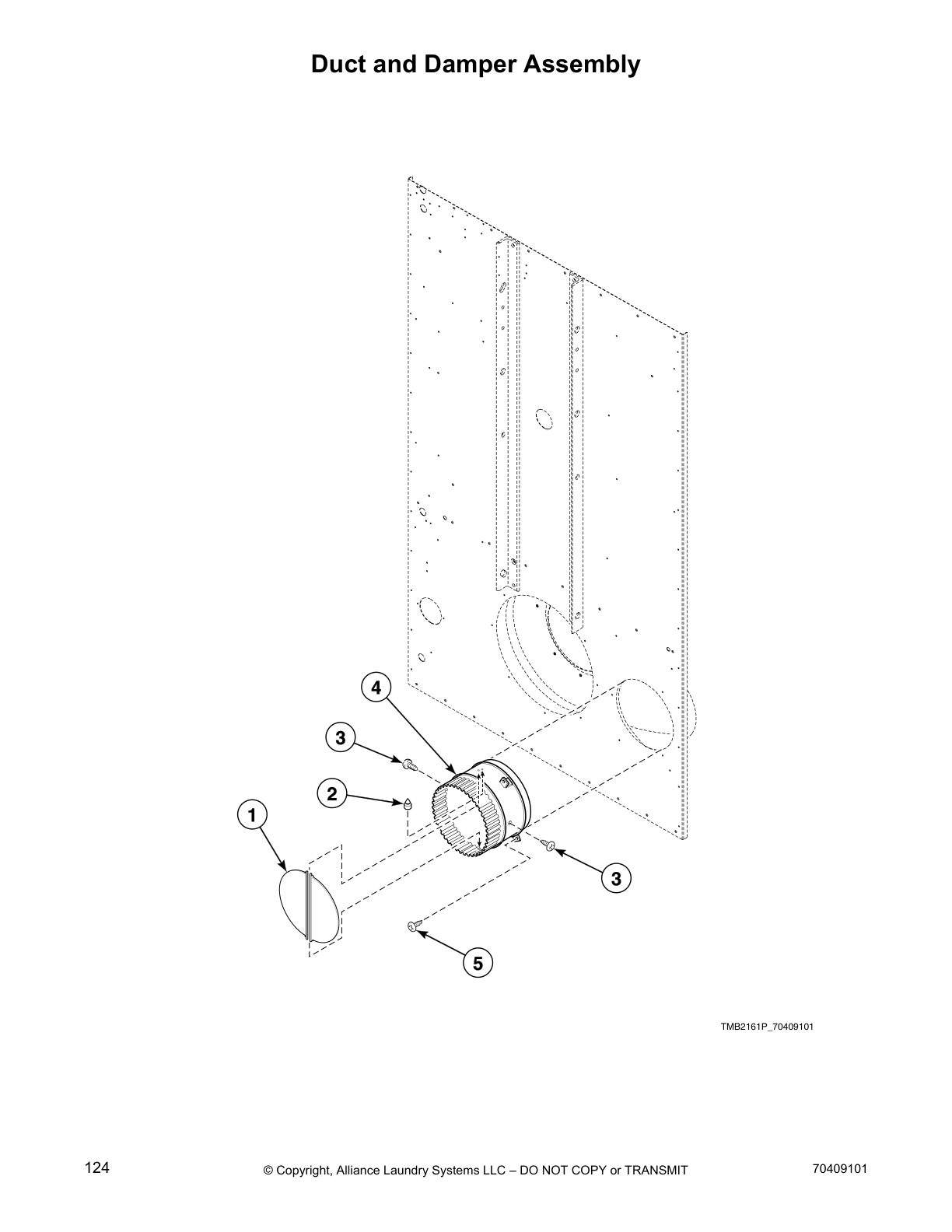

Duct and Damper Assembly

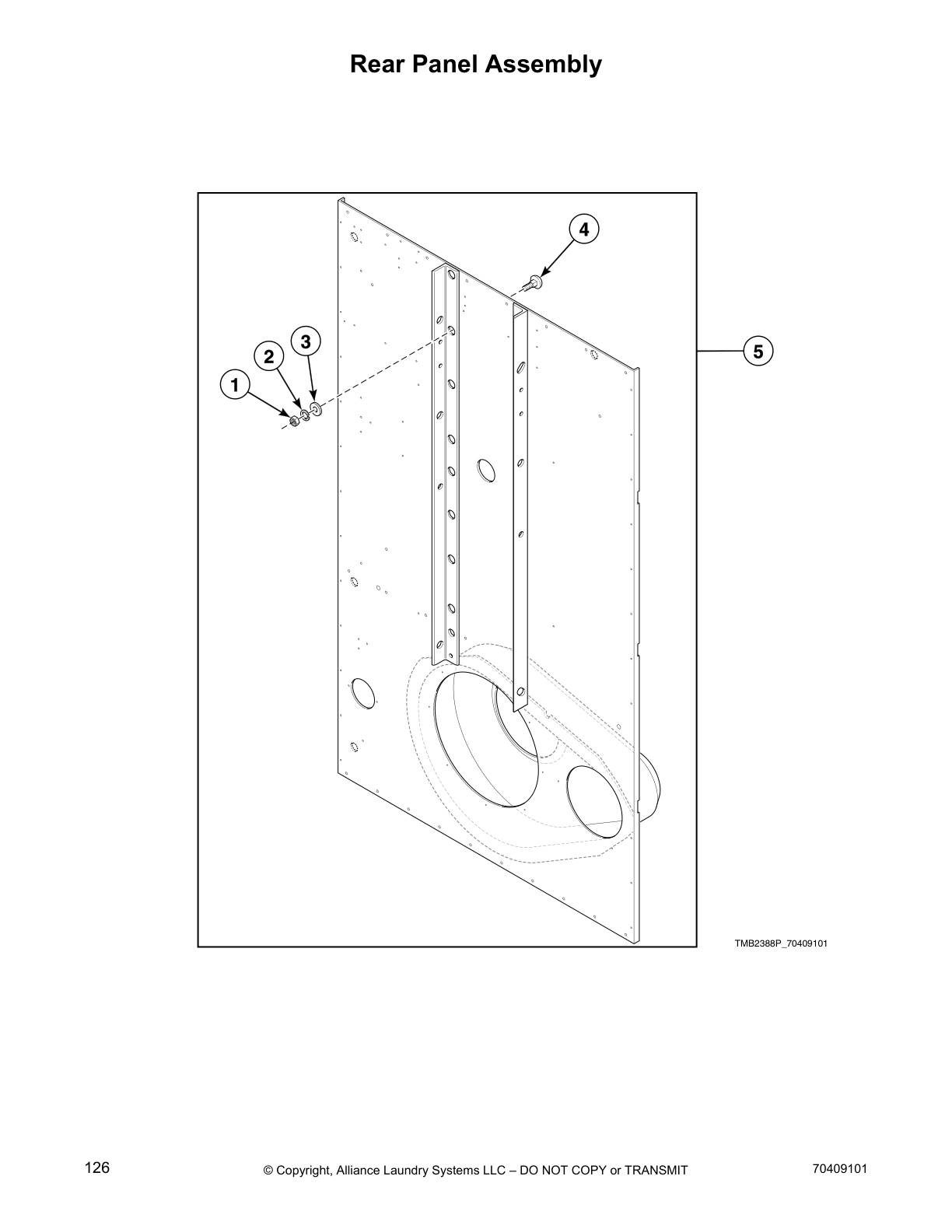

Rear Panel Assembly

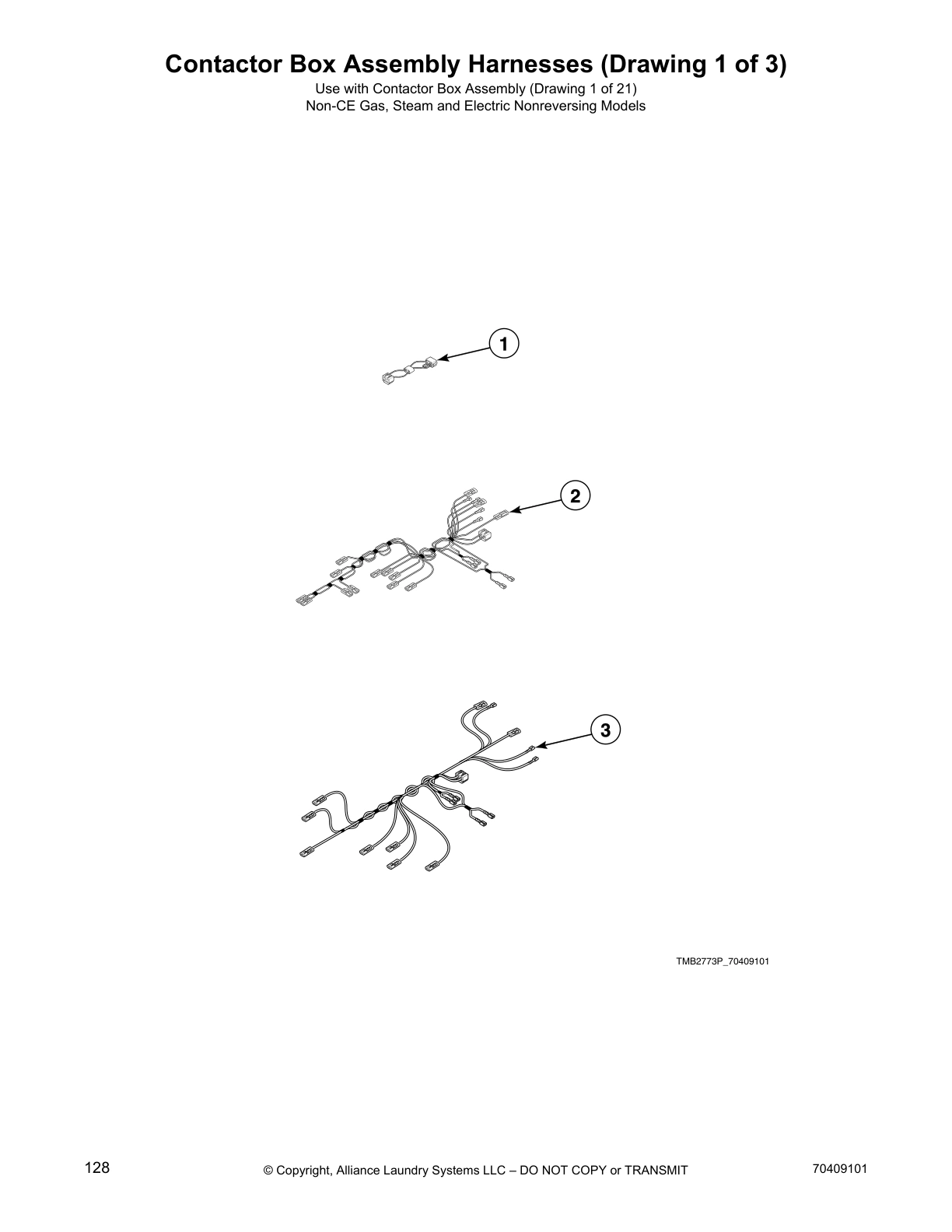

Contactor Box Assembly Harnesses (Drawing 1 of 3)

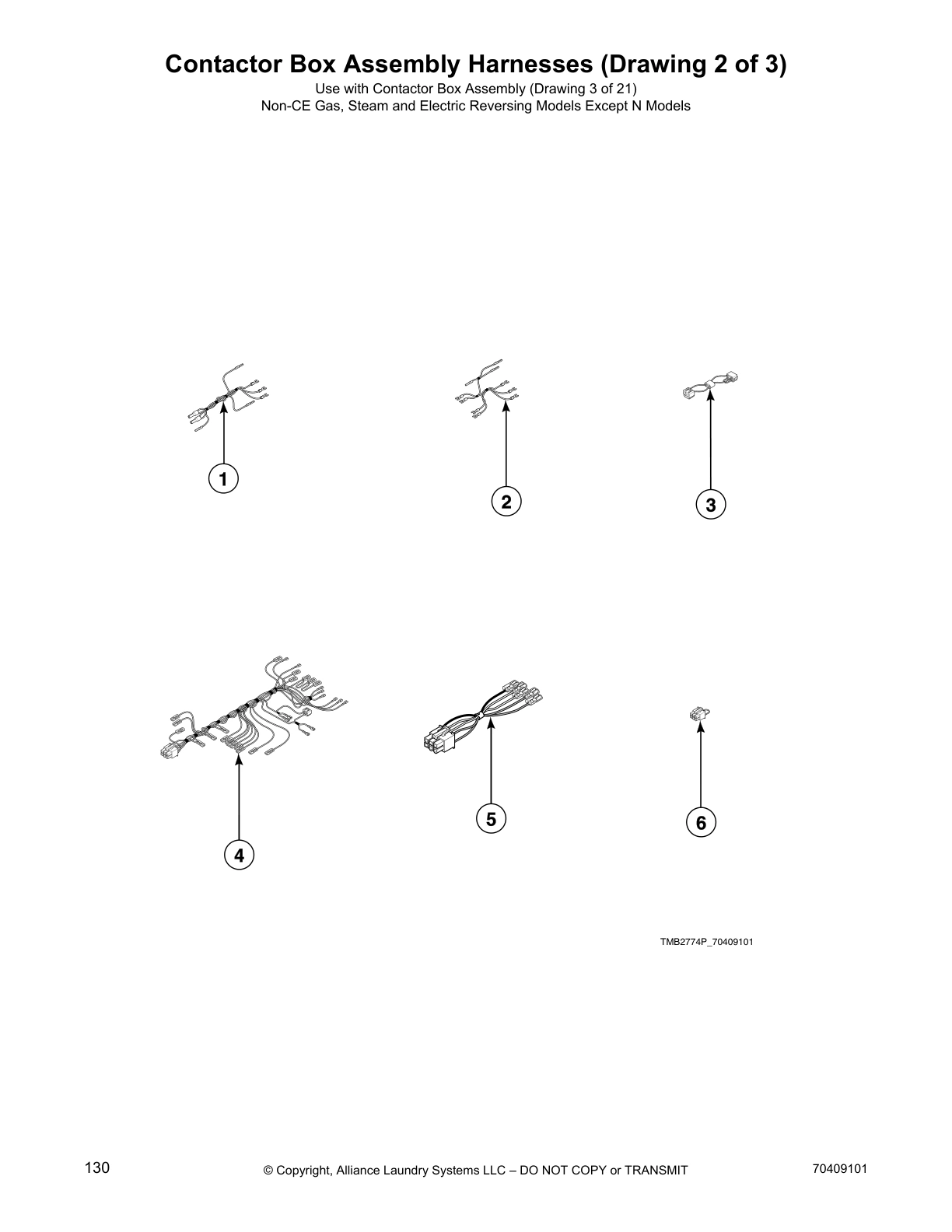

Contactor Box Assembly Harnesses (Drawing 2 of 3)

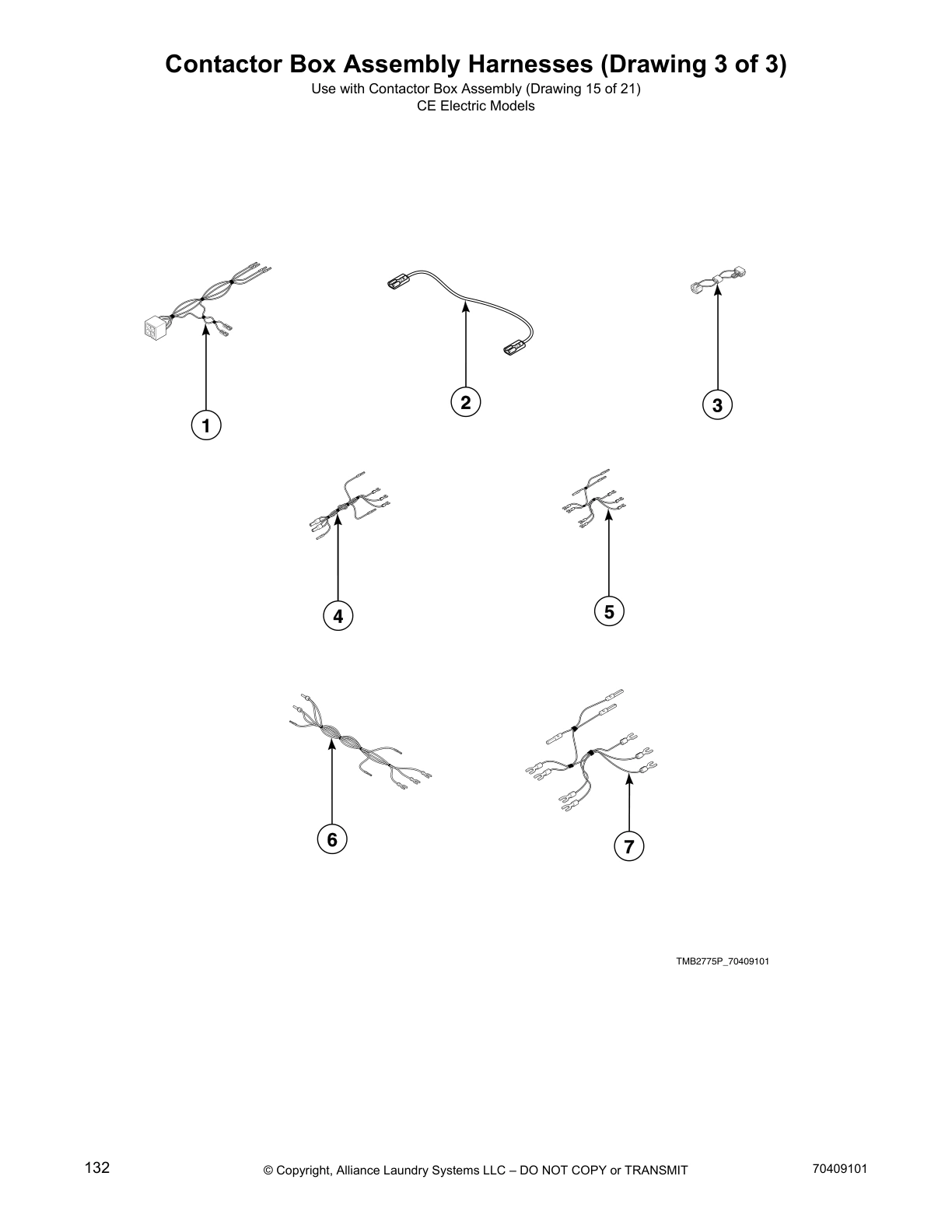

Contactor Box Assembly Harnesses (Drawing 3 of 3)

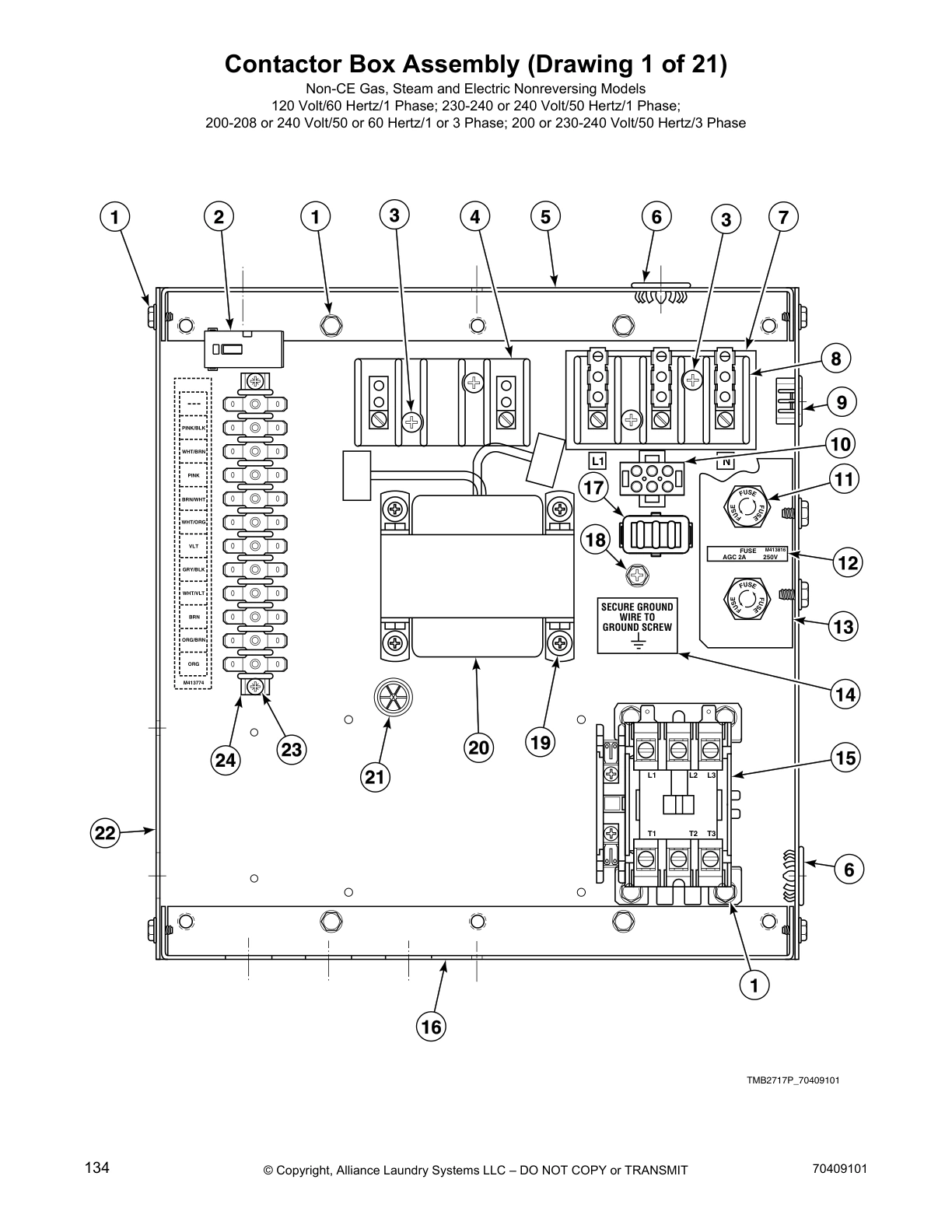

Contactor Box Assembly (Drawing 1 of 21)

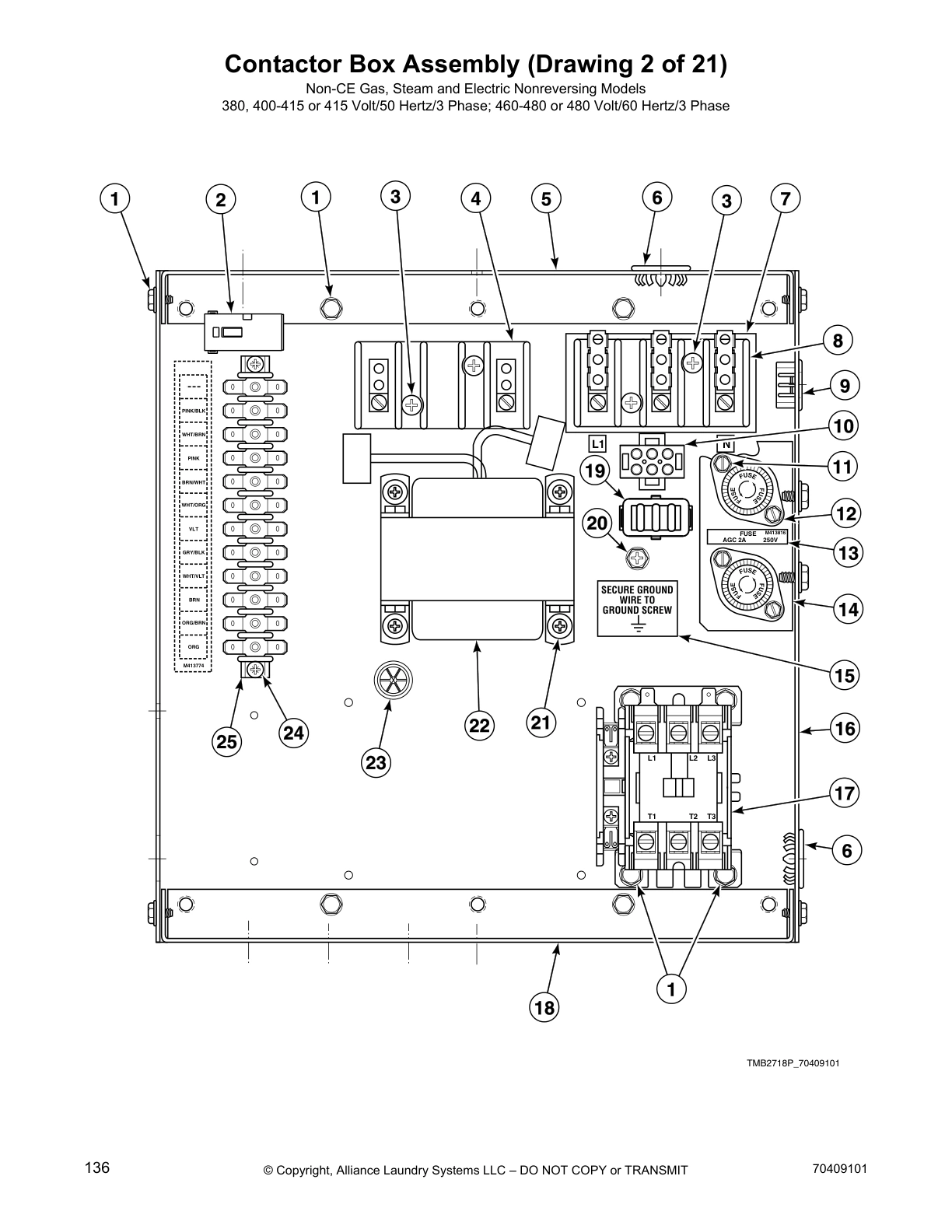

Contactor Box Assembly (Drawing 2 of 21)

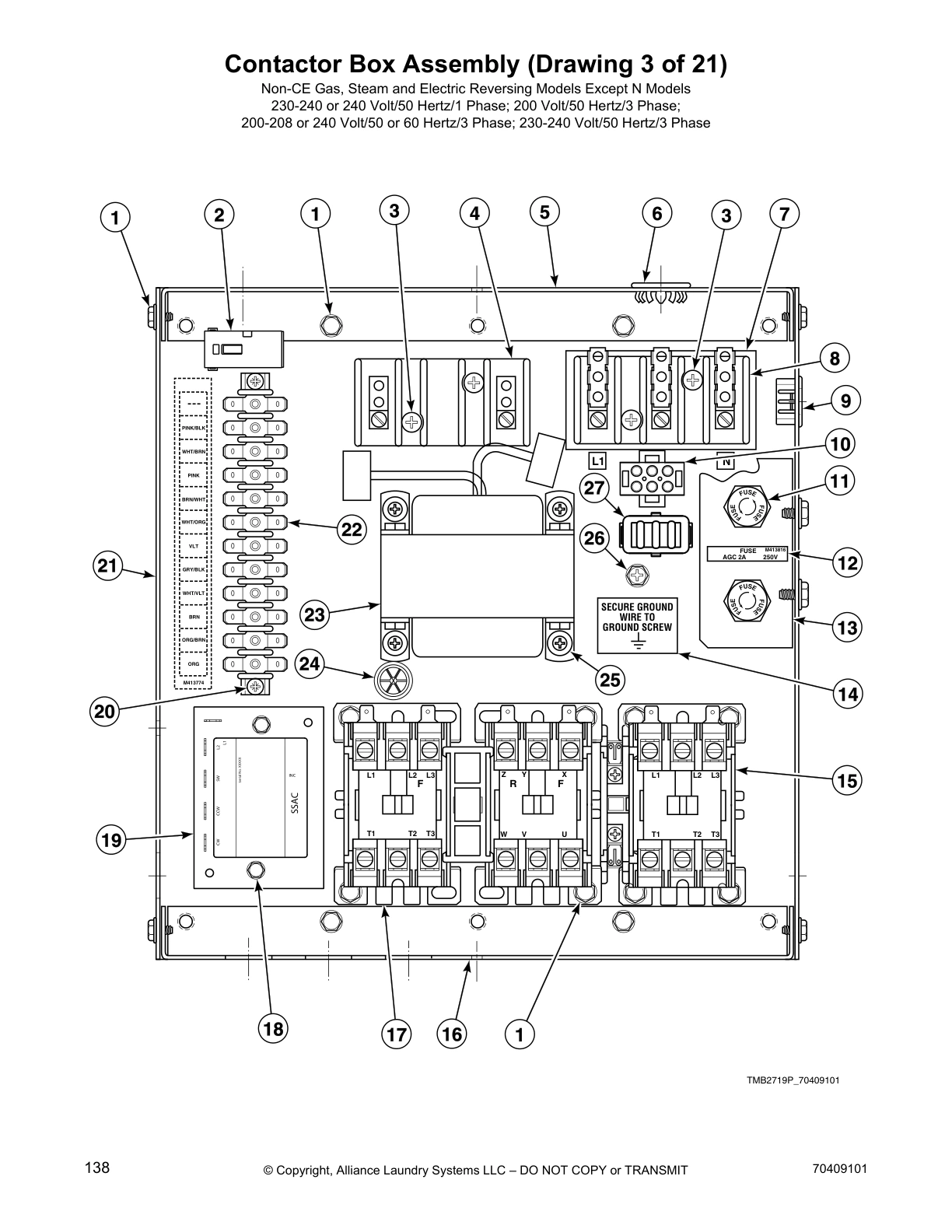

Contactor Box Assembly (Drawing 3 of 21)

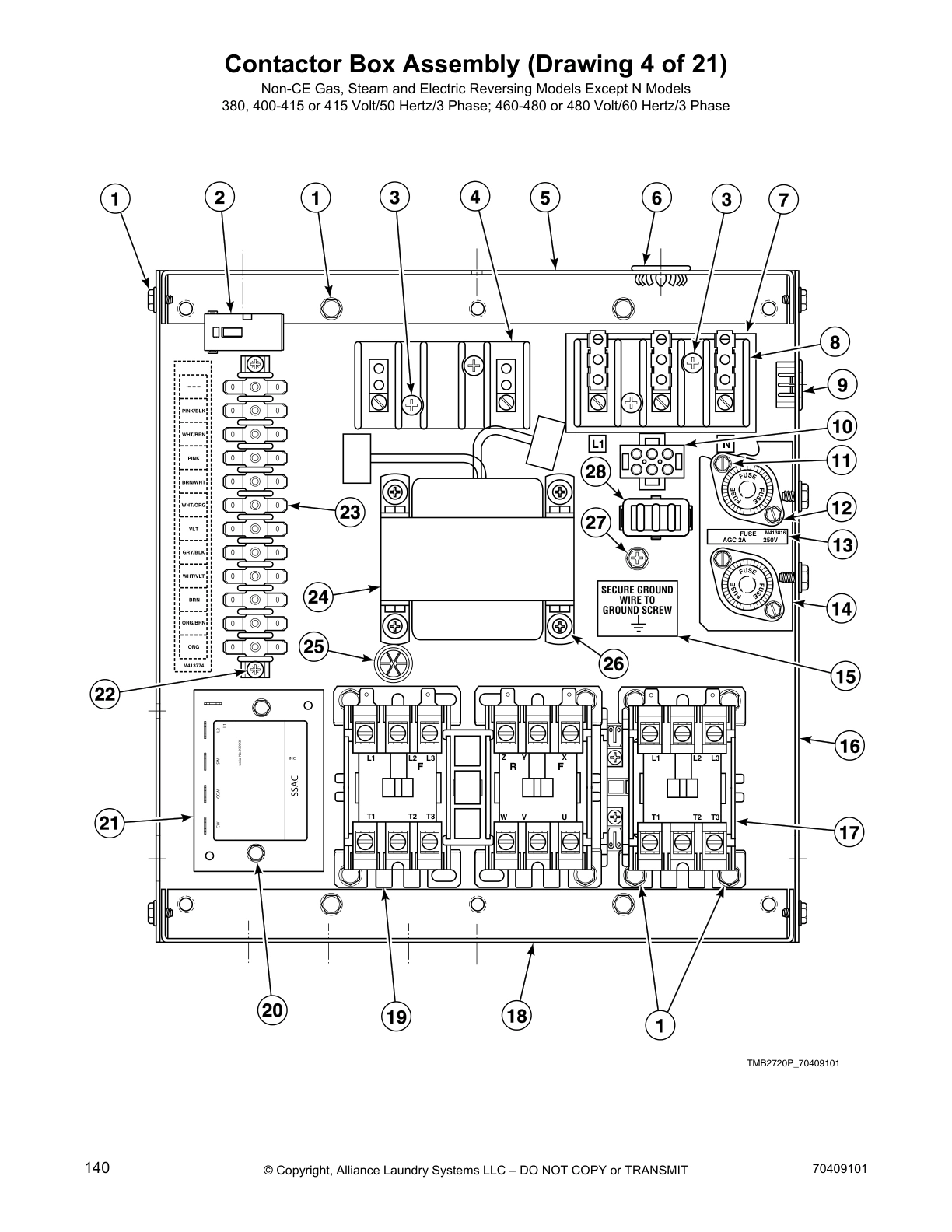

Contactor Box Assembly (Drawing 4 of 21)

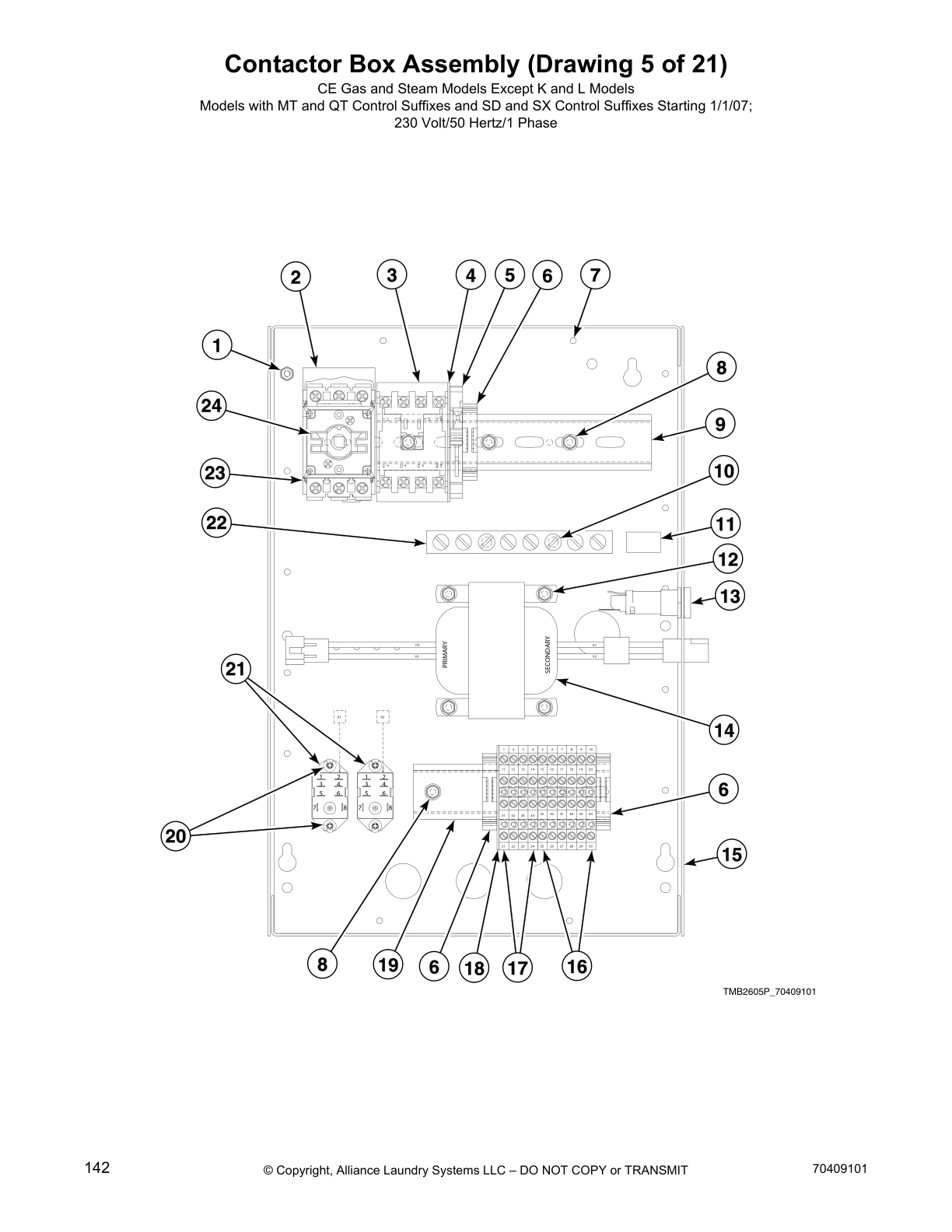

Contactor Box Assembly (Drawing 5 of 21)

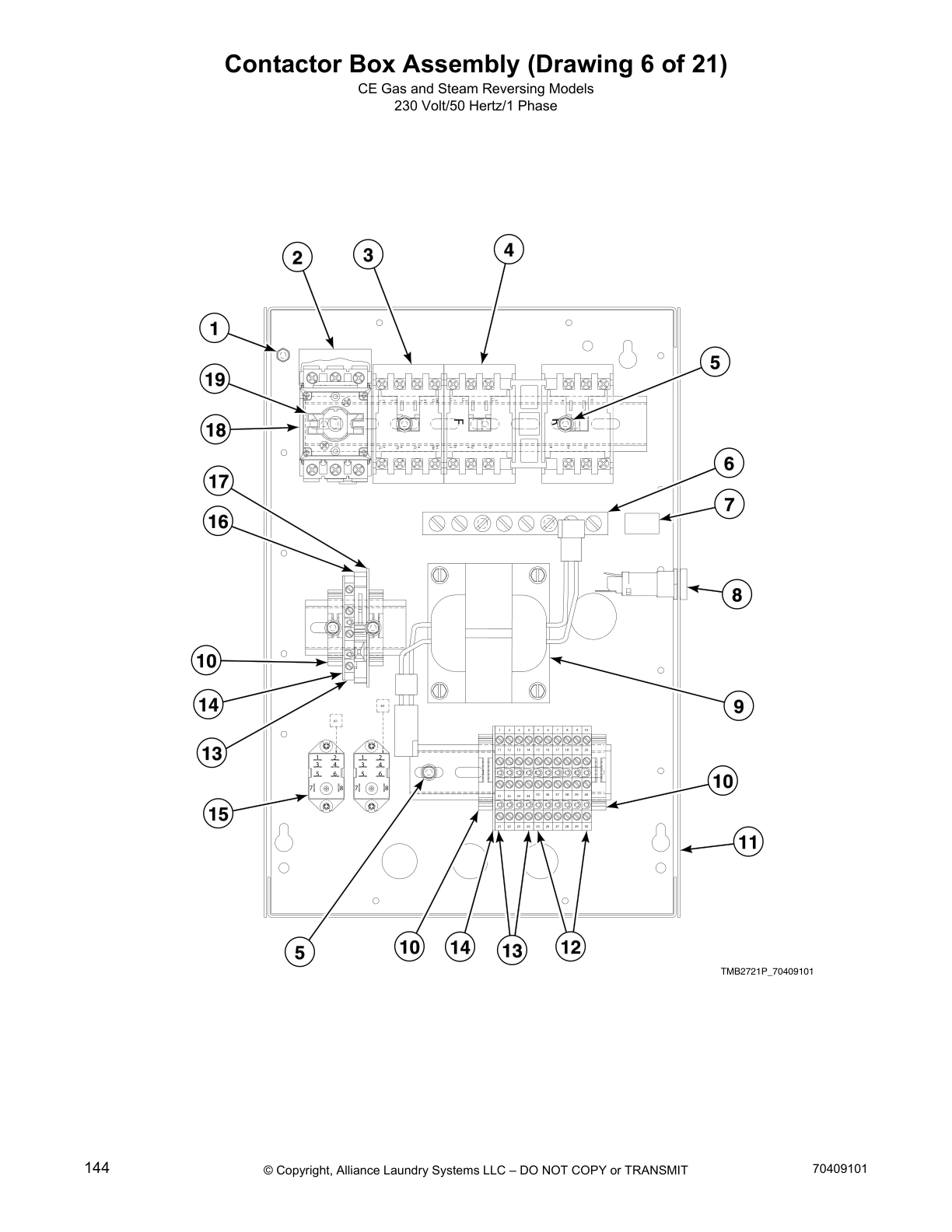

Contactor Box Assembly (Drawing 6 of 21)

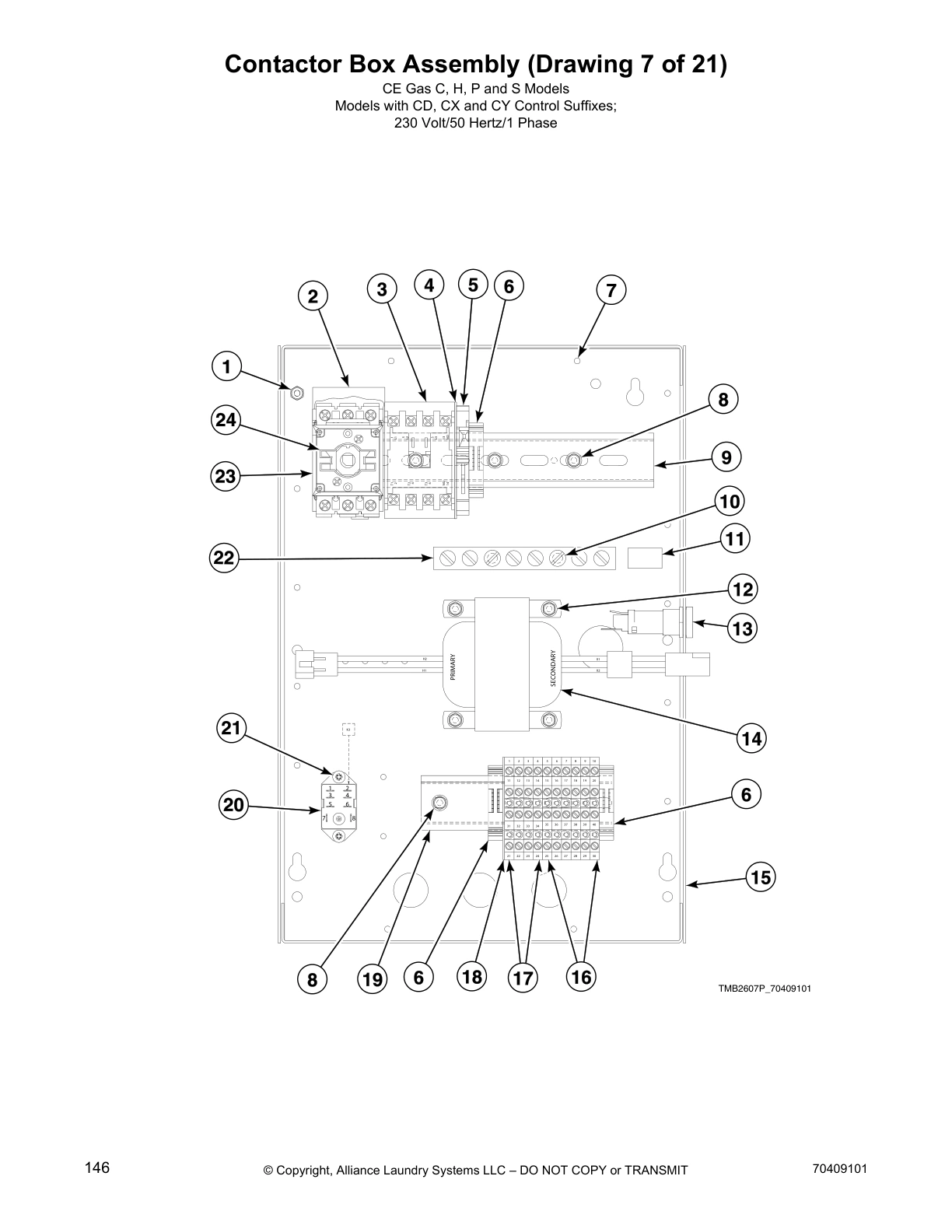

Contactor Box Assembly (Drawing 7 of 21)
Contactor Box Assembly (Drawing 8 of 21)

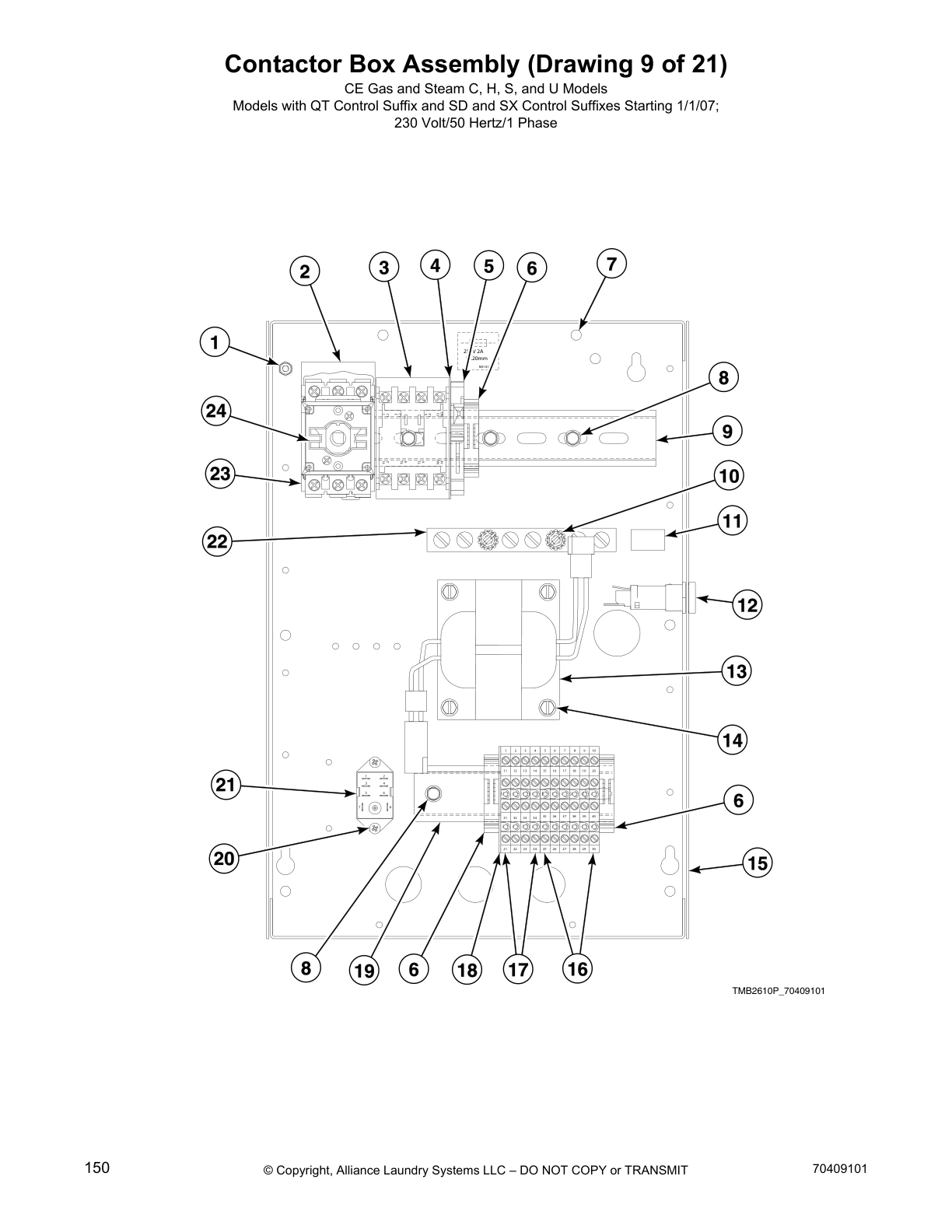

Contactor Box Assembly (Drawing 9 of 21)

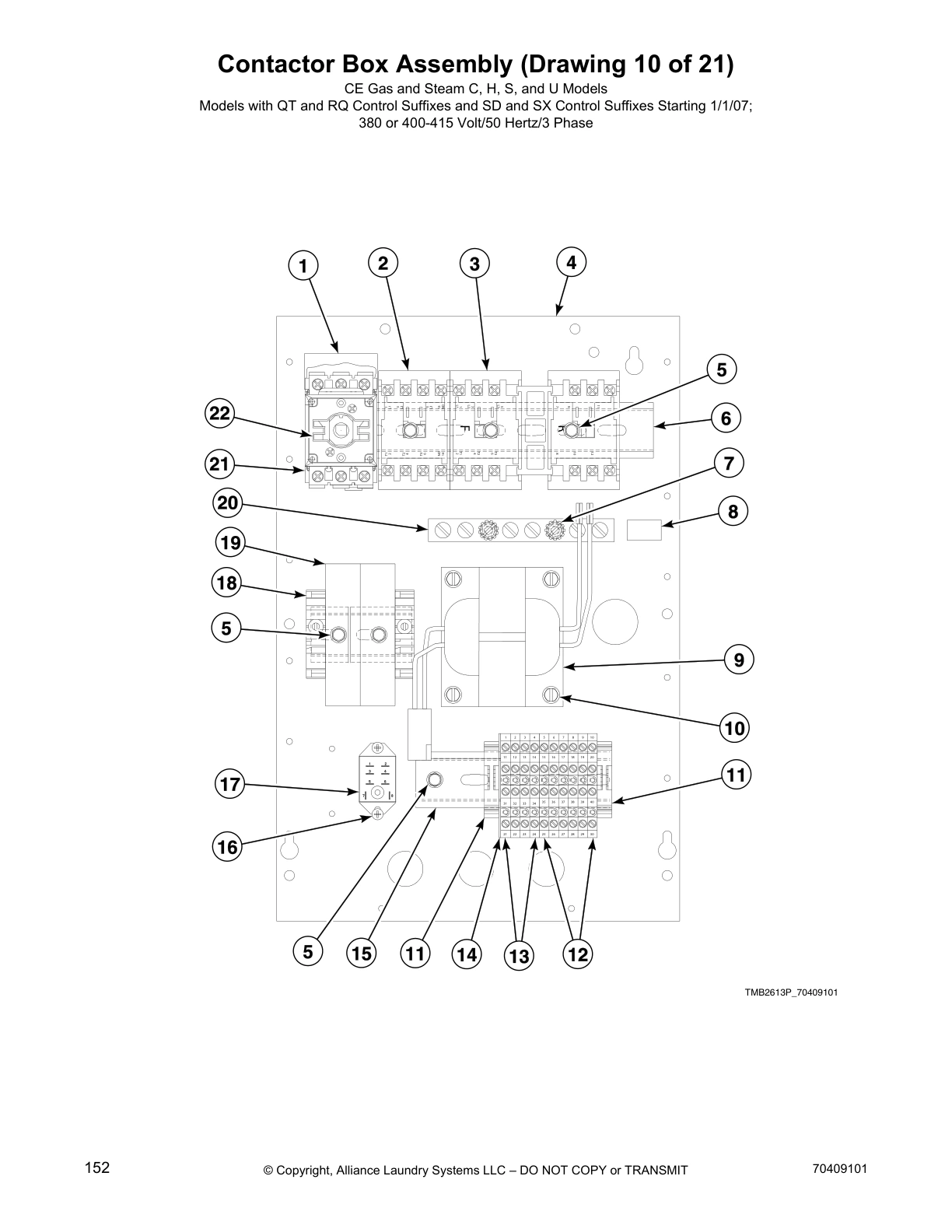

Contactor Box Assembly (Drawing 10 of 21)
Contactor Box Assembly (Drawing 11 of 21)

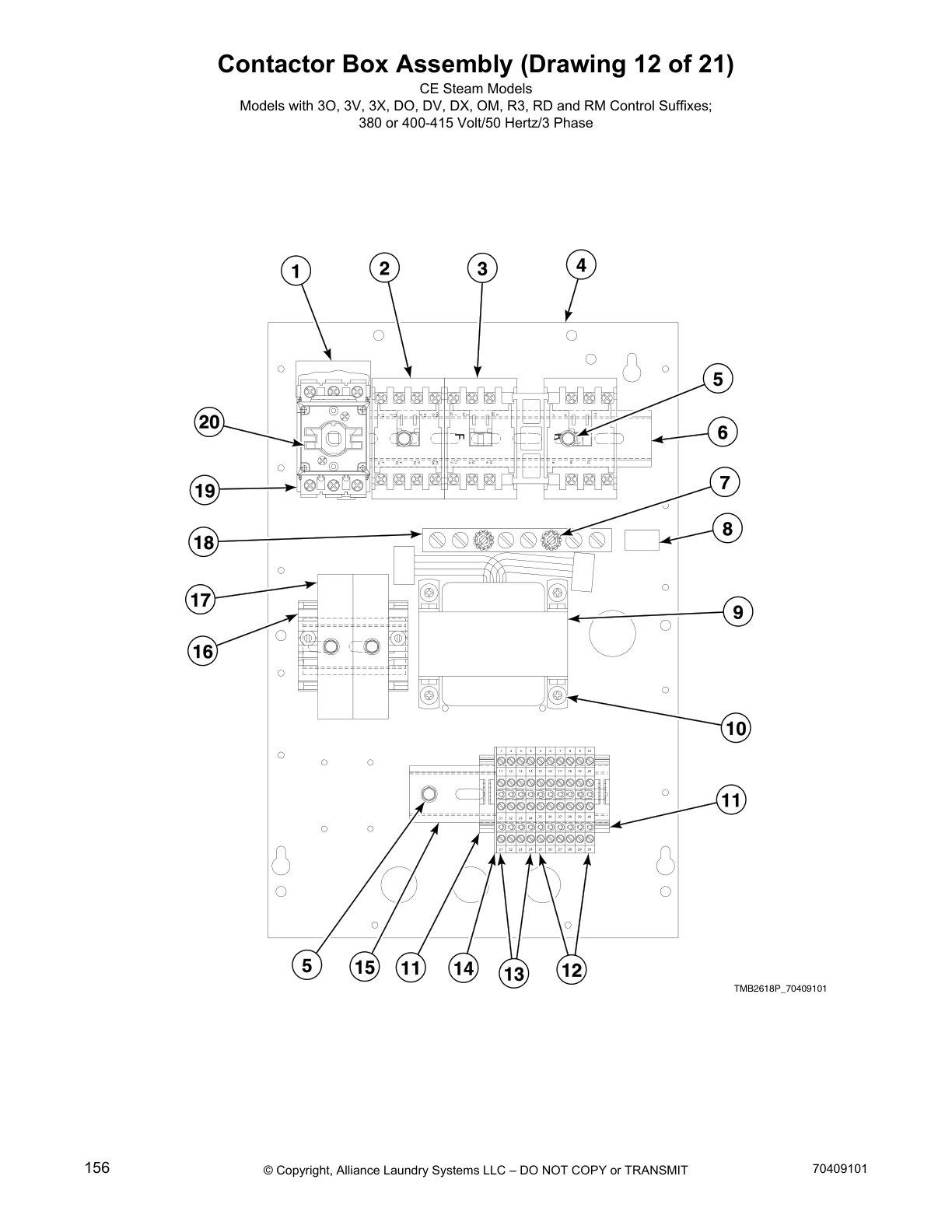

Contactor Box Assembly (Drawing 12 of 21)

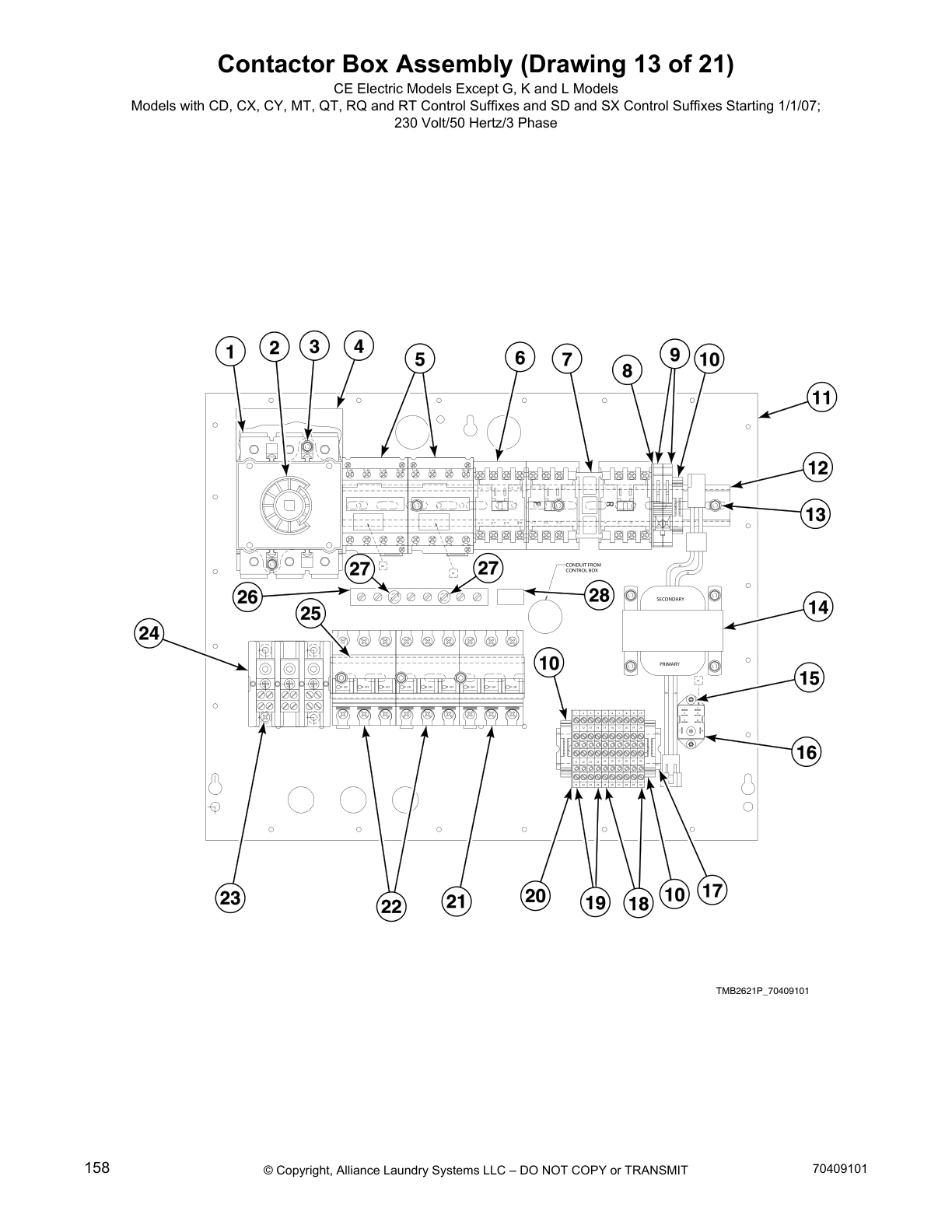

Contactor Box Assembly (Drawing 13 of 21)

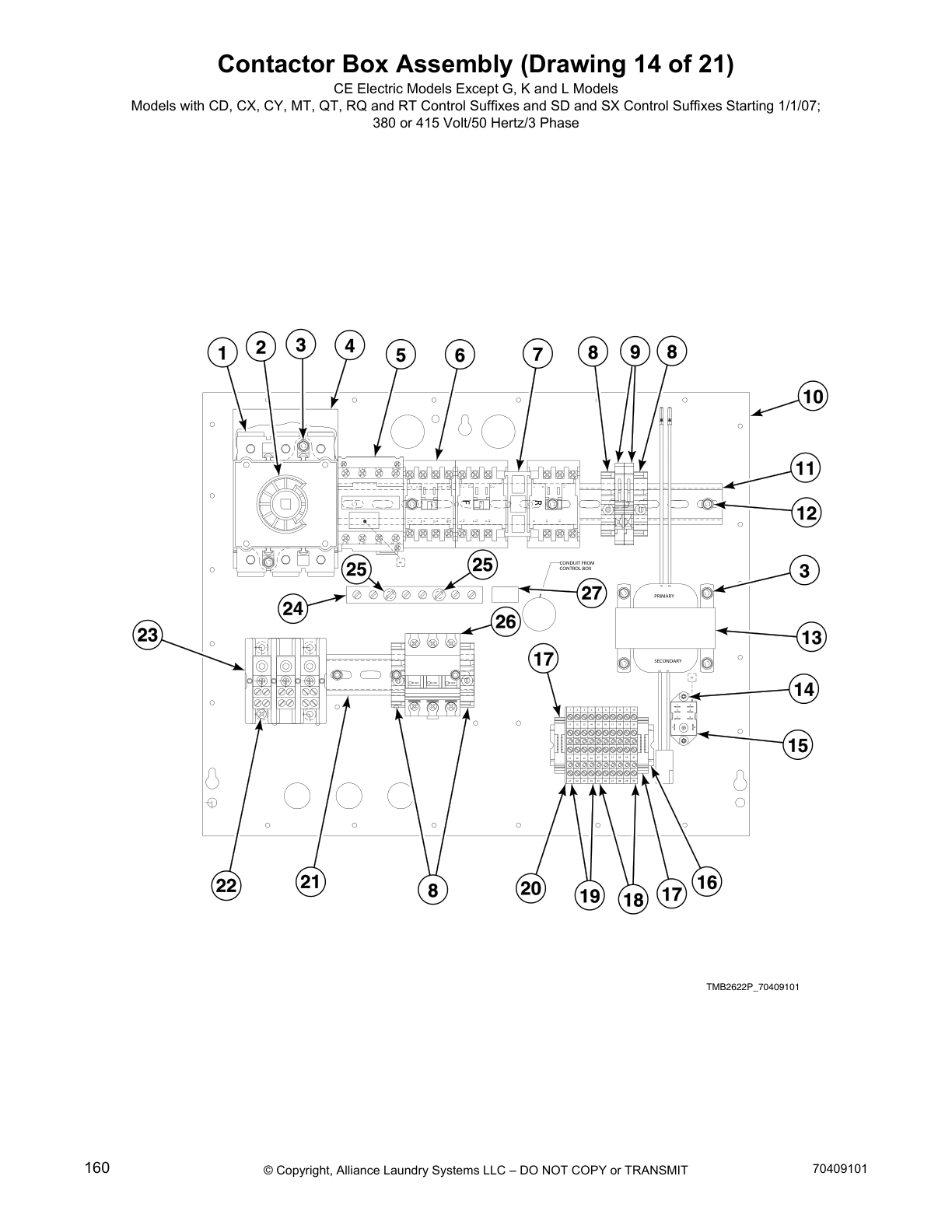

Contactor Box Assembly (Drawing 14 of 21)
Contactor Box Assembly (Drawing 15 of 21)

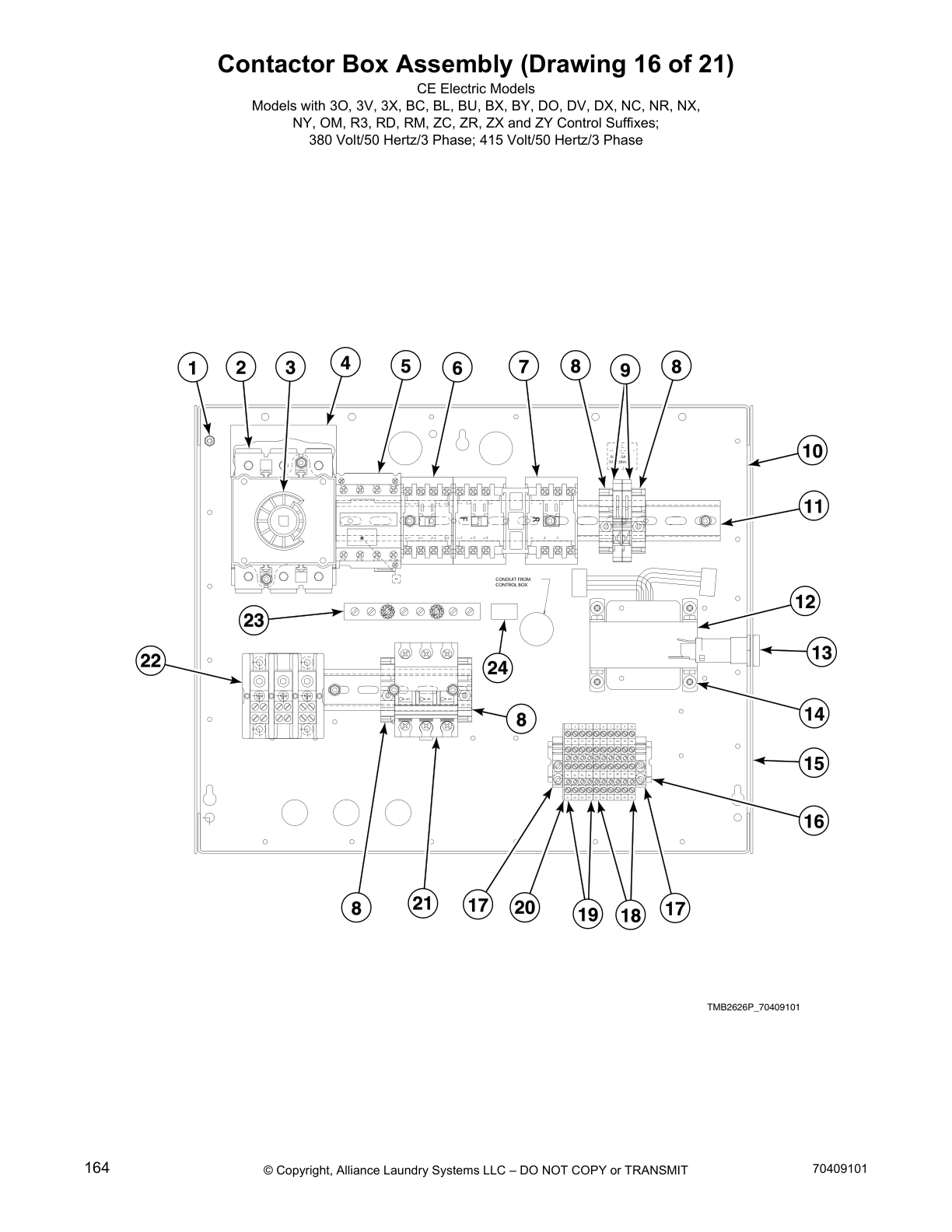

Contactor Box Assembly (Drawing 16 of 21)

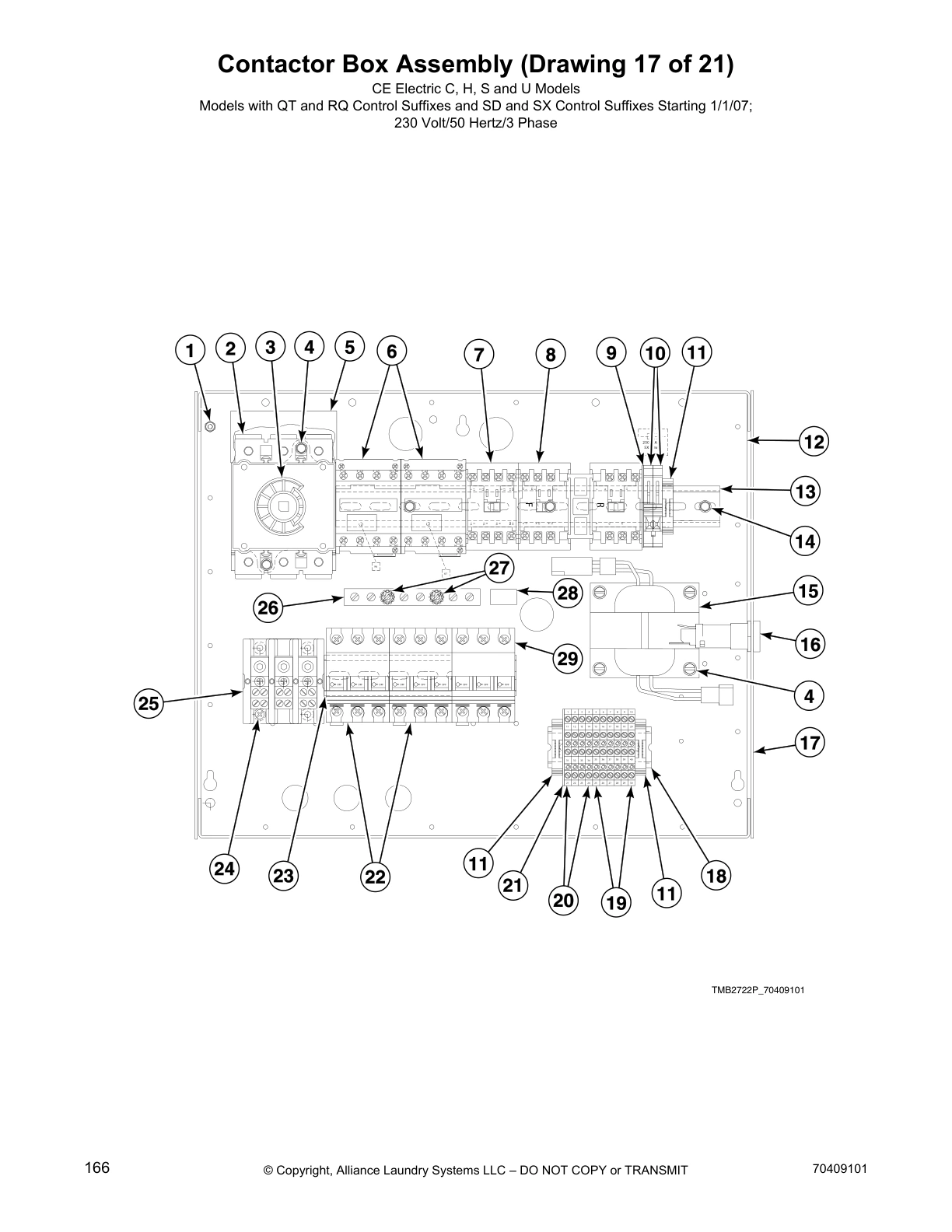

Contactor Box Assembly (Drawing 17 of 21)

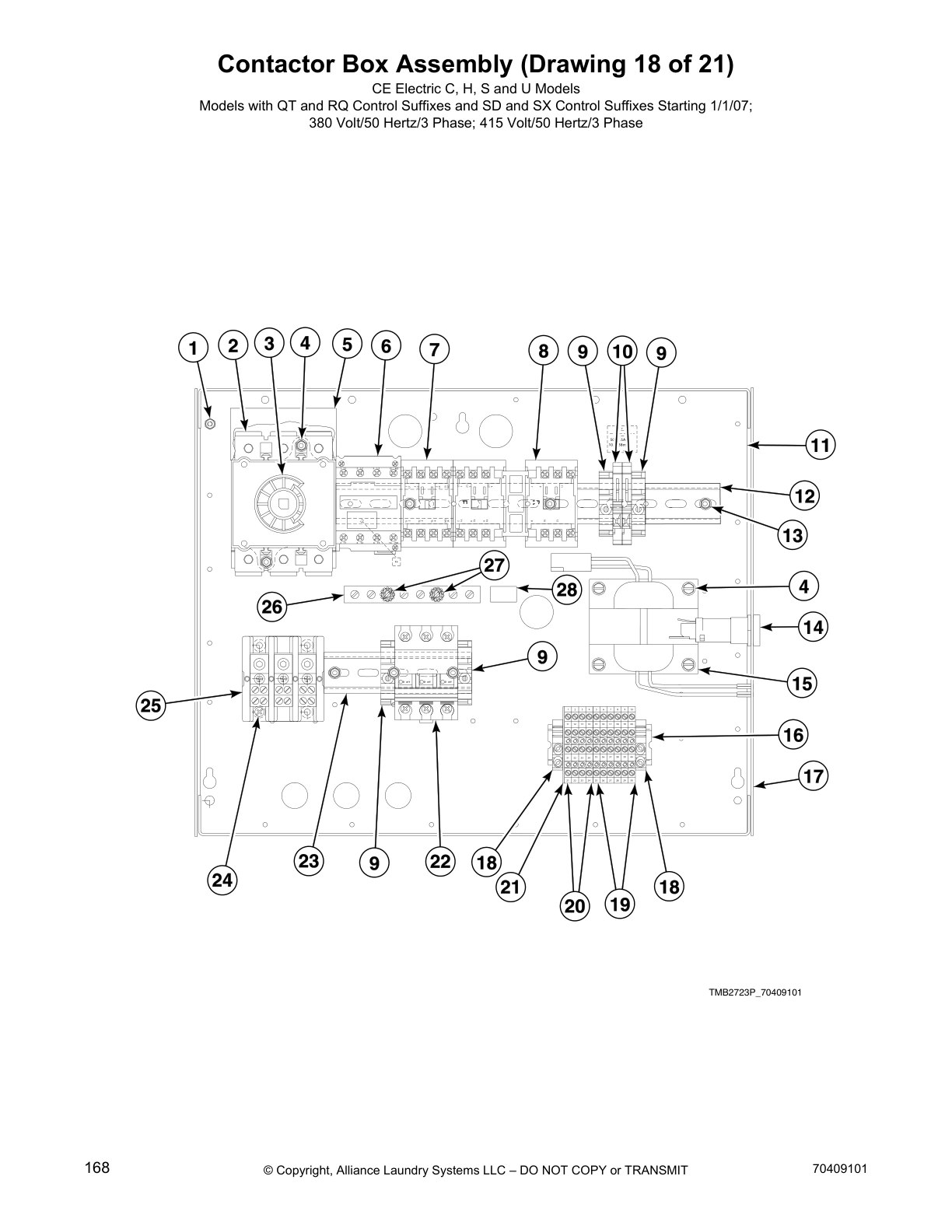

Contactor Box Assembly (Drawing 18 of 21)

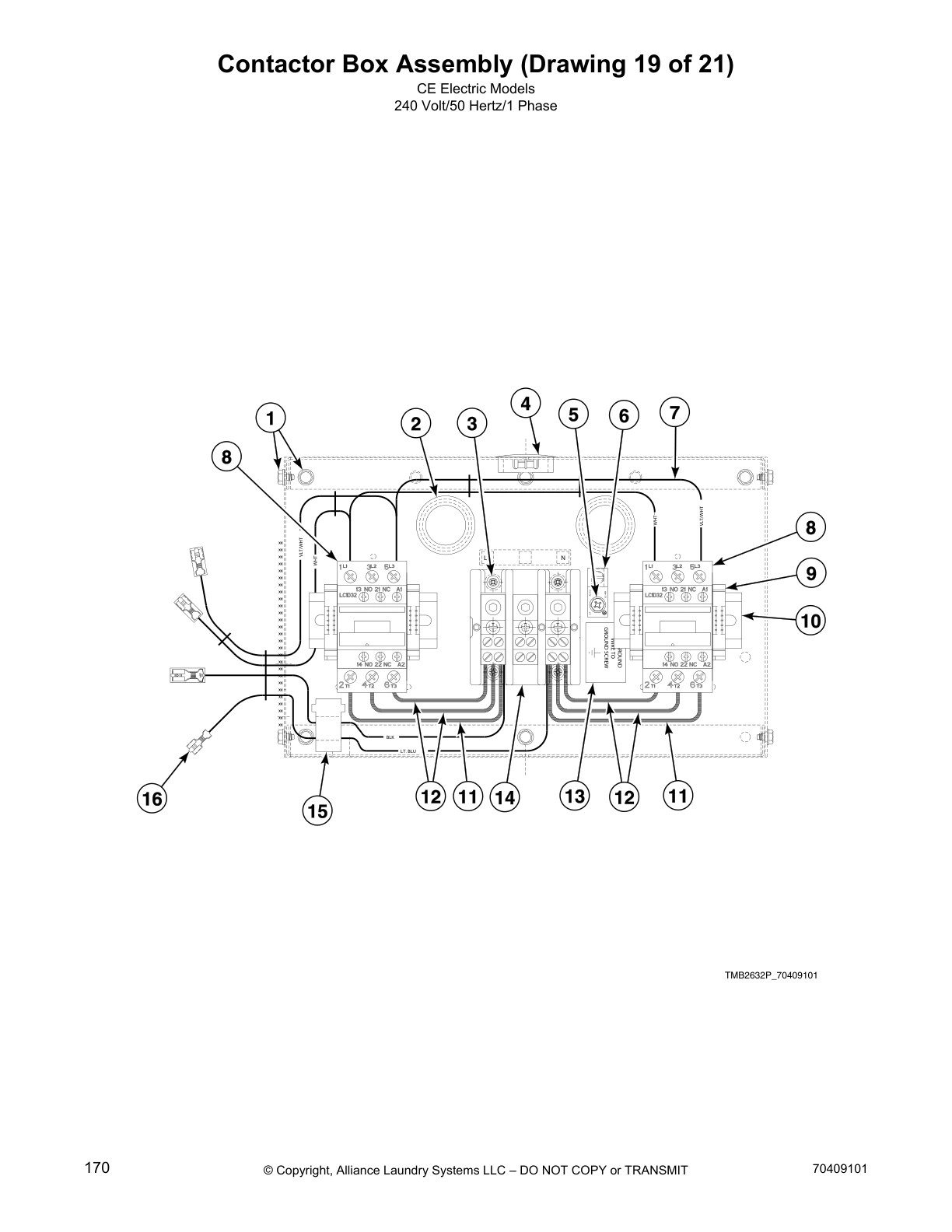

Contactor Box Assembly (Drawing 19 of 21)

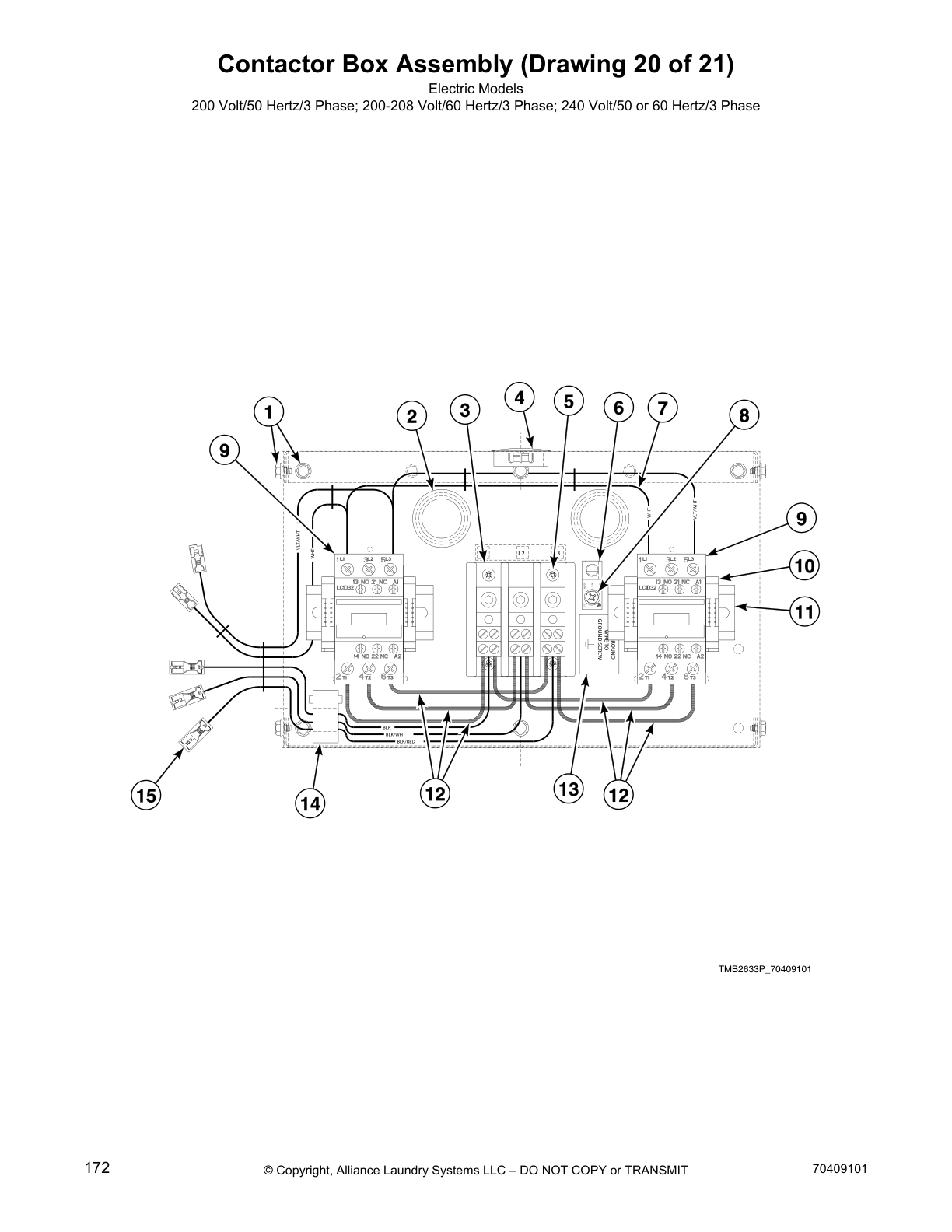

Contactor Box Assembly (Drawing 20 of 21)

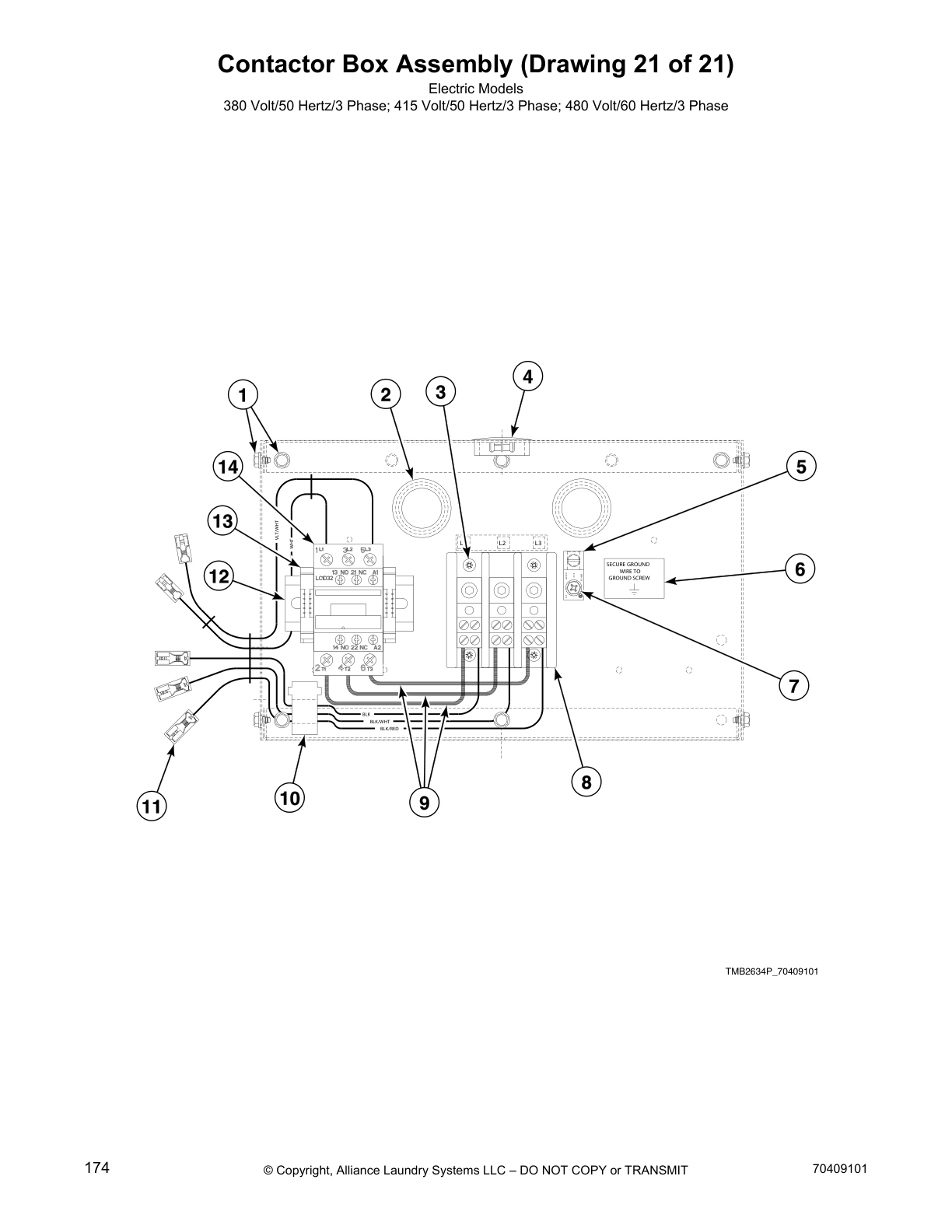

Contactor Box Assembly (Drawing 21 of 21)
Common parts from model Ipso BU050N Dryer
Fan Motor SPQ 44046001P Contact Us For Availability
Motor SPQ 44045801P Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ 215P4P SPQ 215P4P Contact Us For Availability
SPQ M401402 SPQ M401402 Contact Us For Availability
SPQ 44057403 SPQ 44057403 Contact Us For Availability
SPQ M4643P3 SPQ M4643P3 Contact Us For Availability
SPQ M4641P3 SPQ M4641P3 Contact Us For Availability
1
Sheave Kit SPQ 44086901P Contact Us For Availability
1
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
1
Nameplate SPQ 44046801 Contact Us For Availability
1
Front Panel Assembly SPQ 44077910 Contact Us For Availability
1
Front Panel Assembly SPQ 44077904P Contact Us For Availability
1
Snap Bushing SPQ M411826 Contact Us For Availability
1
Handle and Caps Assembly SPQ 70154405P Contact Us For Availability
1
Baffle SPQ 44005201 Contact Us For Availability
1
Door Assembly SPQ 44046701 Contact Us For Availability
1
Door Assembly SPQ 44112101 Contact Us For Availability
1
Cylinder Kit SPQ 44057101P Contact Us For Availability
1
Key SPQ M405232 Contact Us For Availability
1
Key SPQ M400008 Contact Us For Availability
1
Cylinder, Trunnion and Bearing Housing Kit SPQ M4821P3 Contact Us For Availability
1
Idler Shaft SPQ M412223P Contact Us For Availability
1
Motor SPQ 44048701P Contact Us For Availability
1
Burner Orifice SPQ 70684136 Contact Us For Availability
1
Rotation Sensor Kit SPQ 7009P Contact Us For Availability
2
Screw SPQ 44041901P Contact Us For Availability
2
Emergency Stop Label SPQ 44012901 Contact Us For Availability
2
Coin Vault Switch Harness SPQ 44057801W Contact Us For Availability
2
Control Panel SPQ 44040004 Contact Us For Availability
2
Door Handle SPQ 70126301 Contact Us For Availability
2
Door Ring and Handle Assembly SPQ 44043501 Contact Us For Availability
2
Felt Pad SPQ 44057001P Contact Us For Availability
2
Cylinder and Trunnion Assembly SPQ M4819P3 Contact Us For Availability
2
Key SPQ M414405 Contact Us For Availability
2
Limit Thermostat SPQ M409433 Contact Us For Availability
2
Proximity Bracket SPQ 44044501 Contact Us For Availability
3
Hinge Cam Kit SPQ 70296801 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Contact Base SPQ F8538101 Contact Us For Availability
3
Nut SPQ 44057801Q Contact Us For Availability
3
Insulation SPQ 44040002 Contact Us For Availability
3
Front Panel SPQ 44052521 Contact Us For Availability
3
Pushbutton Switch SPQ 44118601 Contact Us For Availability
3
Nut SPQ 44000002P Contact Us For Availability
3
Manual Reset Thermostat SPQ M400838 Contact Us For Availability
3
Pop Rivet SPQ 70015701 Contact Us For Availability
3
Hinge Cam Kit SPQ 44112001 Contact Us For Availability
3
Trunnion Assembly SPQ M402144 Contact Us For Availability
3
Washer SPQ M400063 Contact Us For Availability
3
Motor SPQ M413541 Contact Us For Availability
3
SPQ M412885P SPQ M412885P Contact Us For Availability
3
Resilient Ring Kit SPQ M414564 Contact Us For Availability
3
Burner Assembly SPQ M414795 Contact Us For Availability
4
Pipe SPQ M410541P Contact Us For Availability
4
SPQ M414567 SPQ M414567 Contact Us For Availability
4
Screw SPQ 70413301 Contact Us For Availability
4
Contact Switch SPQ F8069501 Contact Us For Availability
4
Front Panel Harness Assembly SPQ 44063201P Contact Us For Availability
4
Control Trim SPQ 44057801B Contact Us For Availability
4
SPQ M400661 SPQ M400661 Contact Us For Availability
4
Nut SPQ M400015 Contact Us For Availability
4
Nut SPQ M413834P Contact Us For Availability
4
SPQ M412916 SPQ M412916 Contact Us For Availability
4
SPQ M400399 SPQ M400399 Contact Us For Availability
4
SPQ M400035 SPQ M400035 Contact Us For Availability
4
Idler Housing SPQ M401370 Contact Us For Availability
4
Motor Hardware Kit SPQ M400994P Contact Us For Availability
4
SPQ M400712 SPQ M400712 Contact Us For Availability
4
Exhaust Thimble Assembly SPQ M412288 Contact Us For Availability
4
SPQ M405503 SPQ M405503 Contact Us For Availability
5
SPQ M401182P SPQ M401182P Contact Us For Availability
5
Bolt SPQ 70261401 Contact Us For Availability
5
Ball Bearing SPQ M412612 Contact Us For Availability
5
SPQ M411072 SPQ M411072 Contact Us For Availability
5
Screw SPQ M401223 Contact Us For Availability
5
Panel Locator SPQ 70072801 Contact Us For Availability
5
Spray Paint SPQ 431318 Contact Us For Availability
5
Door Glass Installation Tool SPQ 70115902 Contact Us For Availability
5
Washer SPQ M413833P Contact Us For Availability
5
SPQ M414565 SPQ M414565 Contact Us For Availability
5
SPQ M412086P SPQ M412086P Contact Us For Availability
5
SPQ M401327 SPQ M401327 Contact Us For Availability
5
Drum Idler Wheel Assembly SPQ M405535 Contact Us For Availability
5
SPQ M413281 SPQ M413281 Contact Us For Availability
5
SPQ M409202 SPQ M409202 Contact Us For Availability
5
SPQ M411283 SPQ M411283 Contact Us For Availability
6
Loading Spring SPQ M401375P Contact Us For Availability
6
Jumper Wire Assembly SPQ M412645 Contact Us For Availability
6
Panel Locator SPQ 70117502 Contact Us For Availability
6
Lint Panel Harness Assembly SPQ 44001201 Contact Us For Availability
6
Roller Catch Wheel SPQ 70030201 Contact Us For Availability
6
Washer SPQ 44036801P Contact Us For Availability
6
SPQ M411483 SPQ M411483 Contact Us For Availability
6
Transformer SPQ M414230P Contact Us For Availability
6
Terminal Block SPQ M400985 Contact Us For Availability
7
SPQ M400003 SPQ M400003 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 44023001 Contact Us For Availability
7
SPQ 44048101P SPQ 44048101P Contact Us For Availability
7
Roller Bracket Assembly SPQ 70132301 Contact Us For Availability
7
Snap Bushing SPQ 44051201 Contact Us For Availability
7
SPQ 70215001P SPQ 70215001P Contact Us For Availability
7
SPQ M400650 SPQ M400650 Contact Us For Availability
7
SPQ 44117201 SPQ 44117201 Contact Us For Availability
7
Idler Shaft SPQ M400401 Contact Us For Availability
7
Pipe SPQ M412562P Contact Us For Availability
7
Shut-Off Valve Kit SPQ M400749 Contact Us For Availability
7
Snap Bushing SPQ M413862 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
Terminal Block SPQ 430642 Contact Us For Availability
8
SPQ B12308601 SPQ B12308601 Contact Us For Availability
8
SPQ 44075208B SPQ 44075208B Contact Us For Availability
8
Idler Housing Kit SPQ M414241 Contact Us For Availability
8
Insulation SPQ M4983P3 Contact Us For Availability
8
SPQ M412405P SPQ M412405P Contact Us For Availability
9
Tumbler Dolly Kit SPQ 44016401 Contact Us For Availability
9
SPQ 44001801 SPQ 44001801 Contact Us For Availability
9
Jumper Harness Assembly SPQ M400770 Contact Us For Availability
9
SPQ 70297601 SPQ 70297601 Contact Us For Availability
9
SPQ 44075204 SPQ 44075204 Contact Us For Availability
9
SPQ M412520P SPQ M412520P Contact Us For Availability
9
SPQ 70265901 SPQ 70265901 Contact Us For Availability
10
Key SPQ 70155601 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Idler Arm Kit SPQ M414320P Contact Us For Availability
10
Screw SPQ 70033502 Contact Us For Availability
10
Nut SPQ M400977 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Roller Catch Arm SPQ 70030301 Contact Us For Availability
10
Thermistor Cable SPQ 44319901P Contact Us For Availability
10
Washer SPQ M400013 Contact Us For Availability
10
Nut SPQ 70142 Contact Us For Availability
10
Bolt SPQ M412119 Contact Us For Availability
10
Terminal Block SPQ M412537 Contact Us For Availability
11
Door Hinge Lug Assembly SPQ 70409801 Contact Us For Availability
11
Ball Bearing SPQ M413826 Contact Us For Availability
11
Nut SPQ 02428 Contact Us For Availability
11
Extension Spring SPQ M412120 Contact Us For Availability
11
Washer SPQ 430782 Contact Us For Availability
11
Idler Arm SPQ 44102701 Contact Us For Availability
11
Gas Valve SPQ M413332P Contact Us For Availability
11
Nut SPQ M401548 Contact Us For Availability
11
Thermostat Bracket SPQ M402798 Contact Us For Availability
12
Kickplate SPQ 70117607 Contact Us For Availability
12
Screw SPQ 70247701 Contact Us For Availability
12
Motor Switch SPQ M413565 Contact Us For Availability
12
Key SPQ M400993 Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
12
Fuse SPQ M413889 Contact Us For Availability
13
Pulley SPQ M412884 Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Bottom Pan SPQ 44000601P Contact Us For Availability
13
Cylinder Motor Harness SPQ M414563 Contact Us For Availability
13
Key SPQ 44132301 Contact Us For Availability
13
Anti-Torque Ring SPQ M400605 Contact Us For Availability
13
Spud Holder Assembly SPQ M410546 Contact Us For Availability
13
Manual Reset Thermostat SPQ M411938 Contact Us For Availability
13
Transformer SPQ M414228P Contact Us For Availability
14
Support Bearing SPQ 70448701 Contact Us For Availability
14
Start Switch SPQ 70108501 Contact Us For Availability
14
Mounting Plate SPQ 70208801 Contact Us For Availability
14
Shadow Box Clip SPQ 70182601 Contact Us For Availability
14
Thermostat Cover SPQ M402797 Contact Us For Availability
14
End Stop SPQ M400044 Contact Us For Availability
14
Door Seal Kit SPQ 44035002 Contact Us For Availability
14
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
14
Tension Plate Assembly SPQ 44132401 Contact Us For Availability
14
Screw SPQ M400077 Contact Us For Availability
14
Manifold Pipe Assembly SPQ M413395 Contact Us For Availability
14
Clip SPQ M400976 Contact Us For Availability
15
Door Glass SPQ M400784P Contact Us For Availability
15
Stove Limit Harness Assembly SPQ M414477 Contact Us For Availability
15
Coin Chute Assembly SPQ 44065501 Contact Us For Availability
15
Cylinder Motor Harness Assembly SPQ M412745 Contact Us For Availability
15
Bushing SPQ M412917P Contact Us For Availability
15
Washer SPQ 70270301 Contact Us For Availability
15
End Stop SPQ M412534 Contact Us For Availability
16
Door Glass Installation Tool SPQ 70211902P Contact Us For Availability
16
Coin Vault Switch Harness SPQ 70155602 Contact Us For Availability
16
Motor Mount Assembly SPQ M412573 Contact Us For Availability
16
Belt Guard Assembly SPQ 44132402 Contact Us For Availability
16
Micro V Pulley SPQ M411466P Contact Us For Availability
16
Cover Plate SPQ M413008 Contact Us For Availability
17
Door Switch SPQ 44089302P Contact Us For Availability
17
Coin Vault Assembly SPQ 44004901 Contact Us For Availability
17
Nut SPQ 44008401P Contact Us For Availability
17
Washer SPQ M413617 Contact Us For Availability
17
Fan Kit SPQ M410059 Contact Us For Availability
17
Airflow Switch Insulator Barrier SPQ M400072 Contact Us For Availability
17
Terminal Block SPQ M412649 Contact Us For Availability
18
Door Latch SPQ 02788 Contact Us For Availability
18
Baffle Gasket SPQ 70296401 Contact Us For Availability
18
Belt Guard SPQ 22688 Contact Us For Availability
18
Terminal Block SPQ 70121001 Contact Us For Availability
19
Shadow Box Clip SPQ 44001301 Contact Us For Availability
19
Screw SPQ 70180101 Contact Us For Availability
19
Door Ring Gasket SPQ M4221P4 Contact Us For Availability
19
Ring SPQ M400026 Contact Us For Availability
19
Ring SPQ M412627 Contact Us For Availability
19
Actuator Switch SPQ M412609 Contact Us For Availability
19
Mounting Switch Base SPQ M412187P Contact Us For Availability
20
Key and Instruction Kit SPQ M400991 Contact Us For Availability
20
Transformer SPQ M414312P Contact Us For Availability
20
Control Door Latch SPQ 70030401 Contact Us For Availability
20
Door Ring and Handle Assembly SPQ M414215 Contact Us For Availability
20
Idler Housing Kit SPQ M412476 Contact Us For Availability
20
Micro V Belt SPQ M412156 Contact Us For Availability
20
Extension Handle SPQ M412370 Contact Us For Availability
20
End Barrier SPQ M412632 Contact Us For Availability
21
Door Switch Actuator Kit SPQ 44008201P Contact Us For Availability
21
Idler/Belt Assembly Kit SPQ M412188 Contact Us For Availability
21
Fan Motor Harness Assembly SPQ M400022 Contact Us For Availability
21
Nut SPQ M412423 Contact Us For Availability
21
Contactor SPQ M412633 Contact Us For Availability
22
Motor Bracket SPQ M4936P3 Contact Us For Availability
22
Door Hinge Assembly SPQ 44007901 Contact Us For Availability
22
SPQ H88412101 SPQ H88412101 Contact Us For Availability
23
Bolt SPQ M414566 Contact Us For Availability
26
SPQ M412090 SPQ M412090 Contact Us For Availability
27
SPQ M412931 SPQ M412931 Contact Us For Availability
NI
SPQ F100136P SPQ F100136P Contact Us For Availability
NI
SPQ 943P3P SPQ 943P3P Contact Us For Availability
NI
SPQ M413921P SPQ M413921P Contact Us For Availability
NI
USB IR Interface Kit SPQ 44061603 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
Contact Block Switch SPQ F200233401P Contact Us For Availability
NI
Emergency Stop Button Kit SPQ F200233700P Contact Us For Availability
NI
SPQ 70275801 SPQ 70275801 Contact Us For Availability
NI
SPQ 70033504 SPQ 70033504 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44040015W SPQ 44040015W Contact Us For Availability
NI
SPQ 44020601 SPQ 44020601 Contact Us For Availability
NI
Front Panel Assembly SPQ 44077916 Contact Us For Availability
NI
SPQ 44077812 SPQ 44077812 Contact Us For Availability
NI
SPQ 44063101P SPQ 44063101P Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 70114001 SPQ 70114001 Contact Us For Availability
NI
SPQ 44003201 SPQ 44003201 Contact Us For Availability
NI
SPQ 297P4 SPQ 297P4 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 70442101 SPQ 70442101 Contact Us For Availability
NI
Rib Rod SPQ M401930 Contact Us For Availability
NI
SPQ M401411 SPQ M401411 Contact Us For Availability
NI
SPQ 44057404 SPQ 44057404 Contact Us For Availability
NI
SPQ 44057401P SPQ 44057401P Contact Us For Availability
NI
Housing and Trunnion Assembly SPQ M4645P3 Contact Us For Availability
NI
Trunnion and Bearing Assembly SPQ M4644P3 Contact Us For Availability
NI
SPQ M4642P3 SPQ M4642P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 917P3 SPQ 917P3 Contact Us For Availability
NI
SPQ 430648 SPQ 430648 Contact Us For Availability
NI
SPQ 942P3P SPQ 942P3P Contact Us For Availability
NI
Motor SPQ 44046101P Contact Us For Availability
NI
Fan Motor SPQ 44045901P Contact Us For Availability
NI
SPQ 44045701P SPQ 44045701P Contact Us For Availability
NI
SPQ M414503 SPQ M414503 Contact Us For Availability
NI
SPQ M4542P3 SPQ M4542P3 Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413863 Contact Us For Availability
NI
SPQ M413510 SPQ M413510 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
SPQ M412641 SPQ M412641 Contact Us For Availability
× ![]()
