Model GE BIS42CKB – Common Parts & Diagrams

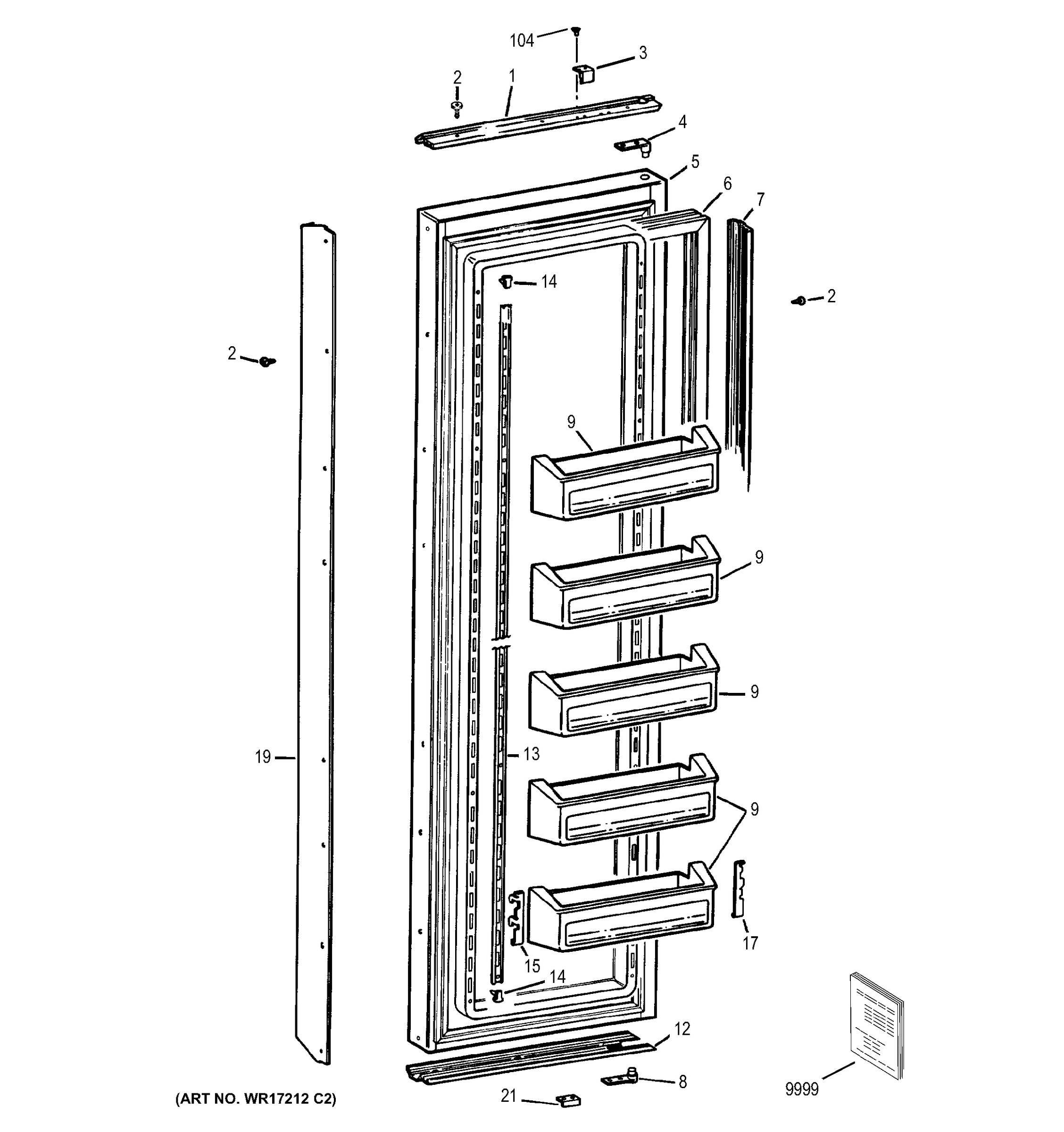

FREEZER DOOR

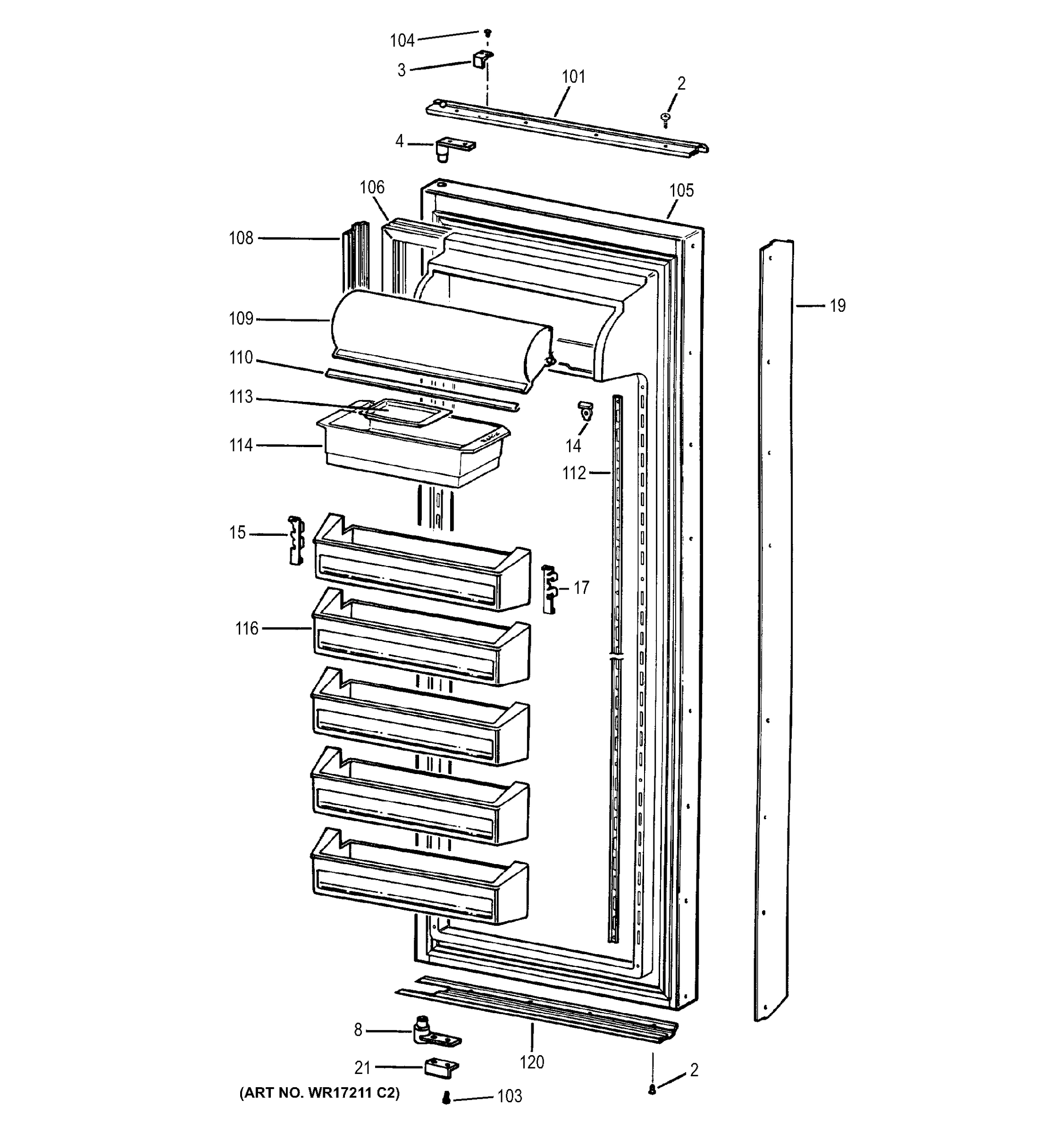

FRESH FOOD DOOR

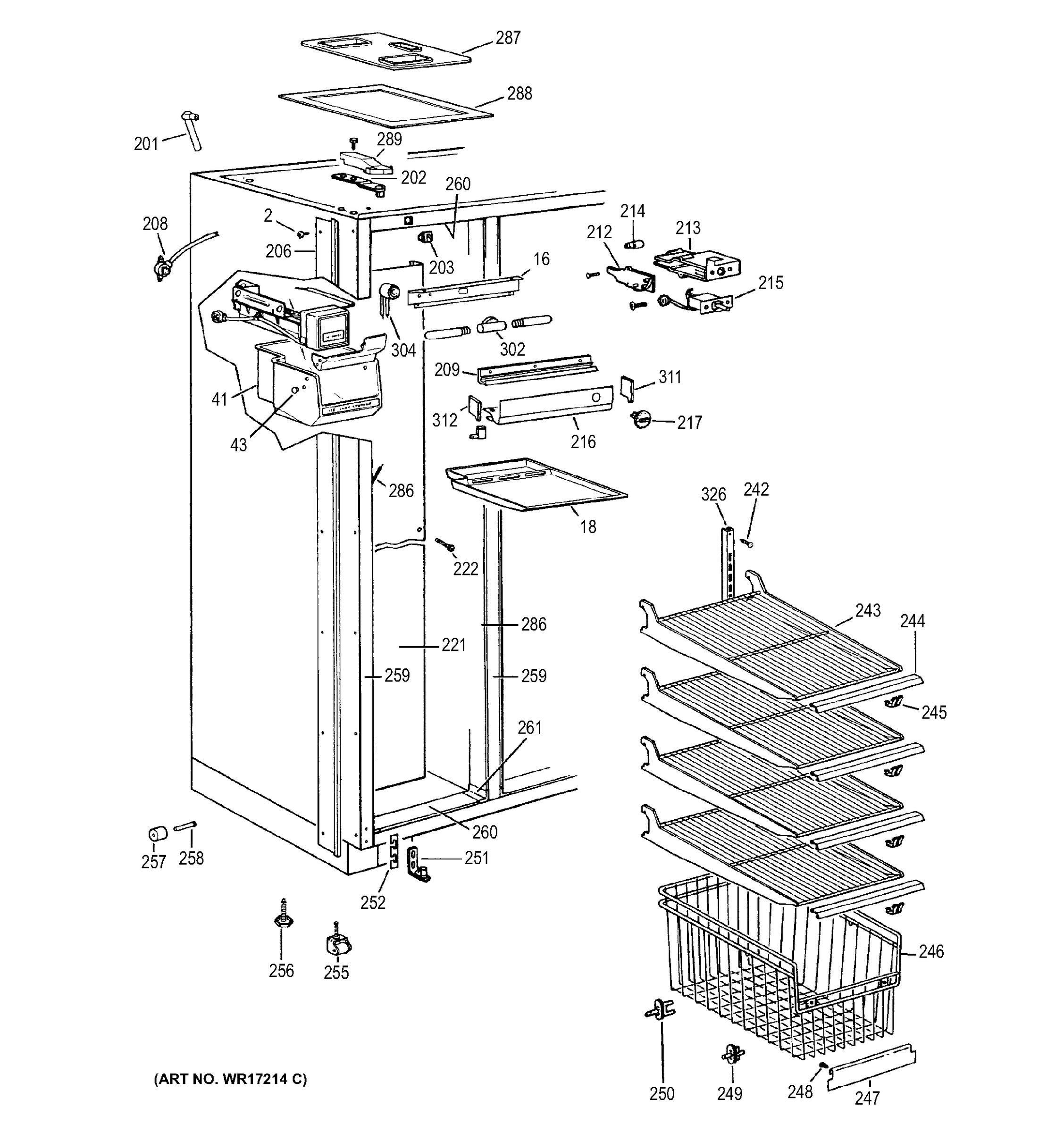

FREEZER SECTION

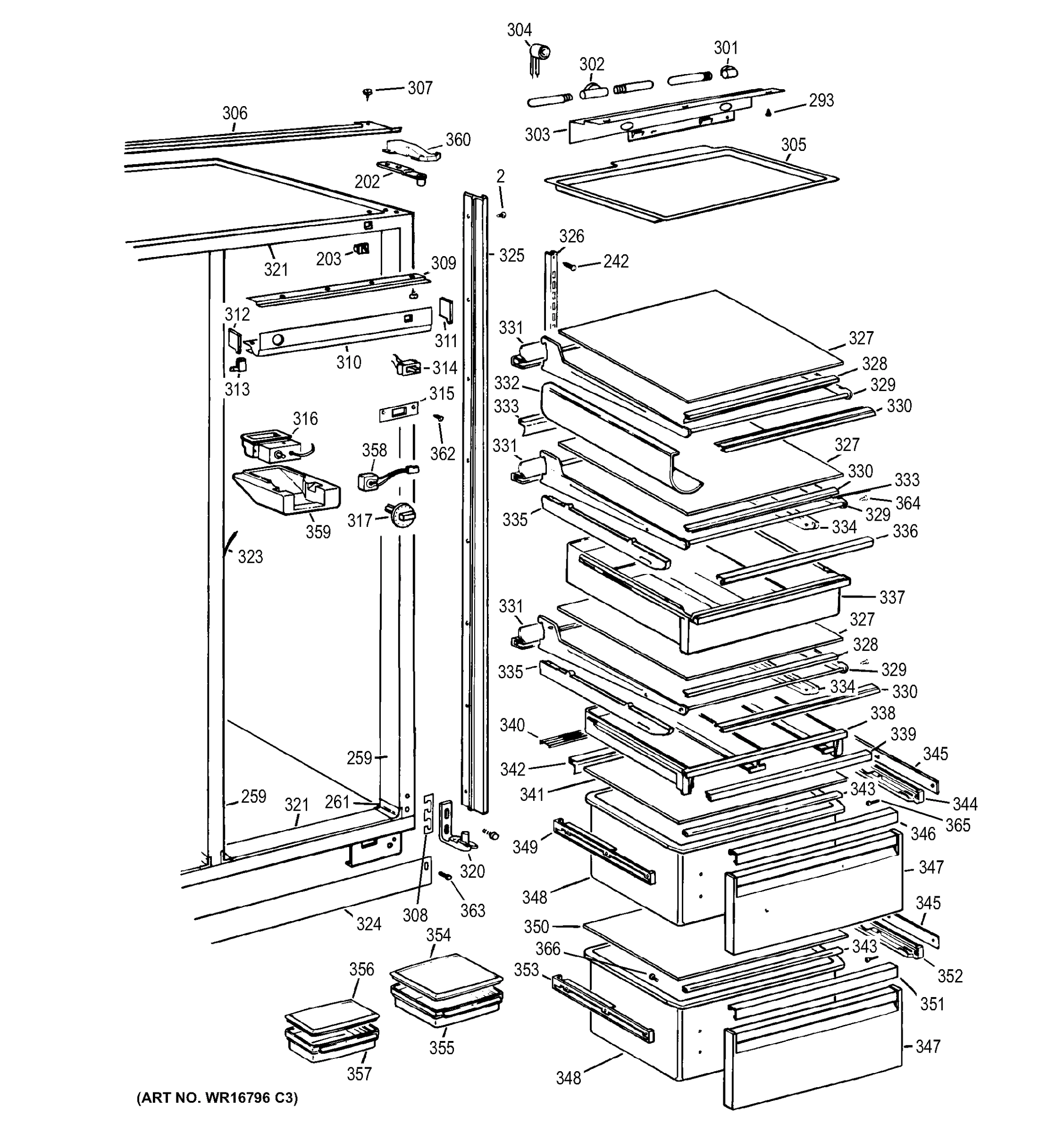

FRESH FOOD SECTION

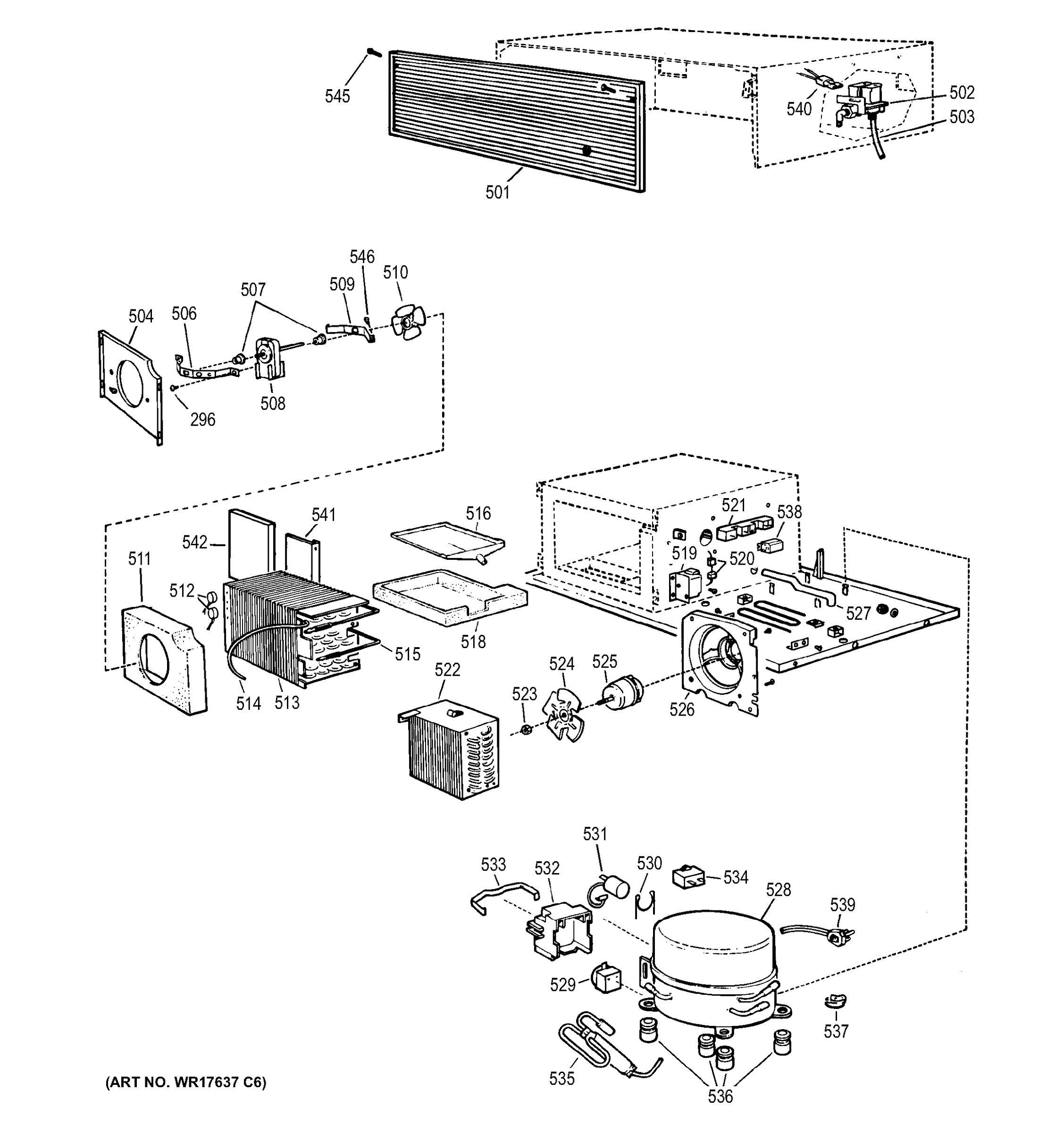

UNIT ASSEMBLY
Common parts from model GE BIS42CKB
3
ACTIVATOR-SWITCH GEN WR02X7541 Contact Us For Availability
4
RISER-TOP GEN WR02X7879 Contact Us For Availability
5
DOOR OUTER ASSY GEN WR78X8155 Contact Us For Availability
6
WR24X492 GEN WR24X5252 Contact Us For Availability
7
DOOR TRIM-FZ GEN WR17X6228 Contact Us For Availability
8
RISER-BTM GEN WR02X7878 Contact Us For Availability
9
DOOR SHELF ASSY GEN WR17X6337 Contact Us For Availability
12
TRIM-BTM GEN WR17X6364 Contact Us For Availability
13
TRACK GEN WR72X5063 Contact Us For Availability
14
CAP-TRACK TOP & BOTTOM GEN WR02X7542 Contact Us For Availability
15
HOOK L/S GEN WR02X7543 Contact Us For Availability
16
REFLECTOR GEN WR17X6366 Contact Us For Availability
17
HOOK R/S GEN WR02X7544 Contact Us For Availability
18
SHIELD LIGHT GEN WR17X6369 Contact Us For Availability
19
DOOR HANDLE GEN WR12X5183 Contact Us For Availability
21
DOOR STOP GEN WR02X7880 Contact Us For Availability
43
RETAINER-BAFFLE GEN WR02X7289 Contact Us For Availability
101
TRIM-TOP GEN WR17X6315 Contact Us For Availability
103
SCREW-RISER GEN WR01X5626 Contact Us For Availability
104
SCREW-ACTIVATOR GEN WR01X5622 Contact Us For Availability
105
DOOR OUTER ASSY-F F GEN WR78X8154 Contact Us For Availability
106
WR24X493 GEN WR24X5251 Contact Us For Availability
108
TRIM DOOR GEN WR17X6316 Contact Us For Availability
109
5D6049-02 GEN WR22X5084 Contact Us For Availability
110
TRIM-DOOR GEN WR38X5412 Contact Us For Availability
112
SCREW GEN WR01X5623 Contact Us For Availability
112
TRACK GEN WR17X6317 Contact Us For Availability
113
DISH BUTTER GEN WR19X5003 Contact Us For Availability
114
WR32X897 GEN WR32X5192 Contact Us For Availability
116
DOOR SHELF ASSY GEN WR17X6318 Contact Us For Availability
120
TRIM BTM GEN WR17X6319 Contact Us For Availability
202
TOP HINGE GEN WR13X5221 Contact Us For Availability
206
TRIM GEN WR17X6250 Contact Us For Availability
208
5D7058-03 GEN WR23X5165 Contact Us For Availability
209
RETAINER GEN WR17X6370 Contact Us For Availability
212
SIDE-HOUSING GEN WR02X7893 Contact Us For Availability
213
HOUSING GEN WR17X6345 Contact Us For Availability
214
SCREW-BRKT GEN WR01X5647 Contact Us For Availability
214
POST-CONTROL GEN WR02X7894 Contact Us For Availability
215
CONTROL GEN WR09X0425 Contact Us For Availability
216
5B0446-00 GEN WR17X6365 Contact Us For Availability
217
KNOB-CONTROL GEN WR02X7895 Contact Us For Availability
221
COVER LINER GEN WR17X6367 Contact Us For Availability
222
SCREW-COVER GEN WR01X5646 Contact Us For Availability
242
SCREW GEN WR01X5635 Contact Us For Availability
243
SHELF GEN WR71X6076 Contact Us For Availability
244
TRIM GEN WR17X6349 Contact Us For Availability
245
CLIP SHELF TRIM GEN WR02X5008 Contact Us For Availability
246
BASKET GEN WR21X5116 Contact Us For Availability
247
HANDLE GEN WR12X5188 Contact Us For Availability
249
SUPPORT-FRONT GEN WR02X7898 Contact Us For Availability
250
SUPPORT-REAR GEN WR02X7899 Contact Us For Availability
251
HINGE-BOTTOM GEN WR13X5223 Contact Us For Availability
252
SHIM GEN WR02X7886 Contact Us For Availability
255
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
256
LEVELING LEG GEN WR02X7560 Contact Us For Availability
258
AXLE GEN WR02X3595 Contact Us For Availability
259
BREAKER STRIP-SIDES GEN WR40X5574 Contact Us For Availability
260
BREAKER STRIP-BOTTOM GEN WR40X5577 Contact Us For Availability
260
BREAKER STRIP-TOP GEN WR40X5578 Contact Us For Availability
261
CORNERS-BREAKER GEN WR40X5575 Contact Us For Availability
286
MULLION HEATER GEN WR51X5215 Contact Us For Availability
287
TOP SEAL GEN WR17X6368 Contact Us For Availability
288
GASKET GEN WR14X5166 Contact Us For Availability
289
HINGE COVER GEN WR13X5234 Contact Us For Availability
296
SCREW GEN WZ05X0194 Contact Us For Availability
301
SOCKET LIGHT GEN WR23X5156 Contact Us For Availability
302
SOCKET LIGHT GEN WR23X5164 Contact Us For Availability
303
REFLECTOR GEN WR17X6320 Contact Us For Availability
304
THEMODISC GEN WR50X0108 Contact Us For Availability
305
LIGHT SHIELD GEN WR17X6321 Contact Us For Availability
306
TOP TRIM GEN WR17X6322 Contact Us For Availability
307
SCREW-HINGE GEN WR01X5653 Contact Us For Availability
308
SHIM GEN WR02X7881 Contact Us For Availability
309
RETAINER GEN WR17X6323 Contact Us For Availability
310
CONTROL PANEL GEN WR17X6324 Contact Us For Availability
311
GASKET R/S GEN WR14X5162 Contact Us For Availability
312
GASKET L/S GEN WR14X5163 Contact Us For Availability
313
SUPPORT GEN WR02X7882 Contact Us For Availability
314
SWITCH POWER SAVER GEN WR23X0309 Contact Us For Availability
315
PLATE-SWITCH GEN WR02X7883 Contact Us For Availability
316
CONTROL ASSEMBLY GEN WR09X0424 Contact Us For Availability
317
KNOB-CONTROL GEN WR02X7884 Contact Us For Availability
320
HINGE R/S GEN WR13X5222 No Longer Available
321
BREAKER STRIP-TOP GEN WR40X5573 Contact Us For Availability
321
BREAKER STRIP-BTM GEN WR40X5576 Contact Us For Availability
323
MULLION HEATER GEN WR51X5214 Contact Us For Availability
324
KICKPLATE GEN WR79X5174 Contact Us For Availability
325
SIDE TRIM-CABINET GEN WR17X6249 Contact Us For Availability
326
TRACK SHELF FF GEN WR17X6325 Contact Us For Availability
327
GLASS SHELF GEN WR32X5311 Contact Us For Availability
328
RETAINER GEN WR02X7549 Contact Us For Availability
329
SHELF GEN WR71X6075 Contact Us For Availability
330
TRIM-SHELF GEN WR17X6326 Contact Us For Availability
331
REFLECTOR GEN WR17X6327 Contact Us For Availability
332
WR17X3364 GEN WR17X6235 Contact Us For Availability
333
GASKET REAR GEN WR14X5155 Contact Us For Availability
333
GASKET FRONT GEN WR14X5157 Contact Us For Availability
334
SLIDE R/S GEN WR72X5059 Contact Us For Availability
335
SLIDE L/S GEN WR72X5060 Contact Us For Availability
336
HANDLE-PAN GEN WR17X6237 Contact Us For Availability
337
SNACK PAN GEN WR32X5312 Contact Us For Availability
338
RACK GEN WR17X6236 Contact Us For Availability
339
HANDLE RACK GEN WR17X6328 Contact Us For Availability
340
LOUVER-GLASS COVER GEN WR17X6329 Contact Us For Availability
341
VEG PAN COVER (GLASS) GEN WR32X5313 Contact Us For Availability
342
WR14X5157 GEN WR14X5165 Contact Us For Availability
343
WR2X8965 GEN WR14X5159 Contact Us For Availability
344
WR72X5061 GEN WR72X5054 Contact Us For Availability
345
SHIM GEN WR02X7552 Contact Us For Availability
346
HANDLE PAN GEN WR17X6330 Contact Us For Availability
347
PAN FRONT GEN WR17X6239 Contact Us For Availability
348
VEG PAN GEN WR32X5330 Contact Us For Availability
349
WR72X5062 GEN WR72X5055 Contact Us For Availability
350
PAN COVER (GLASS) GEN WR32X5331 Contact Us For Availability
351
HANDLE PAN GEN WR17X6331 Contact Us For Availability
352
SLIDE R/S GEN WR72X5061 Contact Us For Availability
353
SLIDE L/S GEN WR72X5062 Contact Us For Availability
354
DISH COVER (LGE) GEN WR02X7555 Contact Us For Availability
356
DISH COVER (SM) GEN WR02X7554 Contact Us For Availability
357
WR17X4009 GEN WR17X6241 Contact Us For Availability
358
CLIP GEN WR01X5709 Contact Us For Availability
358
HEATER GEN WR51X5218 Contact Us For Availability
359
DUCT GEN WR02X8082 Contact Us For Availability
360
HINGE COVER GEN WR13X5235 Contact Us For Availability
362
SCREW PLATE GEN WR01X5632 Contact Us For Availability
363
SCREW-PLATE GEN WR01X5643 Contact Us For Availability
365
SCREW SLIDE GEN WR01X5636 Contact Us For Availability
366
SCREW-FRONT GEN WZ04X0244 Contact Us For Availability
501
MEDALLION GEN WR03X5133 Contact Us For Availability
501
5C0384-03 GEN WR79X5173 Contact Us For Availability
504
FAN ORIFICE GEN WR17X6351 Contact Us For Availability
506
BRACKET EVAP FAN GEN WR02X4792 Contact Us For Availability
507
GROMMET GEN WR02X2945 Contact Us For Availability
508
FAN MOTOR GEN WR60X0180 Contact Us For Availability
509
BRACKET EVAP FAN GEN WR02X7137 Contact Us For Availability
511
FOAM BLOCK GEN WR17X6311 Contact Us For Availability
512
DEFROST THERMOSTAT GEN WR50X0109 Contact Us For Availability
513
EVAPORATOR GEN WR85X0223 Contact Us For Availability
514
SUCTION & CAPILLARY TUBE GEN WR86X0089 Contact Us For Availability
516
WR17X10687 GEN WR17X6312 Contact Us For Availability
518
BASE-PAN GEN WR17X6313 Contact Us For Availability
520
CURRENT SENSOR GEN WR23X0319 Contact Us For Availability
521
5B7325-00 GEN WR23X5163 Contact Us For Availability
522
CONDENSER GEN WR84X0136 Contact Us For Availability
523
NUT LOCKING GEN WR01X1515 Contact Us For Availability
524
BLADE COND FAN GEN WR60X0167 Contact Us For Availability
525
WASHER GEN WR01X1710 Contact Us For Availability
526
HOUSING COND FAN GEN WR17X2161 Contact Us For Availability
527
NO ITEM DESCRIPTION GEN WR87X6314 Contact Us For Availability
529
RELAY (PTCR) GEN WR07X0190 Contact Us For Availability
530
CLIP GUARDETTE GEN WR02X7227 Contact Us For Availability
531
GUARDETTE GEN WR08X0101 Contact Us For Availability
532
COVER GEN WR02X7834 Contact Us For Availability
533
CLAMP COVER GEN WR02X7226 Contact Us For Availability
536
GROMMET COMP MTG GEN WR02X7238 Contact Us For Availability
537
CLIP COMP MTG GEN WR02X7228 Contact Us For Availability
538
RELAY GEN WR07X0193 Contact Us For Availability
540
HARNESS-VALVE GEN WR23X5176 Contact Us For Availability
541
BAFFLE GEN WR17X6462 Contact Us For Availability
542
INSULATION-BAFFLE GEN WR82X5057 Contact Us For Availability
545
SCREW-GRILLE TO GRILLE GEN WR01X5685 Contact Us For Availability
546
SCREW GEN WR01X1483 Contact Us For Availability
9999
INSTALLATION INSTR. BIS4 GEN 496426 Contact Us For Availability
9999
INSTALLATION ZIS42CM GEN 496438 Contact Us For Availability
9999
USE & CARE BIS42CK MONOG GEN 496573 Contact Us For Availability
9999
USE & CARE ZIS42CM GEN 496607 Contact Us For Availability
× ![]()
