Model Ipso BH200S Dryer – Common Parts & Diagrams
Interior Control Box
Exterior Control Box - RQ Control Suffix (Drawing 1 of 2)

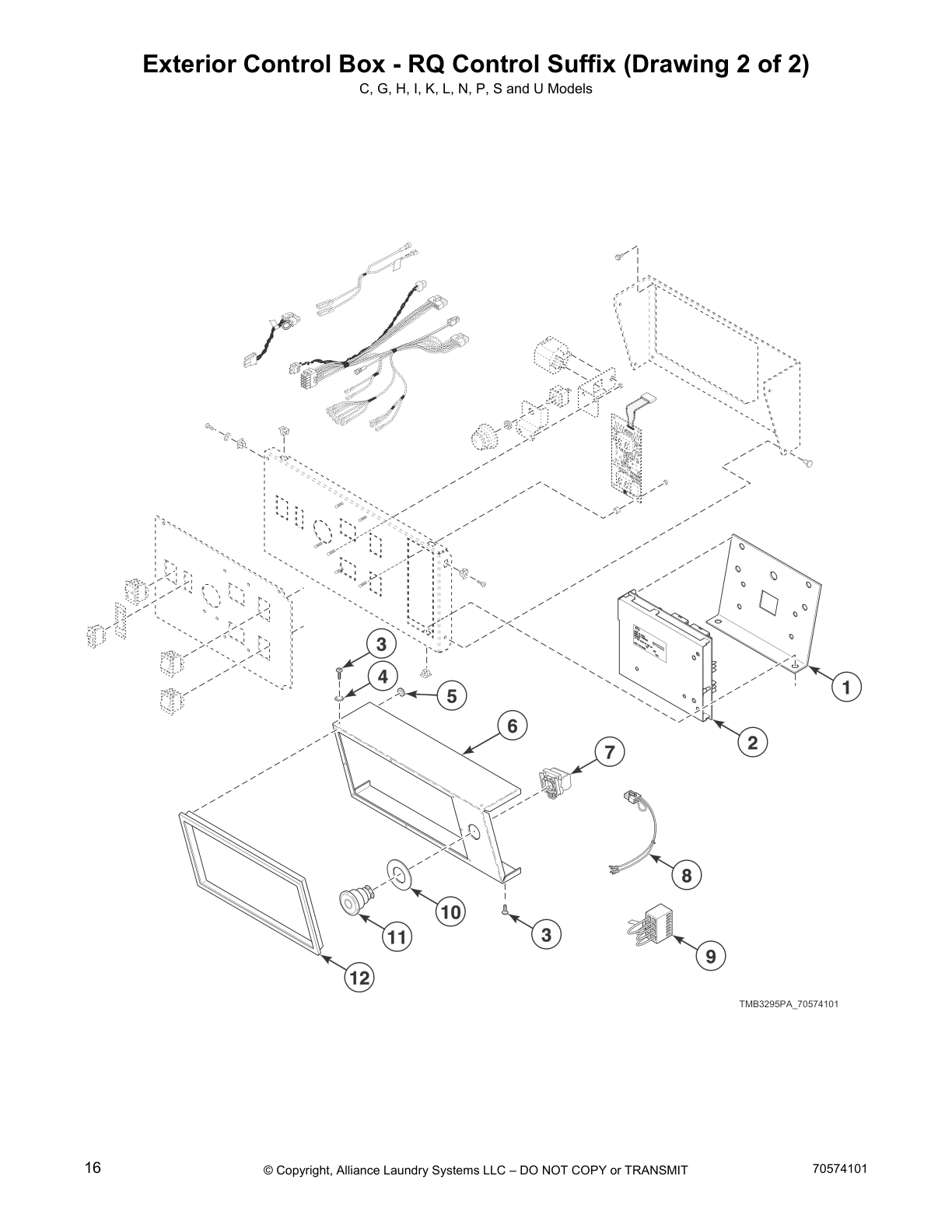

Exterior Control Box - RQ Control Suffix (Drawing 2 of 2)

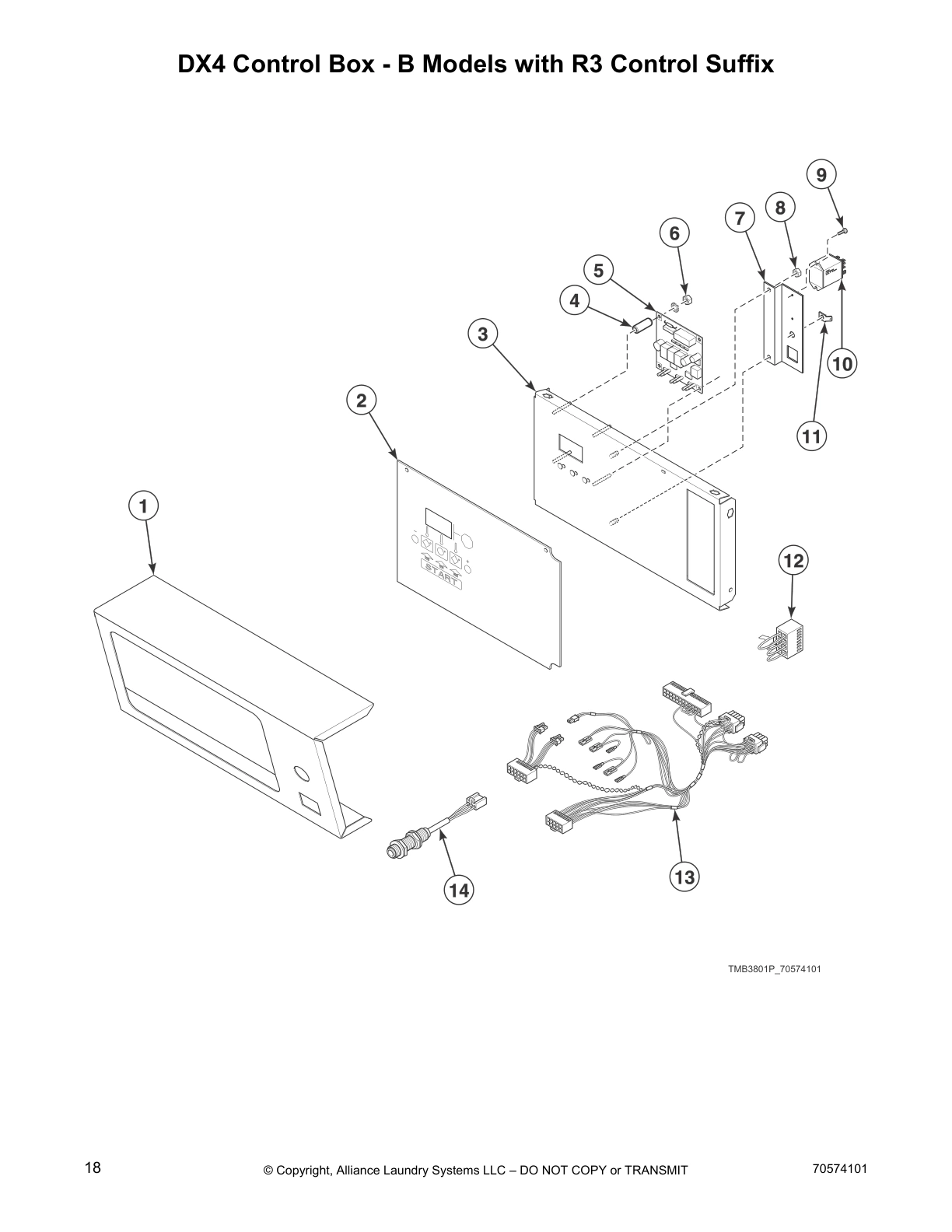

DX4 Control Box - B Models with R3 Control Suffix

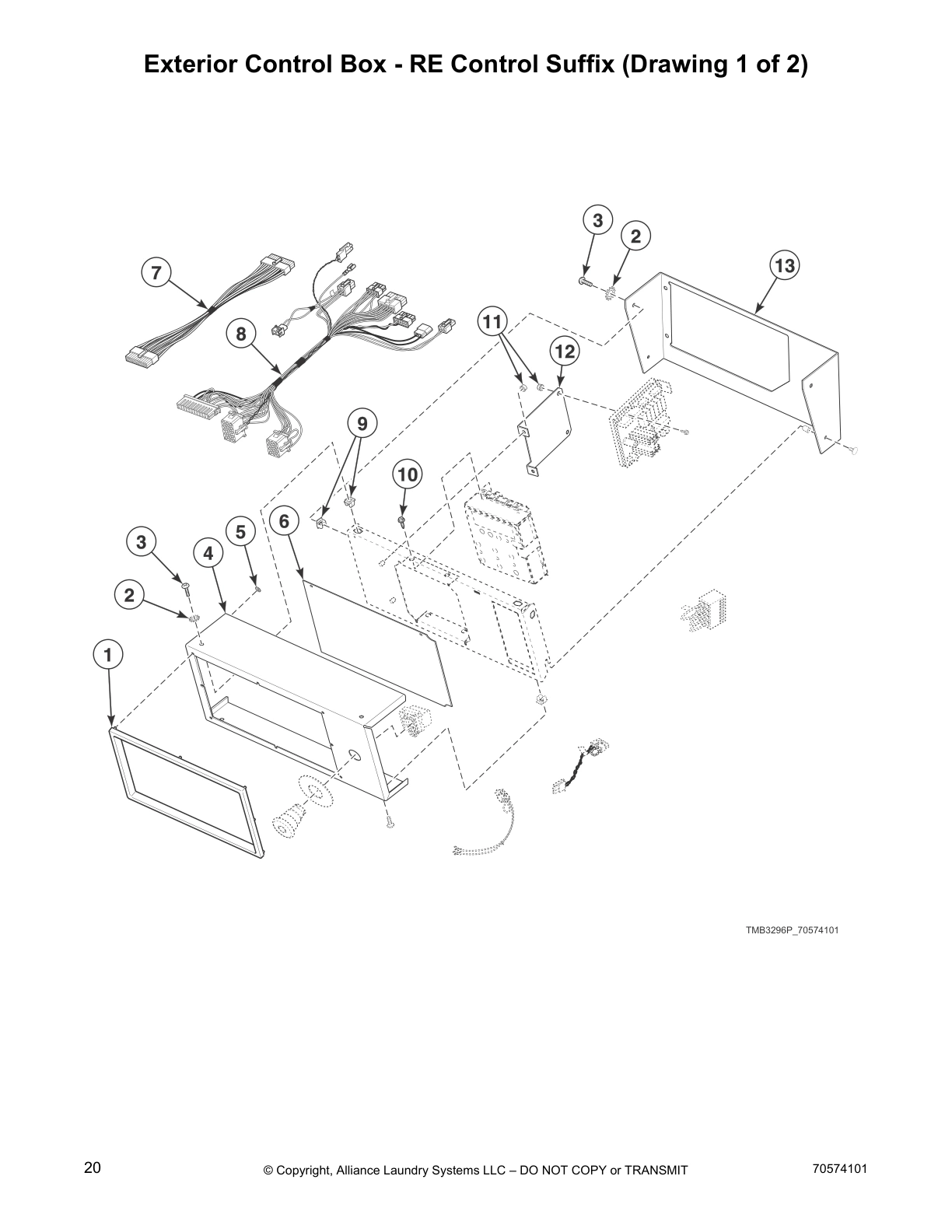

Exterior Control Box - RE Control Suffix (Drawing 1 of 2)

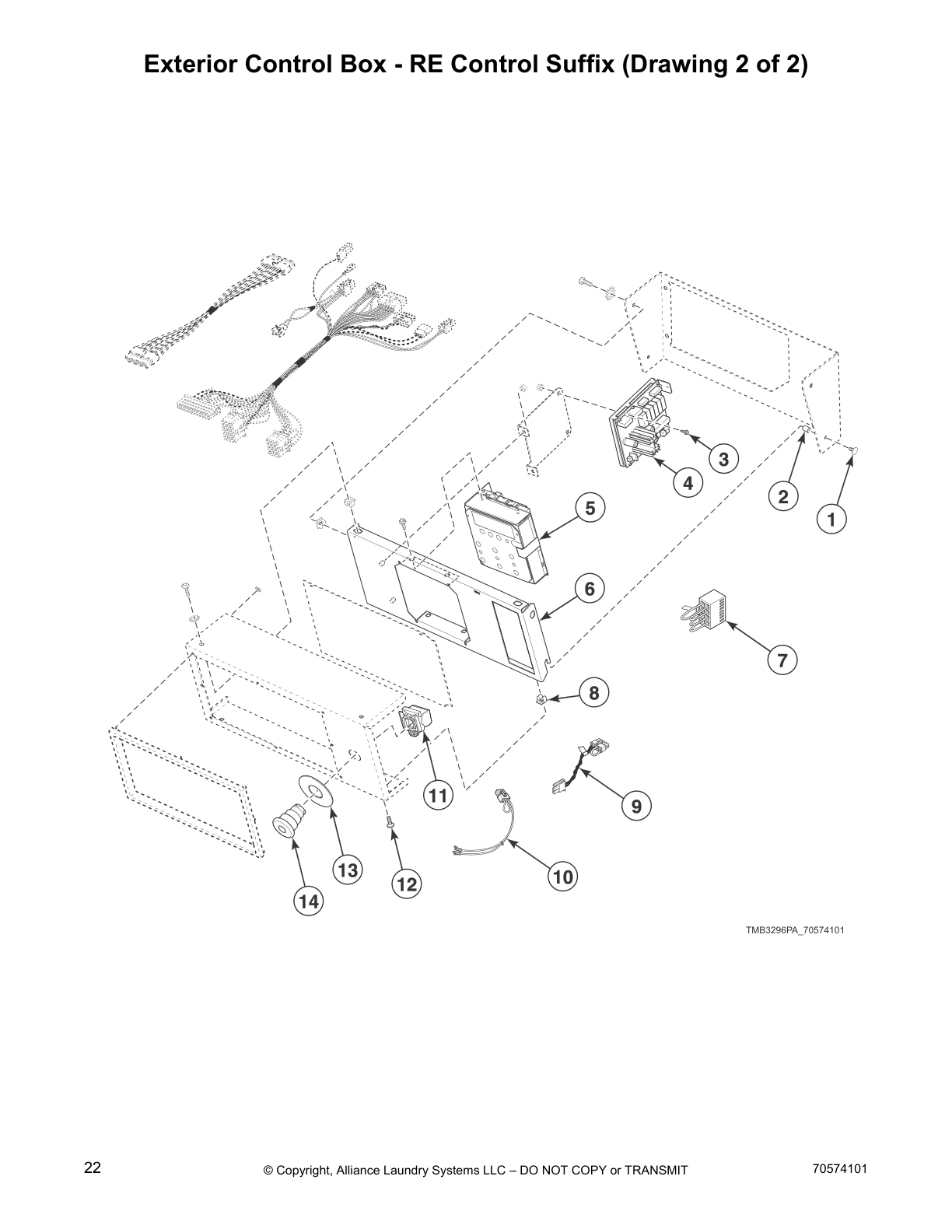

Exterior Control Box - RE Control Suffix (Drawing 2 of 2)

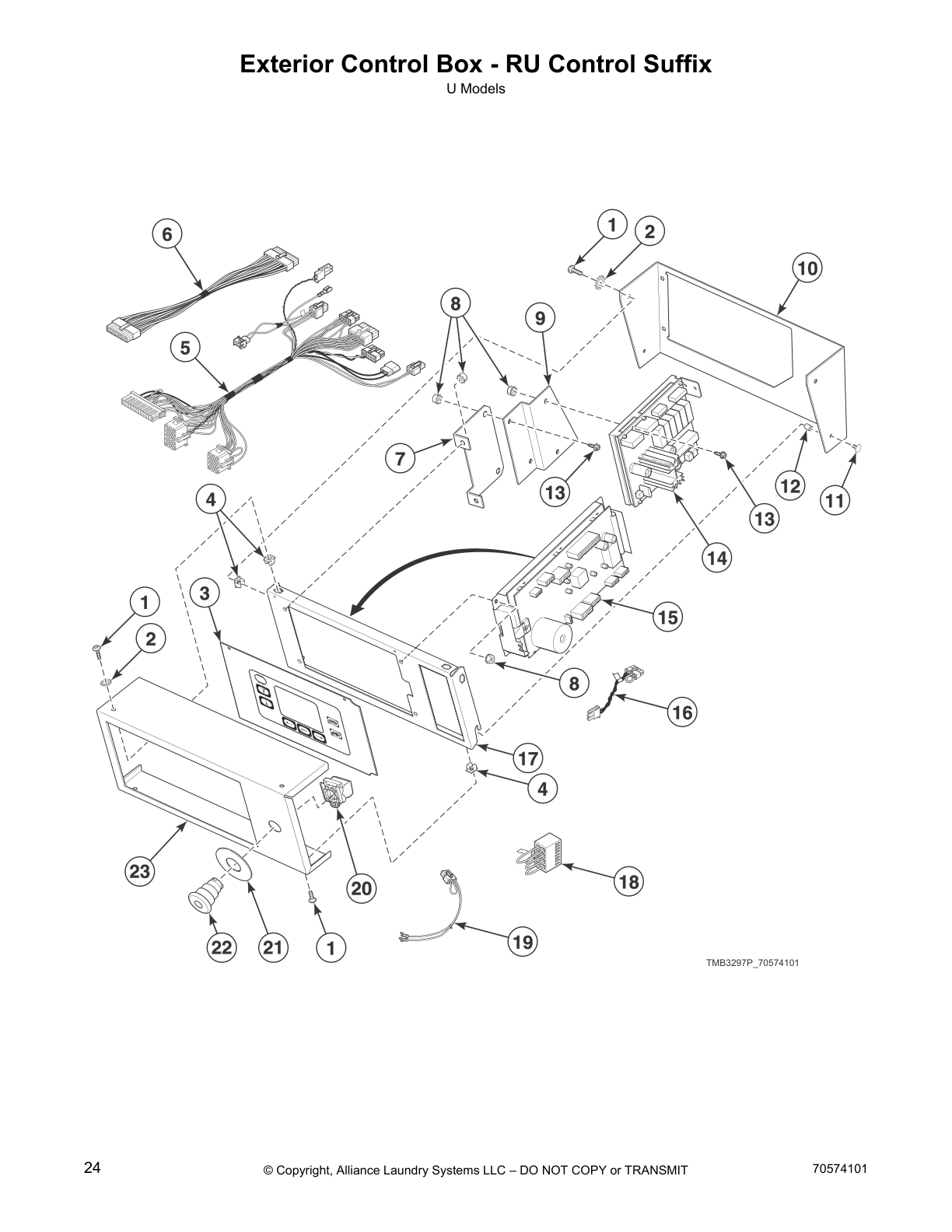

Exterior Control Box - RU Control Suffix

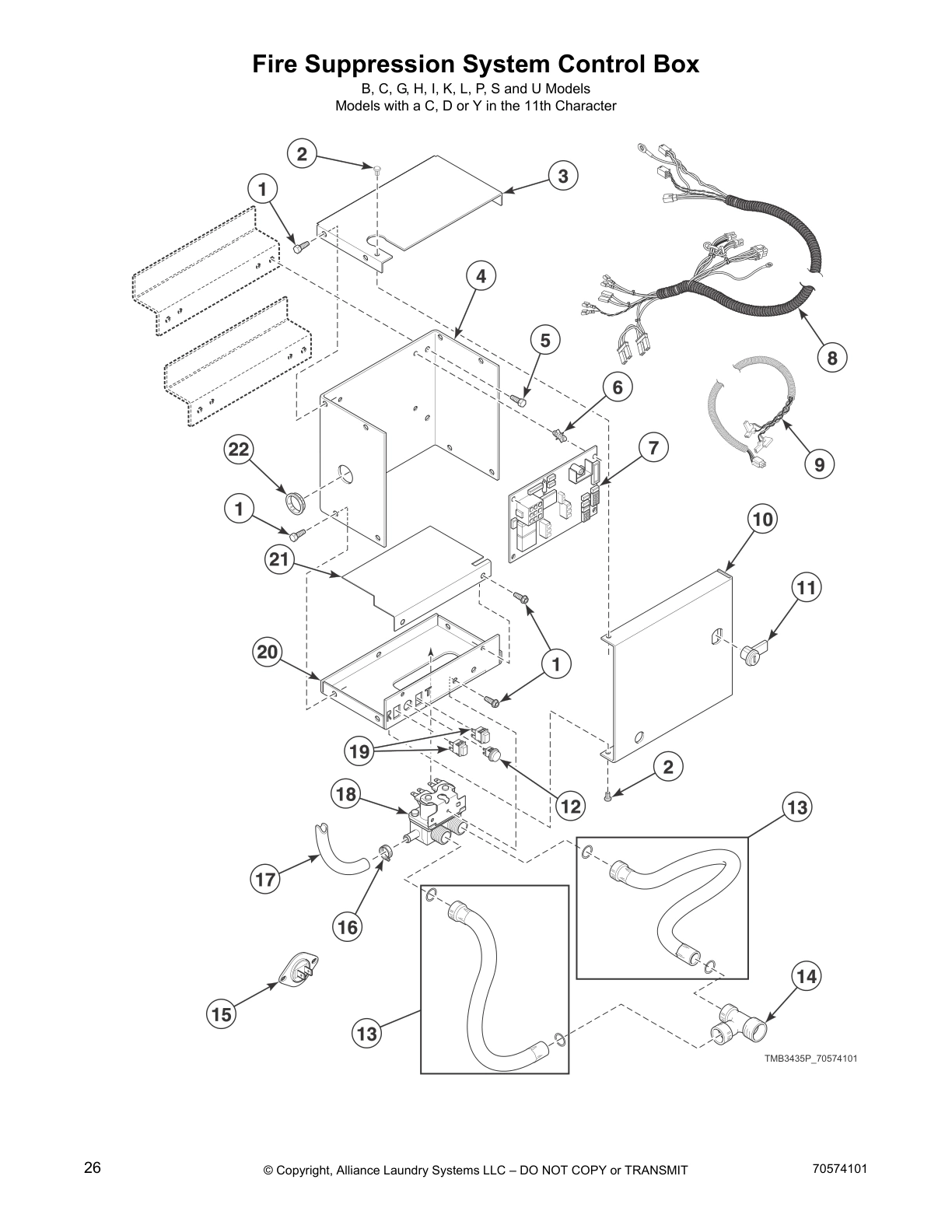

Fire Suppression System Control Box

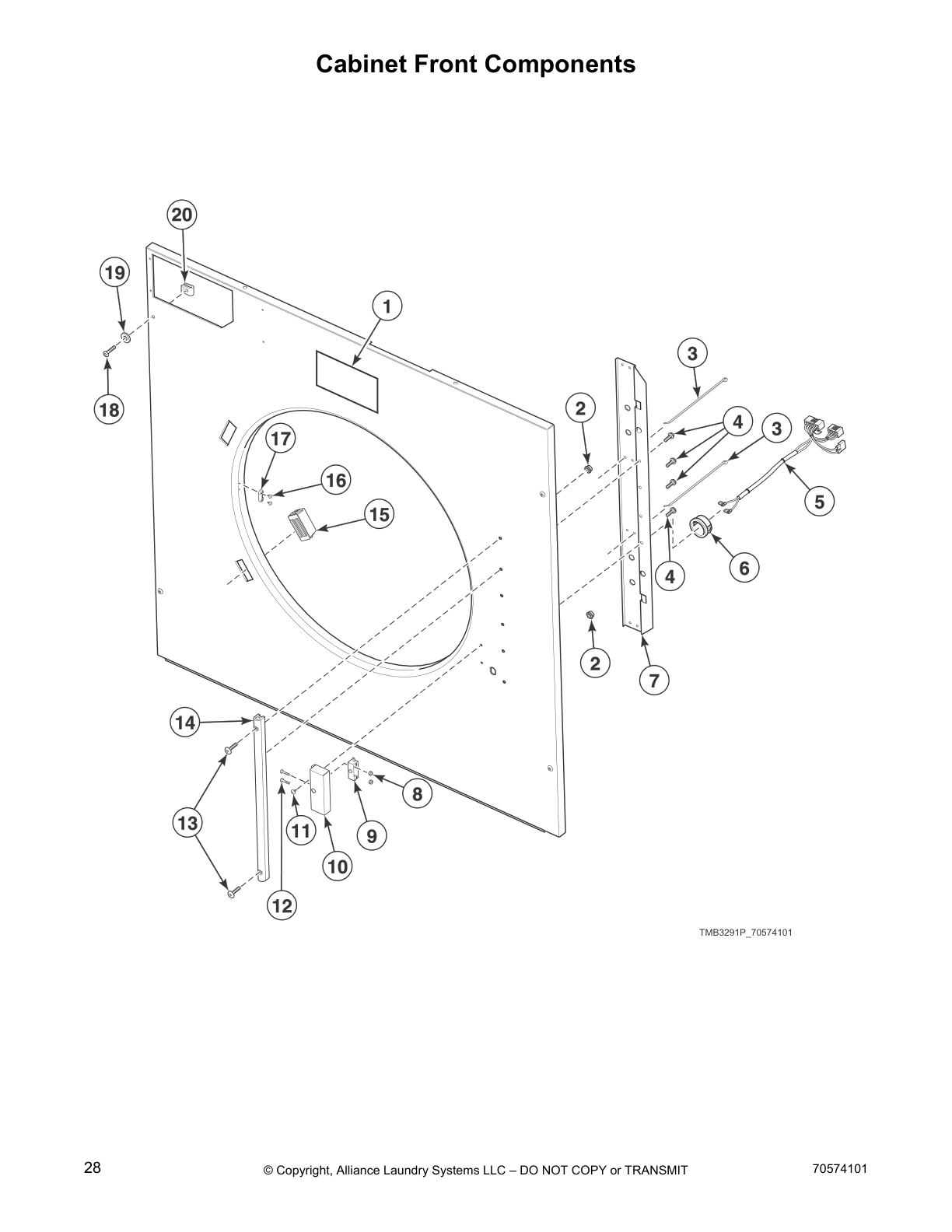

Cabinet Front Components

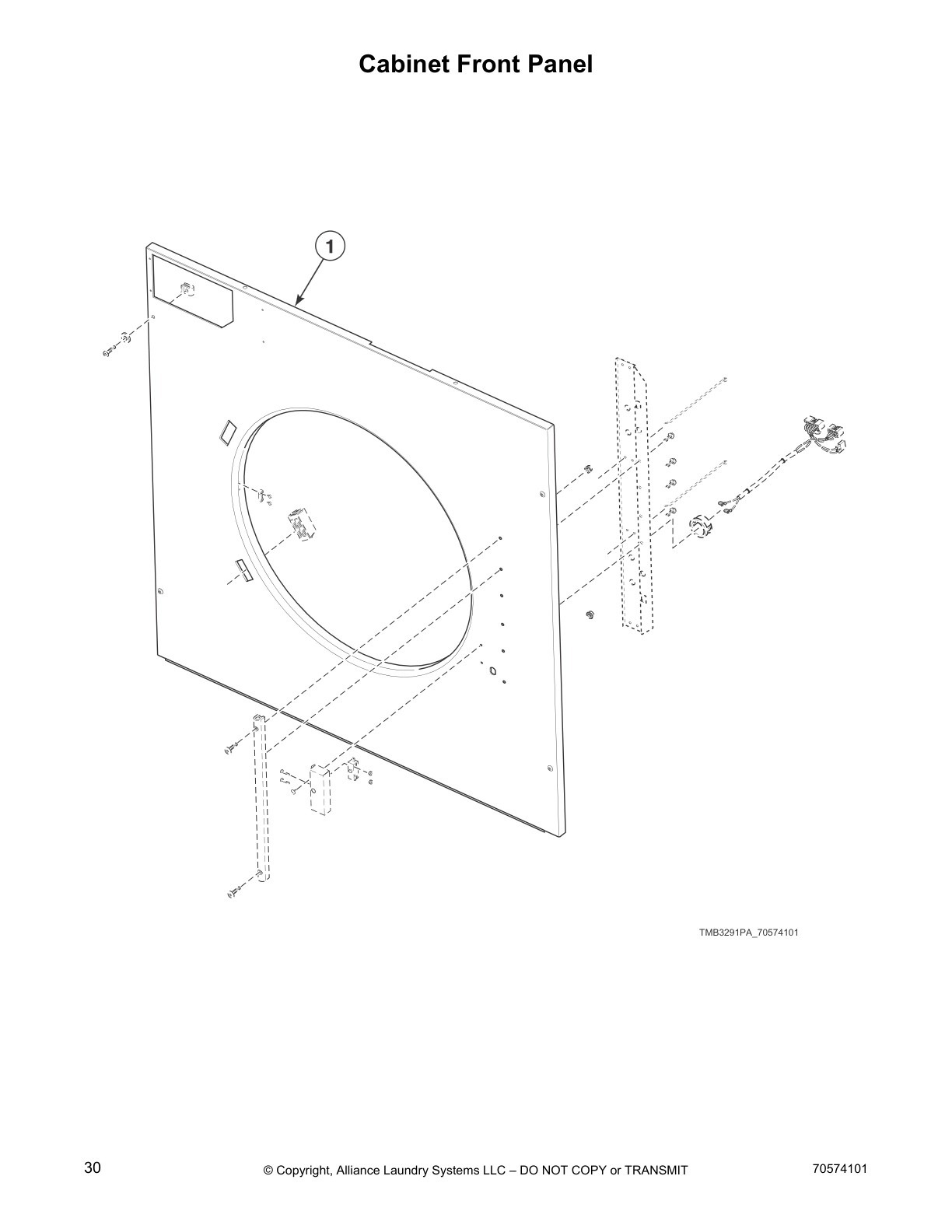

Cabinet Front Panel

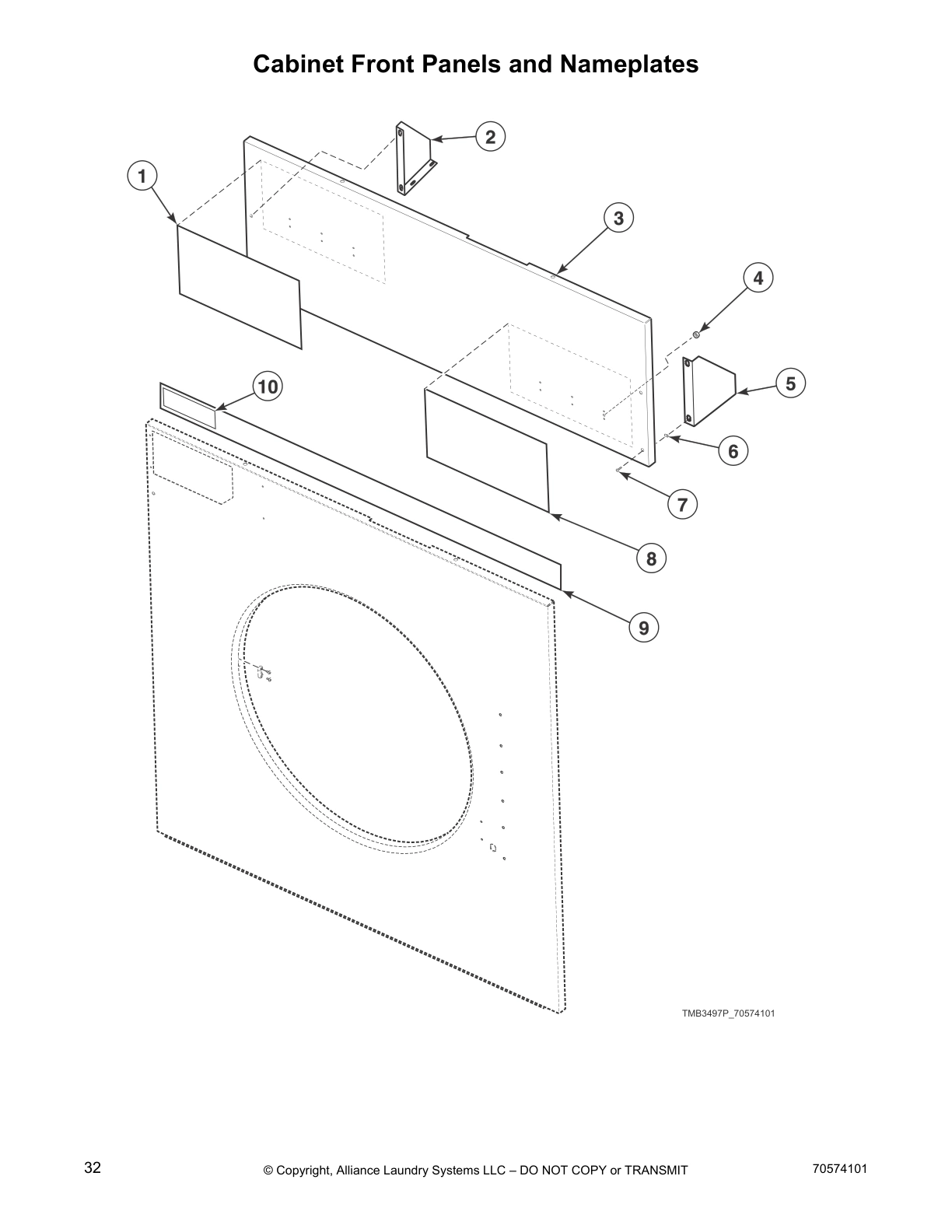

Cabinet Front Panels and Nameplates

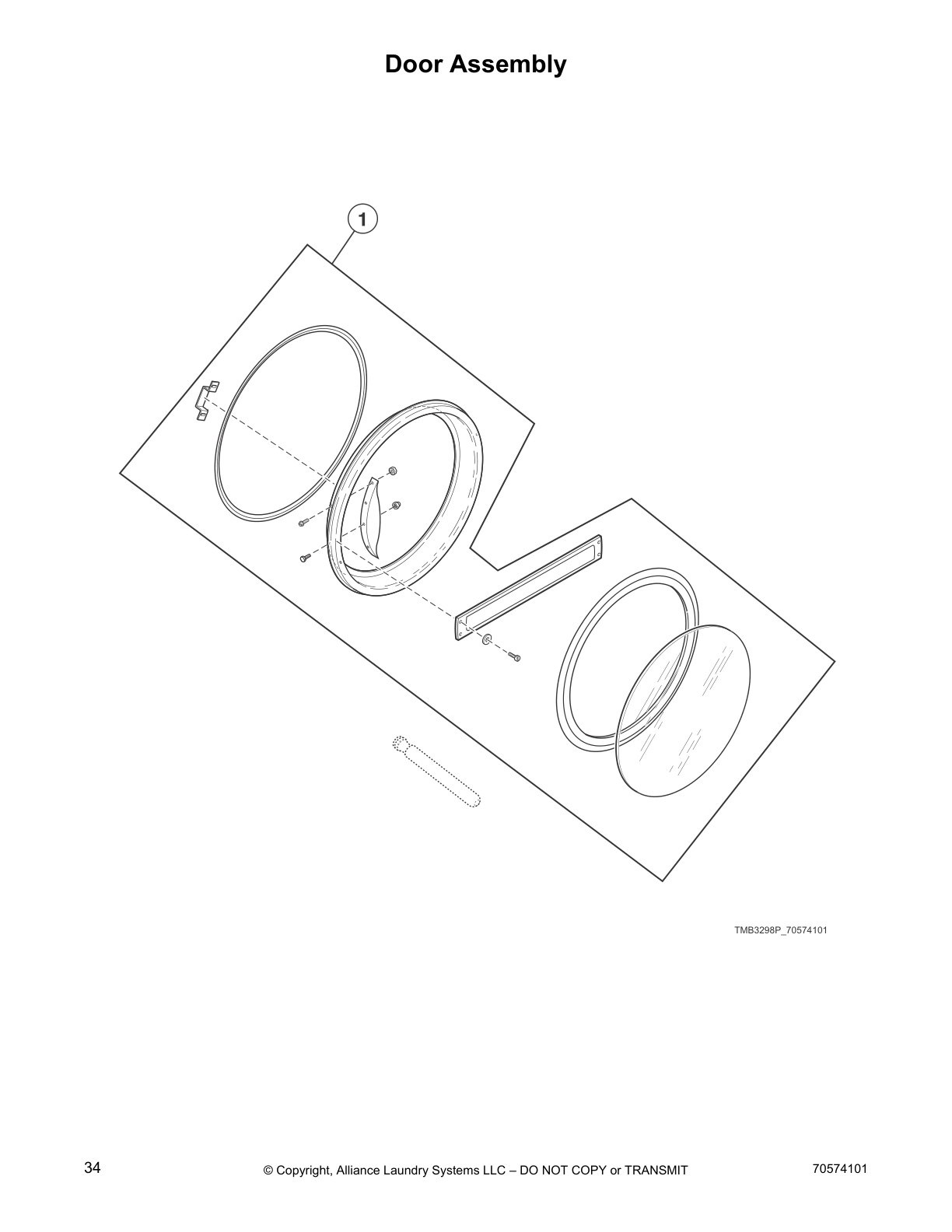

Door Assembly

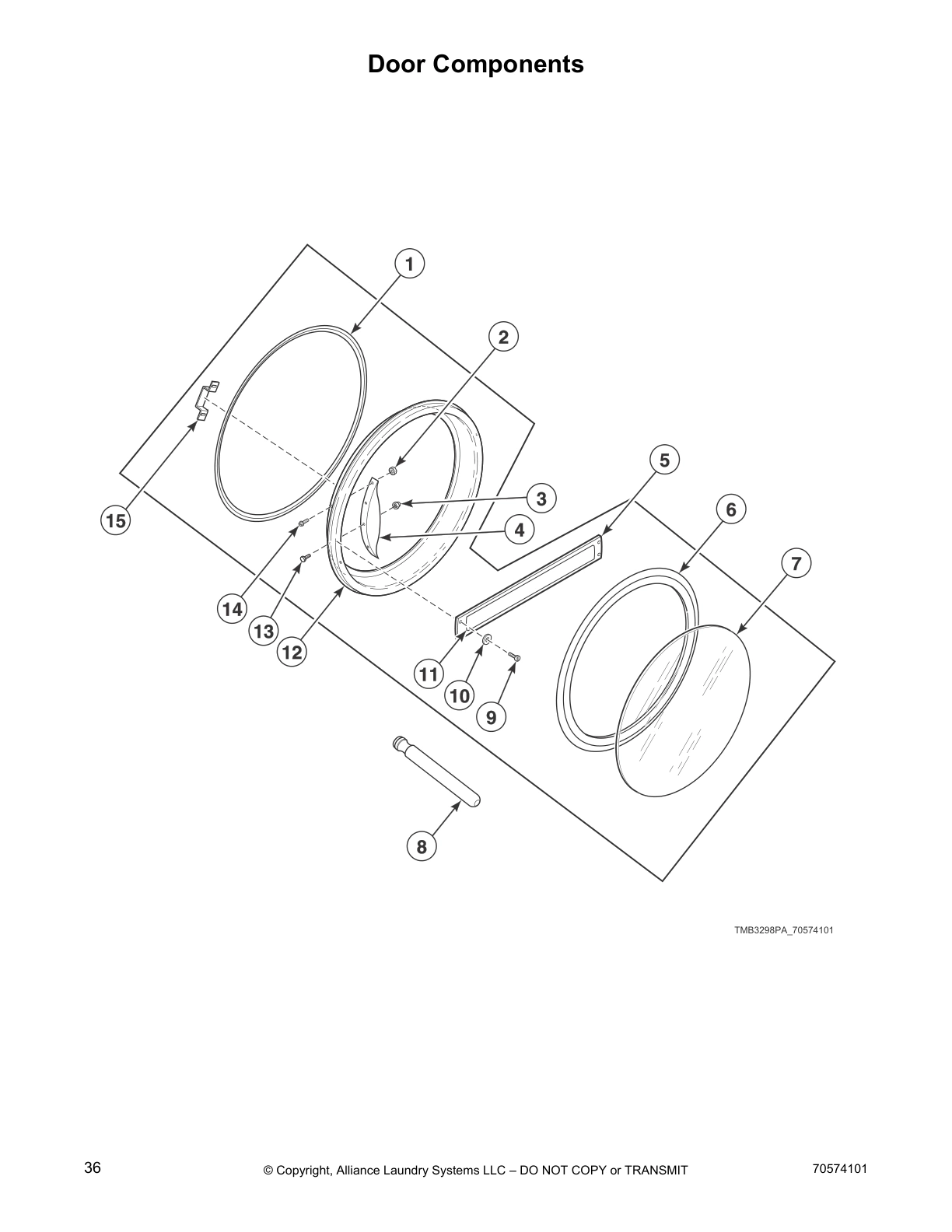

Door Components

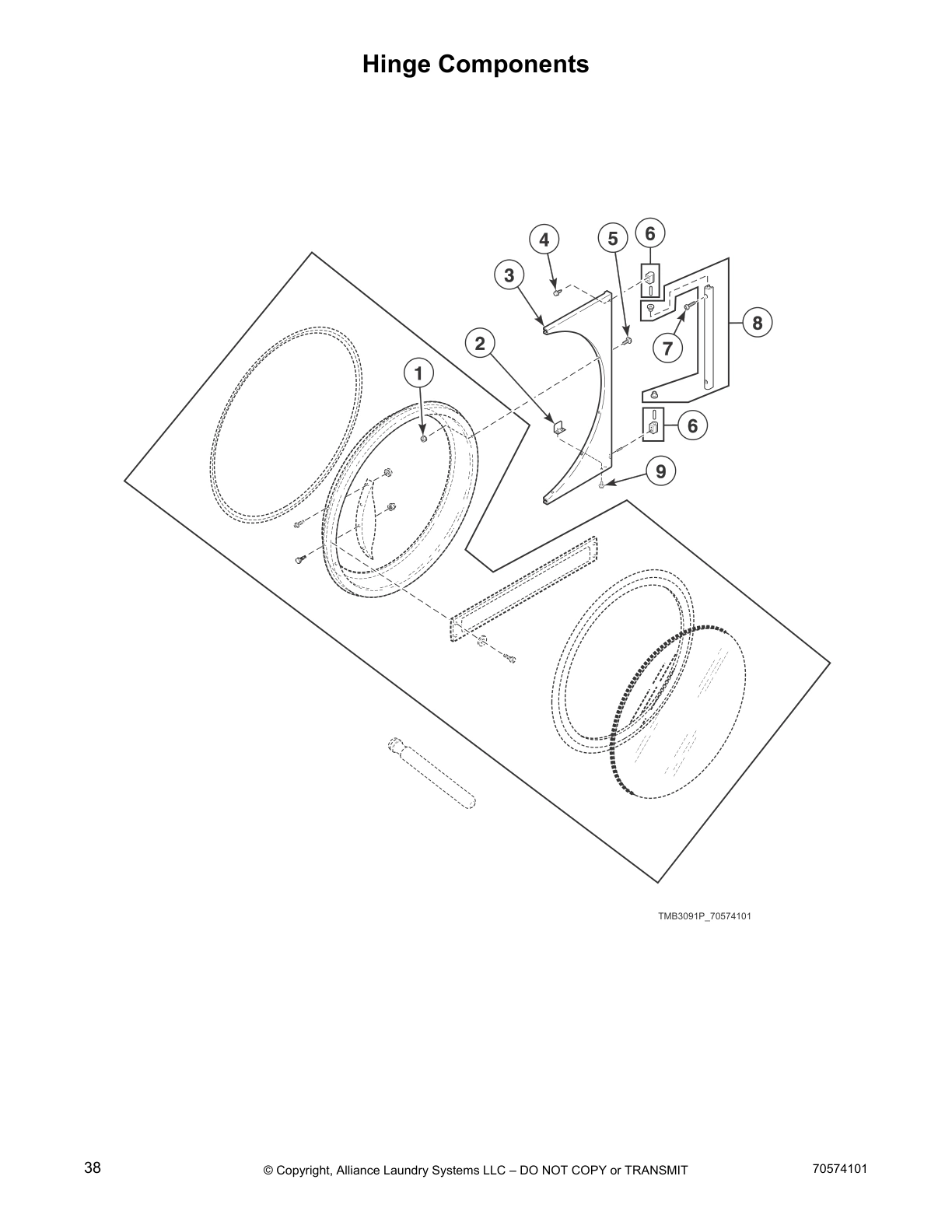

Hinge Components

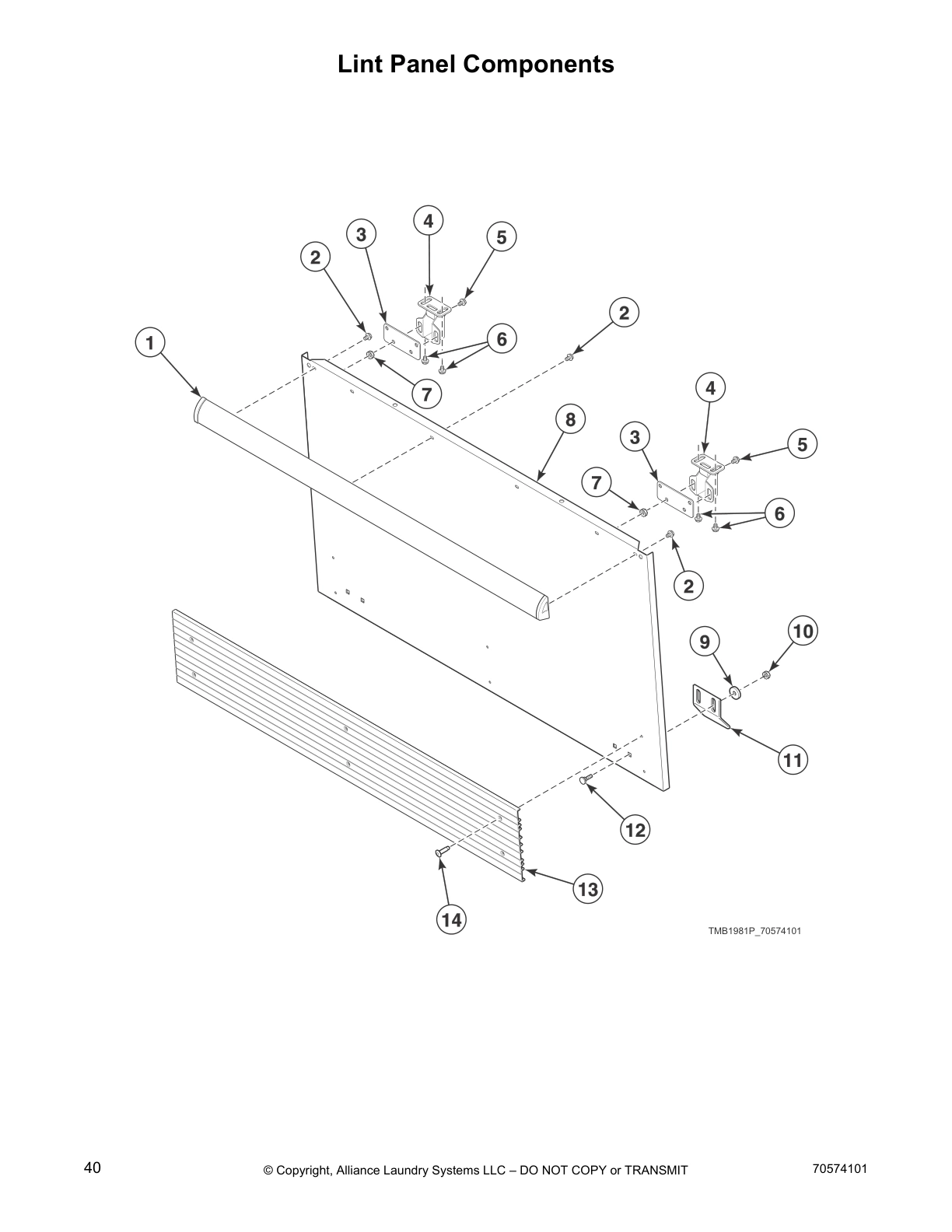

Lint Panel Components

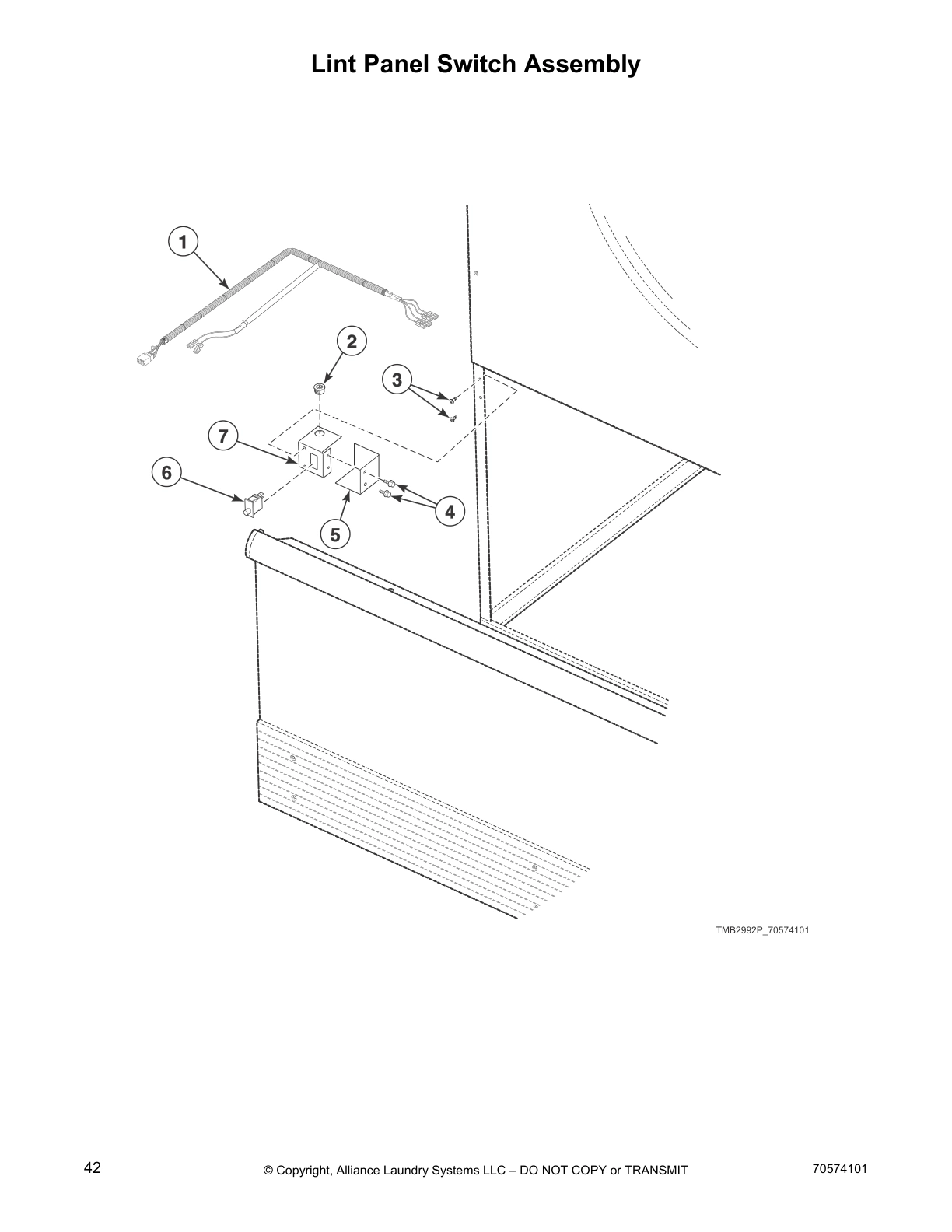

Lint Panel Switch Assembly

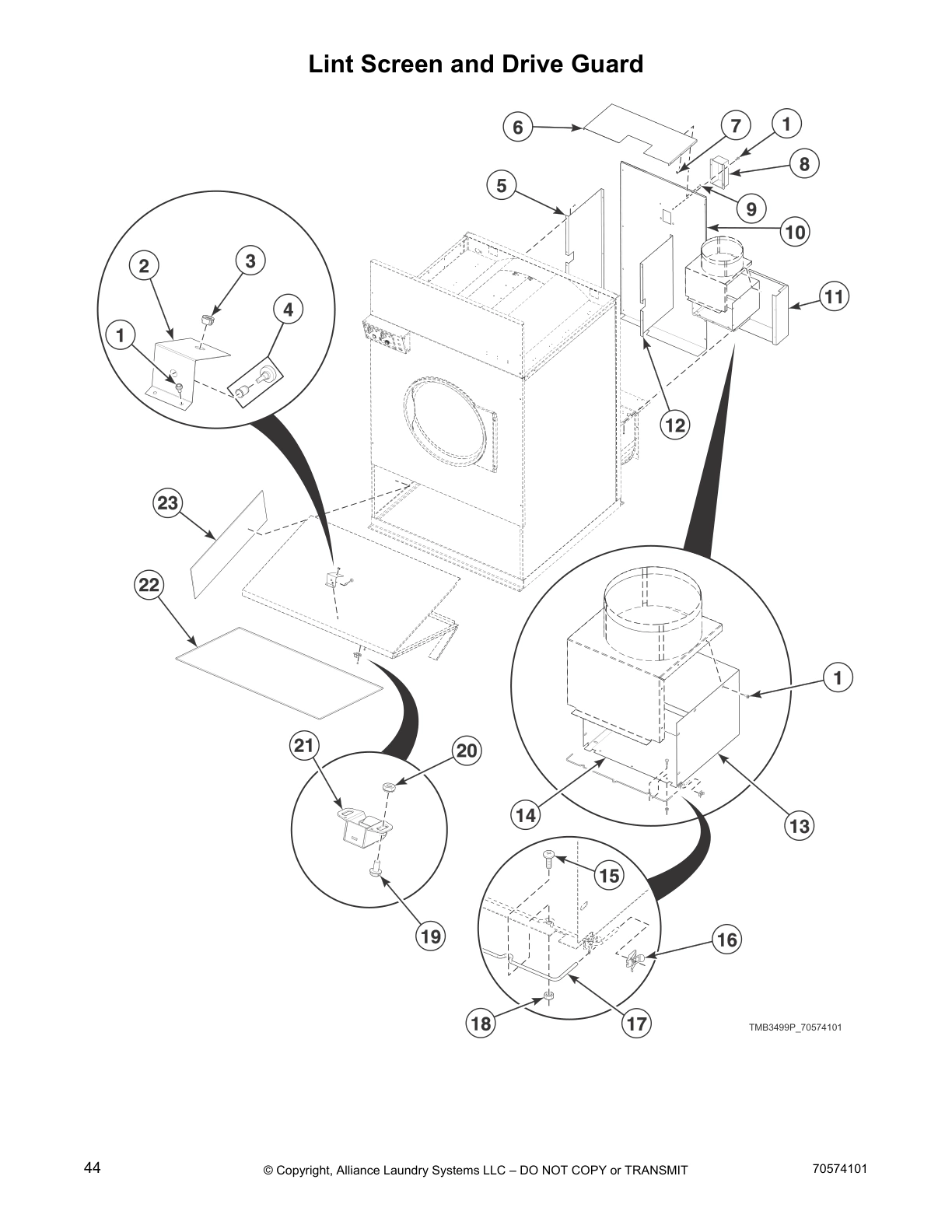

Lint Screen and Drive Guard
Cylinder and Trunnion Assembly

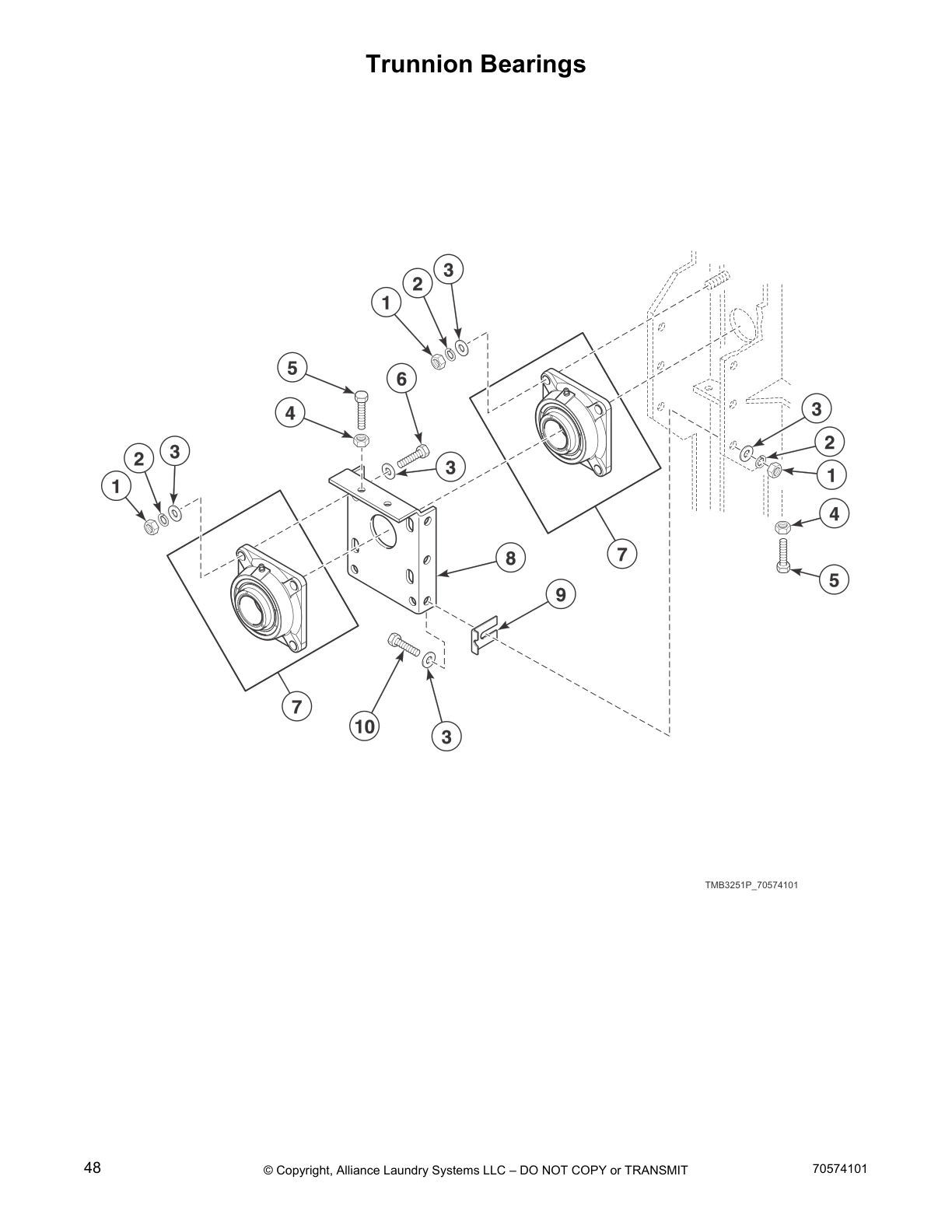

Trunnion Bearings

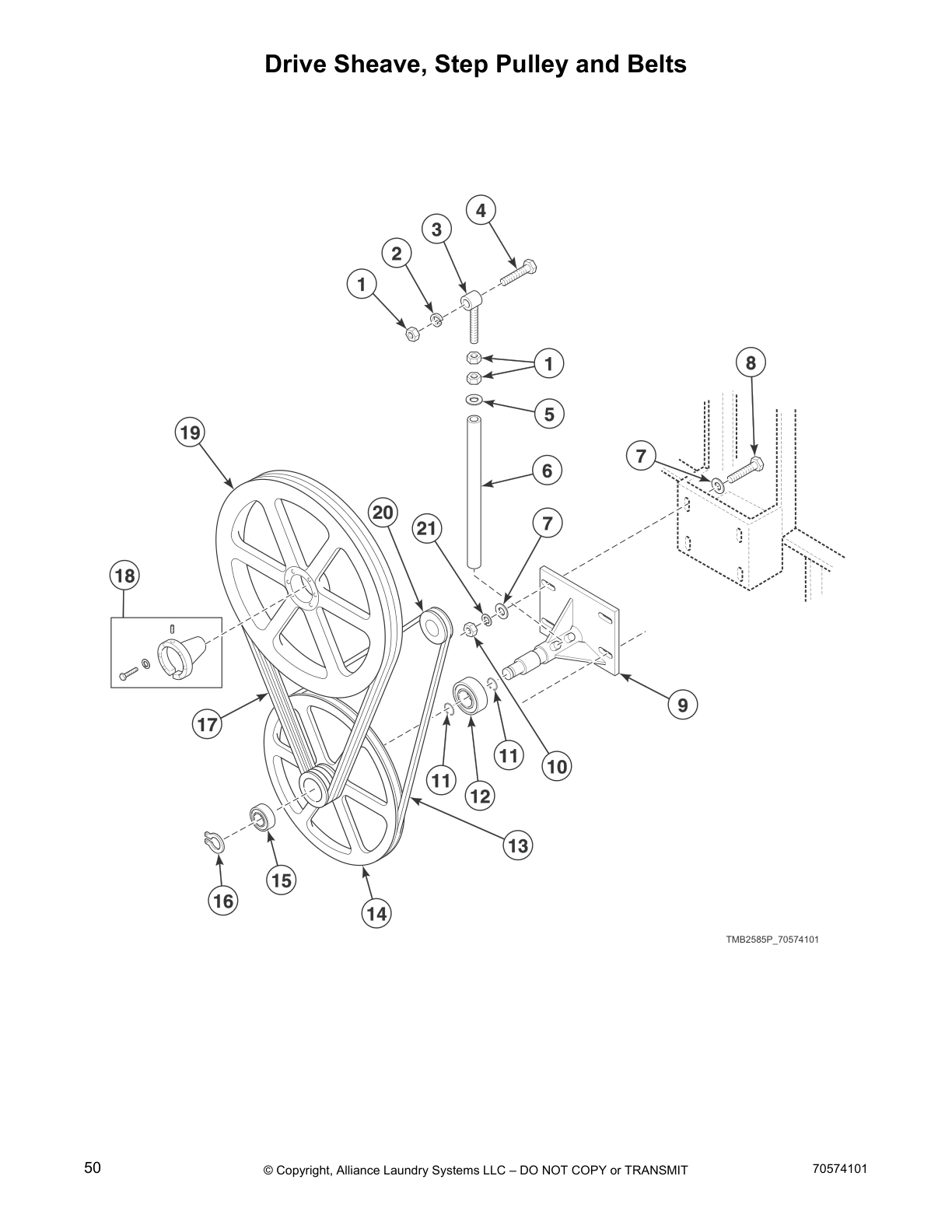

Drive Sheave, Step Pulley and Belts

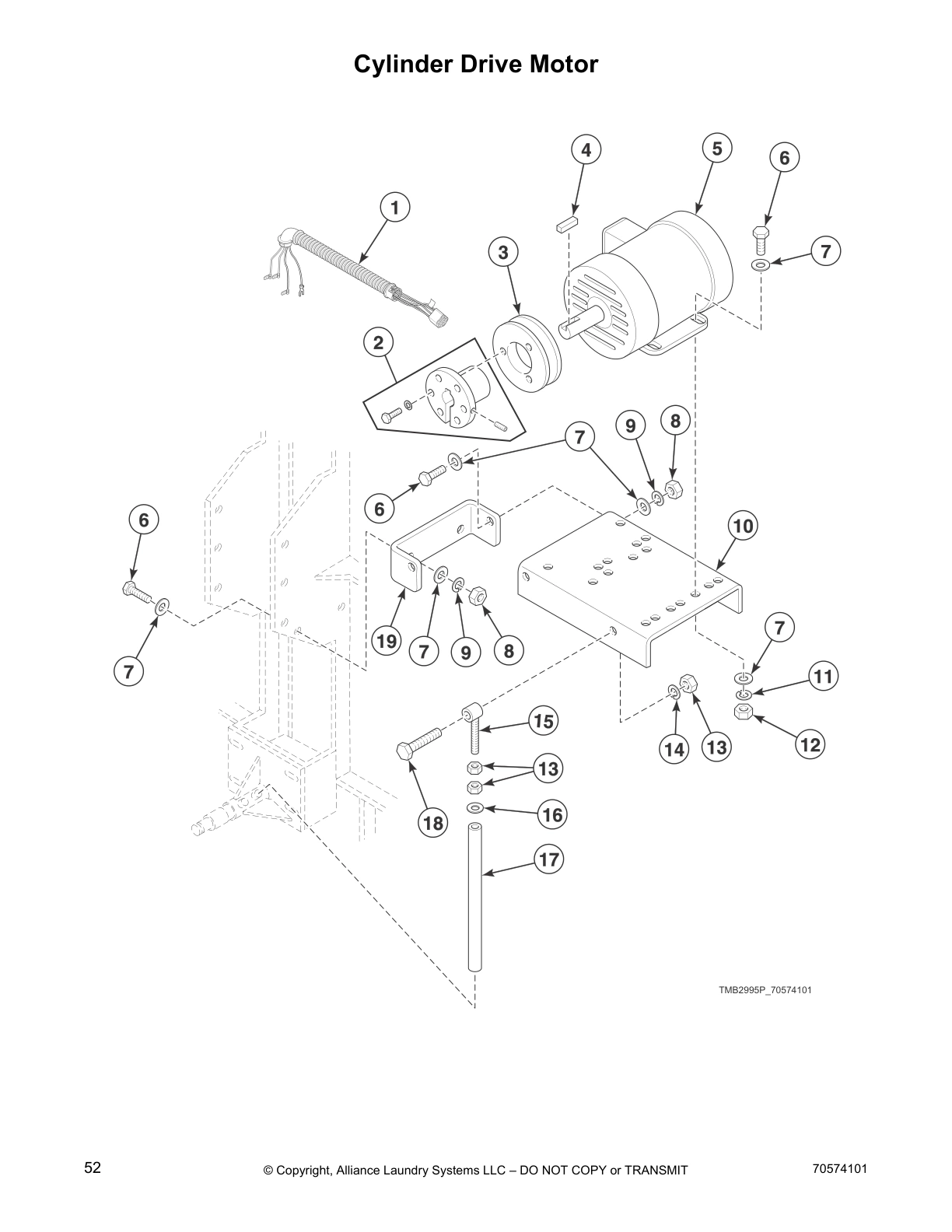

Cylinder Drive Motor

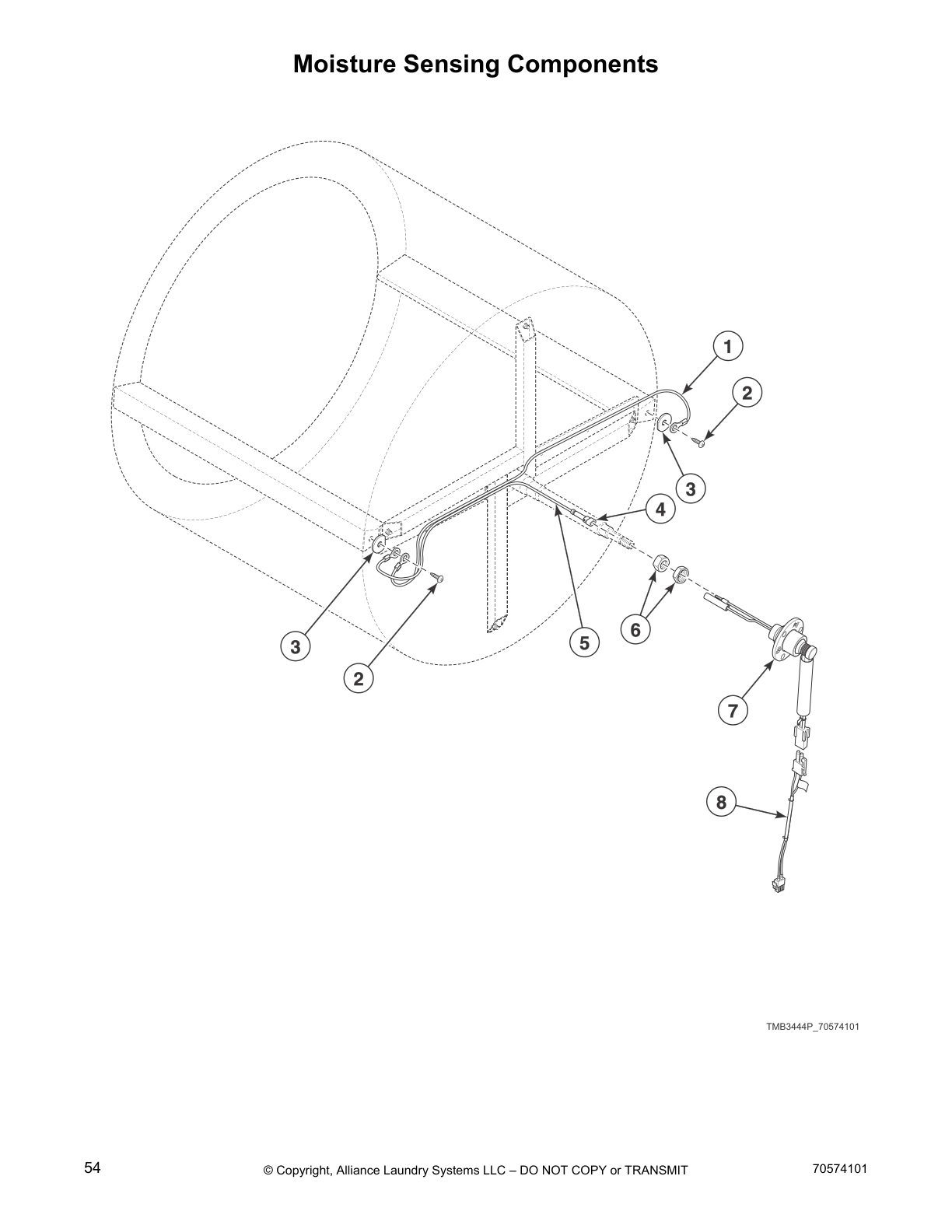

Moisture Sensing Components

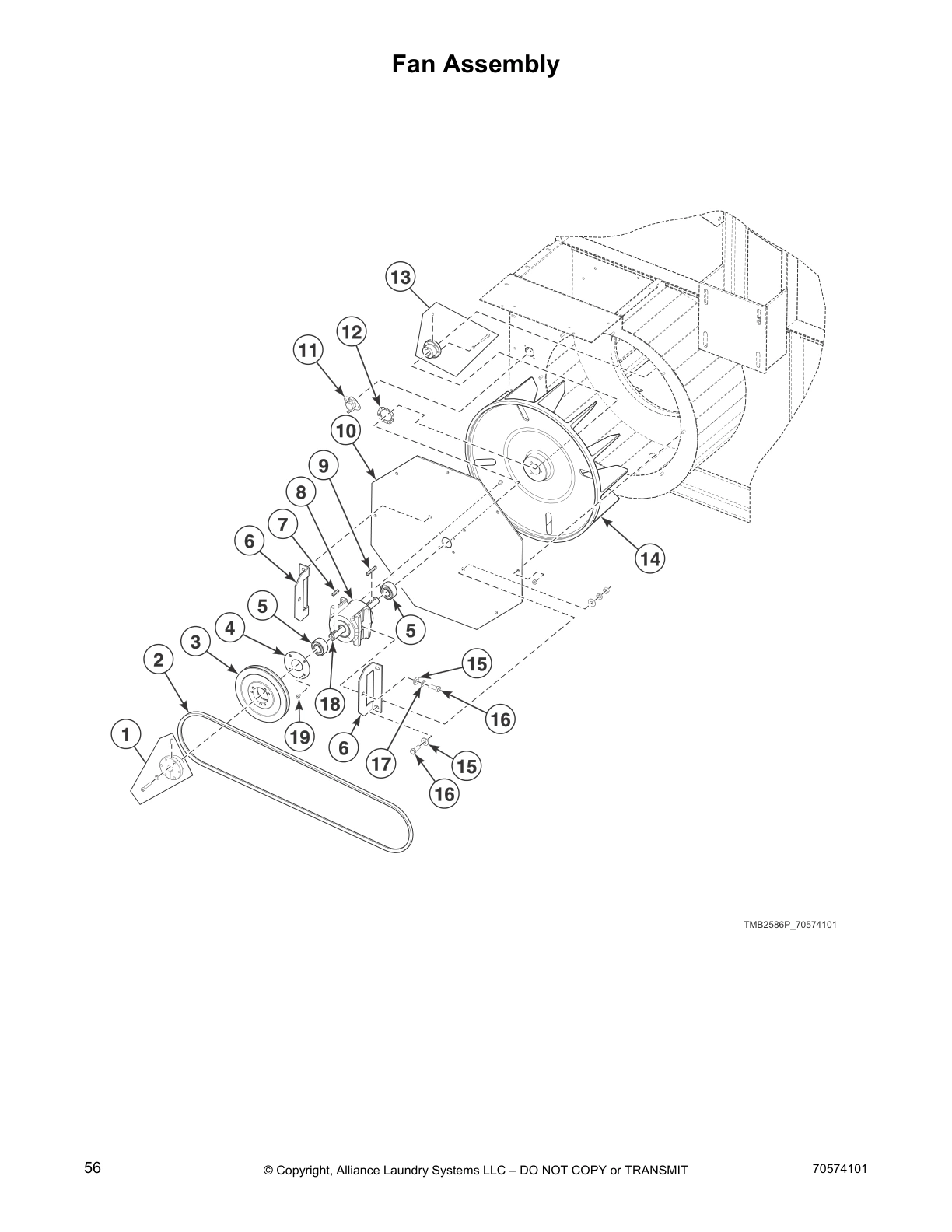

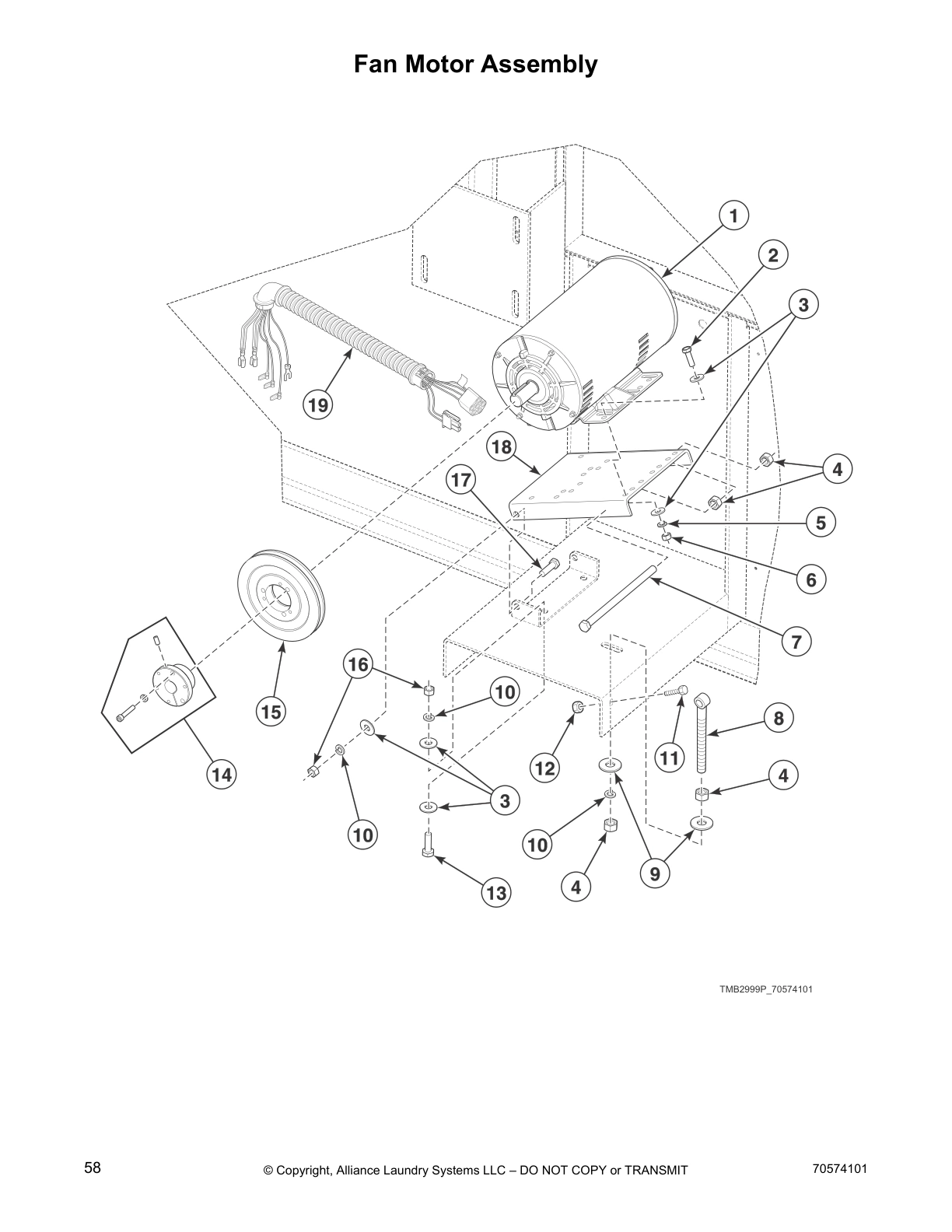

Fan Assembly
Fan Motor Assembly

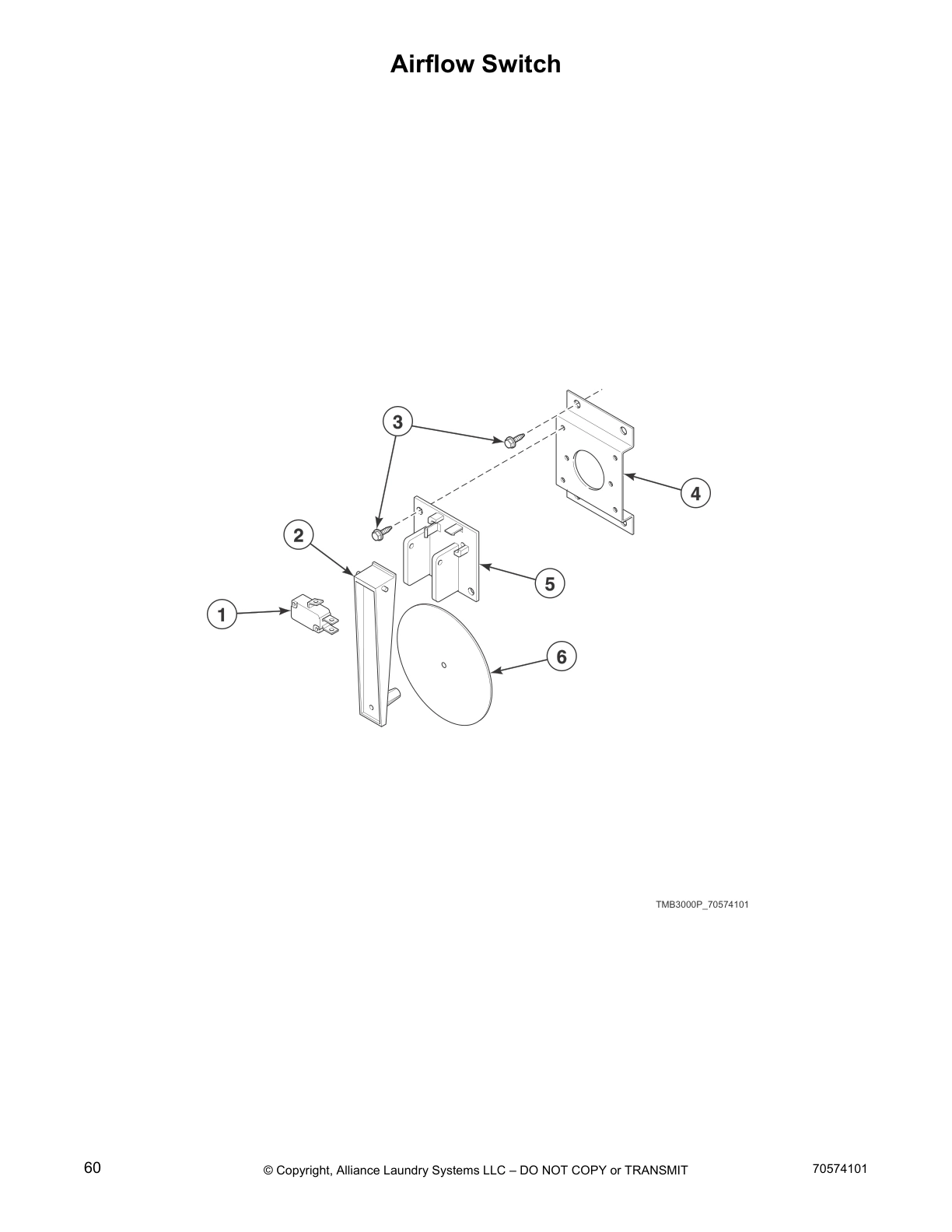

Airflow Switch

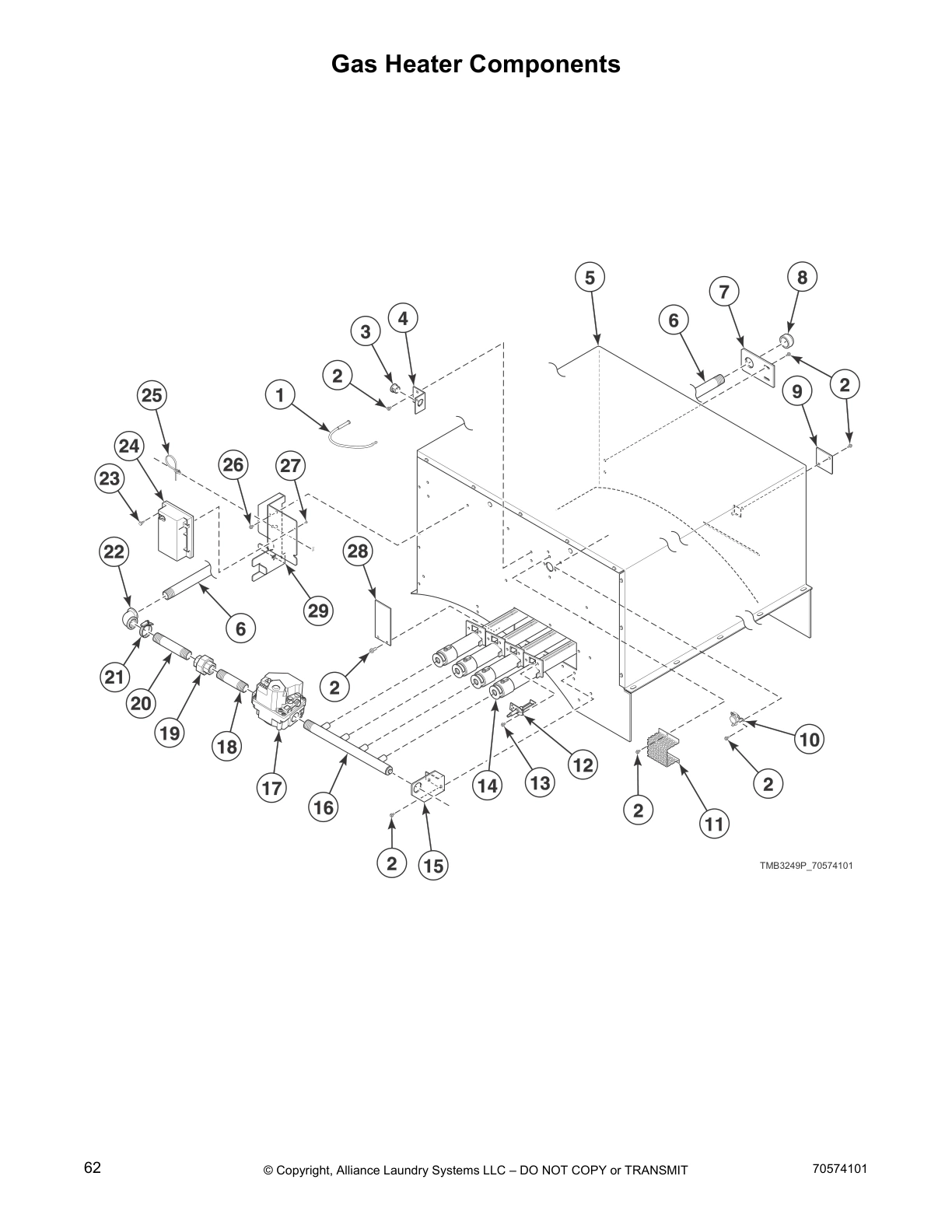

Gas Heater Components

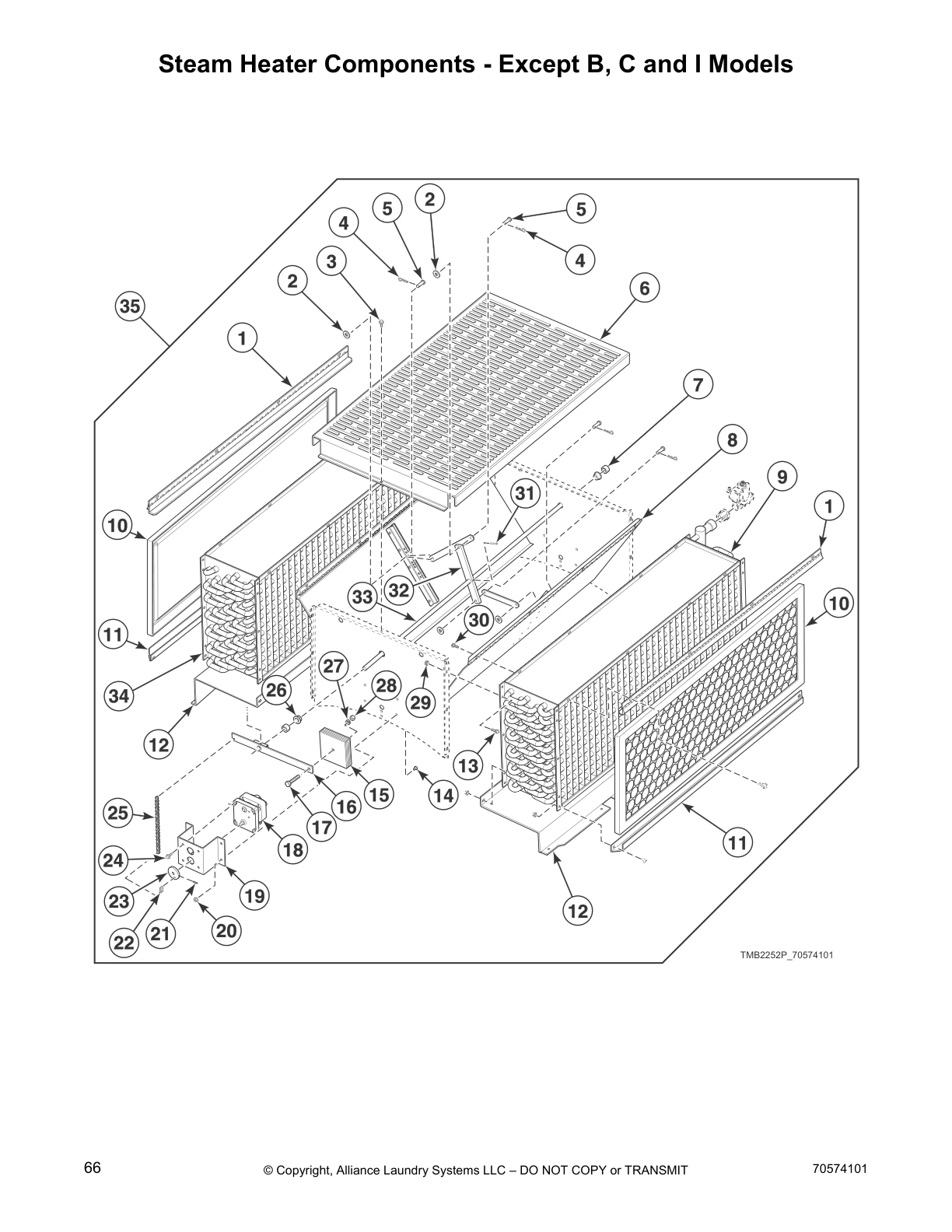

Steam Heater Components - Except B, C and I Models

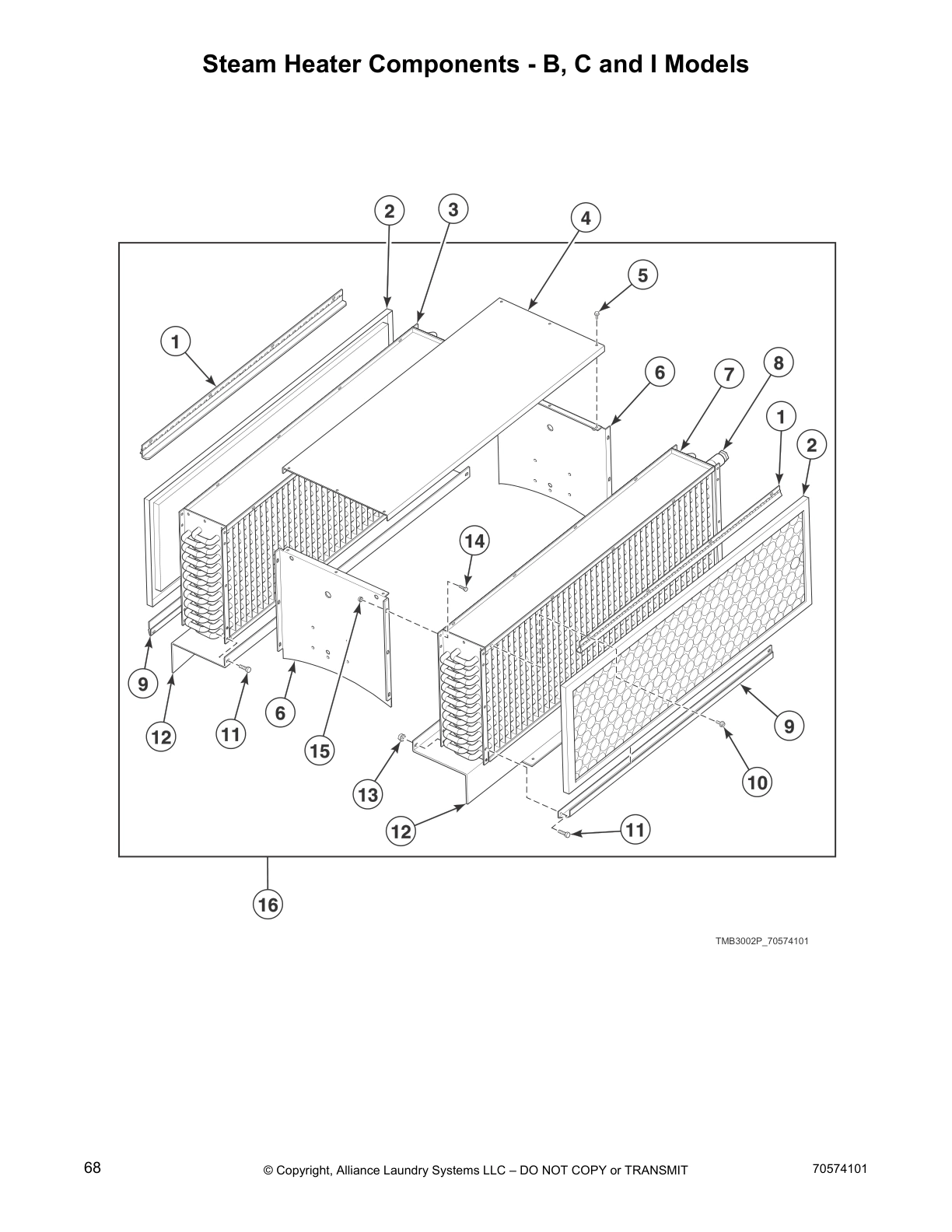

Steam Heater Components - B, C and I Models

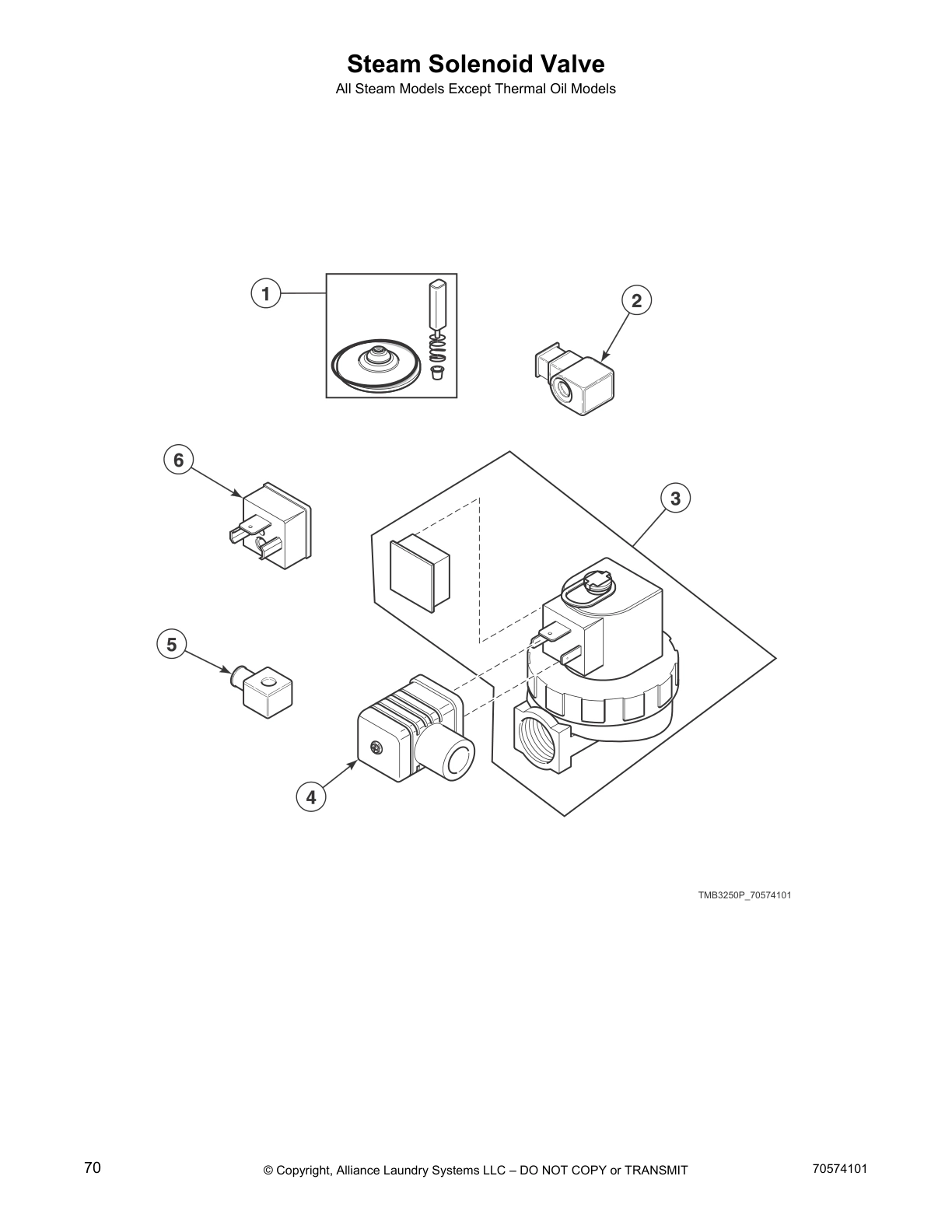

Steam Solenoid Valve

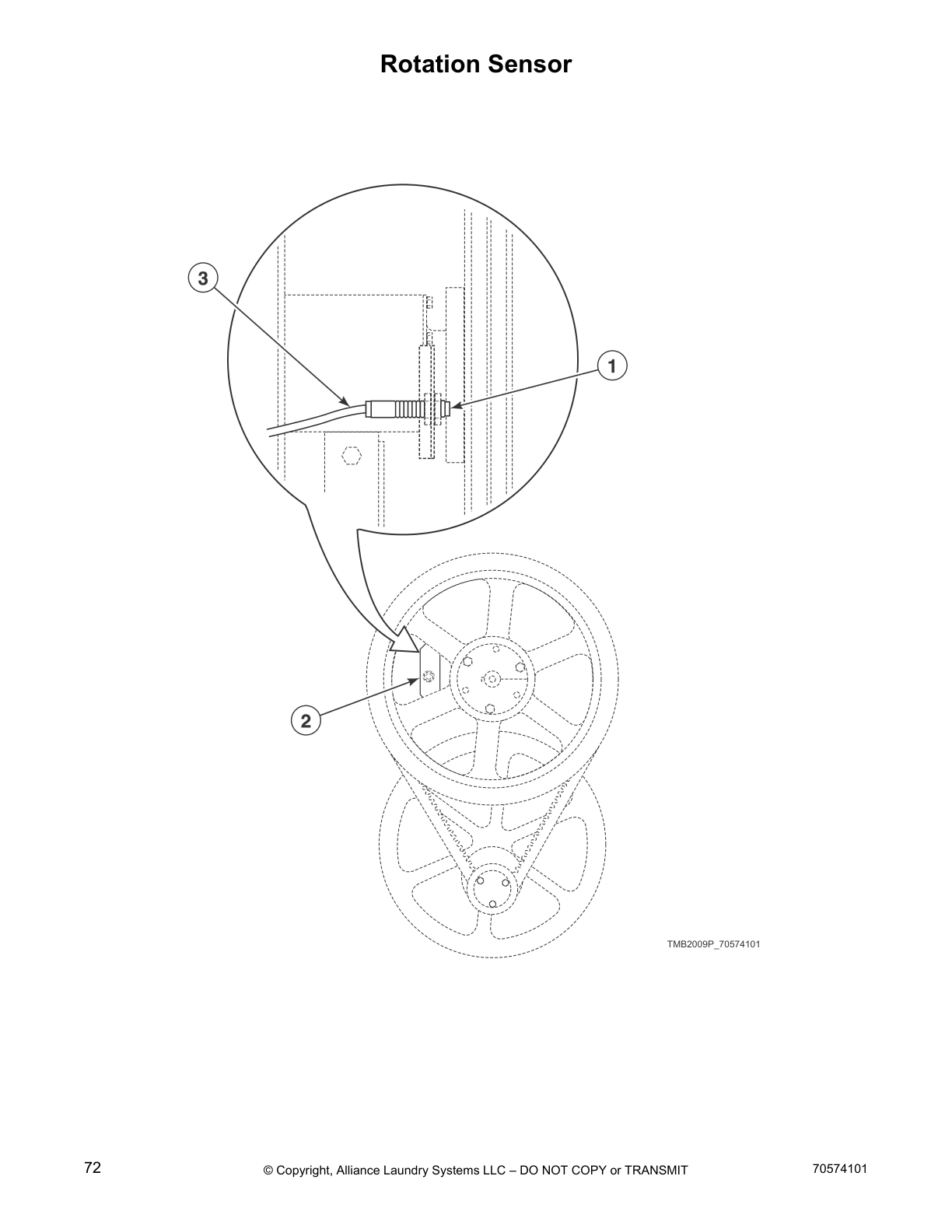

Rotation Sensor

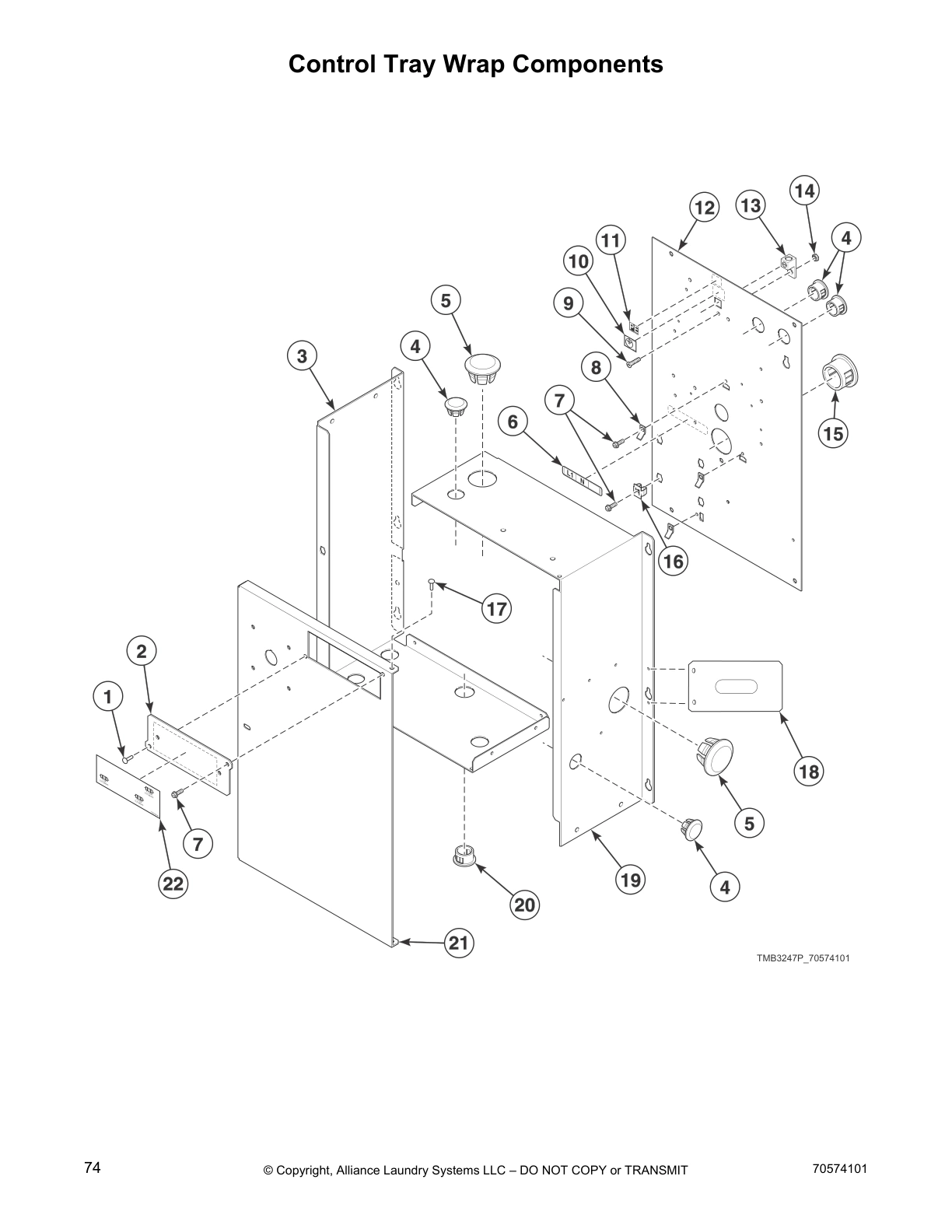

Control Tray Wrap Components

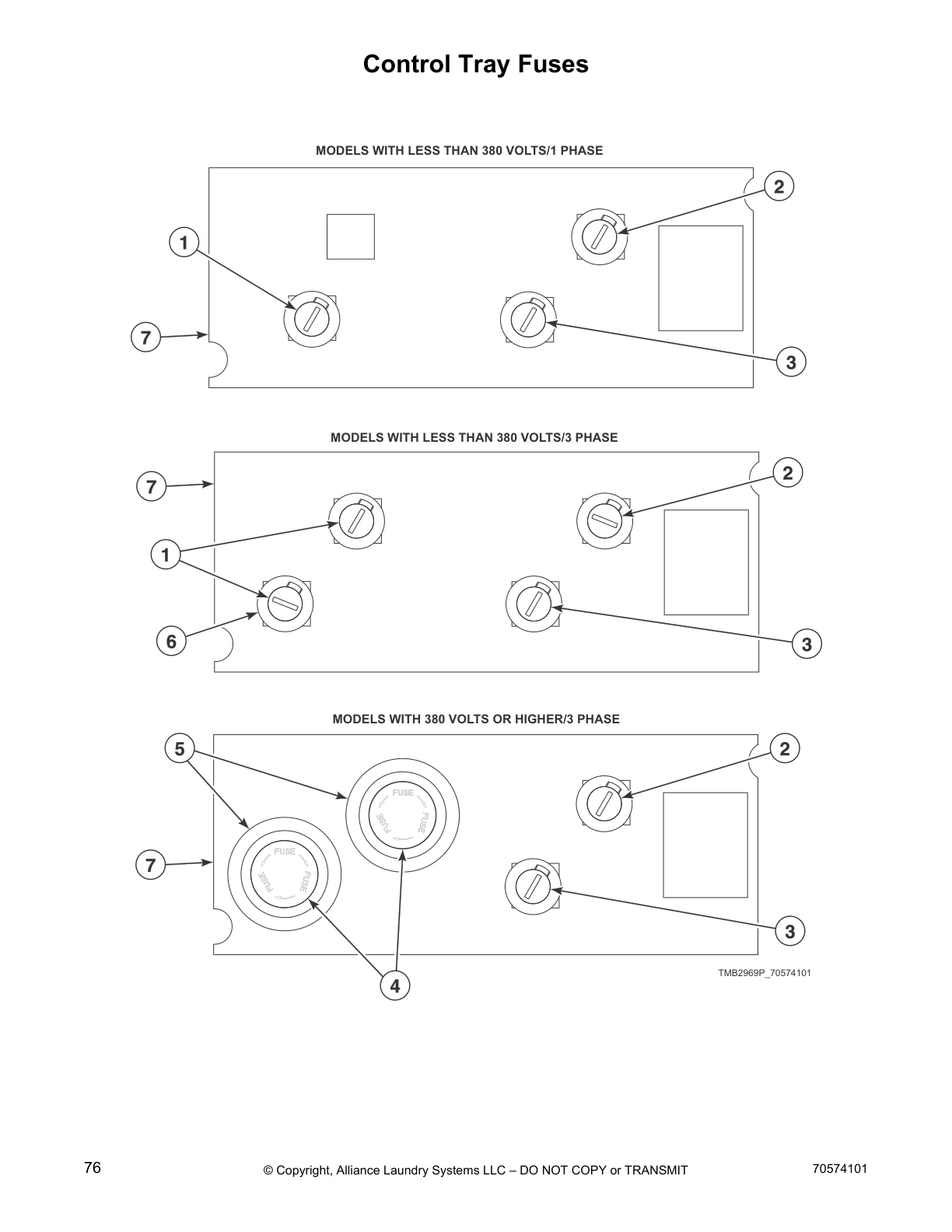

Control Tray Fuses

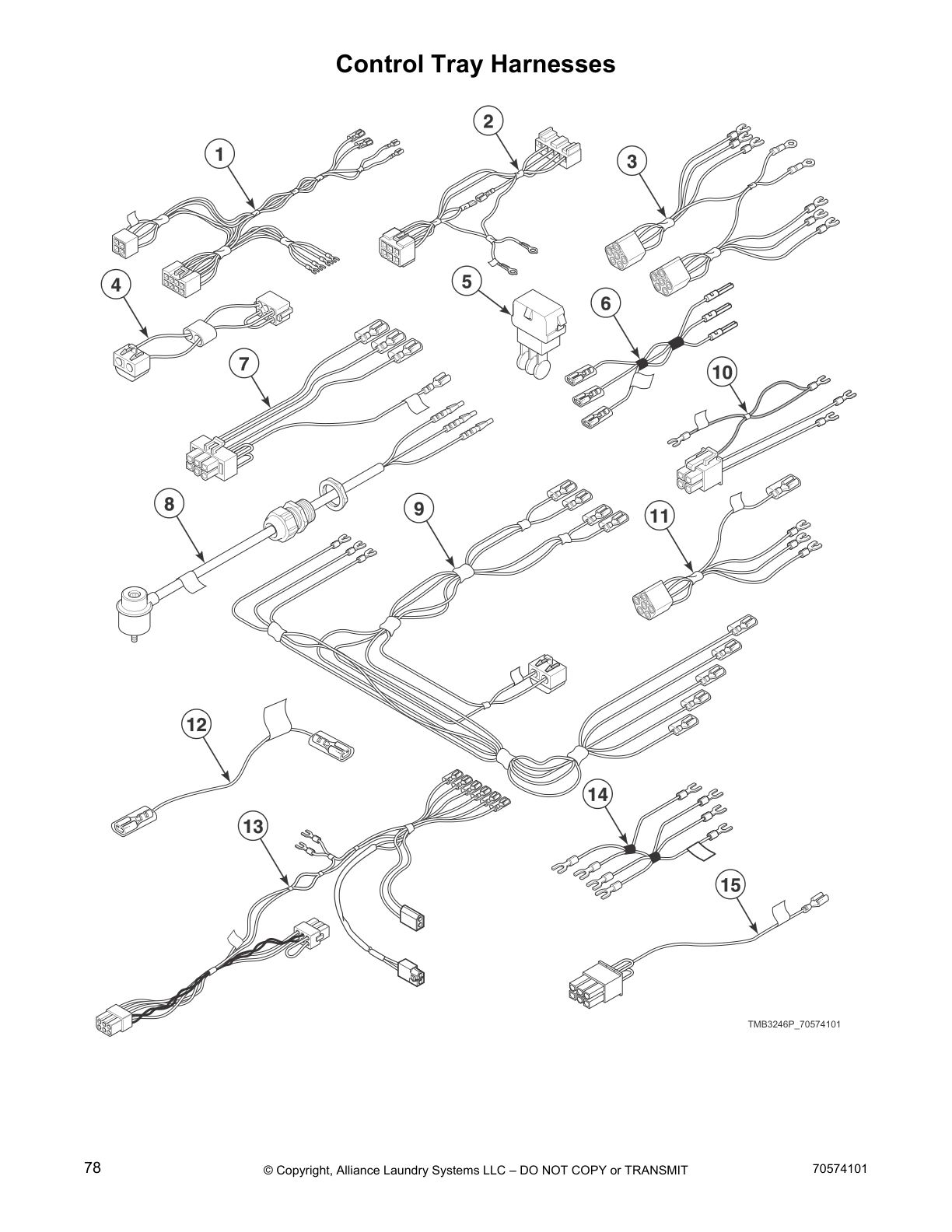

Control Tray Harnesses

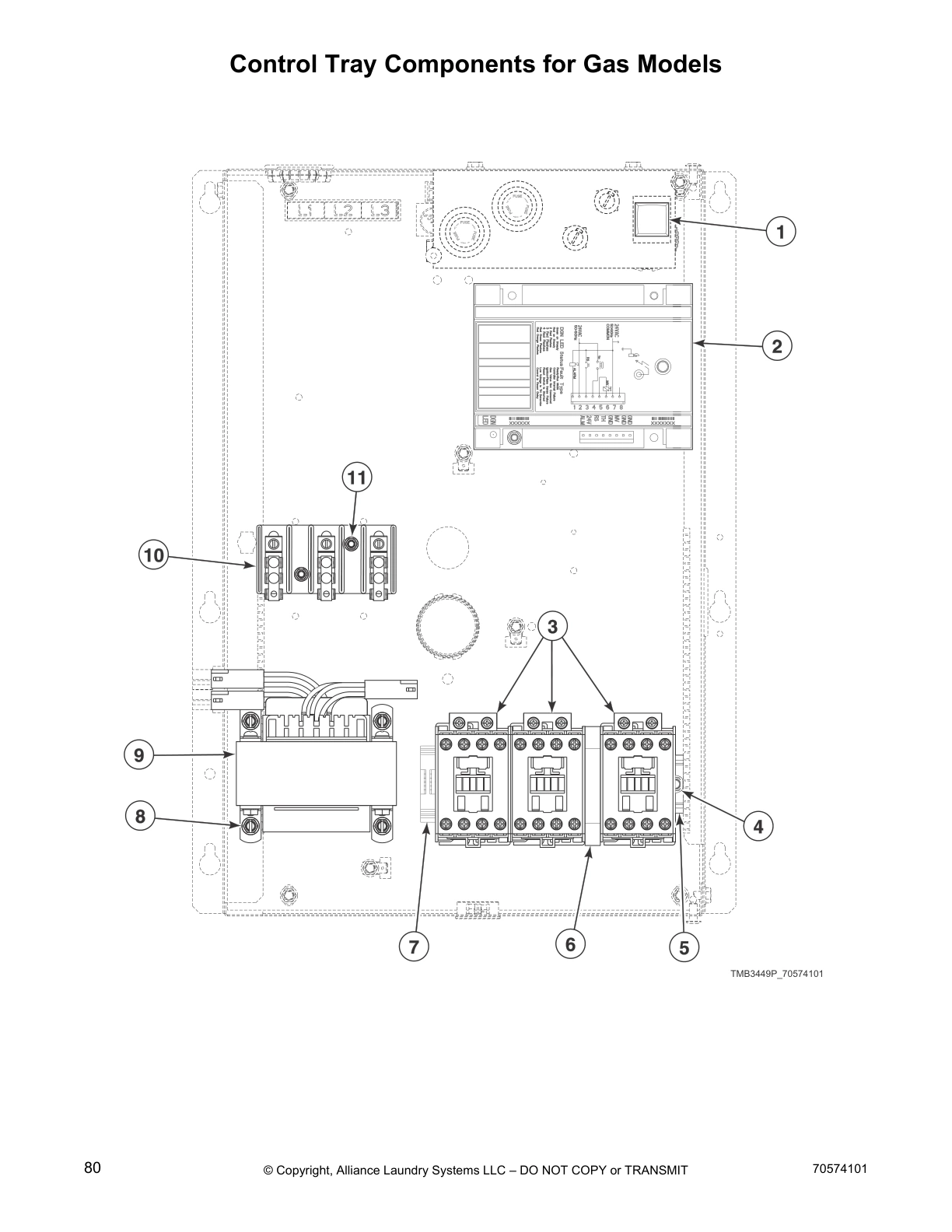

Control Tray Components for Gas Models

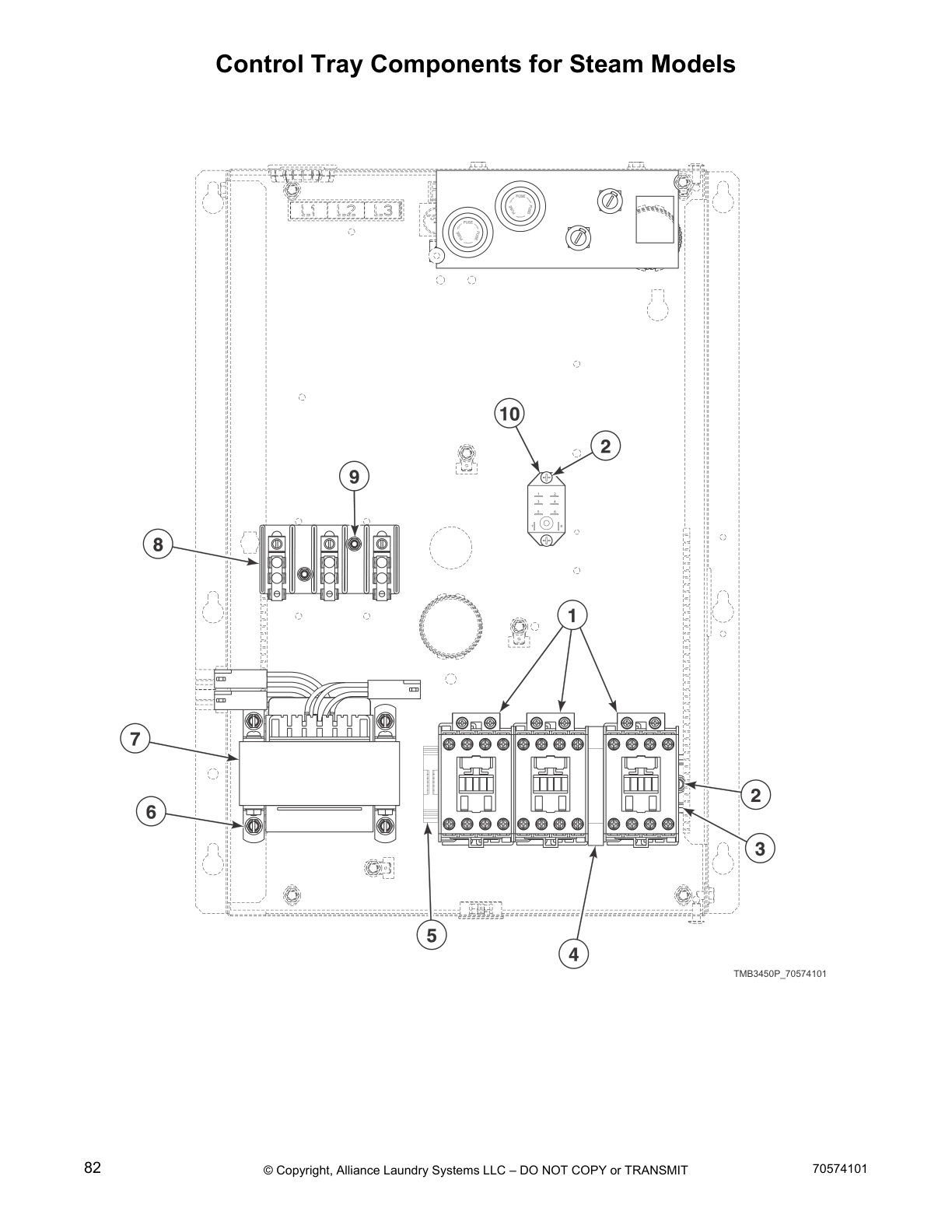

Control Tray Components for Steam Models
Common parts from model Ipso BH200S Dryer
SPQ 430642 SPQ 430642 Contact Us For Availability
SPQ 44186101 SPQ 44186101 Contact Us For Availability
SPQ 44215501 SPQ 44215501 Contact Us For Availability
SPQ 44161501 SPQ 44161501 Contact Us For Availability
Solenoid Valve DIN Connector SPQ 70370301P Contact Us For Availability
Network Capacitor Harness Assembly SPQ 44139901P Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ 44143401P SPQ 44143401P Contact Us For Availability
SPQ 44136301P SPQ 44136301P Contact Us For Availability
1
Fuse SPQ 70406701 Contact Us For Availability
1
Front Panel SPQ 44218407 Contact Us For Availability
1
Nameplate SPQ B12389801 Contact Us For Availability
1
Door Assembly SPQ 44248201 Contact Us For Availability
1
Door Ring Gasket SPQ 44217401 Contact Us For Availability
1
Handle and Caps Assembly SPQ 44049903 Contact Us For Availability
1
Base Harness SPQ 44227001 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44221602 Contact Us For Availability
1
Cylinder Motor Harness SPQ 44162901 Contact Us For Availability
1
Rib Wire SPQ 44208101 Contact Us For Availability
1
Bushing SPQ H8752922HP Contact Us For Availability
1
Motor SPQ 44046601P Contact Us For Availability
1
Steam Filter Top Hinge Assembly SPQ 44088101 Contact Us For Availability
1
Valve Rebuild Kit SPQ F8379502 Contact Us For Availability
1
Rotation Sensor SPQ F8066201 Contact Us For Availability
1
Junction Box Harness SPQ 44136701P Contact Us For Availability
2
Contact Base SPQ 70324604 Contact Us For Availability
2
Pop Rivet SPQ 70126301 Contact Us For Availability
2
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
2
Cylinder Assembly SPQ 44221601 Contact Us For Availability
2
Drive Motor SPQ F280297 Contact Us For Availability
2
Screw SPQ 44338901 Contact Us For Availability
2
Bearing Retainer SPQ 70187202 Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Nut SPQ H88010574 Contact Us For Availability
2
Steam Cover SPQ H96362264 Contact Us For Availability
2
Steam Valve Rebuild Kit SPQ 70351021P Contact Us For Availability
2
Rotation Sensor Bracket SPQ 44111101 Contact Us For Availability
2
Snap Bushing SPQ 70313301 Contact Us For Availability
2
Fuse Holder SPQ 70406501 Contact Us For Availability
3
Fuse Holder Cap SPQ 70406601 Contact Us For Availability
3
Pop Rivet SPQ 430725 Contact Us For Availability
3
Front Access Panel SPQ 44012714 Contact Us For Availability
3
Door Handle SPQ M414215 Contact Us For Availability
3
Door Hinge Assembly SPQ 44218702 Contact Us For Availability
3
SPQ 44063603P SPQ 44063603P Contact Us For Availability
3
Trunnion Assembly SPQ 44214902 Contact Us For Availability
3
SPQ 44270801 SPQ 44270801 Contact Us For Availability
3
SPQ H96428693 SPQ H96428693 Contact Us For Availability
3
Washer SPQ 44238902 Contact Us For Availability
3
Ball Bearing SPQ 44239801 Contact Us For Availability
3
SPQ 44071501 SPQ 44071501 Contact Us For Availability
3
Steam Coil Housing End SPQ 44172101 Contact Us For Availability
3
Steam Solenoid SPQ 70351012 Contact Us For Availability
3
Rotation Sensor Kit SPQ 7010P Contact Us For Availability
3
Hole Plug SPQ 44159001 Contact Us For Availability
3
Reversing Contactor Jumper SPQ 44201201 Contact Us For Availability
3
Din Rail SPQ M412693 Contact Us For Availability
4
Expansion Clip SPQ 44012901 Contact Us For Availability
4
Control Box Top SPQ 44065401 Contact Us For Availability
4
Nut SPQ 44012709B Contact Us For Availability
4
Door Seal Kit SPQ 44007901 Contact Us For Availability
4
Screw SPQ 70442101 Contact Us For Availability
4
Roller Catch Mounting Bracket SPQ 44014001 Contact Us For Availability
4
Nut SPQ 44214901 Contact Us For Availability
4
SPQ 44264301 SPQ 44264301 Contact Us For Availability
4
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
4
Fan Bearing Bracket SPQ H8752065H Contact Us For Availability
4
SPQ M413171 SPQ M413171 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
Bushing SPQ M409833P Contact Us For Availability
4
Valve SPQ F8322906P Contact Us For Availability
4
Screw SPQ M400985 Contact Us For Availability
4
Fuse Holder Body SPQ 44310002 Contact Us For Availability
4
Reversing Contactor Jumper Assembly SPQ 44157401 Contact Us For Availability
4
Interlock Contactor SPQ F330186P Contact Us For Availability
5
Control Panel Harness SPQ F200233500 Contact Us For Availability
5
Control Box Housing SPQ 44065101 Contact Us For Availability
5
Porcelain Touch-Up Paint SPQ 44227101 Contact Us For Availability
5
Lint Panel Switch Cover SPQ 44026801 Contact Us For Availability
5
SPQ M411593 SPQ M411593 Contact Us For Availability
5
Washer SPQ 44221502 Contact Us For Availability
5
Spacer SPQ H88213996 Contact Us For Availability
5
SPQ H8752006H SPQ H8752006H Contact Us For Availability
5
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
5
Key SPQ H8752060H Contact Us For Availability
5
SPQ 44242601 SPQ 44242601 Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
SPQ 44091601 SPQ 44091601 Contact Us For Availability
5
Filter Channel SPQ 44114601 Contact Us For Availability
5
Valve SPQ F8322901P Contact Us For Availability
5
Male Tab Terminal SPQ F8223801 Contact Us For Availability
5
Fuse Bracket SPQ 44155601P Contact Us For Availability
5
Steam Configuration Harness SPQ 44139501 Contact Us For Availability
5
End Stop SPQ 70121001 Contact Us For Availability
6
Door Glass SPQ 70211902P Contact Us For Availability
6
Valve Kit SPQ F8521701 Contact Us For Availability
6
Output Harness SPQ 44013317 Contact Us For Availability
6
SPQ M400770 SPQ M400770 Contact Us For Availability
6
Nut SPQ M400977 Contact Us For Availability
6
Screw SPQ M4773P3 Contact Us For Availability
6
SPQ M411537 SPQ M411537 Contact Us For Availability
6
Switch Assembly SPQ 70413401 Contact Us For Availability
6
Transformer SPQ M411072 Contact Us For Availability
6
Spacer SPQ 44221501 Contact Us For Availability
6
SPQ M411165 SPQ M411165 Contact Us For Availability
6
SPQ 44263401 SPQ 44263401 Contact Us For Availability
6
Nut SPQ M400035 Contact Us For Availability
6
Idler Housing SPQ M401370 Contact Us For Availability
6
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
6
SPQ 70329501 SPQ 70329501 Contact Us For Availability
7
Idler Housing Assembly SPQ M401375P Contact Us For Availability
7
Terminal Block SPQ M414312P Contact Us For Availability
7
Expansion Clip SPQ 70437102P Contact Us For Availability
7
Control SPQ D501523 Contact Us For Availability
7
SPQ 44231401 SPQ 44231401 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 70033504 Contact Us For Availability
7
Screw SPQ 70030401 Contact Us For Availability
7
Door Glass Installation Tool SPQ 44008401P Contact Us For Availability
7
Lint Panel Switch Bracket SPQ 44013401 Contact Us For Availability
7
SPQ 44160001 SPQ 44160001 Contact Us For Availability
7
Bolt SPQ 44215002 Contact Us For Availability
7
SPQ 44048301P SPQ 44048301P Contact Us For Availability
7
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
7
SPQ 44091501 SPQ 44091501 Contact Us For Availability
7
SPQ 44115001 SPQ 44115001 Contact Us For Availability
7
Mount Bracket SPQ F8206901 Contact Us For Availability
7
SPQ 70329401P SPQ 70329401P Contact Us For Availability
7
Jumper Configuration Assembly SPQ 44136901 Contact Us For Availability
8
Jumper Calibration Wire SPQ 44185701 Contact Us For Availability
8
Nut SPQ 44013308 Contact Us For Availability
8
Control Harness SPQ 44063801P Contact Us For Availability
8
SPQ 02788 SPQ 02788 Contact Us For Availability
8
Pop Rivet SPQ M4221P4 Contact Us For Availability
8
Door Hinge Lug Assembly SPQ 70409801 Contact Us For Availability
8
SPQ 44253001 SPQ 44253001 Contact Us For Availability
8
SPQ H88412101 SPQ H88412101 Contact Us For Availability
8
Cylinder Rib Assembly SPQ 44215001 Contact Us For Availability
8
SPQ H96428008 SPQ H96428008 Contact Us For Availability
8
Moisture Sensor Harness Assembl SPQ 44209201 Contact Us For Availability
8
SPQ M414235 SPQ M414235 Contact Us For Availability
8
SPQ M409834P SPQ M409834P Contact Us For Availability
8
SPQ 00177 SPQ 00177 Contact Us For Availability
8
Steam Kit SPQ M414230P Contact Us For Availability
9
Sensor Harness Assembly SPQ 44162601 Contact Us For Availability
9
Pop Rivet SPQ 44218101 Contact Us For Availability
9
SPQ 44012302P SPQ 44012302P Contact Us For Availability
9
SPQ M400984 SPQ M400984 Contact Us For Availability
9
SPQ M401402 SPQ M401402 Contact Us For Availability
9
SPQ 44240802 SPQ 44240802 Contact Us For Availability
9
SPQ M401327 SPQ M401327 Contact Us For Availability
9
SPQ M414451 SPQ M414451 Contact Us For Availability
9
SPQ M409844 SPQ M409844 Contact Us For Availability
9
SPQ F430909 SPQ F430909 Contact Us For Availability
9
Jumper Harness Assembly SPQ 44136801 Contact Us For Availability
9
SPQ M414229P SPQ M414229P Contact Us For Availability
10
Control Mounting Bracket SPQ 44099502 Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Door Switch Cover SPQ 44001301 Contact Us For Availability
10
Nut SPQ 44087101 Contact Us For Availability
10
Belt Guard SPQ 44253102 Contact Us For Availability
10
Screw SPQ H88012034 Contact Us For Availability
10
Motor Base SPQ 44253301 Contact Us For Availability
10
Blower Cover SPQ M414237 Contact Us For Availability
10
Motor SPQ 44313601 Contact Us For Availability
10
Ground Decal SPQ F230739 Contact Us For Availability
10
Reversing Contactor Harness SPQ 44139601P Contact Us For Availability
10
Relay SPQ M412534 Contact Us For Availability
11
Key SPQ 70155601 Contact Us For Availability
11
Limit Thermostat SPQ M411403 Contact Us For Availability
11
Pop Rivet SPQ 44099501W Contact Us For Availability
11
Lint Panel Clip SPQ 44017801 Contact Us For Availability
11
Belt Guard Side SPQ 44253101 Contact Us For Availability
11
Ball Bearing SPQ H88603477 Contact Us For Availability
11
Fan Motor SPQ 44313501P Contact Us For Availability
11
Motor Contactor Harness SPQ 44137001P Contact Us For Availability
12
Spacer SPQ 44099505 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Bolt SPQ 44017901 Contact Us For Availability
12
Exhaust Duct Box Wrap SPQ 44159801 Contact Us For Availability
12
Belt SPQ H87672374 Contact Us For Availability
12
Thermostat SPQ H8900530H Contact Us For Availability
12
Nut SPQ M412201 Contact Us For Availability
12
Contactor Box Base SPQ 44133701 Contact Us For Availability
12
Steam Stove Limit Bypass Harness SPQ 44136401 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Kickplate SPQ 70117611 Contact Us For Availability
13
Damper Vane SPQ 44160101 Contact Us For Availability
13
Step Pulley and Bearing Kit SPQ F280362 Contact Us For Availability
13
Loading Spring SPQ M400401 Contact Us For Availability
13
Screw SPQ H88010038 Contact Us For Availability
13
Ground Lug Connector SPQ M411283 Contact Us For Availability
13
Steam Relay Harness SPQ 70389901 Contact Us For Availability
14
Belt Set SPQ M4696P3 Contact Us For Availability
14
Jumper Calibration Wire SPQ 431264 Contact Us For Availability
14
Pop Rivet SPQ 70126401 Contact Us For Availability
14
Clip SPQ M412391 Contact Us For Availability
14
Belt Adjustment Tube SPQ M400015 Contact Us For Availability
14
Fan SPQ M412917P Contact Us For Availability
14
Coil Filter SPQ 02422 Contact Us For Availability
14
Nut SPQ F430232 Contact Us For Availability
14
Steam Relay Harness SPQ 44243501 Contact Us For Availability
15
Hose Fitting SPQ 44069101 Contact Us For Availability
15
Door Latch SPQ 44220501 Contact Us For Availability
15
Nut SPQ 44219701 Contact Us For Availability
15
Damper Rod SPQ M413402 Contact Us For Availability
15
Bushing SPQ 22688 Contact Us For Availability
15
Bushing SPQ M414367 Contact Us For Availability
15
Washer SPQ H96368469 Contact Us For Availability
15
Reversing Contactor Jumper Wire SPQ 44243401 Contact Us For Availability
16
Bypass Harness SPQ D501524 Contact Us For Availability
16
Washer SPQ 44166601 Contact Us For Availability
16
Nut SPQ M400044 Contact Us For Availability
16
Sheave SPQ 44237801 Contact Us For Availability
16
Steam Coil SPQ 44114801 Contact Us For Availability
17
Nut SPQ M401223 Contact Us For Availability
17
Thermistor Bracket Assembly SPQ M400976 Contact Us For Availability
17
Pulley Bushing SPQ H96428487 Contact Us For Availability
17
Base Bracket SPQ 44233801 Contact Us For Availability
17
Pipe Bracket SPQ 70058502 Contact Us For Availability
18
Hose SPQ 44073303 Contact Us For Availability
18
Roller Catch SPQ M413401 Contact Us For Availability
18
Sheave SPQ M400063 Contact Us For Availability
18
Rod End SPQ H8752985HP Contact Us For Availability
18
Motor Base SPQ 44255201 Contact Us For Availability
18
Contactor Box Side SPQ 44175801 Contact Us For Availability
19
Screw SPQ H8752251H Contact Us For Availability
19
Sheave SPQ M414241 Contact Us For Availability
19
Fan Motor Harness SPQ 44255101 Contact Us For Availability
19
Fuse Cover SPQ 44158901 Contact Us For Availability
20
Contact Switch SPQ 70364103 Contact Us For Availability
20
Contactor Box Cover SPQ 70178701 Contact Us For Availability
20
Drive Rivet SPQ M400713 Contact Us For Availability
20
Bushing SPQ 44051301 Contact Us For Availability
20
Jackshaft Assembly SPQ H87520334 Contact Us For Availability
21
Control Box Base SPQ 44065301 Contact Us For Availability
21
SPQ H8752026H SPQ H8752026H Contact Us For Availability
21
Plug SPQ 44134001 Contact Us For Availability
22
Emergency Stop Pushbutton SPQ F8538101 Contact Us For Availability
22
Mixing Valve Shield Bracket SPQ 44065701 Contact Us For Availability
22
SPQ H87020202 SPQ H87020202 Contact Us For Availability
22
Drive Wheel SPQ H88900683 Contact Us For Availability
23
Control Cover SPQ F8069501 Contact Us For Availability
23
SPQ 44077703P SPQ 44077703P Contact Us For Availability
23
Drive Chain SPQ H96382072P Contact Us For Availability
24
Bushing SPQ H96388178 Contact Us For Availability
26
Steam Coil SPQ H96388186 Contact Us For Availability
27
Hairpin Cotter SPQ M414459 Contact Us For Availability
28
Clevis Pin SPQ M400013 Contact Us For Availability
29
Shaft Collar SPQ 70142 Contact Us For Availability
34
SPQ H88970256 SPQ H88970256 Contact Us For Availability
NI
SPQ 70261401 SPQ 70261401 Contact Us For Availability
NI
SPQ M412612 SPQ M412612 Contact Us For Availability
NI
SPQ 44240301 SPQ 44240301 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Manifold SPQ 44166801 Contact Us For Availability
NI
SPQ 44079603 SPQ 44079603 Contact Us For Availability
NI
SPQ 44035002 SPQ 44035002 Contact Us For Availability
NI
SPQ 70182601 SPQ 70182601 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
SPQ 44218402 SPQ 44218402 Contact Us For Availability
NI
SPQ 44012306 SPQ 44012306 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ 44222501 SPQ 44222501 Contact Us For Availability
NI
SPQ 44240801 SPQ 44240801 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ 44191205 SPQ 44191205 Contact Us For Availability
NI
SPQ 44048501 SPQ 44048501 Contact Us For Availability
NI
SPQ H96357751 SPQ H96357751 Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ M400993 SPQ M400993 Contact Us For Availability
NI
SPQ M412630 SPQ M412630 Contact Us For Availability
NI
Airflow Switch Kit SPQ 70429601P Contact Us For Availability
NI
SPQ 51783 SPQ 51783 Contact Us For Availability
NI
SPQ 44045101 SPQ 44045101 Contact Us For Availability
NI
Steam Valve SPQ F8322903 Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ 70351011P Contact Us For Availability
NI
SPQ F8382301 SPQ F8382301 Contact Us For Availability
NI
Rotation Sensor Harness SPQ 44201701 Contact Us For Availability
NI
SPQ M414276 SPQ M414276 Contact Us For Availability
NI
SPQ 70313602 SPQ 70313602 Contact Us For Availability
NI
SPQ 70306901 SPQ 70306901 Contact Us For Availability
NI
Network Capacitor Assembly SPQ 44142801 Contact Us For Availability
NI
Power Harness SPQ M413510 Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
SPQ 44139801P SPQ 44139801P Contact Us For Availability
NI
SPQ 44136201P SPQ 44136201P Contact Us For Availability
NI
SPQ M414228P SPQ M414228P Contact Us For Availability
NI
SPQ 44074401 SPQ 44074401 Contact Us For Availability
NI
SPQ M4984P3 SPQ M4984P3 Contact Us For Availability
× ![]()
