Model IPSO BF50PV Washer – Common Parts & Diagrams

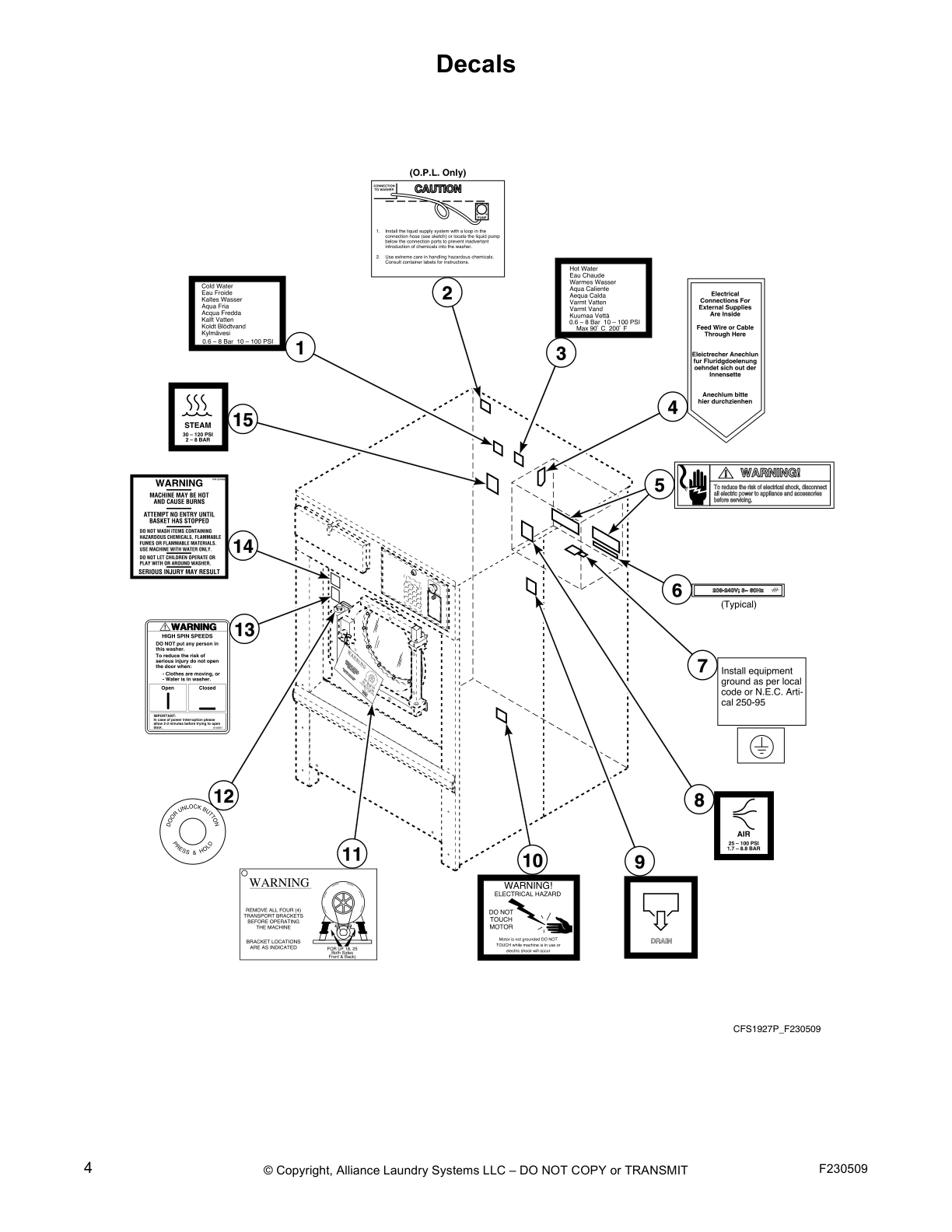

Decals

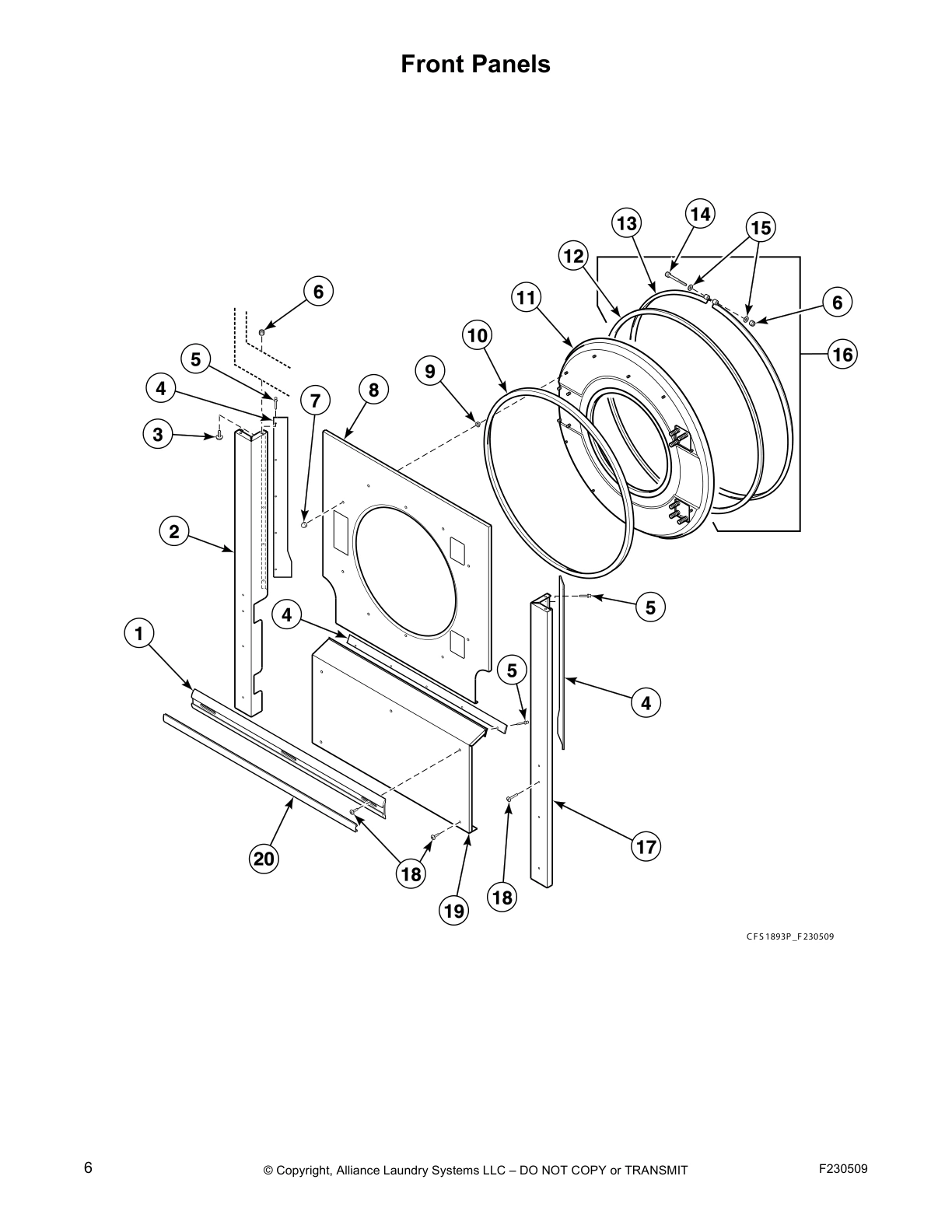

Front Panels

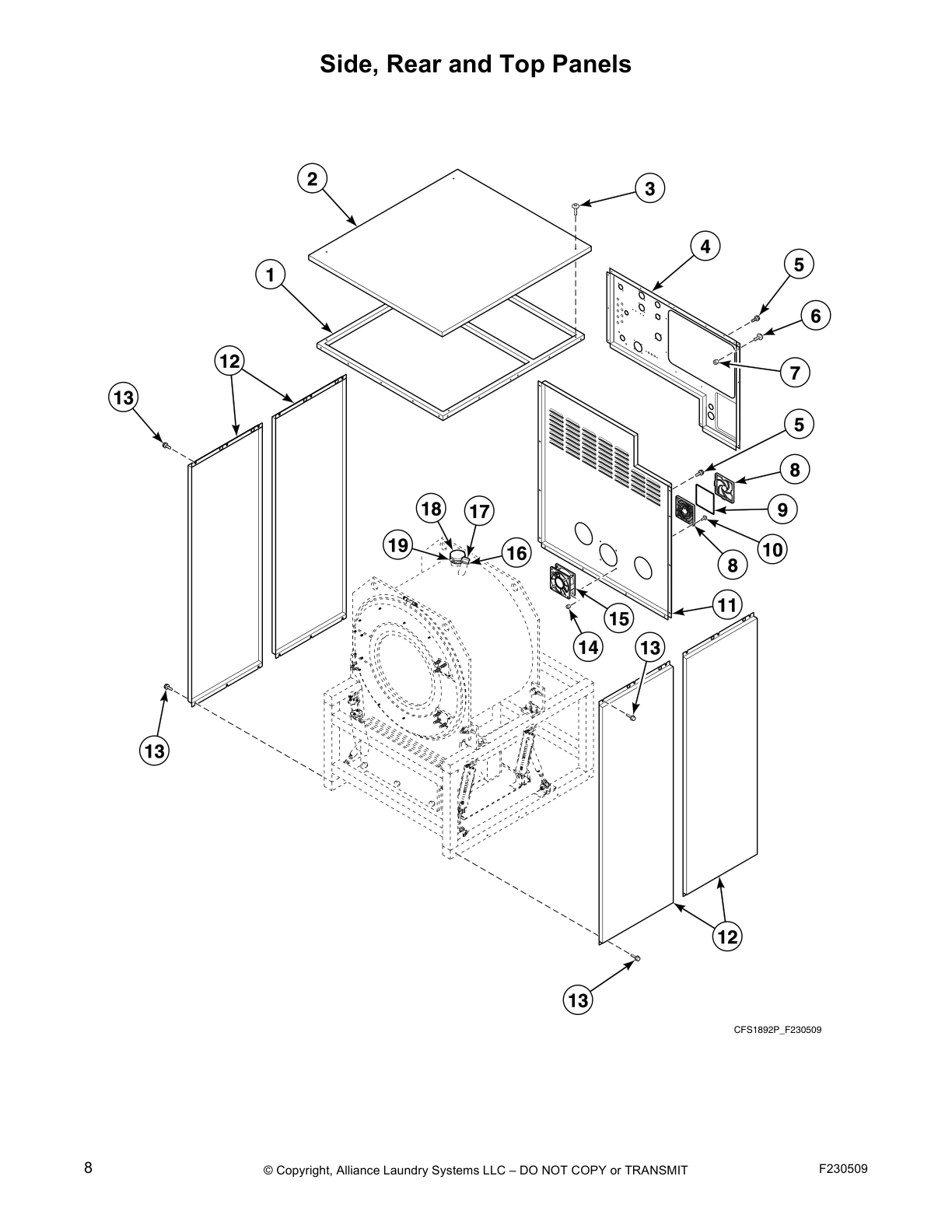

Side, Rear and Top Panels

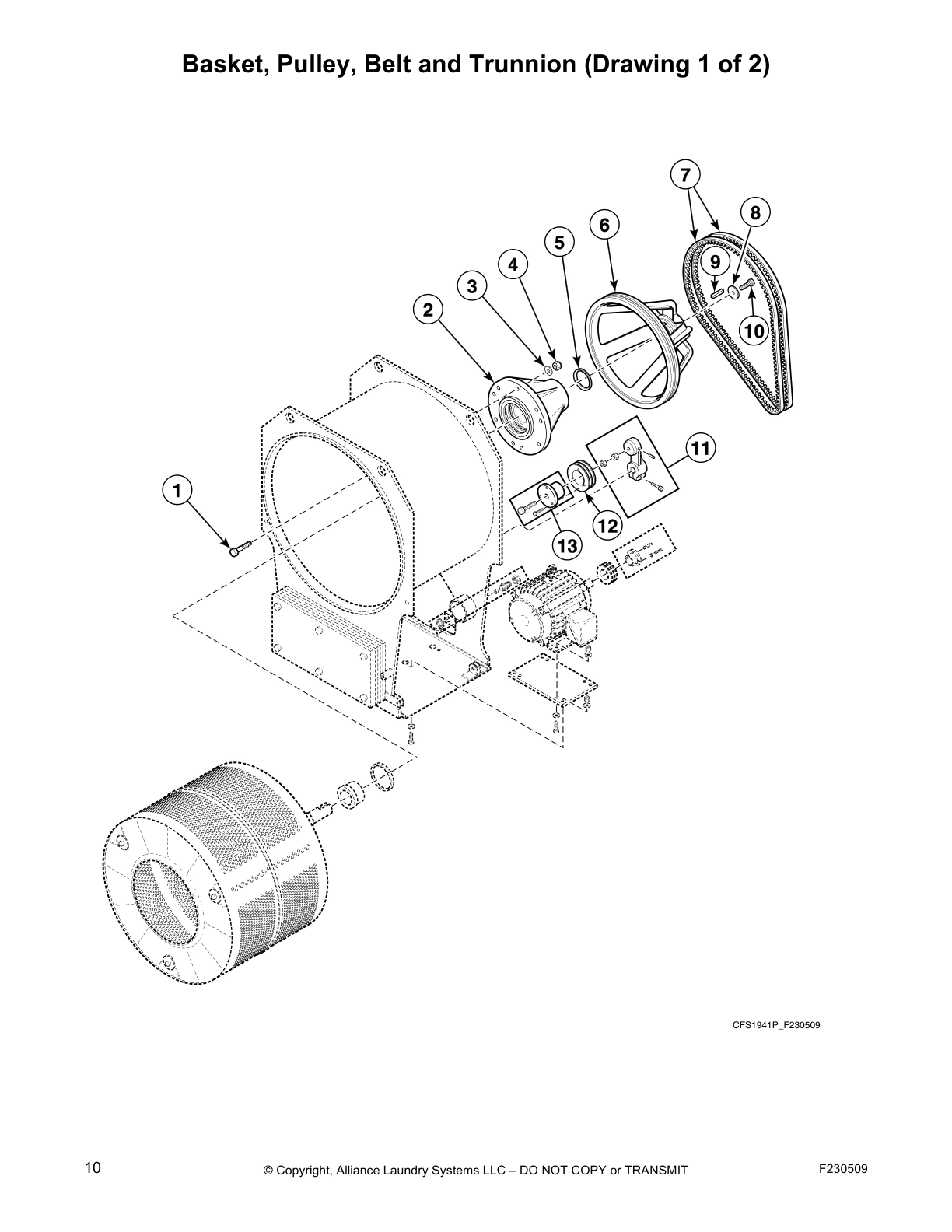

Basket, Pulley, Belt and Trunnion (Drawing 1 of 2)

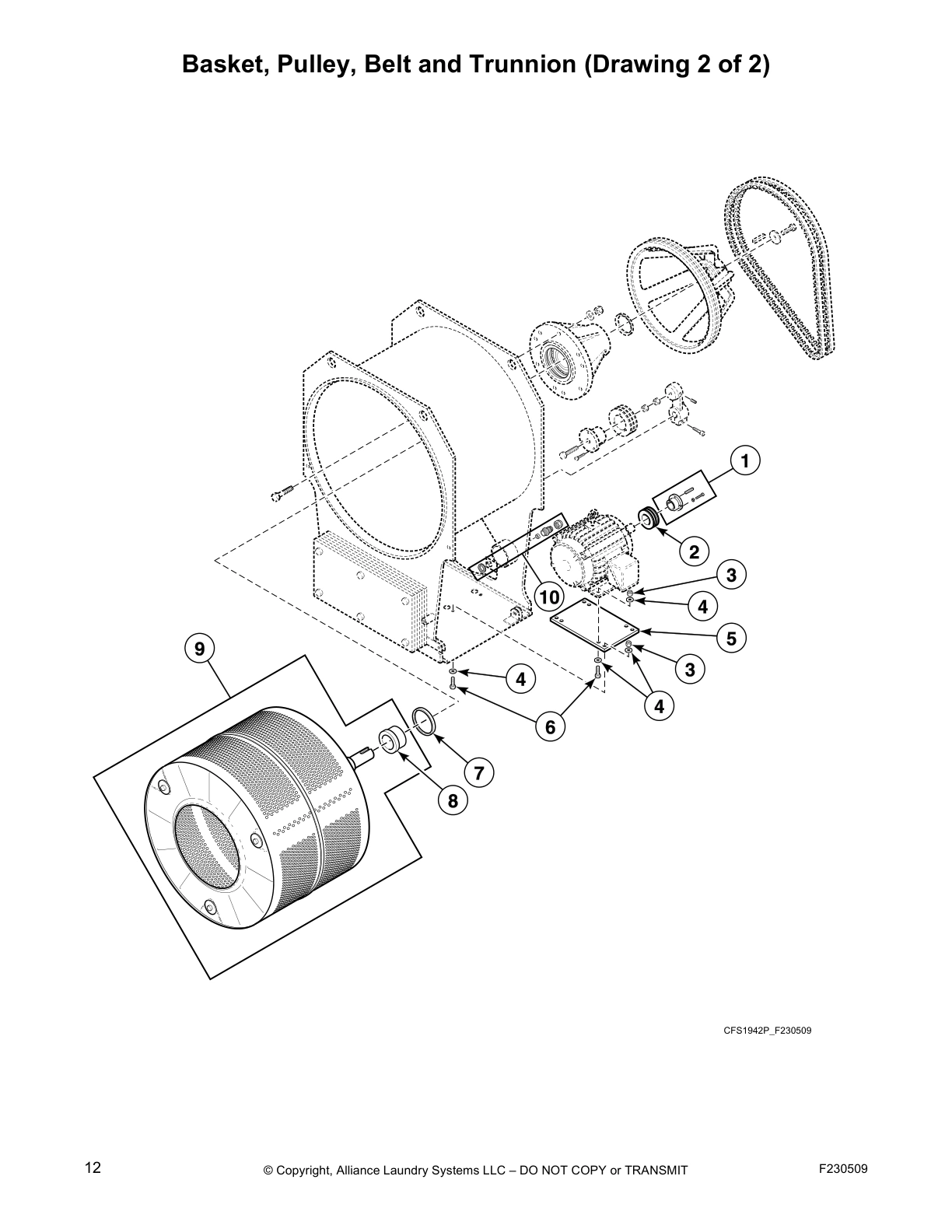

Basket, Pulley, Belt and Trunnion (Drawing 2 of 2)

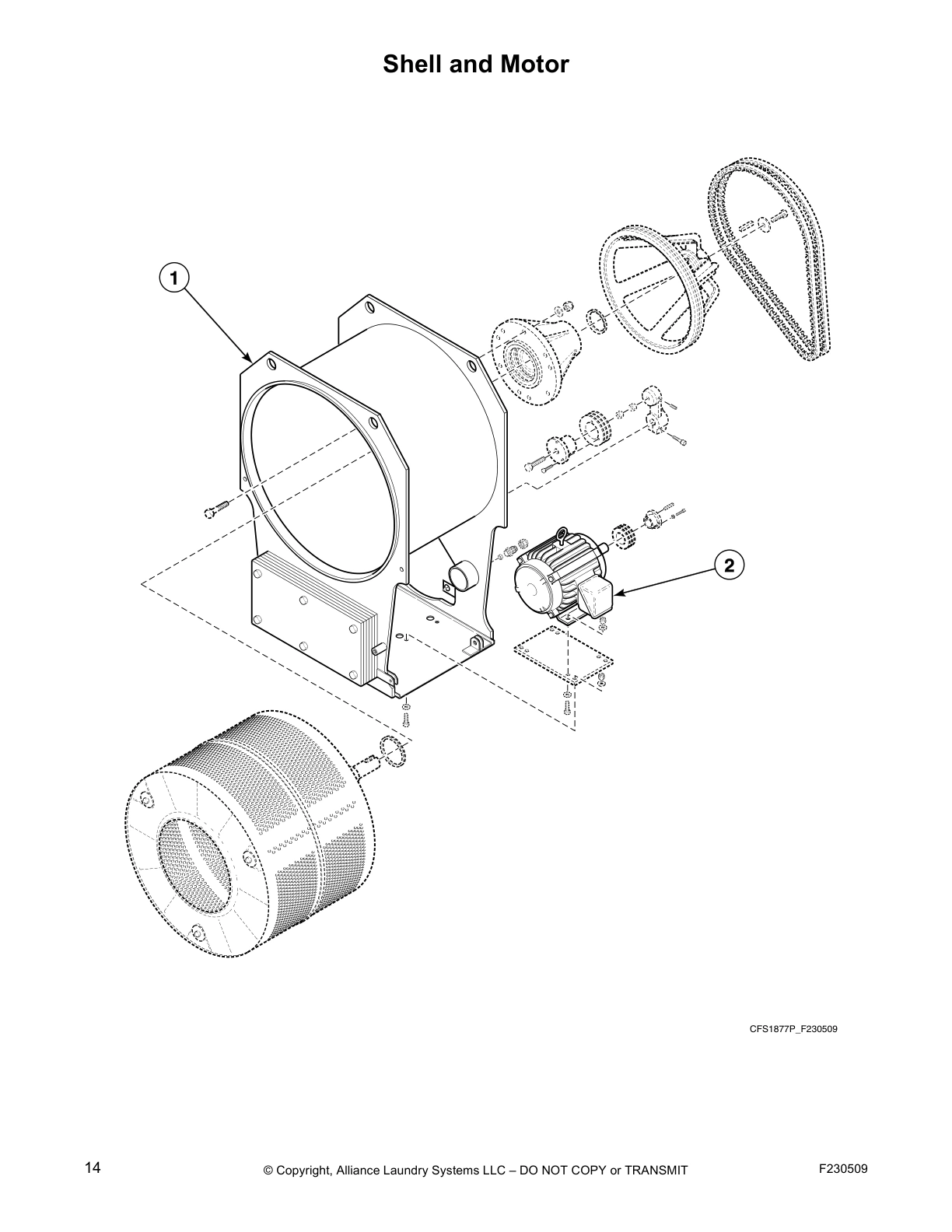

Shell and Motor

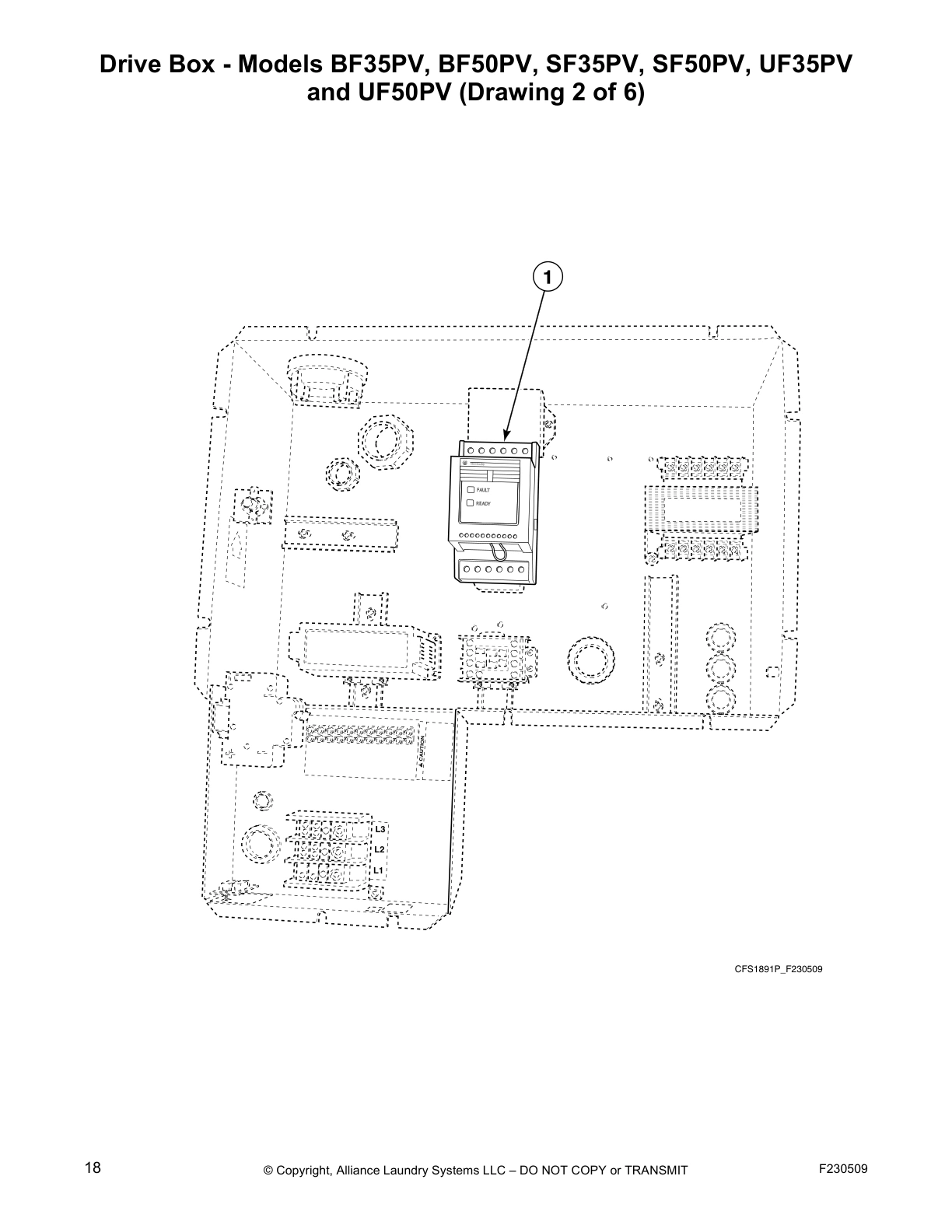

Drive Box - Models BF35PV, BF50PV, SF35PV, SF50PV, UF35PV
and UF50PV (Drawing 2 of 6)

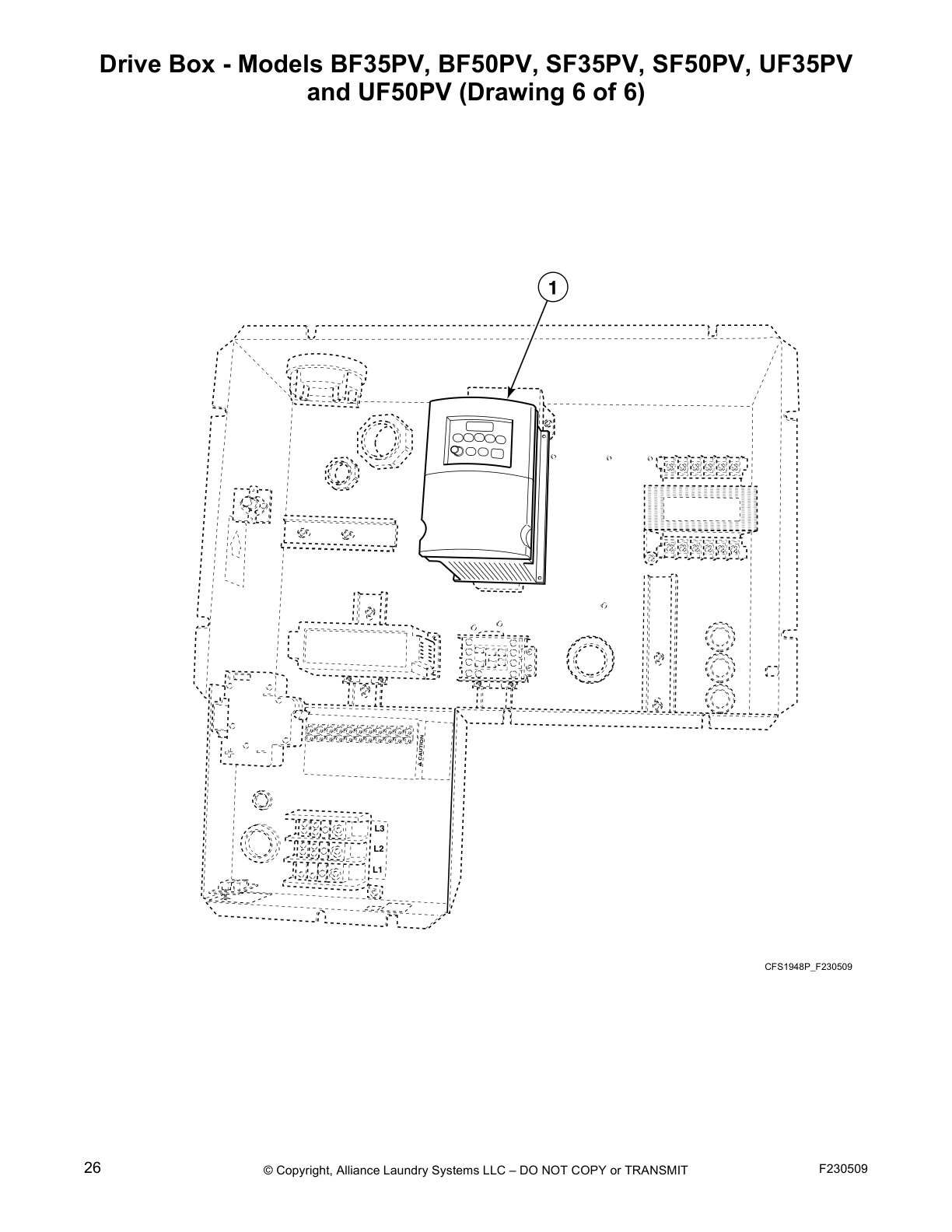

Drive Box - Models BF35PV, BF50PV, SF35PV, SF50PV, UF35PV
and UF50PV (Drawing 6 of 6)

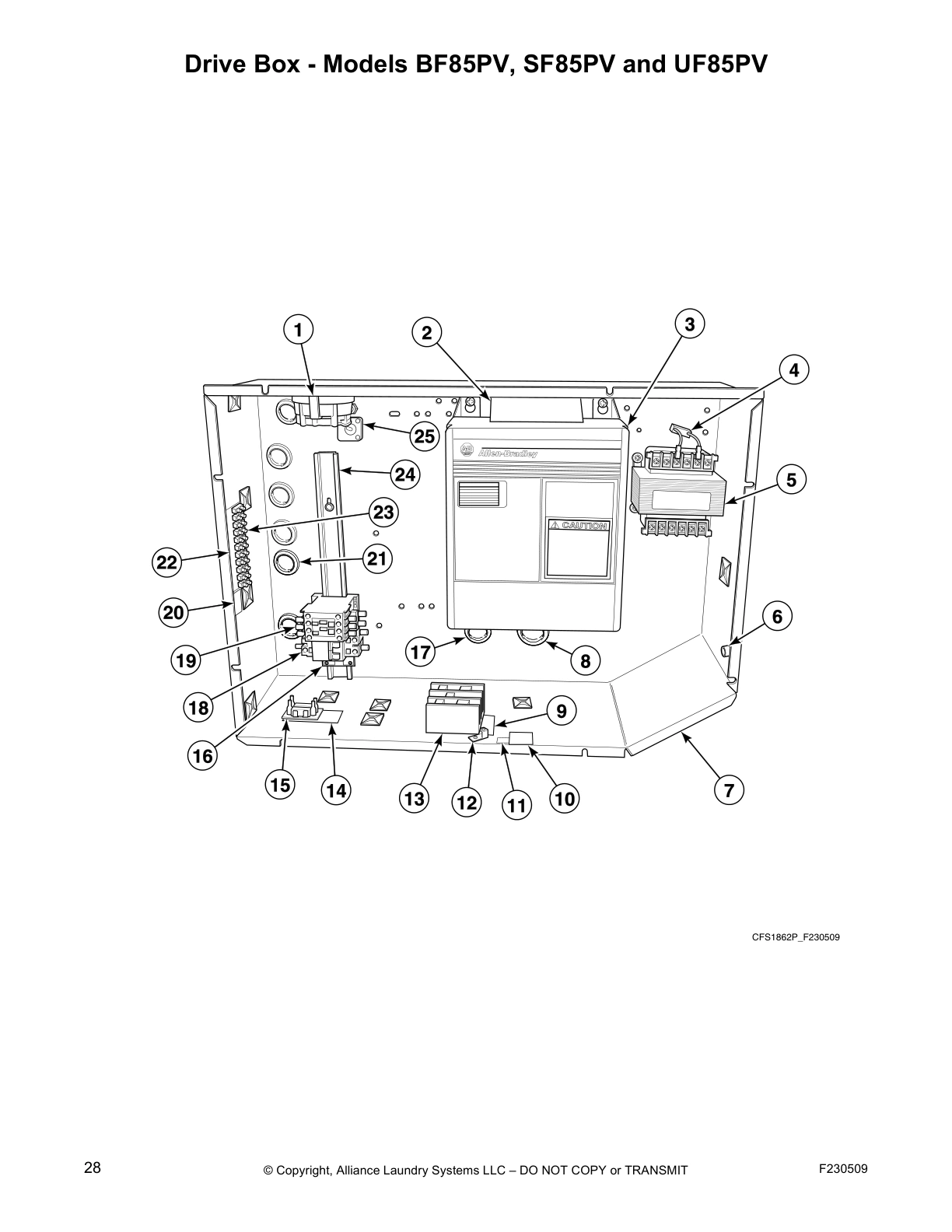

Drive Box - Models BF85PV, SF85PV and UF85PV

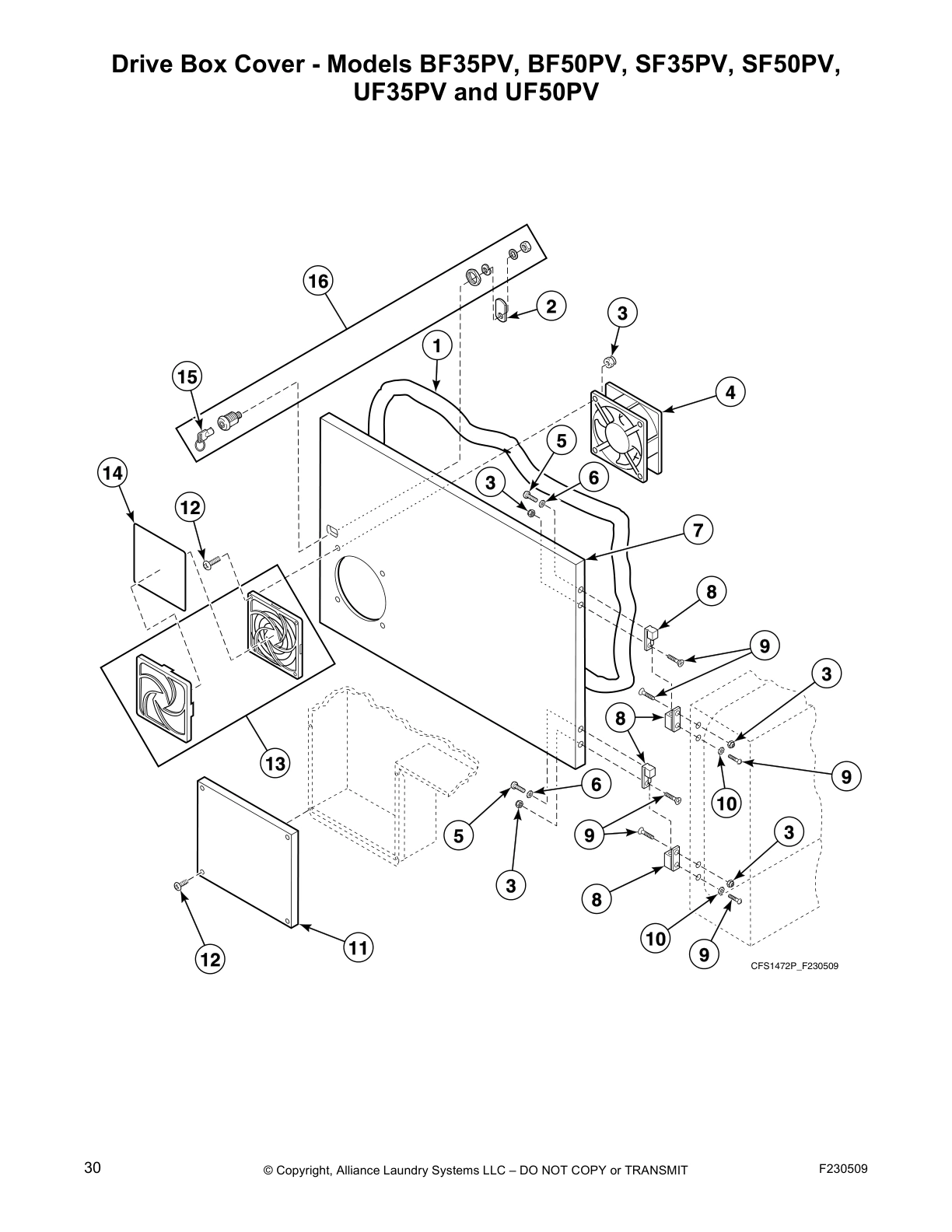

Drive Box Cover - Models BF35PV, BF50PV, SF35PV, SF50PV,
UF35PV and UF50PV

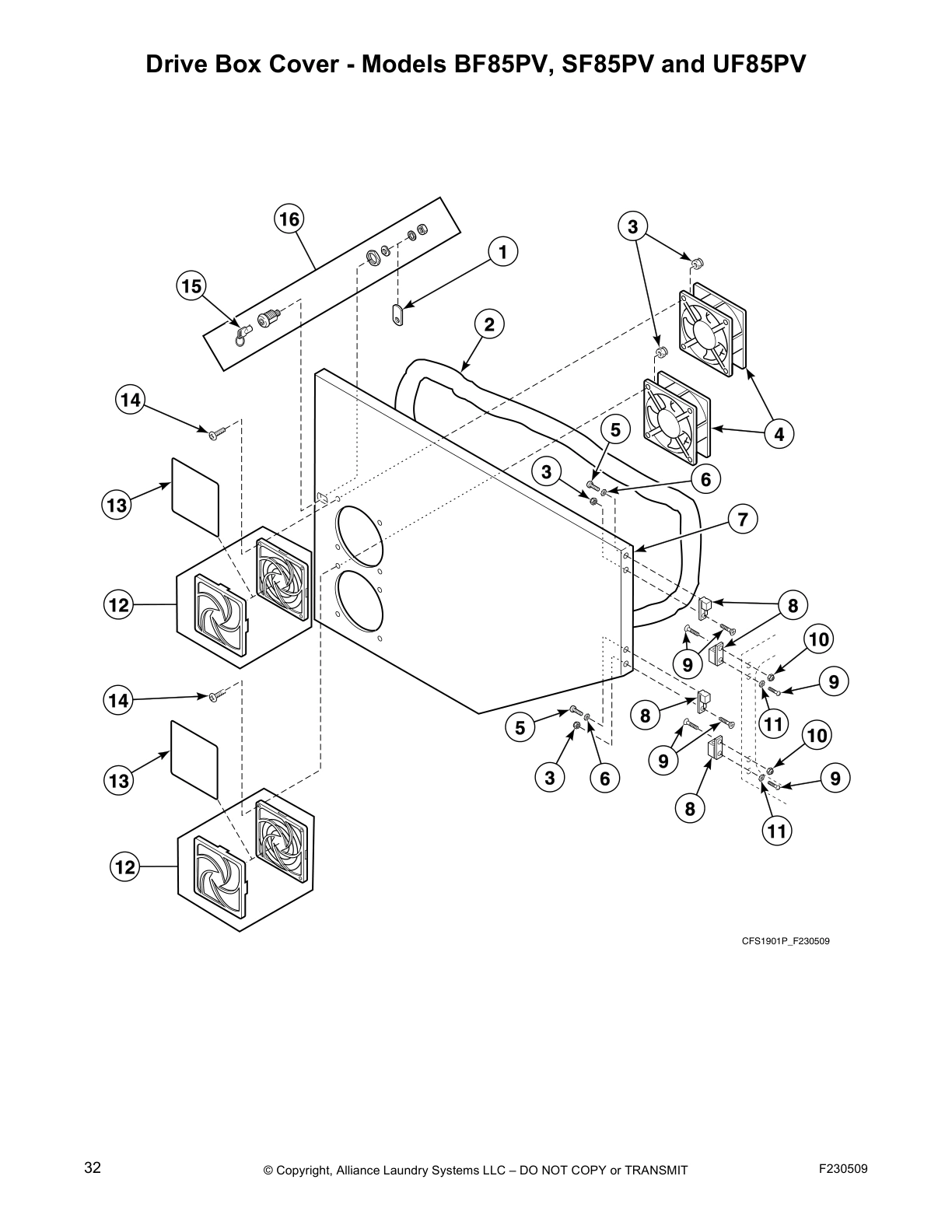

Drive Box Cover - Models BF85PV, SF85PV and UF85PV

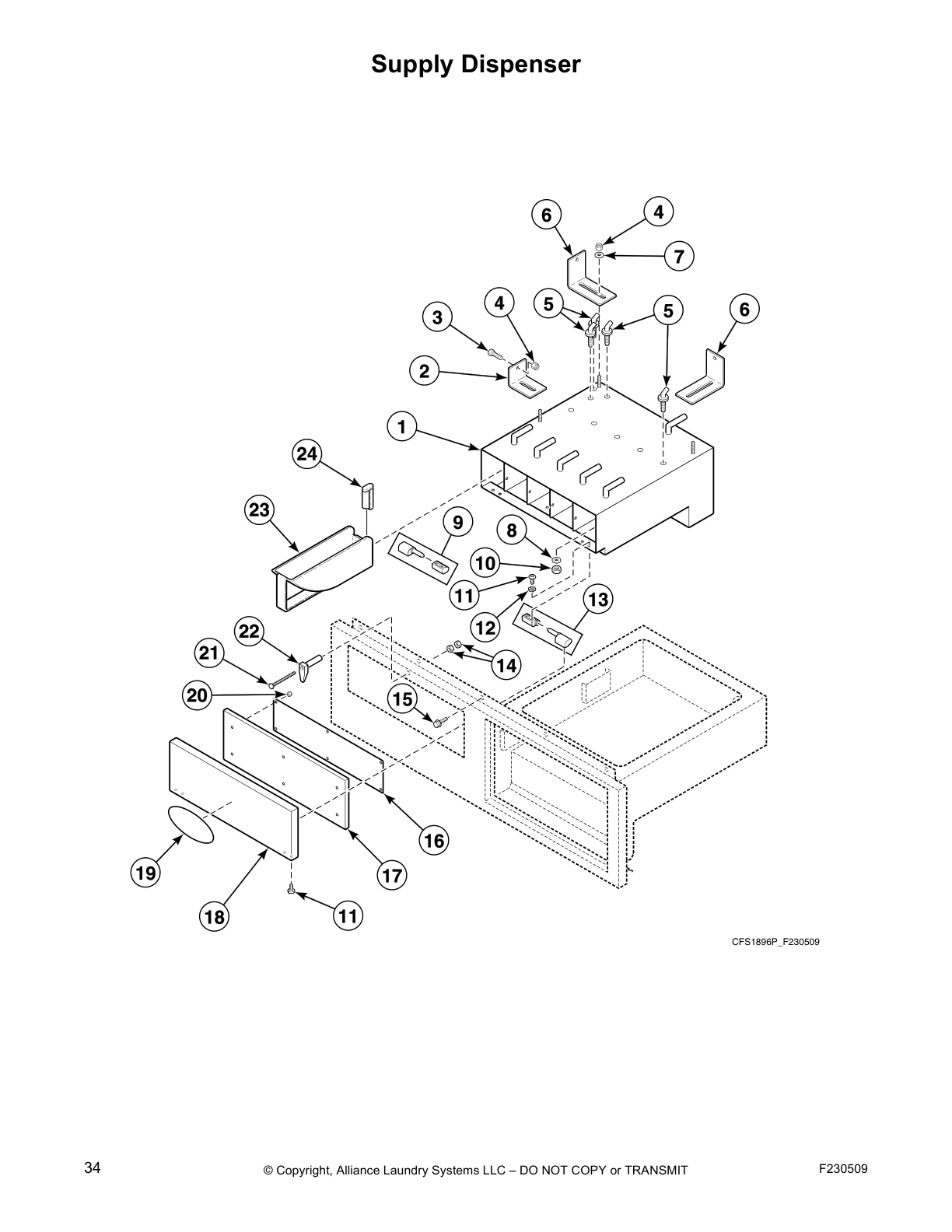

Supply Dispenser

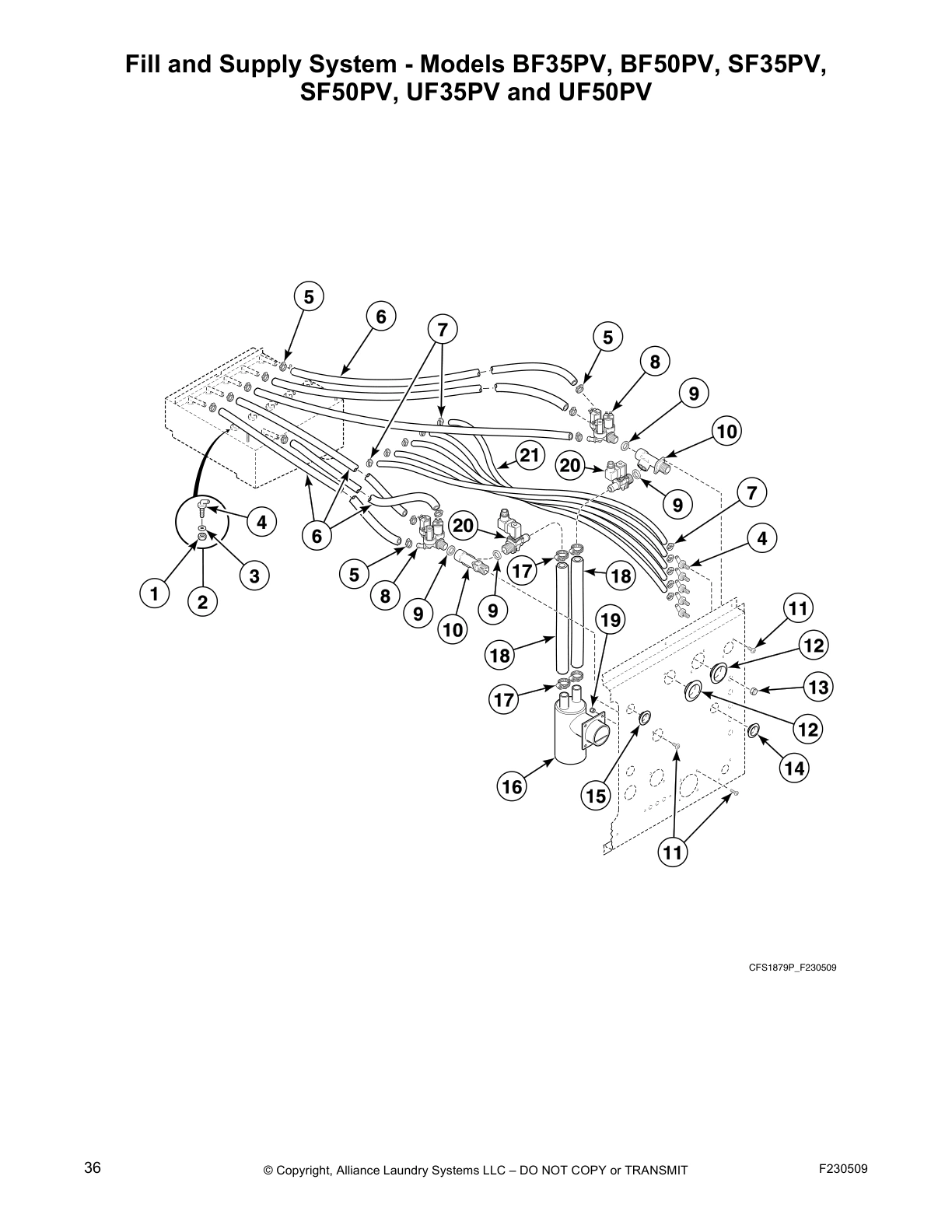

Fill and Supply System - Models BF35PV, BF50PV, SF35PV,
SF50PV, UF35PV and UF50PV

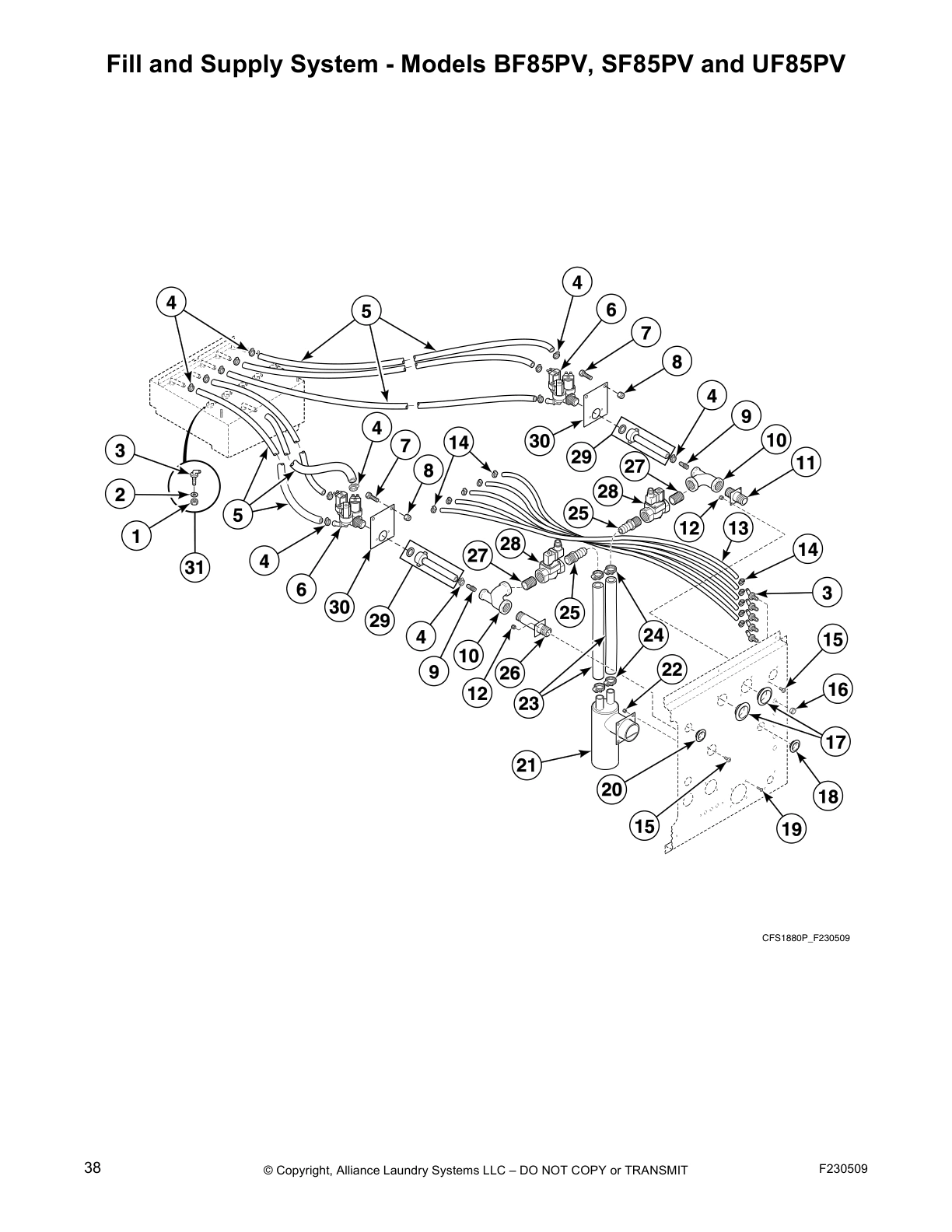

Fill and Supply System - Models BF85PV, SF85PV and UF85PV

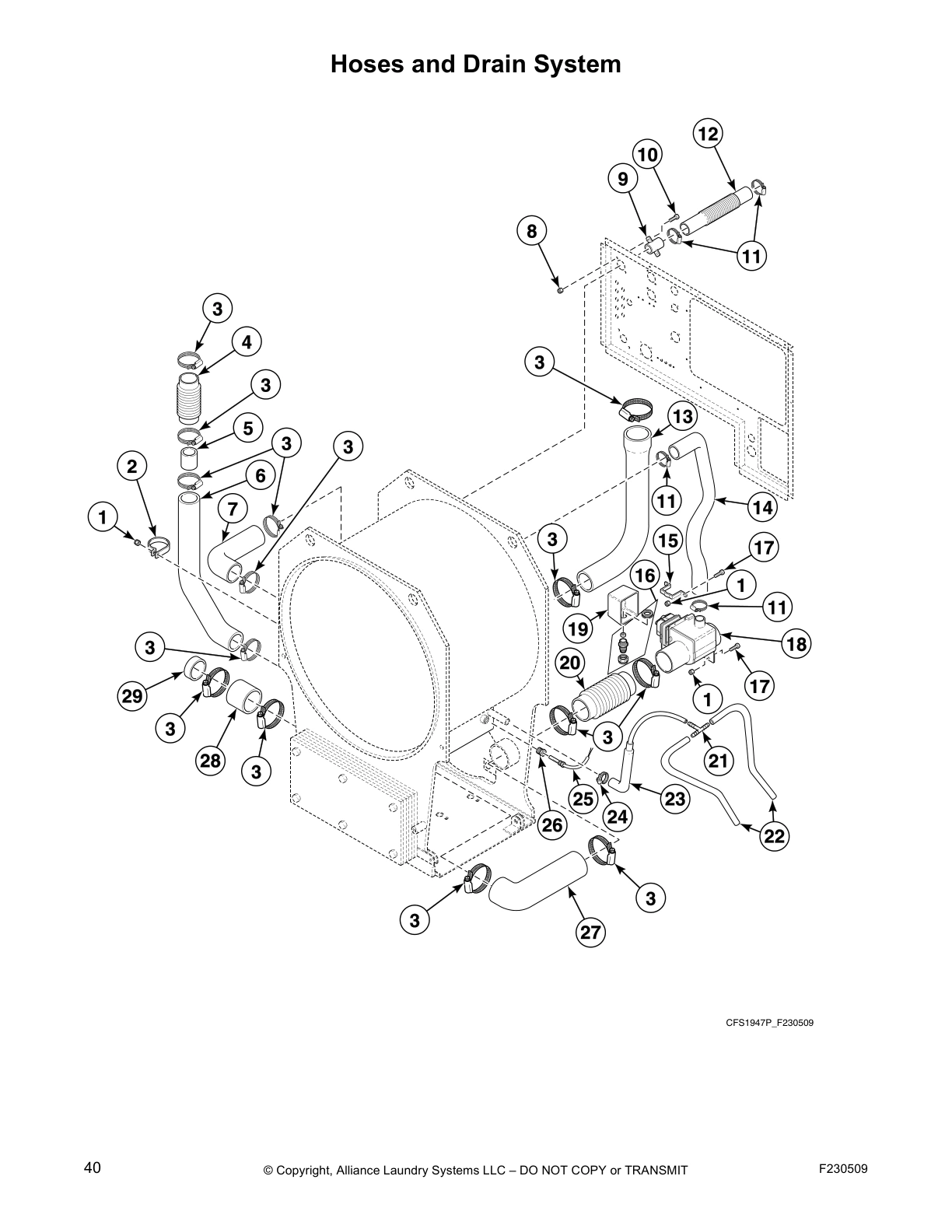

Hoses and Drain System

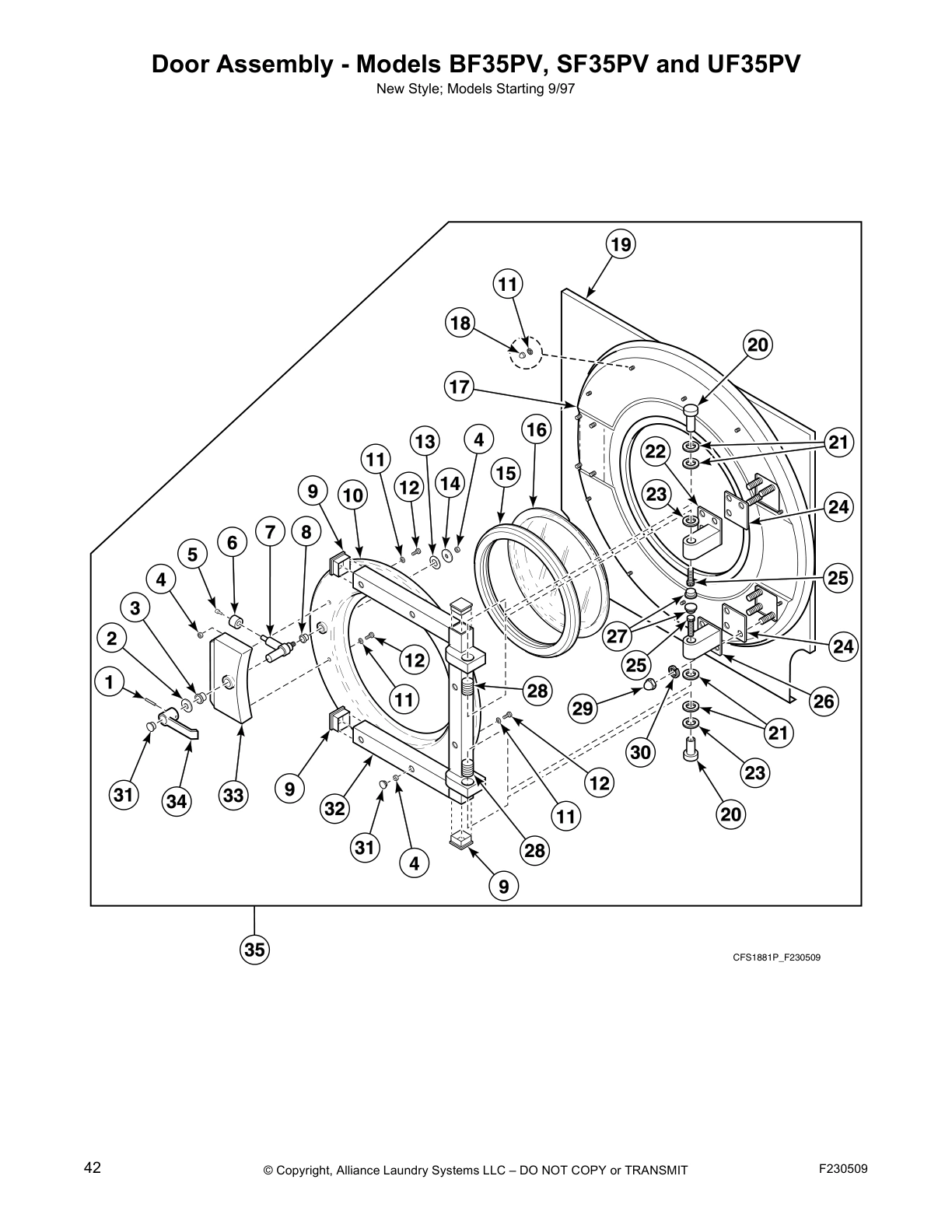

Door Assembly - Models BF35PV, SF35PV and UF35PV

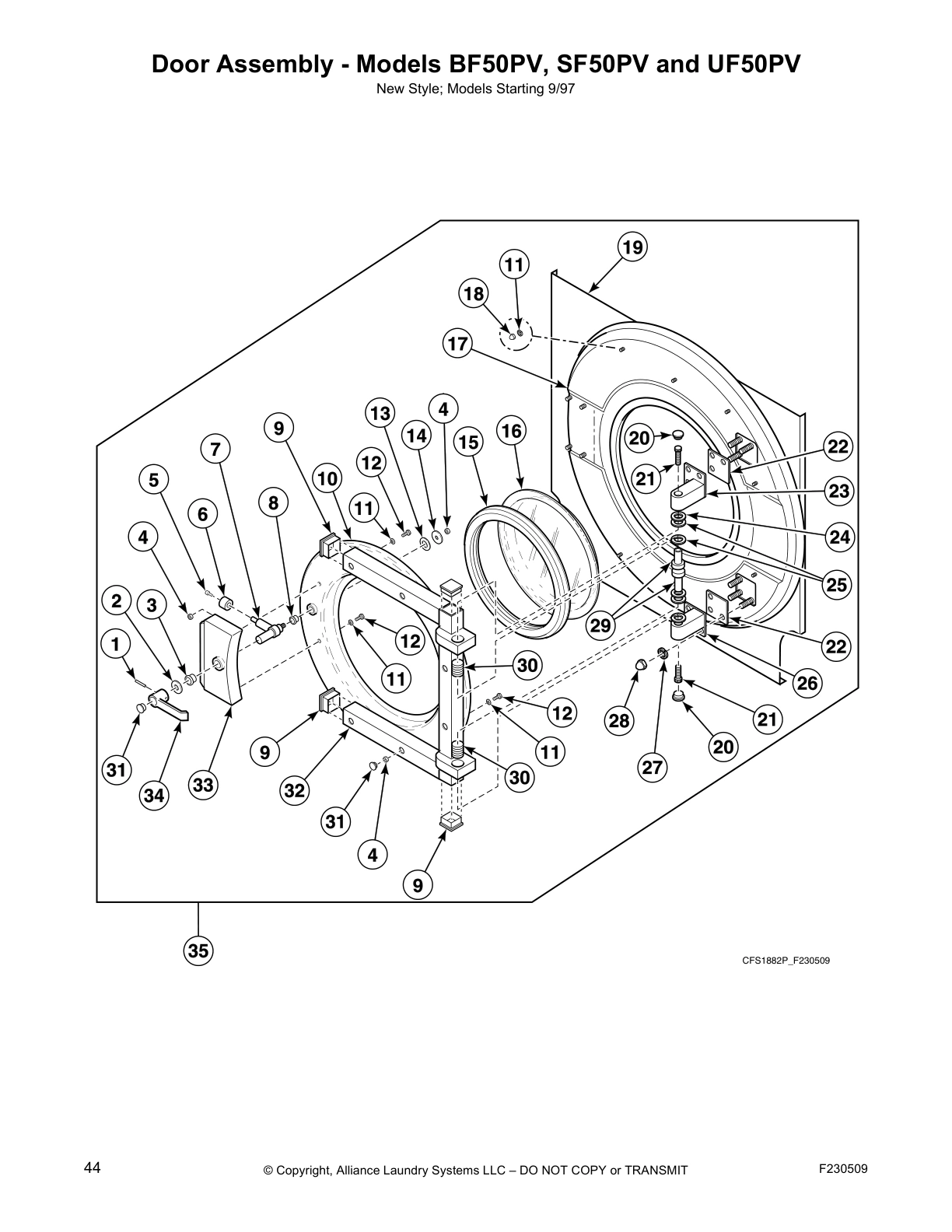

Door Assembly - Models BF50PV, SF50PV and UF50PV

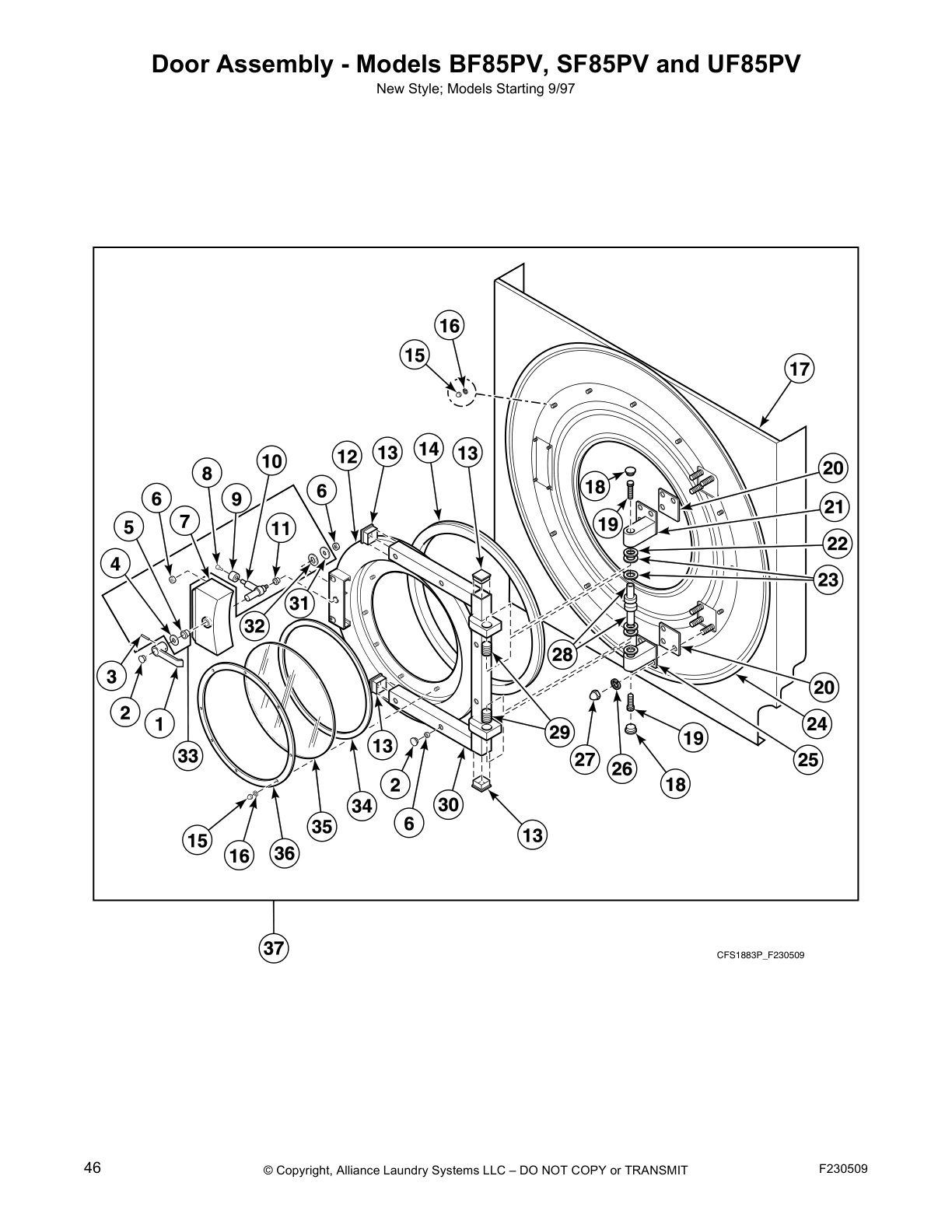

Door Assembly - Models BF85PV, SF85PV and UF85PV

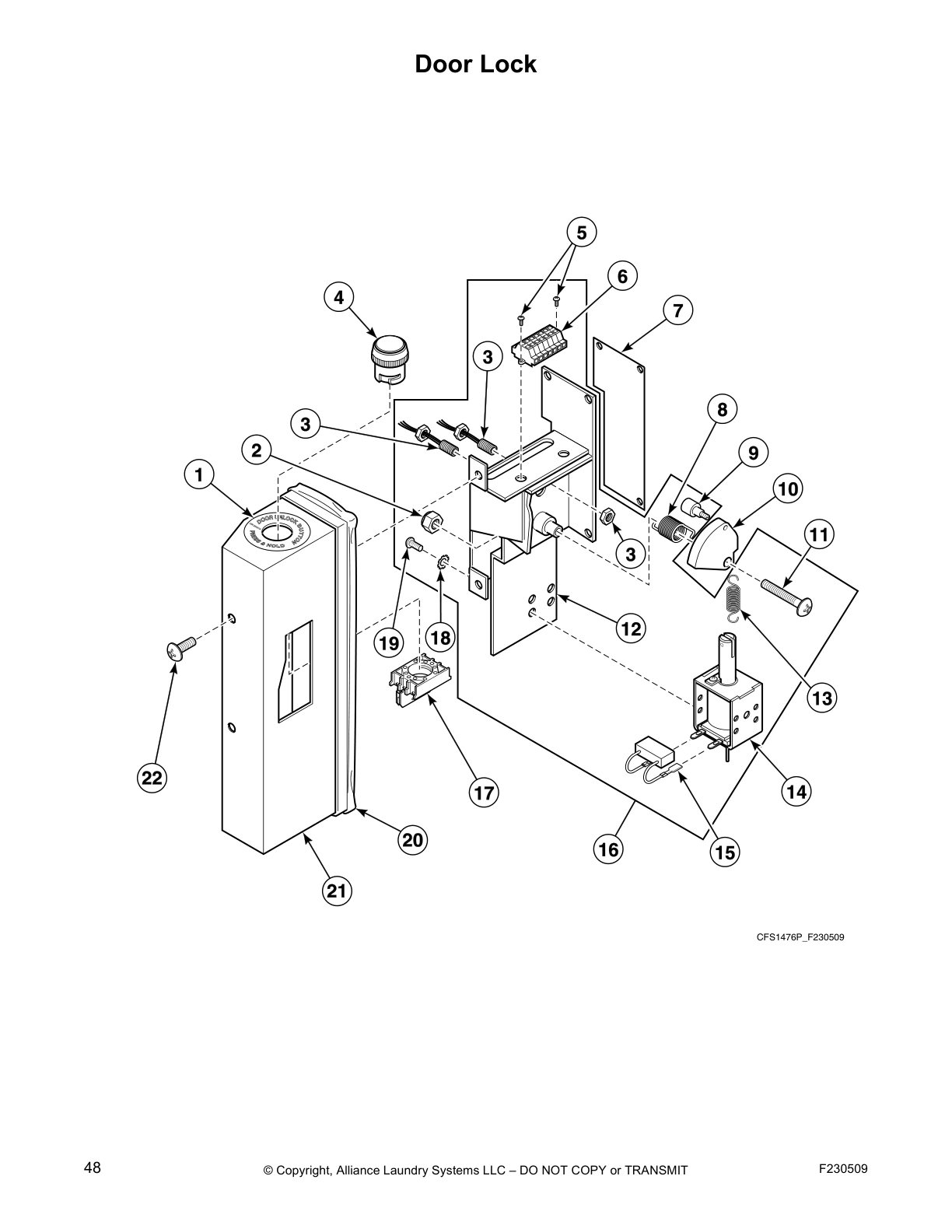

Door Lock

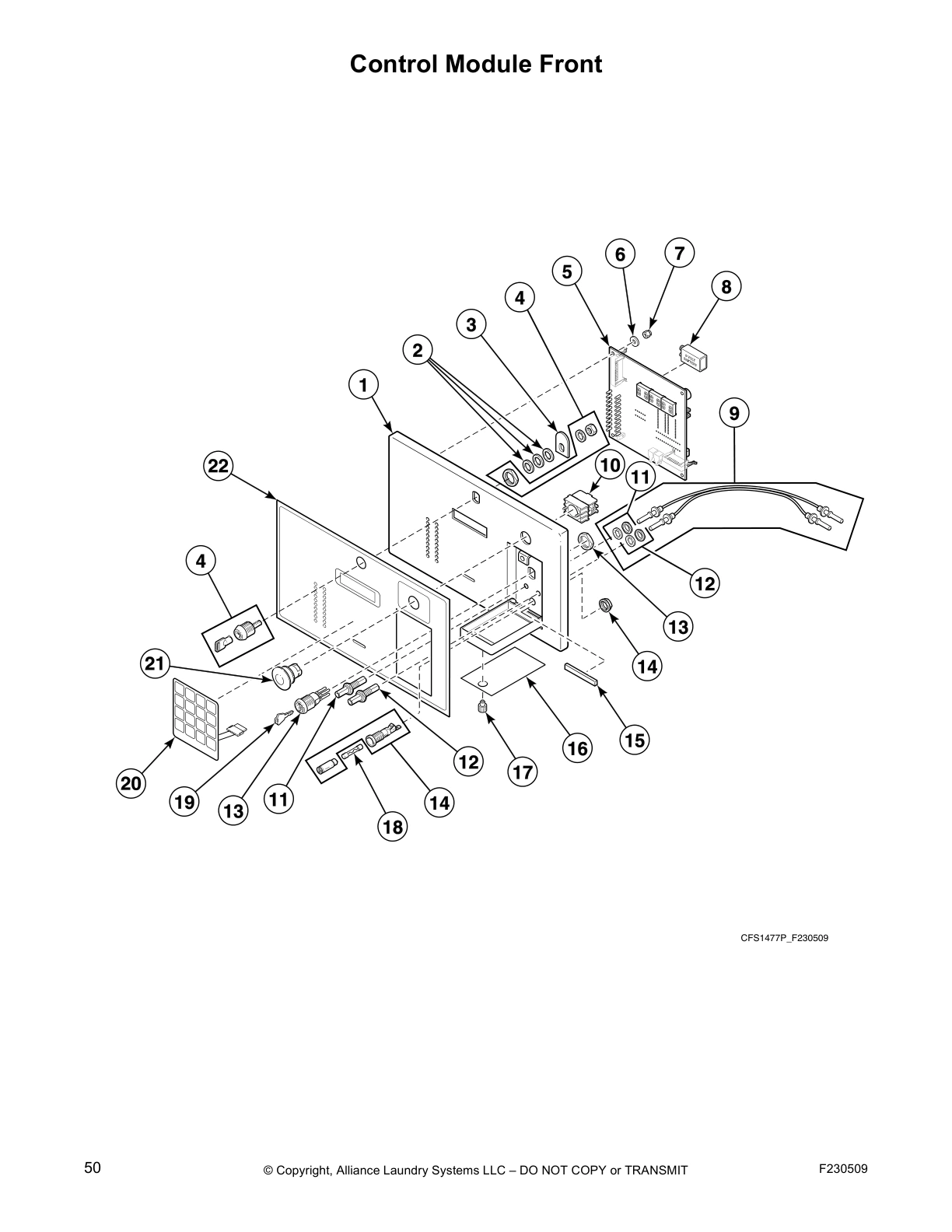

Control Module Front

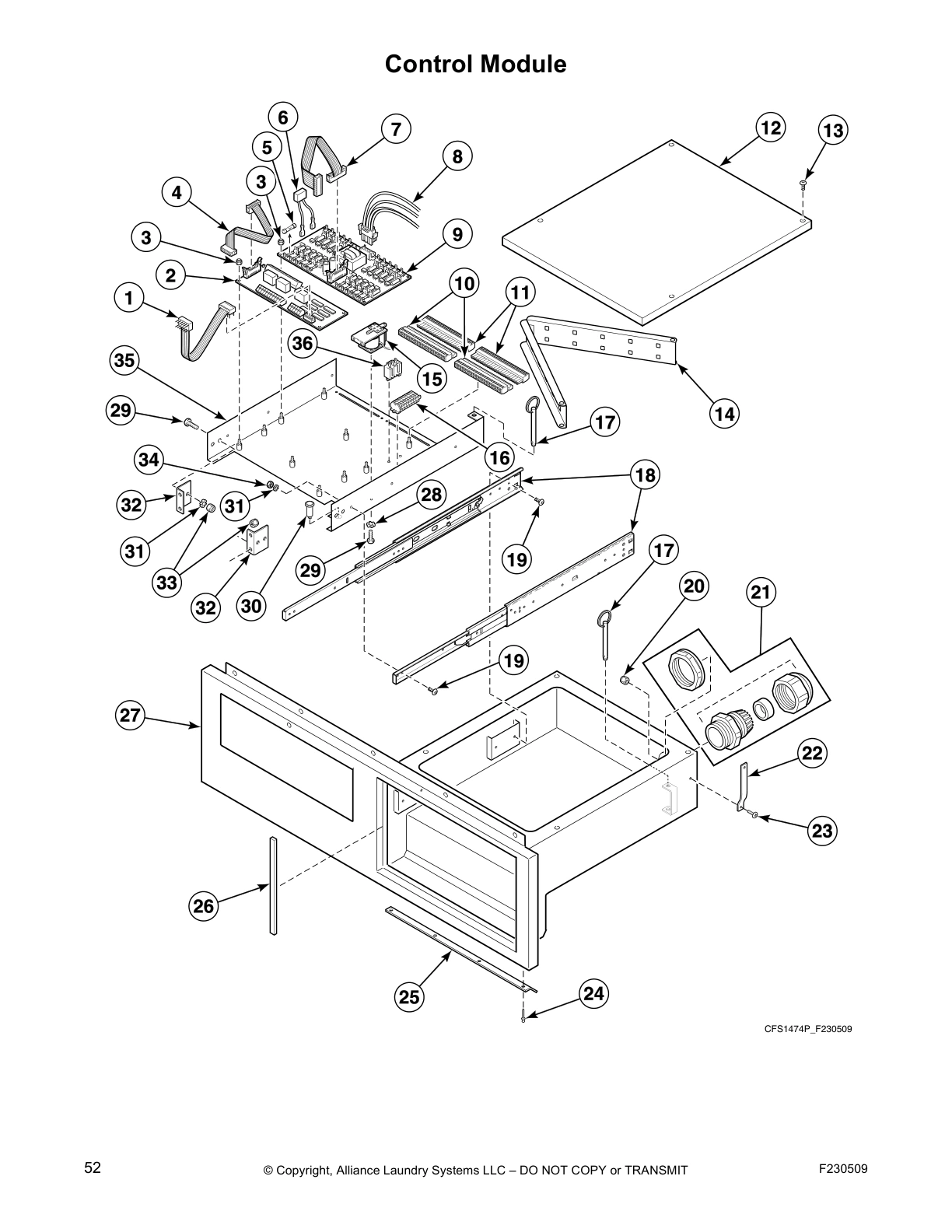

Control Module

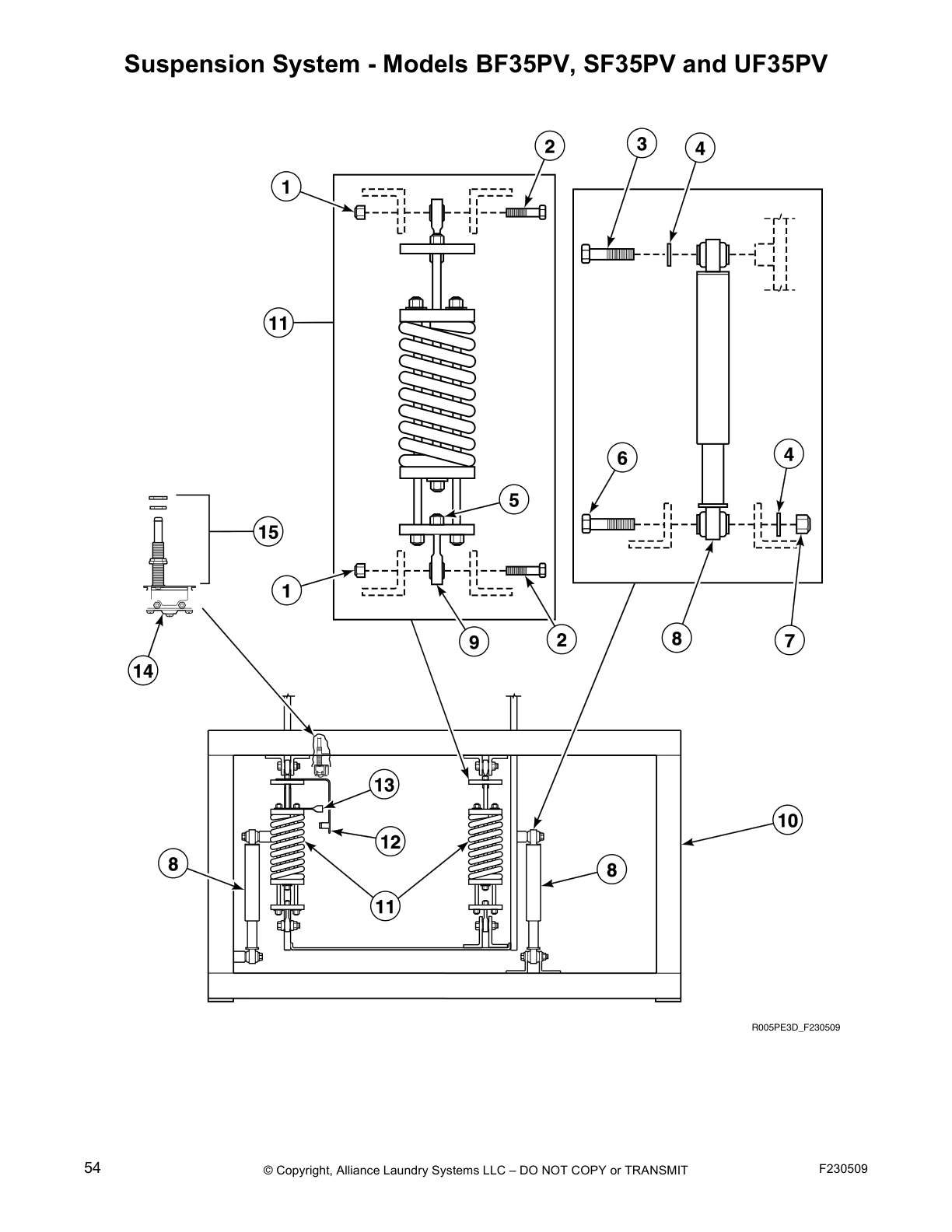

Suspension System - Models BF35PV, SF35PV and UF35PV

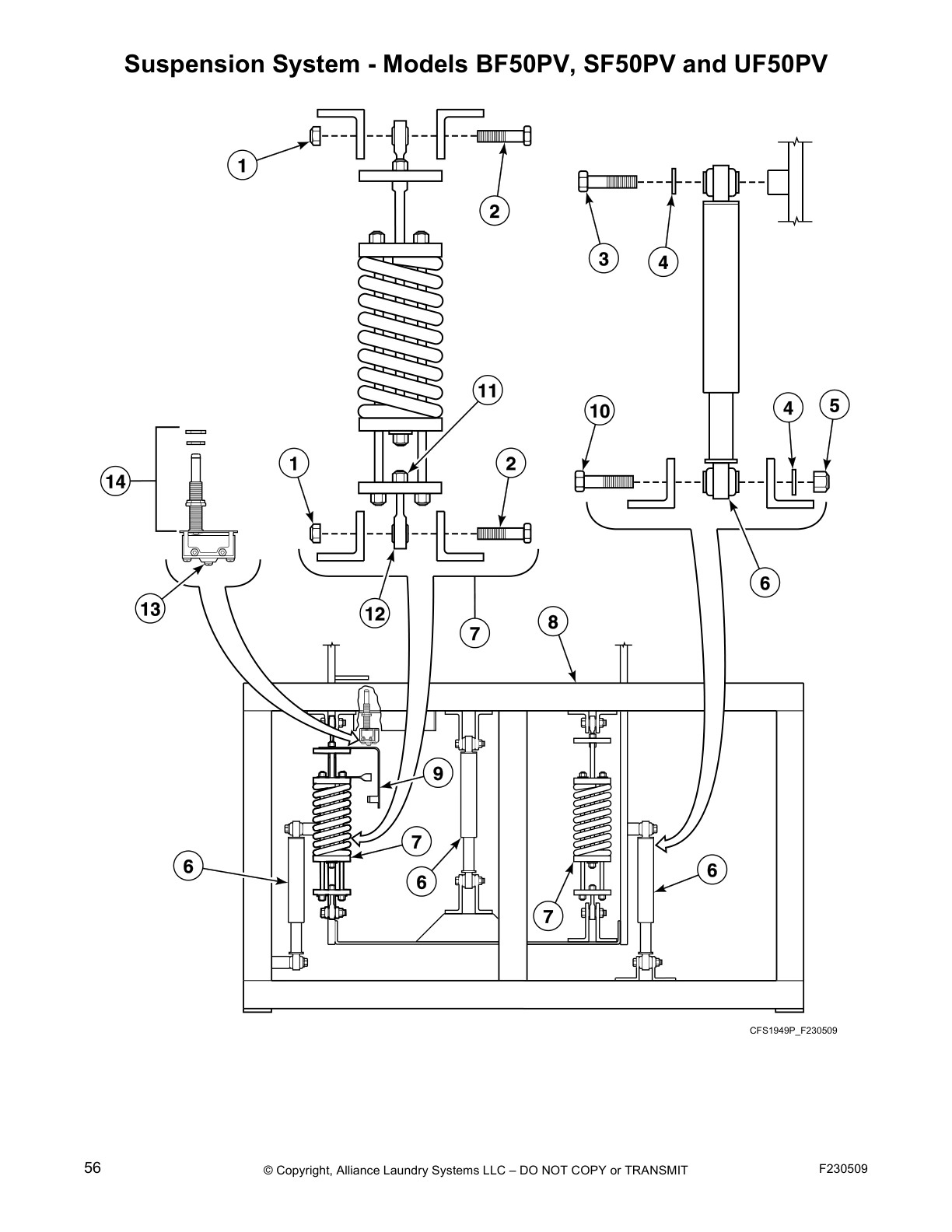

Suspension System - Models BF50PV, SF50PV and UF50PV

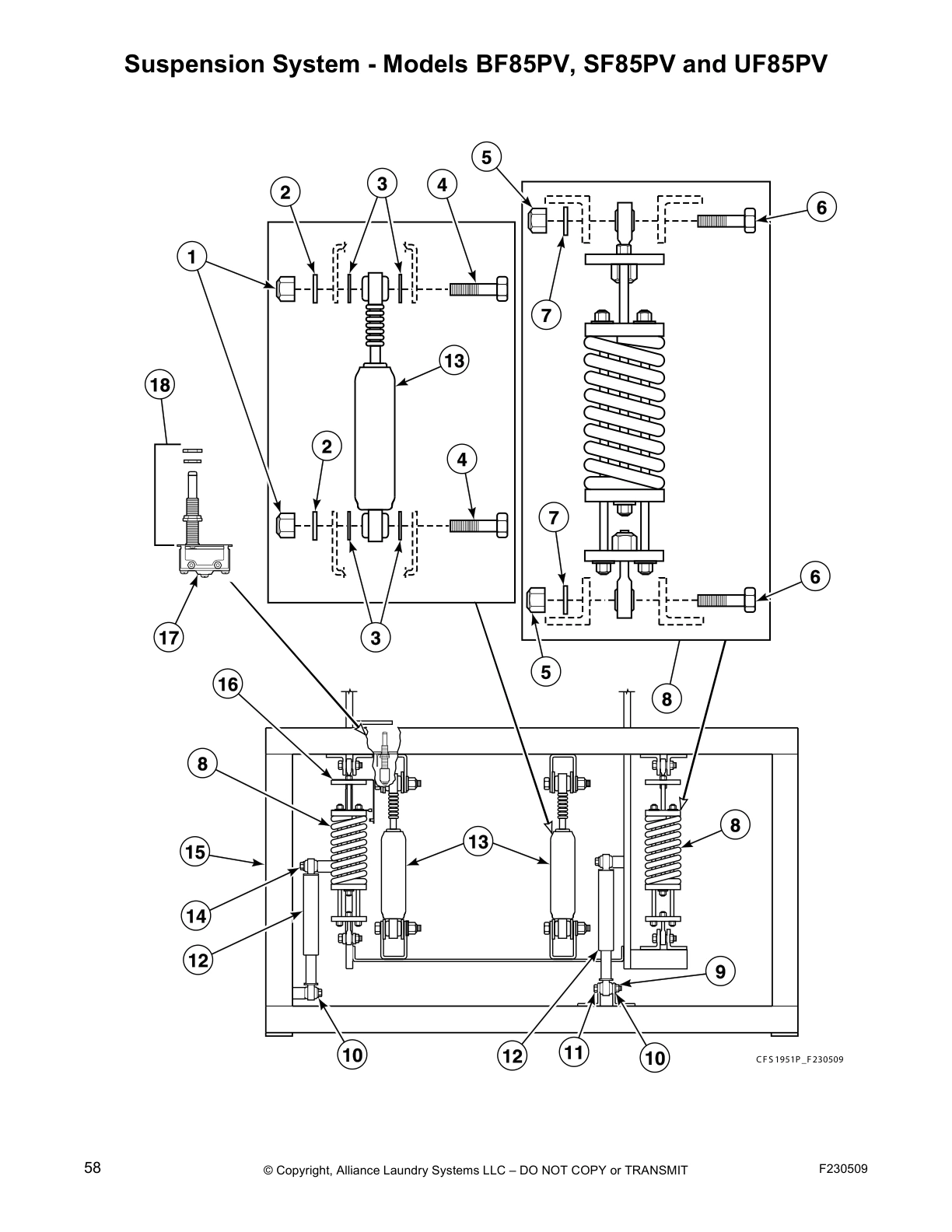

Suspension System - Models BF85PV, SF85PV and UF85PV

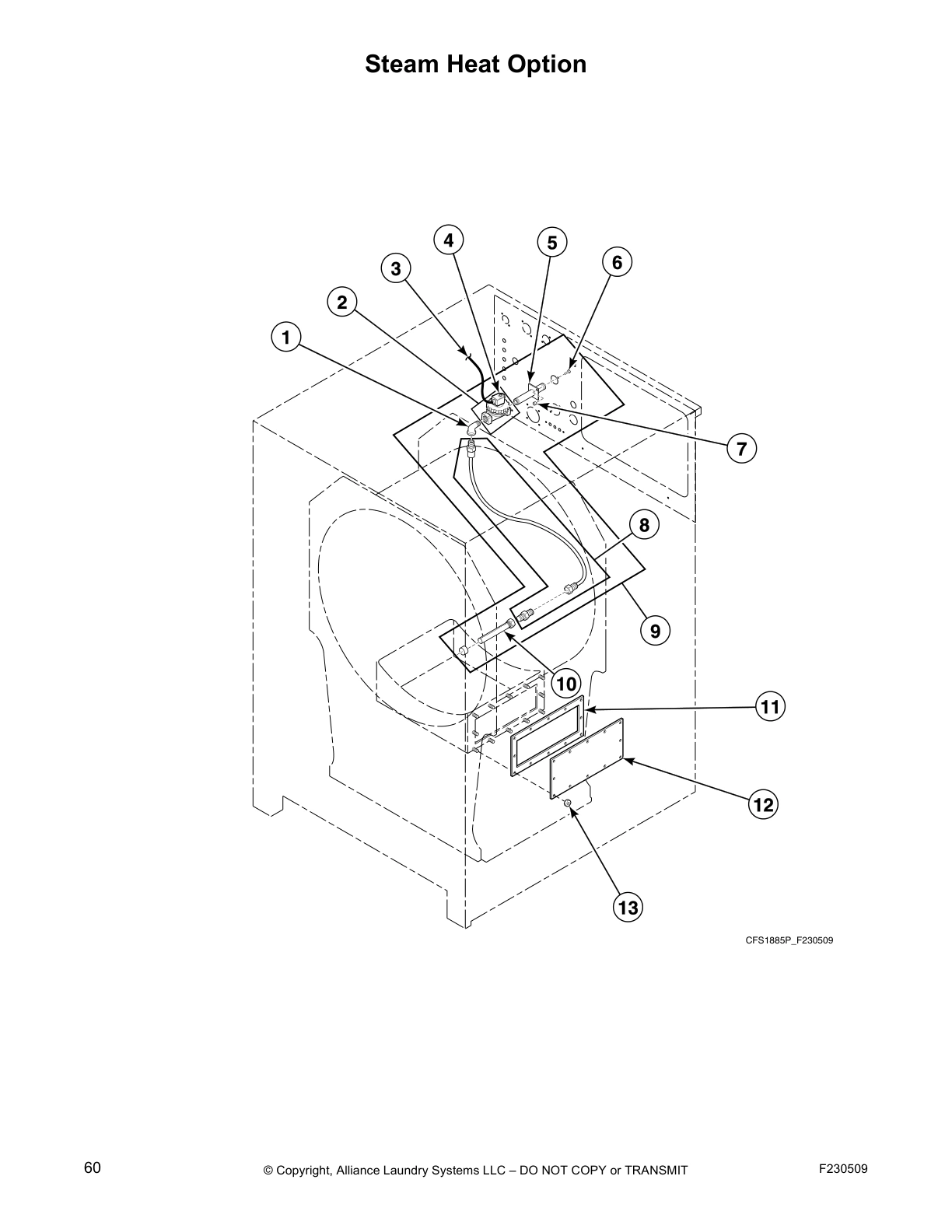

Steam Heat Option

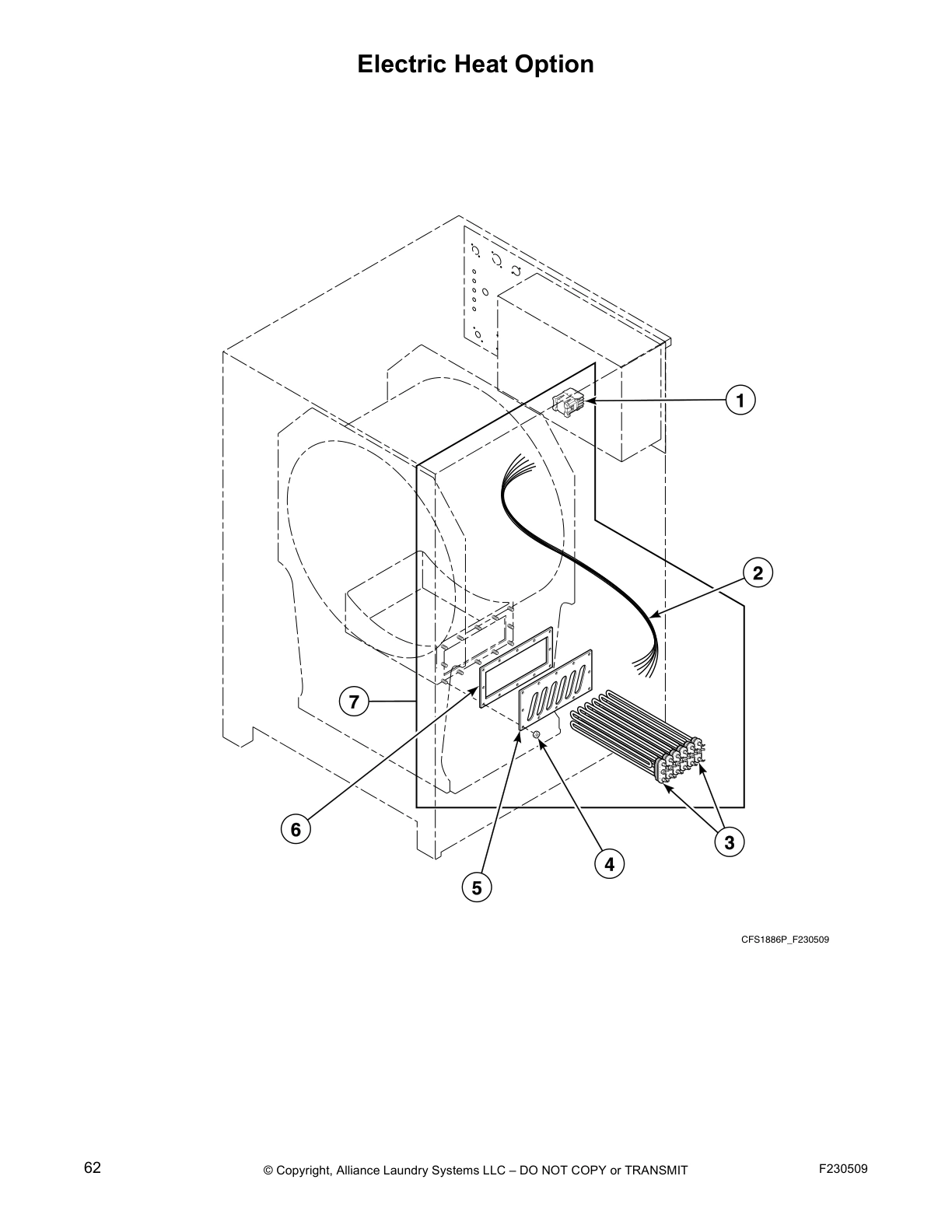

Electric Heat Option

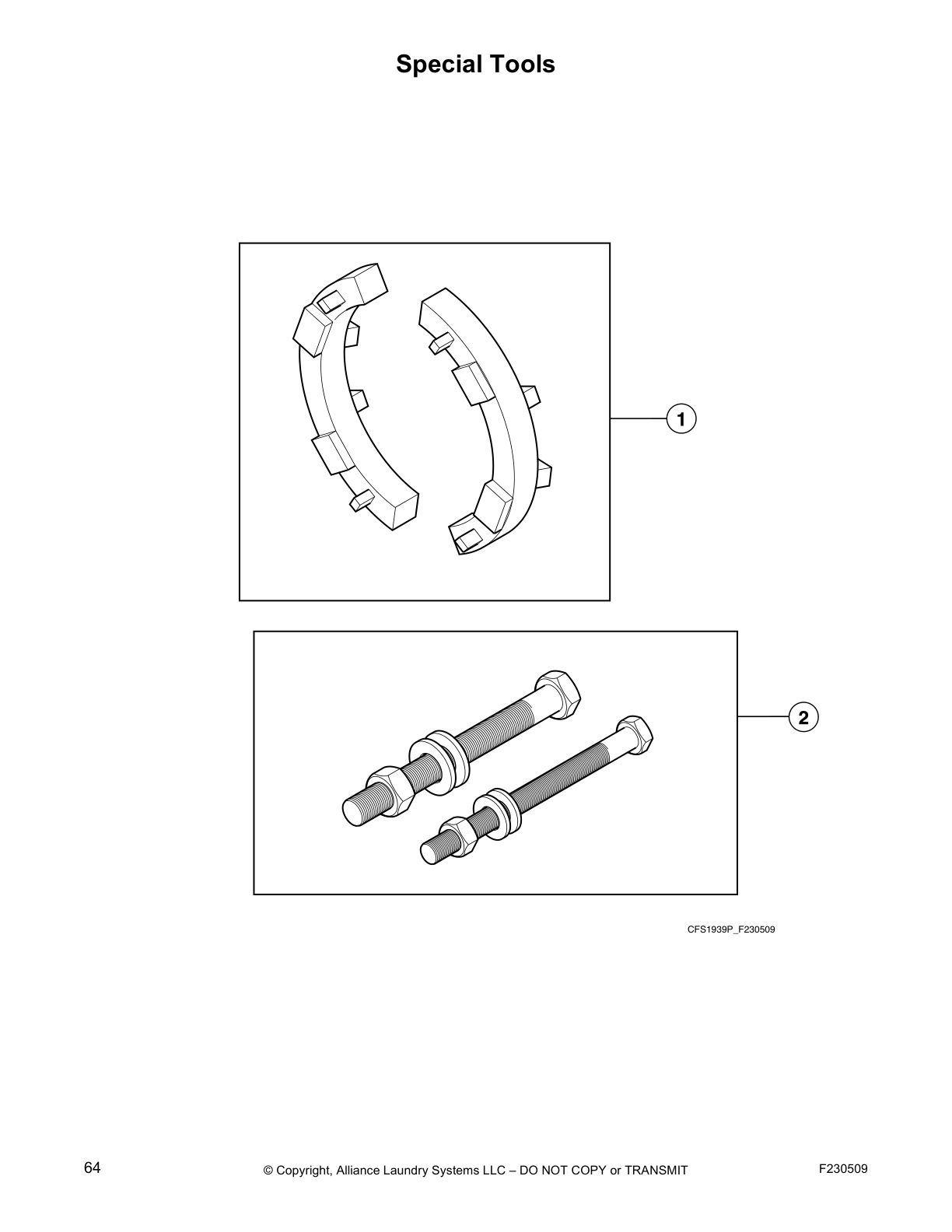

Special Tools
Common parts from model IPSO BF50PV Washer
SPQ F370843 SPQ F370843 Contact Us For Availability
160 to PowerFlex40 Drive Kit SPQ F8174504 Contact Us For Availability
SPQ F190202P SPQ F190202P Contact Us For Availability
SPQ F140219P SPQ F140219P Contact Us For Availability
1
Spring Pin SPQ F431222 Contact Us For Availability
1
Nut SPQ F430201 Contact Us For Availability
1
Bushing SPQ F280233P Contact Us For Availability
1
Inverter Drive SPQ F370853 Contact Us For Availability
1
1305 to PowerFlex40 Drive Kit SPQ F8174405 Contact Us For Availability
1
Supply Dispenser Weldment SPQ F606048-2 Contact Us For Availability
1
Door Handle SPQ F150225 Contact Us For Availability
1
Door Unlock Decal SPQ F230816 Contact Us For Availability
1
Module Face Weldment SPQ F631038 Contact Us For Availability
1
Ribbon Cable SPQ F140223P Contact Us For Availability
1
Street Elbow SPQ H86070034 Contact Us For Availability
1
Contactor SPQ F330187P Contact Us For Availability
1
Pulley Puller Weldment SPQ F608741 Contact Us For Availability
2
Washer SPQ F730387-1 Contact Us For Availability
2
SPQ F430325 SPQ F430325 Contact Us For Availability
2
Motor SPQ F220236P Contact Us For Availability
2
Gasket SPQ F170176 Contact Us For Availability
2
Supply Dispenser Latch SPQ F606324 Contact Us For Availability
2
Drain Hose SPQ F140645 Contact Us For Availability
2
Hinge Shim SPQ F140563 Contact Us For Availability
2
Keypad Decal SPQ F430317 Contact Us For Availability
2
Nut SPQ F190217 Contact Us For Availability
2
Shock Absorber SPQ F430144 Contact Us For Availability
2
Pulley Insertion Tool Kit SPQ F798004 Contact Us For Availability
3
Steam Valve Repair Kit SPQ F380984P Contact Us For Availability
3
Flange Relay SPQ F431113 Contact Us For Availability
3
Supply Dispenser Kit SPQ F150369 Contact Us For Availability
3
Injection Nozzle SPQ F8322909P Contact Us For Availability
3
SPQ F200213 SPQ F200213 Contact Us For Availability
3
SPQ F431907 SPQ F431907 Contact Us For Availability
3
Button Kit SPQ F340503P Contact Us For Availability
3
Lock Latch SPQ F200233500 Contact Us For Availability
3
Element SPQ F360205P Contact Us For Availability
4
SPQ F150390 SPQ F150390 Contact Us For Availability
4
3-Way Valve SPQ F200168P Contact Us For Availability
4
SPQ F430986 SPQ F430986 Contact Us For Availability
4
Lift-Off Hinge SPQ F110106 Contact Us For Availability
4
Strain Relief Connector SPQ F140782 Contact Us For Availability
4
Lid Lock SPQ F606295 Contact Us For Availability
4
Nut SPQ F431024 Contact Us For Availability
4
SPQ F200171 SPQ F200171 Contact Us For Availability
4
SPQ F633978 SPQ F633978 Contact Us For Availability
4
Terminal SPQ F8069602 Contact Us For Availability
4
SPQ F630251 SPQ F630251 Contact Us For Availability
4
DIN Valve Kit SPQ F8521601 Contact Us For Availability
5
SPQ F631454 SPQ F631454 Contact Us For Availability
5
Motor Spacer SPQ F432288 Contact Us For Availability
5
SPQ F430939 SPQ F430939 Contact Us For Availability
5
WE-6 Computer SPQ F190802P Contact Us For Availability
5
SPQ F431131 SPQ F431131 Contact Us For Availability
5
SPQ F200199P SPQ F200199P Contact Us For Availability
5
SPQ F602794-1 SPQ F602794-1 Contact Us For Availability
5
SPQ F280253 SPQ F280253 Contact Us For Availability
5
Door Lock Shim SPQ F8069902P Contact Us For Availability
5
SPQ F330227 SPQ F330227 Contact Us For Availability
5
Cable SPQ F140227 Contact Us For Availability
5
Element Plate SPQ F631702 Contact Us For Availability
6
SPQ F430174 SPQ F430174 Contact Us For Availability
6
Screw SPQ F430947 Contact Us For Availability
6
Belt SPQ F150245 Contact Us For Availability
6
SPQ F381725P SPQ F381725P Contact Us For Availability
6
SPQ F200172 SPQ F200172 Contact Us For Availability
6
Nut SPQ F370534-20P Contact Us For Availability
6
SPQ F140218P SPQ F140218P Contact Us For Availability
6
DIN Coil SPQ F380986P Contact Us For Availability
6
Sump Gasket SPQ F170178 Contact Us For Availability
7
SPQ F430179 SPQ F430179 Contact Us For Availability
7
Pulley Cover Plate SPQ F280363 Contact Us For Availability
7
SPQ F631741 SPQ F631741 Contact Us For Availability
7
SPQ F200175 SPQ F200175 Contact Us For Availability
7
Switch Magnet SPQ F140766 Contact Us For Availability
7
SPQ F350110 SPQ F350110 Contact Us For Availability
7
Out-of-Balance Optical Sensor Kit SPQ F790211 Contact Us For Availability
7
Steam Connection Weldment SPQ F606575 Contact Us For Availability
8
Screw SPQ F430925 Contact Us For Availability
8
V-Ring Seal SPQ F100245P Contact Us For Availability
8
Pulley Key SPQ F605985F Contact Us For Availability
8
SPQ F360125P SPQ F360125P Contact Us For Availability
8
SPQ F190209P SPQ F190209P Contact Us For Availability
8
SPQ F606563 SPQ F606563 Contact Us For Availability
8
SPQ F350109 SPQ F350109 Contact Us For Availability
8
SPQ F790507 SPQ F790507 Contact Us For Availability
9
Nut SPQ F430215 Contact Us For Availability
9
SPQ F430812 SPQ F430812 Contact Us For Availability
9
Shaft Sleeve SPQ F100243P Contact Us For Availability
9
SPQ F432231 SPQ F432231 Contact Us For Availability
9
SPQ F609664 SPQ F609664 Contact Us For Availability
9
SPQ F422517 SPQ F422517 Contact Us For Availability
9
SPQ F100145 SPQ F100145 Contact Us For Availability
9
SPQ F310133 SPQ F310133 Contact Us For Availability
9
SPQ F191101 SPQ F191101 Contact Us For Availability
9
SPQ F350108 SPQ F350108 Contact Us For Availability
9
SPQ F430228 SPQ F430228 Contact Us For Availability
9
SPQ F790506 SPQ F790506 Contact Us For Availability
10
Screw SPQ F430916 Contact Us For Availability
10
Idler Arm SPQ F430183 Contact Us For Availability
10
Strain Relief Connector SPQ F140331 Contact Us For Availability
10
Ground Decal SPQ F230630 Contact Us For Availability
10
Supply Dispenser Assembly SPQ F606048 Contact Us For Availability
10
Water Connection Inlet Manifold SPQ F150247 Contact Us For Availability
10
Pivot Lock Weldment SPQ F608536 Contact Us For Availability
10
Door Weldment SPQ F633843 Contact Us For Availability
10
Door Lock Cam SPQ F0150518-00 Contact Us For Availability
10
Contact Block Switch SPQ F200299500 Contact Us For Availability
10
12 Circuit Connector SPQ F141003 Contact Us For Availability
10
Washer SPQ F430332 Contact Us For Availability
10
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
11
Rear Cover SPQ F631695P Contact Us For Availability
11
Hose Clamp SPQ F200215 Contact Us For Availability
11
Pulley SPQ F280275 Contact Us For Availability
11
Ground Terminal Lug SPQ F231434 Contact Us For Availability
11
Washer SPQ F431125 Contact Us For Availability
11
Electric Box Cover SPQ F631705 Contact Us For Availability
11
Screw SPQ F150246 Contact Us For Availability
11
Bushing SPQ F280252 Contact Us For Availability
11
Screw SPQ F430921 Contact Us For Availability
11
Connector SPQ F140575P Contact Us For Availability
11
24 Circuit Connector SPQ F140622 Contact Us For Availability
11
Rod End Bearing SPQ F430241 Contact Us For Availability
11
Screw SPQ F430146 Contact Us For Availability
12
Filter Retainer Guard SPQ F220900 Contact Us For Availability
12
Side Panel Kit SPQ F605912 Contact Us For Availability
12
Idler Bushing Kit SPQ F280415 Contact Us For Availability
12
Terminal Block SPQ F140734 Contact Us For Availability
12
Screw SPQ F432229 Contact Us For Availability
12
Vent Hose SPQ F200170 Contact Us For Availability
12
Screw SPQ F430923 Contact Us For Availability
12
Door Lock Bracket Weldment SPQ F8209801 Contact Us For Availability
12
Keymode Run/Program Switch SPQ F140576P Contact Us For Availability
12
Electrical Box Cover SPQ F141002 Contact Us For Availability
12
Shock Absorber SPQ F250500 Contact Us For Availability
12
Switch SPQ F100140 Contact Us For Availability
12
Heating Element Plug SPQ F360202 Contact Us For Availability
13
Fuse Holder SPQ M413865 Contact Us For Availability
13
Filter SPQ F200318900P Contact Us For Availability
13
Nut SPQ F730399 Contact Us For Availability
13
Trunnion Kit SPQ F280414P Contact Us For Availability
13
Cap Plug SPQ F180502 Contact Us For Availability
13
Fill Hose SPQ F200173 Contact Us For Availability
13
Cap Plug SPQ F190308 Contact Us For Availability
13
Spring SPQ F310107 Contact Us For Availability
13
Fuse Holder SPQ F340800P Contact Us For Availability
13
Screw SPQ F140623 Contact Us For Availability
13
Standard Plate SPQ F631726 Contact Us For Availability
14
Lift-Off Hinge SPQ F190205P Contact Us For Availability
14
Screw SPQ F200217 Contact Us For Availability
14
Overflow Hose SPQ F150377 Contact Us For Availability
14
Intermittent Duty Solenoid SPQ F300122P Contact Us For Availability
14
Sponge Rubber SPQ F350304P Contact Us For Availability
14
Out-of-Balance Optical Sensor Kit SPQ F430148 Contact Us For Availability
15
Shell Front Weldment SPQ F170124 Contact Us For Availability
15
End Anchor SPQ F0350312-10 Contact Us For Availability
15
Vacuum Breaker Weldment SPQ F180485 Contact Us For Availability
15
Key SPQ F160562 Contact Us For Availability
15
Gasket Cover SPQ F431005 Contact Us For Availability
15
Drain Support Bracket SPQ F606647 Contact Us For Availability
15
Buzzer SPQ F606543 Contact Us For Availability
16
Washer SPQ F431100 Contact Us For Availability
16
Cap Plug SPQ F330530 Contact Us For Availability
16
Terminal SPQ F8535601 Contact Us For Availability
16
Strain Relief Connector SPQ F140329 Contact Us For Availability
16
Shell Front Cover SPQ F8485401P Contact Us For Availability
16
Door Lock Kit SPQ F730478 Contact Us For Availability
16
Screw SPQ F230785 Contact Us For Availability
16
Switch SPQ F730438 Contact Us For Availability
17
Rocker Plug SPQ F180486 Contact Us For Availability
17
Supply Dispenser Cover Weldment SPQ F606323 Contact Us For Availability
17
Water Hose SPQ F606031 Contact Us For Availability
17
Drain Valve SPQ F430103 Contact Us For Availability
17
Cap Plug SPQ F631651P Contact Us For Availability
17
Contact Block and Mounting Switch SPQ F340444 Contact Us For Availability
17
Fuse SPQ F430525 Contact Us For Availability
17
Ring-Grip Pin SPQ F300203P Contact Us For Availability
18
Drain Motor Cover SPQ F8406304 Contact Us For Availability
18
Top Cover SPQ F150352 Contact Us For Availability
18
External Supply Caution Decal SPQ F350202P Contact Us For Availability
18
Dispenser Support Bracket SPQ F606804 Contact Us For Availability
18
Injection Nozzle SPQ F180507 Contact Us For Availability
18
Screw SPQ F190309 Contact Us For Availability
18
Washer SPQ F431106 Contact Us For Availability
18
Program Key SPQ F350104 Contact Us For Availability
18
Ball Bearing Set Slide SPQ F140779 Contact Us For Availability
18
SPQ F340913 SPQ F340913 Contact Us For Availability
19
Washer SPQ F370709 Contact Us For Availability
19
Rear Panel SPQ F150443 Contact Us For Availability
19
Injection Nozzle Kit SPQ F430909 Contact Us For Availability
19
1-Way Valve SPQ F200128P Contact Us For Availability
19
Cable Clamp SPQ F380946 Contact Us For Availability
19
Plug SPQ F432285 Contact Us For Availability
19
Hinge Shim SPQ F606539P Contact Us For Availability
19
Nut SPQ F430995 Contact Us For Availability
19
WE-6 Interface CCA Kit SPQ F430407 Contact Us For Availability
20
Tubing SPQ F730168 Contact Us For Availability
20
External Supply Connection Decal SPQ C000302P Contact Us For Availability
20
Supply Dispenser Cup SPQ F609663 Contact Us For Availability
20
3-Way Valve SPQ F180505 Contact Us For Availability
20
Tee SPQ F200169 Contact Us For Availability
20
Nut SPQ F631662 Contact Us For Availability
20
Door Lock Cover Weldment SPQ F170404 Contact Us For Availability
20
Emergency Stop Button Kit SPQ F230724P Contact Us For Availability
20
Strain Relief Connector SPQ F430920 Contact Us For Availability
21
RC Network Filter SPQ F231345-4 Contact Us For Availability
21
Siphon Tube SPQ F431000 Contact Us For Availability
21
Washer SPQ F380763P Contact Us For Availability
21
Tubing SPQ F422806 Contact Us For Availability
21
Hall Effect Sensor Switch SPQ F8071203 Contact Us For Availability
21
Emergency Stop Pushbutton SPQ F200233700P Contact Us For Availability
21
Rivet SPQ F0370446-21P Contact Us For Availability
22
SPQ F430232 SPQ F430232 Contact Us For Availability
22
Injection Nozzle SPQ F606612 Contact Us For Availability
22
Air Trap Hose SPQ F422404P Contact Us For Availability
22
Hinge Pin SPQ F431933 Contact Us For Availability
22
Momentary Pushbutton SPQ F430985 Contact Us For Availability
23
Plug SPQ F230764-6 Contact Us For Availability
23
Injection Nozzle Kit SPQ F606607 Contact Us For Availability
23
Temperature Probe SPQ F020014200 Contact Us For Availability
23
Bearing Sleeve SPQ F431934 Contact Us For Availability
23
Bushing SPQ F0150281-00 Contact Us For Availability
24
O-Ring SPQ F150368 Contact Us For Availability
24
Reducer Bushing SPQ F200222 Contact Us For Availability
24
Front Panel Weldment SPQ F140341 Contact Us For Availability
25
Plug Hose SPQ F370606P Contact Us For Availability
26
Supply Hose SPQ F421936 Contact Us For Availability
26
Door Hinge Weldment SPQ F0150282-00 Contact Us For Availability
27
Door Support Bracket Weldment SPQ F431001 Contact Us For Availability
27
Supply Hose SPQ F150356 Contact Us For Availability
27
Spring Pin SPQ F431047 Contact Us For Availability
27
Light SPQ F432222 Contact Us For Availability
28
Vent Nipple SPQ F607461 Contact Us For Availability
28
Door Hinge Weldment SPQ F432306 Contact Us For Availability
28
Module Face Bracket SPQ F170128 Contact Us For Availability
29
Door Lock Pivot Kit SPQ F280293 Contact Us For Availability
29
Electrical Panel Weldment SPQ F608396 Contact Us For Availability
30
Fuse SPQ F430928 Contact Us For Availability
30
Follower Cam SPQ F633746 Contact Us For Availability
31
RC Network Filter SPQ F430231 Contact Us For Availability
31
SPQ F431142 SPQ F431142 Contact Us For Availability
32
SPQ F431143 SPQ F431143 Contact Us For Availability
32
Jumper Kit SPQ F350412 Contact Us For Availability
33
Output CCA SPQ F431108 Contact Us For Availability
33
SPQ F746503 SPQ F746503 Contact Us For Availability
33
Pivot Lock Weldment SPQ F631670 Contact Us For Availability
34
SPQ F606309 SPQ F606309 Contact Us For Availability
35
SPQ F746007-02P SPQ F746007-02P Contact Us For Availability
35
SPQ F431017 SPQ F431017 Contact Us For Availability
NI
Basket Assembly SPQ F400375 Contact Us For Availability
NI
SPQ F605822 SPQ F605822 Contact Us For Availability
NI
Motor SPQ F220434P Contact Us For Availability
NI
SPQ F220214UP SPQ F220214UP Contact Us For Availability
NI
Inverter Drive SPQ F370844 Contact Us For Availability
NI
SPQ F370818 SPQ F370818 Contact Us For Availability
NI
160 to PowerFlex40 Drive Kit SPQ F8174404 Contact Us For Availability
NI
SPQ F8174503 SPQ F8174503 Contact Us For Availability
NI
SPQ F330217P SPQ F330217P Contact Us For Availability
NI
SPQ F140526 SPQ F140526 Contact Us For Availability
NI
SPQ F140224 SPQ F140224 Contact Us For Availability
NI
SPQ F431105 SPQ F431105 Contact Us For Availability
NI
SPQ F749003 SPQ F749003 Contact Us For Availability
NI
SPQ F340502P SPQ F340502P Contact Us For Availability
NI
SPQ F606682 SPQ F606682 Contact Us For Availability
NI
SPQ F784003P SPQ F784003P Contact Us For Availability
NI
SPQ F0370444-10P SPQ F0370444-10P Contact Us For Availability
NI
SPQ F605911 SPQ F605911 Contact Us For Availability
NI
Steam Hose SPQ F200154 Contact Us For Availability
NI
Steam Heat Kit SPQ F730548 Contact Us For Availability
× ![]()
