Model GE BEH50DCEJSBA Hybrid Water Heater – Common Parts & Diagrams

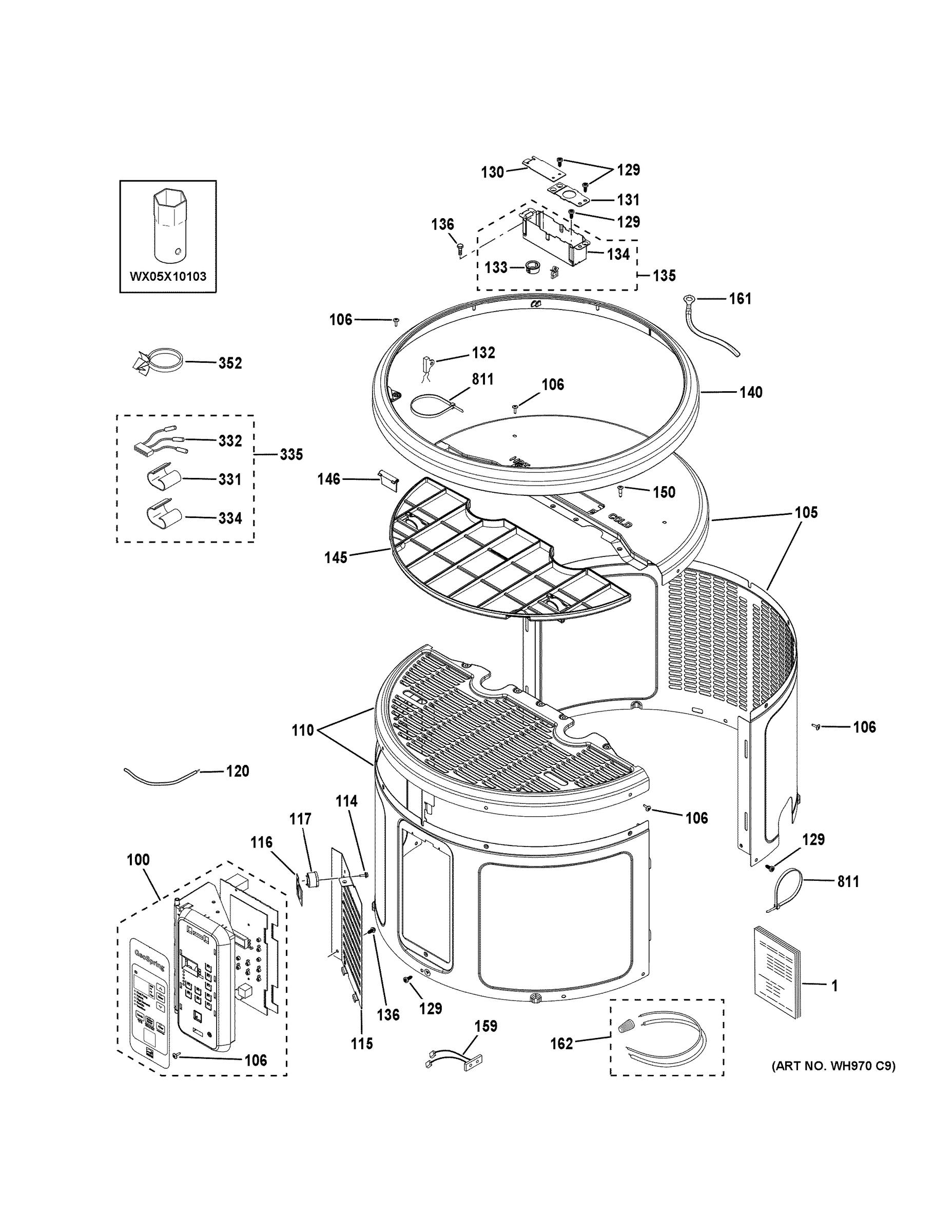

CONTROL PANEL & SHROUD

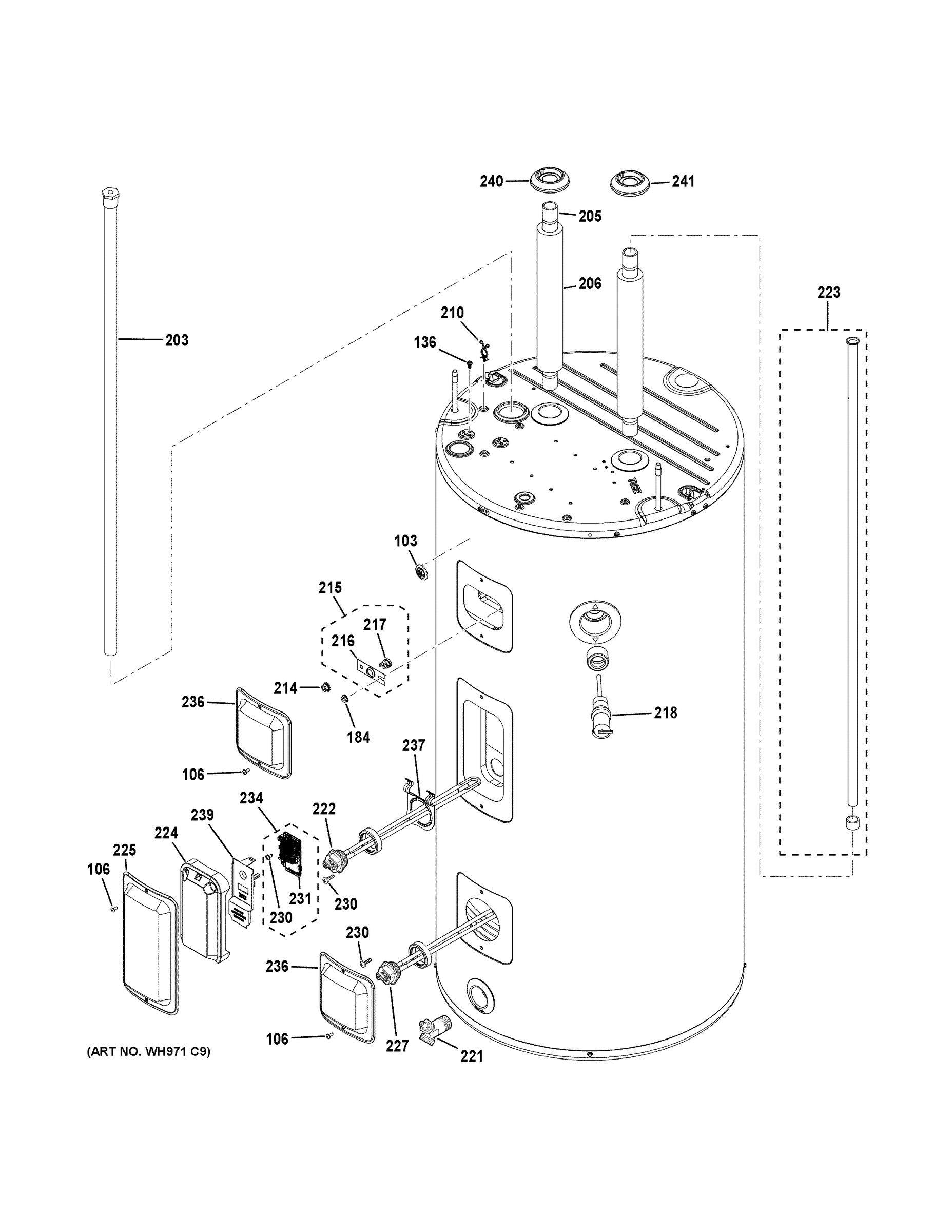

BODY PARTS
UNIT PARTS
Common parts from model GE BEH50DCEJSBA Hybrid Water Heater
102
CAPACITOR RUN GEN WS19X21121 Contact Us For Availability
103
BADGE ASM GE GEN WS34X10030 Contact Us For Availability
106
SCR 8-18 B PNT7/16 S RED GEN WS02X10083 Contact Us For Availability
116
BRKT OVERLOAD GEN WS28X10075 Contact Us For Availability
120
WIRE (E-D) YELLOW GEN WS19X10033 Contact Us For Availability
130
COVER ACCESS J- BOX GEN WS01X20382 Contact Us For Availability
131
COVER FIXED J- BOX GEN WS01X20383 Contact Us For Availability
132
SENSOR T5 GEN WS17X21223 Contact Us For Availability
133
GROMMET DC (J-BOX) GEN WS02X10072 Contact Us For Availability
134
CAVITY JUNCTION BOX GEN WS01X20381 Contact Us For Availability
135
JUNCTION BOX ASM GEN WS35X10073 Contact Us For Availability
140
TRIM RING GEN WS31X10061 Contact Us For Availability
145
FILTER AIR GEN WS31X10058 Contact Us For Availability
146
COVER AIR FILTER SNAP GEN WS01X10053 Contact Us For Availability
150
SCR 8-18 B PNT 3/4 S RED GEN WS02X10084 Contact Us For Availability
159
WIRE T2 KIT GEN WS19X21002 Contact Us For Availability
161
GROUND WIRE TO J-BOX GEN WS19X10038 Contact Us For Availability
162
WIRE L1-L2 REPAIR KIT GEN WS19X10039 Contact Us For Availability
184
NUT LOCK 10-32 GEN WS02X21225 Contact Us For Availability
203
ROD ANODE GEN WS02X20941 Contact Us For Availability
205
WATER EXTENSION PIPE GEN WS07X20401 Contact Us For Availability
214
1/4-20 HEX NUT - LOCKING GEN WS02X10075 Contact Us For Availability
215
THERMISTOR T2 ASM GEN WS17X20586 Contact Us For Availability
216
BRACKET THERMISTOR T2 GEN WS28X20587 Contact Us For Availability
217
TANK THERMISTOR T2 GEN WS17X10006 Contact Us For Availability
218
VALVE, TEMP/PRESSURE REL GEN WS06X10014 Contact Us For Availability
221
VALVE DRAIN STRAIGHT GEN WS06X20402 Contact Us For Availability
222
ELEMENT HEATING W GASKET GEN WS51X10002 Contact Us For Availability
223
DIPTUBE ASM GEN WS08X20361 Contact Us For Availability
224
COVER ELMNT (UPPER) EPS GEN WS82X10006 Contact Us For Availability
225
COVER ELMNT METAL U. RED GEN WS31X10055 Contact Us For Availability
227
ELEMENT HEATING W GASKET GEN WS51X20588 Contact Us For Availability
231
TCO (THERMAL CUT OUT) GEN WS17X10009 Contact Us For Availability
234
TCO DLB AND SCREWS GEN WS17X10012 Contact Us For Availability
236
COVER ELMNT METAL L. RED GEN WS31X10056 Contact Us For Availability
239
BARRIER DIELECTRIC GEN WS34X10026 Contact Us For Availability
240
GROMMET OUTLET, RED GEN WS01X10050 Contact Us For Availability
241
GROMMET INLET, BLUE GEN WS01X10051 Contact Us For Availability
300
COMPRESSOR KIT GEN WS35X21301 Contact Us For Availability
302
WASHER FLAT GEN WS02X20445 Contact Us For Availability
303
NUT 5/16-18 HEX GEN WS02X20444 Contact Us For Availability
306
COVER TERMINAL GEN WS31X20404 Contact Us For Availability
313
SERVICE KIT DRAIN PAN GEN WS35X20681 Contact Us For Availability
315
SCR 10-32 HXW 2 1/2 S GEN WS02X10085 Contact Us For Availability
326
OVERLOAD COMP GEN WS08X20405 Contact Us For Availability
339
CONDENSATE OVERFLOW KIT GEN WS35X20622 Contact Us For Availability
340
EEV COIL KIT GEN WS35X21241 Contact Us For Availability
341
EEV VALVE KIT GEN WS35X20590 Contact Us For Availability
348
WIRE (G-B) GRD COMPRESSO GEN WS19X10034 Contact Us For Availability
350
FAN MOTOR EC GEN WS26X20393 Contact Us For Availability
352
TIE WIRE (BLK) GEN WS01X21224 Contact Us For Availability
362
SEAL FOAM EVAP GEN WS16X10002 Contact Us For Availability
367
SCR 8-32 GX IHX 3/8 SCA GEN WR01X10757 Contact Us For Availability
380
EVAPORATOR KIT GEN WS35X20621 Contact Us For Availability
390
TUBE EVAP IN GEN WS07X20593 Contact Us For Availability
× ![]()
