Model Whirlpool BEA30AZAIM0 STAND MIXER – Common Parts & Diagrams

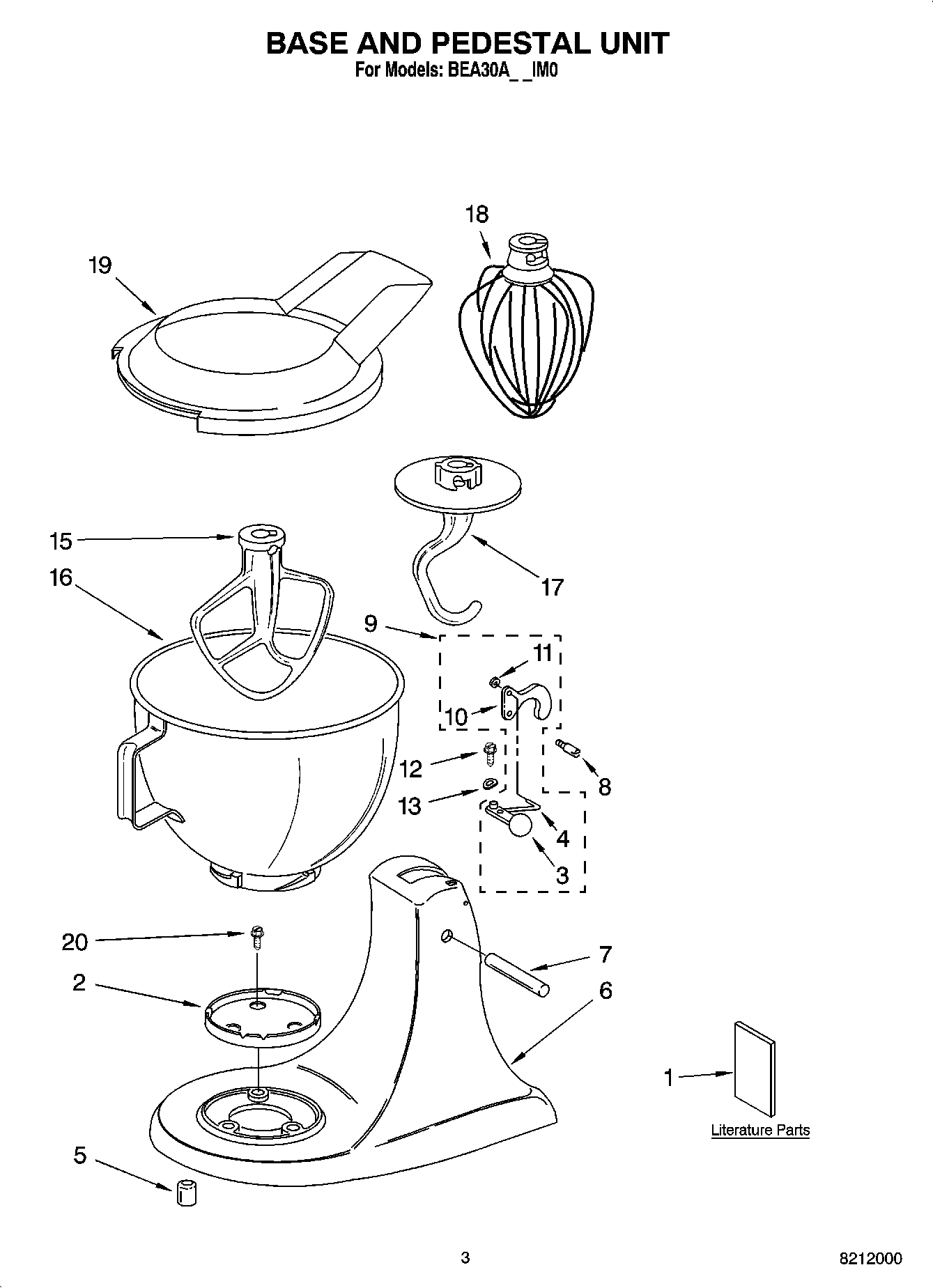

02 - BASE AND PEDESTAL UNIT

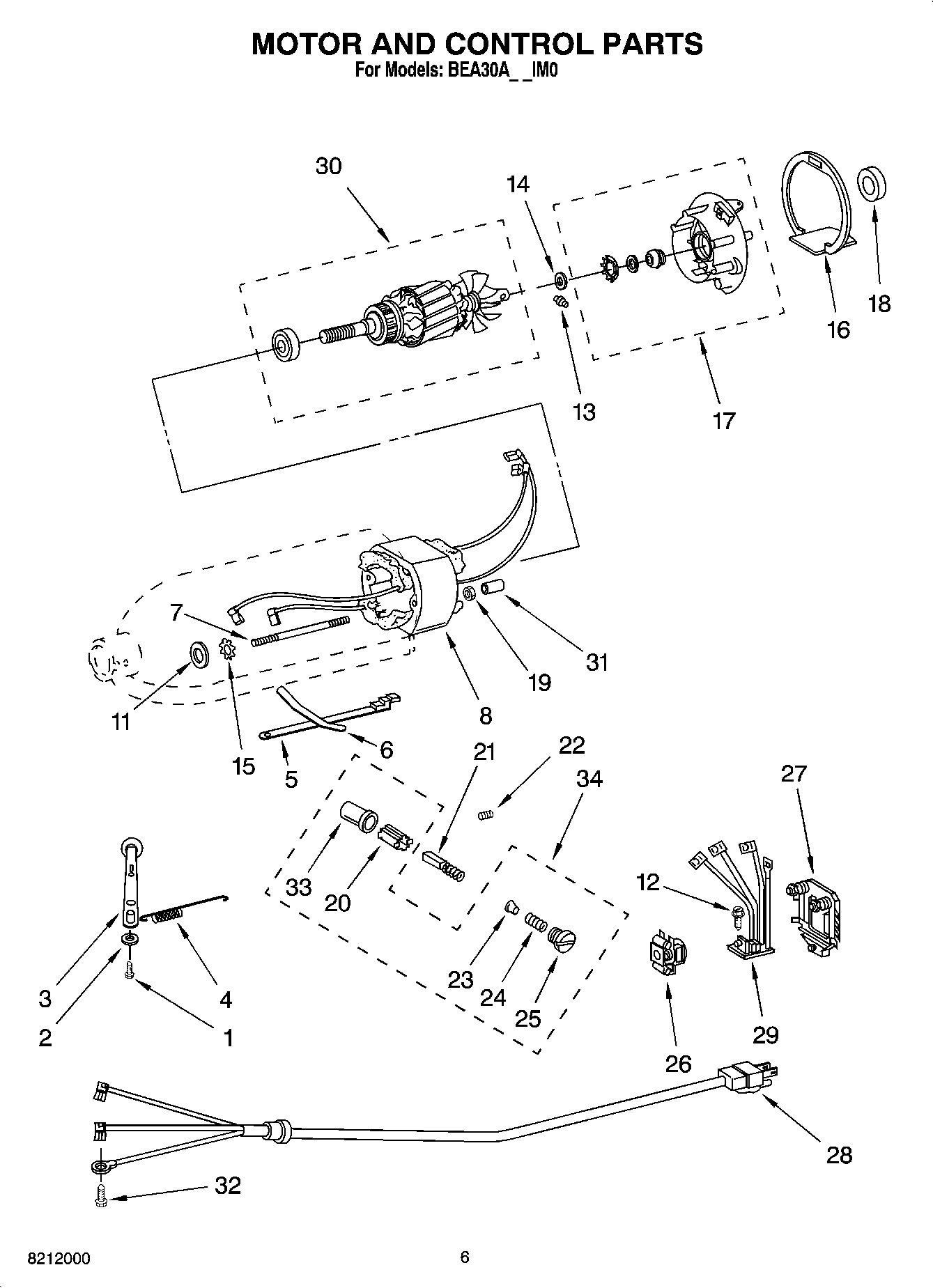

04 - MOTOR AND CONTROL PARTS, ACCESSORY PARTS
03 - CASE, GEARING AND PLANETARY UNIT
01 - COLOR VARIATION PARTS
Common parts from model Whirlpool BEA30AZAIM0 STAND MIXER
1
Gearcase Motor Housing (Includes Illus 2) WPL ARI20754A3 Contact Us For Availability
1
Motor Housing (Onyx Black) WPL 24029113 Contact Us For Availability
1
Motor Housing (Chrome) WPL 24029119 Contact Us For Availability
1
Motor Housing (Empire Red) WPL 24029121 Contact Us For Availability
1
Motor Housing (Cobalt Blue) WPL 2402917 Contact Us For Availability
2
Ring, Attachment Hub WPL 4159709 Contact Us For Availability
2
Trim Band WPL 9706004 Contact Us For Availability
3
Cap, Attachment Hub (Chrome) WPL 2427652 Contact Us For Availability
3
Planetary (Blue) WPL 24028610 Contact Us For Availability
3
PLANETARY-Onyx Black WPL 24028616 Contact Us For Availability
3
Planetary-Chrome WPL 24028621 Contact Us For Availability
3
Planetary (Red) WPL 24028623 Contact Us For Availability
4
END COVER (ONYX BLACK) WPL 24025314 Contact Us For Availability
4
End Cover-Chrome WPL 24025320 Contact Us For Availability
4
End Cover (Red) WPL 24025322 Contact Us For Availability
4
End Cover (Blue) WPL 2402538 Contact Us For Availability
5
Foot, Base WPL 115792 Contact Us For Availability
5
Link, Speed & Cam WPL 3184176 Contact Us For Availability
5
Band, Trim WPL ARI20755A8 Contact Us For Availability
5
Lower Gearcase (Blue) WPL 24035031 Contact Us For Availability
5
LOWER GEARCASE (ONYX BLACK) WPL 24035056 Contact Us For Availability
5
Lower Gearcase (Red) WPL 24035084 Contact Us For Availability
6
PEDESTAL-Onyx Black WPL 24015113 Contact Us For Availability
6
Pedestal (Red) WPL 24015120 Contact Us For Availability
6
Pedestal (Blue) WPL 2401518 Contact Us For Availability
6
PEDESTAL-Chrome WPL 4176335 Contact Us For Availability
11
Shaft & Pinion WPL 2402102 Contact Us For Availability
16
SEAL, END WPL 2407751 Contact Us For Availability
18
Washer, Felt WPL 3180238 Contact Us For Availability
20
Lower Gear Case WPL ARI20756A3 Contact Us For Availability
23
Screw, Special WPL 103994 Contact Us For Availability
24
Planetary WPL ARI20757A9 Contact Us For Availability
26
Pin (Agitator Shaft Pinion) WPL 2400181 Contact Us For Availability
27
Control Plate Assembly WPL 2409042 Contact Us For Availability
28
Power Cord (Black) WPL 9707940 Contact Us For Availability
29
Washer WPL 3180160 Contact Us For Availability
34
Bowl Cover, Plastic Non-Sealing WPL 3177924 Contact Us For Availability
34
Bowl, 3 Qt. (KSM103 & KSM110) WPL 3180262 Contact Us For Availability
34
Cover, Decorative WPL 3180617 Contact Us For Availability
34
Food Tray (FT) WPL 4162838 Contact Us For Availability
34
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
34
JUICER (JE) WPL 4164748 Contact Us For Availability
34
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
34
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
34
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
34
FRUIT/VEGETAB WPL 4164774 Contact Us For Availability
34
WPL 4164775 WPL 4164775 Contact Us For Availability
34
WPL 4164778 WPL 4164778 Contact Us For Availability
34
WPL 4164803 WPL 4164803 Contact Us For Availability
34
WPL 4164824 WPL 4164824 Contact Us For Availability
34
WPL 4164839 WPL 4164839 Contact Us For Availability
34
WPL 8211924 WPL 8211924 Contact Us For Availability
34
WPL 9707963 WPL 9707963 Contact Us For Availability
34
WPL ARI20759A9 WPL ARI20759A9 Contact Us For Availability
34
O RING WPL 6750055 Contact Us For Availability
35
Cover, End WPL ARI20758A3 Contact Us For Availability
37
Worm Gear Bracket And Gear (Incls. WPL 2403092 Contact Us For Availability
× ![]()
