Model Whirlpool B4007X0 BUILT-IN GAS OVEN – Common Parts & Diagrams

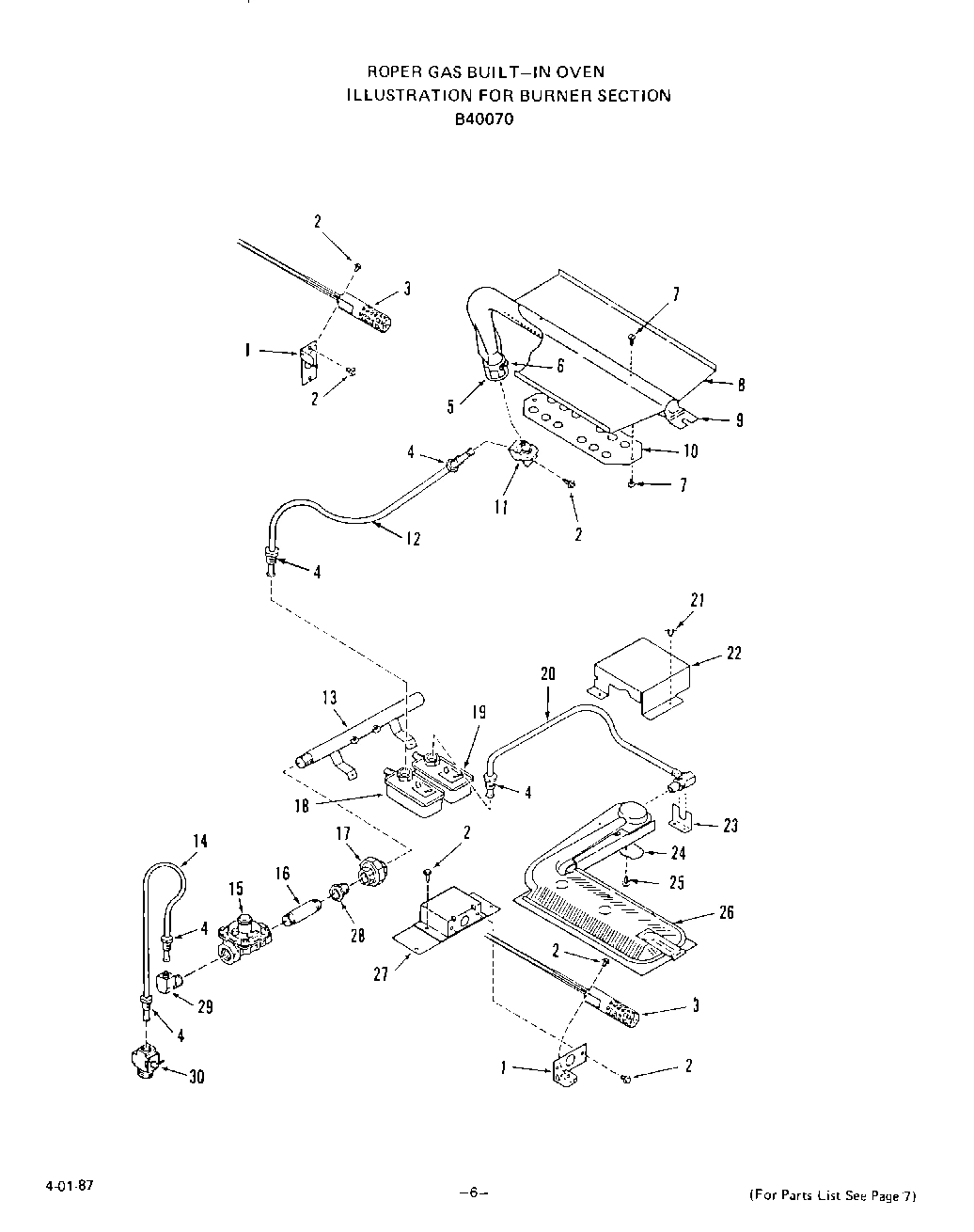

05 - BURNER SECTION

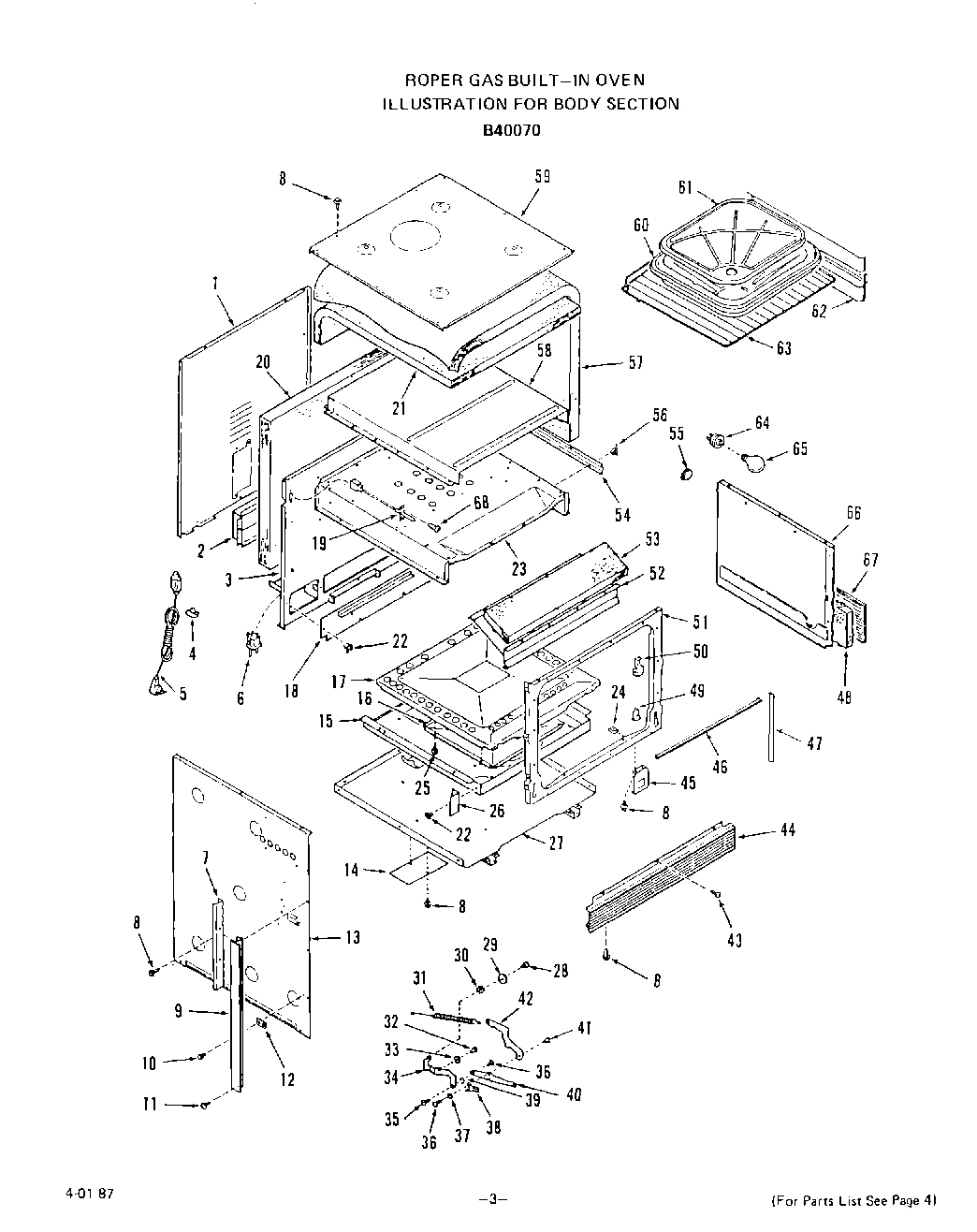

03 - BODY SECTION
06 - WIRING DIAGRAM
02 - CONTROL PANEL
04 - OVEN DOOR, LIT/OPTIONAL
Common parts from model Whirlpool B4007X0 BUILT-IN GAS OVEN
Manifold WPL 306558 Contact Us For Availability
1
Wire Cover WPL 323758 Contact Us For Availability
1
Baffle WPL 326556 Contact Us For Availability
1
Door Lining-Upper or Lower Door WPL 311853 Contact Us For Availability
2
Air Chamber Cover WPL 323760 Contact Us For Availability
2
Control Panel Insulation WPL 326555 Contact Us For Availability
2
Door Glass-Inner WPL 111887 Contact Us For Availability
3
Igniter WPL 337263 Contact Us For Availability
3
Oven Back WPL 336592 Contact Us For Availability
3
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
3
Insulation - Upper or Lower Door WPL 299782 Contact Us For Availability
4
Inverted Nut 3/8`` WPL 142433 Contact Us For Availability
4
Clip (For Key 5) WPL 97047 Contact Us For Availability
4
Control Panel Side Trim (Right) WPL 336630 Contact Us For Availability
4
Control Panel Side Trim (Left) WPL 336631 Contact Us For Availability
4
Shoulder Bolt (4 Req) WPL 97709 Contact Us For Availability
5
Range Service Cord WPL 232132 Contact Us For Availability
5
Screw 6-32x1/2`` WPL 336706 Contact Us For Availability
5
Hex Nut 10-32 WPL 97816 Contact Us For Availability
6
Adjustment Screw-Air Shutter WPL 239268 Contact Us For Availability
6
Disconnect WPL 232150 Contact Us For Availability
6
Control Panel Lower Trim WPL 336632 Contact Us For Availability
6
Hinge Arm Guide (Right) WPL 325201 Contact Us For Availability
6
Hinge Arm Guide (Left) WPL 325203 Contact Us For Availability
7
Screw 8-32x3/8`` (4 Req) WPL 97217 Contact Us For Availability
7
Channel Trim - Lt. or Rt. WPL 315233 Contact Us For Availability
7
Switch WPL 334649 Contact Us For Availability
7
Insulation Retainer - Upper or Lower Door WPL 322096 Contact Us For Availability
8
Upper Baffle - Broiler Burner WPL 325271 Contact Us For Availability
8
Door Glass-Outer-Upper or Lower Door WPL 336207 Contact Us For Availability
9
Broiler Burner (Inc`s. 5, 6, 7, 8, 10) WPL 306497 Contact Us For Availability
9
Side Trim-Front Frame (Left) WPL 336622 Contact Us For Availability
9
Side Trim-Front Frame (Right) WPL 336623 Contact Us For Availability
9
Knob-Clock WPL 334961 Contact Us For Availability
9
Door Frame-Upper or Lower Door WPL 336212 Contact Us For Availability
10
Lower Baffle-Broiler Burner WPL 281279 Contact Us For Availability
10
Accordian Rivet WPL 281160 Contact Us For Availability
10
Control Panel WPL 336655 Contact Us For Availability
10
Door Handle WPL 336205 Contact Us For Availability
11
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
11
Lamp Shade WPL 336629 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
12
Tubing 3/8`` (Control Valve to Broiler Orific WPL 315075 Contact Us For Availability
12
Spacer-Side Trim (2 Req) WPL 302862 Contact Us For Availability
12
Clock Lens WPL 336064 Contact Us For Availability
12
Spacer (4 Req.) WPL 299314 Contact Us For Availability
13
Manifold Pipe w/Bracket WPL 306365 Contact Us For Availability
13
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
13
Body Side (Left) WPL 323755 Contact Us For Availability
13
Body Side (Right) WPL 323756 Contact Us For Availability
13
Clock WPL 336628 Contact Us For Availability
14
Tubing 3/8`` (Shut Off Valve to Pressure Regu WPL 113397 Contact Us For Availability
14
Cover Plate WPL 327981 Contact Us For Availability
14
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
14
Washer-Fiber WPL 333014 Contact Us For Availability
15
Pressure Regulator WPL 295270 Contact Us For Availability
15
Burner Box WPL 323750 Contact Us For Availability
15
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
16
Nipple 3/8`` x 2`` WPL 300967 Contact Us For Availability
16
Baffle-Oven Bottom WPL 281418 Contact Us For Availability
16
Spacer-Door Glass WPL 333015 Contact Us For Availability
17
Union 1/2`` WPL 295269 Contact Us For Availability
17
Oven Bottom w/Baffle WPL 319446 Contact Us For Availability
17
Washer WPL 99279 Contact Us For Availability
18
Control Valve-Broiler WPL 306467 Contact Us For Availability
18
Cover Plate WPL 323766 Contact Us For Availability
18
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
19
Control Valve-Oven WPL 307006 Contact Us For Availability
19
Sensor WPL 335851 Contact Us For Availability
19
Outside Venting Kit (Optional) WPL 1002147 Contact Us For Availability
19
Filler Kit WPL 1002162 Contact Us For Availability
19
Cushion-Door Glass WPL 112370 Contact Us For Availability
19
Sensor WPL 336312 Contact Us For Availability
19
Main WPL 336641 Contact Us For Availability
19
Installation Guide WPL 336729 Contact Us For Availability
19
Use & Care Manual WPL 336730 Contact Us For Availability
19
Repair Parts List WPL 336740 Contact Us For Availability
19
xWire Harness WPL ARI20532A8 Contact Us For Availability
20
Tubing 3/8`` (Control Valve to Oven Burner) WPL 314398 Contact Us For Availability
20
Insulation-Oven Back WPL 336639 Contact Us For Availability
21
Insulation-Oven Top & Back (1 Piece) WPL 313321 Contact Us For Availability
22
Cover Box-Venturi WPL 323768 Contact Us For Availability
23
Bracket-Orifice Fitting WPL 279490 Contact Us For Availability
23
Oven Top WPL 313359 Contact Us For Availability
24
Air Shutter WPL 323455 Contact Us For Availability
24
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
25
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
25
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
26
Oven Burner (Inc`s. 24, 25) WPL 311305 Contact Us For Availability
26
Insulation Shield (2 Req) WPL 327985 Contact Us For Availability
27
Support-Igniter WPL 307161 Contact Us For Availability
27
Main Bottom WPL 306501 Contact Us For Availability
28
Bushing-Reducer WPL 102221 Contact Us For Availability
28
Bolt 1/4-20x3/8`` WPL 288881 Contact Us For Availability
29
Elbow WPL 295271 Contact Us For Availability
29
Washer WPL 323451 Contact Us For Availability
30
Shut-Off Valve WPL 320479 Contact Us For Availability
30
Lockwasher WPL 69459 Contact Us For Availability
31
Oven Door Spring (2 Req) WPL 286547 Contact Us For Availability
32
Shoulder Rivet WPL 104735 Contact Us For Availability
33
Roller WPL 104734 Contact Us For Availability
34
Oven Door Hinge (Inc`s. 35, 36 & 39) (Left) WPL 324036 Contact Us For Availability
34
Oven Door Hinge (Inc`s. 35, 36 & 39) (Right) WPL 324037 Contact Us For Availability
35
Hinge Pivot Sleeve WPL 97717 Contact Us For Availability
36
Rivet WPL 97748 Contact Us For Availability
37
Washer WPL 103208 Contact Us For Availability
38
Hlnge Latch (Right) WPL 323456 Contact Us For Availability
38
Hlnge Latch (Left) WPL 323457 Contact Us For Availability
39
Washer WPL 97749 Contact Us For Availability
40
Oven Door Arm (Inc`s. 35, 36 & 39) (Right) WPL 324038 Contact Us For Availability
40
Oven Door Arm (Inc`s. 35, 36 & 39) (Left) WPL 324039 Contact Us For Availability
41
Hinge Pivot Sleeve WPL 104629 Contact Us For Availability
42
Spring Link WPL 323454 Contact Us For Availability
43
Screw 6-32x5/16`` WPL 97221 Contact Us For Availability
44
Lower Trim-Front Frame WPL 336626 Contact Us For Availability
46
Seal-Top & Bottom WPL 336034 Contact Us For Availability
47
Seal-Side (Rt. or Lt.) WPL 315945 Contact Us For Availability
48
Insulation (Rt. or Lt.) WPL 286448 Contact Us For Availability
49
S WPL 323446 Contact Us For Availability
50
WPL 327977 WPL 327977 Contact Us For Availability
51
WPL 331856 WPL 331856 Contact Us For Availability
52
WPL 289836 WPL 289836 Contact Us For Availability
53
WPL 97324 WPL 97324 Contact Us For Availability
54
WPL 294506 WPL 294506 Contact Us For Availability
55
WPL 98230 WPL 98230 Contact Us For Availability
56
WPL 70588 WPL 70588 Contact Us For Availability
57
WPL 313324 WPL 313324 Contact Us For Availability
58
WPL 313320 WPL 313320 Contact Us For Availability
59
WPL 336593 WPL 336593 Contact Us For Availability
60
WPL 331592 WPL 331592 Contact Us For Availability
61
WPL 326297 WPL 326297 Contact Us For Availability
62
WPL 279537 WPL 279537 Contact Us For Availability
62
WPL 279538 WPL 279538 Contact Us For Availability
63
WPL 279539 WPL 279539 Contact Us For Availability
64
WPL 87883 WPL 87883 Contact Us For Availability
65
WPL 111257 WPL 111257 Contact Us For Availability
66
WPL 331858 WPL 331858 Contact Us For Availability
66
WPL 331859 WPL 331859 Contact Us For Availability
67
WPL 279470 WPL 279470 Contact Us For Availability
68
WPL 336152 WPL 336152 Contact Us For Availability
× ![]()
