Model Whirlpool B31FS-2KW GAS RANGE – Common Parts & Diagrams

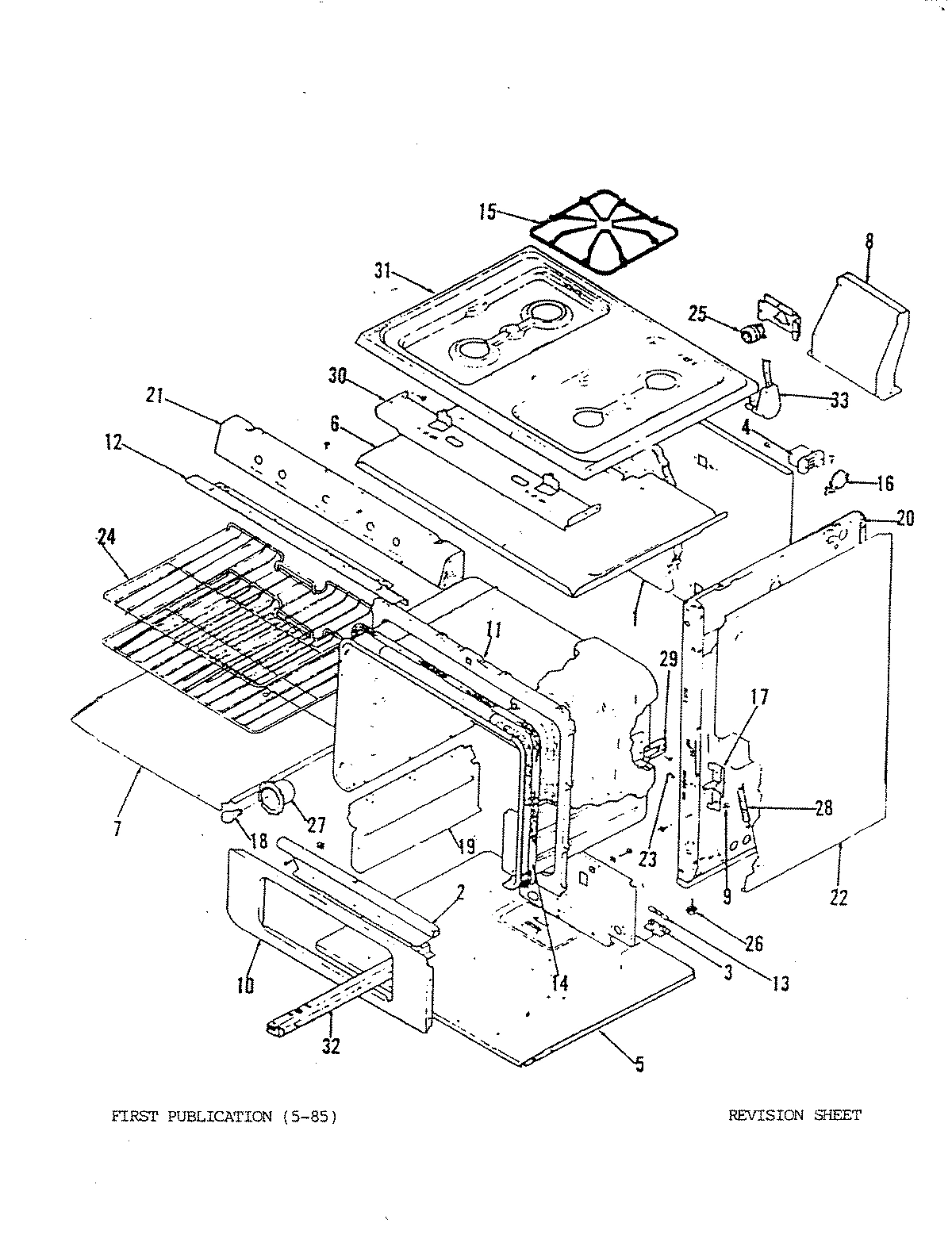

01 - BODY

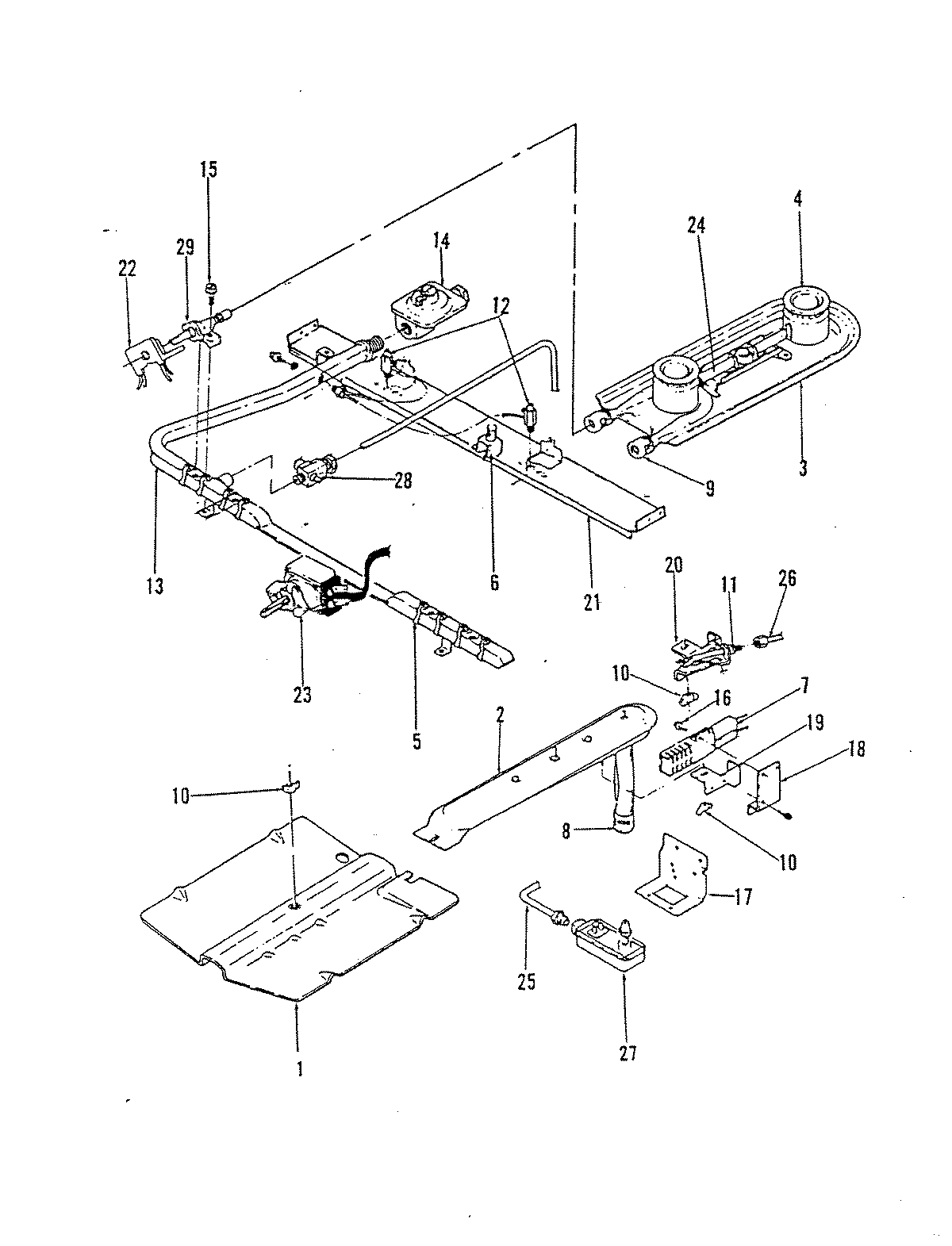

04 - GAS CONTROLS

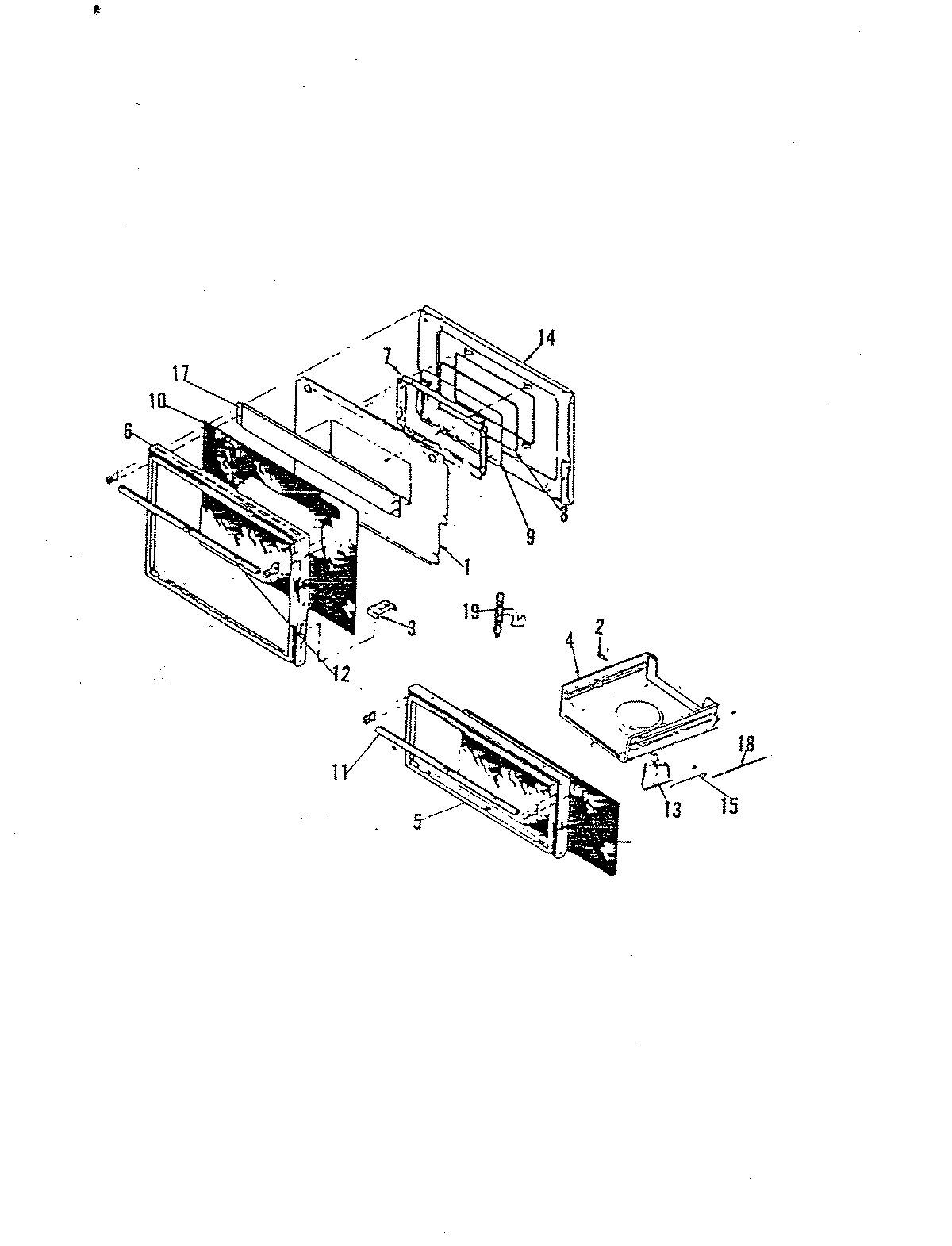

03 - DOOR

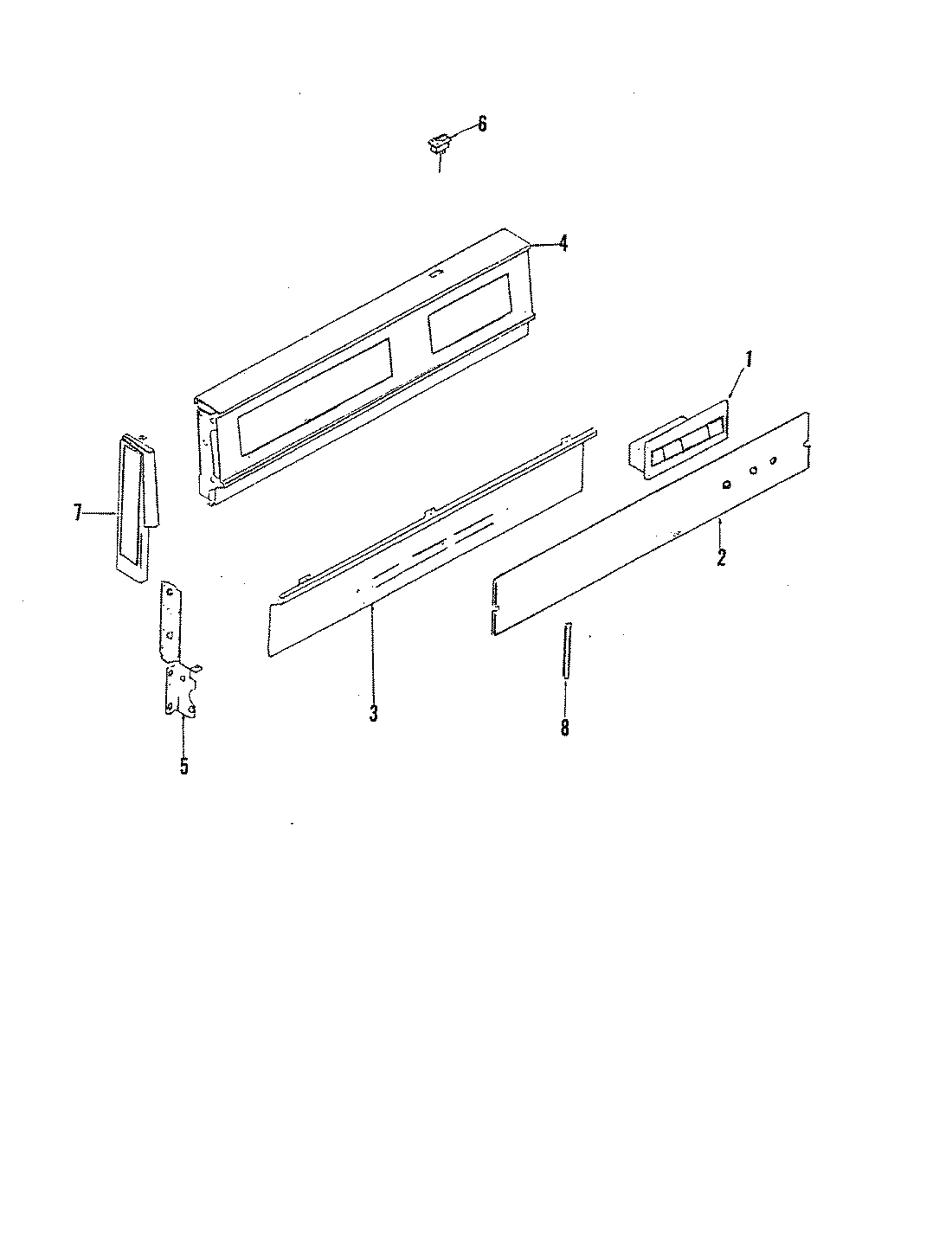

02 - CONTROL PANEL
Common parts from model Whirlpool B31FS-2KW GAS RANGE
1
BACK, MAIN WPL 0903106 Contact Us For Availability
1
BACK, MAIN WPL 0903115 Contact Us For Availability
1
BACK, MAIN WPL 4002F04420 Contact Us For Availability
1
BACK, BRL SECTION WPL 4002F04545 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BAFFLE WPL 0153321 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F094 Contact Us For Availability
1
SHIELD WPL 0787408 Contact Us For Availability
1
+ CLOCK WPL 1894365 Contact Us For Availability
1
+ CLOCK WPL 1894366 Contact Us For Availability
1
+ CLOCK EXPORT WPL 1894367 Contact Us For Availability
1
+ CLOCK WPL 7602P04460 Contact Us For Availability
2
BAFFLE WPL 0153325 Contact Us For Availability
2
BAFFLE, OVEN FRT WPL 3601F10023 Contact Us For Availability
2
BURNER ASSY., OVEN WPL 0298234 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
CATCH WPL 1135208 Contact Us For Availability
2
KNOB, SWITCH WPL 1359263 Contact Us For Availability
2
KNOB, CLOCK WPL 1437241 Contact Us For Availability
2
GRIP NUT WPL 1555247 Contact Us For Availability
2
GLASS, BKGD WPL 7902P11260 Contact Us For Availability
3
BLOCK WPL 1867262 Contact Us For Availability
3
+ BURNER ASSY., TOP WPL Y0300252 Contact Us For Availability
3
PANEL, BKGD BLK WPL 2620W00200 Contact Us For Availability
3
PANEL, BKGD LOWER WPL 2620W01400 Contact Us For Availability
3
+ PANEL, BKGD LOWER WPL 2620W01890 Contact Us For Availability
4
BLOCK WPL 1867258 Contact Us For Availability
4
BLOCK WPL 1867271 Contact Us For Availability
4
CAP, BURNER WPL 1083219 Contact Us For Availability
4
DRAWER, BROILER WPL 0384266 Contact Us For Availability
5
BOTTOM, MISC WPL 0236238 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F07920 Contact Us For Availability
5
BOTTOM, BROILER WPL 4011F09720 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
COVER, WIRE WPL 4005F30451 Contact Us For Availability
5
SUPPORT WPL 0862417 Contact Us For Availability
5
SUPPORT WPL 0862418 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 0237130 Contact Us For Availability
6
IGNITOR WPL 1482237 Contact Us For Availability
6
IGNITOR WPL 1482239 Contact Us For Availability
6
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
7
+ BOTTOM OVEN ASSY WPL 0234282 Contact Us For Availability
7
KNOB, VALVE WPL 7711P15160 Contact Us For Availability
7
KNOB, THERM WPL 7711P15460 Contact Us For Availability
7
KNOB,THERMOSTAT(GAS) WPL 1358438 Contact Us For Availability
7
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
7
FRAME, WINDOW WPL 3603J013 Contact Us For Availability
7
TRIM WPL 1916211 Contact Us For Availability
7
TRIM WPL 1916212 Contact Us For Availability
8
BRACKET WPL 0284305 Contact Us For Availability
8
+ BRACKET WPL 0284307 Contact Us For Availability
8
BRACKET WPL 0284315 Contact Us For Availability
8
BRACKET WPL 0284316 Contact Us For Availability
8
FLUE ASSY. WPL 0444240 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
CLAMP WPL Y0315206 Contact Us For Availability
8
MIXER, AIR WPL 0607214 Contact Us For Availability
8
GASKET WPL 1313263 Contact Us For Availability
8
TRIM, GLASS RET WPL 7720P07360 Contact Us For Availability
9
RING, SNAP WPL 1013214 Contact Us For Availability
9
CLIP WPL 1141237 Contact Us For Availability
9
MODULE, SPARK WPL 1522106 Contact Us For Availability
9
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
9
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
9
MIXER, AIR WPL Y0607215 Contact Us For Availability
9
GLASS WPL 1327100 Contact Us For Availability
10
FRAME ASSY. WPL 0462232 Contact Us For Availability
10
FRONT, FRAME OVEN LOWER WPL 2201F03425 Contact Us For Availability
10
WING NUT WPL 1555254 Contact Us For Availability
10
3/8`` NUT & FERRULE WPL 1555258 Contact Us For Availability
10
GLASS WPL 1327177 Contact Us For Availability
11
FRAME ASSY. WPL Y0462234 Contact Us For Availability
11
HANDLE, DOOR WPL 1355299 Contact Us For Availability
12
FRAME ASSY. WPL 0462226 Contact Us For Availability
12
HANDLE, OVEN DOOR WPL 7701E013 Contact Us For Availability
13
FUSE WPL 1299202 Contact Us For Availability
13
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
13
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
13
HINGE WPL 0528233 Contact Us For Availability
13
HINGE WPL 0528234 Contact Us For Availability
13
LINING, BROILER DRAWER WPL 2404F015 Contact Us For Availability
13
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
13
INSERT, HANDLE WPL 7728E012 Contact Us For Availability
14
SEAL WPL 1726256 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 1665248 Contact Us For Availability
14
LINING, OVEN DOOR WPL 2422C076 Contact Us For Availability
15
GRATE WPL Y0505218 Contact Us For Availability
15
SCREW VALVE WPL 1986319 Contact Us For Availability
15
LINK WPL 1450200 Contact Us For Availability
16
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
17
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
17
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
17
INSERT WPL Y0507229 Contact Us For Availability
17
SPACER WPL 1783200 Contact Us For Availability
17
SUPPORT WPL 0862445 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE SPACER, HANDLE WPL W10124350 Contact Us For Availability
17
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
17
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
17
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
18
BULB, OVEN WPL 7407P02660 Contact Us For Availability
18
SUPPORT WPL 0862420 Contact Us For Availability
18
SPRING, BROILER DRAWER WPL 1790279 Contact Us For Availability
19
LINING, MISC. WPL 0606391 Contact Us For Availability
19
SUPPORT WPL 0862434 Contact Us For Availability
19
STOP, DOOR WPL Y0112241 Contact Us For Availability
20
NUT WPL 1555266 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
20
LINING, INNER SIDE WPL 4009W05980 Contact Us For Availability
20
+ SUPPORT ASSEMBLY WPL 0862435 Contact Us For Availability
20
SUPPORT WPL 0862460 Contact Us For Availability
21
SUPPORT WPL 0862470 Contact Us For Availability
23
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
23
PLUG WPL 1605203 Contact Us For Availability
23
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
23
THERMOSTAT WPL 7515P00860 Contact Us For Availability
24
RACK, OVEN WPL 1636254 Contact Us For Availability
24
TUBE WPL 1930342 Contact Us For Availability
25
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
25
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
26
SCREW, SPECIAL WPL 1986214 Contact Us For Availability
27
HOUSING WPL Y0537241 Contact Us For Availability
27
VALVE, SAFETY WPL 1945270 Contact Us For Availability
28
STOP, MAIN TOP WPL 0115101 Contact Us For Availability
28
VALVE, SHUT OFF WPL 1951367 Contact Us For Availability
29
VALVE, TOP BURNER WPL 7502P01560 Contact Us For Availability
29
VALVE, TOP BURNER WPL 7502P01660 Contact Us For Availability
29
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
30
SUPPORT WPL 0862446 Contact Us For Availability
30
SUPPORT WPL 1828264 Contact Us For Availability
30
SWITCH WPL 1832399 Contact Us For Availability
31
TOP, MAIN CHROME WPL 2001F03530 Contact Us For Availability
31
+ TOP, MAIN WPL Y0902288S Contact Us For Availability
32
TRIM, MANIFOLD PANEL WPL 7712P00660 Contact Us For Availability
32
TRACK WPL 3404A00151 Contact Us For Availability
32
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
32
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
33
CORD, POWER WPL 7402P01160 Contact Us For Availability
33
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
