Model Whirlpool B113B ROOM AIR CONDITIONER – Common Parts & Diagrams

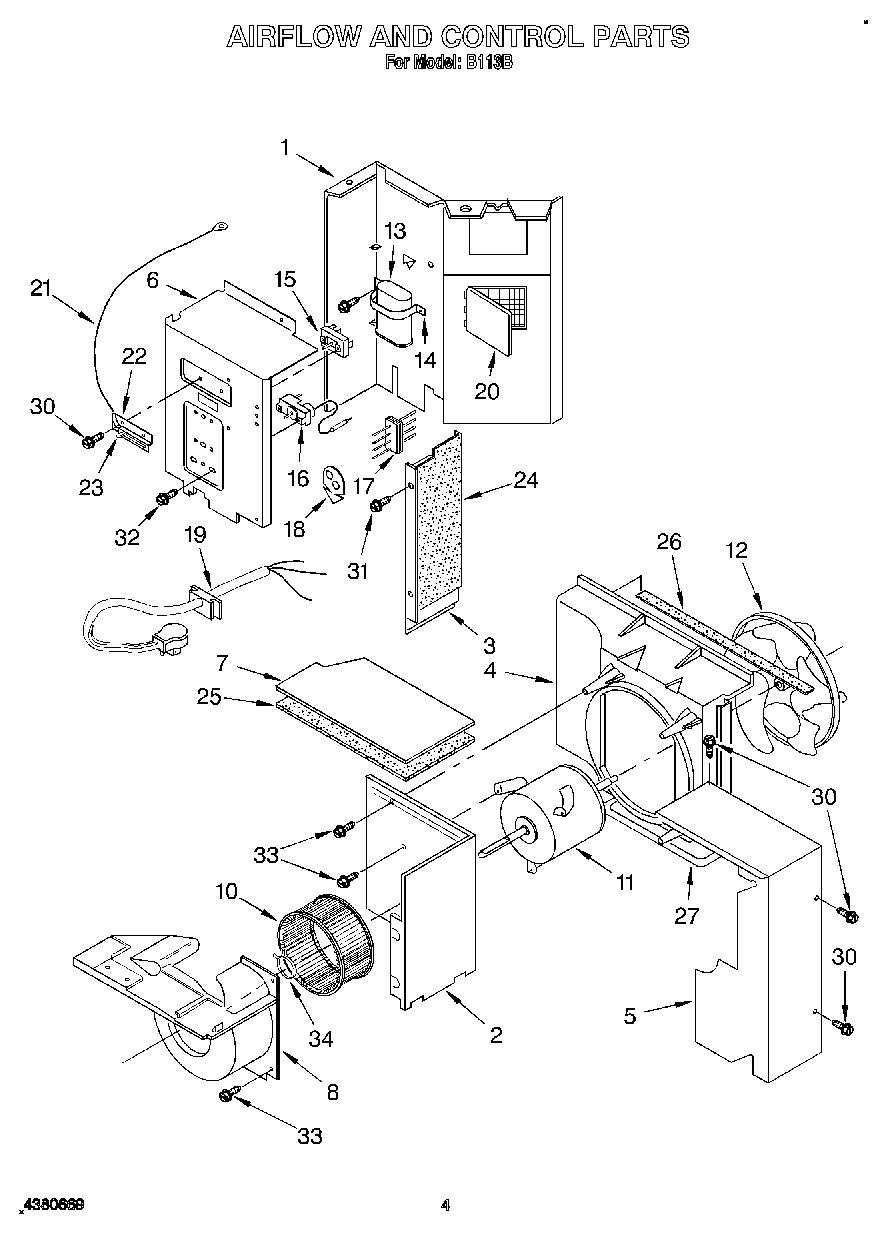

03 - AIRFLOW AND CONTROL

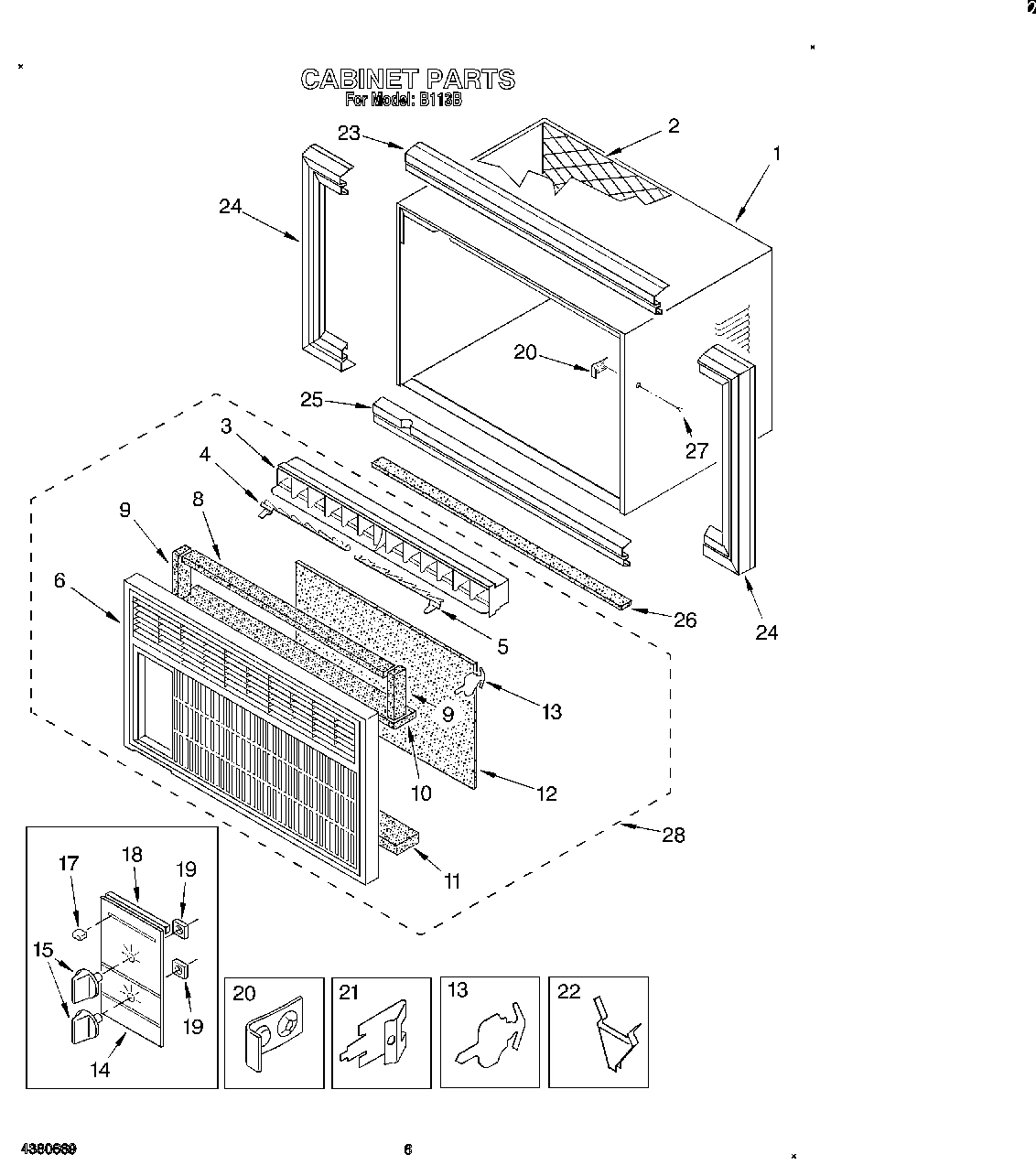

04 - CABINET
02 - UNIT, LITERATURE
Common parts from model Whirlpool B113B ROOM AIR CONDITIONER
Wiring Diagram WPL LIT4380665 Contact Us For Availability
Installation Instructions (Trim Kit) WPL LIT4380666 Contact Us For Availability
Owners Guide WPL LIT4380667 Contact Us For Availability
Tech Sheet WPL LIT4380668 Contact Us For Availability
Repair Parts List WPL LIT4380669 Contact Us For Availability
1
Bulkhead, Control WPL 4380672 Contact Us For Availability
1
Cabinet WPL 4380608 Contact Us For Availability
1
Compressor WPL 4380615 Contact Us For Availability
2
Bulkhead, Air WPL 4380673 Contact Us For Availability
2
Panel, Rear WPL 4380609 Contact Us For Availability
2
Grommet, Compressor Mounting (3) WPL 4380616 Contact Us For Availability
3
Divider, Vertical WPL 4380642 Contact Us For Availability
3
Louver (W/Links) WPL 4380651 Contact Us For Availability
3
Nut (3) WPL 4380617 Contact Us For Availability
4
Shroud, Condenser WPL 4380627 Contact Us For Availability
4
Link, Louver (LH) WPL 4380653 Contact Us For Availability
5
Baffle, Shroud WPL 4380674 Contact Us For Availability
5
Link, Louver (RH) WPL 4380652 Contact Us For Availability
6
Panel, Control WPL 4380638 Contact Us For Availability
6
Frame, Front WPL 4380659 Contact Us For Availability
6
Gasker, Cover WPL 4380620 Contact Us For Availability
7
Cover, Top WPL 4380636 Contact Us For Availability
7
Cover, Terminal WPL 4380621 Contact Us For Availability
8
Scroll WPL 4380634 Contact Us For Availability
8
Seal, Front (Top) WPL 4380656 Contact Us For Availability
8
Overload WPL 4380619 Contact Us For Availability
9
Seal, Front (Sides) (2) WPL 4380655 Contact Us For Availability
9
Nut, Cover WPL 4380622 Contact Us For Availability
10
Wheel, Blower WPL 4380632 Contact Us For Availability
10
Seal, Front (Mullion) WPL 4380657 Contact Us For Availability
10
Kit, Start WPL 4380567 Contact Us For Availability
11
Motor, Fan WPL 4380610 Contact Us For Availability
11
Seal, Front (Bottom) WPL 4380658 Contact Us For Availability
11
Evaporator WPL 4380624 Contact Us For Availability
12
Blade, Fan WPL 4380631 Contact Us For Availability
12
Filter, Air WPL 4380663 Contact Us For Availability
12
Condenser WPL 4380626 Contact Us For Availability
13
Capacitor WPL 4380675 Contact Us For Availability
13
Clip, Filter (2) WPL 4380664 Contact Us For Availability
13
Pan, Drain WPL 4380625 Contact Us For Availability
14
Strap, Capacitor WPL 4380646 Contact Us For Availability
14
Escutcheon WPL 4380660 Contact Us For Availability
14
Base WPL 4380670 Contact Us For Availability
15
Switch, Rotary WPL 4380639 Contact Us For Availability
15
Knob, Control WPL 4380649 Contact Us For Availability
16
Control, Temp. WPL 4380640 Contact Us For Availability
16
Tube, Capillary (Cut to 35``) WPL 4380623 Contact Us For Availability
17
Harness WPL 4380647 Contact Us For Availability
17
Knob, Slide WPL 4380650 Contact Us For Availability
17
Drier WPL 4380573 Contact Us For Availability
18
Clip, Control Bulb WPL 4380644 Contact Us For Availability
18
Seal, Escutcheon WPL 4380662 Contact Us For Availability
19
Cord, Power WPL 4380645 Contact Us For Availability
19
Spacer, Escutcheon (2) WPL 4380661 Contact Us For Availability
19
Washer, Compressor Mounting WPL 4380618 Contact Us For Availability
20
Door, Vent WPL 4380611 Contact Us For Availability
20
Clip, Front Lock WPL 4380648 Contact Us For Availability
20
Strap, Base WPL 4380671 Contact Us For Availability
21
Actuator, Vent WPL 4380612 Contact Us For Availability
21
Clip, Front WPL 4380676 Contact Us For Availability
22
Retainer, Actuator WPL 4380613 Contact Us For Availability
22
Clip, Link WPL 4380654 Contact Us For Availability
23
Arm, Actuator WPL 4380614 Contact Us For Availability
23
Trim, Top WPL 4380679 Contact Us For Availability
24
Insulation, Divider Wall WPL 4380643 Contact Us For Availability
24
Trim, Side (2) WPL 4380678 Contact Us For Availability
25
Insulation, Cover WPL 4380637 Contact Us For Availability
25
Trim, Bottom WPL 4380680 Contact Us For Availability
26
Seal, Shroud WPL 4380630 Contact Us For Availability
26
Seal, Bottom WPL 4380677 Contact Us For Availability
27
Seal, Shroud Bottom ((Right Side)) WPL 4380628 Contact Us For Availability
27
Seal, Shroud Bottom ((Left Side)) WPL 4380629 Contact Us For Availability
28
Front, Complete WPL 4380681 Contact Us For Availability
31
Screw WPL 4380603 Contact Us For Availability
32
Screw WPL 4380641 Contact Us For Availability
34
Clamp, Blower Wheel WPL 4380633 Contact Us For Availability
× ![]()
