Model GE AZ61H09DADW2 Zoneline – Common Parts & Diagrams
GRILLE, HEATER & BASE PAN PARTS
CONTROL PARTS

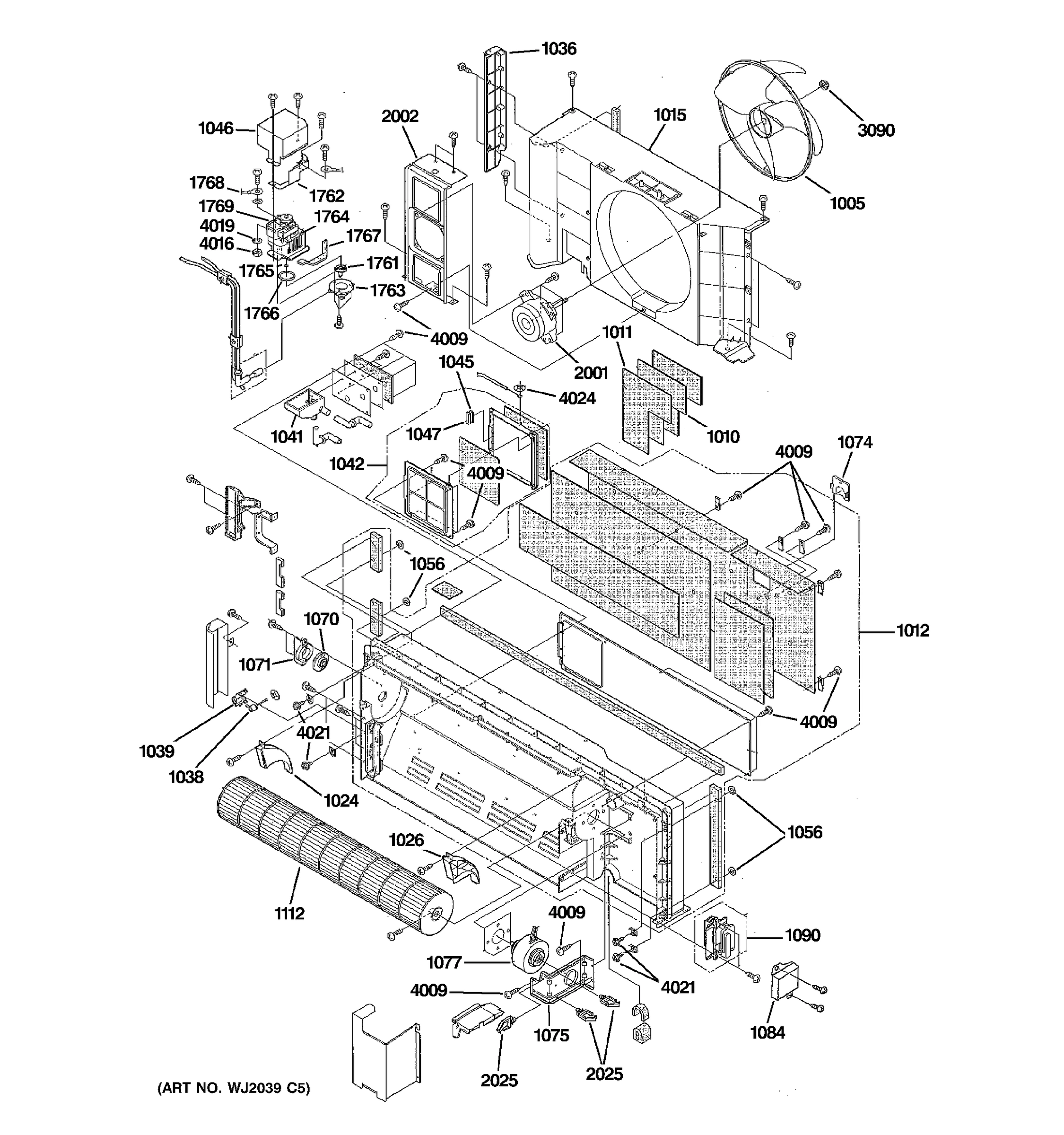

MOTOR & CHASSIS PARTS

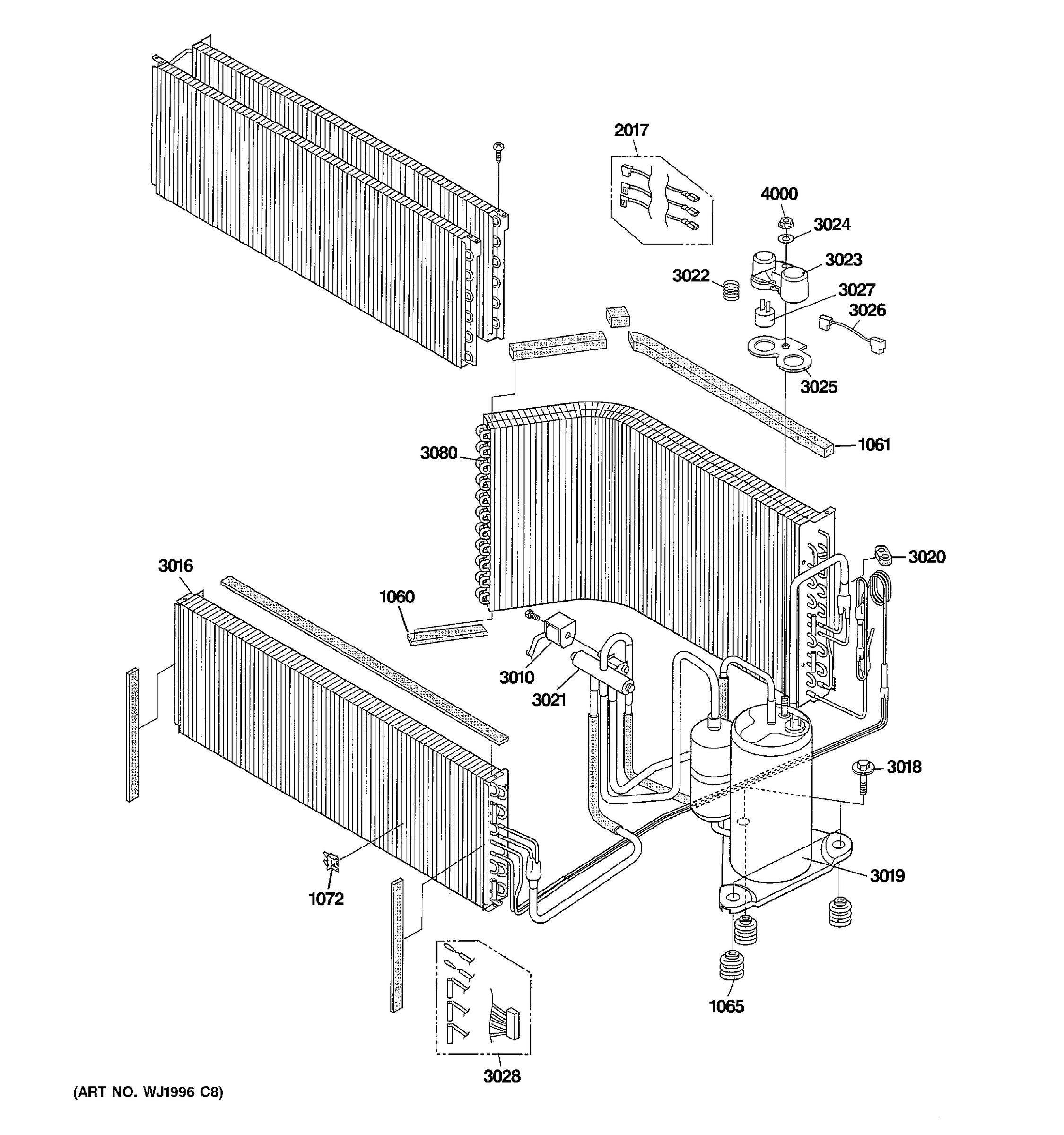

UNIT PARTS

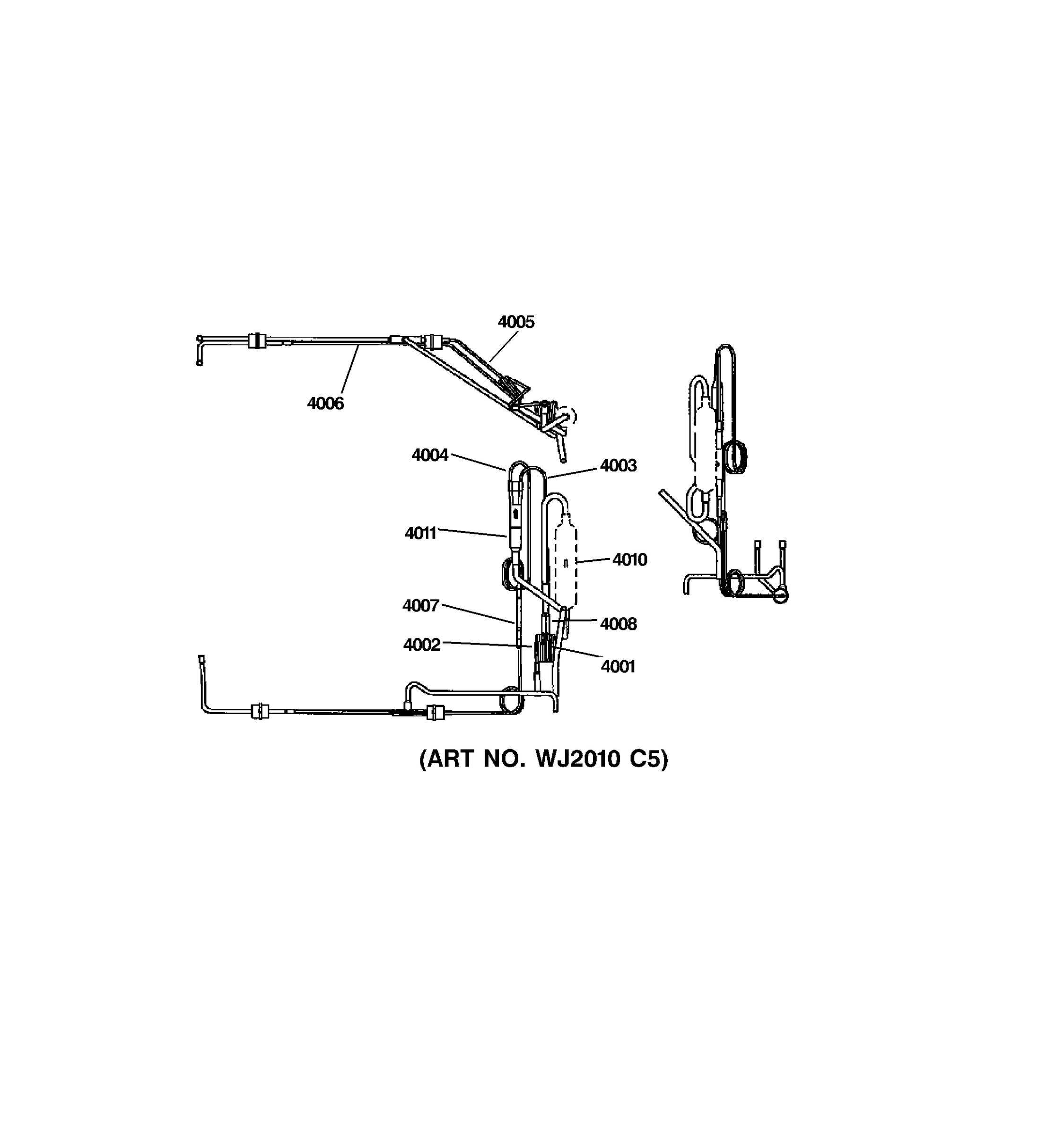

CAPILLARY TUBES
Common parts from model GE AZ61H09DADW2 Zoneline
1005
PROPELLER FAN GEN WJ73X10047 Contact Us For Availability
1010
COVER RUBBER B GEN WP01X10039 Contact Us For Availability
1011
BACK PLATE L GEN WP65X10014 Contact Us For Availability
1012
BULKHEAD K GEN WP76X10041 Contact Us For Availability
1015
CONDENSER SHROUD GEN WP76X10033 Contact Us For Availability
1017
FRONT PANEL ASM GEN WP71X10029 Contact Us For Availability
1018
FRONT PANEL GEN WP71X10030 Contact Us For Availability
1019
LOUVER ASS'Y GEN WP71X10012 Contact Us For Availability
1020
CONTROL COVER W/LOGO GEN WP71X10033 Contact Us For Availability
1021
AIR FILTER GEN WP85X10008 Contact Us For Availability
1024
FAN HOUSING COVER L GEN WP03X10019 Contact Us For Availability
1025
SPRING GEN WP02X10001 Contact Us For Availability
1026
FAN HOUSING COVER R GEN WP03X10020 Contact Us For Availability
1036
CONDENSER PLATE GEN WJ79X10134 Contact Us For Availability
1038
DAMPER LEVER GEN WP70X10031 Contact Us For Availability
1039
DAMPER LEVER COVER GEN WP01X10058 Contact Us For Availability
1041
RECEIVER TANK GEN WJ46X10002 Contact Us For Availability
1042
DAMPER ASM GEN WP66X10007 Contact Us For Availability
1045
MAGNET SEA L GEN WP01X10002 Contact Us For Availability
1046
PUMP COVER GEN WP79X10021 Contact Us For Availability
1047
MAGNET GEN WP01X10001 Contact Us For Availability
1056
RUBBER WASHER GEN WP01X10005 Contact Us For Availability
1065
COMPRESSOR CUSHION N GEN WJ01X10046 Contact Us For Availability
1070
BEARING ASSY GEN WP76X10006 Contact Us For Availability
1071
BEARING HOLDER GEN WP03X10015 Contact Us For Availability
1072
THERMISTOR HOLDER GEN WJ03X10011 Contact Us For Availability
1073
COVER GEN WP01X10038 Contact Us For Availability
1074
HOLDER GEN WP03X10016 Contact Us For Availability
1075
DC IN MOTOR ANGLE GEN WP66X10008 Contact Us For Availability
1077
DC IN FAN MOTOR GEN WP94X10306 Contact Us For Availability
1084
COVER, TRIAC GEN WP79X10029 Contact Us For Availability
1090
TRIAC PWB ASM GEN WP26X10086 Contact Us For Availability
1112
CLOSS FAN GEN WP73X10013 Contact Us For Availability
1761
FAN GEN WP73X10002 Contact Us For Availability
1762
PUMP COVER B GEN WP79X10005 Contact Us For Availability
1763
P FAN HOUSING GEN WP76X10009 Contact Us For Availability
1764
P. FAN HOUSING GEN WP76X10032 Contact Us For Availability
1765
O RING S GEN WJ05X10015 Contact Us For Availability
1766
O RING L GEN WJ05X10016 Contact Us For Availability
1767
PUMP INSULATOR GEN WJ40X10008 Contact Us For Availability
1768
LEAD WIRE GEN WJ37X10001 Contact Us For Availability
1769
PUMP MOTOR GEN WP94X10219 Contact Us For Availability
2001
DC FAN MOTOR GEN WP94X10307 Contact Us For Availability
2002
OUT DOOR MOTOR ANGLE GEN WP66X10009 Contact Us For Availability
2010
PWB MAIN ASM GEN WP29X10056 Contact Us For Availability
2011
CAPACITOR CLAMP GEN WP03X10031 Contact Us For Availability
2012
SPACER GEN WP03X10022 Contact Us For Availability
2013
SPACER GEN WP03X10023 Contact Us For Availability
2014
TERMINAL BOARD GEN WP29X10014 Contact Us For Availability
2016
CONNECTOR GEN WP03X10024 Contact Us For Availability
2017
COMP. WIRING-RECHI GEN WP27X10070 Contact Us For Availability
2020
CONTROL BASE ASSY GEN WP07X10013 Contact Us For Availability
2021
TRANSFORMER GEN WP27X10068 Contact Us For Availability
2025
WIRE HOLDER GEN WP03X10029 Contact Us For Availability
2027
THERMOSTAT GEN WP27X10066 Contact Us For Availability
2028
PROTECTOR F GEN WP27X10067 Contact Us For Availability
2030
CONTROL SHEET GEN WP07X10008 Contact Us For Availability
2060
COVER GEN WP01X10037 Contact Us For Availability
2070
DRIVE PWB-K GEN WP29X10016 Contact Us For Availability
2200
RUNNING CAPACITOR GEN WP20X10033 Contact Us For Availability
2701
FUSE GEN WP23X10003 Contact Us For Availability
2702
FUSE GEN WP23X10026 Contact Us For Availability
2703
FUSE GEN WP23X10027 Contact Us For Availability
2704
FUSE GEN WP23X10028 Contact Us For Availability
2705
FUSE, INLINE GEN WP23X10042 Contact Us For Availability
2716
VARISTOR GEN WP28X10019 Contact Us For Availability
3010
COIL GEN WP58X10003 Contact Us For Availability
3016
EVAPORATOR ASM GEN WP87X10045 Contact Us For Availability
3018
STUD BOLT GEN WJ01X10045 Contact Us For Availability
3019
COMPRESSOR-RECHI GEN WP98X10034 Contact Us For Availability
3020
DAMPER RUBBER GEN WJ70X10026 Contact Us For Availability
3021
REVERSE VALVE GEN WP58X10004 Contact Us For Availability
3022
PROTECTOR SPRING GEN WJ02X10031 Contact Us For Availability
3023
TERMINAL COVER GEN WJ79X10204 Contact Us For Availability
3024
GASKET WASHER GEN WJ01X10288 Contact Us For Availability
3025
TERMINAL GASKET GEN WJ43X10061 Contact Us For Availability
3027
PROTECTOR GEN WP23X10033 Contact Us For Availability
3028
THERMISTOR GEN WP27X10065 Contact Us For Availability
3080
CONDENSER ASS'Y GEN WP88X10092 Contact Us For Availability
3090
SPECIAL NUT GEN WJ01X10283 Contact Us For Availability
4000
SPECIAL NUT GEN WJ01X10286 Contact Us For Availability
4001
CAPILLARY TUBE GEN WP56X10017 Contact Us For Availability
4002
CAPILLARY TUBE GEN WP56X10016 Contact Us For Availability
4003
CAPILLARY TUBE GEN WP56X10007 Contact Us For Availability
4004
CAPILLARY TUBE GEN WP56X10008 Contact Us For Availability
4005
CAPILLARY TUBE GEN WP56X10005 Contact Us For Availability
4006
CAPILLARY TUBE GEN WP56X10006 Contact Us For Availability
4007
LEAD TUBE GEN WP56X10011 Contact Us For Availability
4008
LEAD TUBE GEN WP56X10012 Contact Us For Availability
4009
SPECIAL SCREW GEN WP01X10021 Contact Us For Availability
4010
SPECIAL SCREW GEN WJ01X10392 Contact Us For Availability
4010
FILTER DRIER GEN WJ56X10009 Contact Us For Availability
4011
REVERSE VALVE GEN WP58X10005 Contact Us For Availability
4016
NUT GEN WJ01X10060 Contact Us For Availability
4019
WASHER : M4X0 4 STAINLES GEN WJ01X10061 Contact Us For Availability
4021
SPECIAL SCREW GEN WP01X10024 Contact Us For Availability
4024
PUSH NUT GEN WP02X10003 Contact Us For Availability
9999
MINI MANUAL GEN 31615512 Contact Us For Availability
9999
USE & CARE GEN 4976122 Contact Us For Availability
× ![]()
