Model Maytag AWO6317SFS02 AWO6317SFS02 – Common Parts & Diagrams
02 - OVEN PARTS
03 - OVEN DOOR PARTS

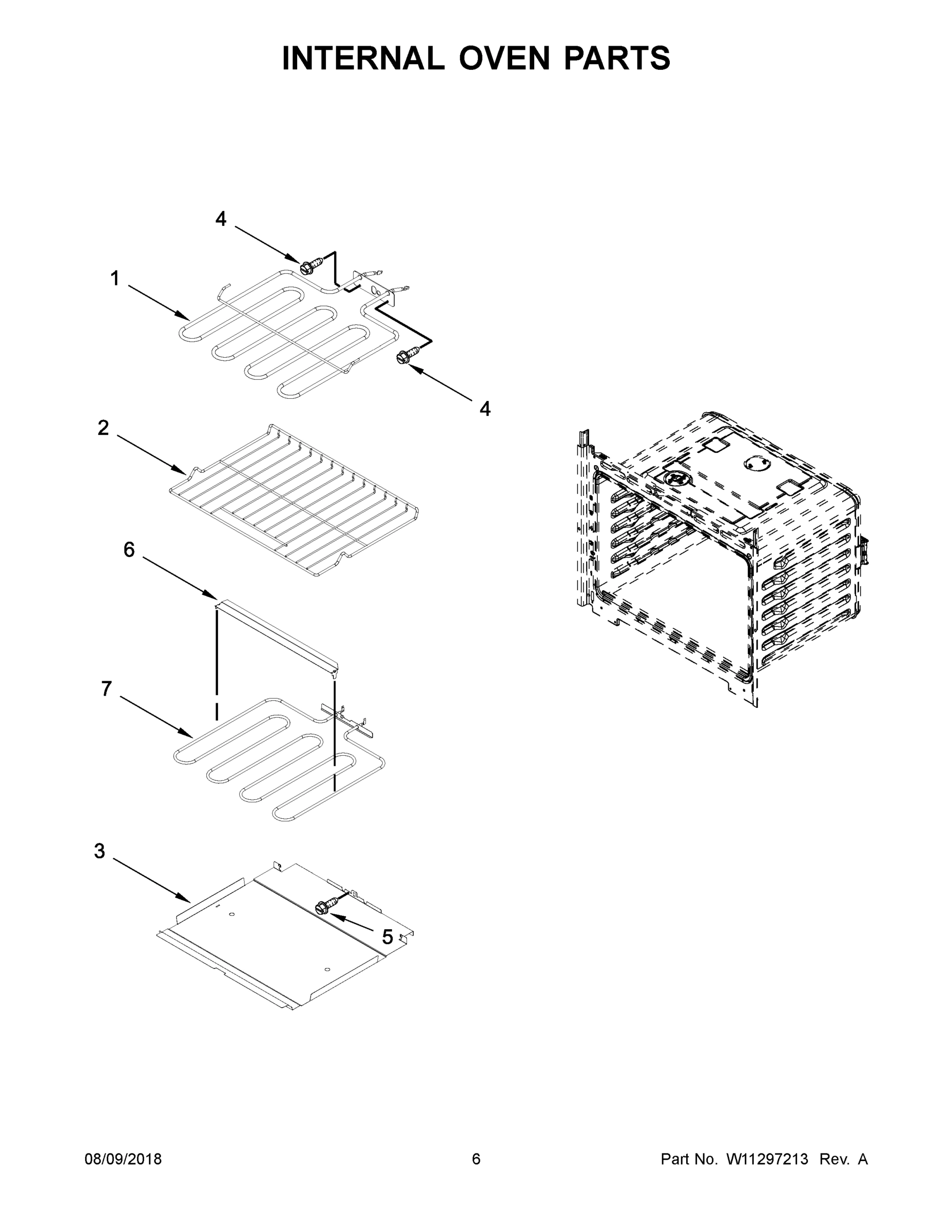

04 - INTERNAL OVEN PARTS

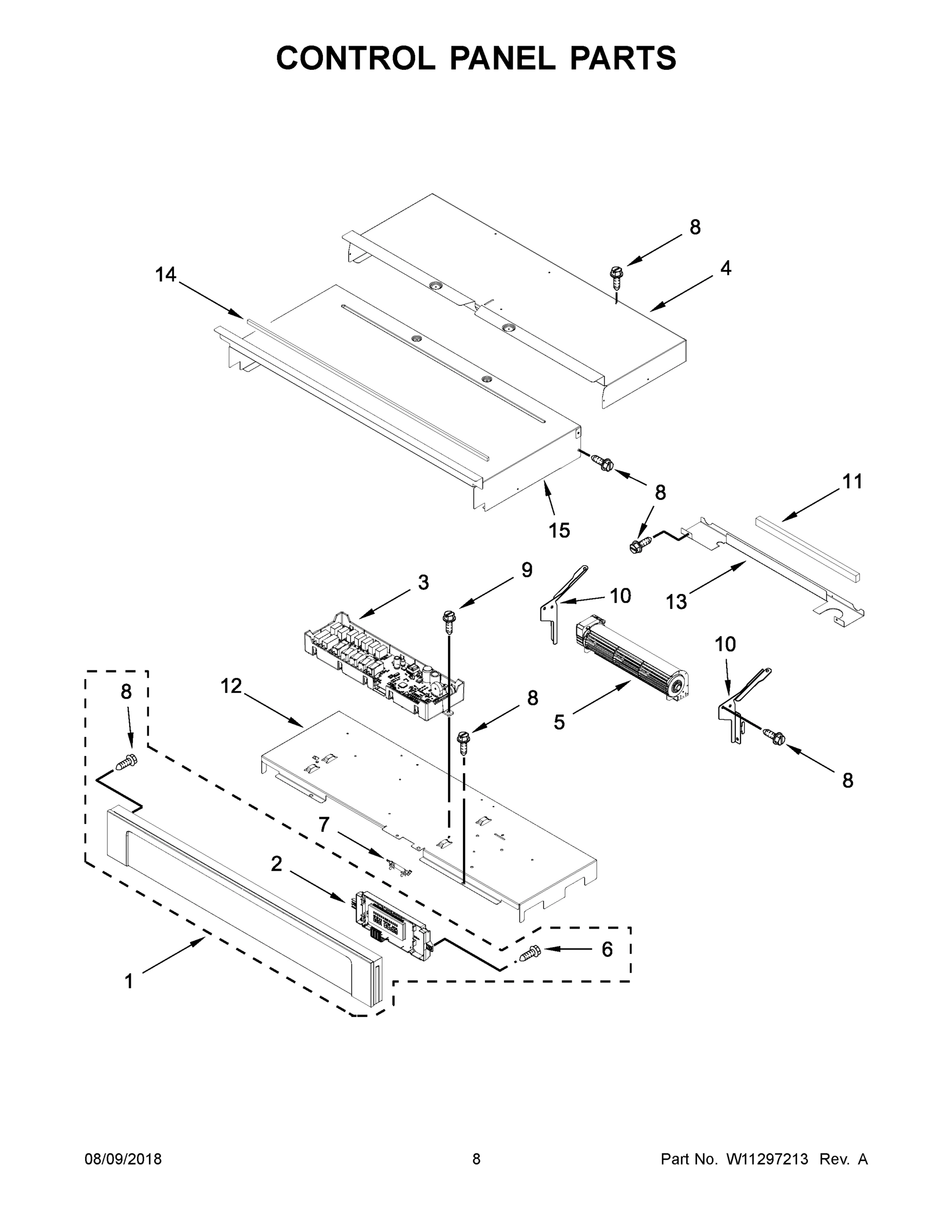

05 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AWO6317SFS02 AWO6317SFS02
1
INSTRUCTIONS, INSTALLATION MAY W10351242 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347597 Contact Us For Availability
1
ELEMENT, BROIL MAY W10260252 Contact Us For Availability
1
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (B MAY W10830873 Contact Us For Availability
1A
INSTRUCTIONS, UNDERCOUNTER INSTALL MAY W10351318 Contact Us For Availability
1A
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (W MAY W10830872 Contact Us For Availability
1B
GUIDE, USE & CARE MAY W10785116 Contact Us For Availability
1B
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S MAY W10830874 Contact Us For Availability
1C
SHEET, TECH MAY W10796080 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10317431 Contact Us For Availability
2
INTERFACE (MAXWELL), USER BOARD MAY W10752315 Contact Us For Availability
3
RECEIVER, HINGE MAY W10616802 Contact Us For Availability
3
SCREW MAY 3196183 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
3
ASSEMBLY, MAXWELL CONTROL MAY W10759207 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
BADGE (BLACK) MAY W10846751 Contact Us For Availability
4
CHASSIS, COVER TOP BACK 27 MAY W10694466 Contact Us For Availability
4A
BADGE (WHITE) MAY W10849465 Contact Us For Availability
4B
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10320793 Contact Us For Availability
5
BLOWER, DUAL SPEED MAY W11200130 Contact Us For Availability
6
CHASSIS, TOP MAY W10904159 Contact Us For Availability
6
HINGE, DOOR MAY W10639070 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
6
SCREW MAY 7101P403-60 Contact Us For Availability
7
ASSEMBLY, LIGHT MAY W10734063 Contact Us For Availability
7
ASSEMBLY, DOOR GLASS (BLACK) MAY W10832255 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
7
FUSE, THERMAL MAY W10545255 Contact Us For Availability
7A
ASSEMBLY, DOOR GLASS (WHITE) MAY W10832256 Contact Us For Availability
7B
ASSEMBLY, DOOR GLASS (STAINLESS) MAY W10832254 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
SCREW MAY 7101P426-60 Contact Us For Availability
8
HANDLE, DOOR (BLACK) MAY W10825488 Contact Us For Availability
8A
HANDLE, DOOR (WHITE) MAY W10825487 Contact Us For Availability
8B
HANDLE, DOOR (STAINLESS) MAY W10825489 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
GLASS, INNER MAY W10678525 Contact Us For Availability
9
SCREW MAY 7101P434-60 Contact Us For Availability
10
VENT, TOP 27 MAY W10283037 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
GASKET MAY W10282961 Contact Us For Availability
11
SCREW MAY W10163951 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
TRAY, ELECTRONIC MAY W10283005 Contact Us For Availability
13
SIDE, CHASSIS MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
14
BACK, CHASSIS MAY W10904162 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
GASKET, RUBBER MAY W11162062 Contact Us For Availability
15
CHASSIS, COVER TOP FRONT 27 MAY W10318193 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
17
BULB, LIGHT MAY W10412711 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
19
BASE, CHASSIS MAY W10282901 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (BLACK) MAY W10327375 Contact Us For Availability
20A
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10351280 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
22
TRIM, BOTTOM VENT (BLACK) MAY W10351237 Contact Us For Availability
22A
TRIM, BOTTOM VENT (STAINLESS) MAY W10327378 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
BUMPER & SCREW MAY W10351278 Contact Us For Availability
26
LENS, LIGHT MAY W10412722 Contact Us For Availability
28
SCREW MAY W10254050 Contact Us For Availability
29
GROMMET, FRONT FRAME MAY W10283016 Contact Us For Availability
30
SPACERS, FRONT MAY W10347649 Contact Us For Availability
31
DUCT, CHASSIS BACK MAY W10318196 Contact Us For Availability
32
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
33
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
34
SCREW MAY 7101P427-60 Contact Us For Availability
35
BRACKET, SIDE COVER (LEFT) MAY W10863234 Contact Us For Availability
35A
BRACKET, SIDE COVER (RIGHT) MAY W10863233 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
BAG, HARDWARE MAY W10352612 Contact Us For Availability
NI
HARNESS, EOL (MRC) MAY W10409840 Contact Us For Availability
NI
CLIP, HARNESS MAY W10487999 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520716 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY W11132988 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11132989 Contact Us For Availability
NI
HARNESS, MAIN MAY W11136114 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
× ![]()
