Model Maytag AT50MC2 WASHER – Common Parts & Diagrams

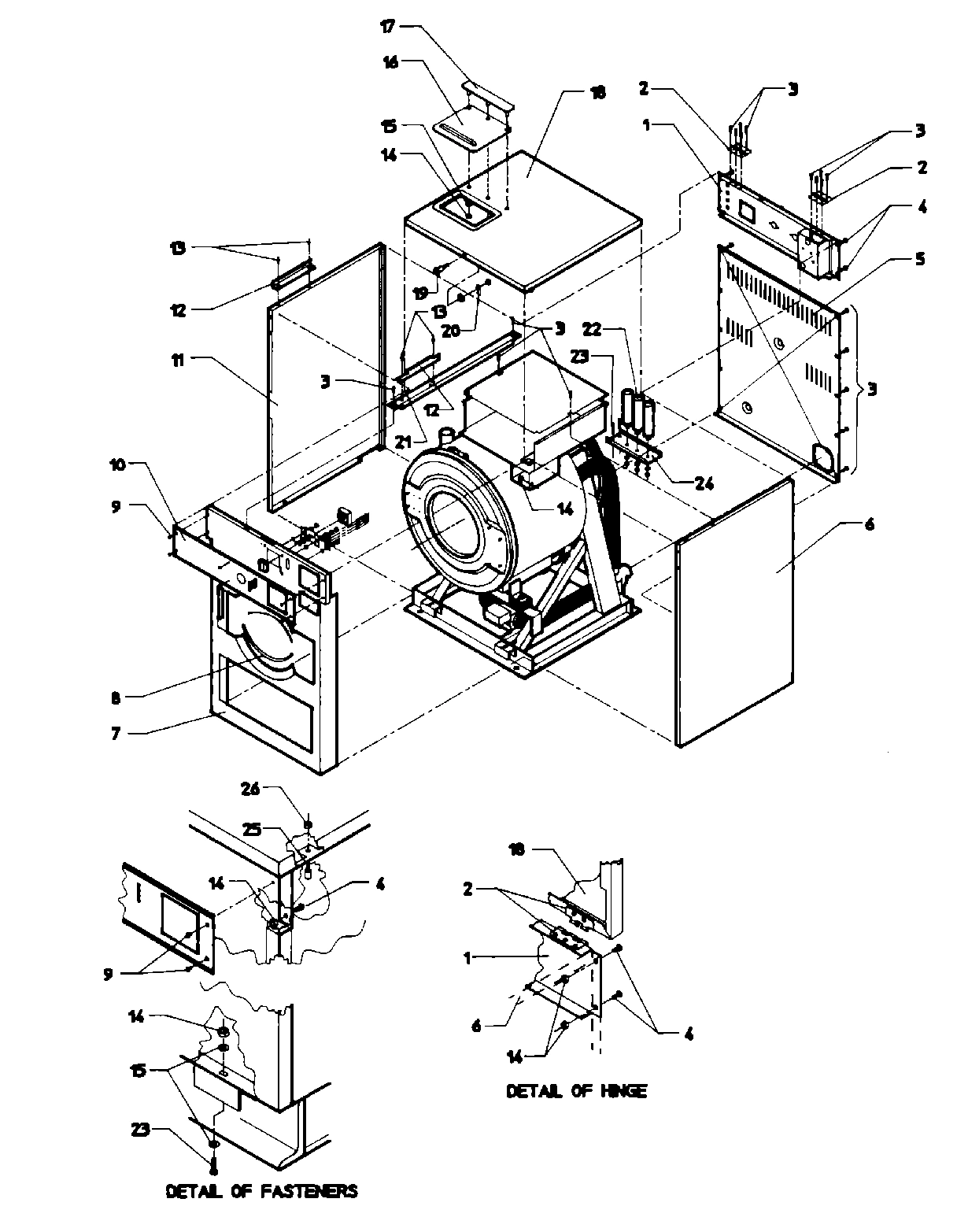

01 - MAIN EXPLODED VIEW - FINAL ASSEMBLY

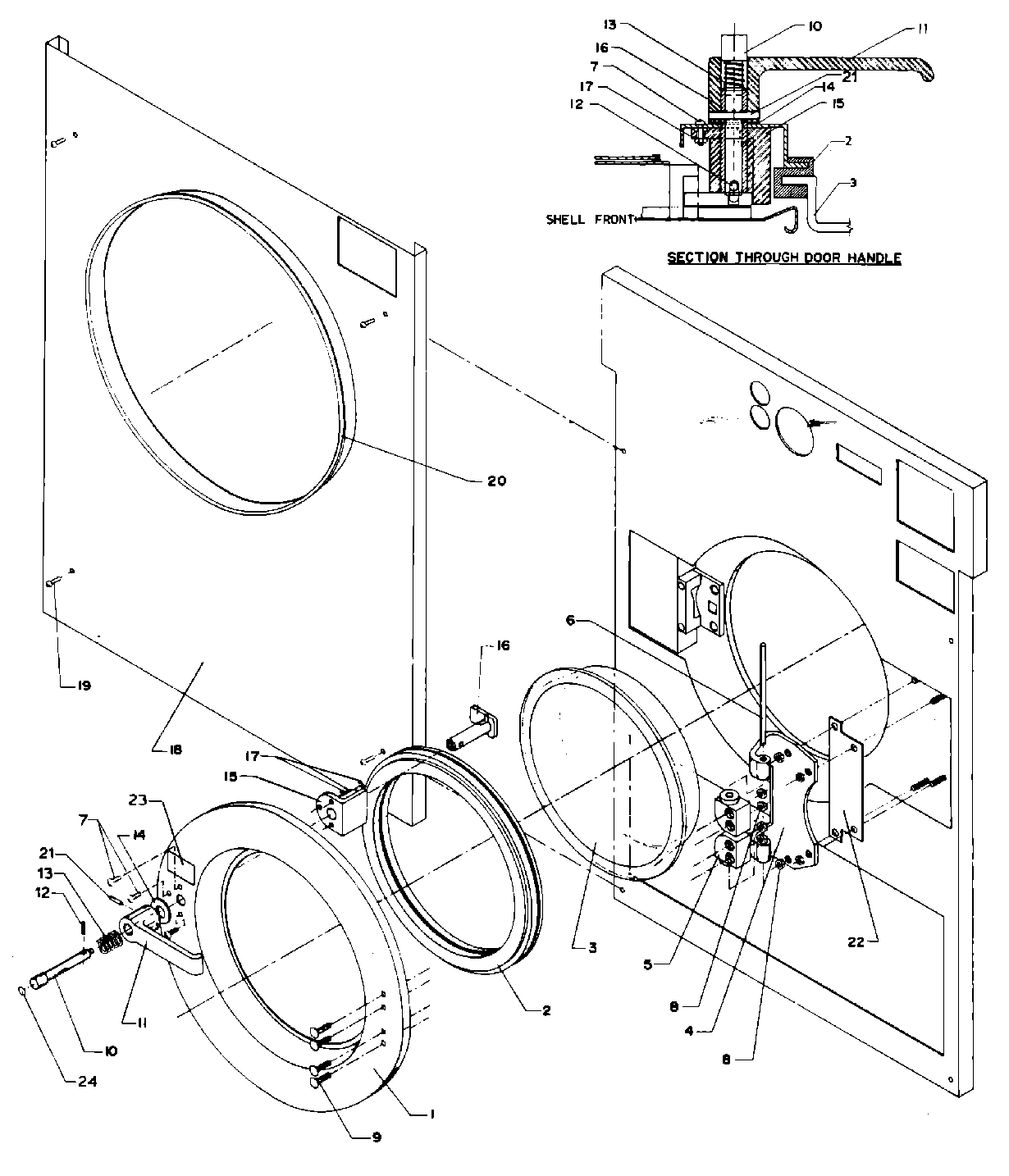

02 - DOOR & RELATED PARTS

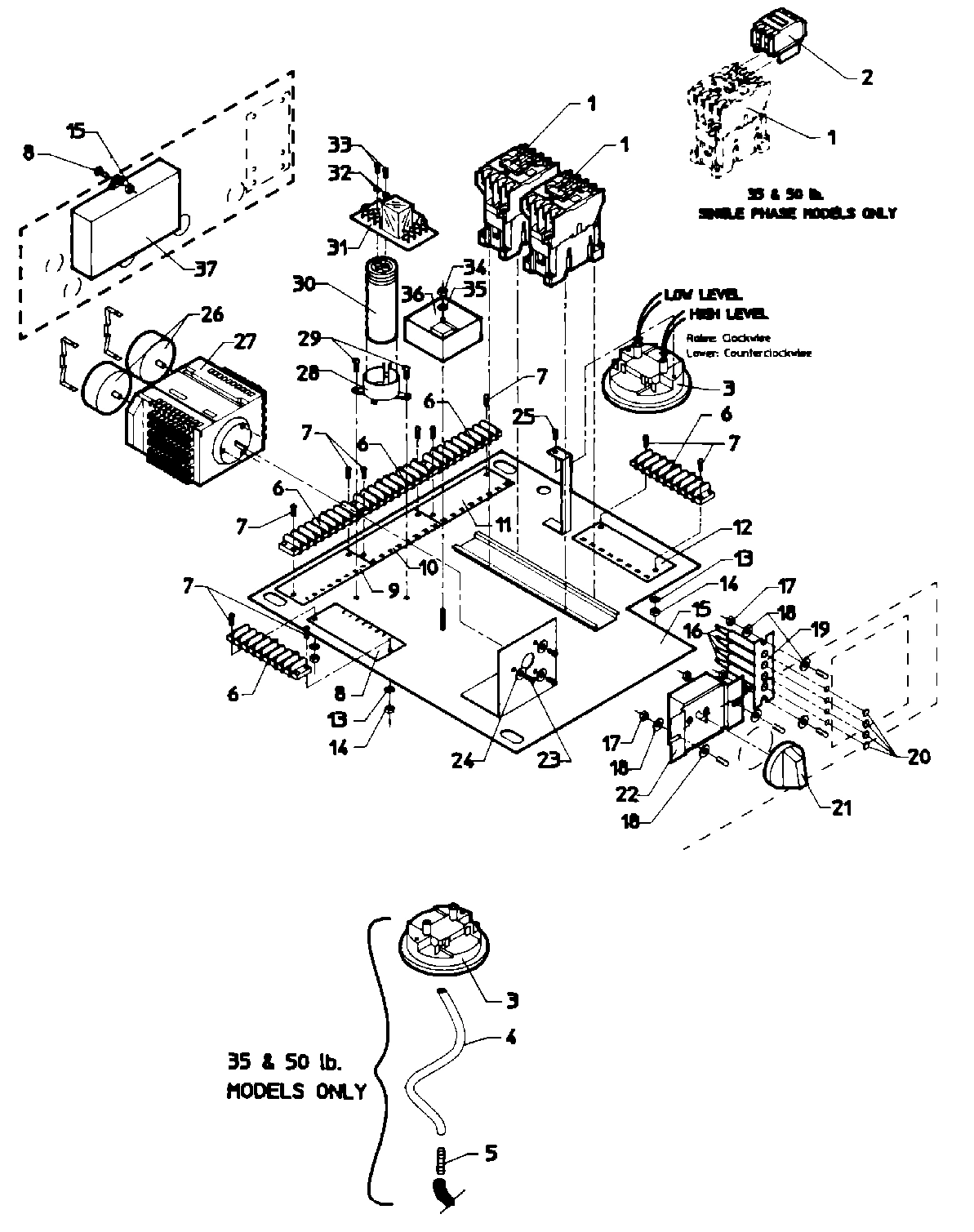

03 - CONTROL MODULE

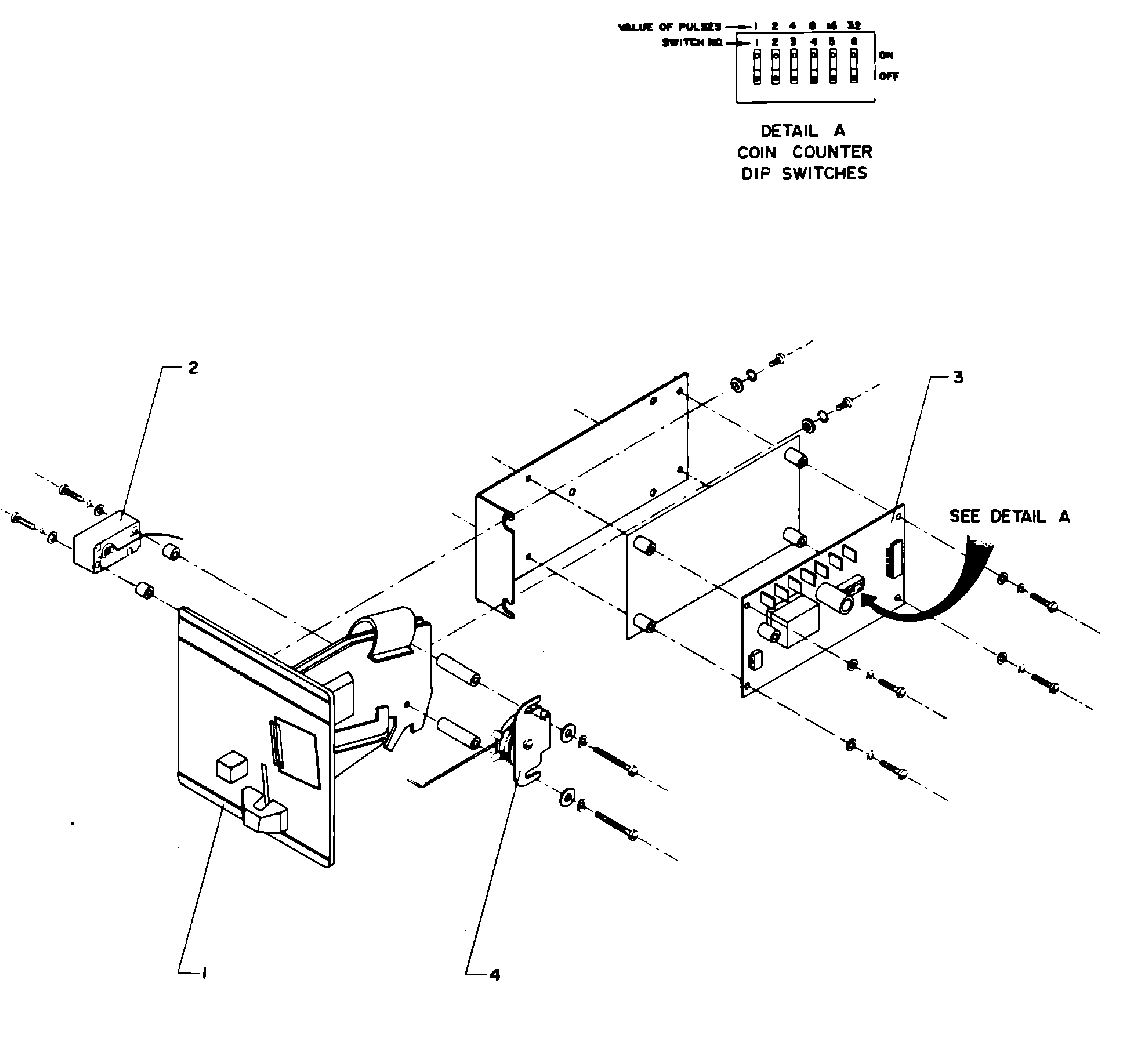

04 - COIN METER & COIN BOX

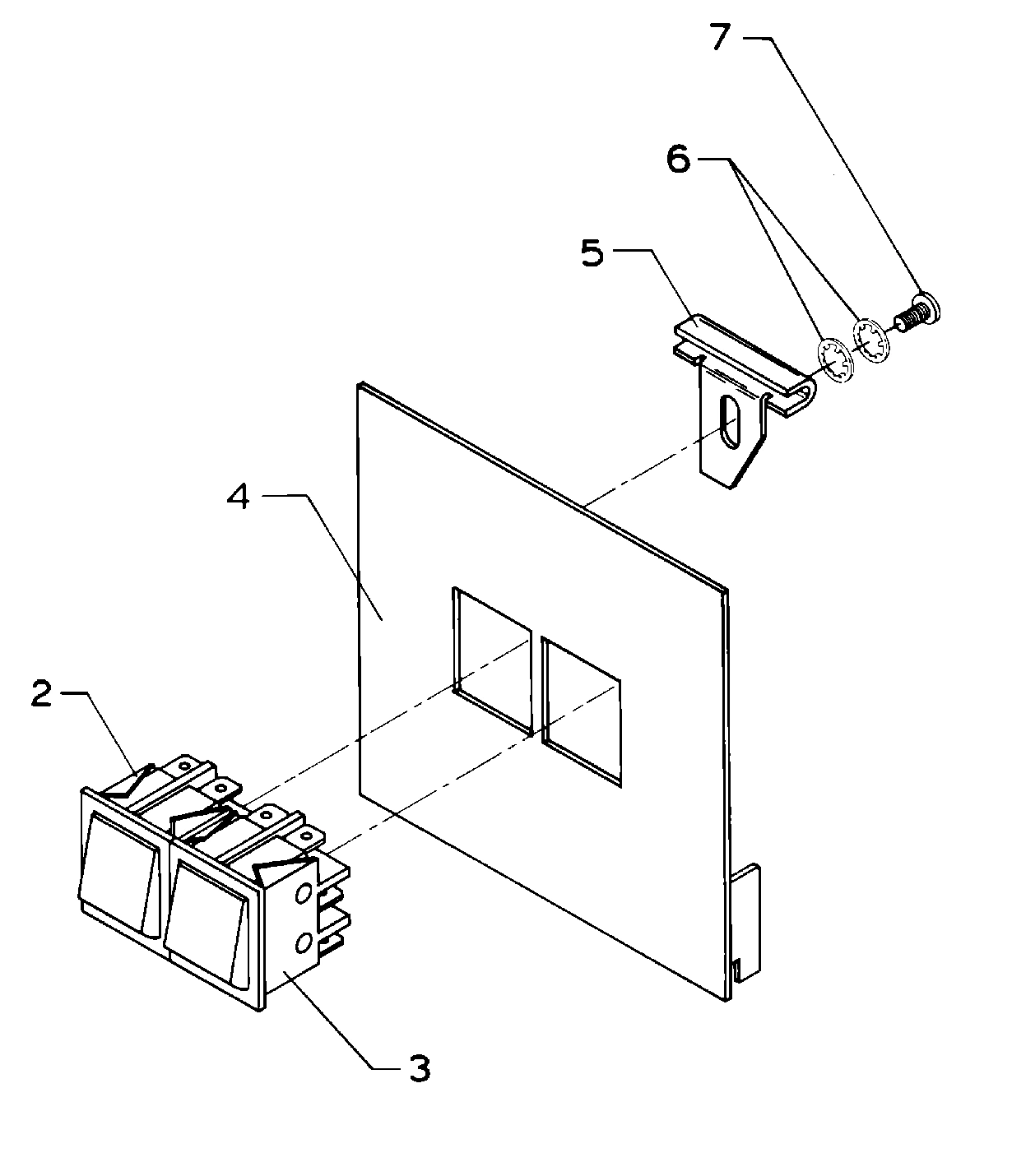

05 - MANUAL START/STOP CONTROL

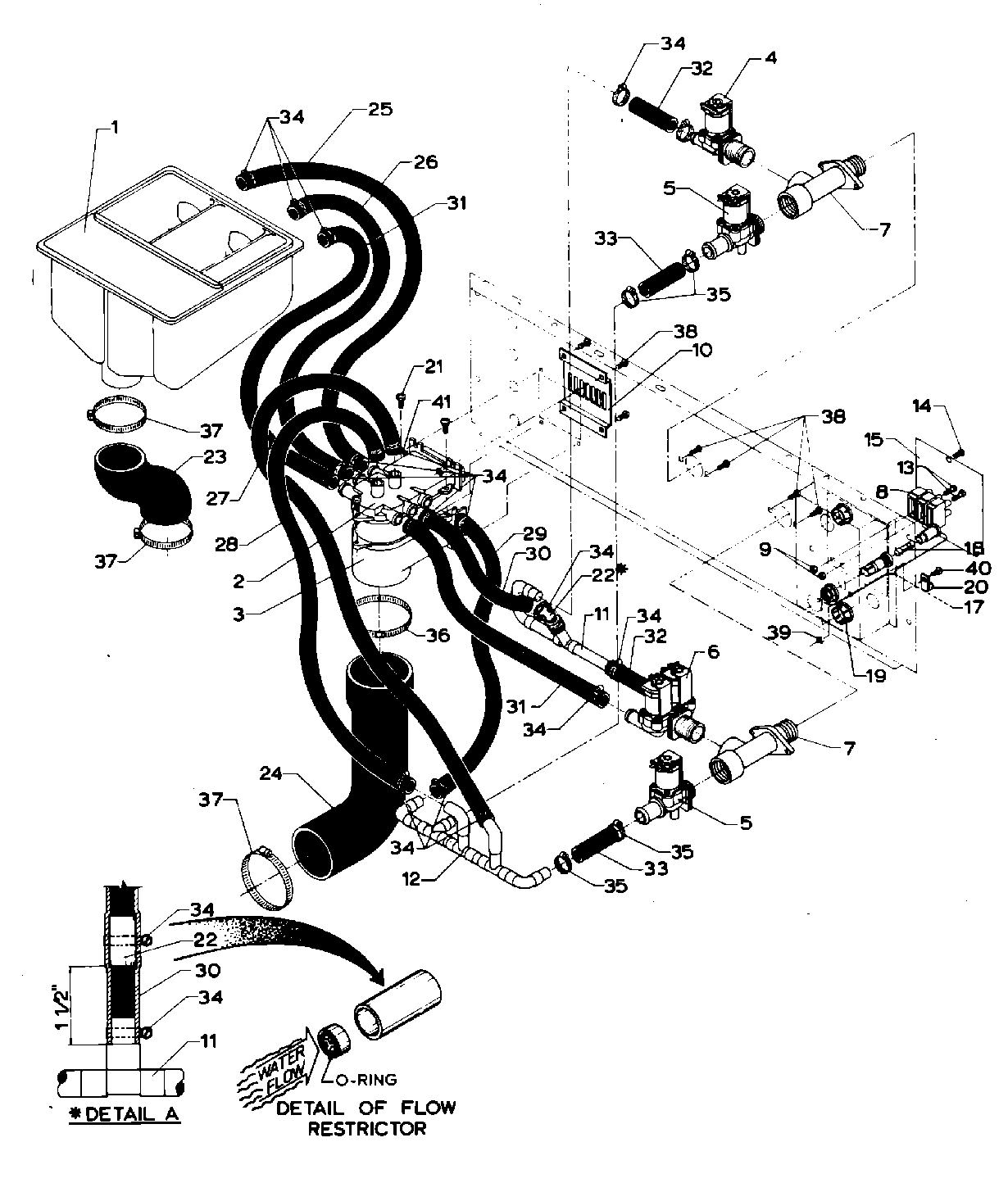

06 - SOAP DISPENSER

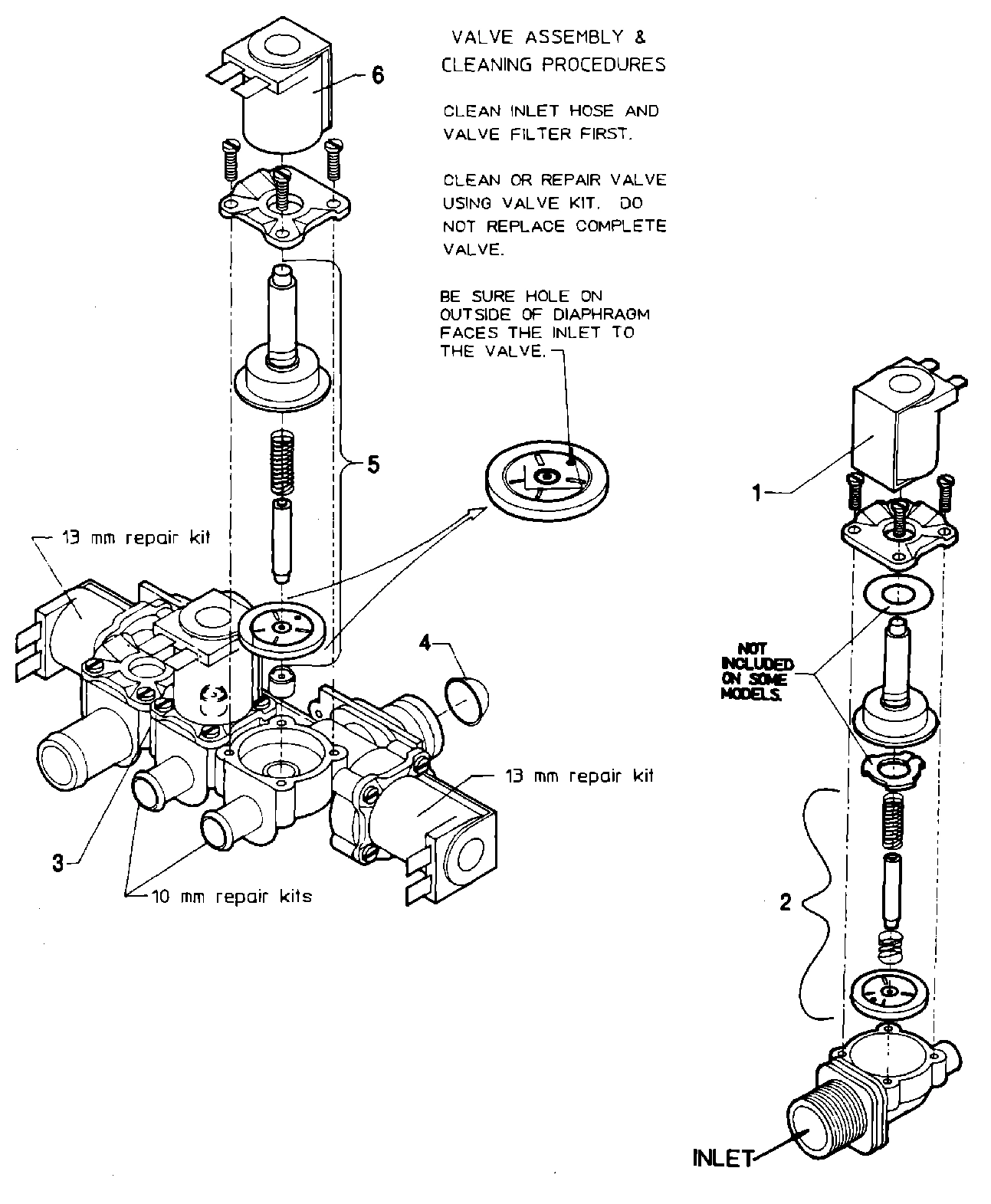

07 - WATER VALVE

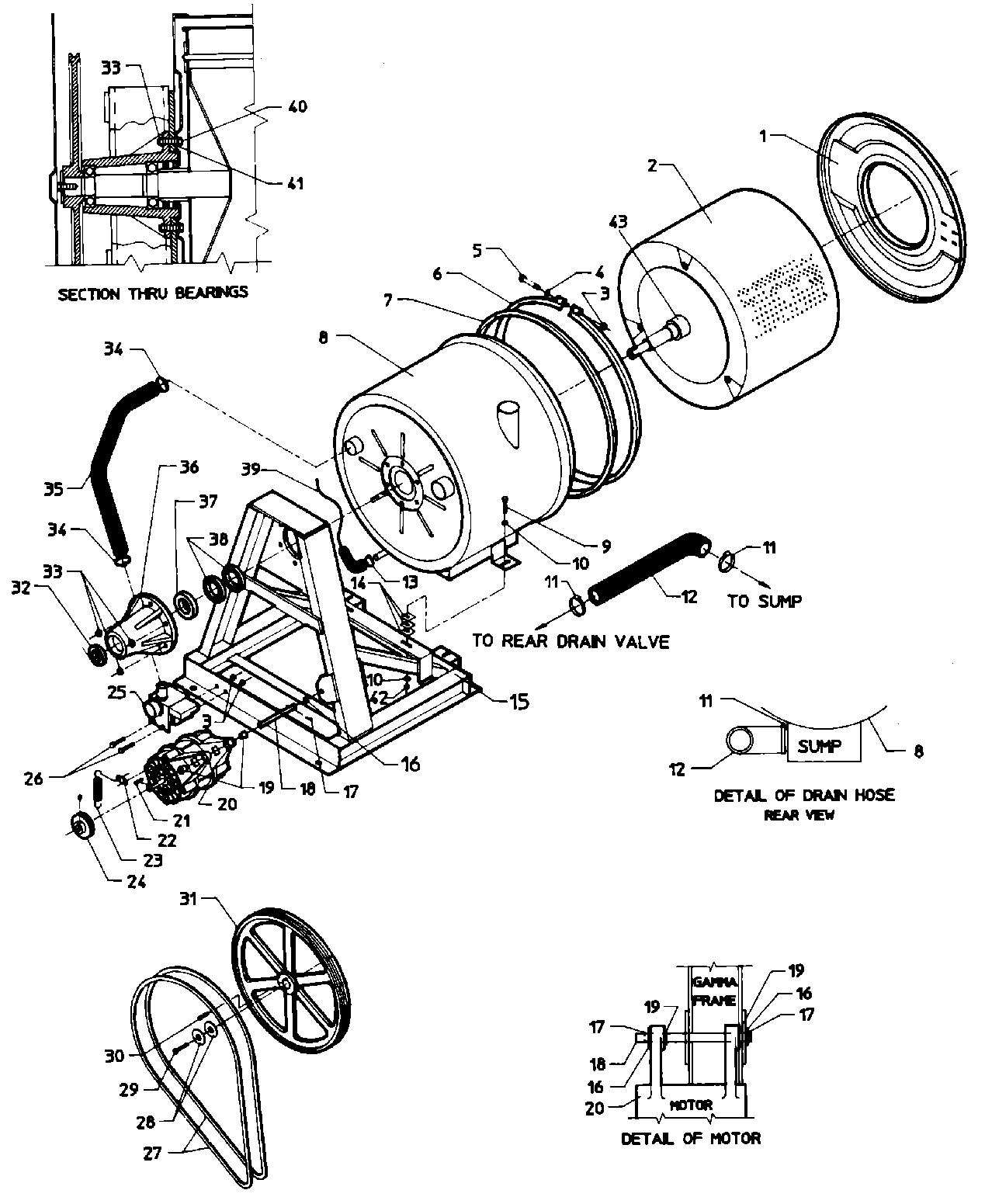

08 - MAIN EXPLODED VIEW - SUB ASSEMBLY

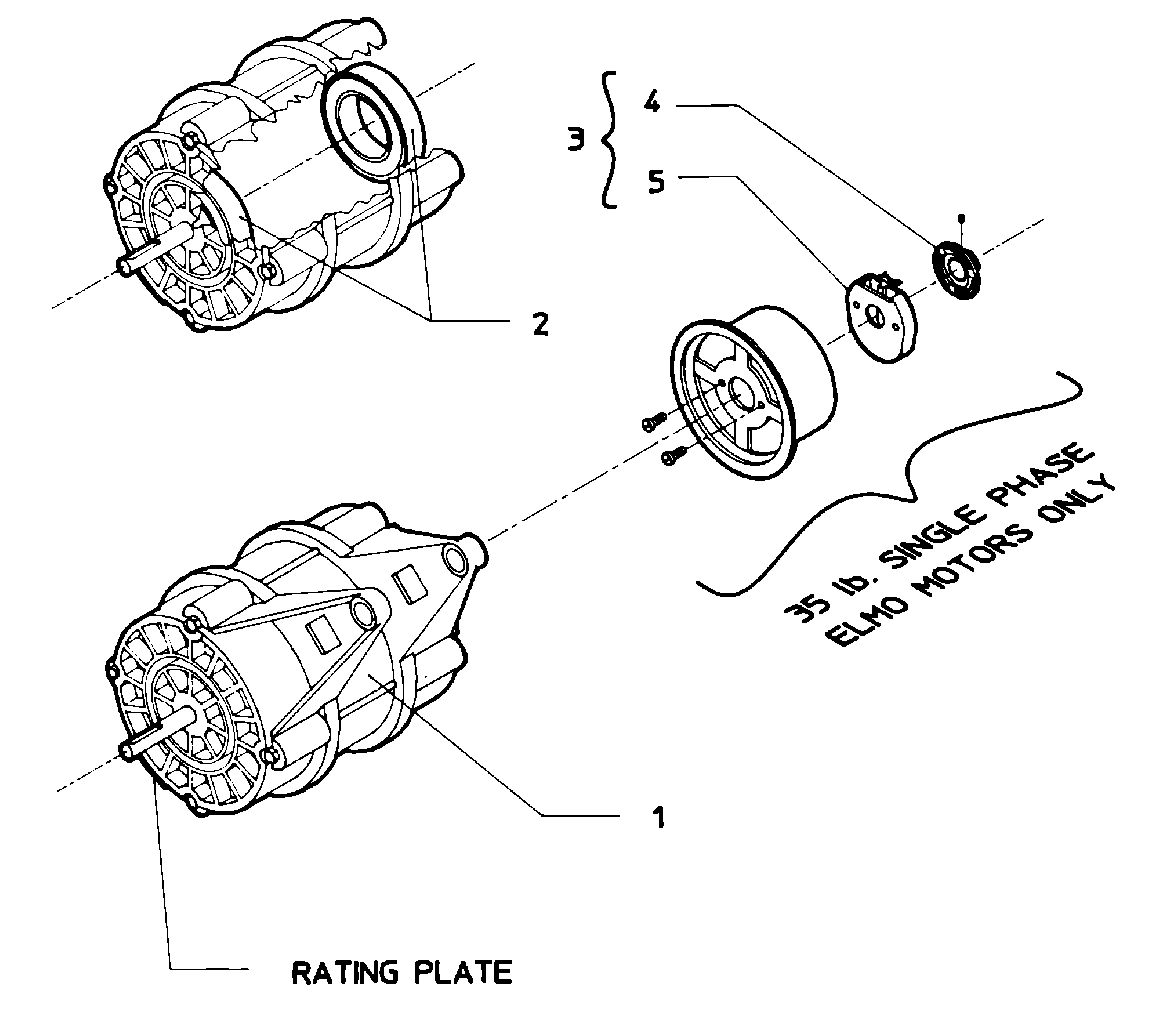

09 - MOTOR

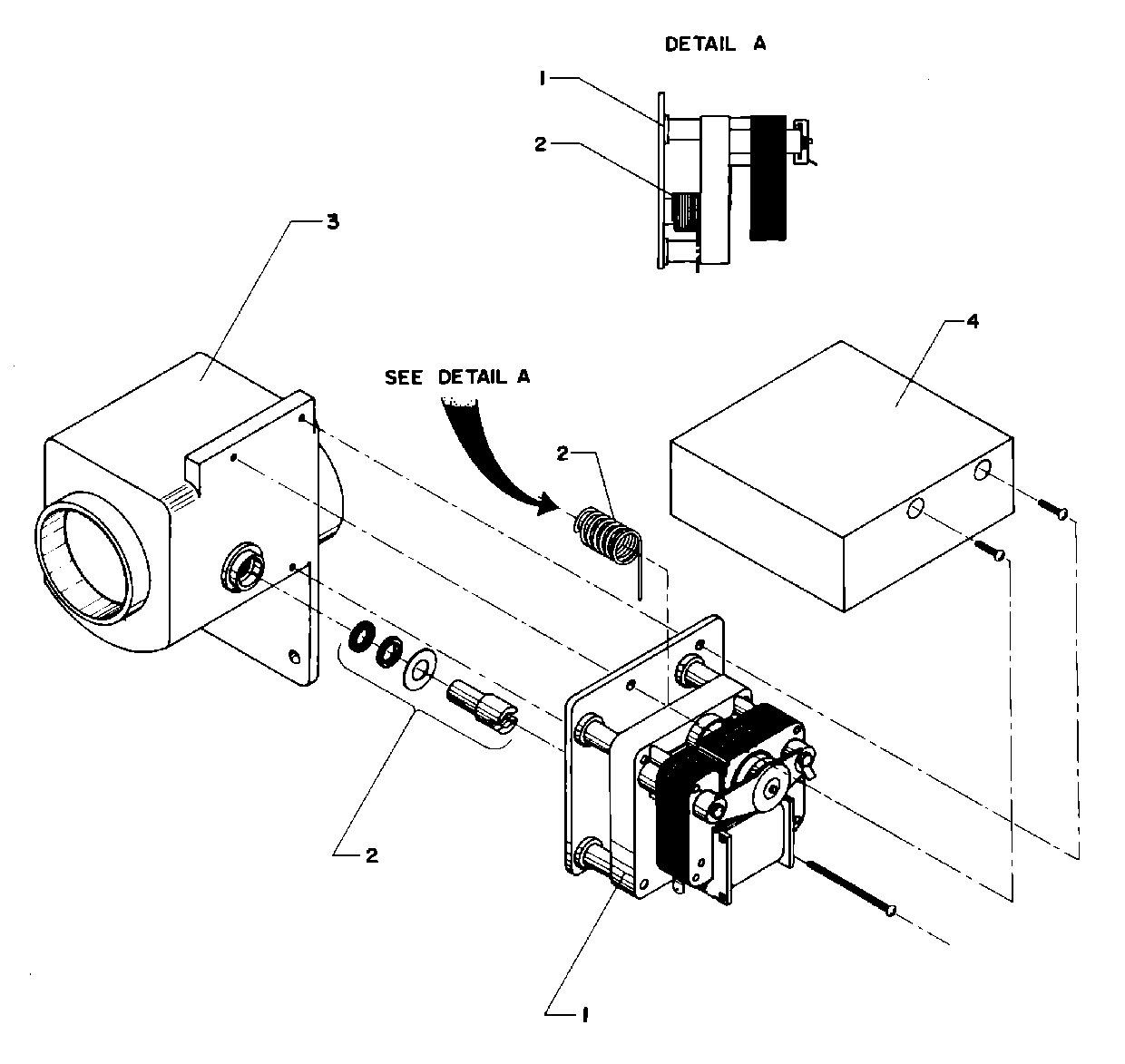

10 - DRAIN VALVE
Common parts from model Maytag AT50MC2 WASHER
001
MAY 24001171 MAY 24001171 Contact Us For Availability
001
MAY 24001717 MAY 24001717 Contact Us For Availability
001
MAY 24001720 MAY 24001720 Contact Us For Availability
001
MAY 24001105 MAY 24001105 Contact Us For Availability
001
MAY 24001615 MAY 24001615 Contact Us For Availability
001
COIN METER (110V/50-60HZ) MAY 24001754 Contact Us For Availability
001
COIN METER (110V/50-60HZ) MAY 24001755 Contact Us For Availability
001
DISPENSER, SUPPLY (COIN) MAY 24001627 Contact Us For Availability
001
MAY 24001119 MAY 24001119 Contact Us For Availability
001
MAY 24001080 MAY 24001080 Contact Us For Availability
001
MAY 24001084 MAY 24001084 Contact Us For Availability
001
MAY 24001217 MAY 24001217 Contact Us For Availability
001
MAY 24001530 MAY 24001530 Contact Us For Availability
002
HINGE (TAKE APART) MAY Y24001300 Contact Us For Availability
002
MAY 24001077 MAY 24001077 Contact Us For Availability
002
MAY 24001104 MAY 24001104 Contact Us For Availability
002
MAY 24001251 MAY 24001251 Contact Us For Availability
002
MAY 24001031 MAY 24001031 Contact Us For Availability
002
MAY 24001448 MAY 24001448 Contact Us For Availability
002
MAY 24001549 MAY 24001549 Contact Us For Availability
002
KIT, BASKET (50-2 SPEED) MAY 24001392 Contact Us For Availability
002
MAY 24001017 MAY 24001017 Contact Us For Availability
002
MAY 24001528 MAY 24001528 Contact Us For Availability
003
MAY Y24001100 MAY Y24001100 Contact Us For Availability
003
SWITCH, TRI LEVEL MAY 24001224 Contact Us For Availability
003
MAY 24001617 MAY 24001617 Contact Us For Availability
003
MAY 24001252 MAY 24001252 Contact Us For Availability
003
MAY 24001032 MAY 24001032 Contact Us For Availability
003
MAY 24001226 MAY 24001226 Contact Us For Availability
004
MAY 24001323 MAY 24001323 Contact Us For Availability
004
MAY 24001333 MAY 24001333 Contact Us For Availability
004
PART NOT USED MAY W10124350 Contact Us For Availability
004
MAY 24001747 MAY 24001747 Contact Us For Availability
004
COIN BLOCKING SOLENOID (110V) MAY 24001618 Contact Us For Availability
004
SOLENOID, COIN BLOCKING MAY 24001756 Contact Us For Availability
004
MAY 24001634 MAY 24001634 Contact Us For Availability
005
MAY 24001402 MAY 24001402 Contact Us For Availability
005
MAY 24001334 MAY 24001334 Contact Us For Availability
005
MAY 24001746 MAY 24001746 Contact Us For Availability
005
MAY 24001122 MAY 24001122 Contact Us For Availability
005
KIT, DIAPHRAM (SHORT) MAY 24001231 Contact Us For Availability
005
MAY 24001215 MAY 24001215 Contact Us For Availability
006
MAY 24001412 MAY 24001412 Contact Us For Availability
006
MAY 24001232 MAY 24001232 Contact Us For Availability
007
MAY 24001341 MAY 24001341 Contact Us For Availability
007
MAY 24001184 MAY 24001184 Contact Us For Availability
008
MAY 24001550 MAY 24001550 Contact Us For Availability
008
MAY 24001305 MAY 24001305 Contact Us For Availability
008
BLOCK, INPUT POWER (4 WIRE) MAY 24001366 Contact Us For Availability
008
BLOCK, INPUT POWER (3 WIRE) MAY 24001629 Contact Us For Availability
009
MAY 24001212 MAY 24001212 Contact Us For Availability
009
MAY 24001467 MAY 24001467 Contact Us For Availability
009
MAY 24001657 MAY 24001657 Contact Us For Availability
010
MAY 24001103 MAY 24001103 Contact Us For Availability
010
MAY 24001426 MAY 24001426 Contact Us For Availability
010
MAY 24001516 MAY 24001516 Contact Us For Availability
011
MAY 24001336 MAY 24001336 Contact Us For Availability
011
MAY 24001777 MAY 24001777 Contact Us For Availability
011
MAY 24001353 MAY 24001353 Contact Us For Availability
012
MAY 24001539 MAY 24001539 Contact Us For Availability
012
MAY 24001721 MAY 24001721 Contact Us For Availability
012
MAY 24001030 MAY 24001030 Contact Us For Availability
012
MAY 24001503 MAY 24001503 Contact Us For Availability
013
MAY 24001540 MAY 24001540 Contact Us For Availability
013
MAY 24001338 MAY 24001338 Contact Us For Availability
013
MAY 24001415 MAY 24001415 Contact Us For Availability
013
MAY 24001430 MAY 24001430 Contact Us For Availability
013
MAY 24001438 MAY 24001438 Contact Us For Availability
014
MAY 24001301 MAY 24001301 Contact Us For Availability
014
MAY 24001510 MAY 24001510 Contact Us For Availability
014
MAY 24001310 MAY 24001310 Contact Us For Availability
014
MAY 24001417 MAY 24001417 Contact Us For Availability
014
MAY 24001803 MAY 24001803 Contact Us For Availability
015
MAY 24001304 MAY 24001304 Contact Us For Availability
015
MAY 24001340 MAY 24001340 Contact Us For Availability
015
COVER, JUNCTION BOX MAY 24001429 Contact Us For Availability
015
MAY 24001373 MAY 24001373 Contact Us For Availability
016
MAY 24001219 MAY 24001219 Contact Us For Availability
016
MAY 24001343 MAY 24001343 Contact Us For Availability
016
MAY 24001209 MAY 24001209 Contact Us For Availability
016
MAY 24001812 MAY 24001812 Contact Us For Availability
017
MAY 24001542 MAY 24001542 Contact Us For Availability
017
MAY 24001433 MAY 24001433 Contact Us For Availability
017
MAY 24001512 MAY 24001512 Contact Us For Availability
018
ROD, SUPPORT MAY NLA Contact Us For Availability
018
MAY 24001576 MAY 24001576 Contact Us For Availability
018
MAY 24001225 MAY 24001225 Contact Us For Availability
019
MAY 24001220 MAY 24001220 Contact Us For Availability
019
MAY 24001474 MAY 24001474 Contact Us For Availability
019
MAY 24001436 MAY 24001436 Contact Us For Availability
019
MAY 24001021 MAY 24001021 Contact Us For Availability
020
MAY 24001221 MAY 24001221 Contact Us For Availability
020
MAY 24001722 MAY 24001722 Contact Us For Availability
020
MAY 24001210 MAY 24001210 Contact Us For Availability
020
MAY 24001434 MAY 24001434 Contact Us For Availability
021
MAY 24001691 MAY 24001691 Contact Us For Availability
021
MAY 24001827 MAY 24001827 Contact Us For Availability
021
MAY 24001204 MAY 24001204 Contact Us For Availability
021
MAY 24001648 MAY 24001648 Contact Us For Availability
022
MAY 24001237 MAY 24001237 Contact Us For Availability
022
CAPACITOR (20MF) MAY 24001239 Contact Us For Availability
022
MAY 24001241 MAY 24001241 Contact Us For Availability
022
MAY 24001466 MAY 24001466 Contact Us For Availability
022
MAY 24001207 MAY 24001207 Contact Us For Availability
022
MAY 24001775 MAY 24001775 Contact Us For Availability
022
MAY 24001651 MAY 24001651 Contact Us For Availability
023
MAY 24001303 MAY 24001303 Contact Us For Availability
023
MAY 24001462 MAY 24001462 Contact Us For Availability
023
MAY 24001357 MAY 24001357 Contact Us For Availability
023
MAY 24001442 MAY 24001442 Contact Us For Availability
023
MAY 24001650 MAY 24001650 Contact Us For Availability
024
MAY 24001674 MAY 24001674 Contact Us For Availability
024
MAY 24001407 MAY 24001407 Contact Us For Availability
024
MAY 24001358 MAY 24001358 Contact Us For Availability
024
MAY 24001033 MAY 24001033 Contact Us For Availability
024
PULLEY, MOTOR MAY 24001088 Contact Us For Availability
025
MAY 24001411 MAY 24001411 Contact Us For Availability
025
MAY 24001781 MAY 24001781 Contact Us For Availability
025
MAY 24001814 MAY 24001814 Contact Us For Availability
026
MAY 24001577 MAY 24001577 Contact Us For Availability
026
MAY 24001783 MAY 24001783 Contact Us For Availability
026
MAY 24001502 MAY 24001502 Contact Us For Availability
027
MAY 24001178 MAY 24001178 Contact Us For Availability
027
MAY 24001404 MAY 24001404 Contact Us For Availability
028
MAY 24001767 MAY 24001767 Contact Us For Availability
028
MAY 24001501 MAY 24001501 Contact Us For Availability
029
MAY 24001578 MAY 24001578 Contact Us For Availability
029
MAY 24001788 MAY 24001788 Contact Us For Availability
029
MAY Y24001500 MAY Y24001500 Contact Us For Availability
030
MAY 24001247 MAY 24001247 Contact Us For Availability
030
MAY 24001771 MAY 24001771 Contact Us For Availability
030
MAY 24001499 MAY 24001499 Contact Us For Availability
031
MAY 24001248 MAY 24001248 Contact Us For Availability
031
MAY 24001792 MAY 24001792 Contact Us For Availability
031
MAY 24001087 MAY 24001087 Contact Us For Availability
032
MAY 24001579 MAY 24001579 Contact Us For Availability
032
MAY 24001016 MAY 24001016 Contact Us For Availability
033
MAY 24001580 MAY 24001580 Contact Us For Availability
033
MAY 24001794 MAY 24001794 Contact Us For Availability
033
MAY 24001495 MAY 24001495 Contact Us For Availability
034
MAY 24001419 MAY 24001419 Contact Us For Availability
034
MAY 24001423 MAY 24001423 Contact Us For Availability
034
MAY 24001283 MAY 24001283 Contact Us For Availability
035
MAY 24001295 MAY 24001295 Contact Us For Availability
035
MAY 24001797 MAY 24001797 Contact Us For Availability
035
MAY 24001506 MAY 24001506 Contact Us For Availability
036
MAY 24001176 MAY 24001176 Contact Us For Availability
036
MAY 24001282 MAY 24001282 Contact Us For Availability
037
KIT, SWITCH (ELMO MOTORS) MAY 24001235 Contact Us For Availability
037
BEARING, 6312-2RS MAY 24002044 Contact Us For Availability
038
MAY 24001414 MAY 24001414 Contact Us For Availability
038
SEAL, SHAFT MAY 24002049 Contact Us For Availability
039
MAY 24001342 MAY 24001342 Contact Us For Availability
039
AIR TRAP MAY 24001661 Contact Us For Availability
040
MAY 24001432 MAY 24001432 Contact Us For Availability
040
MAY 24001497 MAY 24001497 Contact Us For Availability
041
MAY 24001425 MAY 24001425 Contact Us For Availability
041
MAY 24001496 MAY 24001496 Contact Us For Availability
042
MAY 24001261 MAY 24001261 Contact Us For Availability
042
MAY 24001515 MAY 24001515 Contact Us For Availability
043
MAY 24001272 MAY 24001272 Contact Us For Availability
NI
MAY 24001764 MAY 24001764 Contact Us For Availability
× ![]()
