Model Whirlpool ASU9000CBS DISHWASHER – Common Parts & Diagrams
02 - DOOR/CONTROL ASSY PARTS

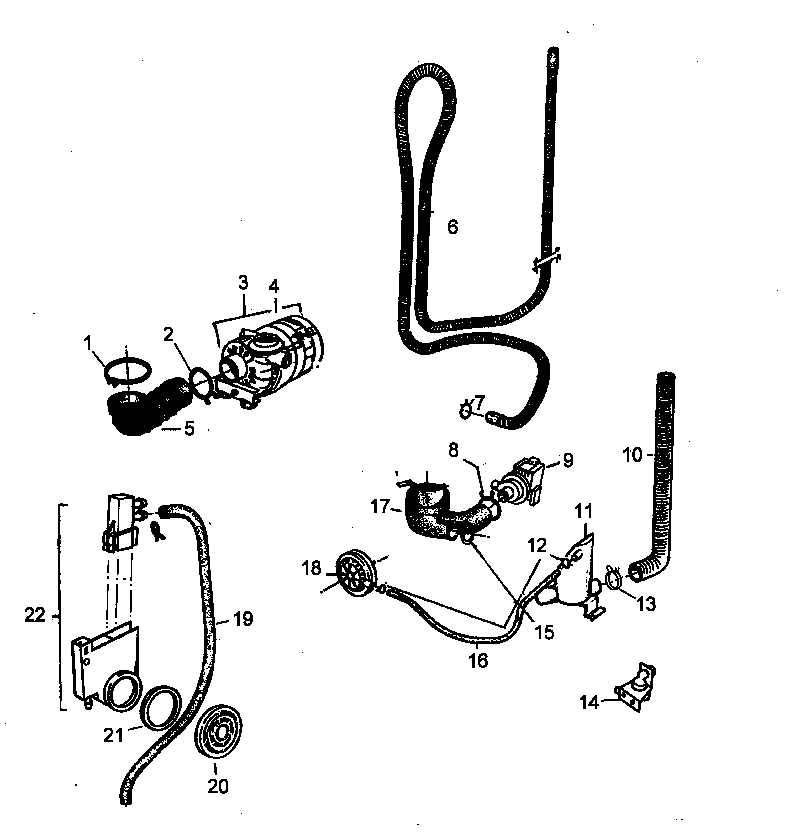

05 - WASH/DRAIN PUMP/PRESSURE SWITCH PARTS

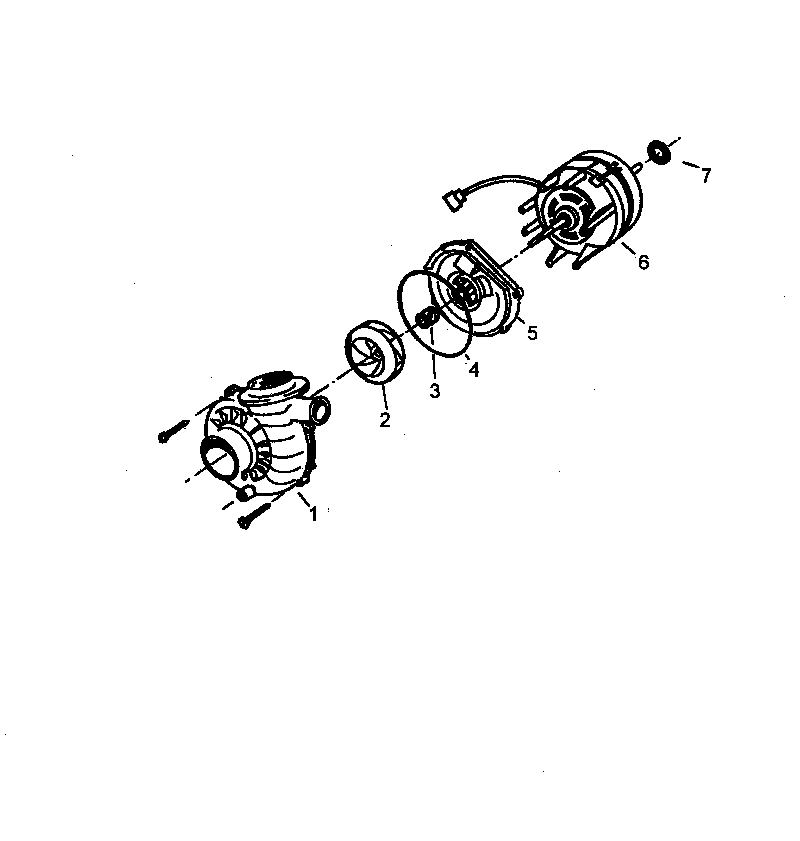

04 - WASH PUMP PARTS

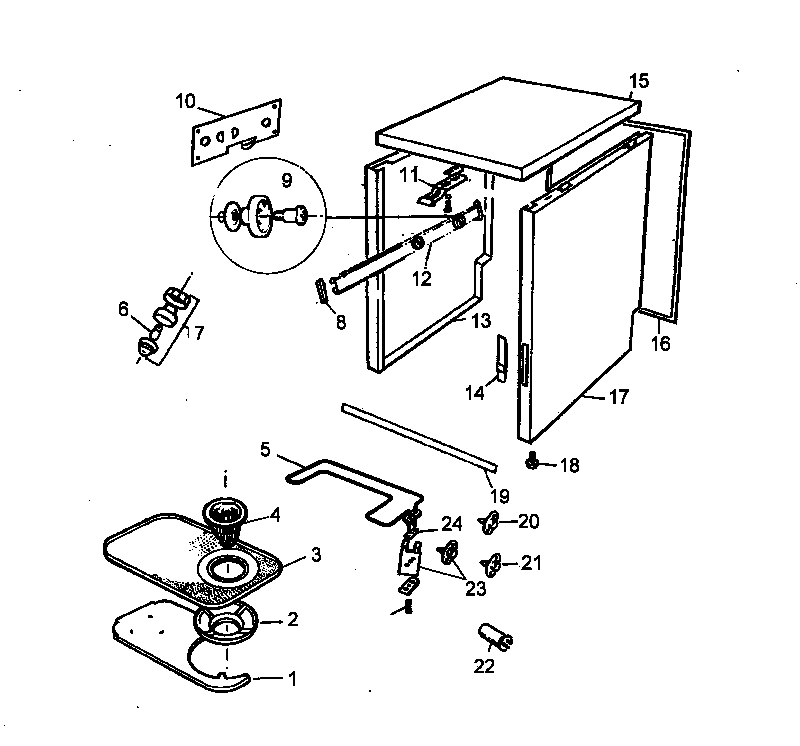

01 - CABINET/HEATING ELEMENT/FILTER PARTS

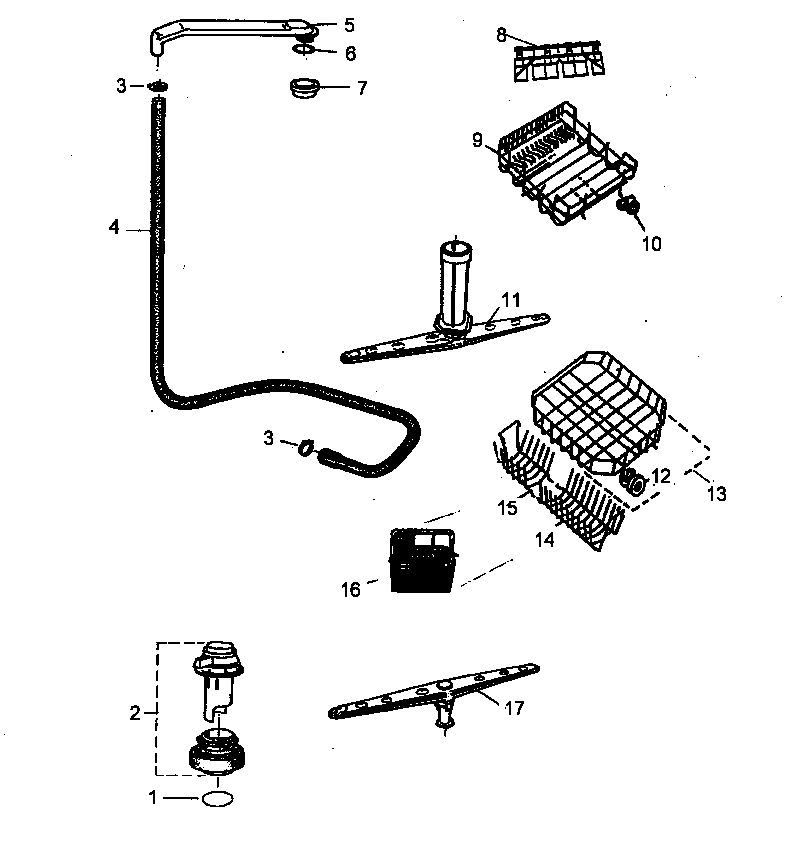

03 - SPRAY ARM/RACK PARTS
Common parts from model Whirlpool ASU9000CBS DISHWASHER
1
CLAMP, COLLECTOR TO TANK(BOTH) WPL R0213580 Contact Us For Availability
1
BODY, WASH PUMP WPL R0213600 Contact Us For Availability
1
FILTER, BAFFLE S/STEEL WPL R0213525 Contact Us For Availability
1
EXT., O RING PUMP WPL R0213567 Contact Us For Availability
2
CLAMP, COLLECTOR/WASH PUMP WPL R0213579 Contact Us For Availability
2
PUMP, IMPELLOR WASH WPL R0213599 Contact Us For Availability
2
FILTER, MICRO MESH WPL R0213526 Contact Us For Availability
2
FLOW REGULATOR WPL R0213566 Contact Us For Availability
3
ROTARY SEAL & GASKET KIT WPL R0213601 Contact Us For Availability
3
FILTER, WASH PUMP WPL R0213521 Contact Us For Availability
3
CLAMP, UPPER SPRAY ARM WPL R0213558 Contact Us For Availability
4
WASH PUMP COMP.(120V) WPL R0213576 Contact Us For Availability
4
GASKET PUMP BODY WPL R0213598 Contact Us For Availability
4
DRAIN CUP WPL R0213520 Contact Us For Availability
4
HOSE, UPPER SPRAY ARM WPL R0213559 Contact Us For Availability
5
COLLECTOR, PUMP WPL R0213581 Contact Us For Availability
5
REAR PLATE-PUMP WPL R0213597 Contact Us For Availability
5
HTG & DRYING ELEM. KIT WPL R0213522 Contact Us For Availability
5
ARM, UPPER SPRAY COLL. WPL R0213557 Contact Us For Availability
6
MOTOR, WASH PUMP(120V) WPL R0213575 Contact Us For Availability
6
KIT, HOSE DRAIN REPL. WPL R0213574 Contact Us For Availability
6
LIGHT BULB WPL R0213502 Contact Us For Availability
6
SEAL, UPPER SPRAY COLL. WPL R0213561 Contact Us For Availability
7
TIMER CONTROL WPL 0213624 Contact Us For Availability
7
SUPPORT, MOTOR GROMMET WPL R0213596 Contact Us For Availability
7
INTERIOR LIGHT ASSY(BAYONET) WPL R0213503 Contact Us For Availability
7
NOZZLE, SPRAY WPL R0213560 Contact Us For Availability
8
CONTROL PANEL-BLACK WPL R0213549 Contact Us For Availability
8
CLAMP, COLL. TO PUMP 37MM WPL R0213590 Contact Us For Availability
8
GUIDE STOP WPL R0213504 Contact Us For Availability
8
CUP RACK, HINGED WPL R0213565 Contact Us For Availability
9
NET-ELECT CONTL BD WPL R0213547 Contact Us For Availability
9
DRAIN PUMP 120V WPL R0213582 Contact Us For Availability
9
GUIDE WHEEL-CHARCOAL WPL R0213507 Contact Us For Availability
9
BASKET, UPPER(X-TRA SPACE) WPL R0213564 Contact Us For Availability
10
MEMBRANE SW &FACIA-BLK WPL R0213551 Contact Us For Availability
10
HOSE AIR TRAP VENTING WPL R0213595 Contact Us For Availability
10
PLATE, SUPPORT WPL R0213501 Contact Us For Availability
10
ASSY,UP BSKT-WHEEL (1=4) WPL R0213571 Contact Us For Availability
11
WEDGE,DOOR LOCK WPL R0213545 Contact Us For Availability
11
AIR TRAP WPL R0213594 Contact Us For Availability
11
LATCH-DOOR(1000 SERIES) WPL R0213505 Contact Us For Availability
11
ASSY, UPPER SPRAY ARM WPL R0213562 Contact Us For Availability
12
PUSH ROD, DR ELECTRONIC WPL R0213544 Contact Us For Availability
12
CLAMP P/SW TUBE WPL R0213592 Contact Us For Availability
12
GUIDE, UPPER BASKET WPL R0213506 Contact Us For Availability
12
WHEEL ASSY,LWR BASKET WPL R0213572 Contact Us For Availability
13
ASSY, DR HANDLE BLACK WPL R0213543 Contact Us For Availability
13
CLAMP, AIR TRAP BREATHER WPL R0213578 Contact Us For Availability
13
CASE, SIDE L.H. BLK WPL R0213511 Contact Us For Availability
13
LOWER BASKET(X-TRA SPACE) WPL R0213573 Contact Us For Availability
14
MICRO SWITCH WPL R0213541 Contact Us For Availability
14
VALVE, SOLENOID 110V 60HZ WPL R0213583 Contact Us For Availability
14
HINGE OUTER RUBBING PAD (BLK) WPL R0213510 Contact Us For Availability
14
ASS`Y, LONG INSERT WPL R0213570 Contact Us For Availability
15
DISPENSER,RINSE& DET.110V WPL R0213556 Contact Us For Availability
15
CLAMP, AIR TRAP/COLL. 27MM WPL R0213591 Contact Us For Availability
15
PANEL, CASE TOPBLK WPL R0213518 Contact Us For Availability
15
ASS`Y, SHORT INSERT WPL R0213569 Contact Us For Availability
16
GASKET, TANK WPL R0213538 Contact Us For Availability
16
HOSE-PRESSURE SWITCH WPL R0213593 Contact Us For Availability
16
PANEL,CASE BACK WPL R0213516 Contact Us For Availability
16
ASS`Y, BASKET CUT.& HDLE WPL R0213568 Contact Us For Availability
17
DEW PROTECTION WPL R0213537 Contact Us For Availability
17
COLLECTOR, DRAIN WPL R0213589 Contact Us For Availability
17
CASE, SIDE R.H. BLK WPL R0213513 Contact Us For Availability
17
ASSY, LOWER SPRAY ARM WPL R0213563 Contact Us For Availability
18
SWITCH, DOOR LIGHT WPL R0213540 Contact Us For Availability
18
SWITCH, PRESSURE 2 LEVEL WPL R0213588 Contact Us For Availability
18
LEVELING FOOT WPL R0213515 Contact Us For Availability
19
PUSH ROD & GUIDE(HINGE) WPL R0213552 Contact Us For Availability
19
HOSE, TANK INLET WPL R0213585 Contact Us For Availability
19
LINER PROTECTION EXTR. WPL R0213508 Contact Us For Availability
20
HMGE & SPRING SET WPL R0213554 Contact Us For Availability
20
NUT, LOAD COLLECTOR-CHAR. WPL R0213587 Contact Us For Availability
21
BLOCK SET, HINGE COVER WPL R0213555 Contact Us For Availability
21
GASKET, LOAD COLLECTOR NUT WPL R0213586 Contact Us For Availability
22
KICKPLATE ANGLE-BLK WPL R0213533 Contact Us For Availability
22
LOAD COLLECTOR WPL R0213584 Contact Us For Availability
22
CAPACITOR 25 UF(3 TERM.) WPL R0213519 Contact Us For Availability
23
EXTENDER SET WPL R0213535 Contact Us For Availability
23
THERMOSTAT AND BRACKET WPL R0213524 Contact Us For Availability
24
INNER DOOR SEAL(BOTTOM) WPL R0213536 Contact Us For Availability
24
GASKET HEATING ELEMENT WPL R0213523 Contact Us For Availability
25
GASKET, EXT. SET-1000 SEAES WPL R0213539 Contact Us For Availability
26
SCREW,5X8X10MM OVAL WPL R0213553 Contact Us For Availability
27
KICKPLATE-BLACK WPL R0213532 Contact Us For Availability
28
ASSY, LOWER DR S/STEEL WPL R0213635 Contact Us For Availability
29
ASS`Y, UPPER DR S/STEEL WPL R0213636 Contact Us For Availability
30
DOOR LINER & SEAL WPL R0213546 Contact Us For Availability
NI
SCREW PACK(1=6PCS) PANEL WPL R0213638 Contact Us For Availability
NI
SCREW,SS-CONTROL PANEL WPL R0213639 Contact Us For Availability
NI
KIT, HOSE DRAIN EXT. WPL R0213602 Contact Us For Availability
NI
SCREW PACK(1=6PCS) PANEL WPL R0213603 Contact Us For Availability
NI
LOOM-TWIN PUMP-ELECT. WPL R0213604 Contact Us For Availability
NI
ADAPTOR HARD PLUMBING WPL R0213605 Contact Us For Availability
NI
SCREW 5/32 X 3/8 HEX HD WPL R0213606 Contact Us For Availability
NI
SCREW 6MM X 1X25 PAN HD WPL R0213607 Contact Us For Availability
NI
NUT,5/32 BSW PRESSED SQUARE WPL R0213609 Contact Us For Availability
NI
WASHER, 5/32 INT SHAKEPROOF WPL R0213610 Contact Us For Availability
NI
WASHER, 5MM INT SHAKEPROOF WPL R0213611 Contact Us For Availability
NI
CLAMP, NYLON CABLE WPL R0213612 Contact Us For Availability
NI
CLIP, NCO 869611714 WPL R0213613 Contact Us For Availability
NI
NUT WPL R0213614 Contact Us For Availability
NI
KIT, CLIP MOUNTING WPL R0213634 Contact Us For Availability
× ![]()
