Model Whirlpool ASU8000CWW DISHWASHER – Common Parts & Diagrams

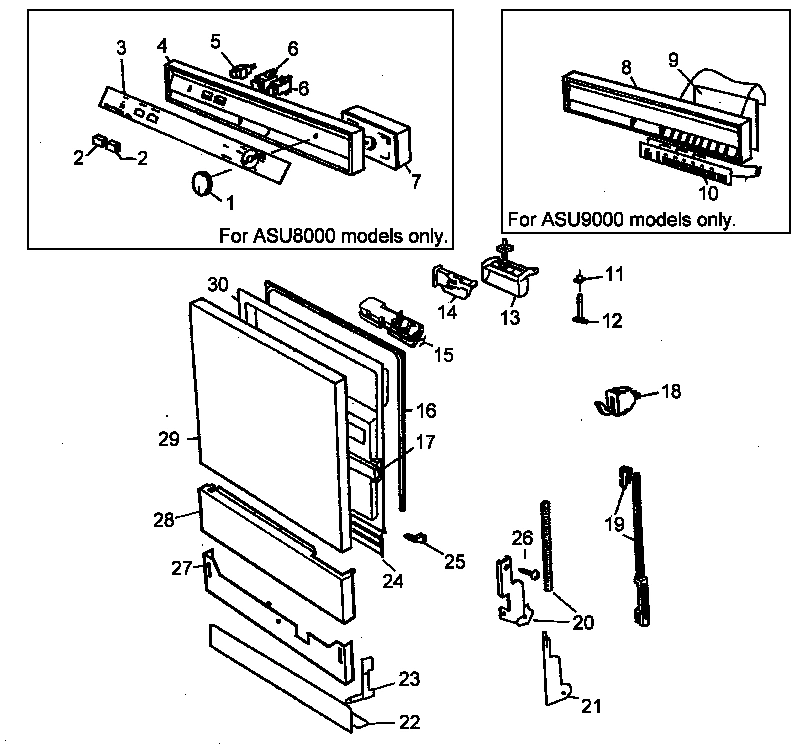

02 - DOOR/CONTROL ASSY PARTS

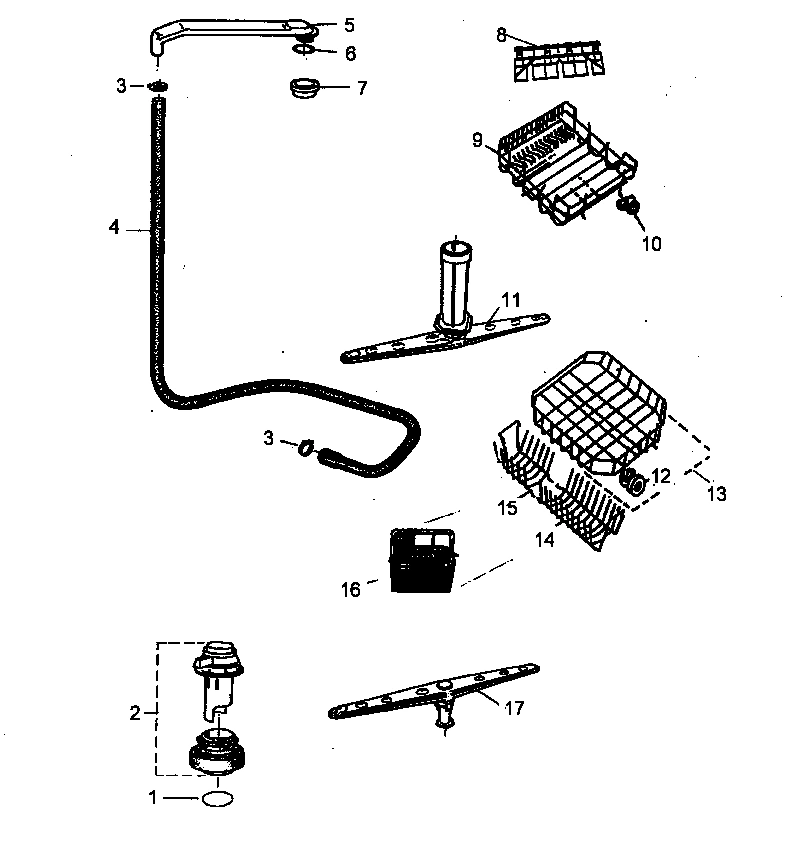

03 - SPRAY ARM/RACK PARTS

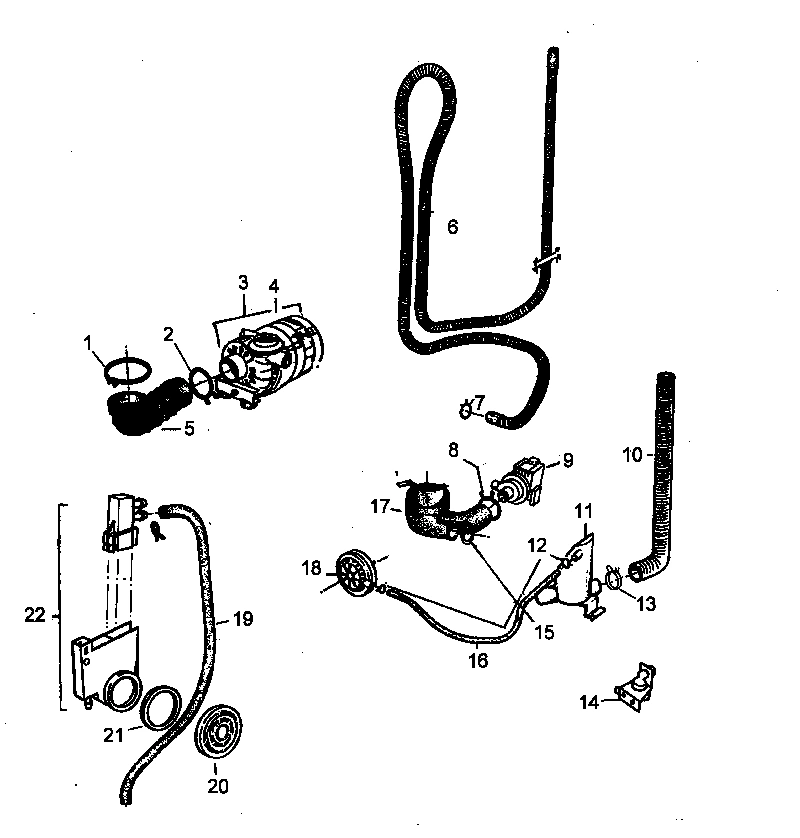

05 - WASH/DRAIN PUMP/PRESSURE SWITCH PARTS

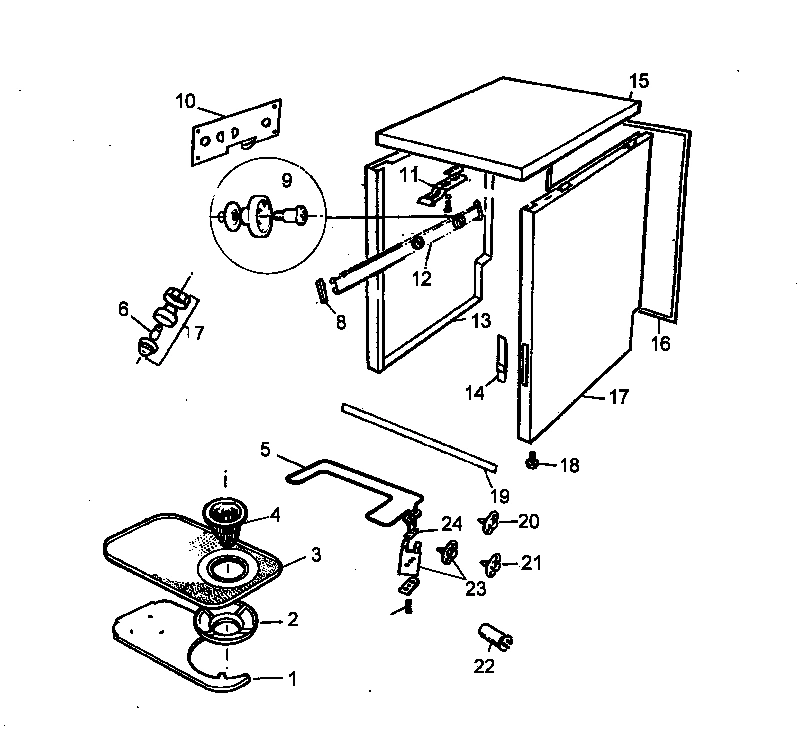

01 - CABINET/HEATING ELEMENT/FILTER PARTS

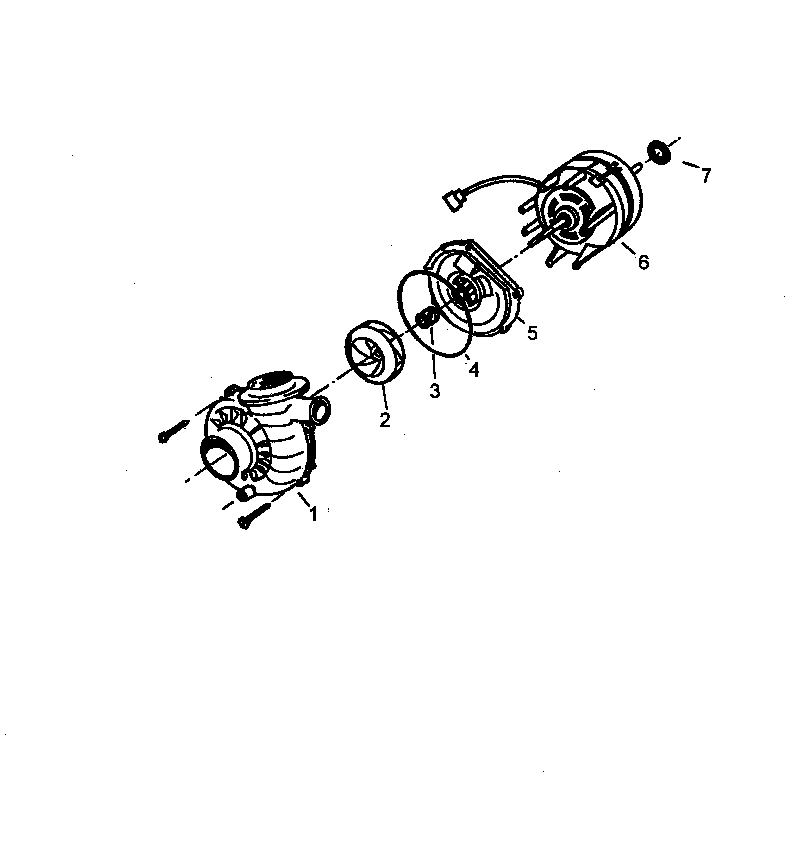

04 - WASH PUMP PARTS
Common parts from model Whirlpool ASU8000CWW DISHWASHER
1
KNOB, CONTROL WHITE WPL R0213622 Contact Us For Availability
1
EXT., O RING PUMP WPL R0213567 Contact Us For Availability
1
CLAMP, COLLECTOR TO TANK(BOTH) WPL R0213580 Contact Us For Availability
1
FILTER, BAFFLE S/STEEL WPL R0213525 Contact Us For Availability
1
BODY, WASH PUMP WPL R0213600 Contact Us For Availability
2
SWITCH, CAPWHITE WPL R0213620 Contact Us For Availability
2
FLOW REGULATOR WPL R0213566 Contact Us For Availability
2
CLAMP, COLLECTOR/WASH PUMP WPL R0213579 Contact Us For Availability
2
FILTER, MICRO MESH WPL R0213526 Contact Us For Availability
2
PUMP, IMPELLOR WASH WPL R0213599 Contact Us For Availability
3
FASCIA AMANA-WHITE WPL R0213628 Contact Us For Availability
3
CLAMP, UPPER SPRAY ARM WPL R0213558 Contact Us For Availability
3
FILTER, WASH PUMP WPL R0213521 Contact Us For Availability
3
ROTARY SEAL & GASKET KIT WPL R0213601 Contact Us For Availability
4
CONTROL PANEL-WHITE WPL R0213626 Contact Us For Availability
4
HOSE, UPPER SPRAY ARM WPL R0213559 Contact Us For Availability
4
WASH PUMP COMP.(120V) WPL R0213576 Contact Us For Availability
4
DRAIN CUP WPL R0213520 Contact Us For Availability
4
GASKET PUMP BODY WPL R0213598 Contact Us For Availability
5
INDICATOR, NEON WPL R0213617 Contact Us For Availability
5
ARM, UPPER SPRAY COLL. WPL R0213557 Contact Us For Availability
5
COLLECTOR, PUMP WPL R0213581 Contact Us For Availability
5
HTG & DRYING ELEM. KIT WPL R0213522 Contact Us For Availability
5
REAR PLATE-PUMP WPL R0213597 Contact Us For Availability
6
SWITCH, PUSH BUTTON WHITE WPL R0213618 Contact Us For Availability
6
SEAL, UPPER SPRAY COLL. WPL R0213561 Contact Us For Availability
6
MOTOR, WASH PUMP(120V) WPL R0213575 Contact Us For Availability
6
KIT, HOSE DRAIN REPL. WPL R0213574 Contact Us For Availability
7
TIMER CONTROL WPL 0213624 Contact Us For Availability
7
NET-TIMER CONTROL WPL R0213624 Contact Us For Availability
7
NOZZLE, SPRAY WPL R0213560 Contact Us For Availability
7
SUPPORT, MOTOR GROMMET WPL R0213596 Contact Us For Availability
8
CUP RACK, HINGED WPL R0213565 Contact Us For Availability
8
CLAMP, COLL. TO PUMP 37MM WPL R0213590 Contact Us For Availability
8
GUIDE STOP WPL R0213504 Contact Us For Availability
9
BASKET, UPPER(X-TRA SPACE) WPL R0213564 Contact Us For Availability
9
DRAIN PUMP 120V WPL R0213582 Contact Us For Availability
9
GUIDE WHEEL-CHARCOAL WPL R0213507 Contact Us For Availability
10
ASSY,UP BSKT-WHEEL (1=4) WPL R0213571 Contact Us For Availability
10
HOSE AIR TRAP VENTING WPL R0213595 Contact Us For Availability
10
PLATE, SUPPORT WPL R0213501 Contact Us For Availability
11
WEDGE,DOOR LOCK WPL R0213545 Contact Us For Availability
11
ASSY, UPPER SPRAY ARM-WHITE WPL R0213630 Contact Us For Availability
11
AIR TRAP WPL R0213594 Contact Us For Availability
11
LATCH-DOOR(1000 SERIES) WPL R0213505 Contact Us For Availability
12
MECH/PUSH ROD DOOR WPL R0213625 Contact Us For Availability
12
WHEEL ASSY,LWR BASKET WPL R0213572 Contact Us For Availability
12
CLAMP P/SW TUBE WPL R0213592 Contact Us For Availability
12
GUIDE, UPPER BASKET WPL R0213506 Contact Us For Availability
13
ASS`Y, DR HANDLE WHITE WPL R0213542 Contact Us For Availability
13
LOWER BASKET(X-TRA SPACE) WPL R0213573 Contact Us For Availability
13
CASE, SIDE L.H. WPL R0213512 Contact Us For Availability
14
MICRO SWITCH WPL R0213541 Contact Us For Availability
14
ASS`Y, LONG INSERT WPL R0213570 Contact Us For Availability
14
VALVE, SOLENOID 110V 60HZ WPL R0213583 Contact Us For Availability
14
HINGE OUTER RUBBING PAD (WHT) WPL R0213509 Contact Us For Availability
15
DISPENSER,RINSE& DET.110V WPL R0213556 Contact Us For Availability
15
ASS`Y, SHORT INSERT WPL R0213569 Contact Us For Availability
15
CLAMP, AIR TRAP/COLL. 27MM WPL R0213591 Contact Us For Availability
15
PANEL, CASE TOP WHT WPL R0213517 Contact Us For Availability
16
GASKET, TANK WPL R0213538 Contact Us For Availability
16
ASS`Y, BASKET CUT.& HDLE WPL R0213568 Contact Us For Availability
16
HOSE-PRESSURE SWITCH WPL R0213593 Contact Us For Availability
16
PANEL,CASE BACK WPL R0213516 Contact Us For Availability
17
DEW PROTECTION WPL R0213537 Contact Us For Availability
17
ASSY, LOWER SPRAY ARM WPL R0213563 Contact Us For Availability
17
COLLECTOR, DRAIN WPL R0213589 Contact Us For Availability
17
CASE, SIDE R.H. WHITE WPL R0213514 Contact Us For Availability
18
SWITCH, PRESSURE 2 LEVEL WPL R0213588 Contact Us For Availability
18
LEVELING FOOT WPL R0213515 Contact Us For Availability
19
PUSH ROD & GUIDE(HINGE) WPL R0213552 Contact Us For Availability
19
HOSE, TANK INLET WPL R0213585 Contact Us For Availability
19
LINER PROTECTION EXTR. WPL R0213508 Contact Us For Availability
20
HMGE & SPRING SET WPL R0213554 Contact Us For Availability
20
NUT, LOAD COLLECTOR-CHAR. WPL R0213587 Contact Us For Availability
20
THERMOSTAT MEDIUM WPL R0213615 Contact Us For Availability
21
BLOCK SET, HINGE COVER WPL R0213555 Contact Us For Availability
21
GASKET, LOAD COLLECTOR NUT WPL R0213586 Contact Us For Availability
21
THERMOSTAT(52C/126F) WPL R0213616 Contact Us For Availability
22
KICKPLATE ANGLE- WHT WPL R0213534 Contact Us For Availability
22
LOAD COLLECTOR WPL R0213584 Contact Us For Availability
22
CAPACITOR 25 UF(3 TERM.) WPL R0213519 Contact Us For Availability
23
EXTENDER SET WPL R0213535 Contact Us For Availability
23
THERMOSTAT AND BRACKET WPL R0213524 Contact Us For Availability
24
INNER DOOR SEAL(BOTTOM) WPL R0213536 Contact Us For Availability
24
GASKET HEATING ELEMENT WPL R0213523 Contact Us For Availability
25
GASKET, EXT. SET-1000 SEAES WPL R0213539 Contact Us For Availability
26
SCREW,5X8X10MM OVAL WPL R0213553 Contact Us For Availability
27
KICKPLATE-WHITE WPL R0213531 Contact Us For Availability
28
PANEL, LOWER DOOR W WPL R0213529 Contact Us For Availability
29
PANEL, UPPER DOOR WPL R0213527 Contact Us For Availability
30
DOOR LINER & SEAL WPL R0213546 Contact Us For Availability
NI
SCREW PACK(1=6PCS) PANEL WPL R0213638 Contact Us For Availability
NI
SCREW,SS-CONTROL PANEL WPL R0213639 Contact Us For Availability
NI
CLAMP, AIR TRAP BREATHER WPL R0213578 Contact Us For Availability
NI
KIT, CLIP MOUNTING WPL R0213634 Contact Us For Availability
NI
KIT, HOSE DRAIN EXT. WPL R0213602 Contact Us For Availability
NI
SCREW PACK(1=6PCS) PANEL WPL R0213603 Contact Us For Availability
NI
SCREW 5/32 X 3/8 HEX HD WPL R0213606 Contact Us For Availability
NI
NUT,5/32 BSW PRESSED SQUARE WPL R0213609 Contact Us For Availability
NI
WASHER, 5/32 INT SHAKEPROOF WPL R0213610 Contact Us For Availability
NI
NUT WPL R0213614 Contact Us For Availability
NI
GASKET, DETERGENT DISPENSER WPL R0213631 Contact Us For Availability
NI
WIRING LOOM-ROTARY WPL R0213632 Contact Us For Availability
× ![]()
