Model Whirlpool AS20CKXAW01 REFRIGERATOR – Common Parts & Diagrams

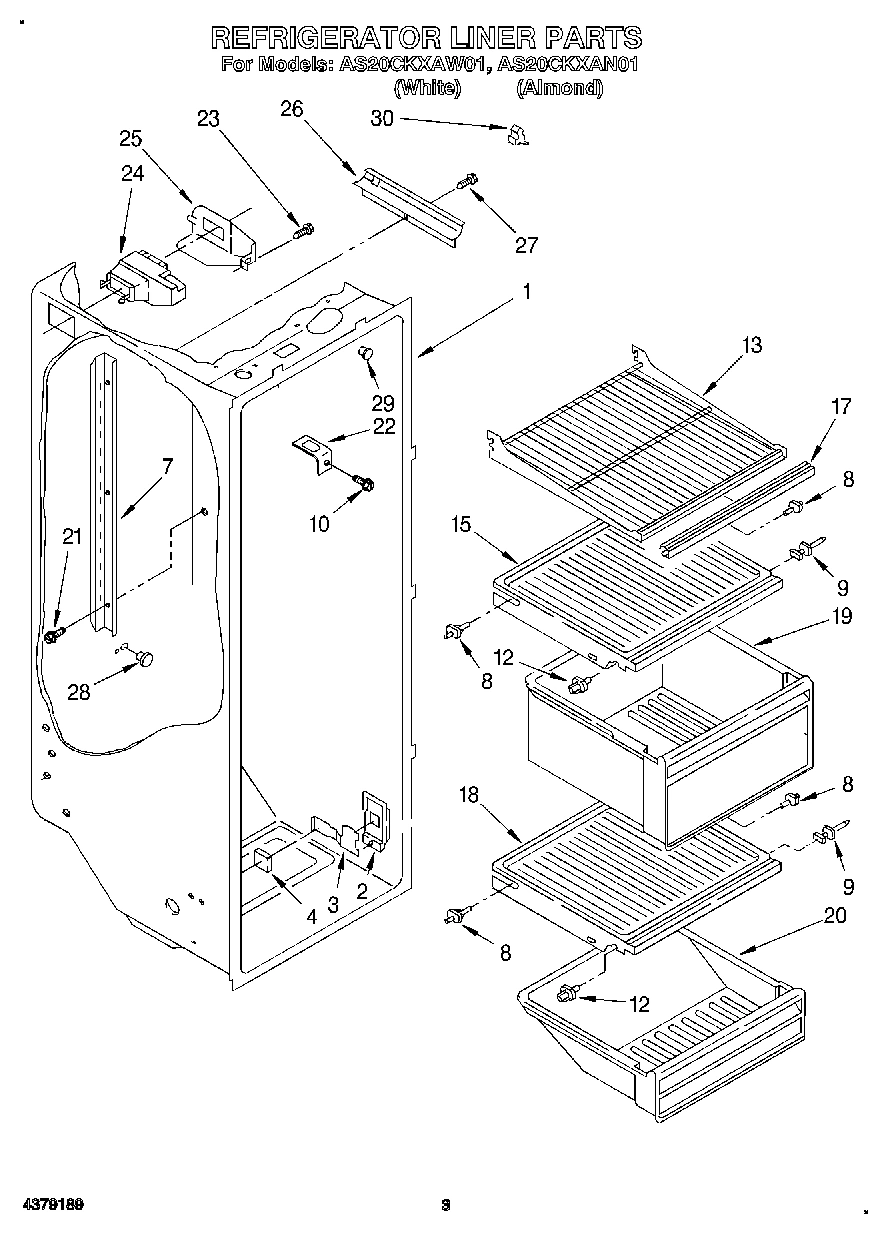

02 - REFRIGERATOR LINER

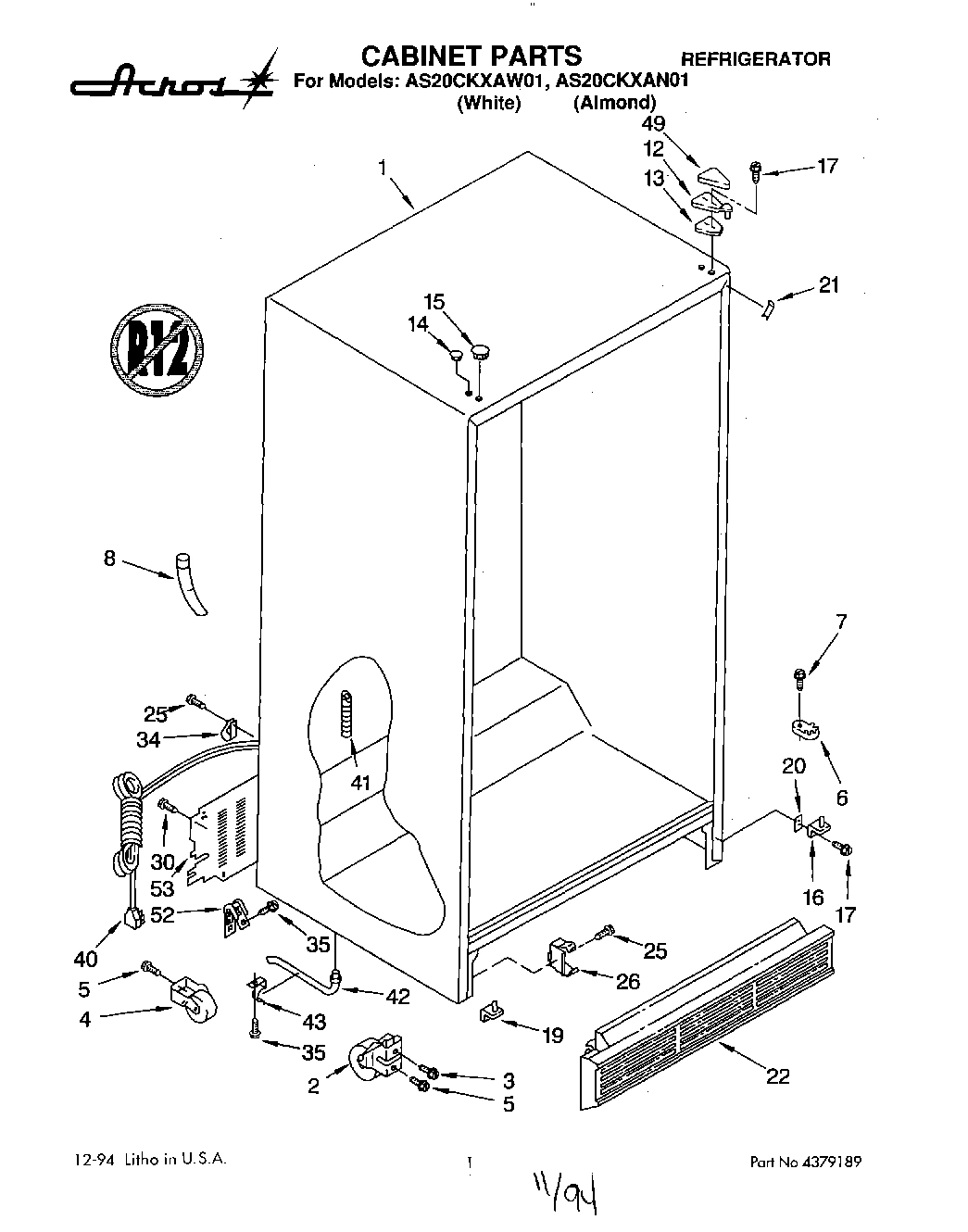

01 - CABINET

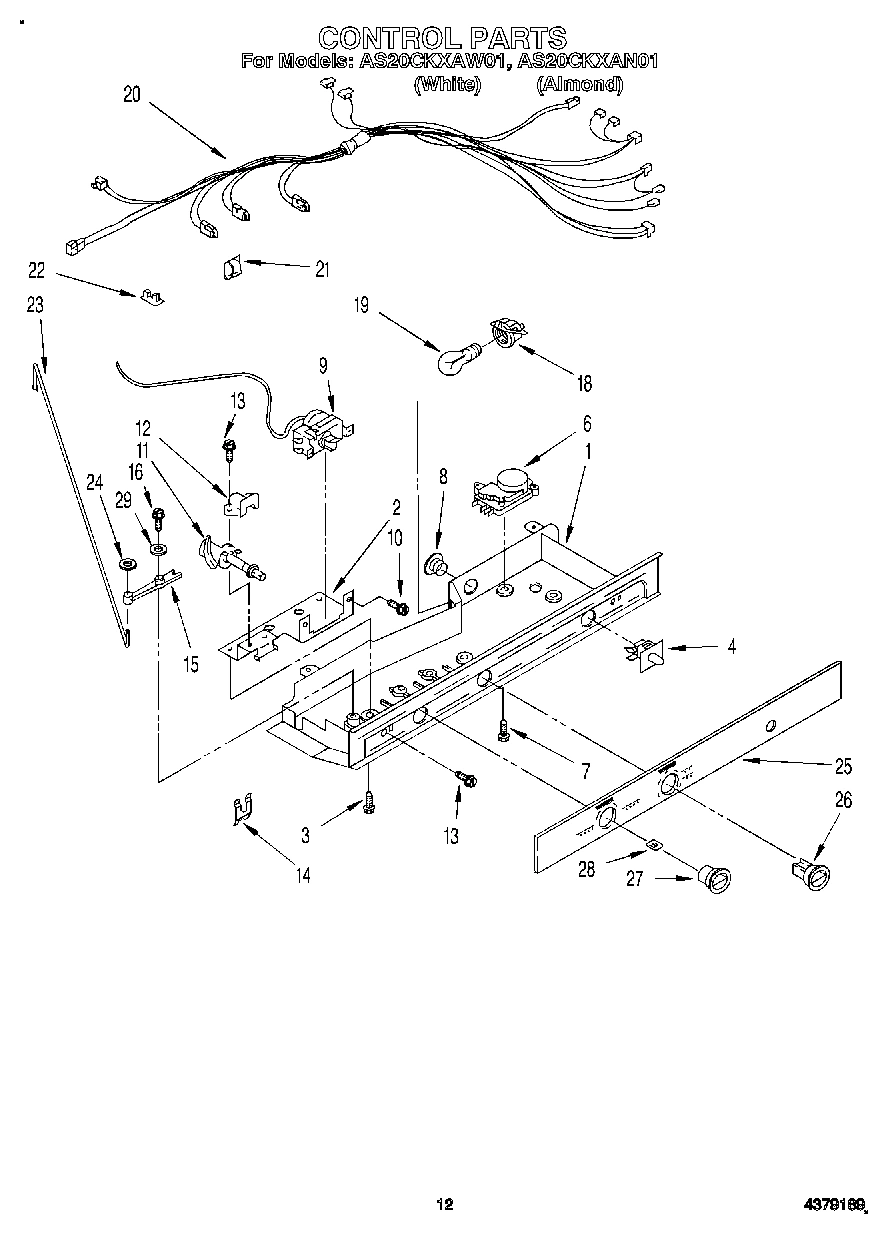

07 - CONTROL

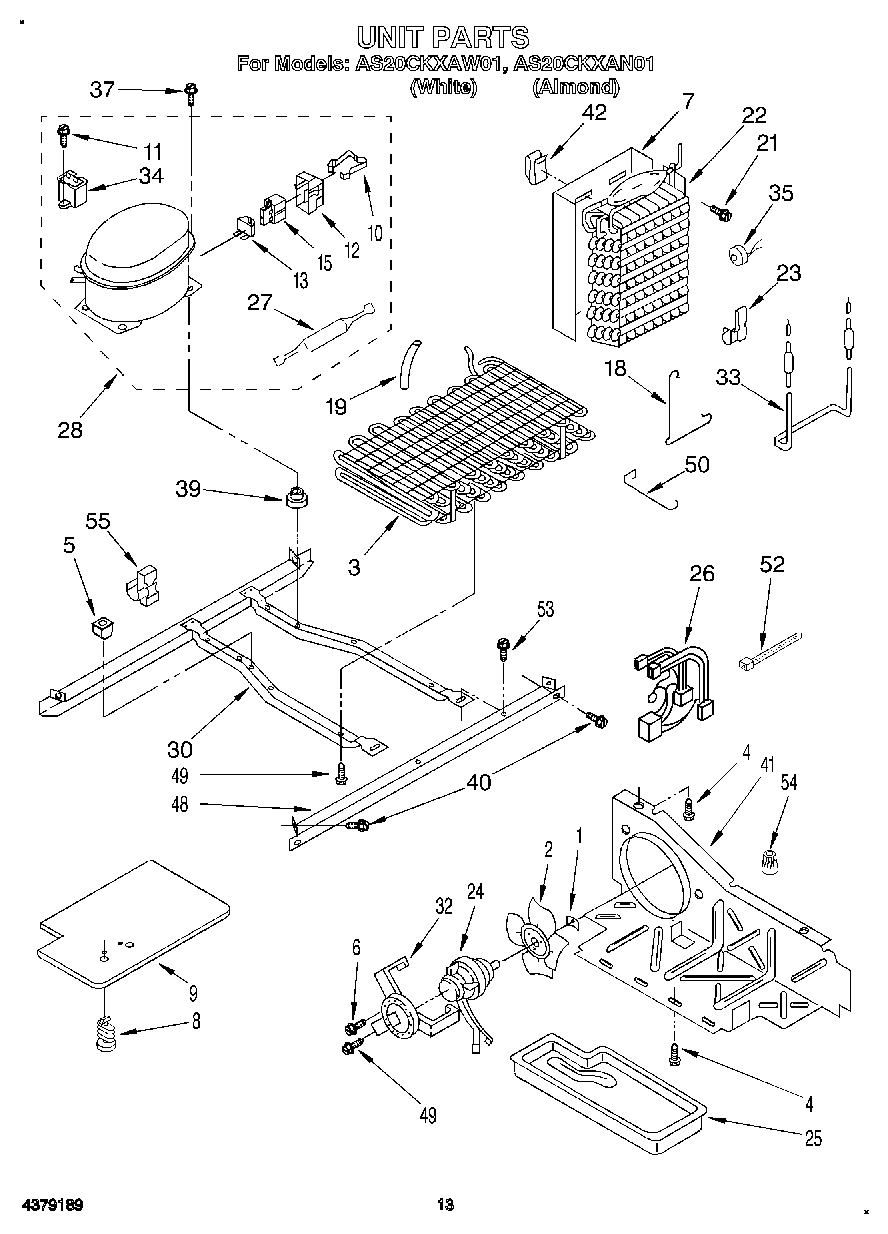

08 - UNIT, LIT/OPTIONAL

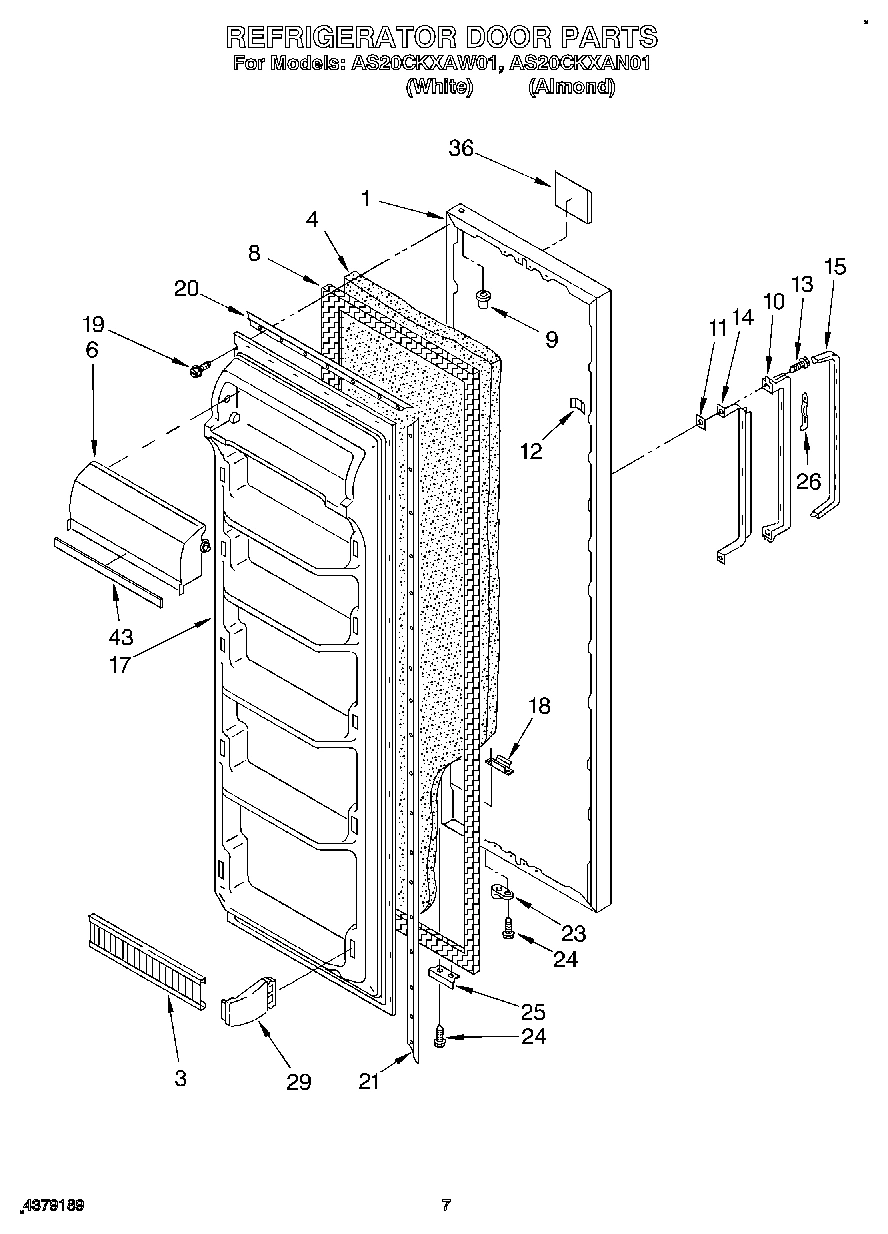

04 - REFRIGERATOR DOOR

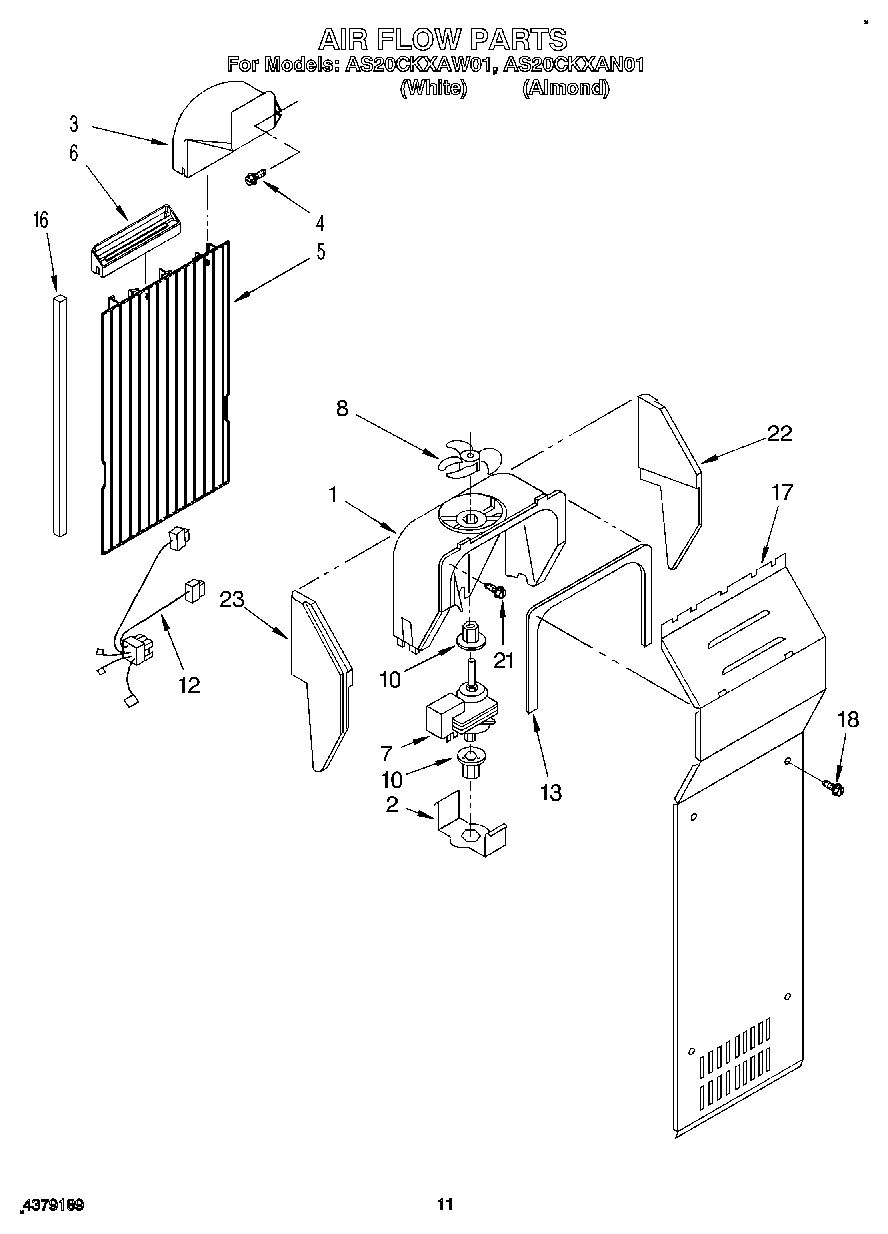

06 - AIR FLOW

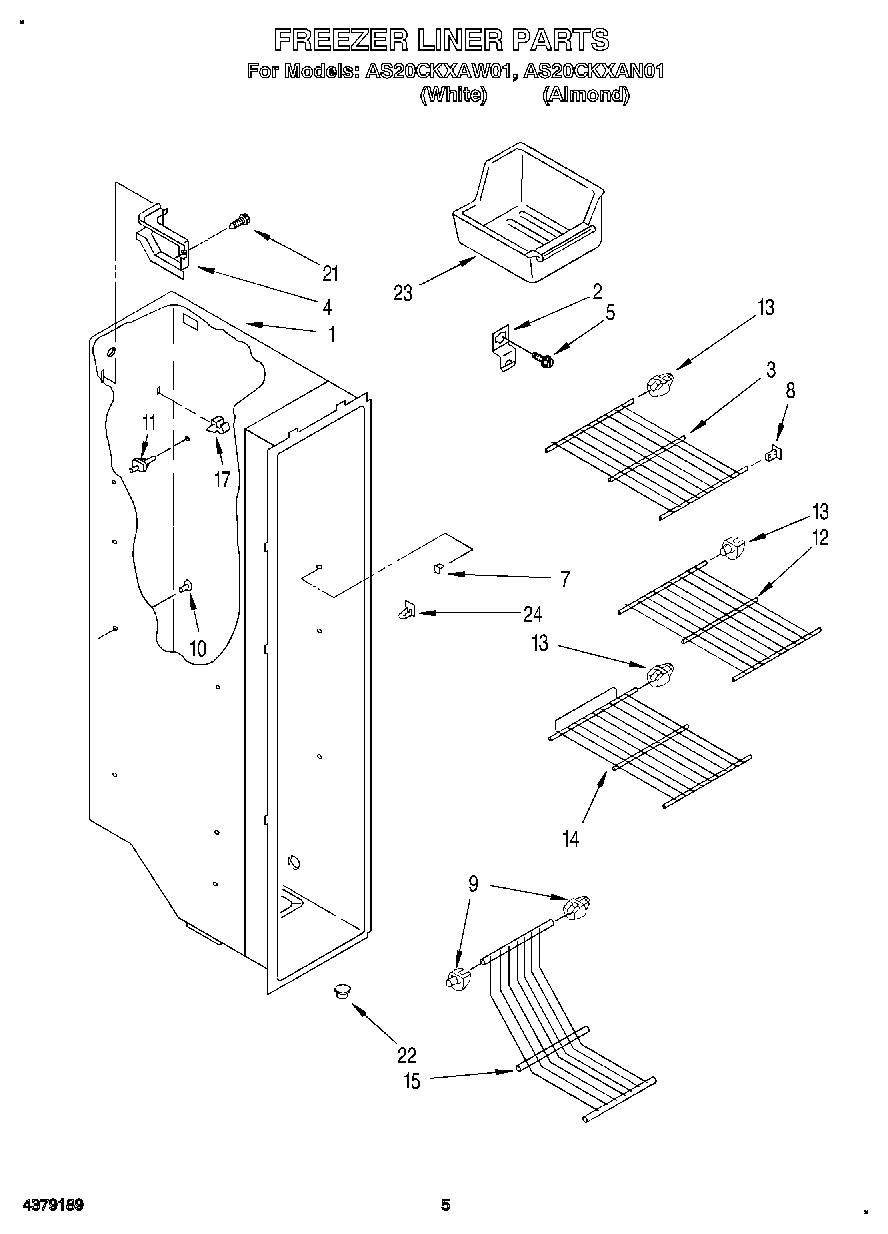

03 - FREEZER LINER

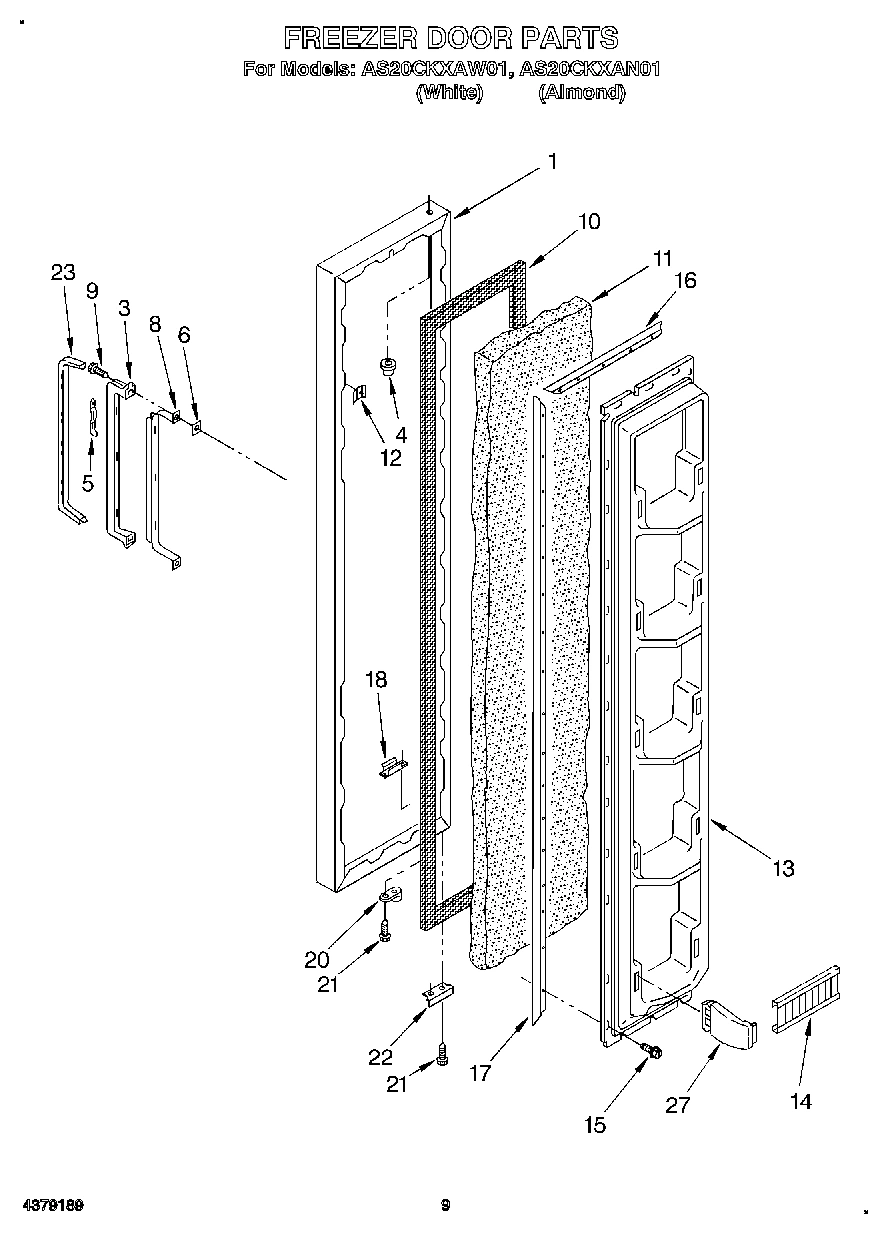

05 - FREEZER DOOR
Common parts from model Whirlpool AS20CKXAW01 REFRIGERATOR
WPL LIT2167143 WPL LIT2167143 Contact Us For Availability
WPL LIT2167144 WPL LIT2167144 Contact Us For Availability
WPL LIT2169111 WPL LIT2169111 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Refrigerator Door Panel (White) WPL 4362027 Contact Us For Availability
1
Refrigerator Door Panel (Almond (Also Order I WPL 4362028 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI20416A1 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 4362034 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362035 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Clip, Icemaker WPL 2155021 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Trim, Shelf (5) WPL 1120852 Contact Us For Availability
3
Handle (White) WPL 2170061 Contact Us For Availability
3
Handle (Almond) WPL 2170063 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Shelf WPL 2155603 Contact Us For Availability
4
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Cover, Wiring WPL 2155571 Contact Us For Availability
5
Grommet WPL 509812 Contact Us For Availability
5
Handle, Reinforcement WPL 849445 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Door, Compartment WPL 2148289 Contact Us For Availability
6
Shim, Handle (2) WPL 2147097 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Support, Stud (12) WPL 946355 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
8
Stud, Front (5) WPL 946356 Contact Us For Availability
9
Cover, Unit Compartment WPL 2160505 Contact Us For Availability
10
Strap, (Service Compressor Only) WPL 938384 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Grommet (10) WPL 1110779 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
12
Shelf (2) WPL 1106979 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Shelf (2) WPL 1106980 Contact Us For Availability
14
Trim, Door Shelf WPL 1120856 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI20417A8 Contact Us For Availability
15
Trivet WPL 2148400 Contact Us For Availability
16
Retainer, Gasket WPL 1117767 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
17
Retainer, Gasket WPL 1117766 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Tap, Plate WPL 2155335 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Retainer, Gasket WPL 1118301 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Bracket, Door Stop WPL 2155332 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Insert, Handle WPL 1127467 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Stud, Rear (5) WPL 1106982 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, End Cap WPL 1110713 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
34
Capacitor WPL 2154565 Contact Us For Availability
36
Nameplate WPL 2166599 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Trim, Compartment Door WPL 1124432 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
WPL 978029 WPL 978029 Contact Us For Availability
55
WPL 479502 WPL 479502 Contact Us For Availability
55
Torx Key WPL 1117510 Contact Us For Availability
55
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
55
xEnamel, Golden Wheat (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
55
Enamel, Golden Wheat (1 Qt. Uncut) WPL 261891 Contact Us For Availability
55
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
55
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
55
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
55
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
55
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
55
WPL 515393 WPL 515393 Contact Us For Availability
55
WPL 542639 WPL 542639 Contact Us For Availability
55
WPL 72112 WPL 72112 Contact Us For Availability
55
WPL 799340 WPL 799340 Contact Us For Availability
55
WPL 799833 WPL 799833 Contact Us For Availability
55
WPL 978028 WPL 978028 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
