Model Maytag ARSE667BB REFRIGERATOR – Common Parts & Diagrams
01 - Accessory Page
02 - Cabinet Back

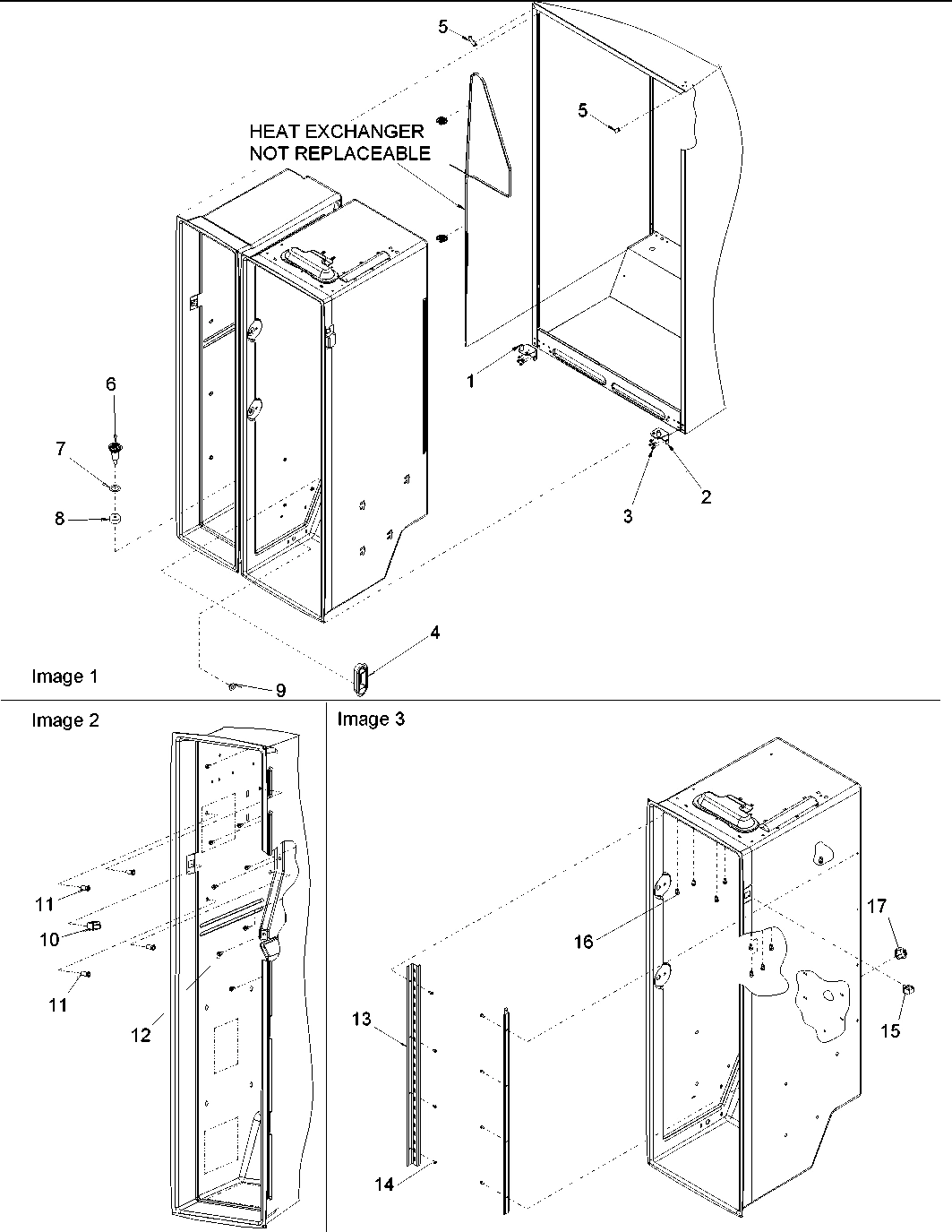

03 - Cabinet Parts

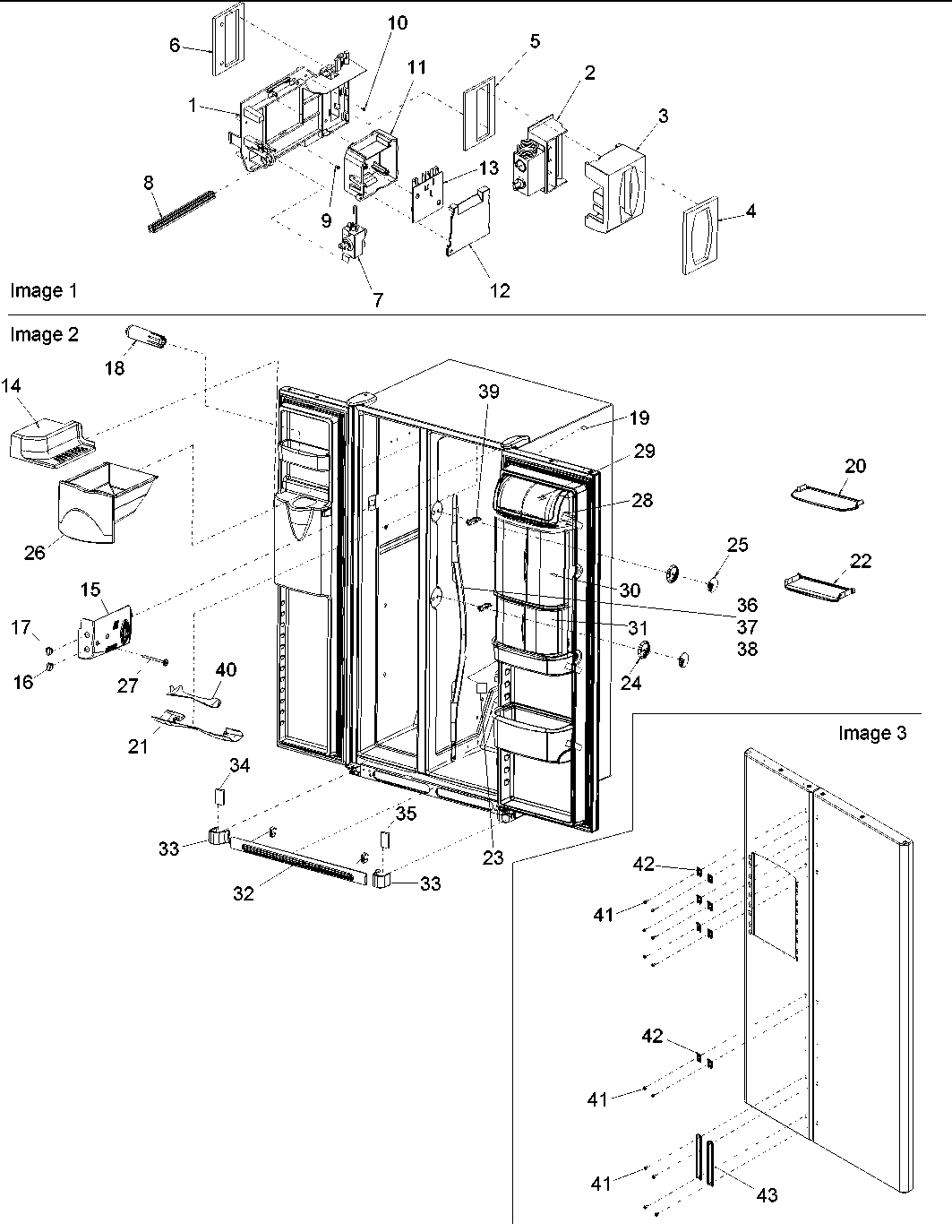

04 - Controls, Light Shield & Door Handles

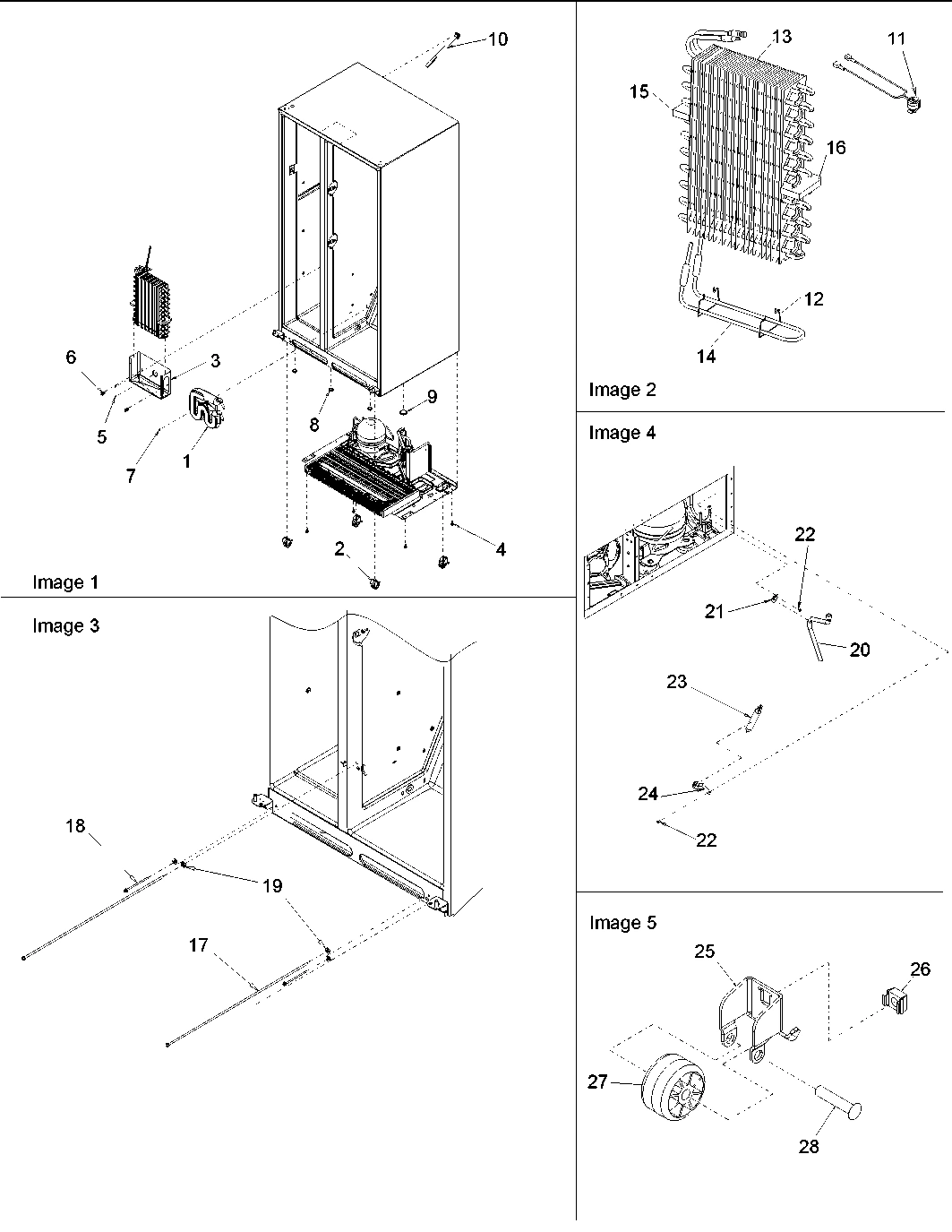

05 - Evap Assy, Drier & Rollers

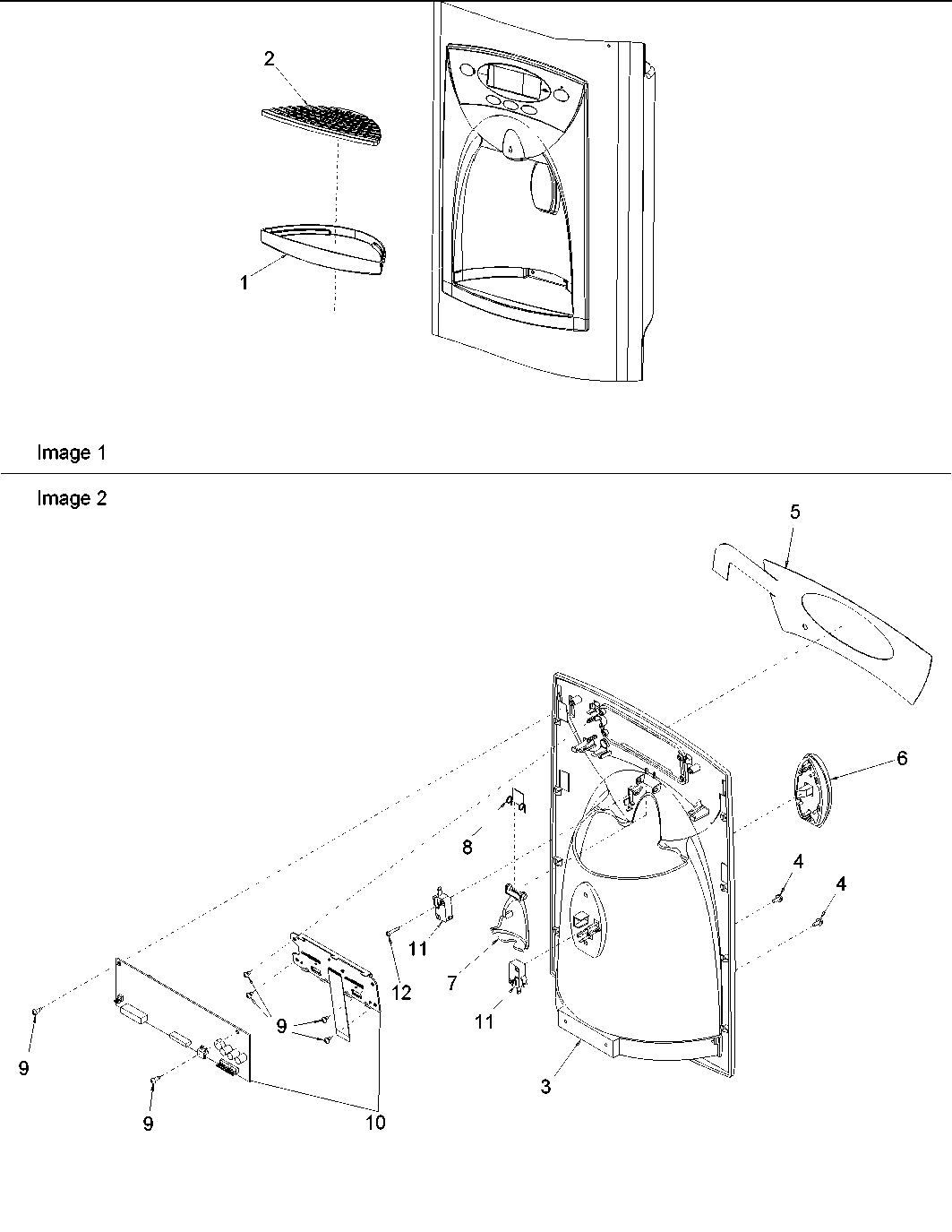

06 - Façade

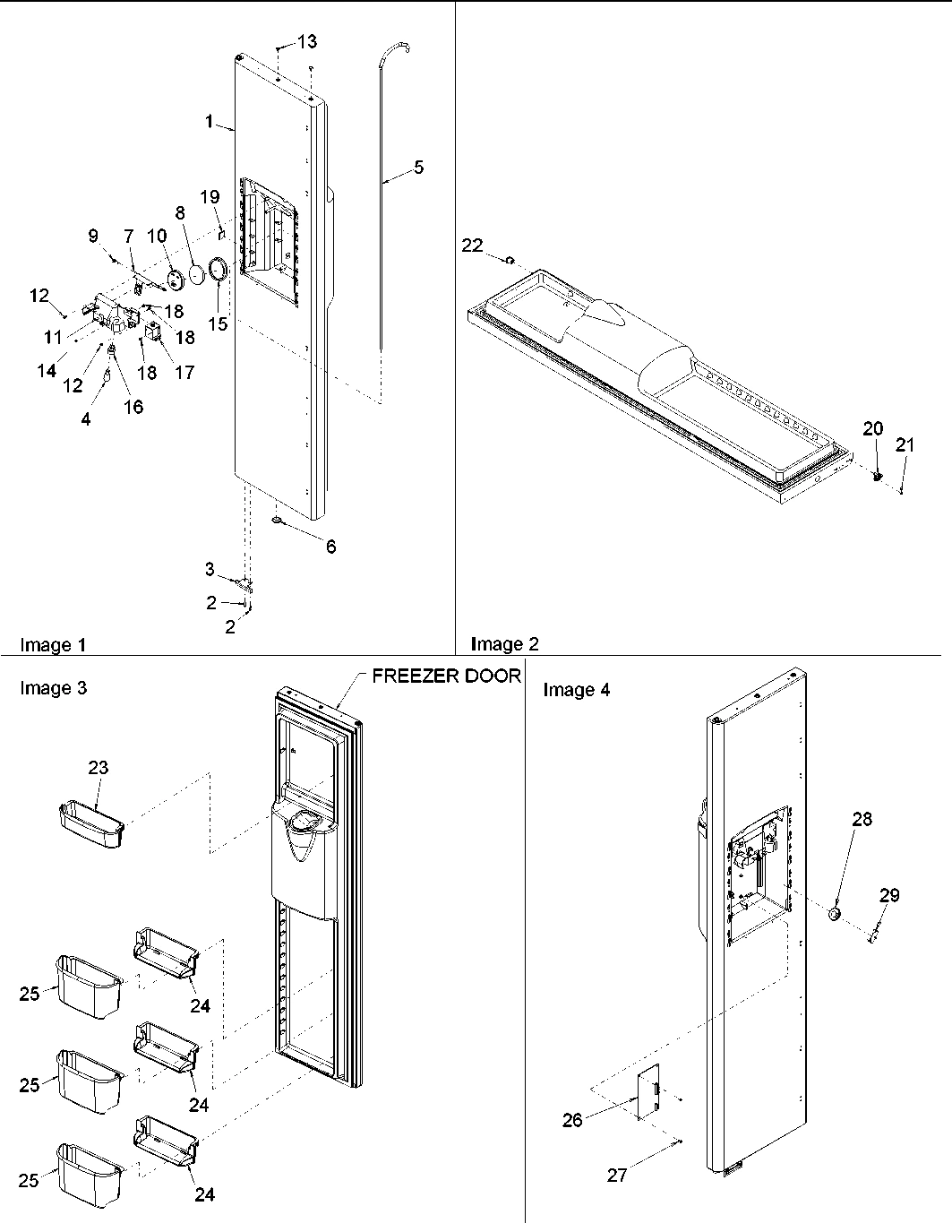

07 - Freezer Door

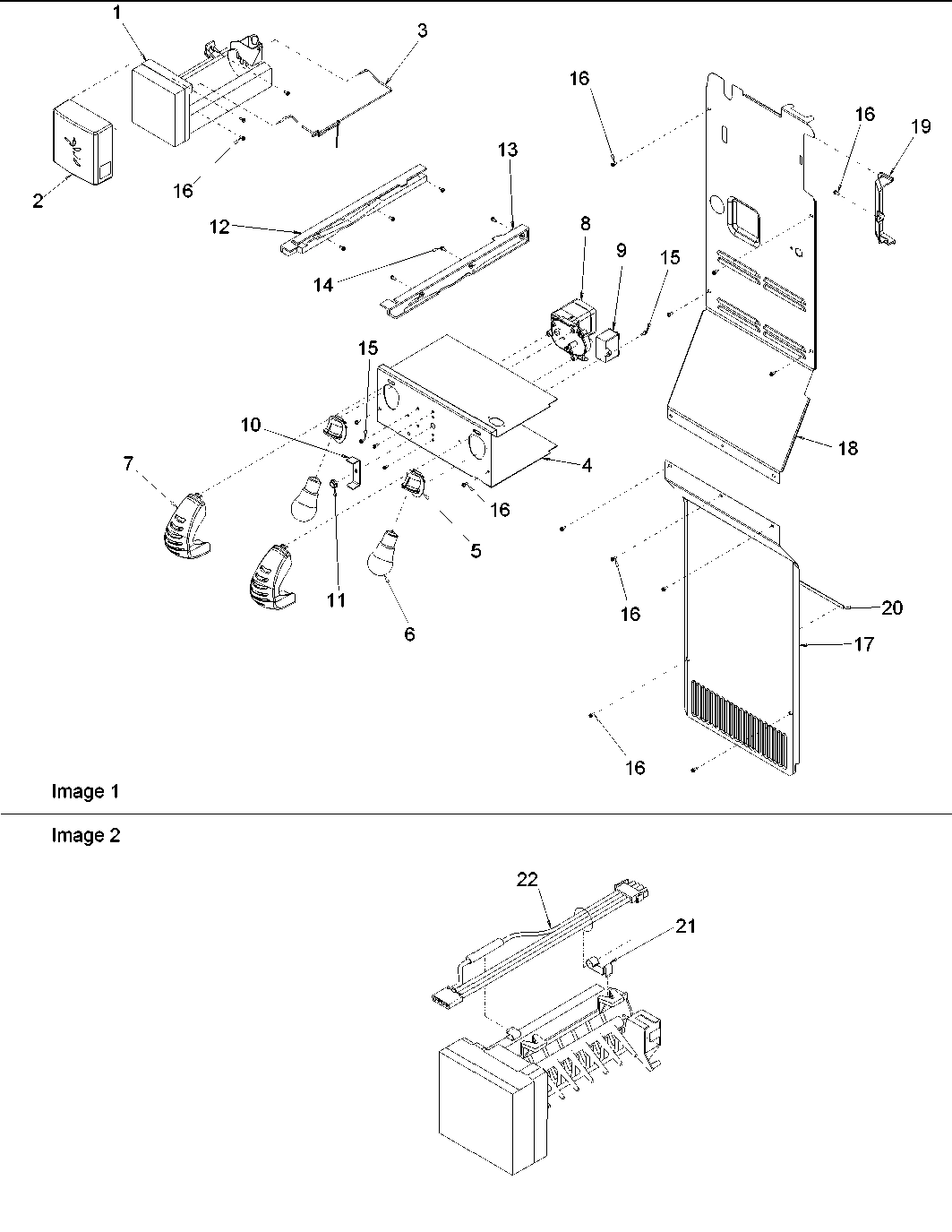

08 - Fz Lighting & Auger Assy

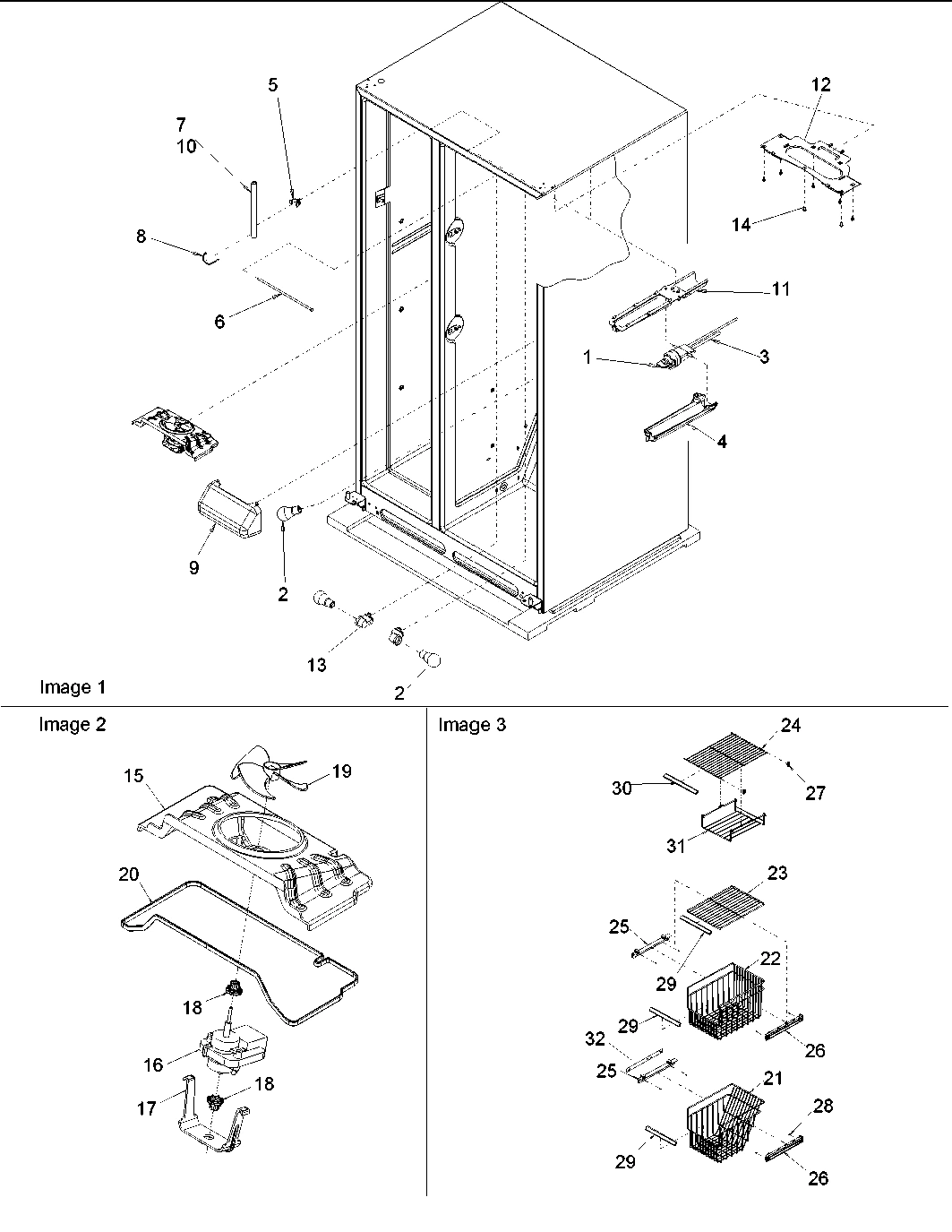

09 - Fz Shelving, Filter & Evap Fan Motor

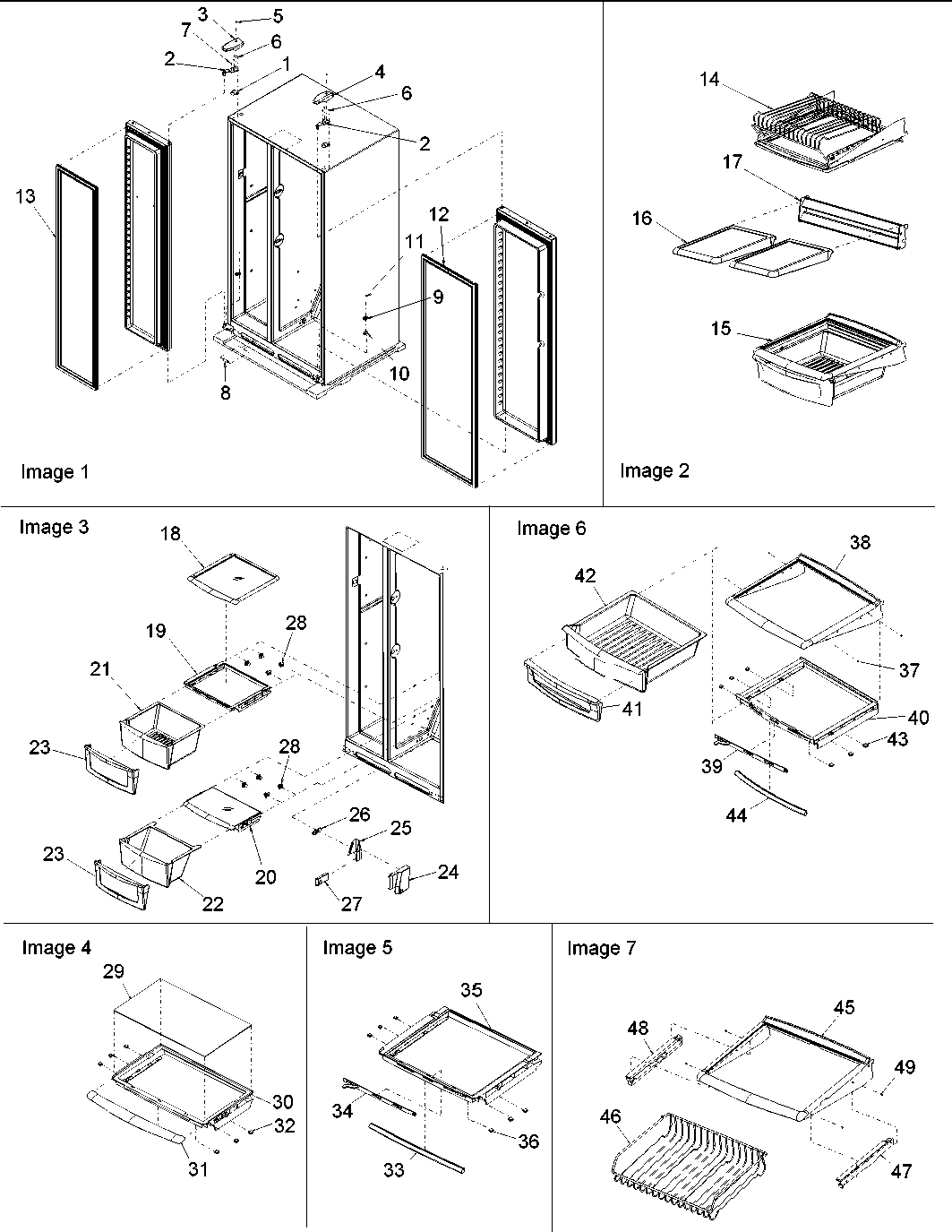

10 - Hinges, & Refrigerator Shelving

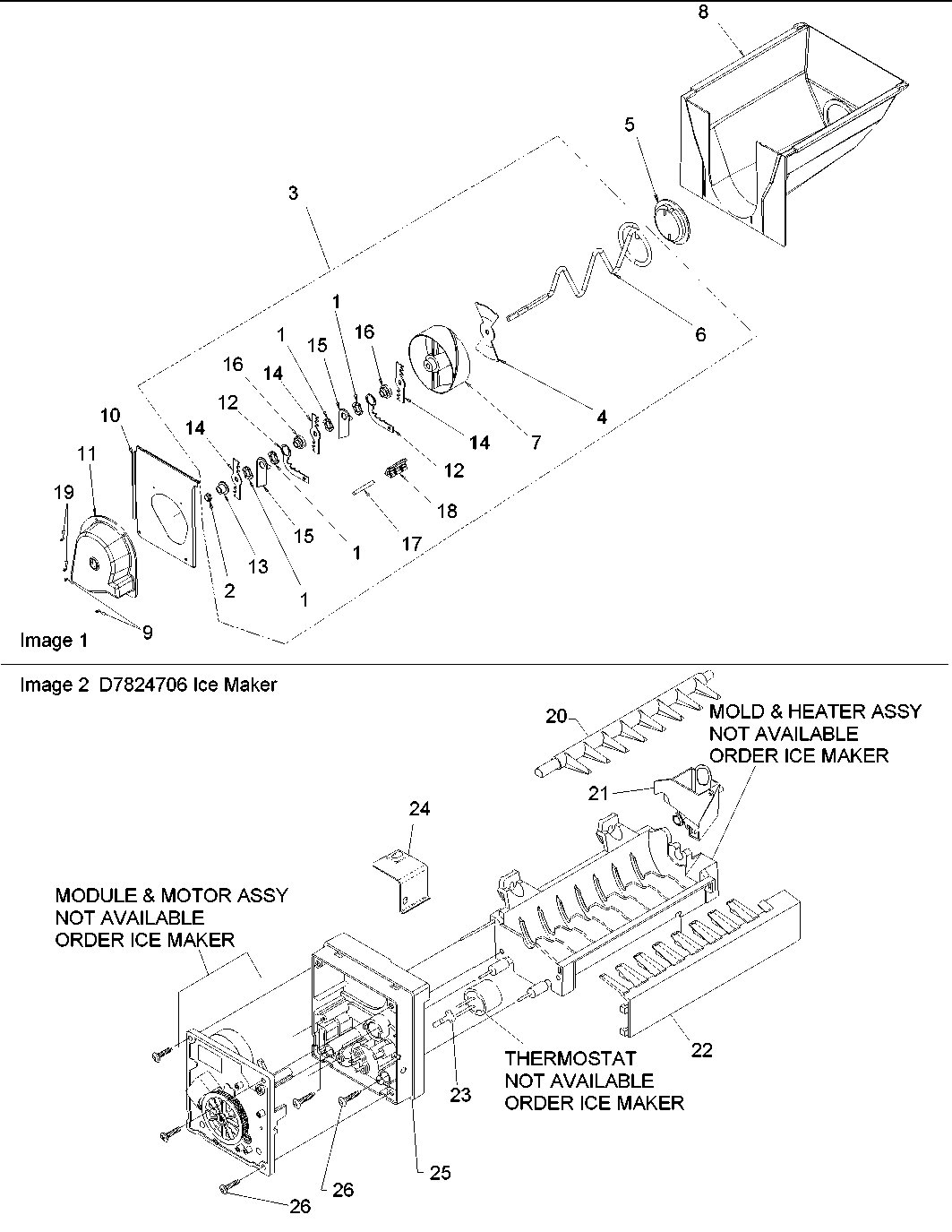

11 - Ice Bucket/Auger Assy

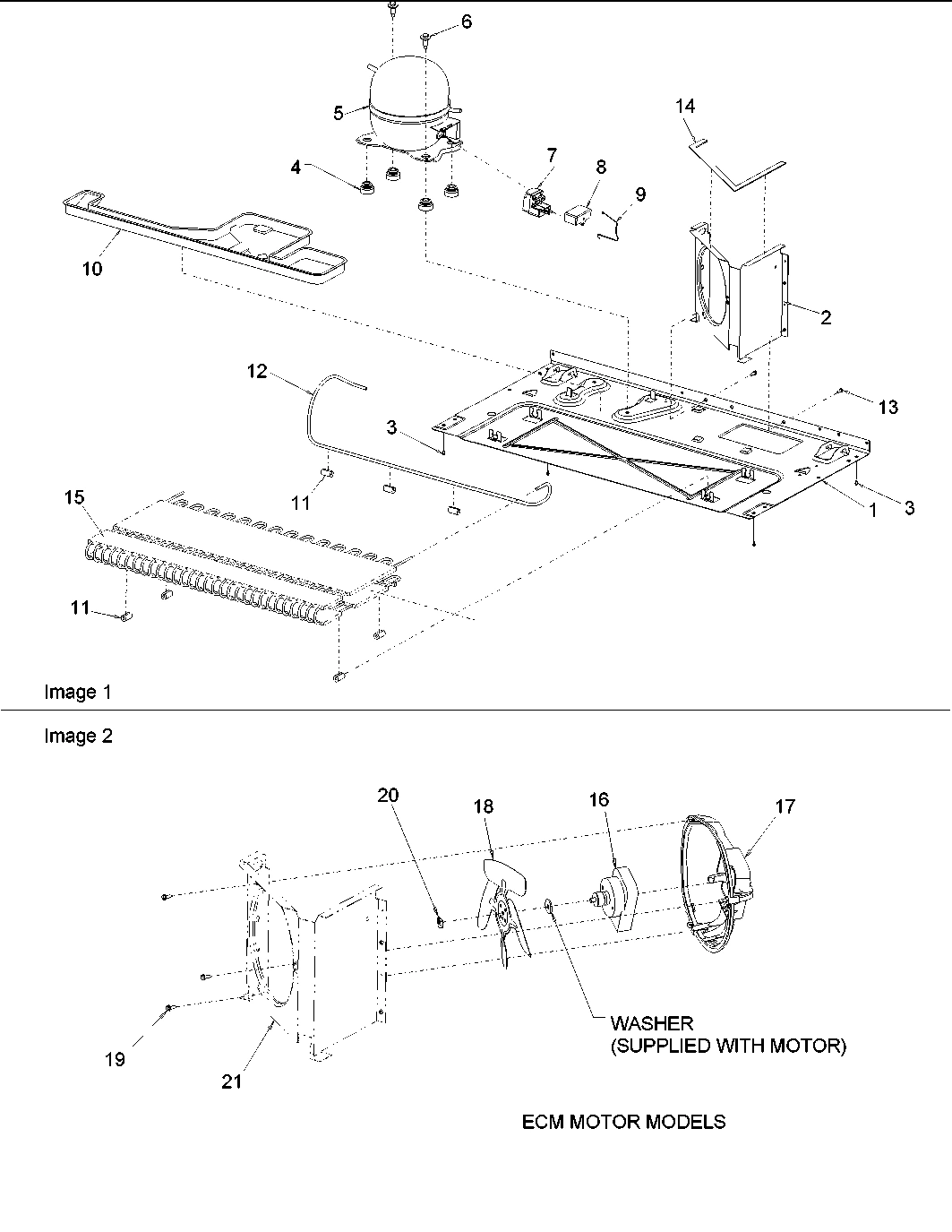

12 - Machine Compartment

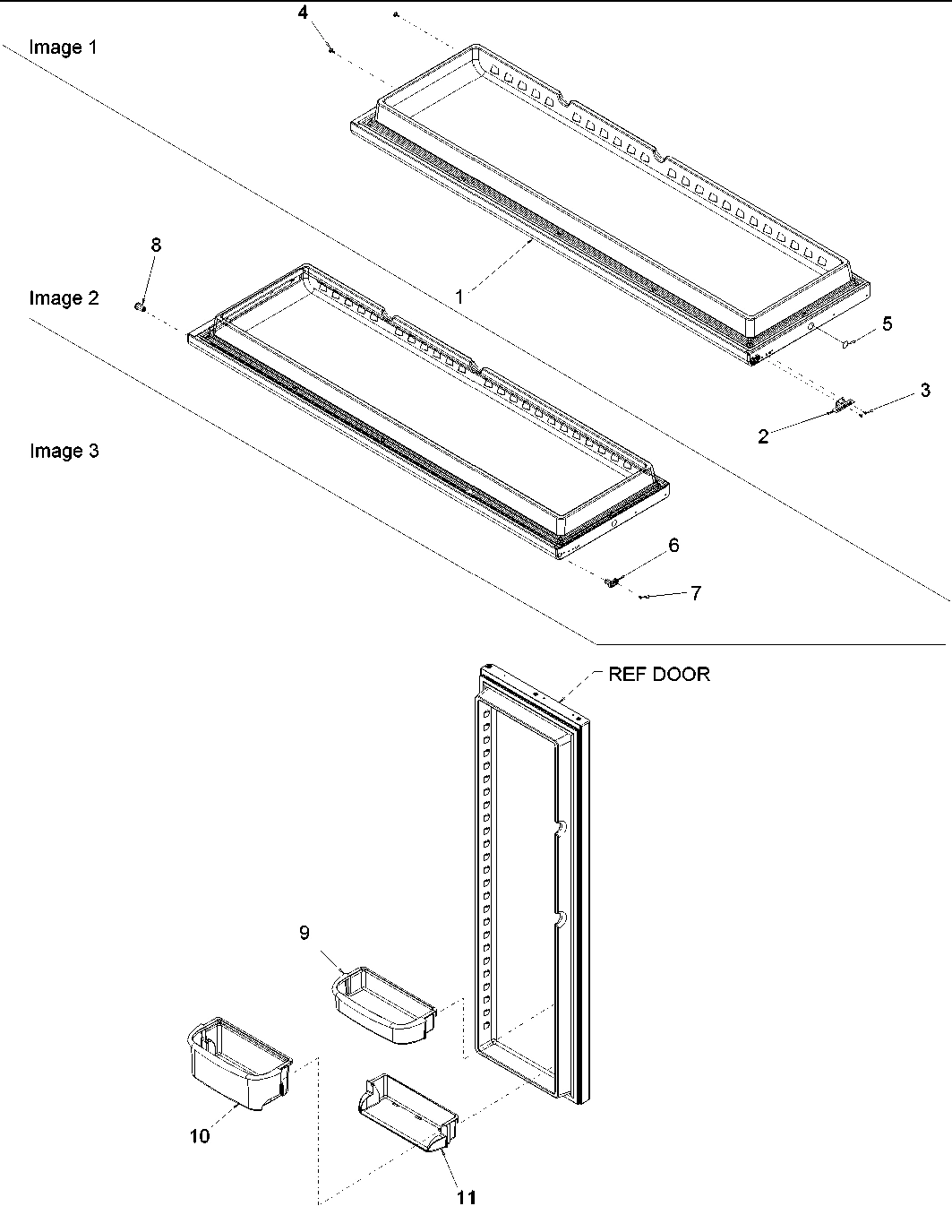

13 - Refrigerator Door
Common parts from model Maytag ARSE667BB REFRIGERATOR
1
MAY 12664501 MAY 12664501 Contact Us For Availability
1
MAY R0131625 MAY R0131625 Contact Us For Availability
1
MAY 12570905ED MAY 12570905ED Contact Us For Availability
1
MAY 12558004 MAY 12558004 Contact Us For Availability
1
MAY 12561002B MAY 12561002B Contact Us For Availability
1
MAY 12584901BQ MAY 12584901BQ Contact Us For Availability
1
MAY D7824706 MAY D7824706 Contact Us For Availability
1
SHIM, TOP HINGE MAY 12579702 Contact Us For Availability
1
WASHER, WAVED MAY 10275101 Contact Us For Availability
1
MAY 12457103 MAY 12457103 Contact Us For Availability
1
MAY 12584701BQ MAY 12584701BQ Contact Us For Availability
2
MAY 12570906ED MAY 12570906ED Contact Us For Availability
2
MAY 12571701 MAY 12571701 Contact Us For Availability
2
MAY 12580301Q MAY 12580301Q Contact Us For Availability
2
COVER, ICE MAKER MAY 12582501 Contact Us For Availability
2
MAY A0282803 MAY A0282803 Contact Us For Availability
3
MAY 12636401B MAY 12636401B Contact Us For Availability
3
MAY 12604201 MAY 12604201 Contact Us For Availability
3
MAY M0211018 MAY M0211018 Contact Us For Availability
3
TRAY, EVAP DRIP MAY 12558101WD Contact Us For Availability
3
MAY M0260242 MAY M0260242 Contact Us For Availability
3
MAY 12560907B MAY 12560907B Contact Us For Availability
3
MAY 12671401 MAY 12671401 Contact Us For Availability
3
MAY 12590601 MAY 12590601 Contact Us For Availability
3
COVER, TOP HINGE (LT-BLK) MAY 12684201B Contact Us For Availability
3
MAY R0156803 MAY R0156803 Contact Us For Availability
4
MAY 12634801 MAY 12634801 Contact Us For Availability
4
MAY 12582901 MAY 12582901 Contact Us For Availability
4
PLUG, BUTTON (BLK) MAY M0311604 Contact Us For Availability
4
MAY 12561701 MAY 12561701 Contact Us For Availability
4
COVER, TOP HINGE (RT-BLK) MAY 12684202B Contact Us For Availability
4
BAR, CRSH ICE BUCKET MAY 10113801 Contact Us For Availability
4
GROMMET, COMPRESSOR MAY 10835901 Contact Us For Availability
5
MAY 12587702B MAY 12587702B Contact Us For Availability
5
MAY Y12570701 MAY Y12570701 Contact Us For Availability
5
MAY 12582801 MAY 12582801 Contact Us For Availability
5
MAY M0224416 MAY M0224416 Contact Us For Availability
5
MAY A3080001 MAY A3080001 Contact Us For Availability
5
MAY 12620701B MAY 12620701B Contact Us For Availability
5
MAY M0322202 MAY M0322202 Contact Us For Availability
5
MAY D7749401 MAY D7749401 Contact Us For Availability
6
MAY 12456901 MAY 12456901 Contact Us For Availability
6
MAY 10383201 MAY 10383201 Contact Us For Availability
6
MAY 10623003 MAY 10623003 Contact Us For Availability
6
MAY 12593203B MAY 12593203B Contact Us For Availability
6
MAY 12617601 MAY 12617601 Contact Us For Availability
6
MAY M0238731 MAY M0238731 Contact Us For Availability
6
MAY 10114401 MAY 10114401 Contact Us For Availability
6
MAY M0221523 MAY M0221523 Contact Us For Availability
6
MAY 12113204 MAY 12113204 Contact Us For Availability
7
SEAL, O RING MAY M0500703 Contact Us For Availability
7
MAY 12351006 MAY 12351006 Contact Us For Availability
7
MAY 12665402B MAY 12665402B Contact Us For Availability
7
MAY 12563201 MAY 12563201 Contact Us For Availability
7
MAY M0220432 MAY M0220432 Contact Us For Availability
7
MAY 12583001 MAY 12583001 Contact Us For Availability
7
MAY 12607601Q MAY 12607601Q Contact Us For Availability
7
MAY 10114703 MAY 10114703 Contact Us For Availability
8
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
8
MAY 12571801 MAY 12571801 Contact Us For Availability
8
MAY B8385403 MAY B8385403 Contact Us For Availability
8
MAY 12563401 MAY 12563401 Contact Us For Availability
8
MAY 12501001 MAY 12501001 Contact Us For Availability
8
MAY M0321210 MAY M0321210 Contact Us For Availability
8
CAPACITOR MAY C8931612 Contact Us For Availability
8
MAY 10961002 MAY 10961002 Contact Us For Availability
9
MAY 12576801 MAY 12576801 Contact Us For Availability
9
MAY 12567101 MAY 12567101 Contact Us For Availability
9
MAY M0237902 MAY M0237902 Contact Us For Availability
9
MAY C8931608 MAY C8931608 Contact Us For Availability
9
MAY 12567001 MAY 12567001 Contact Us For Availability
9
MAY 12431302 MAY 12431302 Contact Us For Availability
9
MAY 12556401 MAY 12556401 Contact Us For Availability
10
MAY 10115001 MAY 10115001 Contact Us For Availability
10
SWITCH, LIGHT MAY 12466103 Contact Us For Availability
10
MAY M0216539 MAY M0216539 Contact Us For Availability
10
MAY R0131626 MAY R0131626 Contact Us For Availability
10
DRIVER (ICE MAKER) MAY 10114901 Contact Us For Availability
10
MAY A3030303 MAY A3030303 Contact Us For Availability
10
MAY 10361806 MAY 10361806 Contact Us For Availability
10
MAY 12568601 MAY 12568601 Contact Us For Availability
11
MAY C8973701 MAY C8973701 Contact Us For Availability
11
MAY 12624801 MAY 12624801 Contact Us For Availability
11
MAY 12575502 MAY 12575502 Contact Us For Availability
11
MAY 12662901 MAY 12662901 Contact Us For Availability
11
MAY 12688501 MAY 12688501 Contact Us For Availability
11
MAY M0220431 MAY M0220431 Contact Us For Availability
11
MAY 10114004 MAY 10114004 Contact Us For Availability
11
MAY 12568801 MAY 12568801 Contact Us For Availability
12
MAY 12588701Q MAY 12588701Q Contact Us For Availability
12
MAY 12544002 MAY 12544002 Contact Us For Availability
12
MAY M0581003 MAY M0581003 Contact Us For Availability
12
MAY 12624901 MAY 12624901 Contact Us For Availability
12
MAY M0237945 MAY M0237945 Contact Us For Availability
12
MAY 12666201 MAY 12666201 Contact Us For Availability
12
MAY 10114601 MAY 10114601 Contact Us For Availability
13
MAY 12544102 MAY 12544102 Contact Us For Availability
13
MAY 12614211 MAY 12614211 Contact Us For Availability
13
MAY M0238616 MAY M0238616 Contact Us For Availability
13
MAY 12676401 MAY 12676401 Contact Us For Availability
13
MAY D7849907 MAY D7849907 Contact Us For Availability
13
MAY 12679501 MAY 12679501 Contact Us For Availability
13
MAY 10113901 MAY 10113901 Contact Us For Availability
14
MAY M0753002 MAY M0753002 Contact Us For Availability
14
MAY M0211016 MAY M0211016 Contact Us For Availability
14
MAY 12582101 MAY 12582101 Contact Us For Availability
14
MAY 12049801 MAY 12049801 Contact Us For Availability
14
MAY 12678201 MAY 12678201 Contact Us For Availability
14
MAY 12589901Q MAY 12589901Q Contact Us For Availability
14
BLADE, ROTATING MAY 10114501 Contact Us For Availability
14
MAY A3189387 MAY A3189387 Contact Us For Availability
15
MAY 12665101 MAY 12665101 Contact Us For Availability
15
NUT, SLEEVE MAY M0753001 Contact Us For Availability
15
MAY 12571201 MAY 12571201 Contact Us For Availability
15
BLOCK, AIR COIL (LT) MAY 12590101 Contact Us For Availability
15
MAY M0226528 MAY M0226528 Contact Us For Availability
15
MAY 12590001 MAY 12590001 Contact Us For Availability
15
MAY 12589801Q MAY 12589801Q Contact Us For Availability
15
MAY 10275201 MAY 10275201 Contact Us For Availability
15
MAY 12560503ED MAY 12560503ED Contact Us For Availability
16
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
16
MAY M0580007 MAY M0580007 Contact Us For Availability
16
MAY 12620901 MAY 12620901 Contact Us For Availability
16
BLOCK, AIR COIL (RT) MAY 12590102 Contact Us For Availability
16
MAY 12617501 MAY 12617501 Contact Us For Availability
16
MAY 10449508 MAY 10449508 Contact Us For Availability
16
MAY 12610301 MAY 12610301 Contact Us For Availability
16
WASHER STEPPED MAY 10114301 Contact Us For Availability
16
MAY R0131583 MAY R0131583 Contact Us For Availability
17
MAY A1055104 MAY A1055104 Contact Us For Availability
17
MAY 12620902 MAY 12620902 Contact Us For Availability
17
MAY 10093313 MAY 10093313 Contact Us For Availability
17
MAY 12575401 MAY 12575401 Contact Us For Availability
17
MAY 12403401 MAY 12403401 Contact Us For Availability
17
MAY 12217805 MAY 12217805 Contact Us For Availability
17
MAY 12617801 MAY 12617801 Contact Us For Availability
17
MAY M1200108 MAY M1200108 Contact Us For Availability
17
MAY 12628801 MAY 12628801 Contact Us For Availability
18
MAY 12589201 MAY 12589201 Contact Us For Availability
18
MAY 12403304 MAY 12403304 Contact Us For Availability
18
MAY 12619301 MAY 12619301 Contact Us For Availability
18
MAY 12559701 MAY 12559701 Contact Us For Availability
18
MAY 10114101 MAY 10114101 Contact Us For Availability
19
MAY M0104102 MAY M0104102 Contact Us For Availability
19
MAY M0227217 MAY M0227217 Contact Us For Availability
19
MAY M0274074 MAY M0274074 Contact Us For Availability
19
SCREW, SM MAY M0238642 Contact Us For Availability
19
MAY 12583101 MAY 12583101 Contact Us For Availability
19
MAY 12217201 MAY 12217201 Contact Us For Availability
19
MAY 12585701Q MAY 12585701Q Contact Us For Availability
19
MAY M0231704 MAY M0231704 Contact Us For Availability
20
MAY A3030302 MAY A3030302 Contact Us For Availability
20
MAY M0108001 MAY M0108001 Contact Us For Availability
20
MAY 12567301 MAY 12567301 Contact Us For Availability
20
MAY 12580401 MAY 12580401 Contact Us For Availability
20
MAY 12571301B MAY 12571301B Contact Us For Availability
20
MAY 12585801Q MAY 12585801Q Contact Us For Availability
21
MAY 12602907 MAY 12602907 Contact Us For Availability
21
MAY M0102303 MAY M0102303 Contact Us For Availability
21
MAY 10526701 MAY 10526701 Contact Us For Availability
21
MAY 12570301 MAY 12570301 Contact Us For Availability
21
MAY 12559504 MAY 12559504 Contact Us For Availability
21
MAY 12575302 MAY 12575302 Contact Us For Availability
22
MAY 12621201 MAY 12621201 Contact Us For Availability
22
BUSHING, DOOR (BLK) MAY 12395501B Contact Us For Availability
22
MAY 12570401 MAY 12570401 Contact Us For Availability
23
MAY 12488101 MAY 12488101 Contact Us For Availability
23
DRIER MAY B2150504 Contact Us For Availability
23
MAY 12556901 MAY 12556901 Contact Us For Availability
23
MAY 12570501 MAY 12570501 Contact Us For Availability
23
MAY 12560301 MAY 12560301 Contact Us For Availability
24
MAY 12572801 MAY 12572801 Contact Us For Availability
24
MAY 10547002 MAY 10547002 Contact Us For Availability
24
MAY 12569401 MAY 12569401 Contact Us For Availability
24
MAY 12570601 MAY 12570601 Contact Us For Availability
24
MAY 12586001 MAY 12586001 Contact Us For Availability
24
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
25
MAY 12572901 MAY 12572901 Contact Us For Availability
25
MAY 12569302 MAY 12569302 Contact Us For Availability
25
MAY 12015102 MAY 12015102 Contact Us For Availability
25
MAY 12586101 MAY 12586101 Contact Us For Availability
26
MAY 12571604 MAY 12571604 Contact Us For Availability
26
MAY M0286708 MAY M0286708 Contact Us For Availability
26
MAY 12550301 MAY 12550301 Contact Us For Availability
26
MAY 10972802 MAY 10972802 Contact Us For Availability
26
MAY 12586201U MAY 12586201U Contact Us For Availability
26
SCREW MAY 95106-1 Contact Us For Availability
27
MAY M0231426 MAY M0231426 Contact Us For Availability
27
MAY 10450602 MAY 10450602 Contact Us For Availability
27
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
27
MAY 12664201 MAY 12664201 Contact Us For Availability
28
MAY 12478101 MAY 12478101 Contact Us For Availability
28
MAY M1205302 MAY M1205302 Contact Us For Availability
28
MAY 12584401 MAY 12584401 Contact Us For Availability
29
MAY 12478003 MAY 12478003 Contact Us For Availability
29
MAY 12619601 MAY 12619601 Contact Us For Availability
29
MAY 12314101 MAY 12314101 Contact Us For Availability
29
MAY 12204811 MAY 12204811 Contact Us For Availability
30
MAY 12590201 MAY 12590201 Contact Us For Availability
30
MAY 12314102 MAY 12314102 Contact Us For Availability
30
MAY 12663501 MAY 12663501 Contact Us For Availability
31
MAY 12590202 MAY 12590202 Contact Us For Availability
31
MAY 12585601 MAY 12585601 Contact Us For Availability
31
MAY 12562301 MAY 12562301 Contact Us For Availability
32
MAY 12591001BQ MAY 12591001BQ Contact Us For Availability
32
MAY 12683601 MAY 12683601 Contact Us For Availability
33
COVER, LWR HINGE (BLK) MAY 12561901B Contact Us For Availability
34
MAY 12575009 MAY 12575009 Contact Us For Availability
34
MAY 12562601U MAY 12562601U Contact Us For Availability
35
MAY 12575013 MAY 12575013 Contact Us For Availability
35
MAY 12663601 MAY 12663601 Contact Us For Availability
36
MAY 12576701B MAY 12576701B Contact Us For Availability
37
MAY 12575901B MAY 12575901B Contact Us For Availability
38
MAY 12457401 MAY 12457401 Contact Us For Availability
39
MAY 12572701 MAY 12572701 Contact Us For Availability
39
MAY 12562602U MAY 12562602U Contact Us For Availability
40
MAY 12677801 MAY 12677801 Contact Us For Availability
40
MAY 12663701 MAY 12663701 Contact Us For Availability
41
MAY 12560401 MAY 12560401 Contact Us For Availability
42
MAY 12576403 MAY 12576403 Contact Us For Availability
42
MAY 12559604 MAY 12559604 Contact Us For Availability
43
MAY 12273808 MAY 12273808 Contact Us For Availability
43
MAY 12064701 MAY 12064701 Contact Us For Availability
44
MAY 12589104 MAY 12589104 Contact Us For Availability
45
MAY 12457501 MAY 12457501 Contact Us For Availability
46
MAY 12565901 MAY 12565901 Contact Us For Availability
47
MAY 12579601 MAY 12579601 Contact Us For Availability
48
MAY 12579602 MAY 12579602 Contact Us For Availability
49
MAY M0214931 MAY M0214931 Contact Us For Availability
NI
MAY 12672901 MAY 12672901 Contact Us For Availability
NI
MAY 12601401 MAY 12601401 Contact Us For Availability
NI
MAY 12602201 MAY 12602201 Contact Us For Availability
NI
MAY 12672501 MAY 12672501 Contact Us For Availability
NI
MAY 95108-1 MAY 95108-1 Contact Us For Availability
NI
MAY 12669701 MAY 12669701 Contact Us For Availability
× ![]()
