Model Whirlpool ARR633E ELECTRIC RANGE – Common Parts & Diagrams

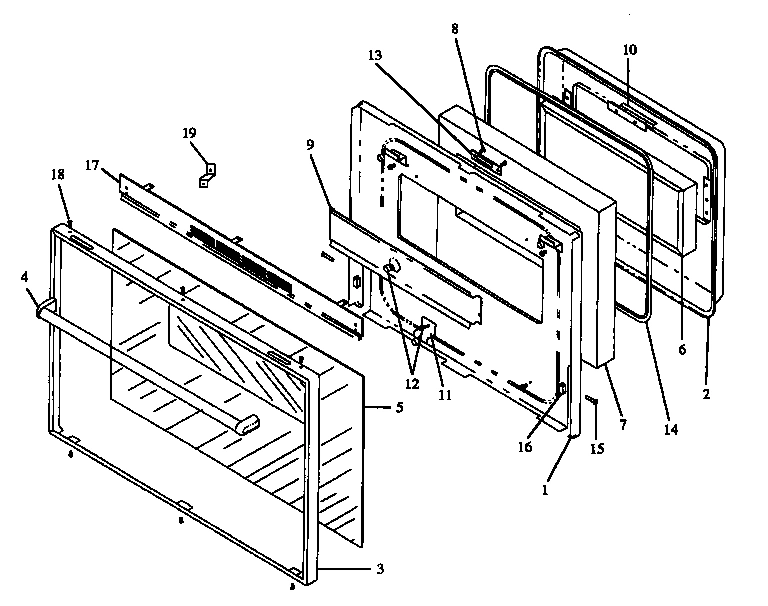

06 - OVEN DOOR
02 - CABINET ASSY

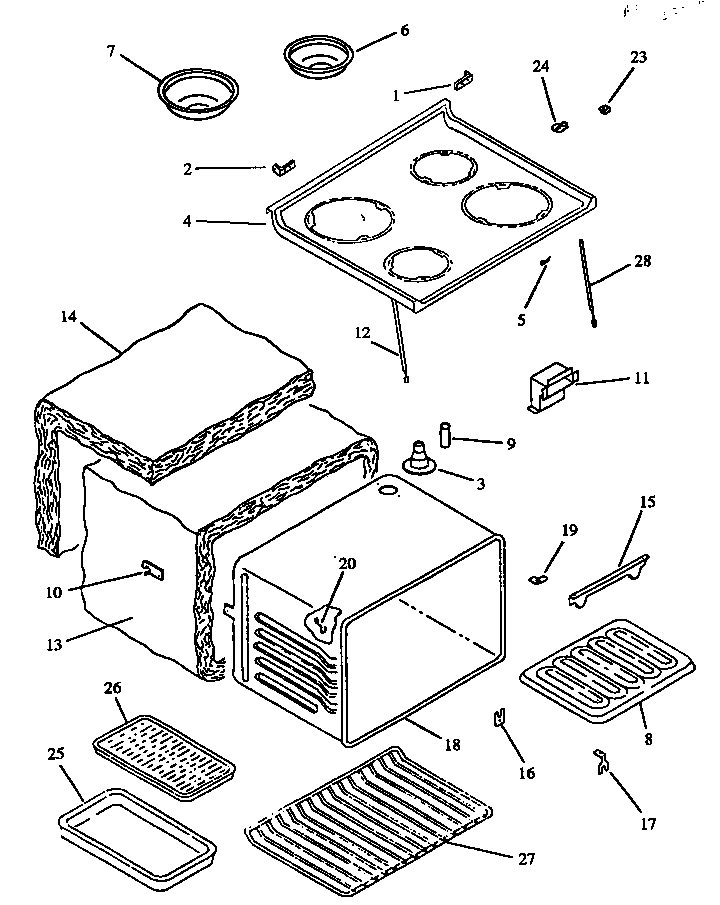

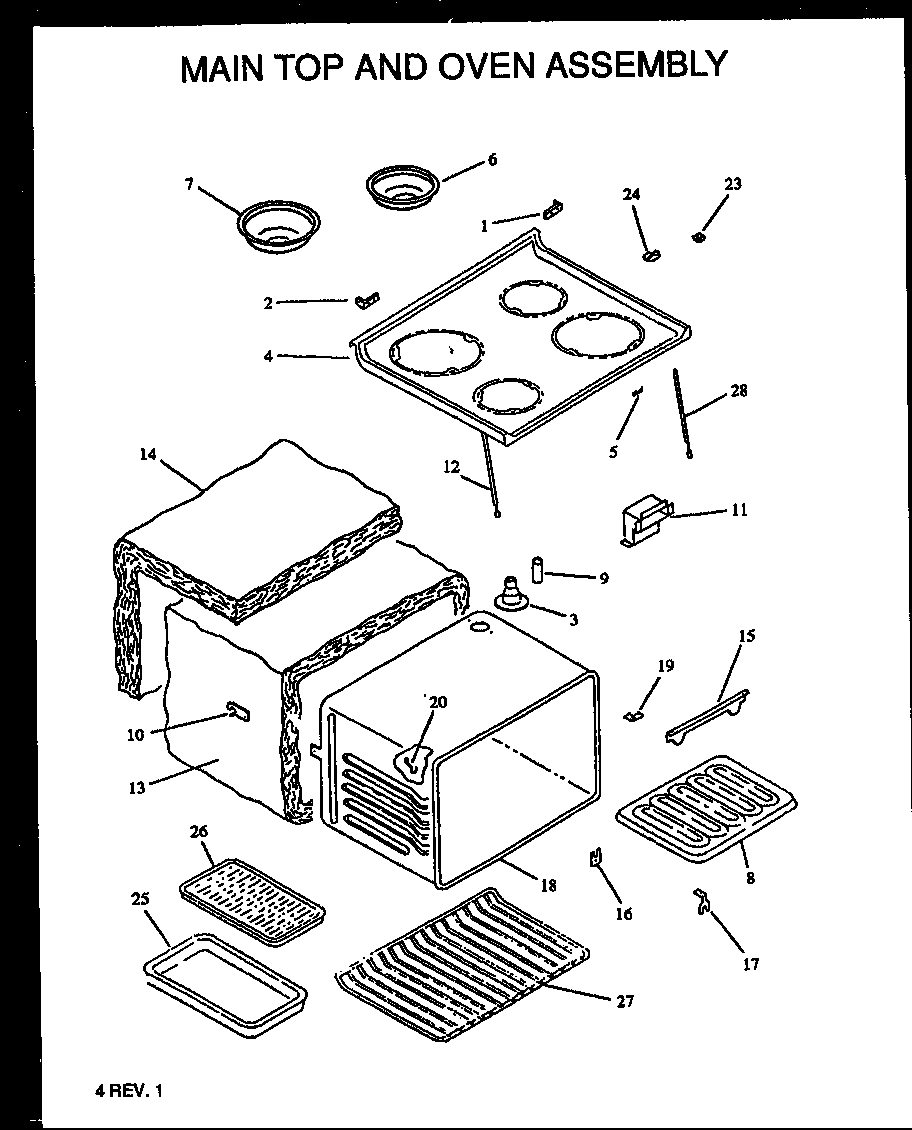

05 - MAIN TOP AND OVEN ASSY

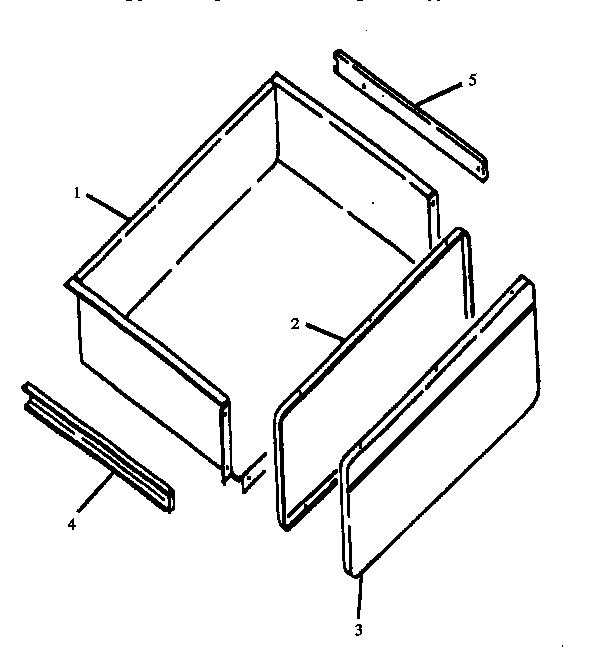

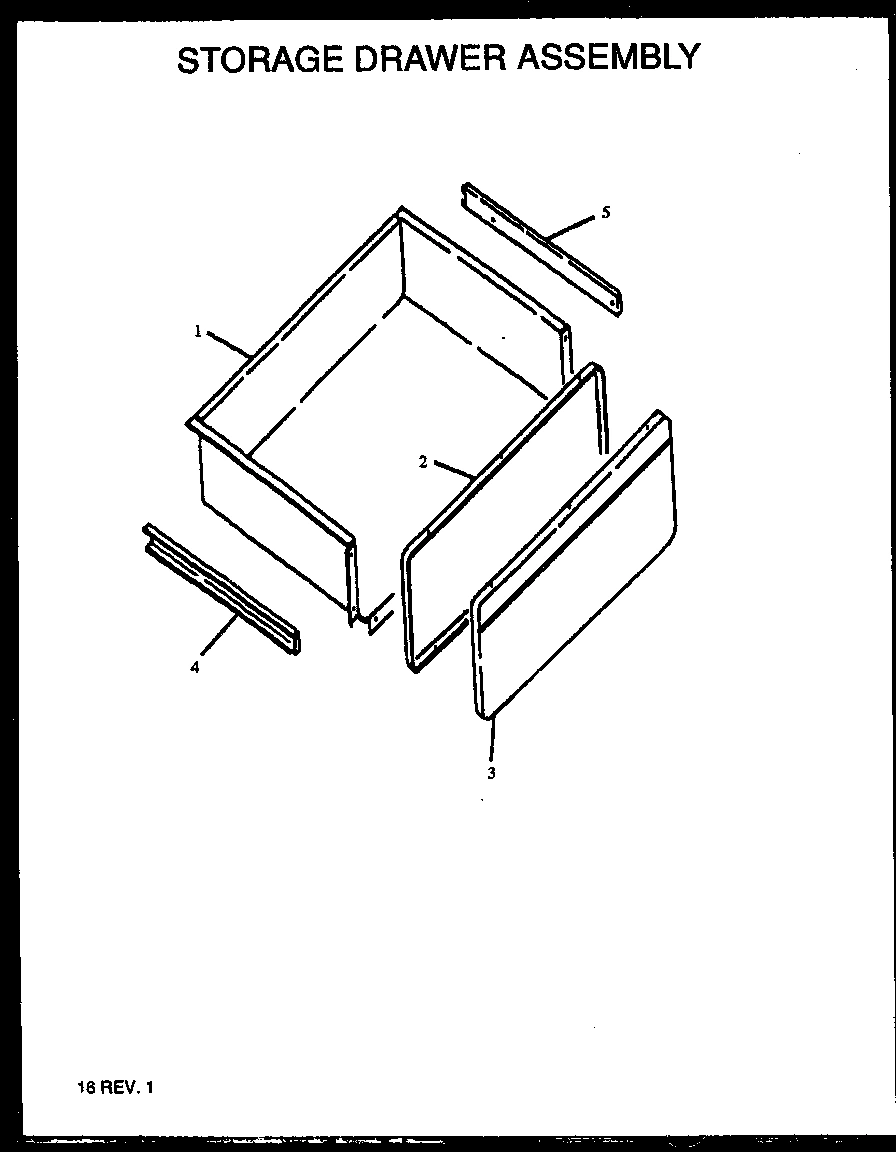

07 - STORAGE DRAWER ASSY

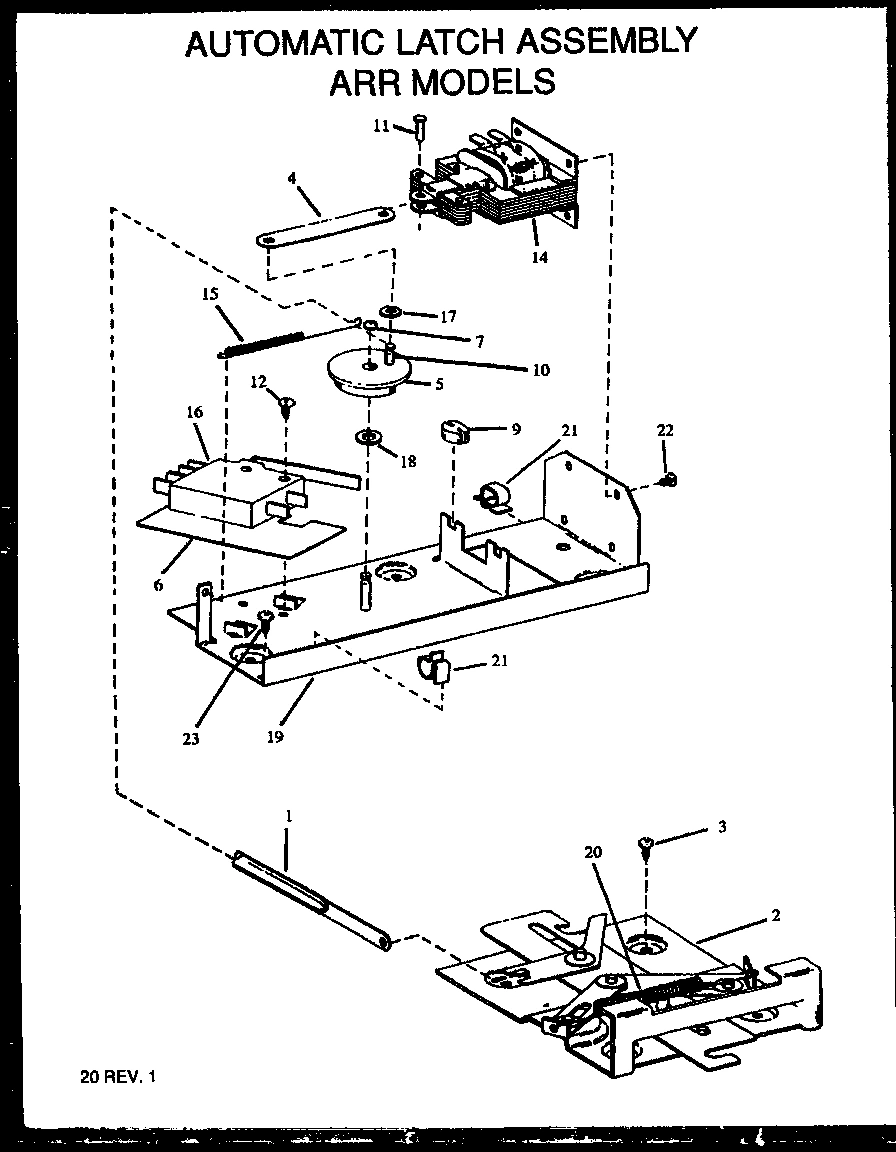

01 - AUTOMATIC LATCH ASSY

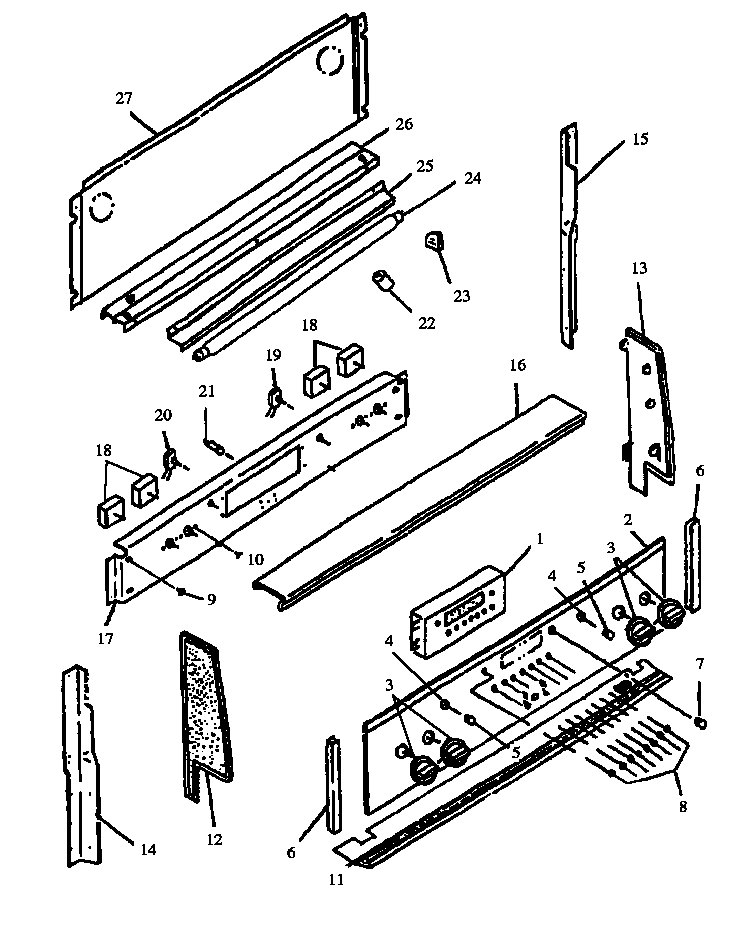

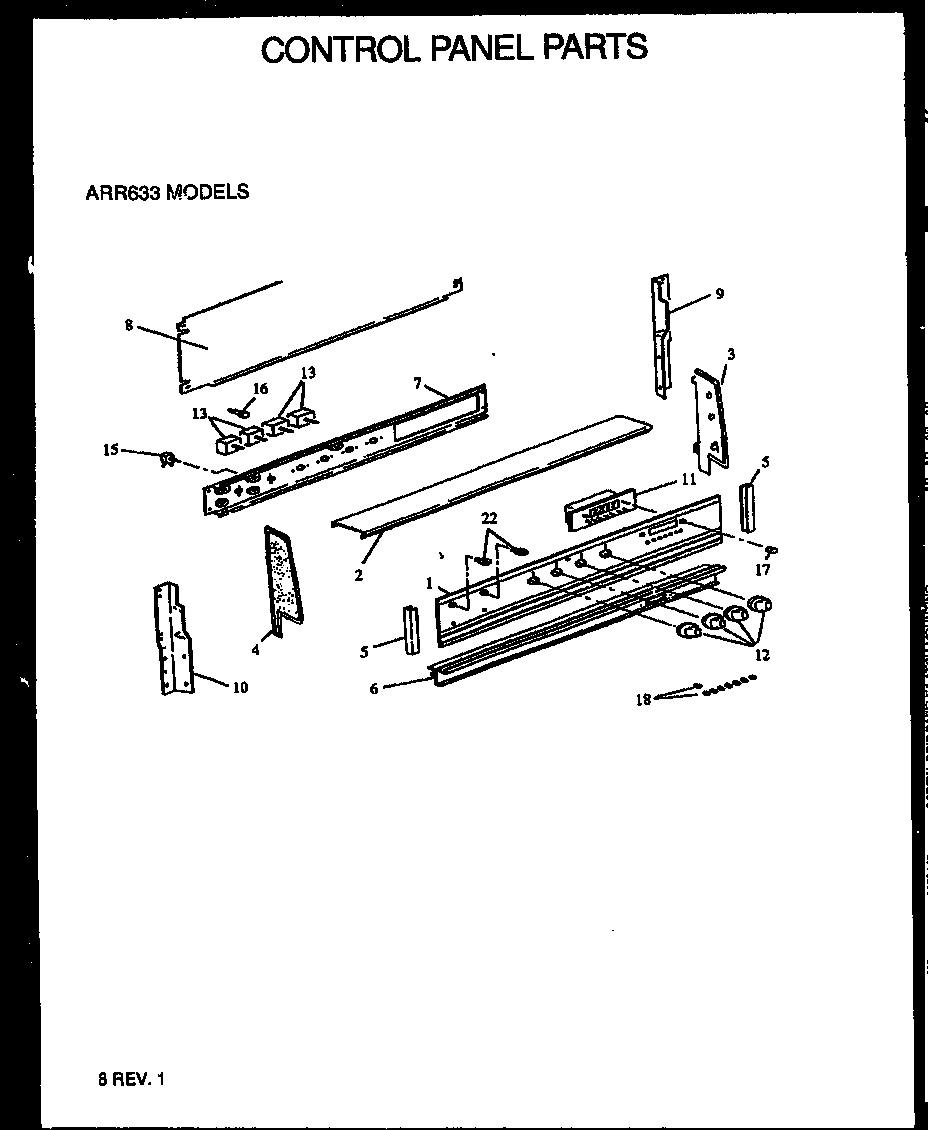

03 - CONTROL PANEL PARTS

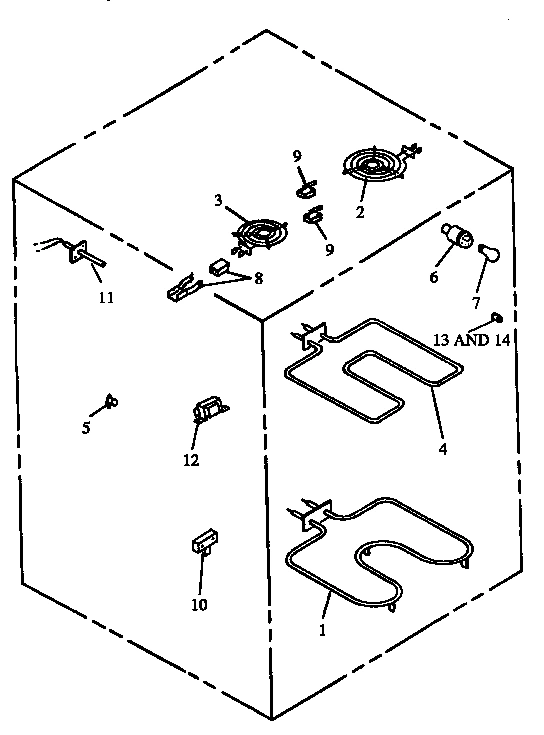

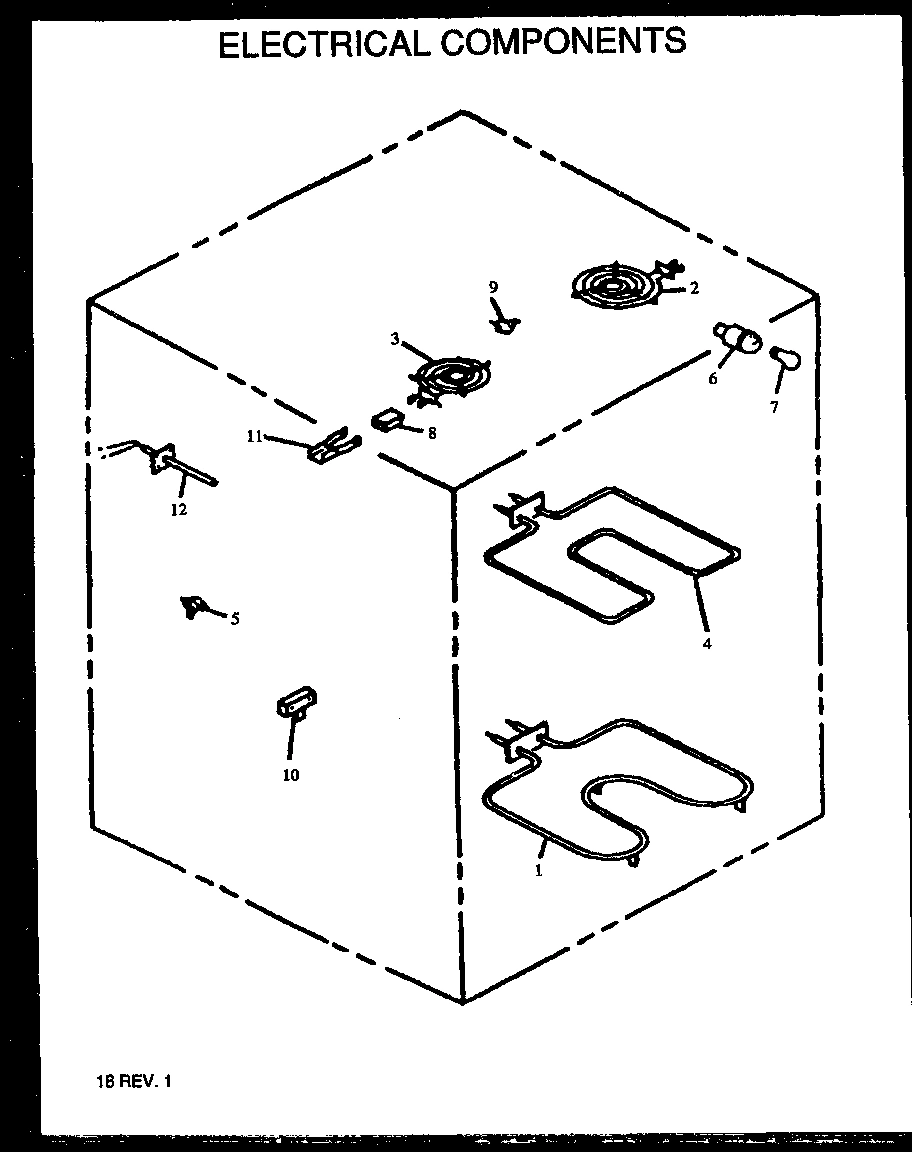

04 - ELECTRICAL COMPONENTS
Common parts from model Whirlpool ARR633E ELECTRIC RANGE
1
BACKER, DOOR WPL 305553E Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y0063353 Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 306519E Contact Us For Availability
1
LATCH, ARM LOCK WPL 0305522 Contact Us For Availability
1
PANEL, GLASS CONTROL WPL Y0305935 Contact Us For Availability
2
PAD, OV DR W/WINDOW WPL 58808CG Contact Us For Availability
2
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
2
LINER, STOR DRAWER WPL 306521B Contact Us For Availability
2
ASSY, DOOR LATCH (10442001) WPL 0306836 Contact Us For Availability
2
TOP TRIM BACKGUARD WPL 304973B Contact Us For Availability
3
FRAME, OVEN DOOR (BLACK) WPL 300712B Contact Us For Availability
3
HINGE, STRAP WPL 0304502 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y005826 Contact Us For Availability
3
PANEL, DRAWER WHT WPL 063702W Contact Us For Availability
3
DRAWER PANEL BLACK WPL Y063702B Contact Us For Availability
3
END CAP-BKGD LT/RT (BLK) WPL 304928B Contact Us For Availability
4
KIT, DR HNDL/TRIM (BLACK) WPL Y0305519 Contact Us For Availability
4
MAIN TOP-ELECTRIC UPSWEPT, BLA WPL 306899B Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0306404 Contact Us For Availability
4
ARM, ACTUATOR WPL 0306852 Contact Us For Availability
4
END CAP-BKGD LT/RT (BLK) WPL 304927B Contact Us For Availability
5
GLASS, OVEN DOOR WPL Y0300791 Contact Us For Availability
5
PIN, SUPPORT ROD WPL 0071668 Contact Us For Availability
5
RUNNER, STORAGE DOOR R.H. WPL 0300477 Contact Us For Availability
5
RUNNER STORAGE DWR-RH WPL Y0306405 Contact Us For Availability
5
CAM, LOCK SOLENOID WPL 0306850 Contact Us For Availability
5
CHANNEL GLASS (BLK) WPL 0305309 Contact Us For Availability
5
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
6
WINDOW ASSY WPL 0304831 Contact Us For Availability
6
BOWL, DRIP (6`` W/HOLE-BLK) WPL Y0300728 Contact Us For Availability
6
INSULATOR, SWITCH WPL Y0306847 Contact Us For Availability
6
KIT, VENT REWORK-BLK WPL 306198B Contact Us For Availability
7
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
7
BOWL, BURNER 8`` (BLACK) WPL Y0300730 Contact Us For Availability
7
CLIP WPL Y0306858 Contact Us For Availability
7
PANEL CONT. WPL 0305497 Contact Us For Availability
7
BULB, LIGHT WPL Y0042175 Contact Us For Availability
8
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
8
COVER, BACKGUARD WPL 0058886 Contact Us For Availability
9
BAFFLE, OVEN DOOR (BLACK) WPL 306467B Contact Us For Availability
9
TUBE, VENT WPL 0305799 Contact Us For Availability
9
PAD, BUMPER WPL 0306849 Contact Us For Availability
9
SUPPORT, BKGD (RH) WPL 0306590 Contact Us For Availability
10
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
10
PIN, GROOVED WPL 0306848 Contact Us For Availability
10
SUPPORT, BKGD (LH) WPL 0306589 Contact Us For Availability
11
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
11
FLUE CAP BACKGRD WPL 0304393 Contact Us For Availability
11
RIVET, SIMI-TUBULAR WPL Y0306857 Contact Us For Availability
11
CONTROL ERC WPL Y0305504 Contact Us For Availability
11
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
12
SCREW, T.C. WPL Y0307056 Contact Us For Availability
12
KNOB-INFINITE SW (BL) WPL 0305511 Contact Us For Availability
12
SENSOR, ERC WPL Y0300769 Contact Us For Availability
13
LATCH PLATE ASSY. WPL 0305555 Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
13
SWITCH, INFINITE WPL 0071745 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
14
INSULATION, REAR WPL Y0300974 Contact Us For Availability
14
SOLENOID, LOCK WPL Y0306856 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
KIT, DOOR HINGE(RH-SS) WPL Y0067795 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
15
SPRING, SOLENOID WPL Y0306846 Contact Us For Availability
15
SWITCH, FLUORESCENT LIGHT, BLA WPL 0305515 Contact Us For Availability
15
KIT, LIGHT SWITCH WPL 306824B Contact Us For Availability
16
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
16
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
16
SWITCH, LIMIT WPL 0306851 Contact Us For Availability
16
LIGHT, INDICATOR (RED) WPL Y0305660 Contact Us For Availability
17
KIT, DR HNDL/TRIM (BLACK) WPL Y0305525 Contact Us For Availability
17
BRACE, LEVELING LEG (RH) WPL 303578B Contact Us For Availability
17
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
17
WASHER, FLAT WPL 0306859 Contact Us For Availability
17
KNOB, CLOCK (BLK) WPL Y0305506 Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL 303577B Contact Us For Availability
18
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
18
WASHER WPL Y0306860 Contact Us For Availability
18
KIT, ERC SET BUTTON (BLACK) WPL 0305389 Contact Us For Availability
18
KNOB, SET BUTTON 1/2`` DIAM. WPL Y0301393 Contact Us For Availability
19
RETAINER WPL Y0306513 Contact Us For Availability
19
CHIP COVER WPL 0300278 Contact Us For Availability
19
ASSY, LATCH SOLENOID WPL 0306853 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y0306837 Contact Us For Availability
21
PANEL, SIDE (BLK) WPL 303575B Contact Us For Availability
21
CLIP WPL M0110503 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
22
SCREW WPL 0067064 Contact Us For Availability
22
BEZEL, PANEL SWITCH WPL 0065051 Contact Us For Availability
23
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
23
TRACK, STORAGE DRAWER-L.H. WPL Y0300474 Contact Us For Availability
23
TRACK, STORAGE DWR LH WPL Y0306402 Contact Us For Availability
23
SCREW, TT AB No.8 X 3/8`` WPL Y0071914 Contact Us For Availability
24
TRACK, STORAGE DRAWER-R.H. WPL 0300475 Contact Us For Availability
24
TRACK, STORAGE DWR RH WPL 0306403 Contact Us For Availability
24
WIRE CLAMP WPL 0071203 Contact Us For Availability
25
RETAINER WPL Y0306548 Contact Us For Availability
26
LEG, LEVELING WPL Y0300585 Contact Us For Availability
27
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
28
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
30
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
31
RETAINER INSUL TOP WPL Y0305661 Contact Us For Availability
NI
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW No.8 18 X 1/2 BLACK WPL 0302844 Contact Us For Availability
NI
SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079863 Contact Us For Availability
NI
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
NI
PLUG BUTTON WPL 0059798 Contact Us For Availability
NI
TAPE, SEAL 1=1FT WPL 0069187 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
GREASE WPL 0306840 Contact Us For Availability
NI
BRACKET, LIGHT WPL 0304459 Contact Us For Availability
NI
LIGHT DIFFUSER BACKGUARD-CLEAR WPL 0304977 Contact Us For Availability
NI
LAMP HOLDER-FLOURES WPL Y0304559 Contact Us For Availability
NI
COLLAR, STARTER SOCKET WPL Y0305391 Contact Us For Availability
NI
HARNESS, LATCH WPL 0305977 Contact Us For Availability
NI
BALLAST WPL Y0071869 Contact Us For Availability
NI
SUPPORT WPL Y0300662 Contact Us For Availability
NI
PC BOARD WPL Y0305521 Contact Us For Availability
NI
CONTROL, LIMIT WPL Y0305798 Contact Us For Availability
NI
HARNESS, CONTROL WPL Y0305976 Contact Us For Availability
NI
SWITCH, OVEN DR WPL Y0307209 Contact Us For Availability
× ![]()
