Model Whirlpool ARR625L ELECTRIC RANGE – Common Parts & Diagrams

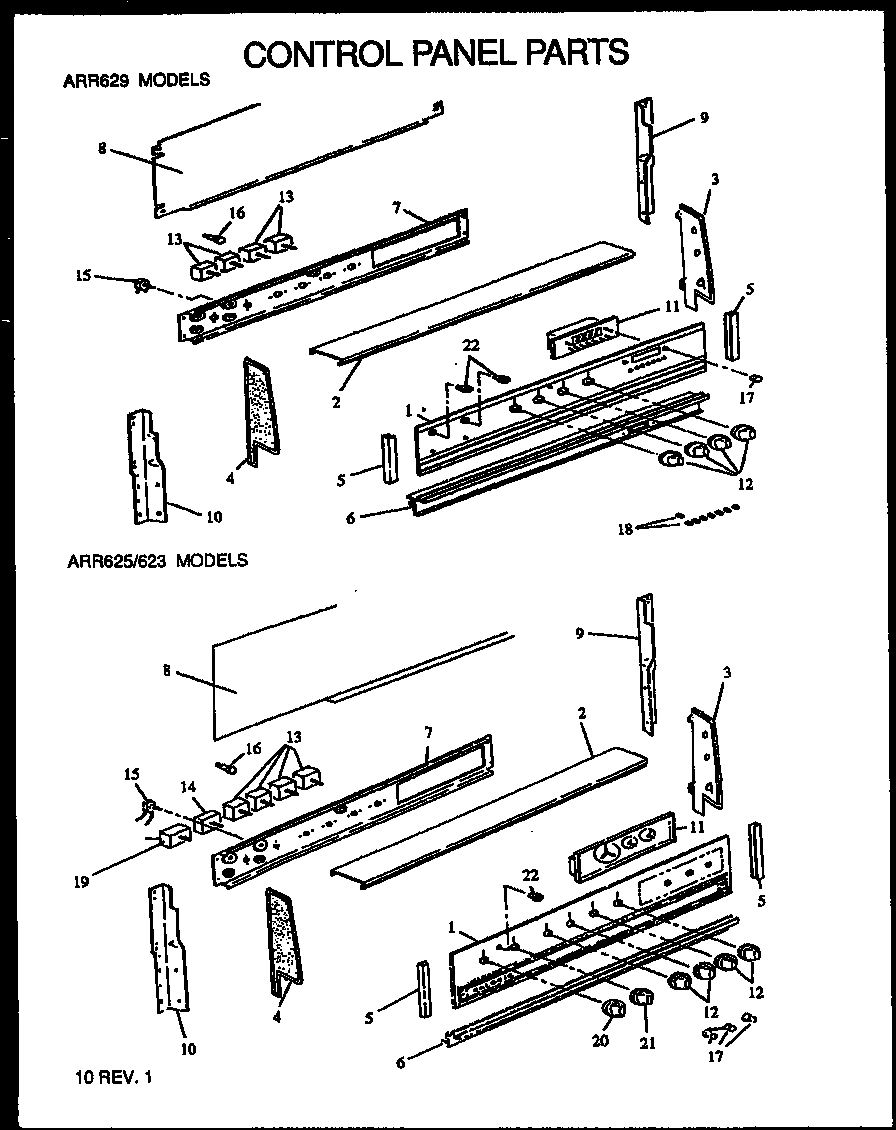

02 - CONTROL PANEL PARTS

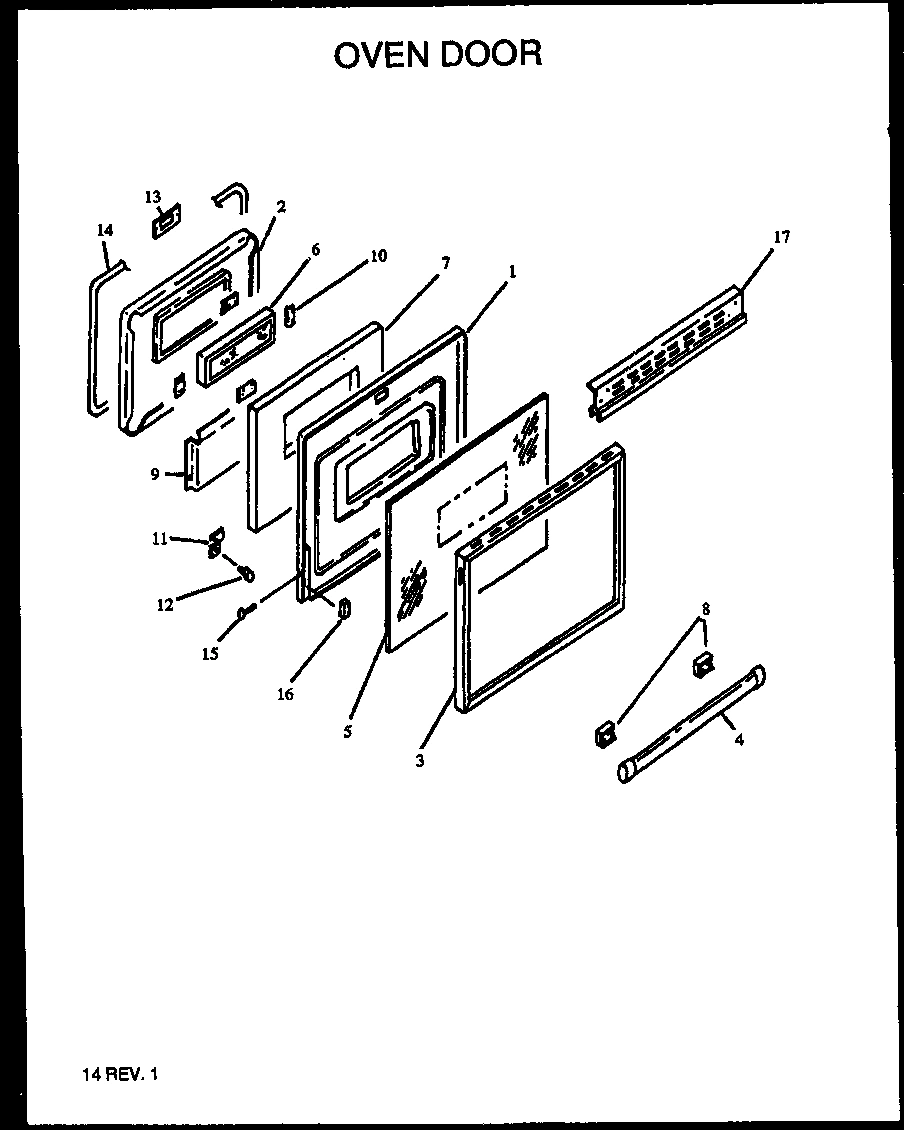

05 - OVEN DOOR

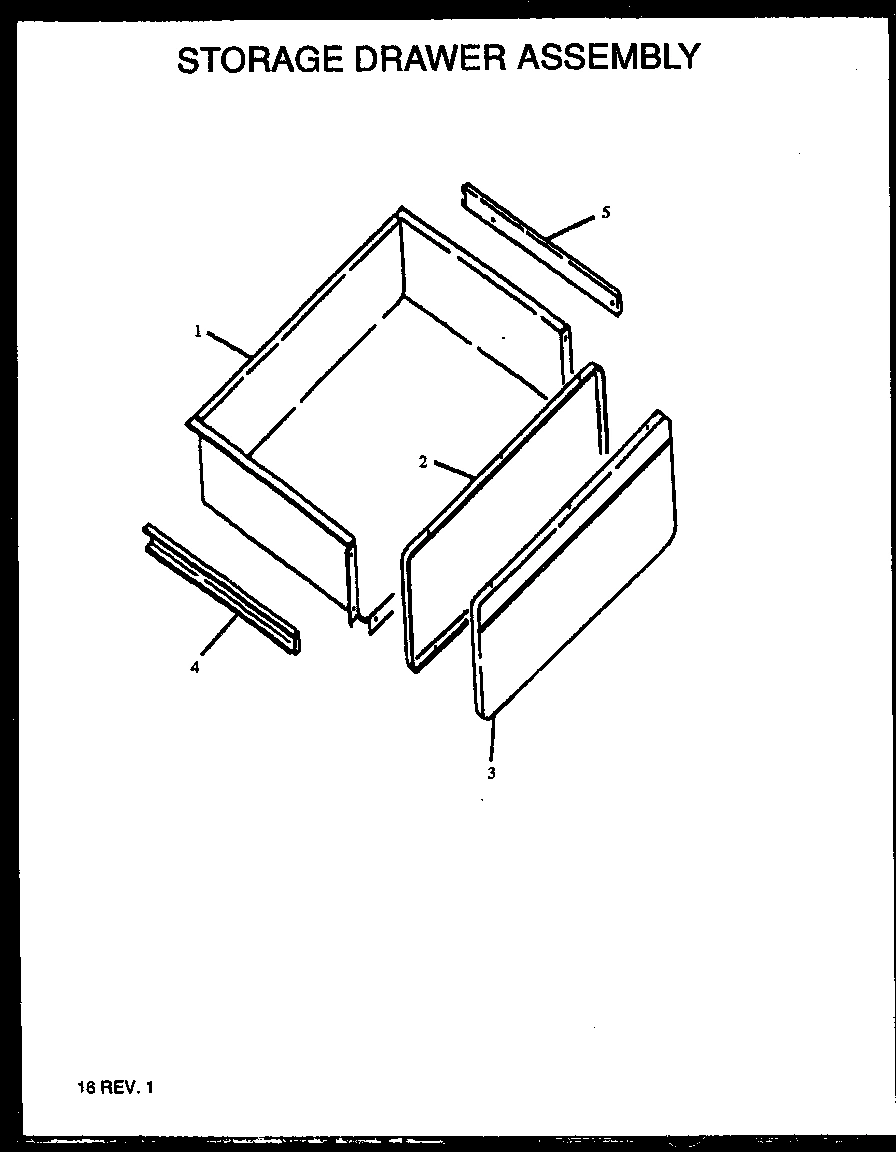

06 - STORAGE DRAWER ASSY

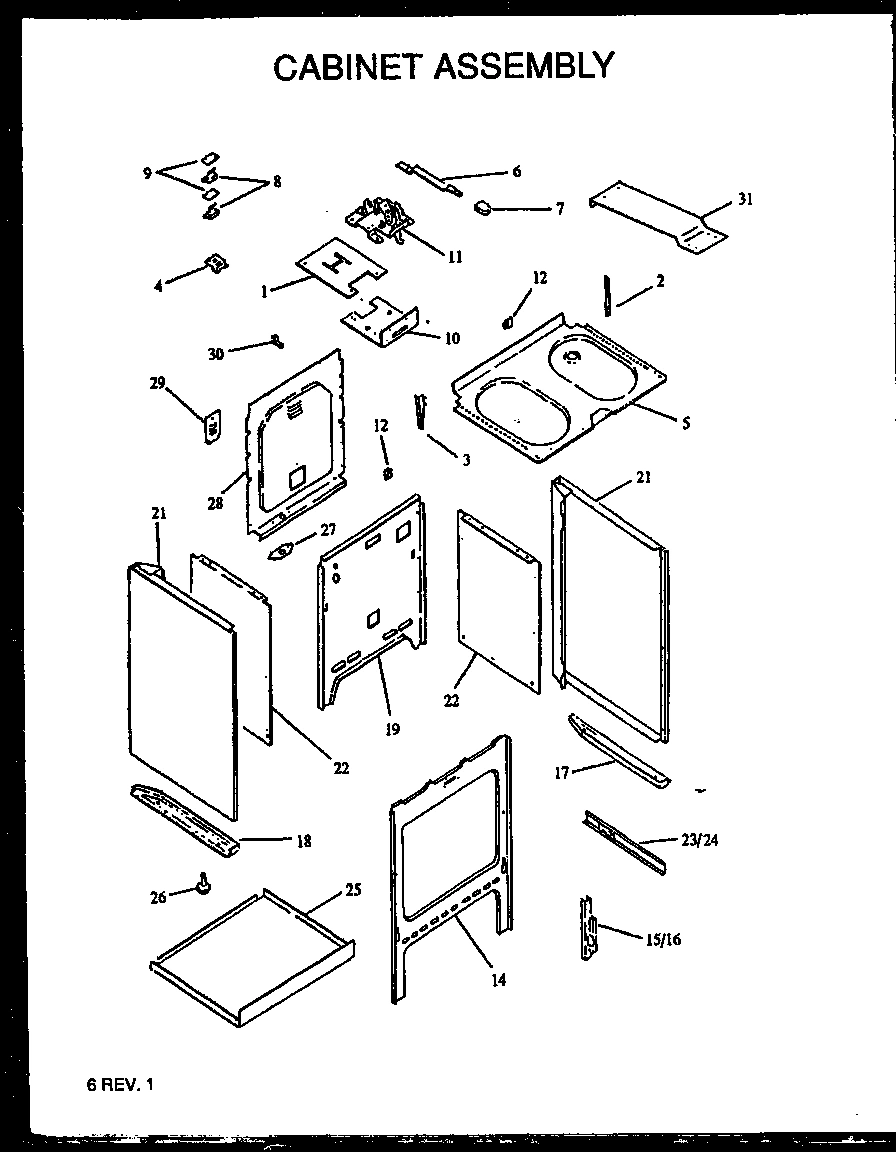

01 - CABINET ASSY

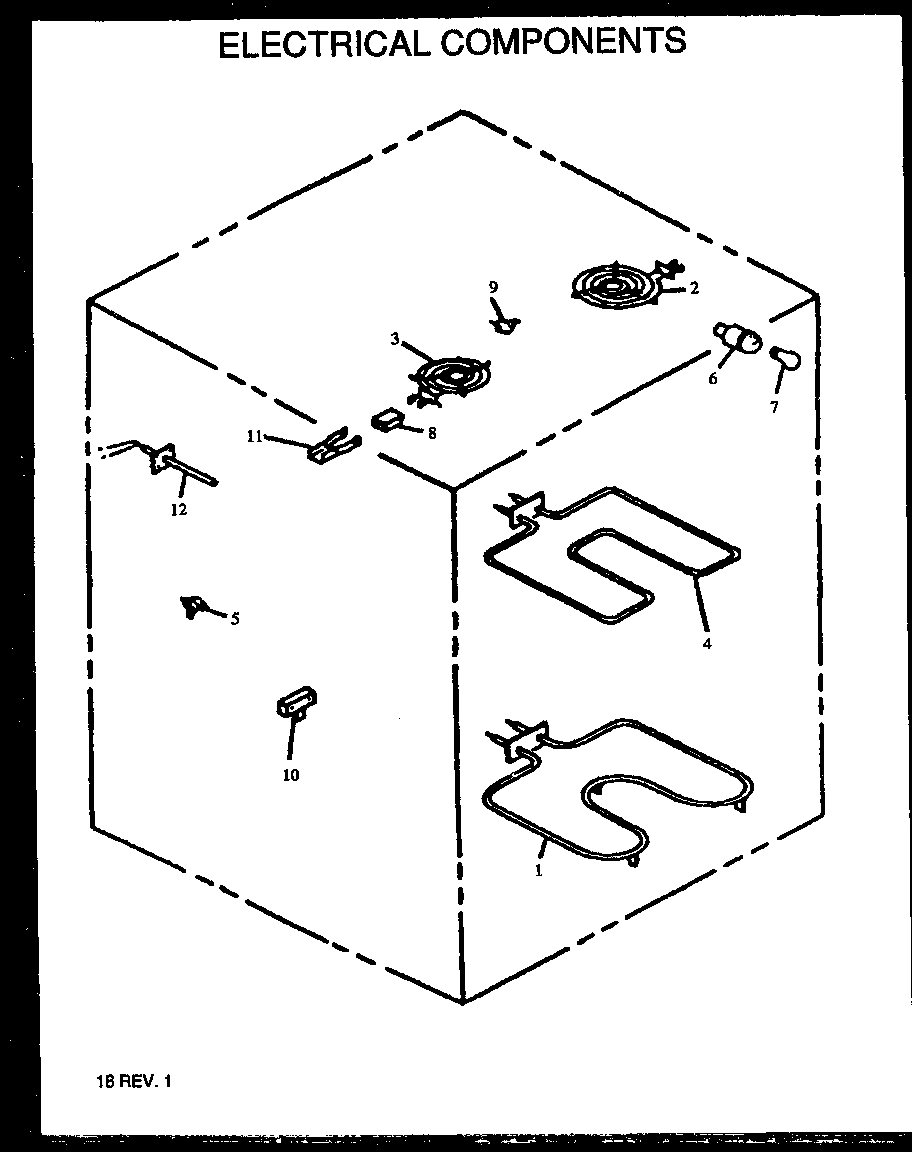

03 - ELECTRICAL COMPONENTS

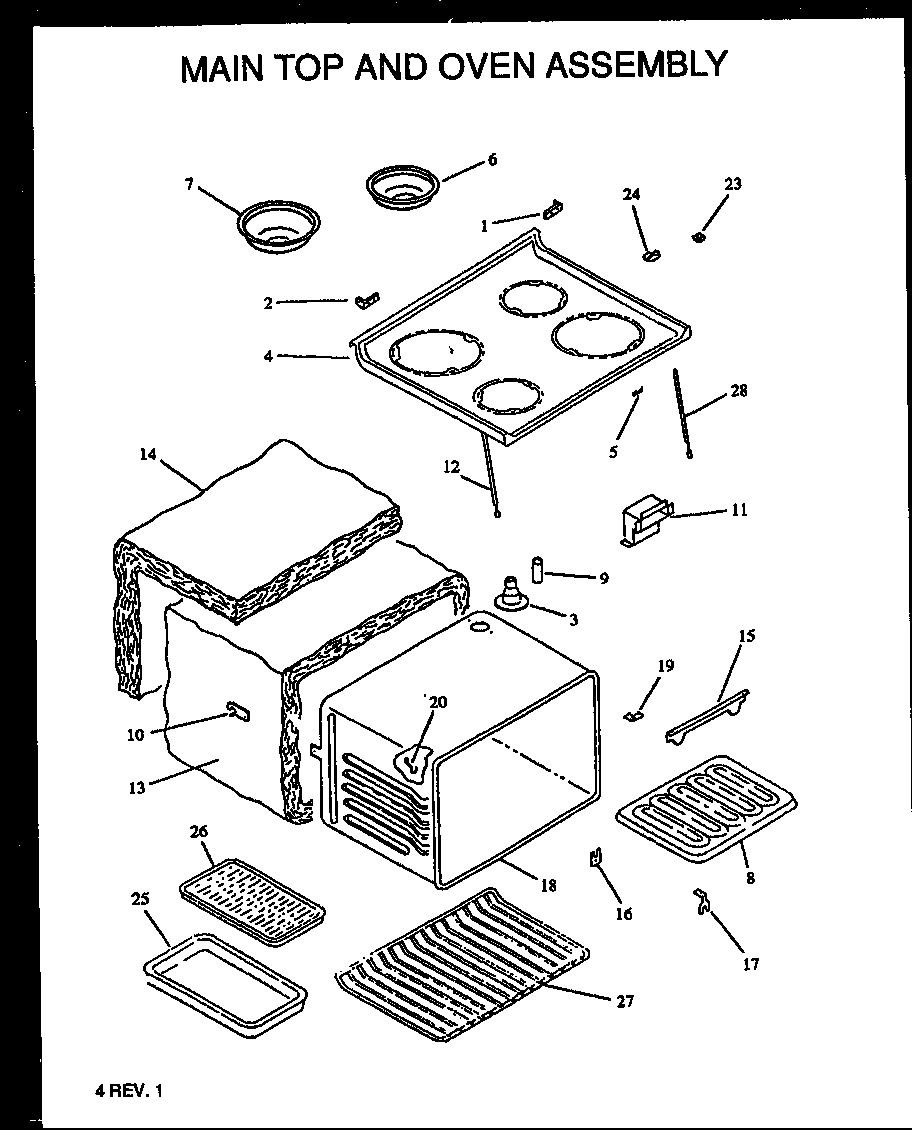

04 - MAIN TOP AND OVEN ASSY
Common parts from model Whirlpool ARR625L ELECTRIC RANGE
1
GLASS, BACKGUARD WPL 0307268 Contact Us For Availability
1
DOOR BACKER, ELECTRIC (CG) WPL 302723E Contact Us For Availability
1
WRAPPER, STOR DRAWER WPL 306519E Contact Us For Availability
1
RETAINER, OVEN LIGHT WPL Y0063353 Contact Us For Availability
2
TOP TRIM BACKGUARD WPL 305007B Contact Us For Availability
2
PAD, OV DR W/WINDOW WPL 58808CG Contact Us For Availability
2
LINER, STOR DRAWER WPL 306521B Contact Us For Availability
2
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
END CAP-BKGD LT/RT (BLK) WPL 304928B Contact Us For Availability
3
FRAME, OVEN DOOR (BLACK) WPL 300712B Contact Us For Availability
3
PANEL, DRAWER WHT WPL 063702W Contact Us For Availability
3
DRAWER PANEL BLACK WPL Y063702B Contact Us For Availability
3
HINGE, STRAP WPL 0304502 Contact Us For Availability
3
SMOKE ELIMINATOR WPL Y005826 Contact Us For Availability
4
END CAP, L.H. WPL 304931B Contact Us For Availability
4
KIT, DR HNDL/TRIM (BLACK) WPL Y0305519 Contact Us For Availability
4
RUNNER STORAGE DWR-LH WPL 0306404 Contact Us For Availability
4
RUNNER, STORAGE DRAWER, L.H. WPL Y0330476 Contact Us For Availability
4
BRACKET, SWITCH WPL Y0302316 Contact Us For Availability
4
MAIN TOP-ELECTRIC UPSWEPT, BLA WPL 306899B Contact Us For Availability
4
MAIN TOP-ELECTRIC UPSWEPT WPL 306899L Contact Us For Availability
4
MAIN TOP-ELECTRIC UPSWEPT WPL 306899W Contact Us For Availability
5
CHANNEL, GLASS (BLACK) WPL 0059768 Contact Us For Availability
5
GLASS, OVEN DOOR WPL Y0300791 Contact Us For Availability
5
RUNNER, STORAGE DOOR R.H. WPL 0300477 Contact Us For Availability
5
RUNNER STORAGE DWR-RH WPL Y0306405 Contact Us For Availability
5
BAFFLE, DRIP (ENAMEL) WPL 304194E Contact Us For Availability
5
SWITCH, HI LIMIT WPL Y0053584 Contact Us For Availability
5
PIN, SUPPORT ROD WPL 0071668 Contact Us For Availability
6
LOWER TRIM BACKGUARD WPL 304976B Contact Us For Availability
6
WINDOW ASSY WPL 0304831 Contact Us For Availability
6
LATCH ARM WPL 303039B Contact Us For Availability
6
BOWL, DRIP (6`` W/HOLE-BLK) WPL Y0300728 Contact Us For Availability
7
BACKGUARD.CONT PNL WPL Y0305284 Contact Us For Availability
7
INSULATION,DOOR-SUB BACKER WPL 0062614 Contact Us For Availability
7
KNOB, LATCH HANDLE (BLK) WPL 0302300 Contact Us For Availability
7
KNOB, LATCH - BLACK WPL Y0067844 Contact Us For Availability
7
BULB, LIGHT WPL Y0042175 Contact Us For Availability
7
BOWL, BURNER 8`` (BLACK) WPL Y0300730 Contact Us For Availability
8
COVER,BACKGUARD WPL 0305447 Contact Us For Availability
8
REFLECTOR, BROIL ELEMENT WPL Y0061781 Contact Us For Availability
9
SUPPORT, BKGD (RH) WPL 0304124 Contact Us For Availability
9
HEAT BAFFLE, GLASS (BLACK) WPL 301275G Contact Us For Availability
9
SWITCH, CLEAN CIRCUIT WPL Y0065780 Contact Us For Availability
9
INSULATION, ESM WPL Y0091523 Contact Us For Availability
9
TUBE, VENT EXT. WPL 0063336 Contact Us For Availability
10
SUPPORT BACKGUARD LH WPL Y0304123 Contact Us For Availability
10
RETAINER, DOOR GLASS WPL Y0052629 Contact Us For Availability
10
BRACKET, LATCH MTG. WPL Y0058918 Contact Us For Availability
10
TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability
10
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
11
CLOCK, ANALOG WPL 0305331 Contact Us For Availability
11
SUPPORT BRACKET, GLASS WPL Y0062439 Contact Us For Availability
11
LATCH, OV. DOOR WPL Y0059565 Contact Us For Availability
11
MOUNTING BRKT. PLUG BLOCK WPL Y0302765 Contact Us For Availability
12
KNOB, TOP ELEMENT WPL Y0060235 Contact Us For Availability
12
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
12
SENSOR, ERC WPL Y0300769 Contact Us For Availability
13
SWITCH, INFINITE WPL 0071745 Contact Us For Availability
13
LATCH PLATE WPL Y0052039 Contact Us For Availability
13
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
14
SWITCH, SELECTOR WPL Y0063008 Contact Us For Availability
14
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
14
INSULATION, REAR WPL Y0300974 Contact Us For Availability
15
KIT, LIGHT SWITCH WPL 0060303 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
KIT, DOOR HINGE (RH-SS) WPL Y0066954 Contact Us For Availability
15
KIT, DOOR HINGE(RH-SS) WPL Y0067795 Contact Us For Availability
15
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
16
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
16
BUMPER, RUBBER WPL Y0060247 Contact Us For Availability
16
KIT, DOOR HINGE(LH-HS) WPL Y0066953 Contact Us For Availability
16
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
17
KNOB, CLOCK WPL Y0305508 Contact Us For Availability
17
KIT, DR HNDL/TRIM (BLACK) WPL Y0305525 Contact Us For Availability
17
BRACE, LEVELING LEG (RH) WPL 303578B Contact Us For Availability
17
BRACKET, MOUNTING WPL 0061556 Contact Us For Availability
18
BRACE, LEVELING LEG (LT) WPL 303577B Contact Us For Availability
18
OVEN SHELL (EL. W/LT) WPL 58788CG Contact Us For Availability
19
THERMOSTAT WPL Y0063416 Contact Us For Availability
19
INSULATION RETAINER REAR WPL Y0303364 Contact Us For Availability
19
CHIP COVER WPL 0300278 Contact Us For Availability
20
KNOB, OVEN CONTROL/THERMOSTAT WPL 0059909 Contact Us For Availability
20
CLIP, THERMO CAPILLARY WPL Y0067053 Contact Us For Availability
21
SELECTOR KNOB WPL 0060236 Contact Us For Availability
21
PANEL, SIDE (ALM) WPL 303575L Contact Us For Availability
21
PANEL, SIDE (WHT) WPL 303575W Contact Us For Availability
22
BEZEL, PANEL SWITCH WPL 0065051 Contact Us For Availability
22
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
23
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
23
TRACK, STORAGE DRAWER-L.H. WPL Y0300474 Contact Us For Availability
23
TRACK, STORAGE DWR LH WPL Y0306402 Contact Us For Availability
24
TRACK, STORAGE DRAWER-R.H. WPL 0300475 Contact Us For Availability
24
TRACK, STORAGE DWR RH WPL 0306403 Contact Us For Availability
24
WIRE CLAMP WPL 0071203 Contact Us For Availability
25
INS. RETAINER, BOTTOM WPL Y0057531 Contact Us For Availability
26
LEG, LEVELING WPL Y0300585 Contact Us For Availability
27
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
28
COVER, REAR WPL Y0058434 Contact Us For Availability
28
SUPPORT, MAINTOP WPL Y0304115 Contact Us For Availability
29
ACCESS PLATE, REAR WPL Y0058435 Contact Us For Availability
30
CLAMP, WIRE-INSULATE WPL Y0068513 Contact Us For Availability
NI
BRACKET, RETAINER WPL 0305033 Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
NI
SPEEDNUT WPL Y0065052 Contact Us For Availability
NI
BRACKET,BACKGRD ENDCAP WPL Y0305443 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
SCREW No.8 18 X 1/2 BLACK WPL 0302844 Contact Us For Availability
NI
BAFFLE WPL 063193G Contact Us For Availability
NI
SCREW, No.10-24X3/8 (PH TRS HD) WPL Y0079863 Contact Us For Availability
NI
SCREW No.8-18 X .375 (BL) WPL Y0303777 Contact Us For Availability
NI
RIVET, POP WPL Y0076357 Contact Us For Availability
NI
TAPE, SEAL 1=1FT WPL 0069187 Contact Us For Availability
NI
SCREW, TT 23 4-40 X 5/8 WPL Y0065664 Contact Us For Availability
NI
SCREW No.23, No.6X5/16 PH FL. HD. WPL Y0074807 Contact Us For Availability
NI
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
NI
SCREW 4-40X1 WPL Y0092365 Contact Us For Availability
NI
BRACKET WPL Y0301028 Contact Us For Availability
NI
HARNESS, LATCH WPL 0305977 Contact Us For Availability
NI
BALLAST WPL Y0071869 Contact Us For Availability
NI
SWITCH, OVEN LIGHT WPL Y0091363 Contact Us For Availability
NI
SUPPORT WPL Y0300662 Contact Us For Availability
NI
PC BOARD WPL Y0305521 Contact Us For Availability
NI
CONTROL, LIMIT WPL Y0305798 Contact Us For Availability
NI
HARNESS, CONTROL WPL Y0305976 Contact Us For Availability
NI
SWITCH, OVEN DR WPL Y0307209 Contact Us For Availability
× ![]()
