Model Whirlpool ARR620W1 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

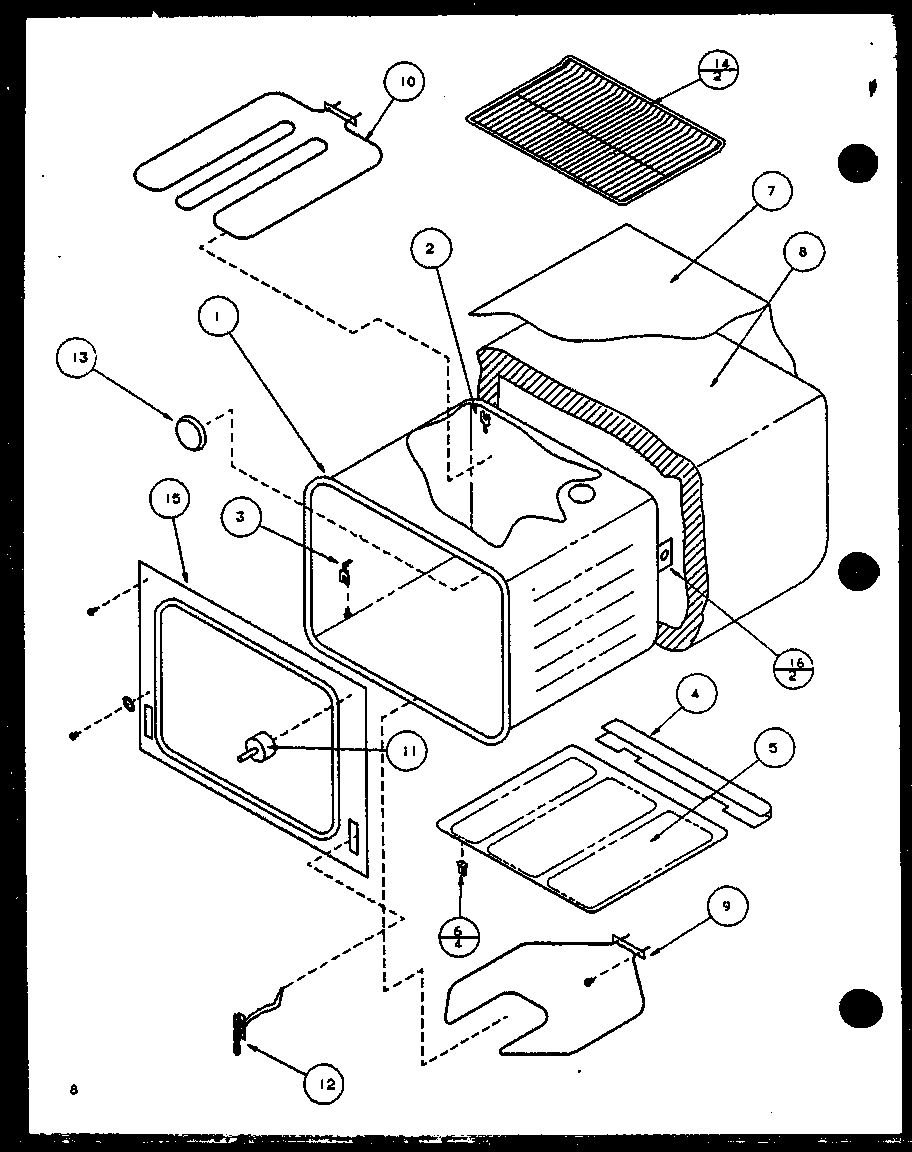

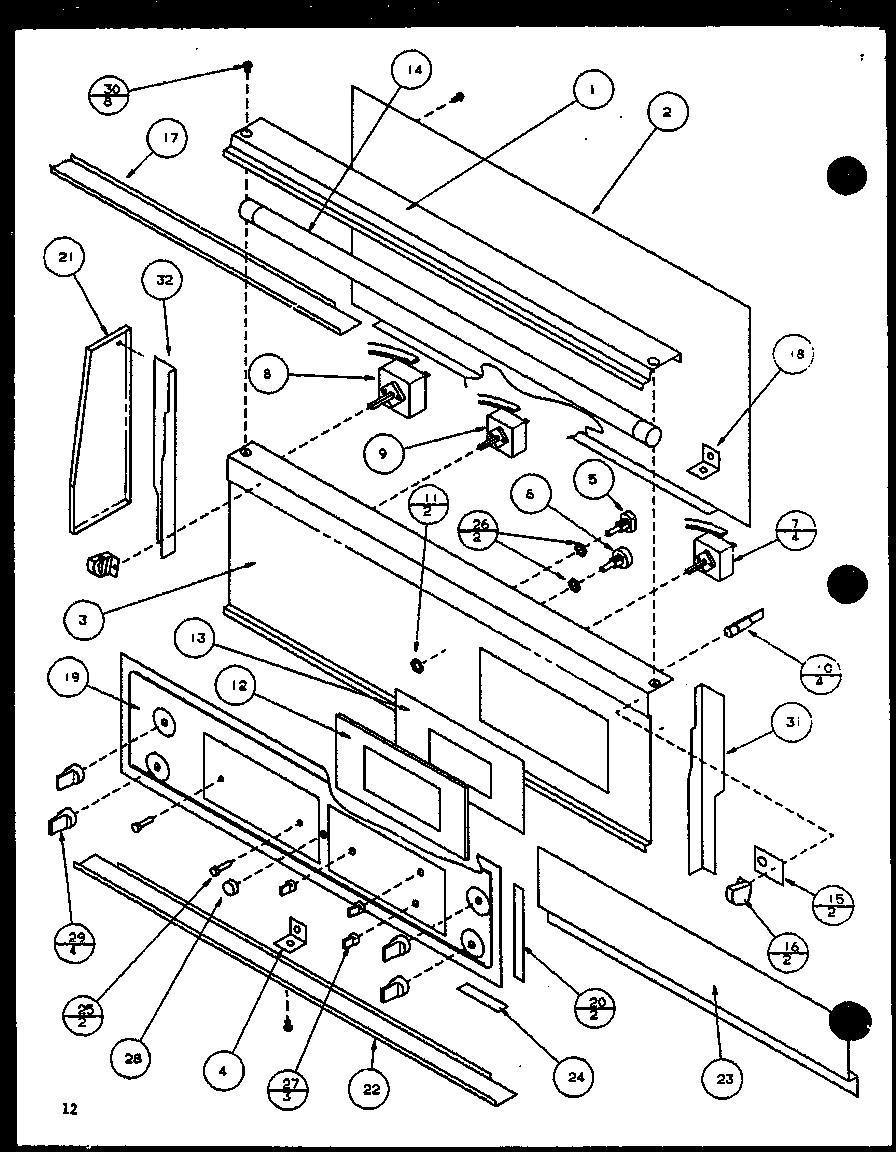

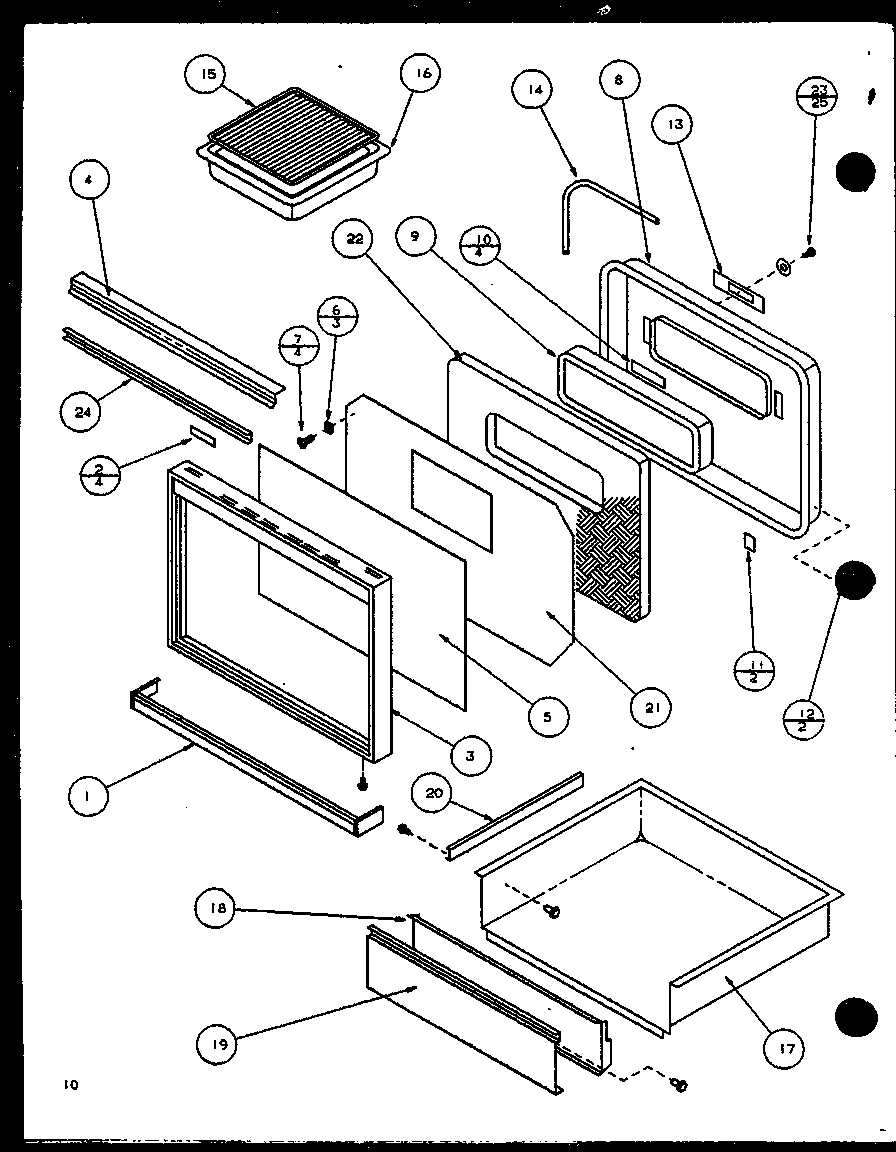

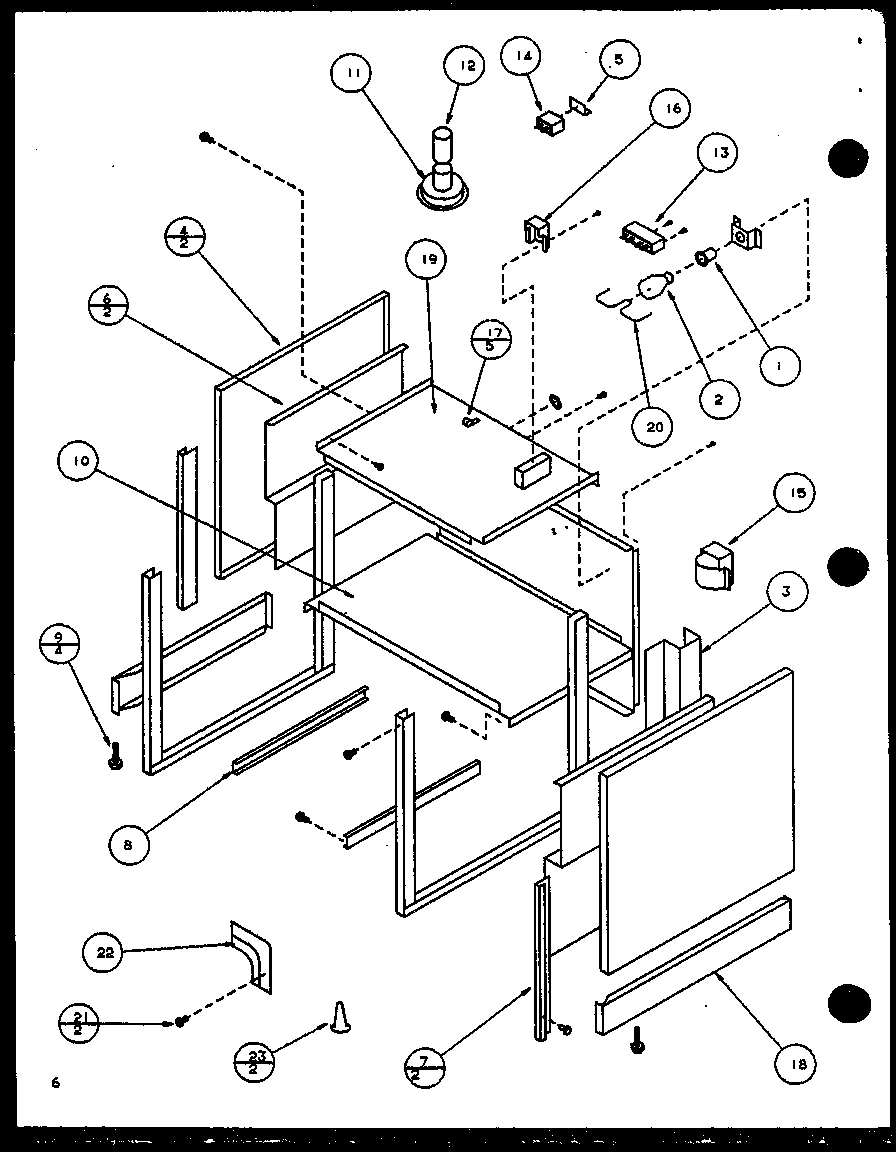

OVEN SHELL (EL. W/LT) WPL R0710154 Contact Us For Availability

1

TRIM, TOP WPL R0705582 Contact Us For Availability

1

MAIN TOP, ALMOND WPL R0703218 Contact Us For Availability

1

MAIN TOP, WHITE WPL R0703220 Contact Us For Availability

1

HANDLE, DOOR WPL R0705933 Contact Us For Availability

2

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

2

CAPILLARY HOLE COVER WPL R0705556 Contact Us For Availability

2

PLATE REAR COVER CHARCOAL GREY WPL R0703227 Contact Us For Availability

2

BAFFLE, DRIP (ENAMEL) WPL R0703222 Contact Us For Availability

2

SPACER DOOR HANDLE WPL R0178839 Contact Us For Availability

3

CLIP, THERMO CAPILLARY WPL R0705616 Contact Us For Availability

3

MTG. BRKT., CONTROL PANEL WPL R0705652 Contact Us For Availability

3

SUPPORT, MAINTOP WPL R0178739 Contact Us For Availability

3

HEAT SHIELD, STORAGE DRAWER WPL R0705642 Contact Us For Availability

4

PANEL, SIDE (WHT) WPL R0703223 Contact Us For Availability

4

SIDE PANEL ALMOND WPL R0703224 Contact Us For Availability

4

BRACKET, TRIM SUPPORT WPL R0194033 Contact Us For Availability

4

PIN, SUPPORT ROD WPL R0191063 Contact Us For Availability

4

BAFFLE, AIR WPL R0705643 Contact Us For Availability

5

KIT, LIGHT SWITCH WPL R0702521 Contact Us For Availability

5

WIRE CLAMP WPL R0191039 Contact Us For Availability

5

PANEL, BLACK GLASS WPL R0707524 Contact Us For Availability

6

RETAINER, SIDE INSULATION WPL RR0703194 Contact Us For Availability

6

SWITCH, FLUORESCENT WPL R0702522 Contact Us For Availability

6

BRACKET WPL R0179014 Contact Us For Availability

6

BRACKET WPL R0179015 Contact Us For Availability

6

SUPPORT BRACKET, GLASS WPL R0705644 Contact Us For Availability

7

TRIM, SIDE PANEL, LH WPL R0705925 Contact Us For Availability

7

INSULATION, REAR WPL R0704541 Contact Us For Availability

7

SWITCH, INFINITE WPL R0163018 Contact Us For Availability

7

BRACKET ASSEMBLY WPL R0179010 Contact Us For Availability

7

BRACKET ASSEMBLY WPL R0179011 Contact Us For Availability

7

BUMPER, OVEN DOOR WPL R0706502 Contact Us For Availability

8

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $6.31

8

TRACK, STORAGE DRAWER-R.H. WPL R0703195 Contact Us For Availability

8

TRACK, STORAGE DRAWER-L.H. WPL R0703196 Contact Us For Availability

8

INSULATION, WRAPPER WPL R0704540 Contact Us For Availability

8

THERMOSTAT WPL R0711012 Contact Us For Availability

8

BACKER, DOOR(ELEC) WPL R0703226 Contact Us For Availability

9

WPY0063531 Whirlpool Bake Element Backorder WPL WPY0063531 $68.41

9

LEG, LEVELING WPL R0705867 Contact Us For Availability

9

SWITCH, SELECTOR WPL R0702513 Contact Us For Availability

9

MOUNTING BRKT. PLUG BLOCK WPL R0701561 Contact Us For Availability

9

WINDOW ASSY WPL R0710033 Contact Us For Availability

INS. RETAINER, BOTTOM WPL R0703197 Contact Us For Availability

INDICATOR LIGHT WPL R0165008 Contact Us For Availability

TRIM, MAIN TOP, RH, ELECTRIC WPL R0705921 Contact Us For Availability

TRIM, MAIN TOP, LH, ELECTRIC WPL R0705922 Contact Us For Availability

RETAINER, DOOR GLASS WPL R0705647 Contact Us For Availability

WP3191454 Whirlpool Surface Element Backorder WPL WP3191454 $84.82

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $78.23

SMOKE ELIMINATOR WPL YR0710173 Contact Us For Availability

SWITCH, OVEN LIGHT WPL R0163017 Contact Us For Availability

NUT WPL R0701013 Contact Us For Availability

BUMPER, RUBBER WPL R0706507 Contact Us For Availability

TUBE, VENT EXT. WPL R0705617 Contact Us For Availability

KIT, DOOR HINGE(RH-SS) WPL R0179054 Contact Us For Availability

KIT, DOOR HINGE(LH-HS) WPL R0705636 Contact Us For Availability

BRACKET, CLOCK MTG. WPL R0705654 Contact Us For Availability

BRACKET, MAINTOP WPL R0705621 Contact Us For Availability

RIVET, POP WPL R0701562 Contact Us For Availability

13

TERM BLK 1M-MIN WPL R0199204 Contact Us For Availability

13

CLOCK, DIGITAL WPL R0704007 Contact Us For Availability

13

PLATE, LATCH WPL R070555 Contact Us For Availability

14

WP314763J Whirlpool Oven Rack Backorder WPL WP314763J $40.26

14

WPY0067945 Whirlpool Light Lamp Backorder WPL WPY0067945 $16.07

14

GASKET, OVEN DR 82`` WPL R0704544 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

BALLAST WPL R0167090 Contact Us For Availability

FRONT FRAME WPL R0703225 Contact Us For Availability

SUPPORT, LAMP SOCKET WPL R0194032 Contact Us For Availability

16

BRACKET, OVEN CAVITY WPL R0705859 Contact Us For Availability

16

SOCKET, FLOURESCENT LAMP WPL R0167106 Contact Us For Availability

17

CLIP, WIRE CABLE WPL R0191041 Contact Us For Availability

17

SEAL, BACKGUARD WPL R0705653 Contact Us For Availability

17

WRAPPER, STOR DRAWER WPL R0710157 Contact Us For Availability

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.20

BRACE, LEVELING LEG (LT) WPL R0705928 Contact Us For Availability

BRACE, LEVELING LEG (LT) WPL R0705929 Contact Us For Availability

RETAINER WPL R0701529 Contact Us For Availability

PANEL, DRAWER WHT WPL R0703056 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

RETAINER, INSULATION WPL R0703193 Contact Us For Availability

GLASS, BACKGUARD WPL R0707518 Contact Us For Availability

LINER, DRAWER PANEL WPL R0703203 Contact Us For Availability

RETAINER, OVEN LIGHT WPL R0703189 Contact Us For Availability

CHANNEL, GLASS WPL R0710075 Contact Us For Availability

RUNNER, STORAGE DOOR, L.H. WPL R0703204 Contact Us For Availability

RUNNER, STORAGE DOOR R.H. WPL R0703205 Contact Us For Availability

SCREW CABINET TRIM WPL R0157763 Contact Us For Availability

END CAP, R.H. WPL R0178992 Contact Us For Availability

END CAP, L.H. WPL R0178993 Contact Us For Availability

PAD, OV DR W/WINDOW WPL R0704542 Contact Us For Availability

22

CENTER TRIM WPL R0176014 Contact Us For Availability

22

INSULATION,WRAPPER WPL R0704543 Contact Us For Availability

23

BRACKET WPL R0705919 Contact Us For Availability

23

PANEL, LOWER WPL R0705581 Contact Us For Availability

23

SCREW, No.8-18X.406-.344 WAFERHD WPL R0700072 Contact Us For Availability

24

TESAMOL STRIP WPL R0710073 Contact Us For Availability

24

HEAT BAFFLE, DOOR, ELEC. WPL R0705930 Contact Us For Availability

25

BEZEL,PANEL SWITCH WPL R0710074 Contact Us For Availability

26

SPEEDNUT WPL R0701012 Contact Us For Availability

27

KNOB, DUAL TIMER WPL R0181089 Contact Us For Availability

29

KNOB, TOP ELEMENT WPL R0703517 Contact Us For Availability

29

KNOB, SELECTOR SWITCH WPL R0703518 Contact Us For Availability

29

KNOB, OVEN SWITCH WPL R0703519 Contact Us For Availability

30

SCREW, No.6-32 X .375 FLAT HD PH WPL R0700034 Contact Us For Availability

31

SUPPORT BACKGUARD RH WPL R0705923 Contact Us For Availability

32

SUPT.BACKGUARD WPL R0705924 Contact Us For Availability
