Model Whirlpool ARR301 ELECTRIC RANGE – Common Parts & Diagrams

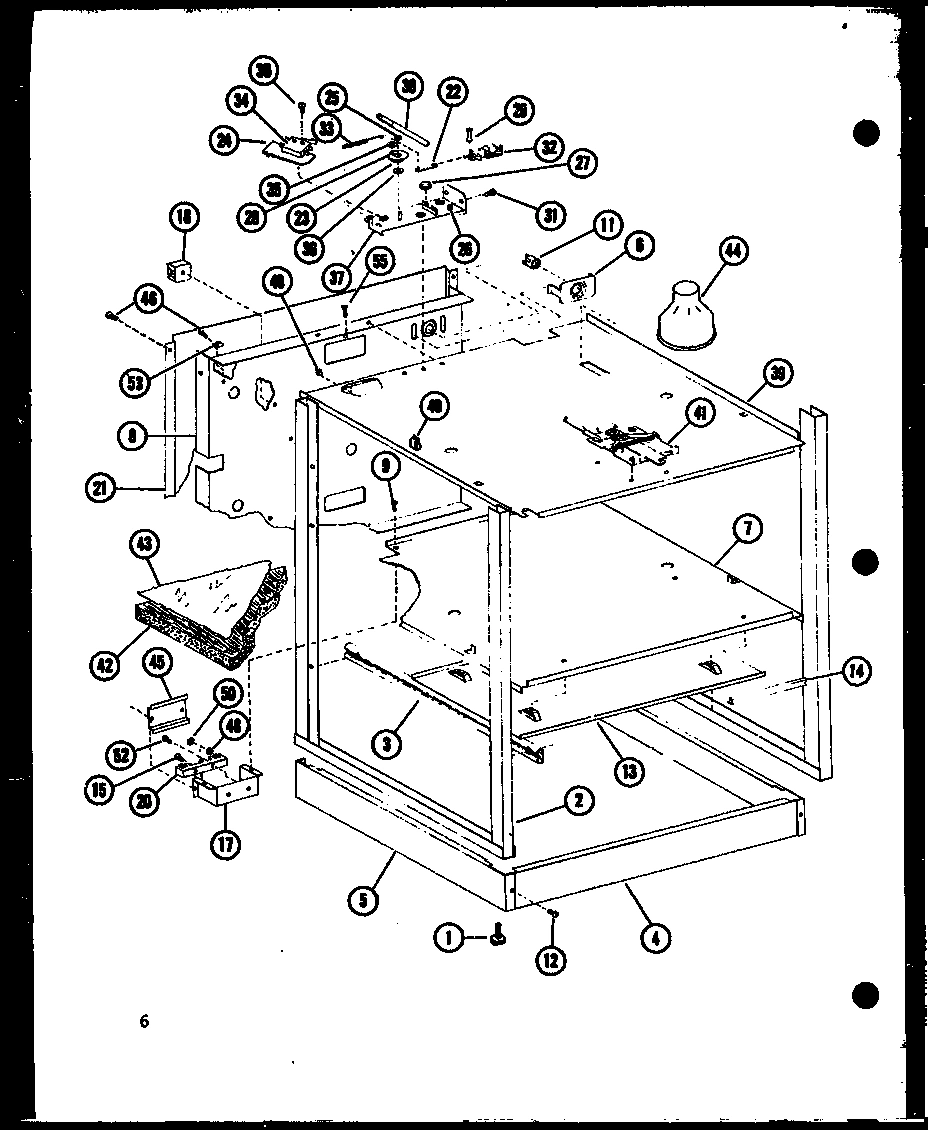

02 - Page 2

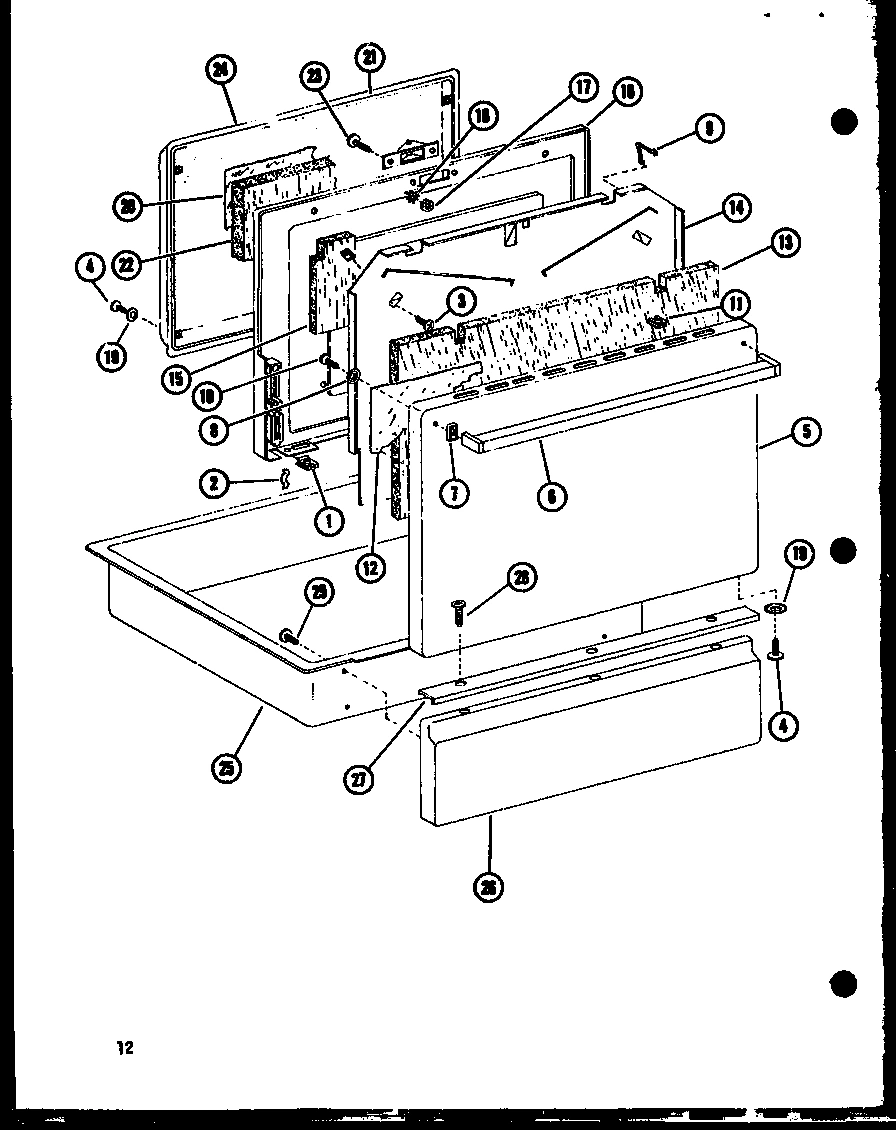

05 - Page 5
01 - Page 1

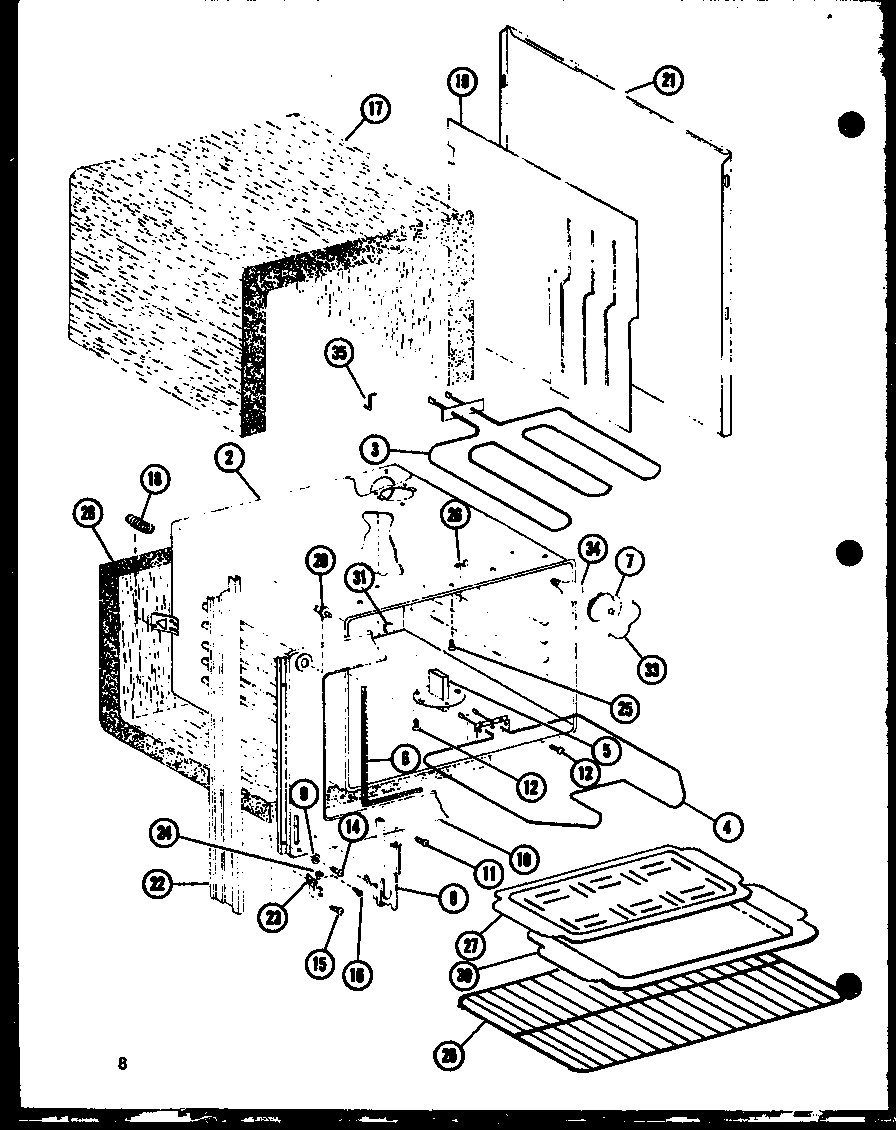

03 - Page 3

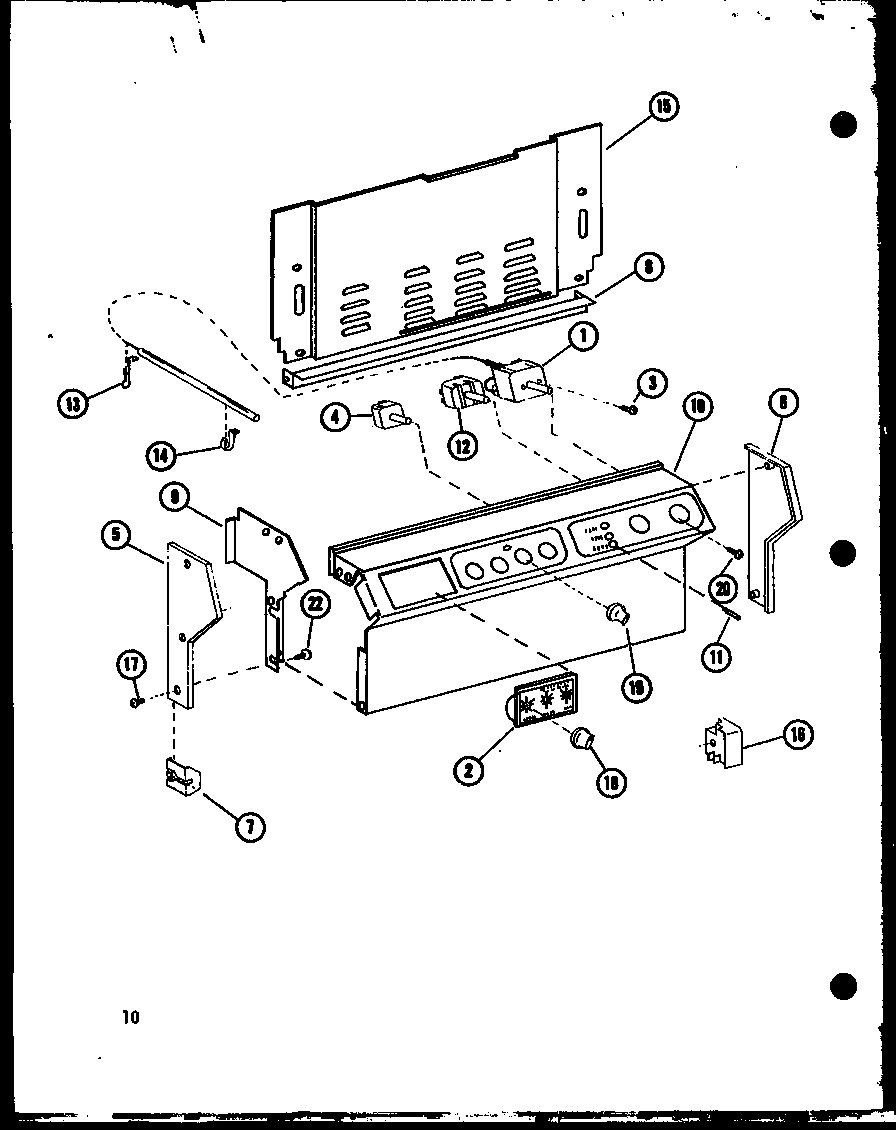

04 - Page 4
Common parts from model Whirlpool ARR301 ELECTRIC RANGE
1
FOOT WPL A4400801 Contact Us For Availability
1
FOOT, LEVEL, REAR WPL A4400802 Contact Us For Availability
1
CLIP-SPEED NUT WPL M0119601 Contact Us For Availability
1
BRKT-FRONT WPL C2709001 Contact Us For Availability
1
BRKT-FRONT LH WPL C2709002 Contact Us For Availability
1
THERMOSTAT-OVEN WPL C2712902 Contact Us For Availability
2
SIDE FRAME WELD WPL D8504103 Contact Us For Availability
2
SPRING WPL A4407701 Contact Us For Availability
2
TOP-RANGE W WPL D8520101 Contact Us For Availability
2
TOP-RANGE C WPL D8520102 Contact Us For Availability
2
TOP-RANGE A WPL D8520103 Contact Us For Availability
2
RANGE TOP WPL D8520104 Contact Us For Availability
2
RANGE TOP (ALM) WPL D8520105 Contact Us For Availability
2
OVEN CAVITY, WELDMENT WPL D8510501 Contact Us For Availability
2
TIMER WPL C2715001 Contact Us For Availability
3
GLIDE WPL C2705301 Contact Us For Availability
3
DRIP PAN WPL D8520202 Contact Us For Availability
3
SCREW WPL M0202528 Contact Us For Availability
3
ELEMENT,BROIL WPL D8528901 Contact Us For Availability
4
PANEL, KICK FRONT WPL C2706701 Contact Us For Availability
4
SCREW K WPL M0228030 Contact Us For Availability
4
BAKE ELEMENT WPL C2704901 Contact Us For Availability
4
SWITCH, INFINITE WPL C2702703 Contact Us For Availability
5
PANEL, KICK SIDE WPL C2706601 Contact Us For Availability
5
DOOR PNL-W WPL D8513301 Contact Us For Availability
5
DOOR PNL-C WPL D8513302 Contact Us For Availability
5
DOOR PNL-AV WPL D8513303 Contact Us For Availability
5
DOOR PNL-G WPL D8513304 Contact Us For Availability
5
DOOR PNL WELD - L WPL D8513305 Contact Us For Availability
5
ASSY, VENT WPL C2704801 Contact Us For Availability
5
END CAP WPL D8515201 Contact Us For Availability
6
REFLECTOR WPL B5000601 Contact Us For Availability
6
HANDLE, OVEN DOOR WPL D8535901 Contact Us For Availability
6
SCREW WPL M0228015 Contact Us For Availability
6
GASKET WPL B5002601 Contact Us For Availability
6
END CAP WPL D8515202 Contact Us For Availability
7
RETAINER WPL D8510401 Contact Us For Availability
7
PAD WPL A4407901 Contact Us For Availability
7
TRIM RH WPL D8517301 Contact Us For Availability
7
GLOBE-LAMP WPL B5003301 Contact Us For Availability
7
BRKT-END CAP WPL B5011301 Contact Us For Availability
8
RETAINER WPL D8506301 Contact Us For Availability
8
CUP-WASHER WPL A4411101 Contact Us For Availability
8
TRIM LH WPL D8517302 Contact Us For Availability
8
DOOR HINGE ASSY WPL D8509902 Contact Us For Availability
8
DOOR HINGE ASSY WPL D8514101 Contact Us For Availability
8
SUPT-BACKSPLASH WPL B5018401 Contact Us For Availability
9
CLIP-SPACER WPL A4408101 Contact Us For Availability
9
WASHER, PADDER WPL M0271201 Contact Us For Availability
9
SUPT-END CAP RH WPL C2714501 Contact Us For Availability
9
SUPT-END CAP LH WPL C2714502 Contact Us For Availability
10
SCREW WPL M0258732 Contact Us For Availability
10
PANEL WPL D8509802 Contact Us For Availability
10
PANEL-CONTROL WPL D8529001 Contact Us For Availability
11
SOCKET, OVEN LIGHT WPL A4400701 Contact Us For Availability
11
SPEED NUT WPL A4407601 Contact Us For Availability
11
SCREW-ADJ WPL M0202232 Contact Us For Availability
11
LIGHT-INDICATOR/ W CLIP WPL M0360204 Contact Us For Availability
12
SCREW WPL M0214217 Contact Us For Availability
12
FOIL-OUTER DOOR WPL A4408201 Contact Us For Availability
12
SCREW WPL M0227929 Contact Us For Availability
12
SWITCH-SELECTOR WPL B5005002 Contact Us For Availability
13
HEAT SHIELD WPL C2706801 Contact Us For Availability
13
USR 0041847 WPL M0282402 Contact Us For Availability
13
FIBER GLASS WPL C2707801 Contact Us For Availability
13
RETAINER-BULB WPL A4407201 Contact Us For Availability
14
EXTRUSION, HEAT SHIELD WPL B5006101 Contact Us For Availability
14
HEAT SHIELD WPL D8513801 Contact Us For Availability
14
BRACKET-REAR WPL D8516404 Contact Us For Availability
14
SCREW WPL M0203342 Contact Us For Availability
14
RETAINER-THERMO WPL A4407801 Contact Us For Availability
15
INSULATION WPL B5006901 Contact Us For Availability
15
BRACKET-REAR WPL D8516405 Contact Us For Availability
15
COVER-UPPER LEAD WPL D8509603 Contact Us For Availability
16
INR OVEN DOOR ASSY WPL D8513701 Contact Us For Availability
16
BRKT-TERMINAL BLOCK WPL B5004701 Contact Us For Availability
16
PULSER WPL B5010101 Contact Us For Availability
17
BRKT-TERM BLOCK WPL C2705001 Contact Us For Availability
17
SCREW WPL M0213931 Contact Us For Availability
17
INSULATION K WPL B5003001 Contact Us For Availability
17
SCREW WPL M0234229 Contact Us For Availability
18
RELAY, OVEN WPL C2717101 Contact Us For Availability
18
LOCK WASHER WPL M0272803 Contact Us For Availability
18
SPRING WPL A4407101 Contact Us For Availability
18
KNOB, DUAL TIMER WPL B5005101 Contact Us For Availability
19
SCREW WPL M0211646 Contact Us For Availability
19
RETAINER-INSUL R WPL D8506701 Contact Us For Availability
19
RETAINER-INSUL L WPL D8506801 Contact Us For Availability
19
KNOB, CONTROL WPL B5012901 Contact Us For Availability
19
KNOB-CONTROL WPL B5012902 Contact Us For Availability
19
KNOB, CONTROL WPL B5012903 Contact Us For Availability
20
FOIL-DOOR PLUG WPL A4406601 Contact Us For Availability
20
SWITCH WPL C2707501 Contact Us For Availability
20
SCREW A WPL M0202515 Contact Us For Availability
21
LWR LEAD COVER KIT WPL D8509501 Contact Us For Availability
21
LATCH PLATE ASSY WPL B5003601 Contact Us For Availability
21
GUARD WPL C2706101 Contact Us For Availability
21
SIDE PANEL W K WPL D8501105 Contact Us For Availability
21
SIDE PANEL C WPL D8501106 Contact Us For Availability
21
SIDE PANEL-A WPL D8501107 Contact Us For Availability
21
SIDE PNL G WPL D8501108 Contact Us For Availability
21
SIDE PANEL-AL WPL D8501109 Contact Us For Availability
22
ARM-ACTUATOR WPL A4405801 Contact Us For Availability
22
INSULATION, DOOR PLUG WPL B5001101 Contact Us For Availability
22
GRILLE, FRONT WPL D8509401 Contact Us For Availability
22
TRIM, SIDE, L.H. WPL D8509201 Contact Us For Availability
22
TRIM WPL D8509301 Contact Us For Availability
22
SCREW WPL M0234041 Contact Us For Availability
23
CAM, LOCK SOLENOID WPL B5004201 Contact Us For Availability
23
SCREW WPL M0203218 Contact Us For Availability
23
SCREW WPL M0217616 Contact Us For Availability
23
BRKT-SIDE PNL RH WPL B5010201 Contact Us For Availability
23
BRKT-SIDE PNL LH WPL B5010202 Contact Us For Availability
24
INSULATOR-SWITCH WPL A4405601 Contact Us For Availability
24
DOOR PLUG WPL D8514001 Contact Us For Availability
24
SCREW WPL M0227727 Contact Us For Availability
24
BUMPER WPL A4401502 Contact Us For Availability
25
SPEED NUT A- K WPL M0287901 Contact Us For Availability
25
DRAWER PAN WPL C2713901 Contact Us For Availability
25
SEE SERV LTR CBA 121 WPL D8508001 Contact Us For Availability
25
SCREW, SM WPL M0211117 Contact Us For Availability
26
CLIP WPL M0119701 Contact Us For Availability
26
WELDMENT, DRAWER FRONT, WHITE WPL C2713701 Contact Us For Availability
26
WLD DRAWER-C K WPL C2713702 Contact Us For Availability
26
WELDMENT, DRAWER FRONT, AVOCAD WPL C2713703 Contact Us For Availability
26
WLD DRAWER-G K WPL C2713704 Contact Us For Availability
26
WELDMENT, DRAWER FRONT, ALMOND WPL C2713705 Contact Us For Availability
26
CLIP-OVEN CAVITY WPL B5003201 Contact Us For Availability
27
PAD WPL A4405901 Contact Us For Availability
27
HANDLE, DRAWER WPL D8514301 Contact Us For Availability
28
PIN-GROOVED WPL A4405701 Contact Us For Availability
28
SCREW WPL M0214528 Contact Us For Availability
28
INSULATION K WPL B5002401 Contact Us For Availability
29
POP RIVET WPL M0010212 Contact Us For Availability
29
RACK 15 11/32`` W X 22 29/32`` L WPL D8510001 Contact Us For Availability
30
SCREW WPL M0227520 Contact Us For Availability
31
PLUG BUTTON WPL M0311101 Contact Us For Availability
32
SOLENOID, LOCK WPL C2711701 Contact Us For Availability
33
SPRING, SOLENOID WPL A4405501 Contact Us For Availability
33
RETAINER-LAMP WPL A4407001 Contact Us For Availability
34
SWITCH, LIMIT WPL B5004401 Contact Us For Availability
35
WASHER WPL M0270501 Contact Us For Availability
35
SUPT-BROILER EL WPL A4416501 Contact Us For Availability
36
WASHER WPL M0270515 Contact Us For Availability
37
ASSY, LATCH SOLENOID WPL C2705401 Contact Us For Availability
38
ARM WPL B5004501 Contact Us For Availability
39
RETAINER WPL D8506201 Contact Us For Availability
40
CLIP WPL M0110503 Contact Us For Availability
41
ASSY, DOOR LATCH (10442001) WPL D8508301 Contact Us For Availability
42
INSULATION K WPL B5002301 Contact Us For Availability
43
FOIL ALUMINUM K WPL A4400601 Contact Us For Availability
44
TUBE-OVEN VENT WPL B5012301 Contact Us For Availability
45
COVER WPL B5003501 Contact Us For Availability
49
CLIP-SPEED NUT WPL M0119101 Contact Us For Availability
50
WASHER WPL M0270001 Contact Us For Availability
52
SCREW WPL M0227804 Contact Us For Availability
53
CLAMP WPL M0102311 Contact Us For Availability
55
SCREW WPL M0218446 Contact Us For Availability
NI
PACKAGE RANGE WIRE WPL R0157518 Contact Us For Availability
NI
BUMPER WPL A4402201 Contact Us For Availability
× ![]()
