Model Maytag ARB2217CW REFRIGERATOR – Common Parts & Diagrams

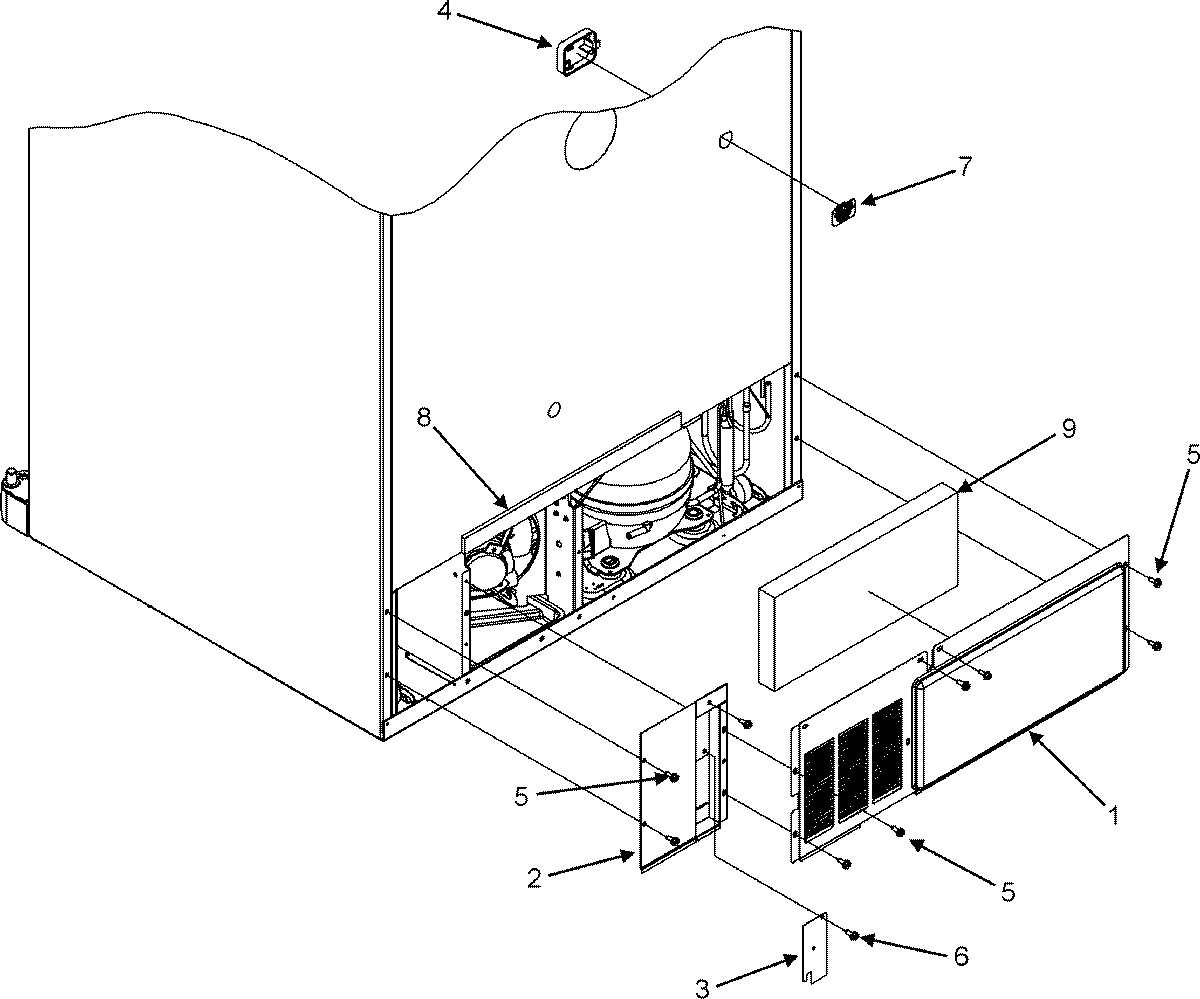

01 - CABINET BACK

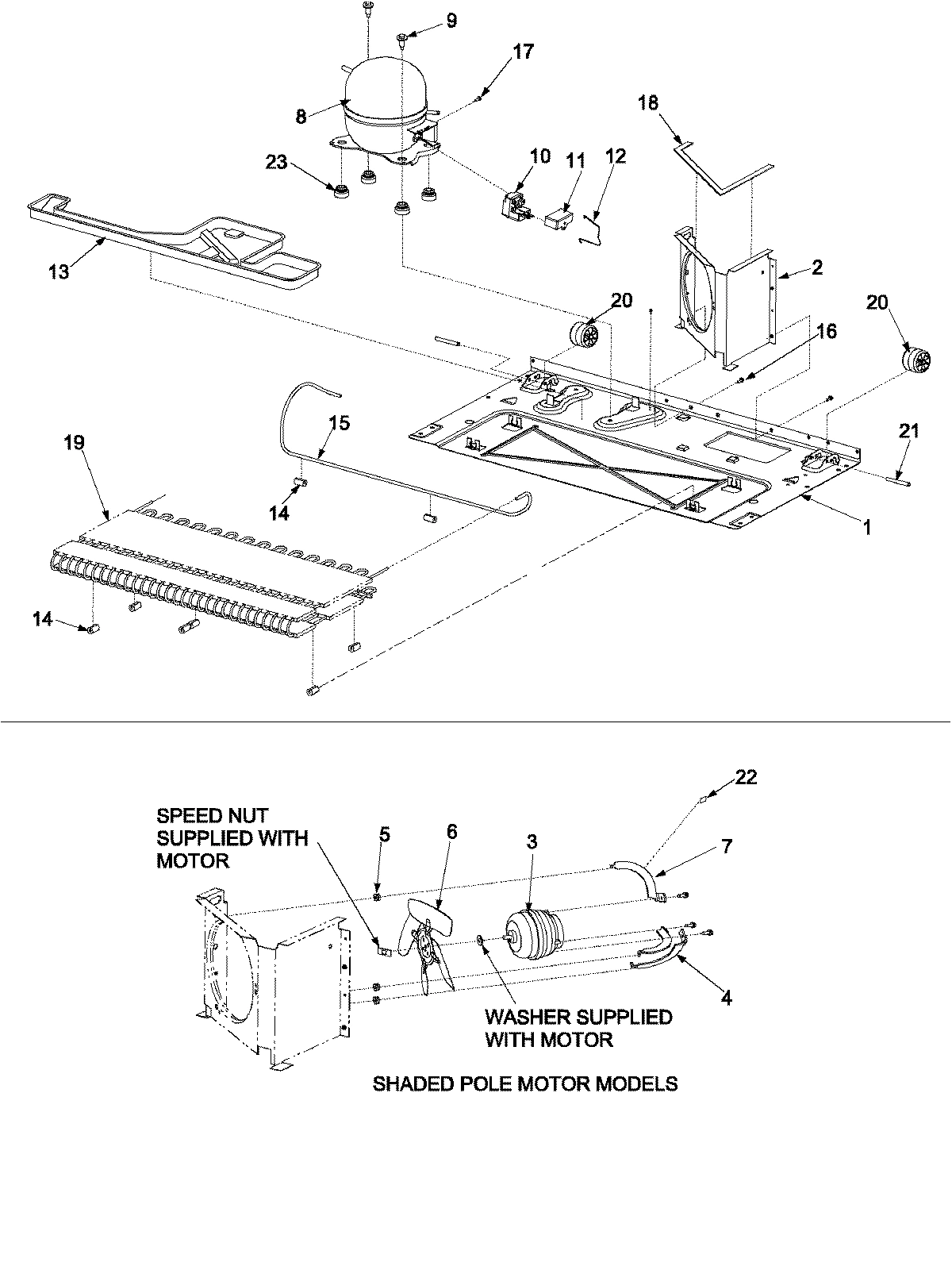

02 - COMPRESSOR
03 - CONTROLS
04 - EVAPORATOR AREA & ROLLERS
05 - FREEZER DOOR
06 - INTERIOR CABINET & FREEZER SHELVING
07 - OPTIONAL ICE MAKER KIT-IC11B P1328003W
08 - REFRIGERATOR DOOR
09 - REFRIGERATOR SHELVING
10 - SUPPLEMENTAL INFORMATION
11 - WIRING INFORMATION
Common parts from model Maytag ARB2217CW REFRIGERATOR
1
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
1
MAY 10961001 MAY 10961001 Contact Us For Availability
1
MAY 16021738 MAY 16021738 Contact Us For Availability
2
TRAY, DRIP E-CT MAY 67001080 Contact Us For Availability
2
MAY 67001224 MAY 67001224 Contact Us For Availability
2
SEAL, O RING MAY M0500703 Contact Us For Availability
2
MAY 67001208 MAY 67001208 Contact Us For Availability
2
MAY 67001956 MAY 67001956 Contact Us For Availability
2
MAY 12642402 MAY 12642402 Contact Us For Availability
3
MAY 10623002 MAY 10623002 Contact Us For Availability
3
MAY 67001232 MAY 67001232 Contact Us For Availability
3
MAY D7753903 MAY D7753903 Contact Us For Availability
3
MAY M0211533 MAY M0211533 Contact Us For Availability
3
MAY 67002009 MAY 67002009 Contact Us For Availability
4
MAY 67001081 MAY 67001081 Contact Us For Availability
4
MAY A4539607 MAY A4539607 Contact Us For Availability
4
MAY 12683803W MAY 12683803W Contact Us For Availability
4
MAY 67002010 MAY 67002010 Contact Us For Availability
5
GASKET MAY 67001776 Contact Us For Availability
5
MAY A3080002 MAY A3080002 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
6
MAY 67001066 MAY 67001066 Contact Us For Availability
6
MAY 67001655 MAY 67001655 Contact Us For Availability
6
MAY 67001737 MAY 67001737 Contact Us For Availability
7
MAY 67001082 MAY 67001082 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
8
SPRING, ANTI KINK MAY A1055105 Contact Us For Availability
8
MAY 67001063 MAY 67001063 Contact Us For Availability
9
MAY M0260242 MAY M0260242 Contact Us For Availability
9
MAY M0241508 MAY M0241508 Contact Us For Availability
9
MAY M0238731 MAY M0238731 Contact Us For Availability
10
GROMMET, SCREW MAY M0580205 Contact Us For Availability
10
HINGE, BOTTOM E-CT (WHT) MAY 67001239 Contact Us For Availability
10
ELBOW, FILL TUBE MAY 10463201 Contact Us For Availability
10
PLUG, TOP HINGE BUTTON (WHT) MAY M0310729 Contact Us For Availability
11
MAY M0211018 MAY M0211018 Contact Us For Availability
11
DRIER MAY B2150504 Contact Us For Availability
11
MAY B5705323 MAY B5705323 Contact Us For Availability
11
MAY 10447108 MAY 10447108 Contact Us For Availability
11
MAY 67001177 MAY 67001177 Contact Us For Availability
12
MAY 12576801 MAY 12576801 Contact Us For Availability
12
MAY 67001284 MAY 67001284 Contact Us For Availability
12
MAY 10354001 MAY 10354001 Contact Us For Availability
13
MAY M0216705 MAY M0216705 Contact Us For Availability
13
DAM, LEFT RETURN MAY 67001083 Contact Us For Availability
13
MAY 67001163 MAY 67001163 Contact Us For Availability
14
MAY 67001037 MAY 67001037 Contact Us For Availability
14
DAM, RIGHT RETURN MAY 67001084 Contact Us For Availability
14
MAY D7824706 MAY D7824706 Contact Us For Availability
15
MAY 67001038 MAY 67001038 Contact Us For Availability
15
HEATER, EVAPORATOR MAY 67001085 Contact Us For Availability
15
MAY 67001290 MAY 67001290 Contact Us For Availability
15
MAY 67001189 MAY 67001189 Contact Us For Availability
16
MAY 67002000 MAY 67002000 Contact Us For Availability
16
MAY M0231425 MAY M0231425 Contact Us For Availability
16
MAY 67002436 MAY 67002436 Contact Us For Availability
17
MAY 67001040 MAY 67001040 Contact Us For Availability
17
SHROUD, EVAP FAN MAY 67001086 Contact Us For Availability
17
SCREW, SM MAY M0238642 Contact Us For Availability
17
MAY 67002005 MAY 67002005 Contact Us For Availability
18
MAY 67001041 MAY 67001041 Contact Us For Availability
18
MAY 67001242 MAY 67001242 Contact Us For Availability
18
NUT, SLEEVE MAY M0753001 Contact Us For Availability
18
MAY 10423131 MAY 10423131 Contact Us For Availability
19
MAY 67001042 MAY 67001042 Contact Us For Availability
19
MAY 12217805 MAY 12217805 Contact Us For Availability
19
MAY 67001244 MAY 67001244 Contact Us For Availability
19
MAY 67001245 MAY 67001245 Contact Us For Availability
20
MAY M0238616 MAY M0238616 Contact Us For Availability
20
MAY 12619301 MAY 12619301 Contact Us For Availability
20
MAY 67001240 MAY 67001240 Contact Us For Availability
21
COVER, FZ LIGHT MAY 67001285 Contact Us For Availability
21
MAY 12217201 MAY 12217201 Contact Us For Availability
21
HANDLE, BASKET/SHELF MAY 10508506 Contact Us For Availability
21
MAY 67001205 MAY 67001205 Contact Us For Availability
22
MODULE, FZ CONTROL MAY 67001286 Contact Us For Availability
22
MAY M0239628 MAY M0239628 Contact Us For Availability
22
MAY 67001723 MAY 67001723 Contact Us For Availability
23
PANEL, FZ CONTROL MOUNTING MAY 67001045 Contact Us For Availability
23
MAY 67001310 MAY 67001310 Contact Us For Availability
23
MAY 67001221 MAY 67001221 Contact Us For Availability
23
MAY 67001923 MAY 67001923 Contact Us For Availability
24
COVER, LWR HINGE (WHT) MAY 12561901W Contact Us For Availability
24
MAY M0286708 MAY M0286708 Contact Us For Availability
25
MAY 67001321 MAY 67001321 Contact Us For Availability
25
MAY 10450602 MAY 10450602 Contact Us For Availability
25
MAY 67001243 MAY 67001243 Contact Us For Availability
25
SHIM, NON METAL (WHT) MAY M0274057 Contact Us For Availability
26
MAY 67001035 MAY 67001035 Contact Us For Availability
26
MAY M1205302 MAY M1205302 Contact Us For Availability
26
MAY 12525504 MAY 12525504 Contact Us For Availability
26
PLUG, HANDLE HOLE (WHT) MAY 12246601 Contact Us For Availability
27
MAY Y12570701 MAY Y12570701 Contact Us For Availability
27
MAY 10547002 MAY 10547002 Contact Us For Availability
27
MAY M0239229 MAY M0239229 Contact Us For Availability
28
MAY 67001246 MAY 67001246 Contact Us For Availability
28
MAY 67001247 MAY 67001247 Contact Us For Availability
28
MAY A0282803 MAY A0282803 Contact Us For Availability
29
MAY 12466101 MAY 12466101 Contact Us For Availability
29
SCREW 1`` MAY M0211021 Contact Us For Availability
29
MAY M0226233 MAY M0226233 Contact Us For Availability
30
MAY 67001248 MAY 67001248 Contact Us For Availability
30
MAY 67001249 MAY 67001249 Contact Us For Availability
32
MAY 67001262 MAY 67001262 Contact Us For Availability
33
PLUG, BUTTON (WHT) MAY M0310343 Contact Us For Availability
35
MAY 12646501 MAY 12646501 Contact Us For Availability
36
MAY 10972101 MAY 10972101 Contact Us For Availability
37
MAY M0230919 MAY M0230919 Contact Us For Availability
NI
MAY M0104102 MAY M0104102 Contact Us For Availability
NI
HARNESS, FF MODULE MAY 67001043 Contact Us For Availability
NI
MAY 67001049 MAY 67001049 Contact Us For Availability
NI
MAY 67002008 MAY 67002008 Contact Us For Availability
NI
MAY 10244904 MAY 10244904 Contact Us For Availability
NI
MAY 10549601 MAY 10549601 Contact Us For Availability
NI
MAY 67001258 MAY 67001258 Contact Us For Availability
NI
MAY 95108-1 MAY 95108-1 Contact Us For Availability
NI
INSERT, PLASTIC TUBE MAY A3223101 Contact Us For Availability
NI
MAY M0114003 MAY M0114003 Contact Us For Availability
NI
MAY 67002006 MAY 67002006 Contact Us For Availability
NI
MAY 67002007 MAY 67002007 Contact Us For Availability
NI
MAY 67002676 MAY 67002676 Contact Us For Availability
NI
MAY 15003047 MAY 15003047 Contact Us For Availability
× ![]()
