  • Whirlpool AMV2307PFB6

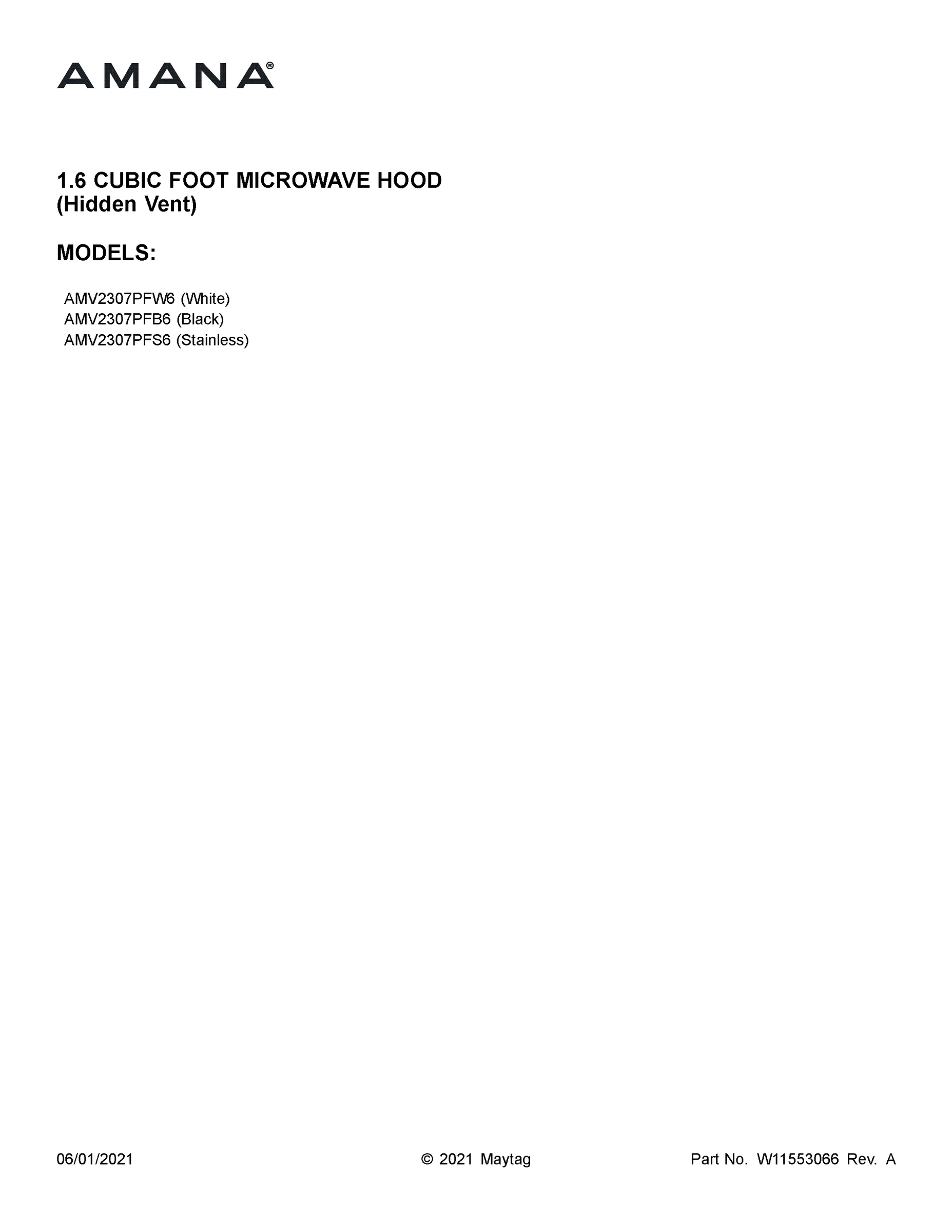

Model Whirlpool AMV2307PFB6 MICROWAVE HOOD, 1.6 CUBIC FOOT – Common Parts & Diagrams

1
PLATE, MOUNTING
PLATE, MOUNTING WPL W11025649 Contact Us For Availability
View on Model
1
COMPLETE DOOR (WHITE)
COMPLETE DOOR (WHITE) WPL W10890777 Contact Us For Availability
View on Model
1
BRACKET, TOP CAVITY
BRACKET, TOP CAVITY WPL W10313275 Contact Us For Availability
View on Model
1
DEFLECTOR, AIR
DEFLECTOR, AIR WPL W10471570 Contact Us For Availability
View on Model
1A
COMPLETE DOOR (BLACK)
COMPLETE DOOR (BLACK) WPL W10890775 Contact Us For Availability
View on Model
1B
COMPLETE DOOR (STAINLESS)
COMPLETE DOOR (STAINLESS) WPL W10890776 Contact Us For Availability
View on Model
2
SEAL, WATERPROOF
SEAL, WATERPROOF WPL 8184109 Contact Us For Availability
View on Model
2

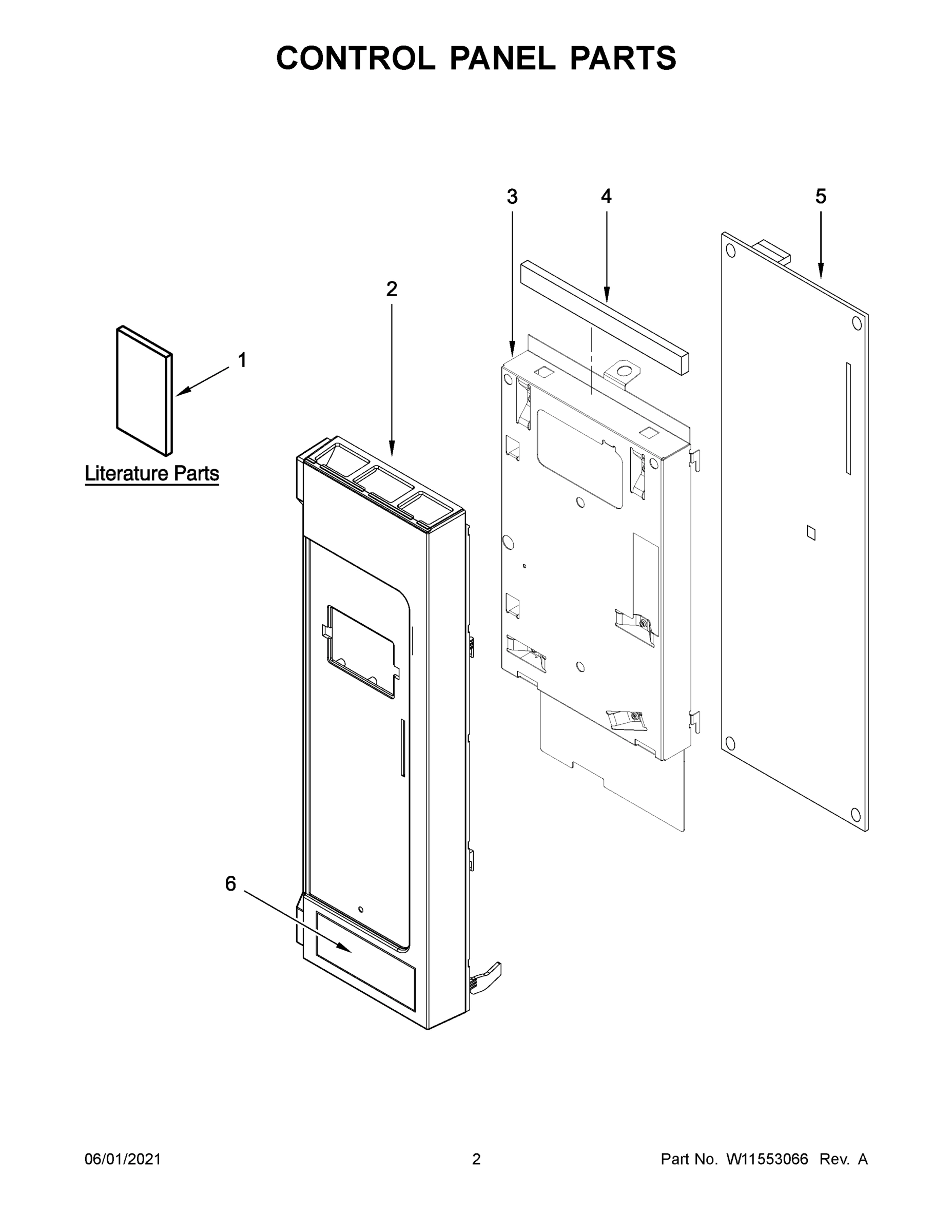

CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM WPL W10890779 Contact Us For Availability
View on Model
2
COVER, LAMP
COVER, LAMP WPL 8206382 Contact Us For Availability
View on Model
2A
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM WPL W10890778 Contact Us For Availability
View on Model
2B
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM WPL W10918931 Contact Us For Availability
View on Model
3
HOLDER, LAMP
HOLDER, LAMP WPL W10210871 Contact Us For Availability
View on Model
4
SEAL, CONTROL
SEAL, CONTROL WPL W10833531 Contact Us For Availability
View on Model
4A
CASE, OUTER (BLACK)
CASE, OUTER (BLACK) WPL W11446916 Contact Us For Availability
View on Model
5
PLATE, BOTTOM
PLATE, BOTTOM WPL W10245196 Contact Us For Availability
View on Model
5
GRILLE, VENT (WHITE)
GRILLE, VENT (WHITE) WPL W10845642 Contact Us For Availability
View on Model
5A
GRILLE, VENT (BLACK)
GRILLE, VENT (BLACK) WPL W10845643 Contact Us For Availability
View on Model
6
MOTOR, TURNTABLE
MOTOR, TURNTABLE WPL W10642989 Contact Us For Availability
View on Model
6
ASSEMBLY, PUSH BUTTON (WHITE)
ASSEMBLY, PUSH BUTTON (WHITE) WPL W10850630 Contact Us For Availability
View on Model
6A
ASSEMBLY, PUSH BUTTON (BLACK)
ASSEMBLY, PUSH BUTTON (BLACK) WPL W10850629 Contact Us For Availability
View on Model
7
ASSEMBLY, LAMP GLASS AND HOLDER
ASSEMBLY, LAMP GLASS AND HOLDER WPL W10240330 Contact Us For Availability
View on Model
8
GUIDE, AIR
GUIDE, AIR WPL W10138797 Contact Us For Availability
View on Model
9
SPRING, INTERLOCK
SPRING, INTERLOCK WPL W10156812 Contact Us For Availability
View on Model
10
PLATE, CAM
PLATE, CAM WPL W10562613 Contact Us For Availability
View on Model
10
FILTER, NOISE
FILTER, NOISE WPL W10422269 Contact Us For Availability
View on Model
12
BASEPLATE, AIR GUIDE
BASEPLATE, AIR GUIDE WPL W10828030 Contact Us For Availability
View on Model
12
CAPACITOR, HOOD MOTOR
CAPACITOR, HOOD MOTOR WPL W11405832 Contact Us For Availability
View on Model
13
SHIELD, FINGER
SHIELD, FINGER WPL W10342991 Contact Us For Availability
View on Model
16
THERMOSTAT, MAGNETRON
THERMOSTAT, MAGNETRON WPL W11224803 Contact Us For Availability
View on Model
18
THERMOSTAT, CAVITY
THERMOSTAT, CAVITY WPL W10269232 Contact Us For Availability
View on Model
NI
HARDWARE, INSTALLATION
HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190018 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH WPL W10190020 Contact Us For Availability
View on Model
