Model GE AJCM10DCEL2 – Common Parts & Diagrams

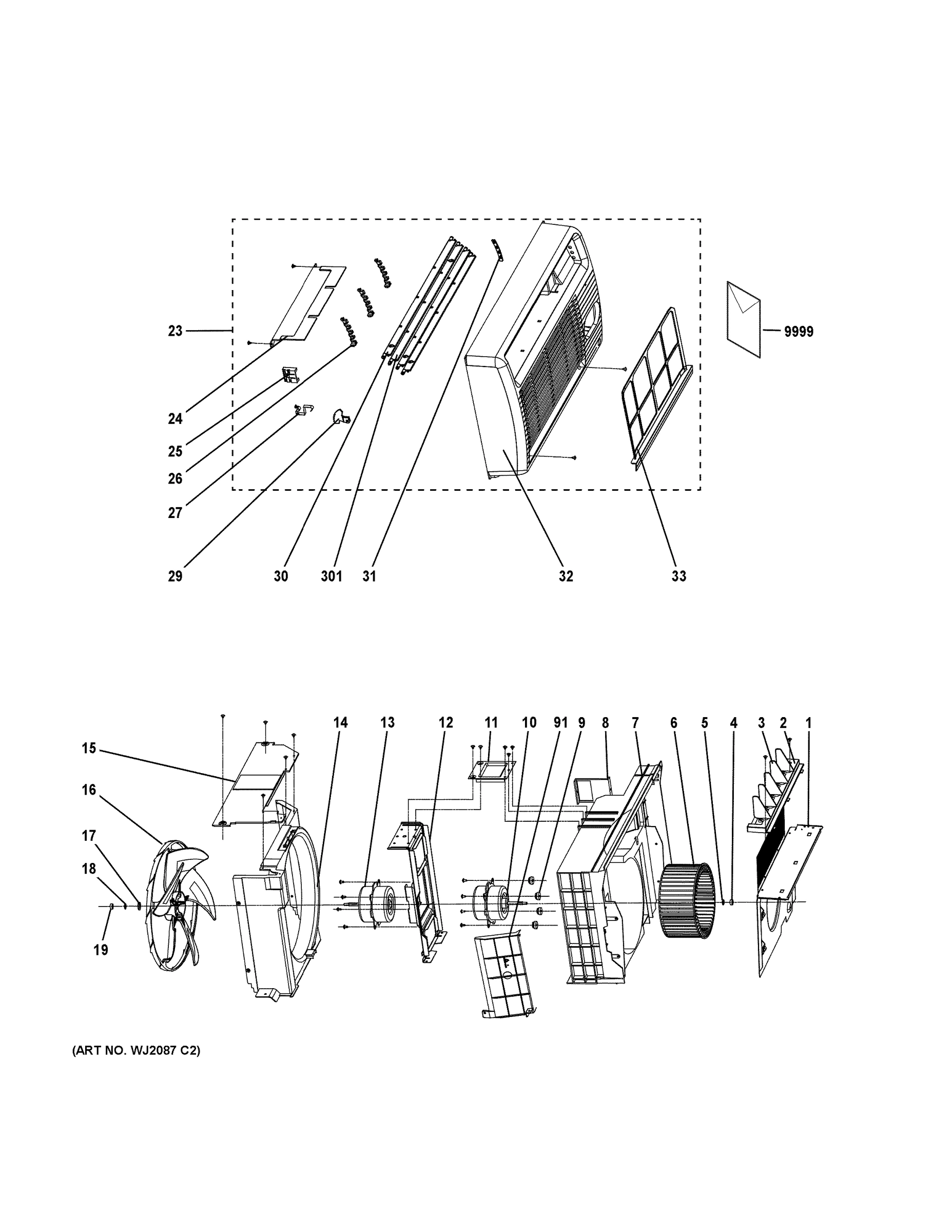

GRILLE & CHASSIS PARTS

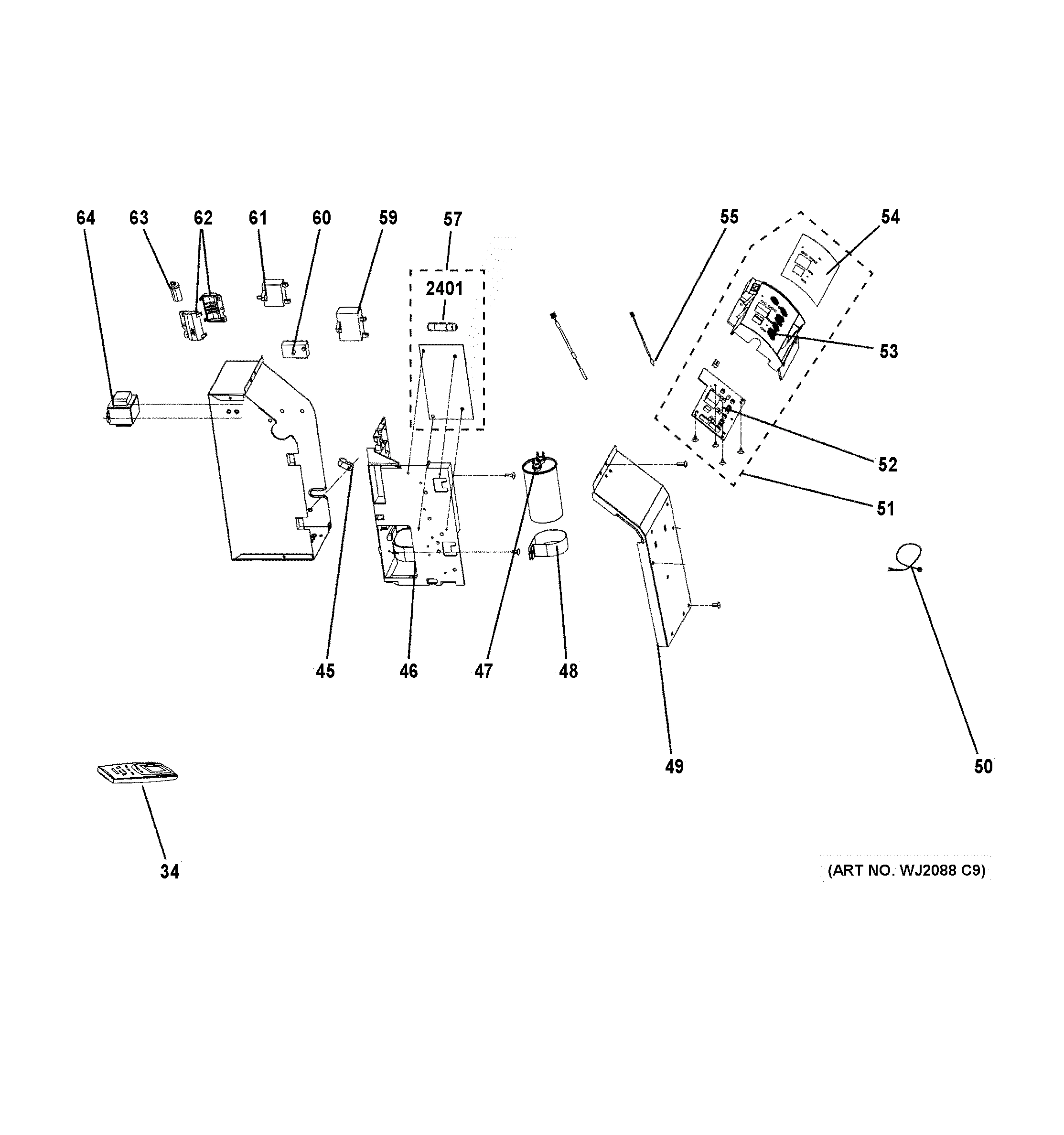

CONTROL PARTS

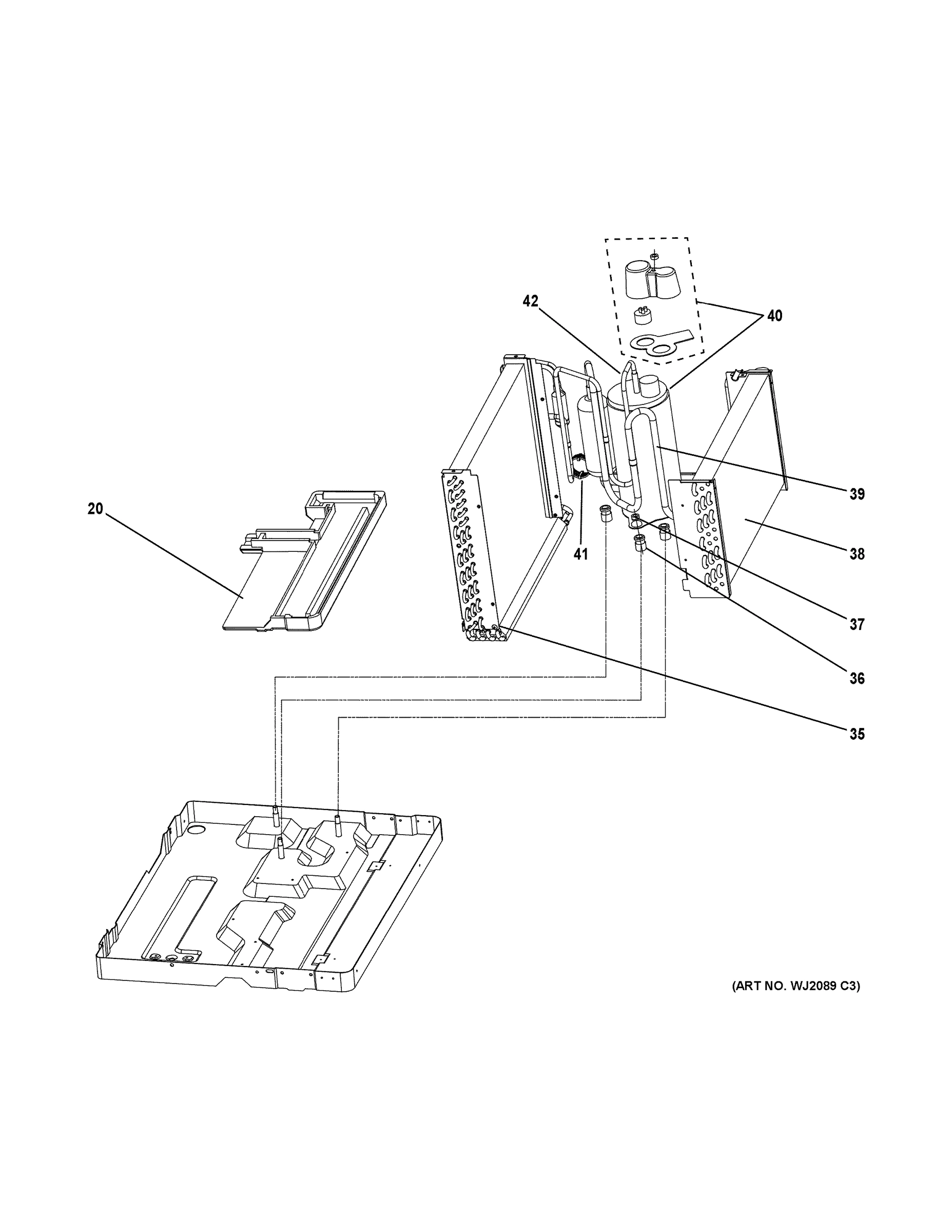

BASE PAN & UNIT PARTS
Common parts from model GE AJCM10DCEL2
10
MOTOR KIT 230V GEN WJ49X22066 Contact Us For Availability
12
MOTOR SUPPORT ANGLE GEN WJ65X10134 Contact Us For Availability
13
FAN MOTOR GEN WJ95X10033 Contact Us For Availability
14
SHROUD GEN WJ76X10326 Contact Us For Availability
15
SHROUD COVER PLATE GEN WJ79X10266 Contact Us For Availability
16
AXIAL FLOW FAN GEN WJ73X10223 Contact Us For Availability
17
WASHER GEN WJ01X10312 Contact Us For Availability
18
SPRING WASHER(DIA 6MM) GEN WJ01X10373 Contact Us For Availability
19
NUT GEN WJ01X10329 Contact Us For Availability
20
DRAIN TRAY GEN WJ89X10067 Contact Us For Availability
24
PLATE GEN WJ80X10019 Contact Us For Availability
25
BRACKET {BOX } GEN WJ66X10103 Contact Us For Availability
26
LOUVER HOLDER GEN WJ01X10451 Contact Us For Availability
27
NOTCH SPRING GEN WJ02X10039 Contact Us For Availability
29
RATCHET WHEEL GEN WJ01X10449 Contact Us For Availability
30
HORIZONTAL LOUVER GEN WJ71X10774 Contact Us For Availability
31
LOUVER LINK GEN WJ01X10450 Contact Us For Availability
33
AIR FILTER GEN WJ85X10187 Contact Us For Availability
34
REMOTE CONTROLLER GEN WJ26X10364 Contact Us For Availability
35
CONDENSER ASM GEN WJ87X10292 Contact Us For Availability
36
RUBBER GROMMET GEN WJ01X10419 Contact Us For Availability
37
NUT GEN WJ01X10448 Contact Us For Availability
38
EVAPORATOR ASM GEN WJ88X10261 Contact Us For Availability
39
SUCTION TUBE GEN WJ57X10061 Contact Us For Availability
40
COMPRESSOR ASM GEN WJ98X10336 Contact Us For Availability
41
CAPILLARY TUBES GEN WJ53X10263 Contact Us For Availability
42
DISCHARGE TUBE GEN WJ49X10065 Contact Us For Availability
45
CLAMP, CABLE GEN WJ03X10091 Contact Us For Availability
46
BRACKET GEN WJ66X10102 Contact Us For Availability
47
COMPRESSOR CAPACITOR GEN WJ20X10149 Contact Us For Availability
48
CAPACITOR CLAMP GEN WJ02X10034 Contact Us For Availability
49
CONTROL BOX COVER PLATE GEN WJ80X10018 Contact Us For Availability
51
CONTROL PANEL GEN WJ26X10369 Contact Us For Availability
52
DISPLAY BOARD GEN WJ07X10261 Contact Us For Availability
53
COVER, REMOTE SENSOR GEN WJ79X10268 Contact Us For Availability
54
MEMBRANE GEN WJ26X10370 Contact Us For Availability
59
CAPACITOR CBB61 GEN WJ20X10196 Contact Us For Availability
60
TERMINAL BOARD GEN WJ26X10310 Contact Us For Availability
61
CAPACITOR CBB61 GEN WJ20X10197 Contact Us For Availability
62
COVER, OLP GEN WJ79X10255 Contact Us For Availability
63
PROTECTOR, MOTOR GEN WJ23X10165 Contact Us For Availability
64
TRANSFORMER GEN WJ27X10072 Contact Us For Availability
91
BREAKWATER GEN WJ79X10269 Contact Us For Availability
301
HORIZONTAL LOUVER B GEN WJ71X10773 Contact Us For Availability
2401
FUSE, MAIN BOARD GEN WJ23X10174 Contact Us For Availability
9999
MINI MANUAL GEN 31616911 Contact Us For Availability
9999
PM OWNERS MANUAL GEN 497694 Contact Us For Availability
× ![]()
