Model Maytag AGR5630BDB0 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts & Diagrams

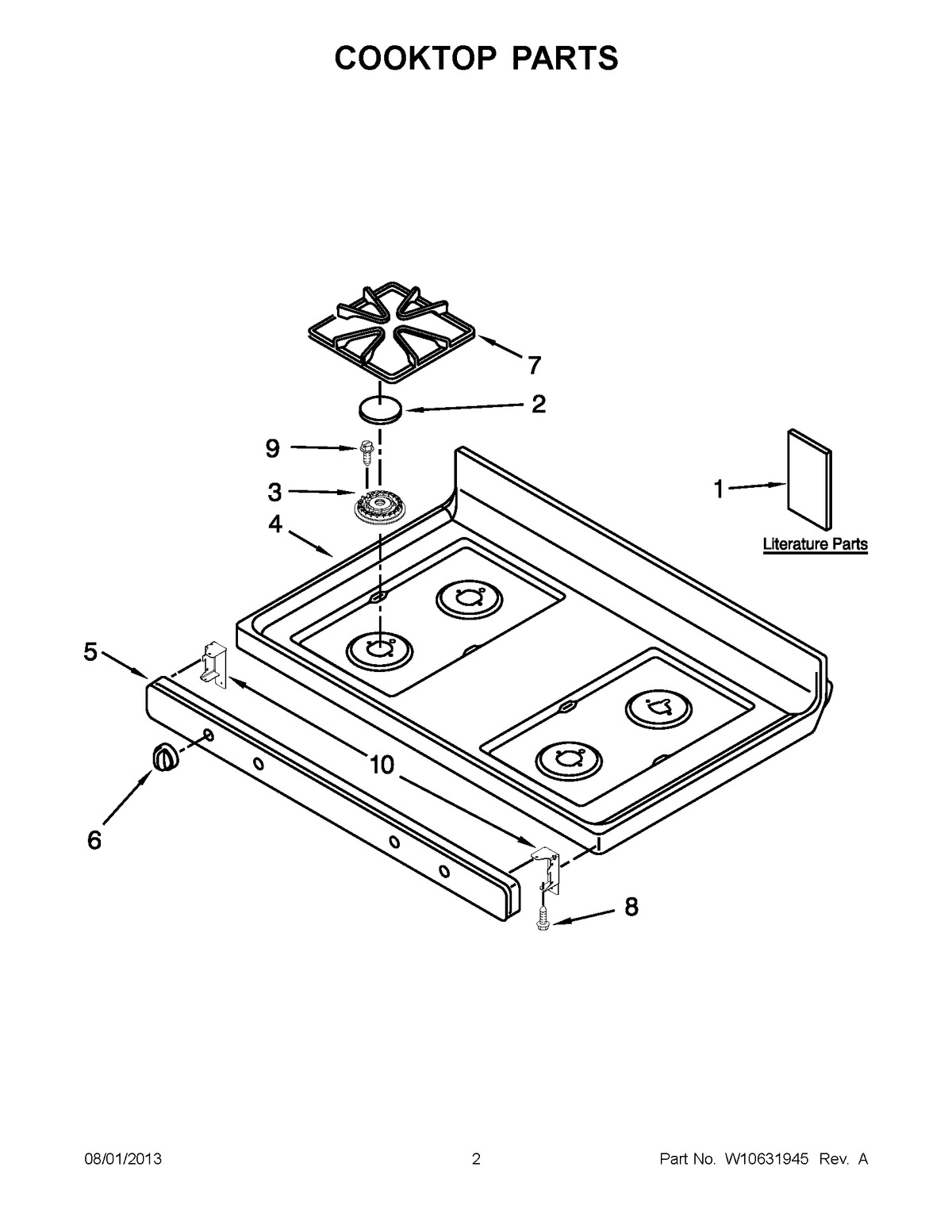

01 - COOKTOP PARTS

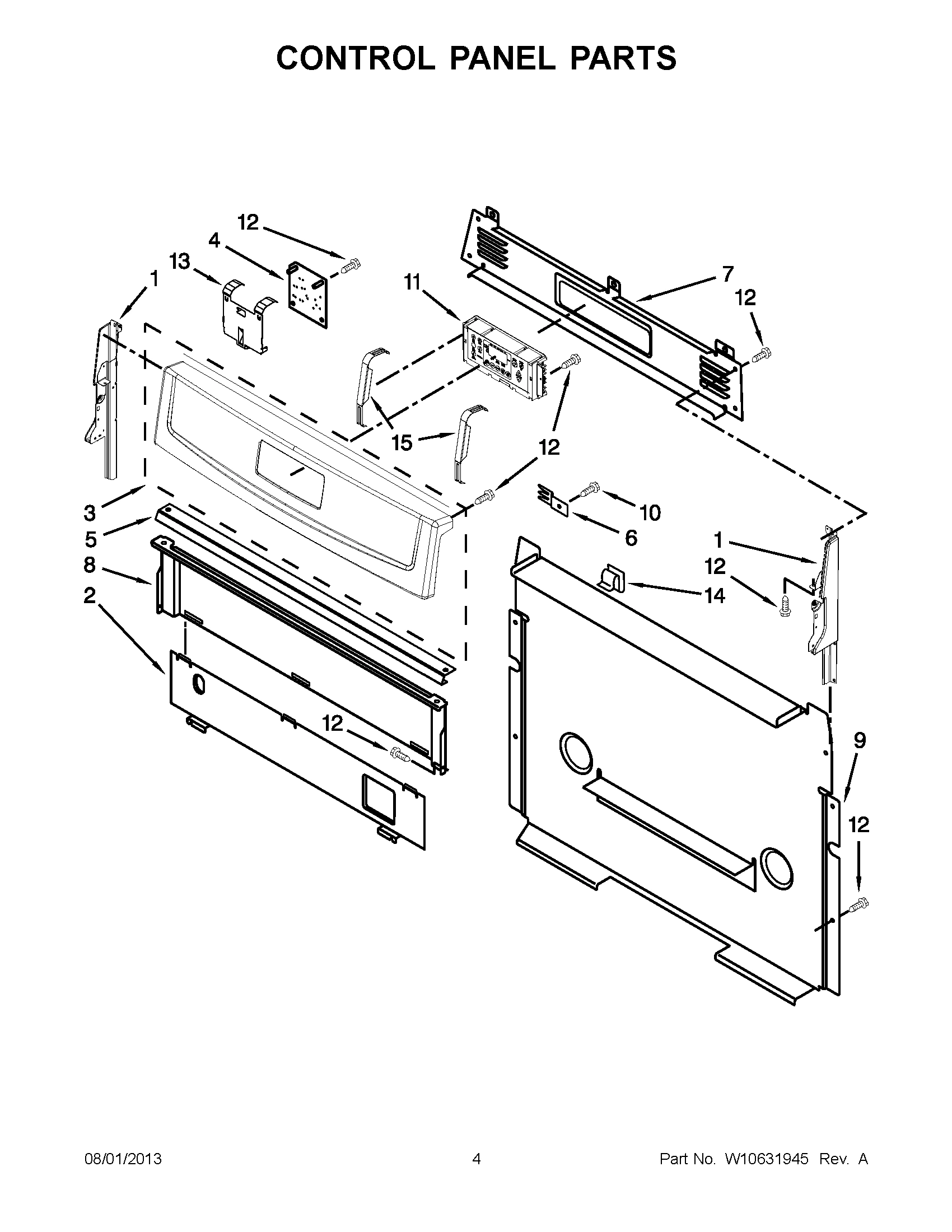

02 - CONTROL PANEL PARTS

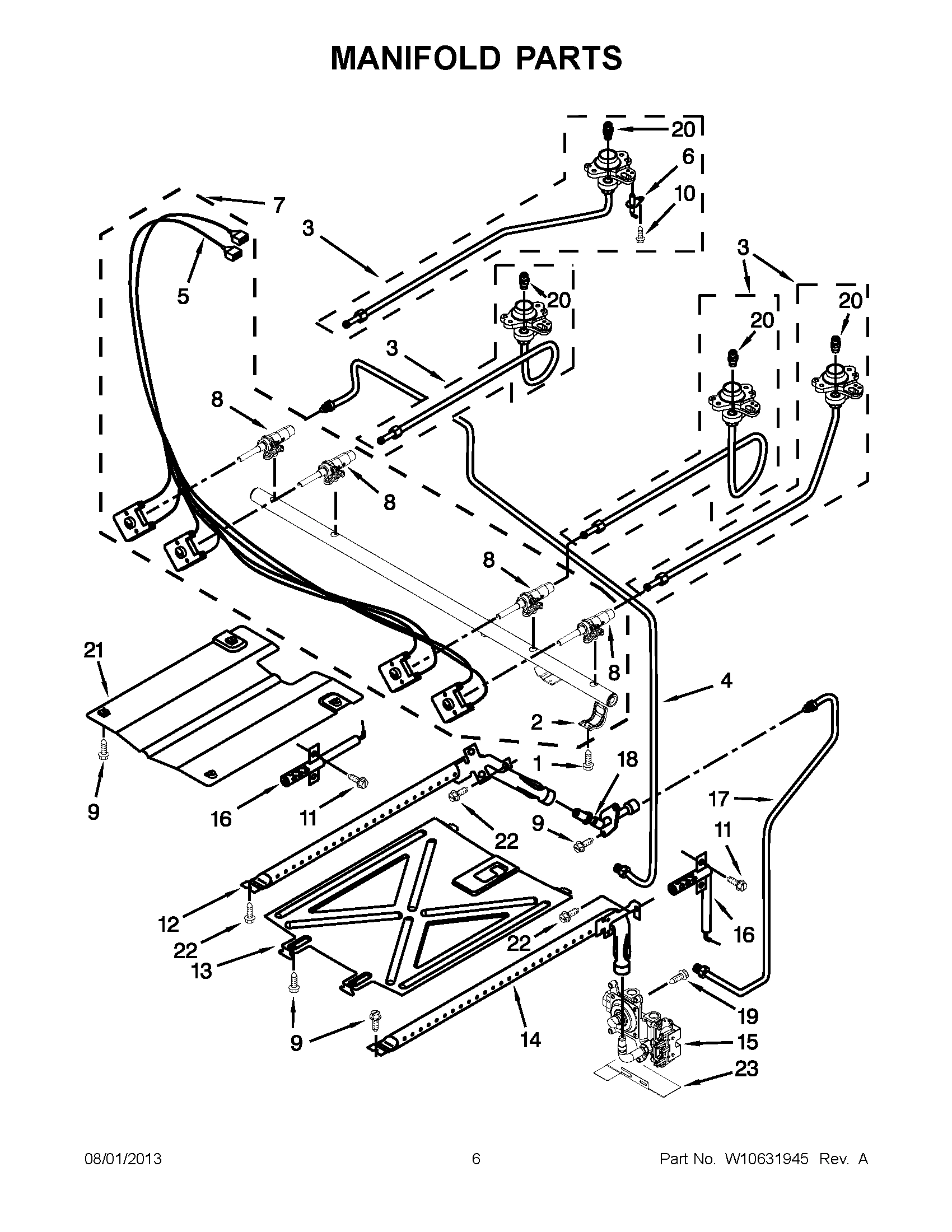

03 - MANIFOLD PARTS

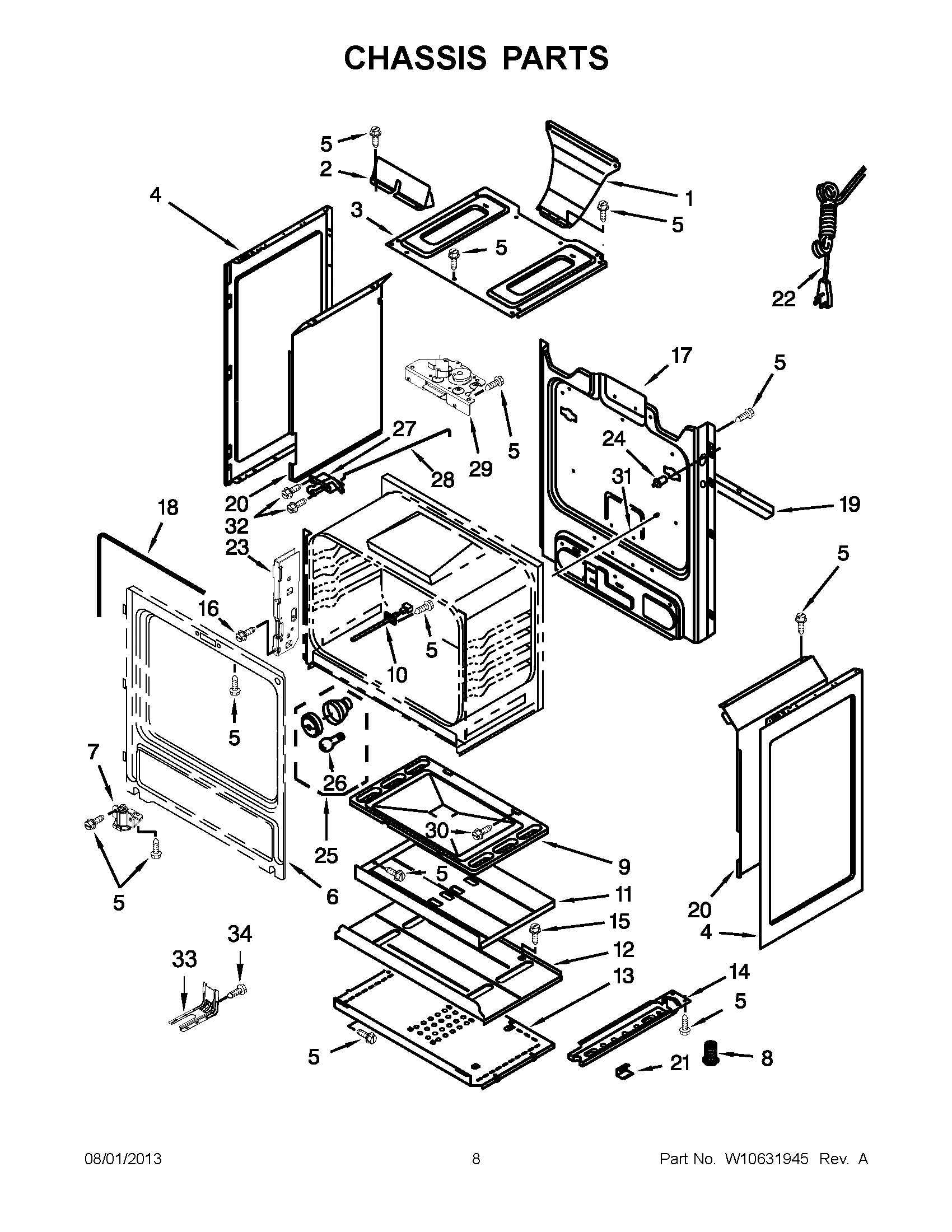

04 - CHASSIS PARTS

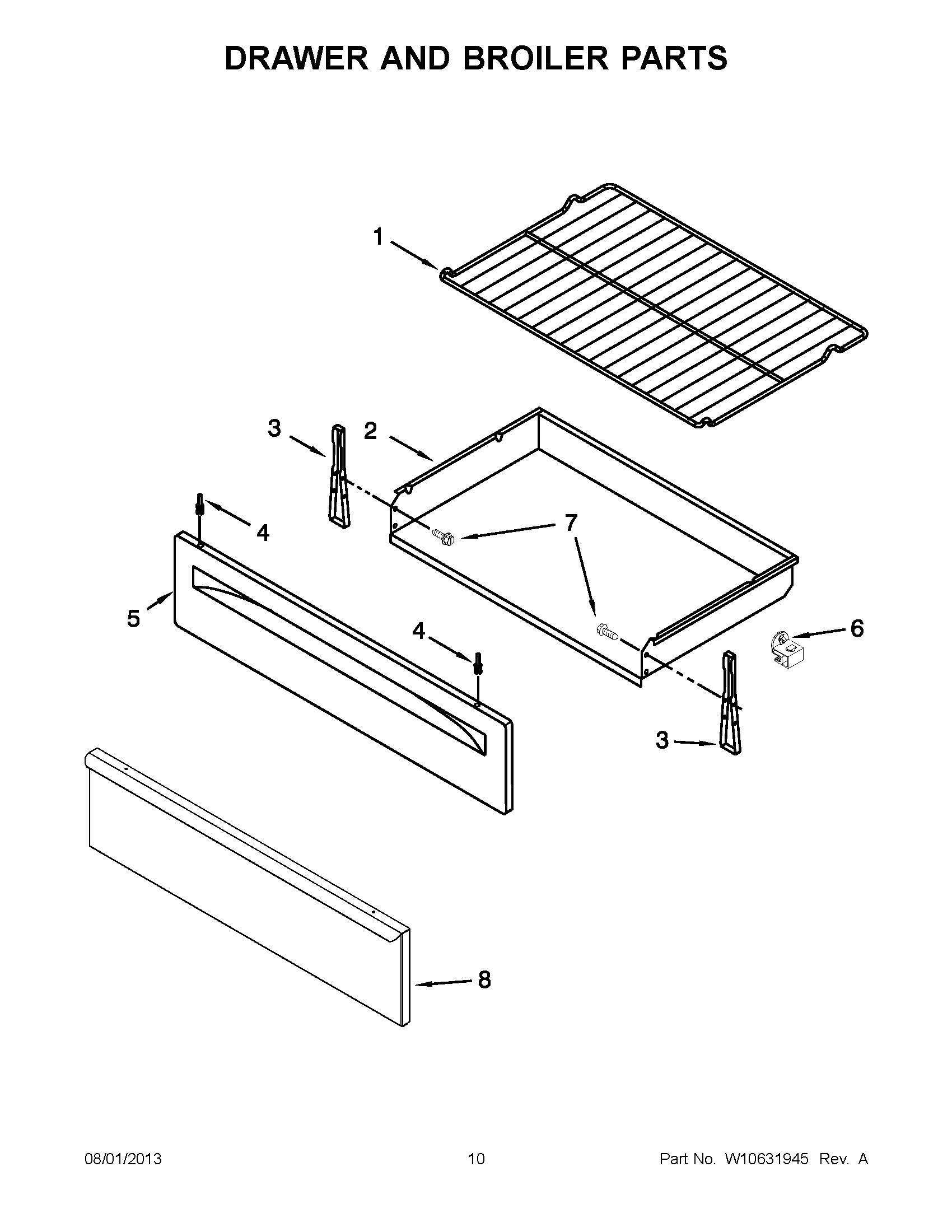

05 - DRAWER AND BROILER PARTS

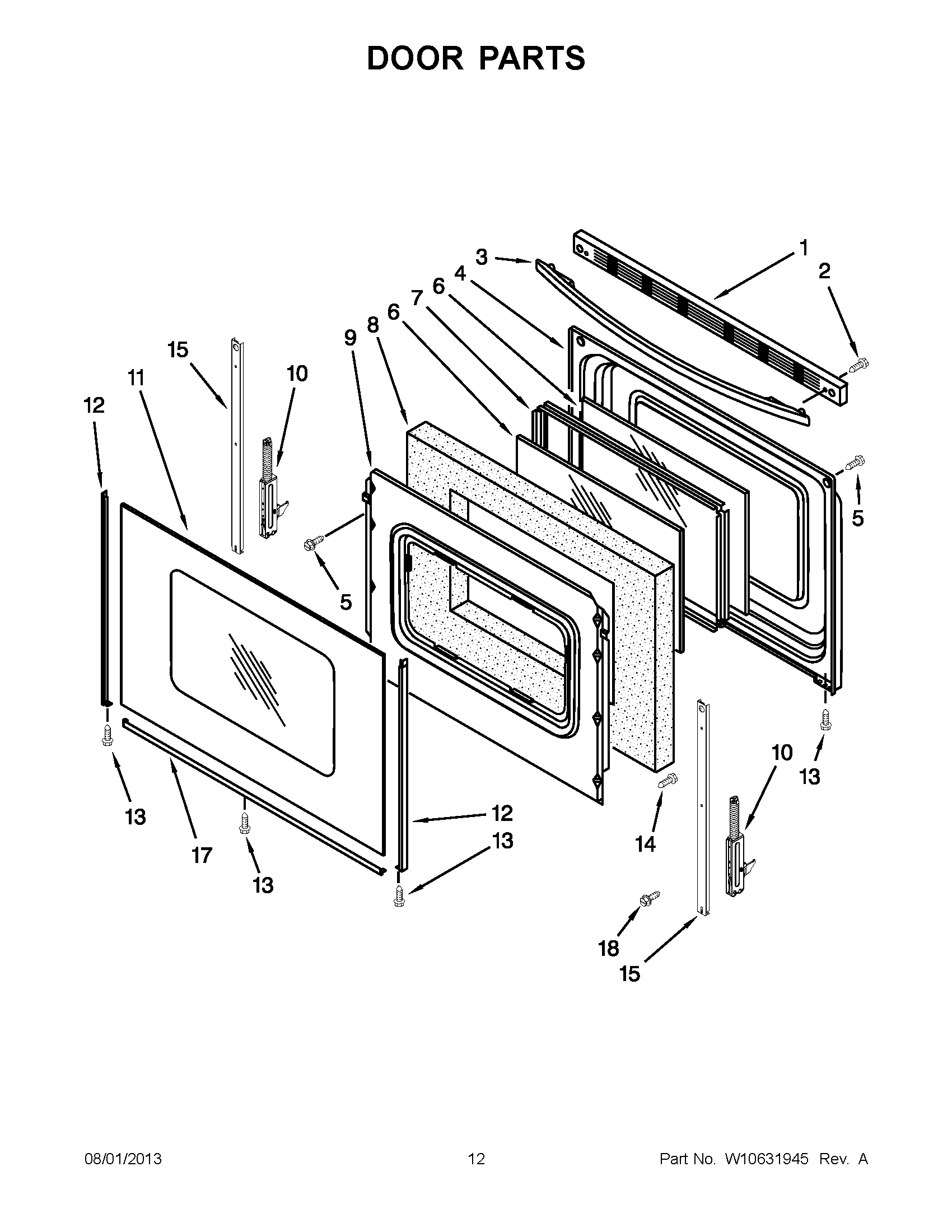

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR5630BDB0 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
MAY W10357517 MAY W10357517 Contact Us For Availability
1
MAY W10526974 MAY W10526974 Contact Us For Availability
1
MAY W10572542 MAY W10572542 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
MAY W10153186 MAY W10153186 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP VENT (WHITE) MAY W10310920 Contact Us For Availability
1
TRIM, TOP VENT (BLACK) MAY W10310922 Contact Us For Availability
2
MAY W10165809 MAY W10165809 Contact Us For Availability
2
MAY W10170554 MAY W10170554 Contact Us For Availability
2
MAY 8053505 MAY 8053505 Contact Us For Availability
2
MAY W10295996 MAY W10295996 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
3
MAY W10406243 MAY W10406243 Contact Us For Availability
3
MAY W10406283 MAY W10406283 Contact Us For Availability
3
MAY W10406797 MAY W10406797 Contact Us For Availability
3
MAY W10572579 MAY W10572579 Contact Us For Availability
3
MAY W10572581 MAY W10572581 Contact Us For Availability
3
MAY W10572583 MAY W10572583 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (LEFT REAR (9.5K)) MAY W10462928 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (LEFT FRONT (12K)) MAY W10462936 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (RIGHT REAR (6K)) MAY W10462940 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (RIGHT FRONT (9.5K)) MAY W10462945 Contact Us For Availability
3
MAY 8273036 MAY 8273036 Contact Us For Availability
3
BRACKET, DRAWER (STAINLESS MODEL) MAY W10462909 Contact Us For Availability
3
MAY W10462911 MAY W10462911 Contact Us For Availability
3
HANDLE, DOOR (LINER, DOOR) MAY 9761344 Contact Us For Availability
3
MAY W10144883 MAY W10144883 Contact Us For Availability
3
MAY W10323588 MAY W10323588 Contact Us For Availability
3
MAY W10323589 MAY W10323589 Contact Us For Availability
4
MAY 8272251 MAY 8272251 Contact Us For Availability
4
MAY 8272253 MAY 8272253 Contact Us For Availability
4
MAY W10331686 MAY W10331686 Contact Us For Availability
4
MAY W10215439 MAY W10215439 Contact Us For Availability
4
MAY W10322769 MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8523854 MAY 8523854 Contact Us For Availability
5
MAY 8523855 MAY 8523855 Contact Us For Availability
5
MAY W10525122 MAY W10525122 Contact Us For Availability
5
MAY 3196178 MAY 3196178 Contact Us For Availability
5
MAY W10295998 MAY W10295998 Contact Us For Availability
5
PANEL, DRAWER FRONT (WHITE) MAY 8053336 Contact Us For Availability
5
PANEL, DRAWER FRONT (BLACK) MAY 8053338 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
KNOB, CONTROL (BLACK) MAY 8273103 Contact Us For Availability
6
KNOB, CONTROL (WHITE) MAY 8273104 Contact Us For Availability
6
MAY 8523412 MAY 8523412 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
6
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
6
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY 8053580 MAY 8053580 Contact Us For Availability
7
ASSEMBLY, GRATE (WETSTONEZ) MAY W10166294 Contact Us For Availability
7
MAY W10198745 MAY W10198745 Contact Us For Availability
7
MAY W10314242 MAY W10314242 Contact Us For Availability
7
MAY W10341186 MAY W10341186 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY 3400701 MAY 3400701 Contact Us For Availability
8
MAY W10192841 MAY W10192841 Contact Us For Availability
8
VALVE, GAS (5K) (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE, GAS (9.5K) (LEFT REAR & LEFT FRONT & R MAY W10279614 Contact Us For Availability
8
MAY W10058460 MAY W10058460 Contact Us For Availability
8
PANEL, DRAWER FRONT (STAINLESS) MAY W10330069 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
MAY 3196557 MAY 3196557 Contact Us For Availability
9
MAY W10184370 MAY W10184370 Contact Us For Availability
9
Screw MAY 3196176 Contact Us For Availability
9
MAY 3195097 MAY 3195097 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 8523249 MAY 8523249 Contact Us For Availability
10
MAY 3196169 MAY 3196169 Contact Us For Availability
10
MAY 8273062 MAY 8273062 Contact Us For Availability
10
MAY W10181986 MAY W10181986 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10572544 MAY W10572544 Contact Us For Availability
11
MAY W10572545 MAY W10572545 Contact Us For Availability
11
MAY 3196385 MAY 3196385 Contact Us For Availability
11
MAY 8053967 MAY 8053967 Contact Us For Availability
11
MAY W10118454 MAY W10118454 Contact Us For Availability
11
MAY W10118455 MAY W10118455 Contact Us For Availability
11
MAY W10144884 MAY W10144884 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY 8053969 MAY 8053969 Contact Us For Availability
12
MAY 8523165 MAY 8523165 Contact Us For Availability
12
Trim, Door Side (White Right Hand) MAY 8523166 Contact Us For Availability
12
MAY 8523171 MAY 8523171 Contact Us For Availability
12
Trim, Door Side (White Left Hand) MAY 8523172 Contact Us For Availability
13
MAY W10137524 MAY W10137524 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
MAY 8053968 MAY 8053968 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 8273564 MAY 8273564 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14
MAY 3196165 MAY 3196165 Contact Us For Availability
15
BRACKET, MOUNTING, EOC MAY W10138683 Contact Us For Availability
15
MAY W10602001 MAY W10602001 Contact Us For Availability
15
Screw MAY 3196177 Contact Us For Availability
15
STRAP, DOOR MAY W10113759 Contact Us For Availability
16
MAY 8054129 MAY 8054129 Contact Us For Availability
16
MAY 9758079 MAY 9758079 Contact Us For Availability
17
MAY W10420040 MAY W10420040 Contact Us For Availability
17
MAY W10224919 MAY W10224919 Contact Us For Availability
17
MAY 8523175 MAY 8523175 Contact Us For Availability
17
MAY 8523177 MAY 8523177 Contact Us For Availability
18
MAY W10340259 MAY W10340259 Contact Us For Availability
18
MAY W10031780 MAY W10031780 Contact Us For Availability
18
MAY 8522416 MAY 8522416 Contact Us For Availability
19
MAY 3400016 MAY 3400016 Contact Us For Availability
19
MAY W10387695 MAY W10387695 Contact Us For Availability
20
ORIFICE, BURNER (ORIFICE (5K) (RIGHT REAR)) MAY W10170506 Contact Us For Availability
20
ORIFICE, BURNER (ORIFICE (9.5K) RIGHT FRONT, MAY W10170508 Contact Us For Availability
20
ORIFICE, BURNER ORIFICE (12K) (LEFT FRONT) MAY W10178934 Contact Us For Availability
20
RETAINER, INSULATION RIGHT MAY 9761448 Contact Us For Availability
20
RETAINER, INSULATION LEFT MAY 9761449 Contact Us For Availability
21
MAY W10137062 MAY W10137062 Contact Us For Availability
21
CLIP, GLASS MAY W10137382 Contact Us For Availability
22
MAY 3196265 MAY 3196265 Contact Us For Availability
22
Cord, Power MAY 9757891 Contact Us For Availability
23
BRACKET - AEGIS MAY W10224921 Contact Us For Availability
23
MAY W10289077 MAY W10289077 Contact Us For Availability
24
MAY 9757262 MAY 9757262 Contact Us For Availability
25
MAY W10454648 MAY W10454648 Contact Us For Availability
26
MAY 311255 MAY 311255 Contact Us For Availability
27
MAY 9761013 MAY 9761013 Contact Us For Availability
28
MAY W10078370 MAY W10078370 Contact Us For Availability
29
MAY W10107820 MAY W10107820 Contact Us For Availability
30
MAY W10379120 MAY W10379120 Contact Us For Availability
31
MAY 9757239 MAY 9757239 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
33
MAY W10306542 MAY W10306542 Contact Us For Availability
34
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
MAY W10170531 MAY W10170531 Contact Us For Availability
NI
MAY W10400495 MAY W10400495 Contact Us For Availability
NI
MAY W10400498 MAY W10400498 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
MAY 3196173 MAY 3196173 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING MAY 3196174 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4396923 MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10045060 MAY W10045060 Contact Us For Availability
NI
MAY W10322359 MAY W10322359 Contact Us For Availability
NI
MAY W10322362 MAY W10322362 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY W10334923 Contact Us For Availability
NI
MAY W10349636 MAY W10349636 Contact Us For Availability
× ![]()
