Model Maytag AGR5330BAS3 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

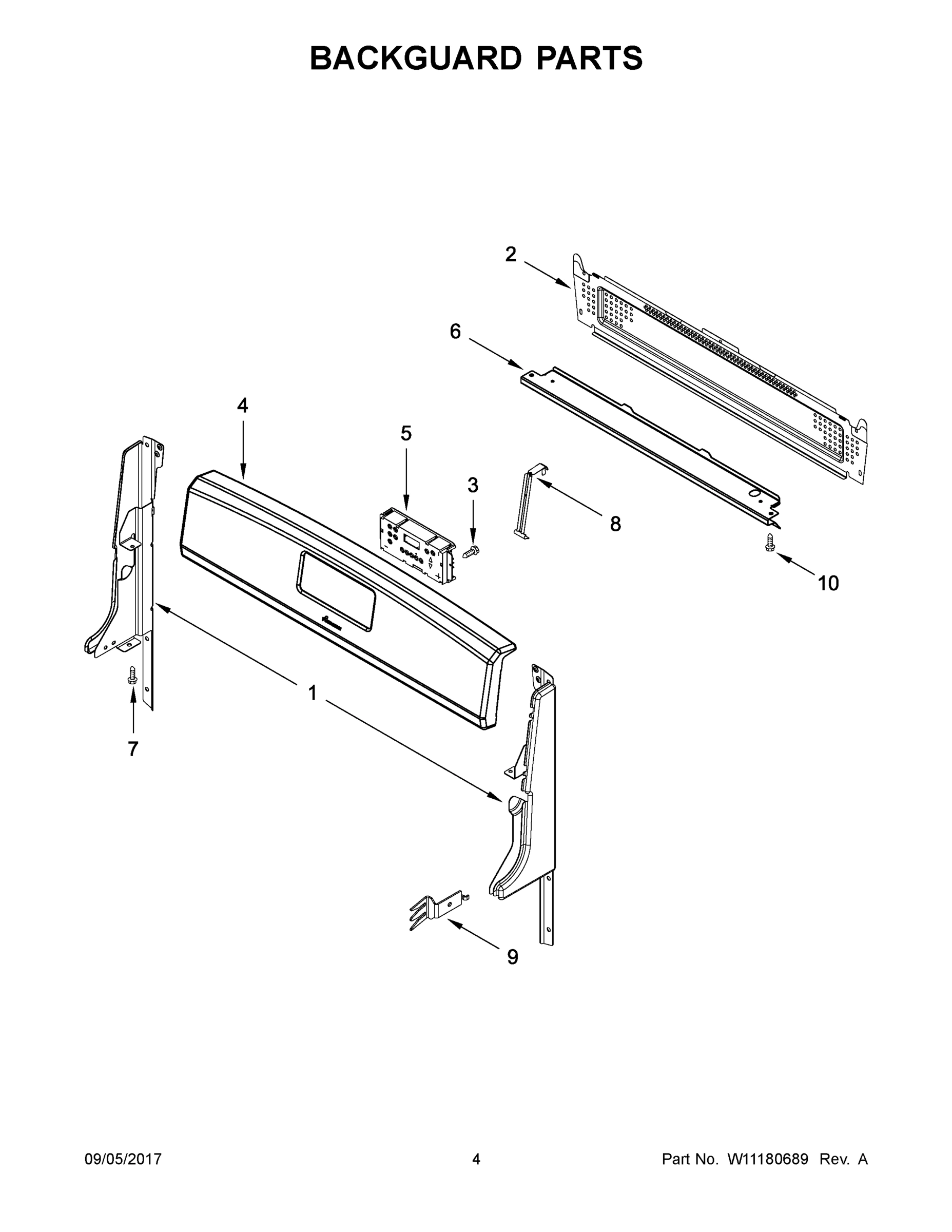

03 - BACKGUARD PARTS

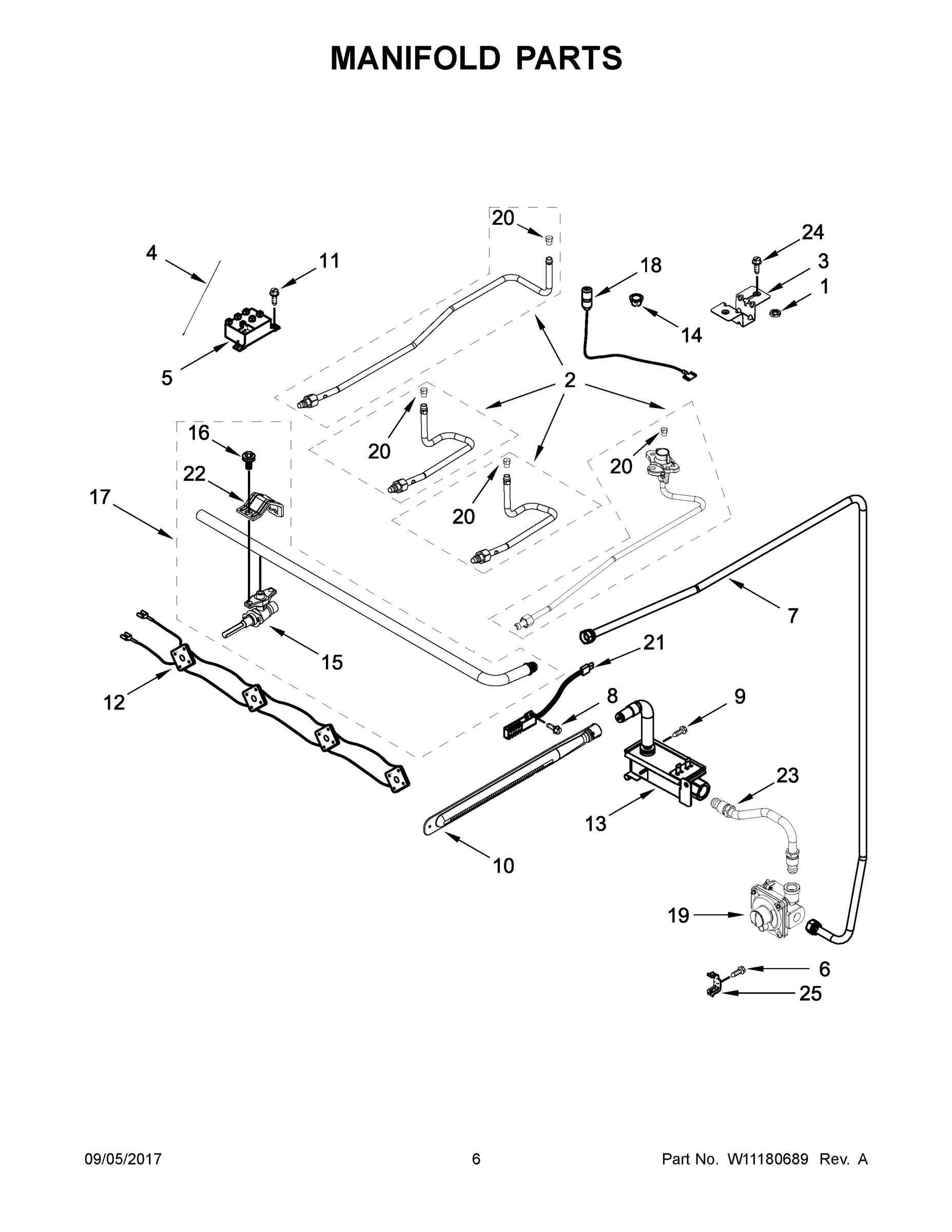

04 - MANIFOLD PARTS

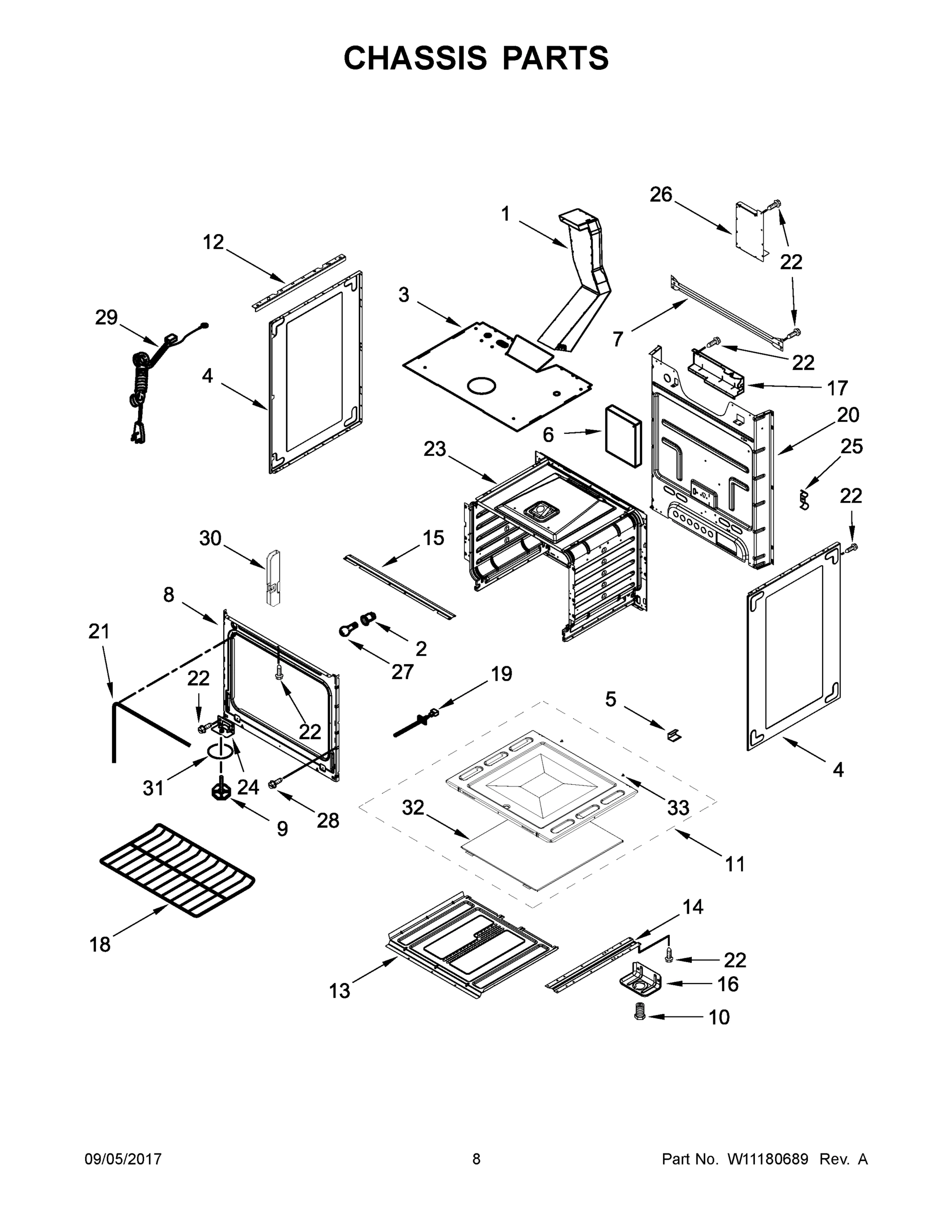

05 - CHASSIS PARTS

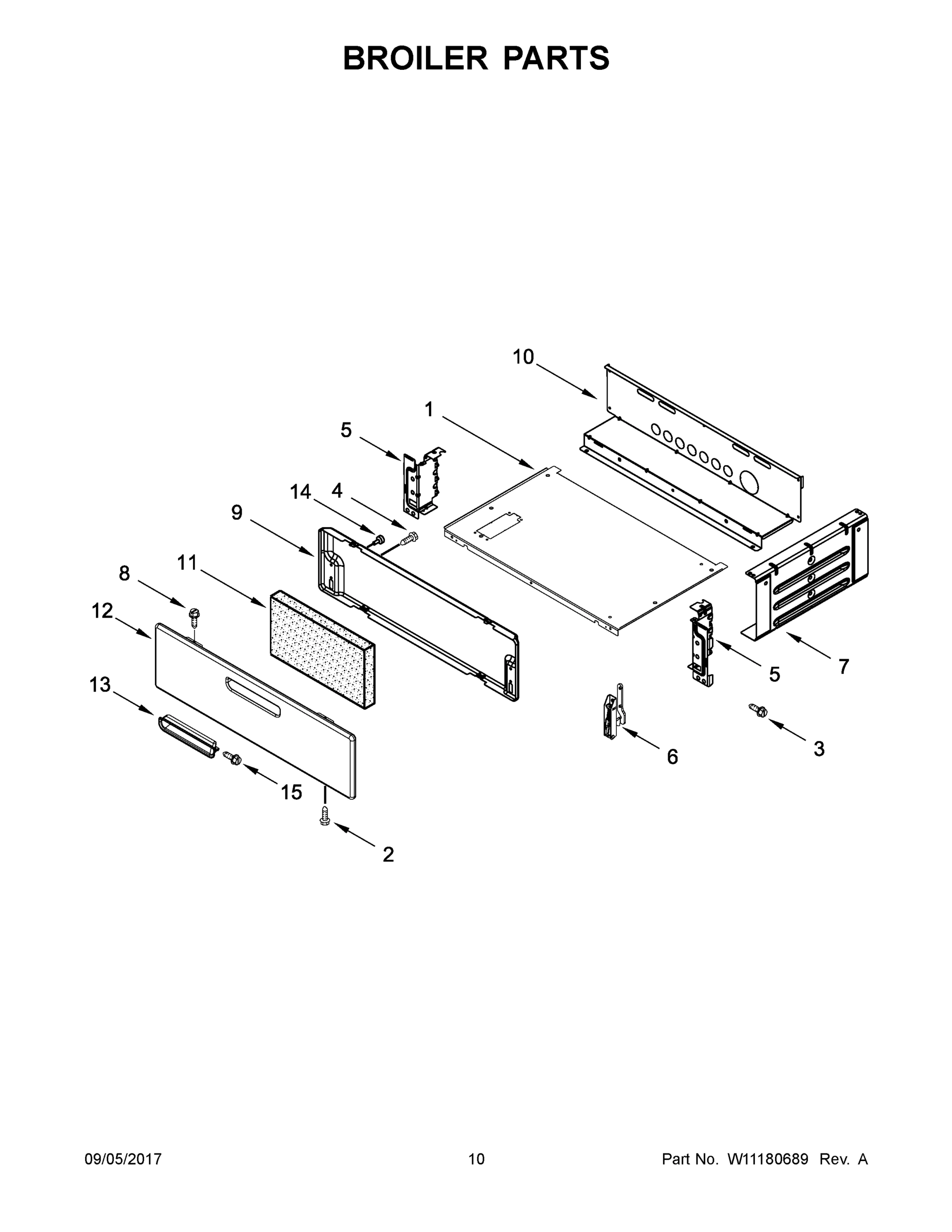

06 - BROILER PARTS

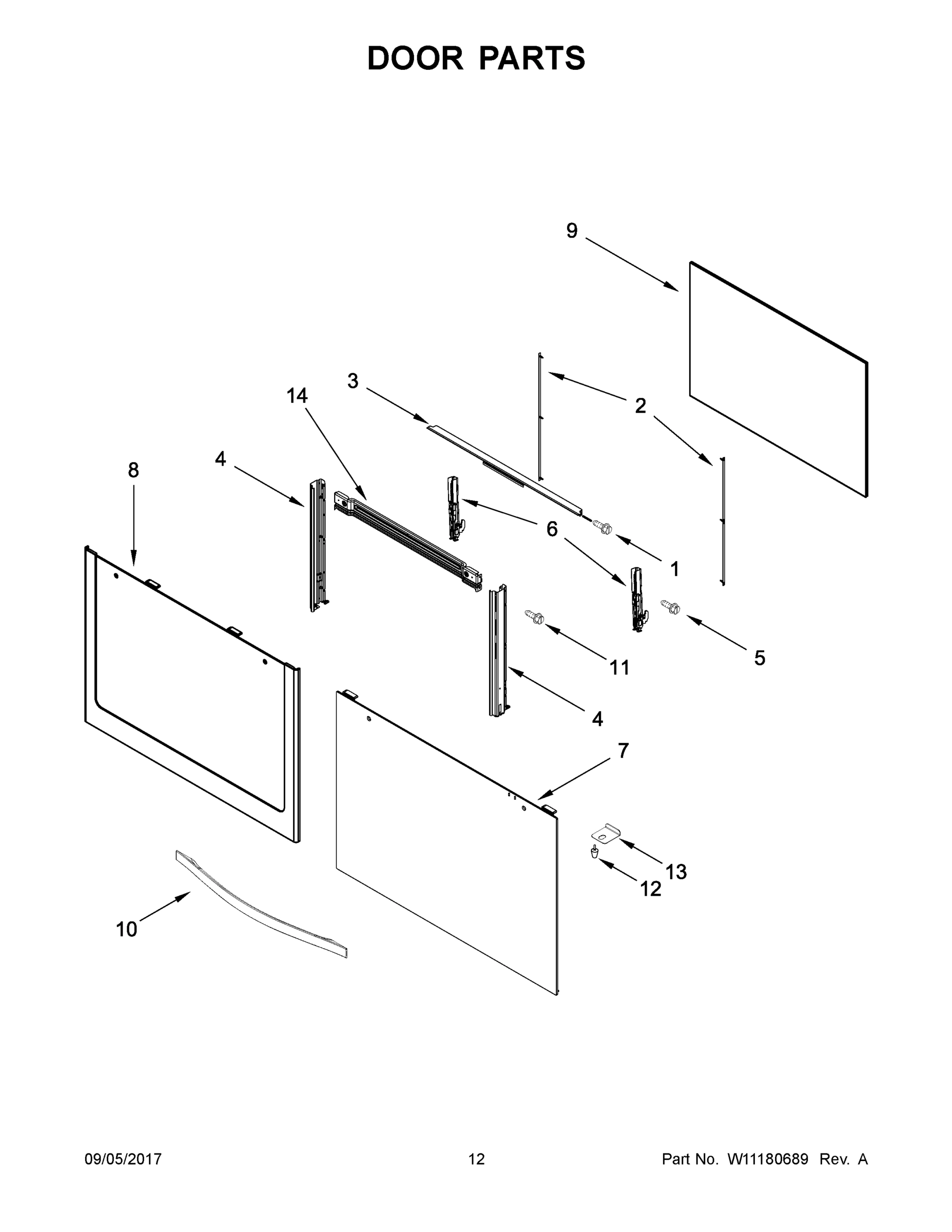

07 - DOOR PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR5330BAS3 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTRUCTIONS, INSTALLATION MAY W10860789 Contact Us For Availability
1
SCREW (BLACK) MAY 98006726 Contact Us For Availability
1
ENDCAP (LEFT HAND) (BLACK) MAY W10873109 Contact Us For Availability
1
NUT MAY W10610297 Contact Us For Availability
1
BOX, FLUE MAY W10675411 Contact Us For Availability
1
BAFFLE, BASE MAY W10680059 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10620405 Contact Us For Availability
1A
MAY W10873441 MAY W10873441 Contact Us For Availability
1B
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1B
ENDCAP (RIGHT HAND) (BLACK) MAY W10873107 Contact Us For Availability
1C
SHEET, TECH MAY W10142327 Contact Us For Availability
1C
MAY W10873438 MAY W10873438 Contact Us For Availability
2
COOKTOP (BLACK) MAY W10818512 Contact Us For Availability
2
BACKGUARD, REAR MAY W10588614 Contact Us For Availability
2
ASSEMBLY, TUBING (LEFT FRONT) MAY W10620002 Contact Us For Availability
2
SOCKET, LIGHT BULB MAY W10554269 Contact Us For Availability
2
SCREW MAY W10119413 Contact Us For Availability
2
SEAL, INNER DOOR MAY W10292266 Contact Us For Availability
2A
COOKING (WHITE) MAY W10818513 Contact Us For Availability
2A
ASSEMBLY, TUBING (LEFT REAR) MAY W10512770 Contact Us For Availability
2B
ASSEMBLY, TUBING (RIGHT FRONT) MAY W10512771 Contact Us For Availability
2C
ASSEMBLY, TUBING (RIGHT REAR) MAY W10514424 Contact Us For Availability
3
PANEL, MANIFOLD (BLACK) MAY W10620546 Contact Us For Availability
3
SCREW, GROUND MAY 8534079 Contact Us For Availability
3
BRACKET, SURFACE BURNER MAY W10122103 Contact Us For Availability
3
SHIELD, INSULATION MAY W10636342 Contact Us For Availability
3
SCREW (BLACK) MAY 98008545 Contact Us For Availability
3
UPPER TRIM, OVEN DOOR MAY W10544145 Contact Us For Availability
3A
PANEL, MANIFOLD (WHITE) MAY W10620545 Contact Us For Availability
4
KNOB, BURNER (BLACK) MAY W10614598 Contact Us For Availability
4
PANEL, CONTROL (BLACK) MAY W10874797 Contact Us For Availability
4
CABLE, SPARK (BLACK) MAY W10622750 Contact Us For Availability
4
PANEL, SIDE (BLACK (LEFT)) MAY W10666212 Contact Us For Availability
4
SCREW MAY W10155121 Contact Us For Availability
4
TRIM, SIDE (LEFT) MAY W10445015 Contact Us For Availability
4A
KNOB, BURNER (WHITE) MAY W10614597 Contact Us For Availability
4A
PANEL, CONTROL (WHITE) MAY W10874795 Contact Us For Availability
4A
PANEL, SIDE (BLACK (RIGHT)) MAY W10666211 Contact Us For Availability
4A
TRIM, SIDE (RIGHT) MAY W10445013 Contact Us For Availability
4B
PANEL, CONTROL (BLACK WITH OVERLAY (STAINLESS MAY W10585645 Contact Us For Availability
4B
PANEL, SIDE (WHITE (LEFT)) MAY W10666176 Contact Us For Availability
4C
PANEL, SIDE (WHITE (RIGHT)) MAY W10666141 Contact Us For Availability
5
CONTROL, ELECTRONIC (BLACK) MAY W10556708 Contact Us For Availability
5
MODULE, SPARK MAY 6610341 Contact Us For Availability
5
SCREW MAY W10146346 Contact Us For Availability
5
CLIP, OVEN BOTTON MAY 98005502 Contact Us For Availability
5
COVER, BROILER LEFT MAY W10624273 Contact Us For Availability
5A
CONTROL, ELECTRONIC (WHITE) MAY W10556707 Contact Us For Availability
5A
COVER, BROILER RIGHT MAY W10624275 Contact Us For Availability
6
SCREW MAY 98007225 Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10578251 Contact Us For Availability
6
BRACKET, CONSOLE MOUNT MAY W10535746 Contact Us For Availability
6
COUNTERWEIGHT MAY W10902689 Contact Us For Availability
6
HINGE MAY W10647966 Contact Us For Availability
6
HINGE, OVEN DOOR (BLACK & WHITE MODELS) MAY W10535788 Contact Us For Availability
6A
HINGE, OVEN DOOR (STAINLESS MODEL) MAY W10420753 Contact Us For Availability
7
CLIP, COOKTOP MAY 98004722 Contact Us For Availability
7
TUBING, MANIFOLD TO REGULATOR MAY W10619922 Contact Us For Availability
7
SUPPORT, REAR MAY 98015363 Contact Us For Availability
7
PANEL, SIDE MAY W10605426 Contact Us For Availability
7
PANEL, DOOR (BLACK) MAY W10535776 Contact Us For Availability
7A
PANEL, DOOR (WHITE) MAY W10535777 Contact Us For Availability
8
WIRE, GROUND MAY 98014544 Contact Us For Availability
8
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
8
SCREW MAY 98005659 Contact Us For Availability
8
PANEL, DOOR (STAINLESS) MAY W10535793 Contact Us For Availability
9
BUMPER, COOKTOP MAY 98013389 Contact Us For Availability
9
BRACKET, REAR MAY W10535815 Contact Us For Availability
9
SCREW MAY 98013634 Contact Us For Availability
9
FOOT, LEVELING (FRONT) MAY W10519868 Contact Us For Availability
9
LINER, BROILER DRAWER MAY W10446851 Contact Us For Availability
9
GLASS, INNER MAY W10535767 Contact Us For Availability
10
SCREW MAY 98006632 Contact Us For Availability
10
BURNER, OVEN MAY W10650358 Contact Us For Availability
10
FOOT, LEVELING (REAR) MAY W10058460 Contact Us For Availability
10
BACK COVER, BROILER MAY W10682676 Contact Us For Availability
10
HANDLE, OVEN DOOR (BLACK) MAY W10535747 Contact Us For Availability
10A
SCREW (STAINLESS) MAY 98005658 Contact Us For Availability
10A
HANDLE, OVEN DOOR (WHITE) MAY W10535787 Contact Us For Availability
11
CAP, BURNER (BLACK (LEFT FRONT, LEFT REAR, & MAY 98017461 Contact Us For Availability
11
ASSEMBLY, OVEN BOTTOM MAY W10620410 Contact Us For Availability
11
INSULATION, BROILER DOOR MAY W10216478 Contact Us For Availability
11
SCREW MAY 98008699 Contact Us For Availability
12
SCREW MAY W10493726 Contact Us For Availability
12
HARNESS, SWITCH MAY W10548355 Contact Us For Availability
12
SUPPORT, SIDE PANEL MAY W10577312 Contact Us For Availability
12
PANEL, BROILER DOOR (BLACK) MAY W10874825 Contact Us For Availability
12A
PANEL, BROILER DOOR (WHITE) MAY W10874828 Contact Us For Availability
12B
PANEL, BROILER DOOR (STAINLESS) MAY W10482110 Contact Us For Availability
13
BURNER, STANDARD (LEFT FRONT, LEFT REAR, & RI MAY W10636224 Contact Us For Availability
13
VALVE, OVEN MAY 98014893 Contact Us For Availability
13
DEFLECTOR, OVEN MAY W10670197 Contact Us For Availability
13
HANDLE, BROILER DOOR (BLACK) MAY W10535809 Contact Us For Availability
13
BRACKET, GLASS DOOR HOLD (BLACK) MAY W10811550 Contact Us For Availability
13A
HANDLE, BROILER DOOR (WHITE) MAY W10498563 Contact Us For Availability
13A
BRACKET, GLASS DOOR HOLD (WHITE) MAY W10823829 Contact Us For Availability
13B
HANDLE, BROILER DOOR (GREY) MAY W10495568 Contact Us For Availability
14
BRACKET, ANTI-TIP MAY W10613666 Contact Us For Availability
14
CLIP, IGNITOR MAY W10278150 Contact Us For Availability
14
RAIL, BASE MAY W10520269 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
14
CROSS SUPPORT MAY W10387343 Contact Us For Availability
15
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
15
VALVE, SADDLE (LEFT FRONT) MAY W10141711 Contact Us For Availability
15
BRACKET, MANIFOLD MAY W10545322 Contact Us For Availability
15
SCREW MAY 98004993 Contact Us For Availability
15A
VALVE, SADDLE (LEFT REAR & RIGHT FRONT) MAY W10141709 Contact Us For Availability
15B
VALVE, SADDLE (RIGHT REAR) MAY W10823037 Contact Us For Availability
16
BURNER CAP, AUXILIARY (BLACK (RIGHT REAR)) MAY W10169985 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
BRACKET, FOOT MAY W10535682 Contact Us For Availability
17
BURNER, AUXILIARY (6K) RIGHT REAR) MAY W10515453 Contact Us For Availability
17
ASSEMBLY, MANIFOLD MAY W10820758 Contact Us For Availability
17
COVER, VALVE MAY W10549293 Contact Us For Availability
18
SCREW MAY 3400701 Contact Us For Availability
18
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
18
RACK, OVEN MAY W10550642 Contact Us For Availability
18A
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
19
REGULATOR MAY W10633327 Contact Us For Availability
19
SENSOR, OVEN MAY W10181986 Contact Us For Availability
20
ORIFICE, NATURAL (11.5K) (LEFT FRONT) MAY 98017349 Contact Us For Availability
20
BACK, MAIN MAY W10554678 Contact Us For Availability
20A
ORIFICE, NATURAL (9.5K) (LEFT REAR & RIGHT FR MAY 98017348 Contact Us For Availability
20B
ORIFICE, NATURAL (5K) (RIGHT REAR) MAY W10170506 Contact Us For Availability
21
IGNITER, HOT SURFACE MAY W10914411 Contact Us For Availability
21
SEAL, OVEN MAY W10535778 Contact Us For Availability
22
BRACKET, VALVE MAY W10574737 Contact Us For Availability
23
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
23
TUBING (REGULATOR TO OVEN VALVE) MAY W10512963 Contact Us For Availability
24
BASE, FOOT MAY W10562043 Contact Us For Availability
25
BRACKET, REGULATOR MAY 98007410 Contact Us For Availability
25
CLIP, TUBING MAY 98005026 Contact Us For Availability
26
COVER MAY W10538845 Contact Us For Availability
27
BULB, LIGHT MAY W10788320 Contact Us For Availability
29
CORD, POWER MAY W10640762 Contact Us For Availability
30
HINGE, COUNTER SUPPORT MAY W10327222 Contact Us For Availability
31
SPACER MAY 98007193 Contact Us For Availability
32
SPREAD, FLAME (BAKE) MAY W10670196 Contact Us For Availability
NI
CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
TIE, CABLE MAY 3391018 Contact Us For Availability
NI
CLAMP, CORD MAY 98005894 Contact Us For Availability
NI
CLIP, WIRE MAY 98005896 Contact Us For Availability
NI
BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
HARNESS, MAIN MAY W10914403 Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10821006 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
INSULATION, WRAP MAY W10609560 Contact Us For Availability
NI
INSULATION, UPPER MAY W10613818 Contact Us For Availability
NI
INSULATION, BACK MAY W11048974 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
× ![]()
