Model Maytag AFD2535DEW5 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

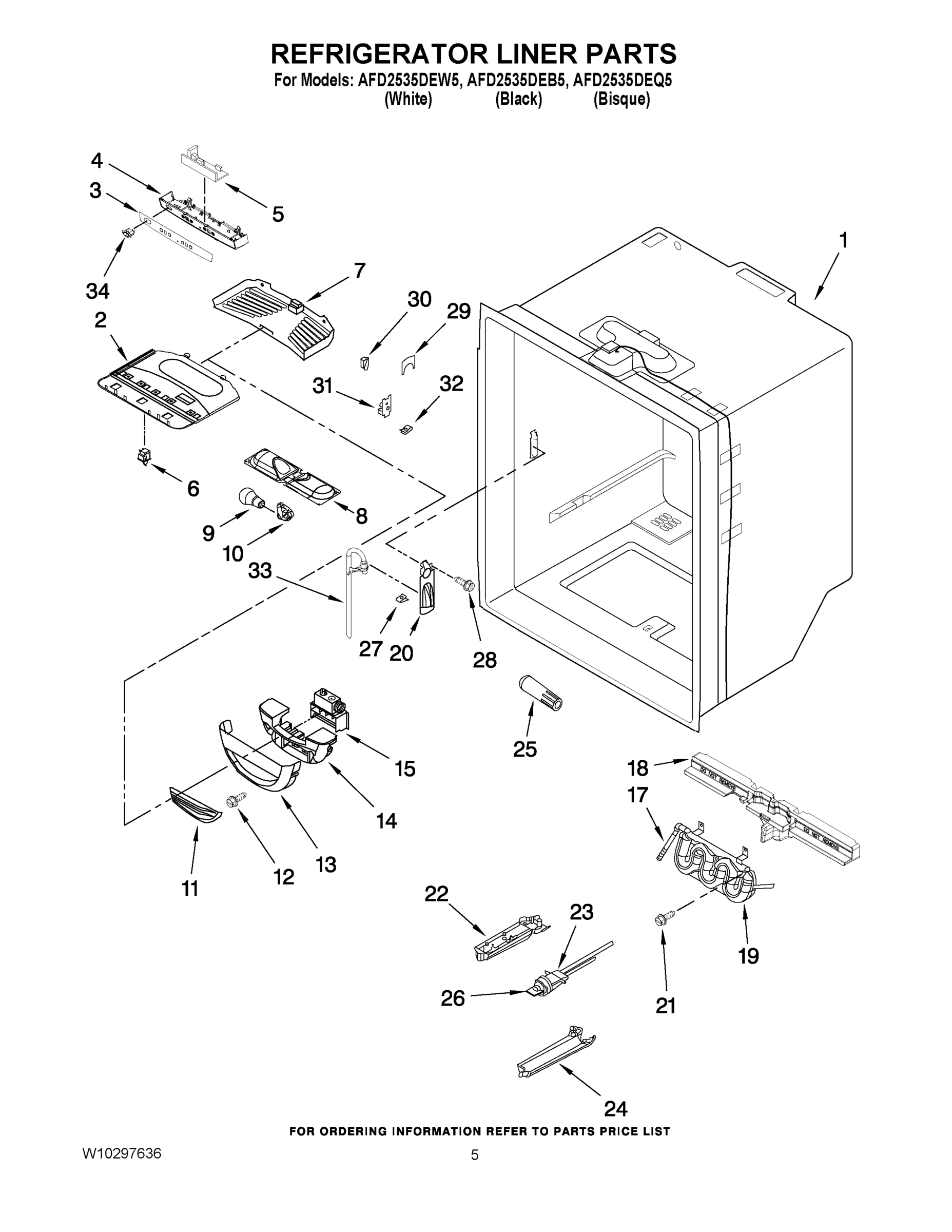

03 - REFRIGERATOR LINER PARTS

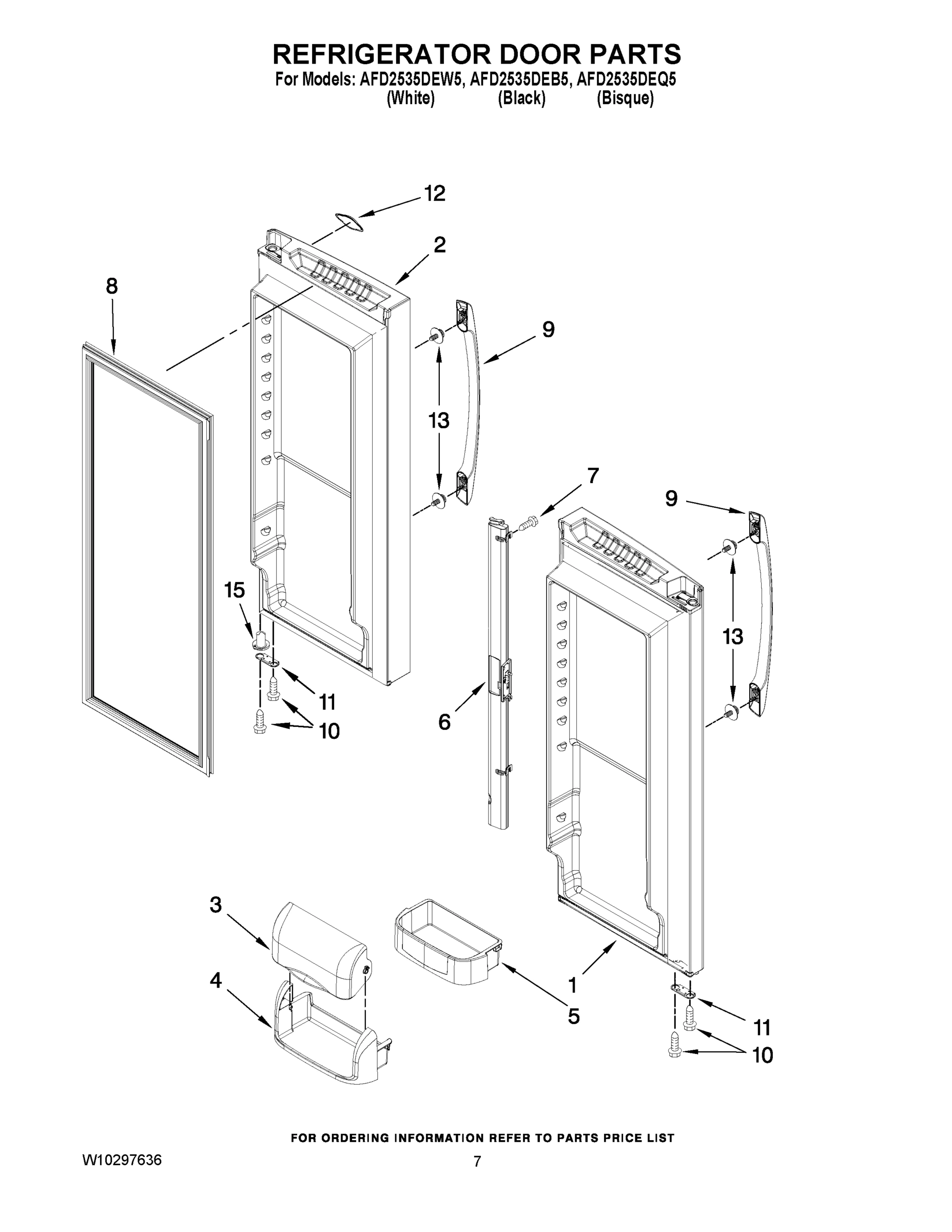

04 - REFRIGERATOR DOOR PARTS

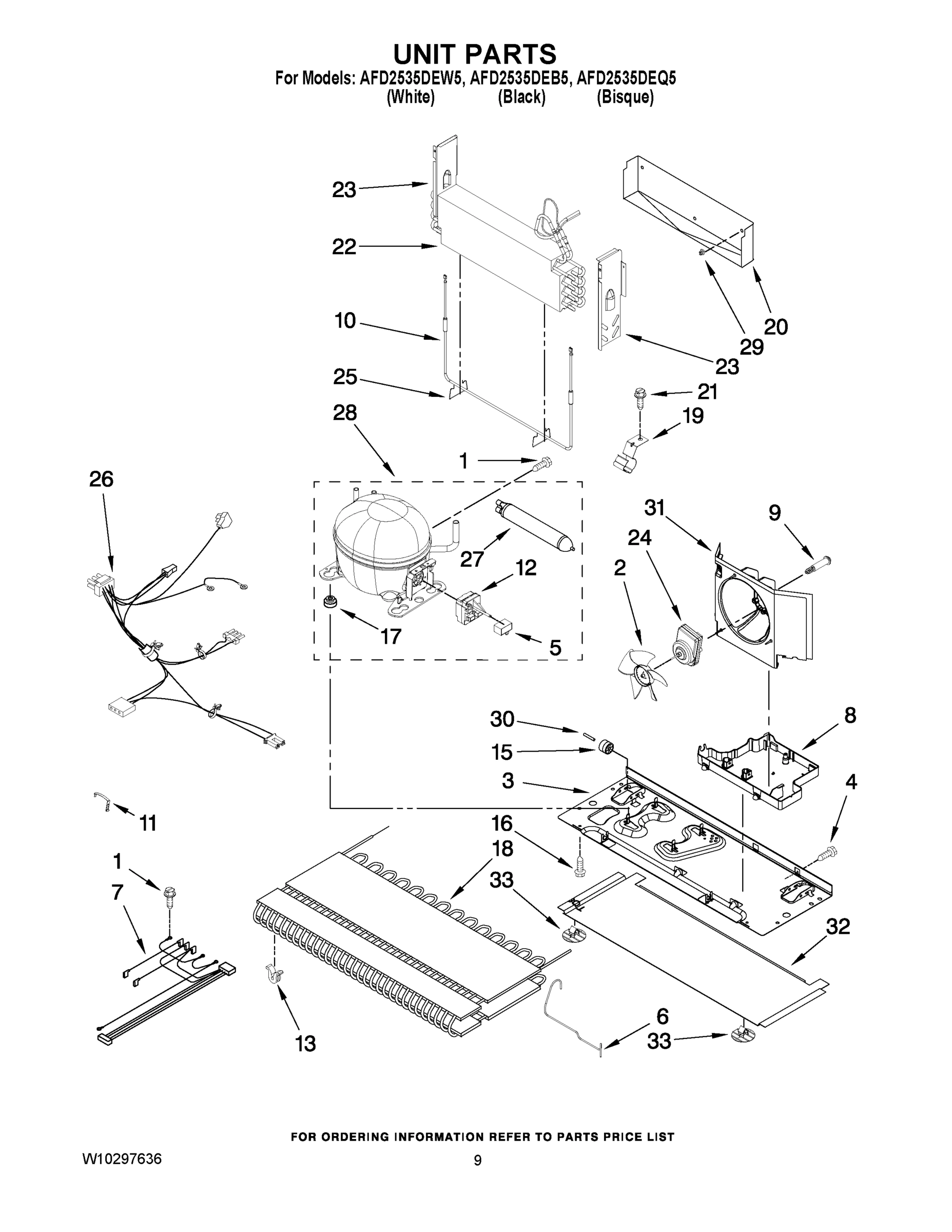

05 - UNIT PARTS

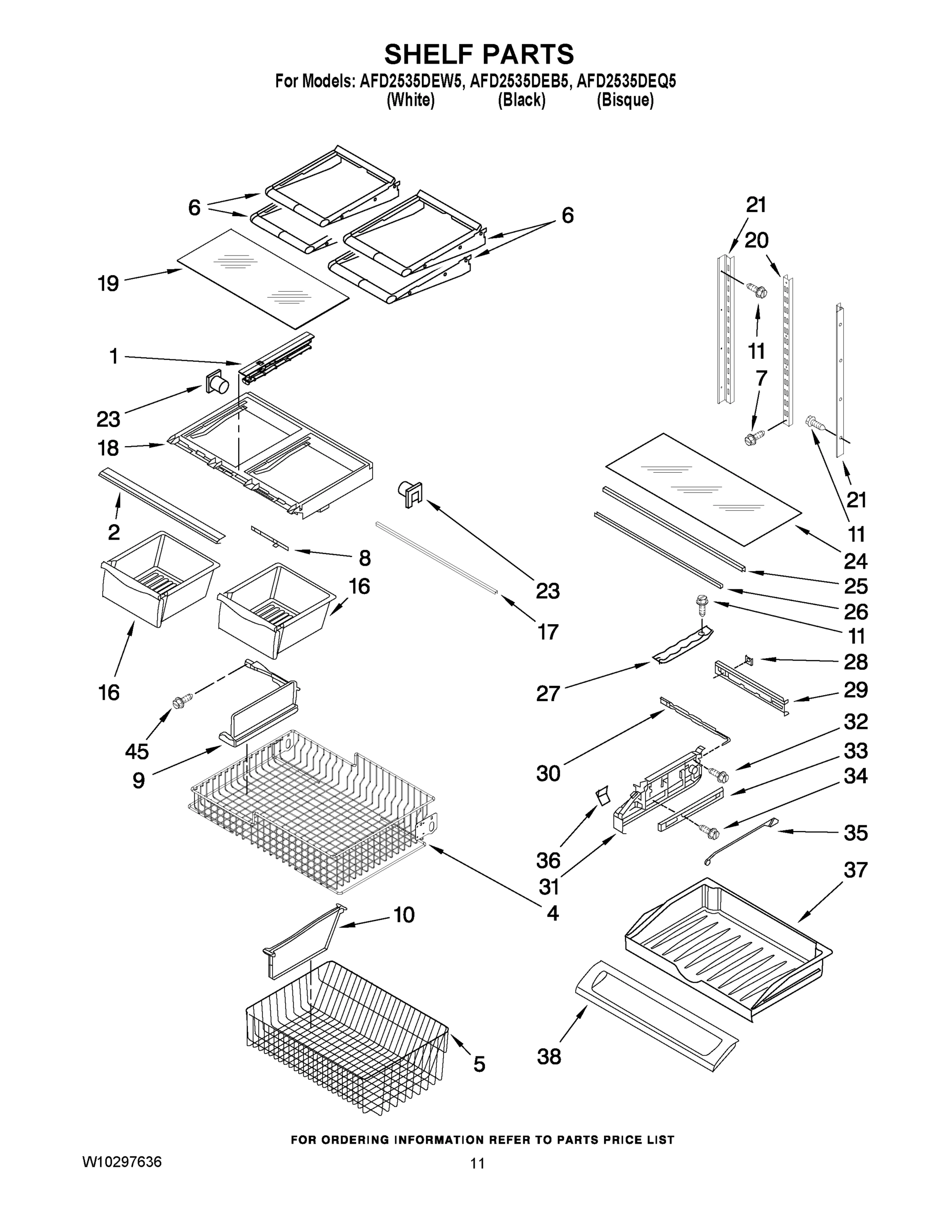

06 - SHELF PARTS

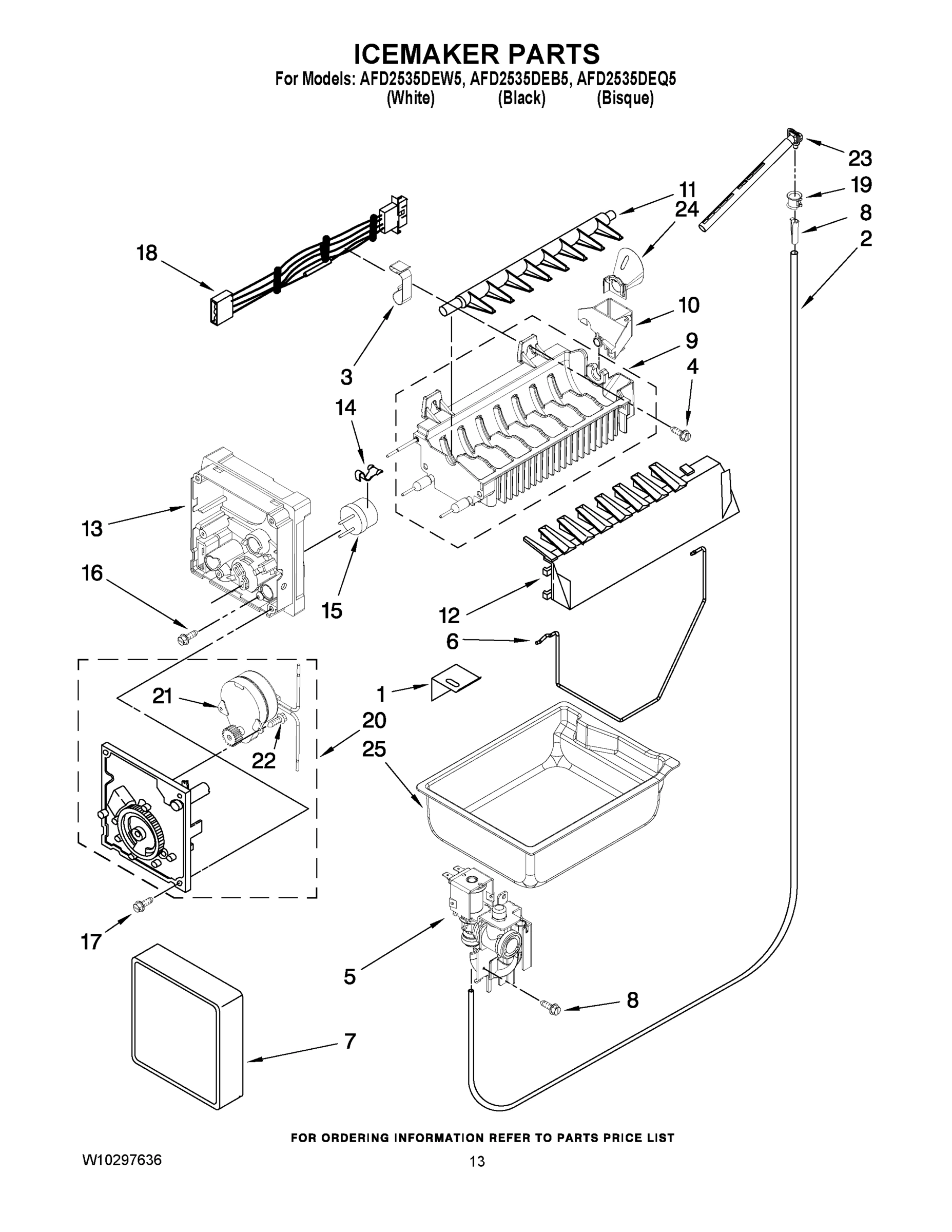

07 - ICEMAKER PARTS

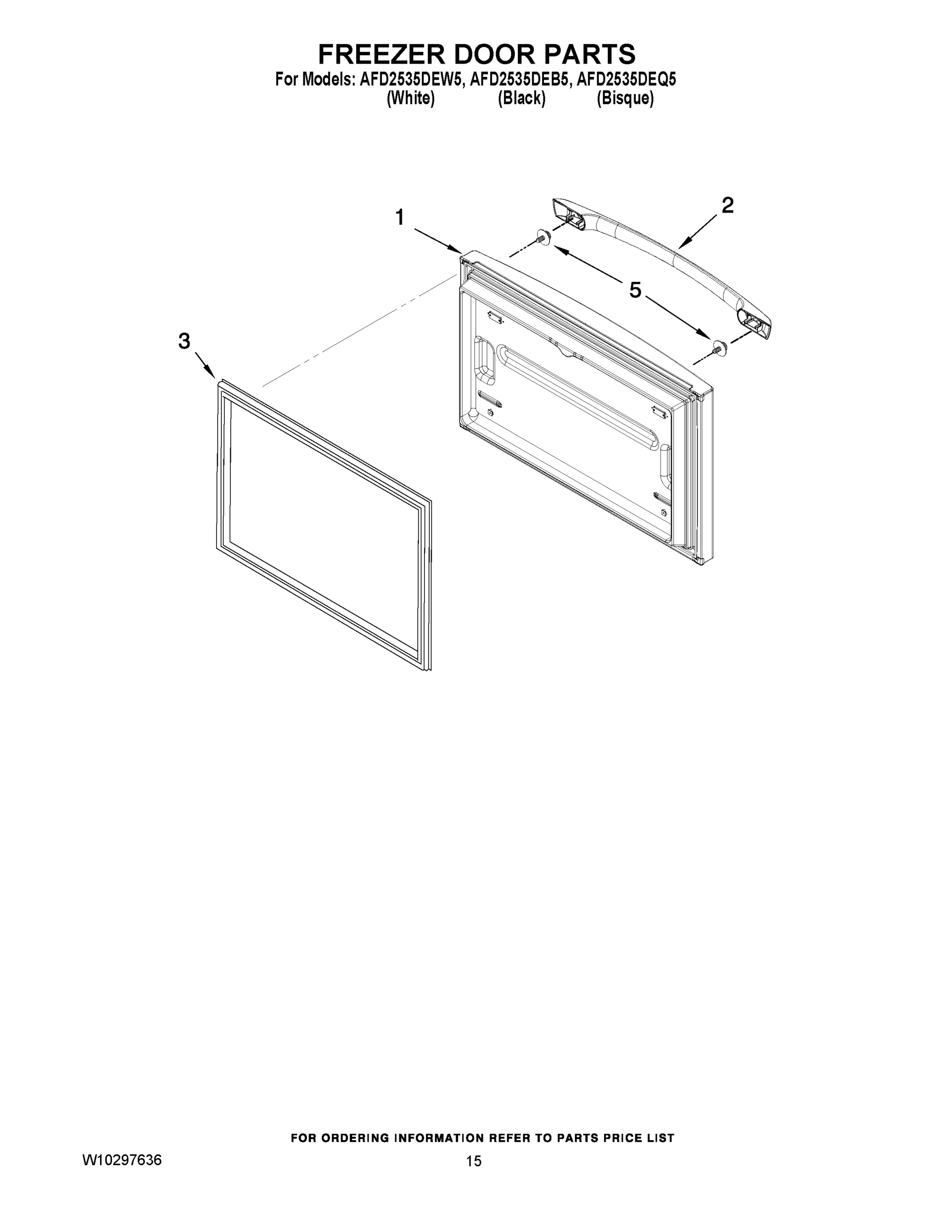

08 - FREEZER DOOR PARTS
09 - OPTIONAL PARTS
Common parts from model Maytag AFD2535DEW5 REFRIGERATOR
1
MAY 13024018BQ MAY 13024018BQ Contact Us For Availability
1
MAY 13024018QQ MAY 13024018QQ Contact Us For Availability
1
MAY 13024018WQ MAY 13024018WQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12796401 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1
Door, Freezer (Black) MAY 13092203BQ Contact Us For Availability
1
Door, Freezer (Bisque) MAY 13092203QQ Contact Us For Availability
1
Door, Freezer (White) MAY 13092203WQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806302 Contact Us For Availability
2
MAY 13024017BQ MAY 13024017BQ Contact Us For Availability
2
MAY 13024017QQ MAY 13024017QQ Contact Us For Availability
2
MAY 13024017WQ MAY 13024017WQ Contact Us For Availability
2
MAY W10179169 MAY W10179169 Contact Us For Availability
2
MAY W10179170 MAY W10179170 Contact Us For Availability
2
MAY W10179171 MAY W10179171 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231344 MAY W10231344 Contact Us For Availability
2
MAY B5705333SP MAY B5705333SP Contact Us For Availability
3
MAY W10177766 MAY W10177766 Contact Us For Availability
3
MAY W10177767 MAY W10177767 Contact Us For Availability
3
MAY W10217483 MAY W10217483 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12816511 MAY 12816511 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 10526702 MAY 10526702 Contact Us For Availability
3
MAY W10164040 MAY W10164040 Contact Us For Availability
3
MAY W10164041 MAY W10164041 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
MAY 12806407 MAY 12806407 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12896403 MAY 12896403 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
Board, Control (Incl Instr Sheet) MAY 12868513 Contact Us For Availability
5
BUCKET, DOOR (GALLON (2) GRIPPER-12567307SP) MAY 12699207 Contact Us For Availability
5
MAY 12849123SP MAY 12849123SP Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 13016003 MAY 13016003 Contact Us For Availability
5
MAY 12544124 MAY 12544124 Contact Us For Availability
6
FOOT, BRAKE MAY W10141622 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12722803B MAY 12722803B Contact Us For Availability
6
MULLION, DOOR (BISQUE) MAY 12722803C Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
SHELF (4) MAY 12654610 Contact Us For Availability
6
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
7
Hinge, Left Top MAY 12566605ED Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAP HEATER MAY W10280423 Contact Us For Availability
7
Screw MAY 12990515 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (White) MAY W10163894 Contact Us For Availability
8
Gasket, Door (Black) MAY W10163895 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL (2) MAY 12530805SP Contact Us For Availability
8
MAY A3223101SP MAY A3223101SP Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
MAY W10179166 MAY W10179166 Contact Us For Availability
9
MAY W10179167 MAY W10179167 Contact Us For Availability
9
MAY W10179168 MAY W10179168 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
DIVIDER, BASKET (UPPER) MAY 12693802 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
10
MAY 12684202B MAY 12684202B Contact Us For Availability
10
Cover, Right Hinge (Bisque) MAY 12684202C Contact Us For Availability
10
MAY 12684202W MAY 12684202W Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY 12476401V MAY 12476401V Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
DIVIDER, BASKET LOWER MAY 12659608 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12226112 MAY 12226112 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY 12968202B MAY 12968202B Contact Us For Availability
11
Stop, Door (Bisque) MAY 12968202Q Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
12
Block, Pivot MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY 12528501 MAY 12528501 Contact Us For Availability
12
Start Device MAY W10194431 Contact Us For Availability
12
MAY 2182124 MAY 2182124 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
Screw (3) MAY 12992403 Contact Us For Availability
14
MAY 12805001 MAY 12805001 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
Retainer MAY 2315522 Contact Us For Availability
15
Hinge, Center (LT) (White) MAY 13000001WD Contact Us For Availability
15
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
Control, Damper (Includes Harness) MAY W10196393 Contact Us For Availability
15
MAY 12028505B MAY 12028505B Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
THERMOSTAT ORDER 542369 CEMENT ALUMILASTIC MAY 628397 Contact Us For Availability
16
Hinge, Right Top MAY 12566604ED Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12804601SP MAY 12804601SP Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (Bisque) MAY 12587703C Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12991603V MAY 12991603V Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Brace, Crisper MAY 12642303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10117358 MAY W10117358 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
MAY 12796301SP MAY 12796301SP Contact Us For Availability
18
MAY D7813011 MAY D7813011 Contact Us For Availability
19
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
19
MAY M0114003SP MAY M0114003SP Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 12706112 MAY 12706112 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
GLASS, CRISPER (COVER) MAY 12204824 Contact Us For Availability
20
Screw (4) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
FACADE, DISPENSER MAY 12706909SP Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY W10273463 MAY W10273463 Contact Us For Availability
20
MODULE ASSEMBLY (INCLUDES ITEMS 21& 22) MAY W10223929 Contact Us For Availability
21
MAY W10211855 MAY W10211855 Contact Us For Availability
21
MOTOR (ORDER ITEM No.20) MAY N/P Contact Us For Availability
21
Gasket MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY W10251971 MAY W10251971 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
GRILLE, TOE (BISQUE) MAY W10244562 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY 12704801 MAY 12704801 Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
HEAD, WATER FILTER ASSEMBLY MAY 12590620 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY 13062602 MAY 13062602 Contact Us For Availability
23
MAY 10463203SP MAY 10463203SP Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
GLASS, PANTRY MAY 12204830 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
25
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
25
MAY UKF8001 MAY UKF8001 Contact Us For Availability
25
TRIM, PANTRY GLASS MAY 12655902SP Contact Us For Availability
25
MAY 12695001 MAY 12695001 Contact Us For Availability
26
Fiber, Acoustic MAY 12820505 Contact Us For Availability
26
Screw (8) MAY 12990521 Contact Us For Availability
26
PLUG, FILTER BYPASS MAY 12664501SP Contact Us For Availability
26
MAY W10234031 MAY W10234031 Contact Us For Availability
26
MAY 12227305WD MAY 12227305WD Contact Us For Availability
27
CRADLE, BASKET (LEFT) MAY W10280608 Contact Us For Availability
27
CRADLE, BASKET (RIGHT) MAY W10280613 Contact Us For Availability
27
CLIP, WATERLINE MAY B8390302SP Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
TRACK, PANTRY MAY 12531901 Contact Us For Availability
28
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10164016 Contact Us For Availability
28
MAY 12656901 MAY 12656901 Contact Us For Availability
29
MAY W10137519 MAY W10137519 Contact Us For Availability
29
MAY W10261199 MAY W10261199 Contact Us For Availability
29
MAY W10261200 MAY W10261200 Contact Us For Availability
29
MAY 12707005 MAY 12707005 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12656202 MAY 12656202 Contact Us For Availability
30
Screw (6) MAY 12990501 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
SLIDE, CONTROL MAY 12655402 Contact Us For Availability
31
SHIM, TOP HINGE MAY 12579702 Contact Us For Availability
31
SHAFT MAY 12812903WD Contact Us For Availability
31
MAY 12707303SP MAY 12707303SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
ENDCAP, PANTRY (RIGHT) MAY 12656019 Contact Us For Availability
31
ENDCAP, PANTRY (LEFT) MAY 12656106 Contact Us For Availability
32
Screw (4) MAY 12990504 Contact Us For Availability
32
Screw, Block MAY 12990303 Contact Us For Availability
32
CLIP, WATER TUBE MAY 12251001SP Contact Us For Availability
32
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
33
Hinge, Center (RT) (White) MAY 13000002WD Contact Us For Availability
33
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
33
GUIDE, WATER MAY 12707206SP Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
33
GLIDE, PANTRY (2) MAY 13058101V Contact Us For Availability
34
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
34
MAY W10157765 MAY W10157765 Contact Us For Availability
34
Screw (4) MAY 12990512 Contact Us For Availability
34
SWITCH, ENERGY MAY 12861601 Contact Us For Availability
35
SWEEP-WATER VALVE MAY 12831101 Contact Us For Availability
35
BAR, TEMP CONT. MAY 12655304 Contact Us For Availability
36
KNOB, CONTROL MAY 12655204V Contact Us For Availability
37
MAY 12731302 MAY 12731302 Contact Us For Availability
38
LID, PANTRY MAY 12656816 Contact Us For Availability
45
MAY 12990601 MAY 12990601 Contact Us For Availability
100
MAY W10190978 MAY W10190978 Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES TH MAY 12868601 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
CLEANER, 10 OZ. STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
