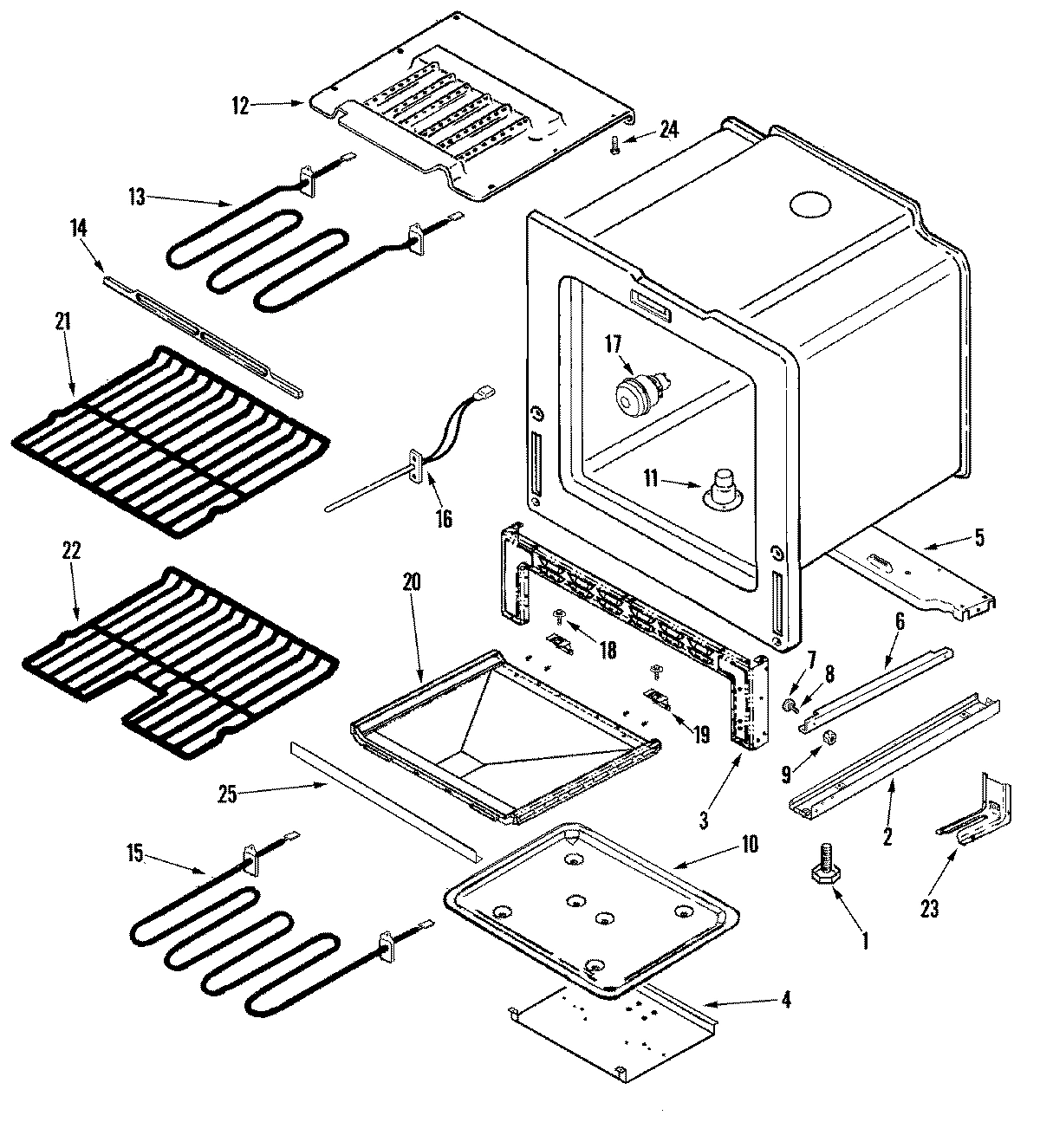

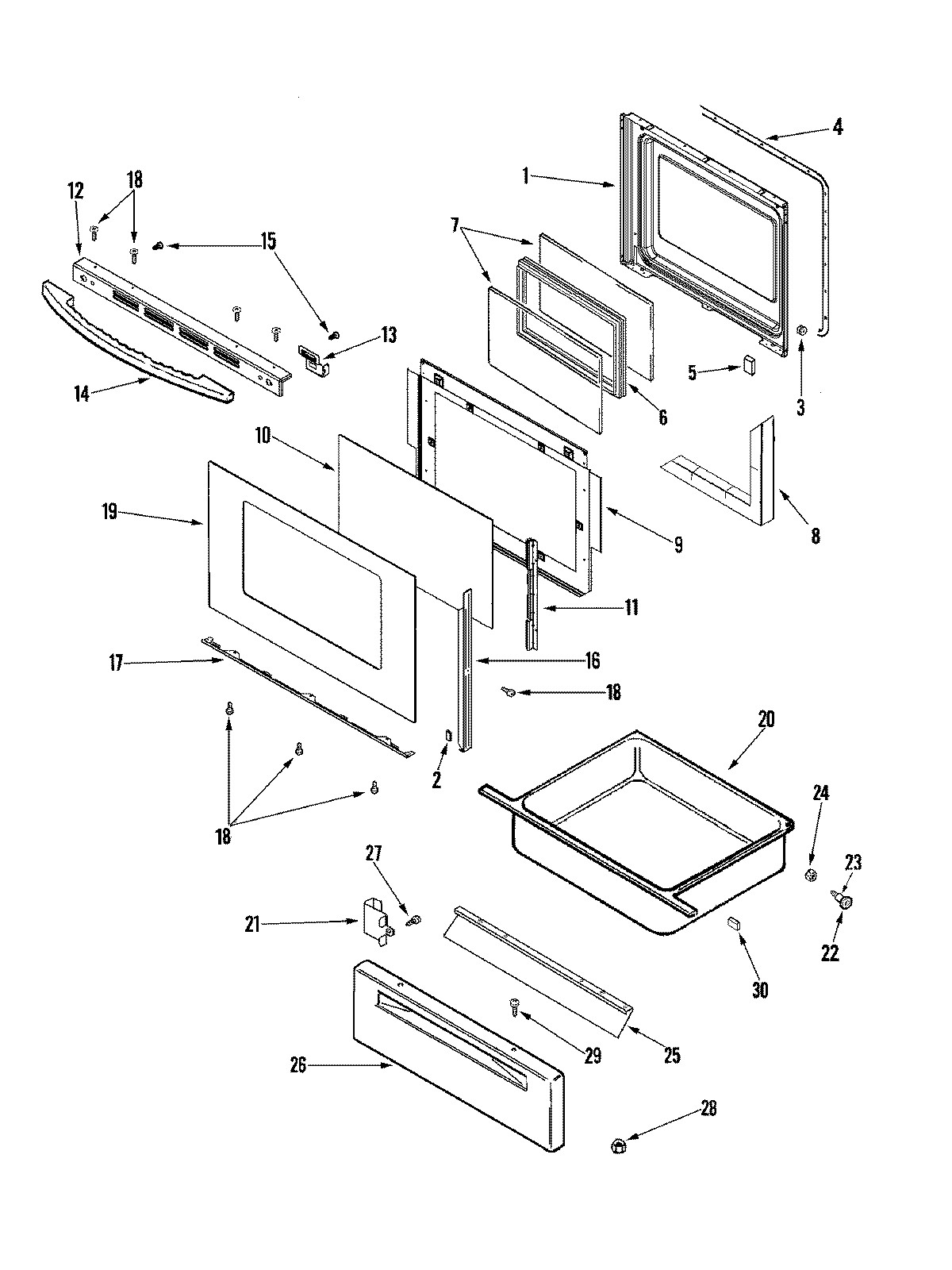

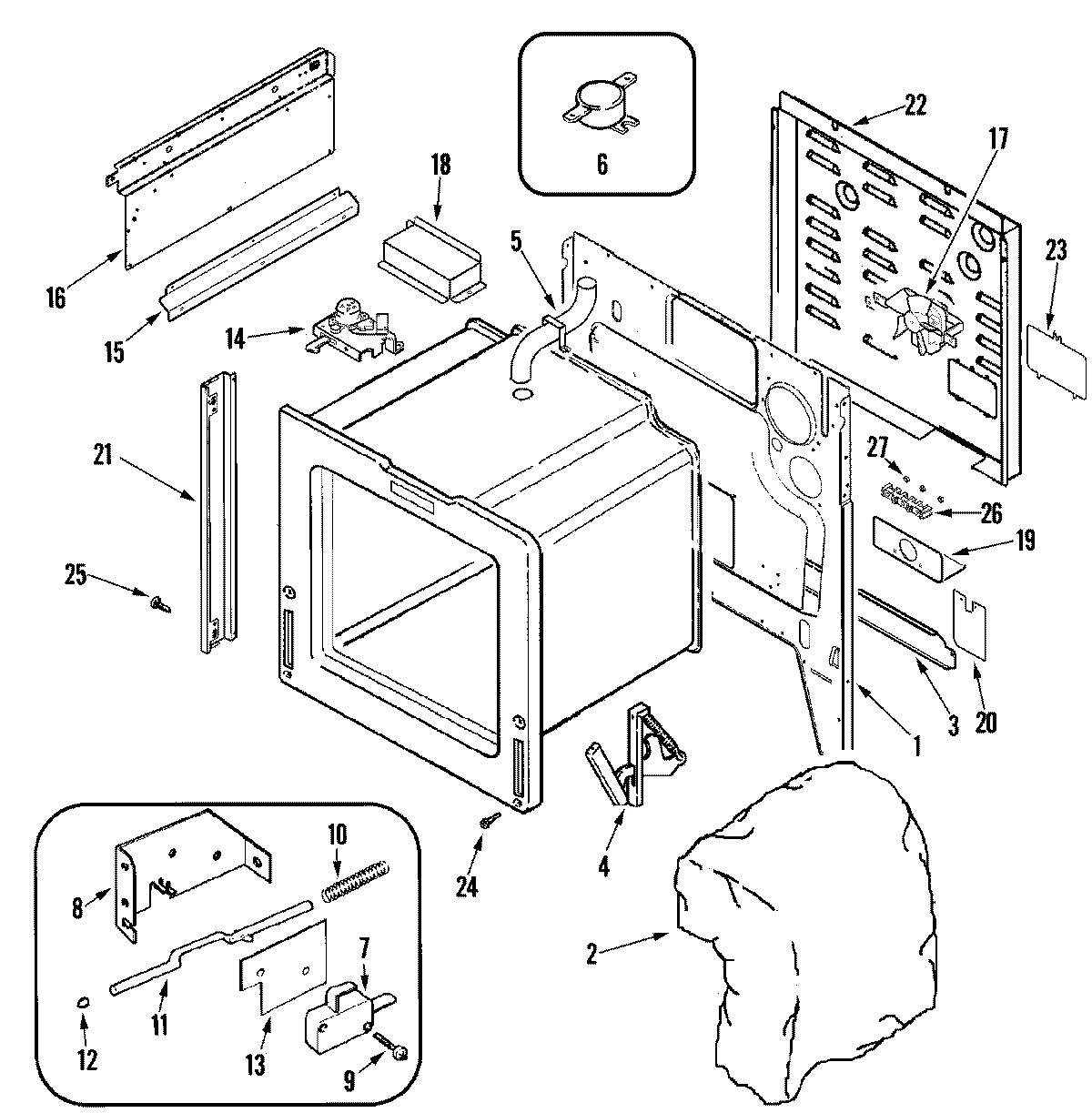

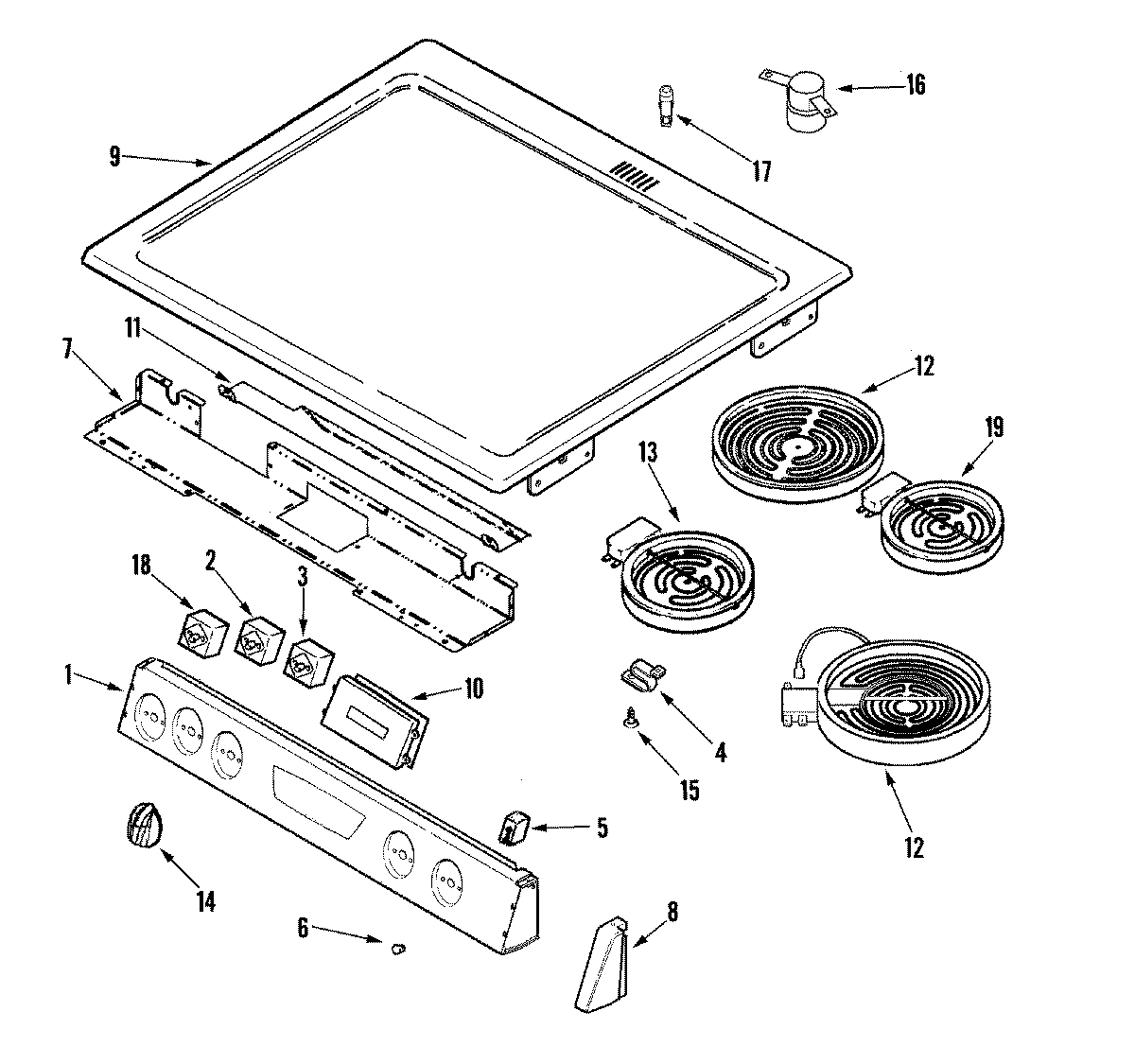

Model Whirlpool AES5730BAN ELECTRIC RANGE – Common Parts &amp; Diagrams

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

PANEL, CONTROL (BSQ) WPL 74010829 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P52260 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P55160 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P76560 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $46.93

2

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

2

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

2

HARNESS, MAIN WPL 74011085 Contact Us For Availability

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.75

3

WP74010824 Whirlpool Range Element Control Sw In Stock WPL WP74010824 $69.37

3

HARNESS, SWICH (RT) WPL 74010850 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

4

HARNESS, SENSOR/LATCH WPL 74010849 Contact Us For Availability

4

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.84

5

HARNESS, SWITCH (LT) WPL 74010851 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

6

HARNESS, TOP ASY WPL 74010852 Contact Us For Availability

6

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $99.83

7

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.75

7

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.19

7

SUPPORT, CONTROL PANEL WPL 74010826 Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

8

CAP, END (BSQ-RT) WPL 74005085 Contact Us For Availability

8

CAP, END (BSQ-LT) WPL 74005086 Contact Us For Availability

8

KIT, EXTRUSION FILLER (BSQ) WPL K71FILLQ Contact Us For Availability

9

SCREW----NA WPL 22002368 Contact Us For Availability

9

BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability

9

TOP ASSEMBLY (BSQ) WPL 74010661 Contact Us For Availability

9

KIT, SIDE PANEL (BSQ) WPL UXA1100AAQ Contact Us For Availability

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.60

GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

CLOCK/OVERLAY (BSQ) WPL 74010955 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE WPL W10124350 Contact Us For Availability

PAN, BAKE WPL 74010806 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

SHIELD, CONTROL WPL 74010846 Contact Us For Availability

TUBE, VENT (LWR) WPL 74010808 Contact Us For Availability

PLATE, VENT COVER WPL 74010809 Contact Us For Availability

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $135.88

BUMPER, ROD WPL 74001631 Contact Us For Availability

TRIM, DOOR TOP (BSQ) WPL 74009691 Contact Us For Availability

BAFFLE, BROIL WPL 74010810 Contact Us For Availability

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $11.17

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $11.17

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $79.05

INSULATOR WPL 74008264 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $162.00

HANDLE, DOOR (BSQ) WPL 74008323 Contact Us For Availability

KNOB (BSQ) WPL 74008732 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.60

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $2.60

WP7406P411-60 Whirlpool Bake Element Backorder WPL WP7406P411-60 $159.71

EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $25.37

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

KIT, DOOR TRIM (BSQ) WPL 12002360 Contact Us For Availability

TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $42.81

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $141.73

SUPPORT, GLASS (BSQ) WPL 74009688 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

18

74010825 Whirlpool Range Switch EL Backorder WPL 74010825 $33.29

18

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

18

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.93

KIT, DOOR GLASS (BSQ) WPL 12002397 Contact Us For Availability

ELEMENT, WARMING WPL 74008898 Contact Us For Availability

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

20

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

20

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

20

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

21

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $48.36

21

TRIM, SIDE (BSQ) WPL 74010833 Contact Us For Availability

21

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

22

RACK, SMART & EASY (30``) WPL 74009527 Contact Us For Availability

23

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.33

23

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

23

SCREW WPL 7101P35260 Contact Us For Availability

24

SCREW WPL 7101P11260 Contact Us For Availability

24

NUT WPL 7103P08260 Contact Us For Availability

24

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

25

LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability

25

COVER, FRONT WPL 74010807 Contact Us For Availability

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

26

PANEL, DRAWER (BSQ) WPL 74004966 Contact Us For Availability

27

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.60

28

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

29

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $2.60

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.37

NI

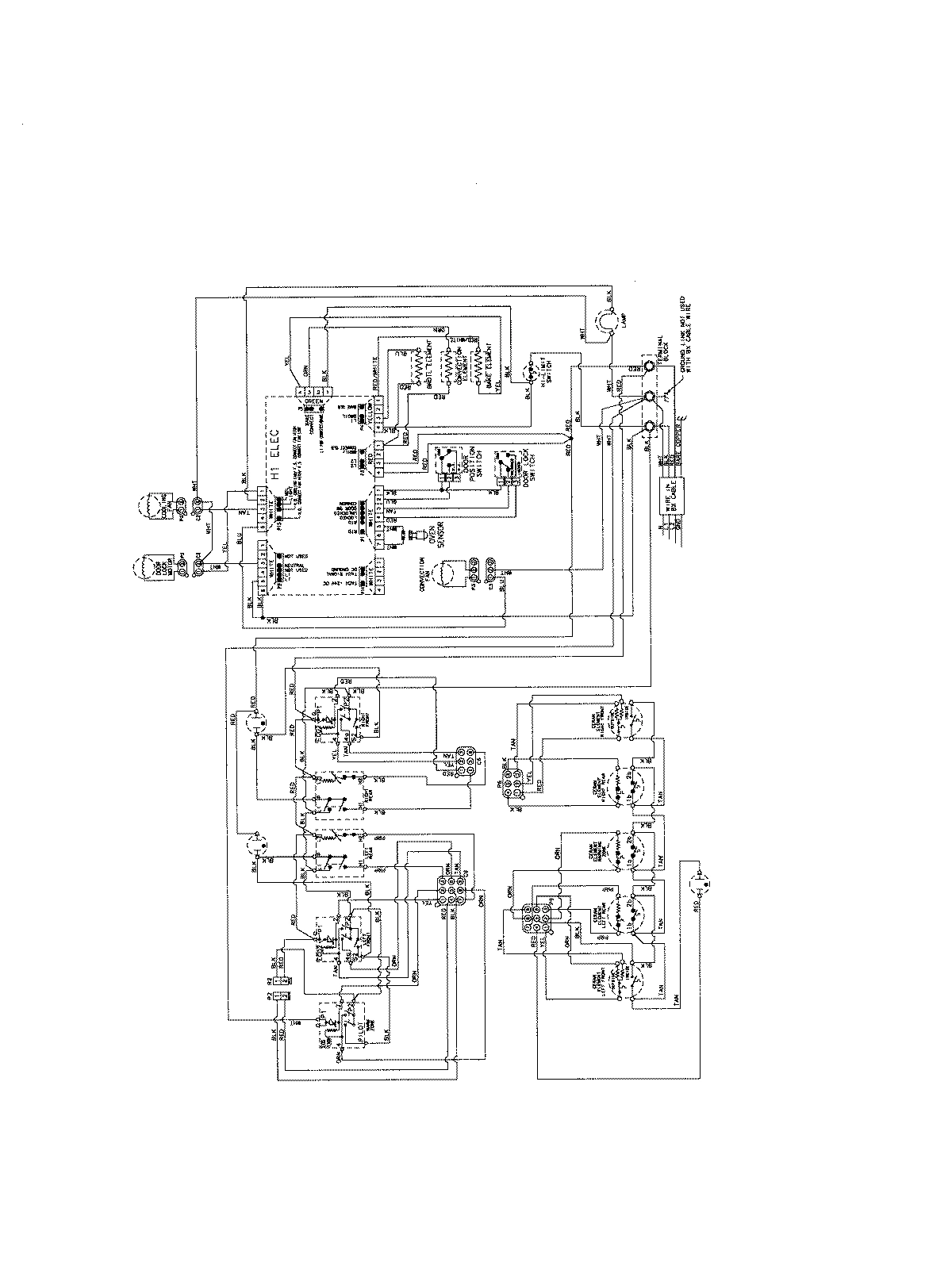

WIRING INFORMATION WPL 15003698 Contact Us For Availability
