Model Maytag AES3540BAW GAS RANGE – Common Parts &amp; Diagrams

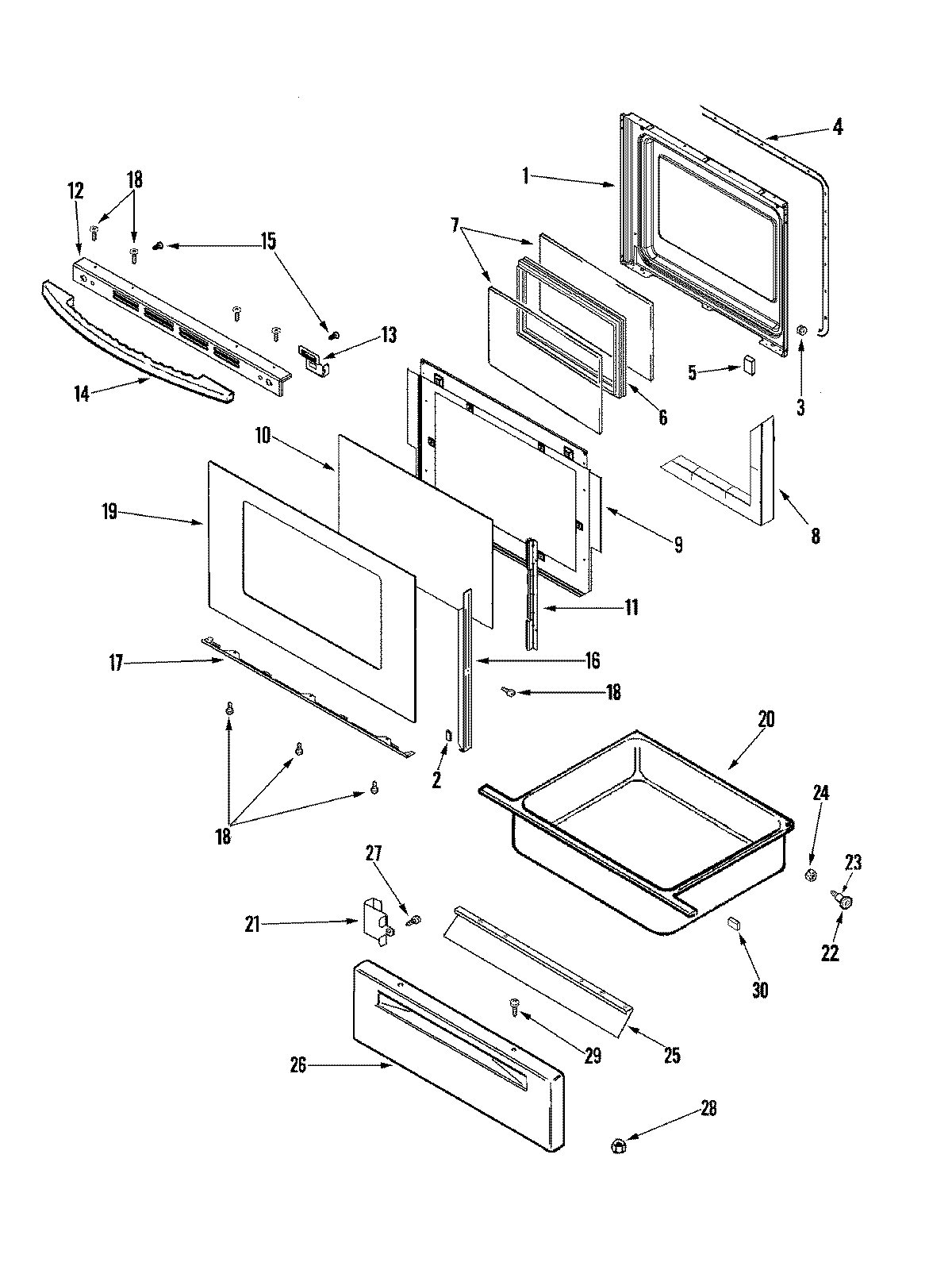

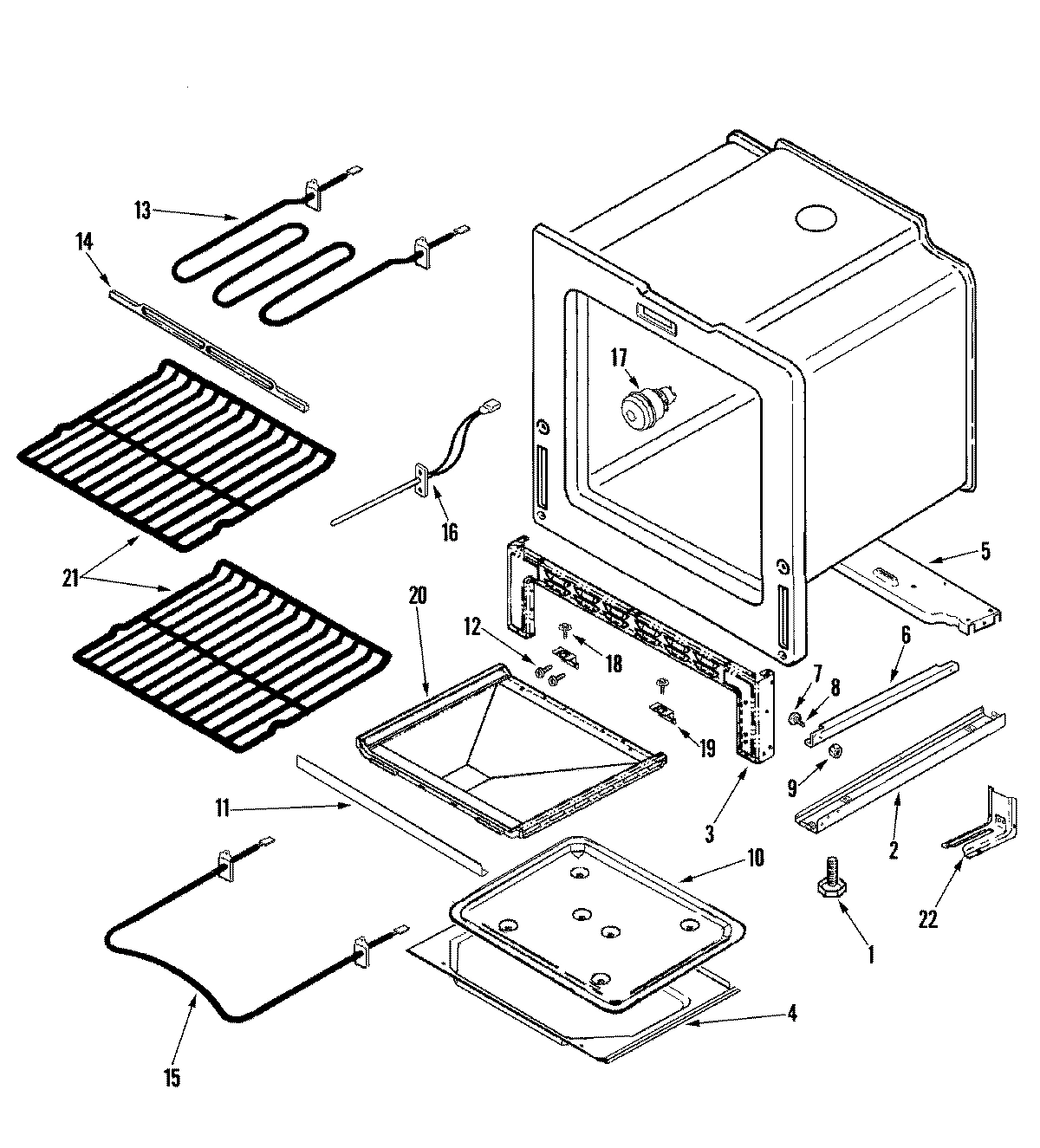

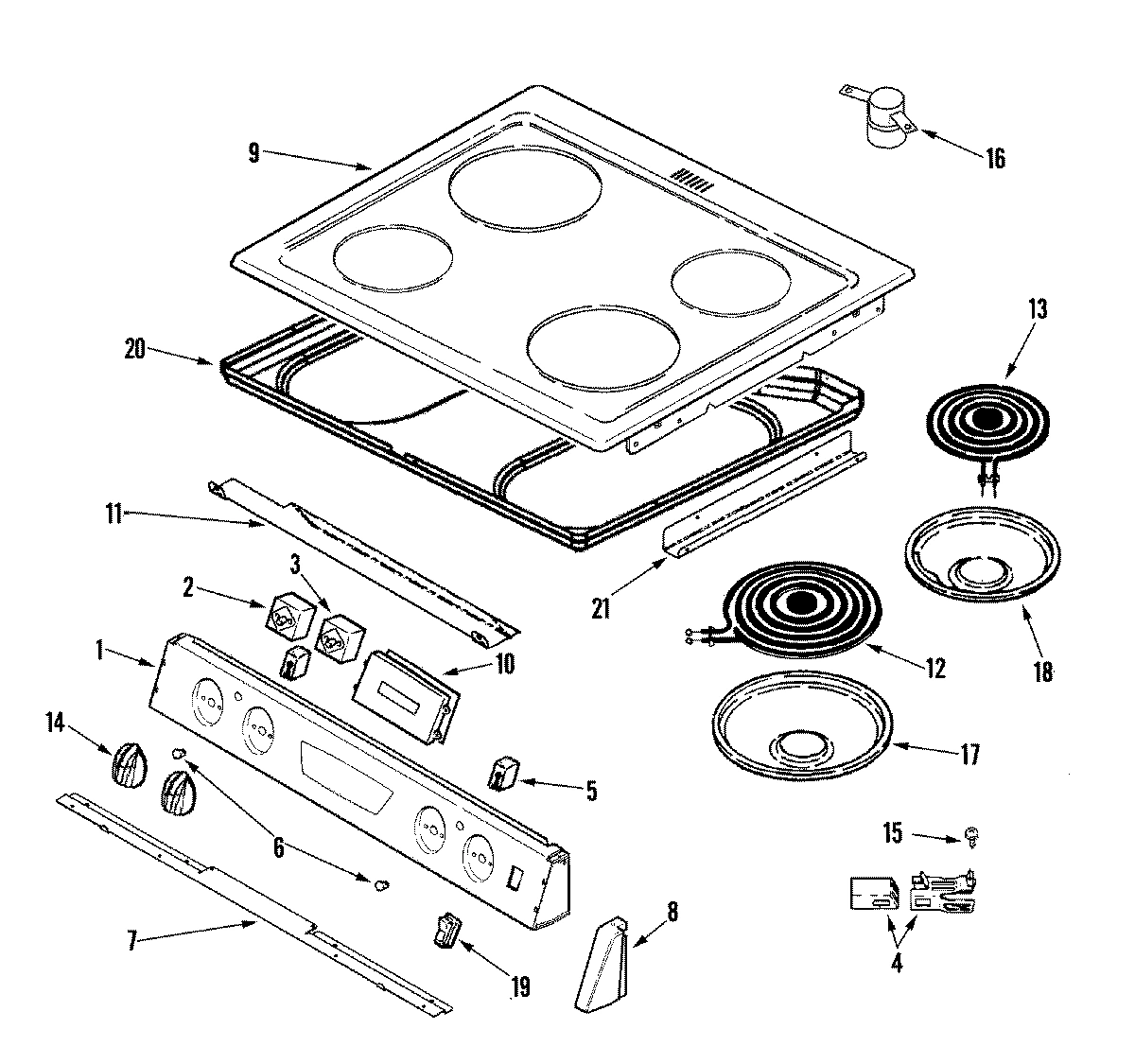

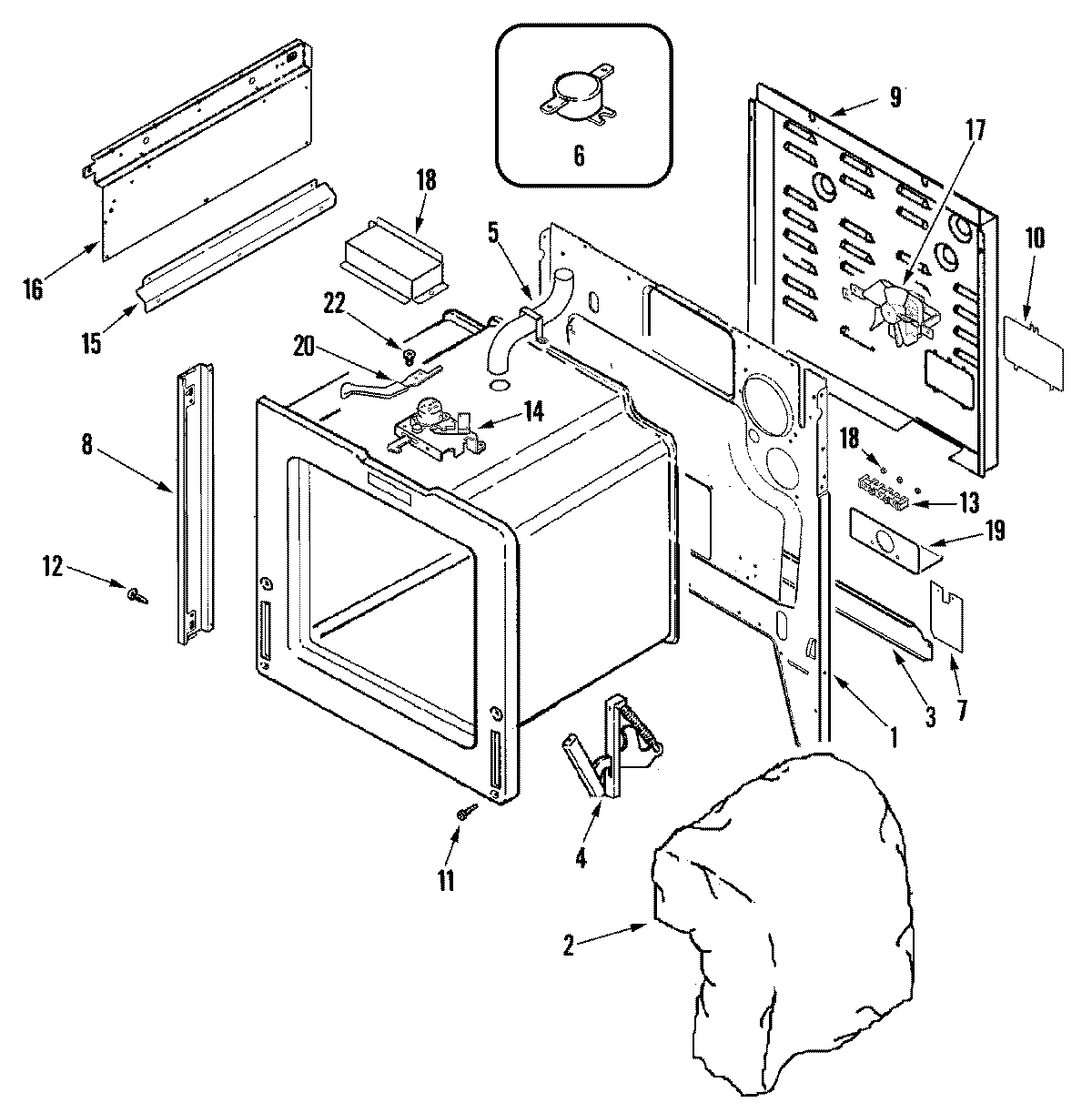

1

LINING, OVEN DOOR MAY 74004972 Contact Us For Availability

1

MAY 8113P504-60 MAY 8113P504-60 Contact Us For Availability

1

MAY 8113P549-60 MAY 8113P549-60 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

2

WP74004224 Whirlpool Tape Backorder WPL WP74004224 $3.82

2

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

2

MAY 74010898 MAY 74010898 Contact Us For Availability

3

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $20.40

3

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

3

PEDESTAL, FRONT MAY 74010882 Contact Us For Availability

3

MAY 74010890 MAY 74010890 Contact Us For Availability

4

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $6.71

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.65

4

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $54.35

4

RETAINER, INSULATION (BOTTOM) MAY 74006522 Contact Us For Availability

4

HARNESS, COIL TOP/ELEMENTS MAY 74010893 Contact Us For Availability

5

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

5

SUPPORT, VALVE REGULATOR MAY 74007129 Contact Us For Availability

5

HARNESS, COIL TOP (RT) MAY 74010891 Contact Us For Availability

6

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

6

FRAME, GLASS MAY 74003644 Contact Us For Availability

6

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

6

HARNESS, COIL TOP (LT) MAY 74010892 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

7

MAY K71FILLW MAY K71FILLW Contact Us For Availability

8

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

8

MAY UXA1100AAW MAY UXA1100AAW Contact Us For Availability

8

CAP, END (WHT-LT) MAY 74004822 Contact Us For Availability

8

MAY 74001842 MAY 74001842 Contact Us For Availability

9

2002M200-81 Whirlpool Cooktop Backorder WPL 2002M200-81 $604.52

9

BAFFLE, OVEN DOOR MAY 74009528 Contact Us For Availability

9

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE MAY W10124350 Contact Us For Availability

9

MAY 74011435 MAY 74011435 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

MAY 74004857 MAY 74004857 Contact Us For Availability

MAY 74010690 MAY 74010690 Contact Us For Availability

LAMP ASSEMBLY MAY 74010885 Contact Us For Availability

11

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $39.71

11

SHIELD, CONTROL MAY 74010846 Contact Us For Availability

11

MAY 74001844 MAY 74001844 Contact Us For Availability

WP3608F141-71 Whirlpool Door Trim Backorder WPL WP3608F141-71 $80.31

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

WPW10345410 Whirlpool Surface Element Backorder WPL WPW10345410 $79.28

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $10.76

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $10.76

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $68.38

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $60.38

14

HANDLE, DOOR (WHT) MAY 74008322 Contact Us For Availability

14

SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability

15

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $2.51

15

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $69.76

15

SCREW (6ABX.25-ZN) MAY 74003357 Contact Us For Availability

16

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

16

MAY 12002358 MAY 12002358 Contact Us For Availability

16

TUBE, VENT (UPR) MAY 74005759 Contact Us For Availability

17

WP3807F708-71 Whirlpool Support Backorder WPL WP3807F708-71 $66.19

18

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $30.20

19

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $30.85

19

MAY 12002393 MAY 12002393 Contact Us For Availability

20

LEVER, LATCH (GRY) MAY 74002974 Contact Us For Availability

20

MAY 74006046 MAY 74006046 Contact Us For Availability

20

DRAWER, STORAGE MAY 74008333 Contact Us For Availability

21

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

21

MAY 74010894 MAY 74010894 Contact Us For Availability

21

MAY 74010896 MAY 74010896 Contact Us For Availability

22

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

25

LINING, DRAWER PANEL MAY 2404F030-51 Contact Us For Availability

26

PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability

27

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

28

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

29

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.64

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

NI

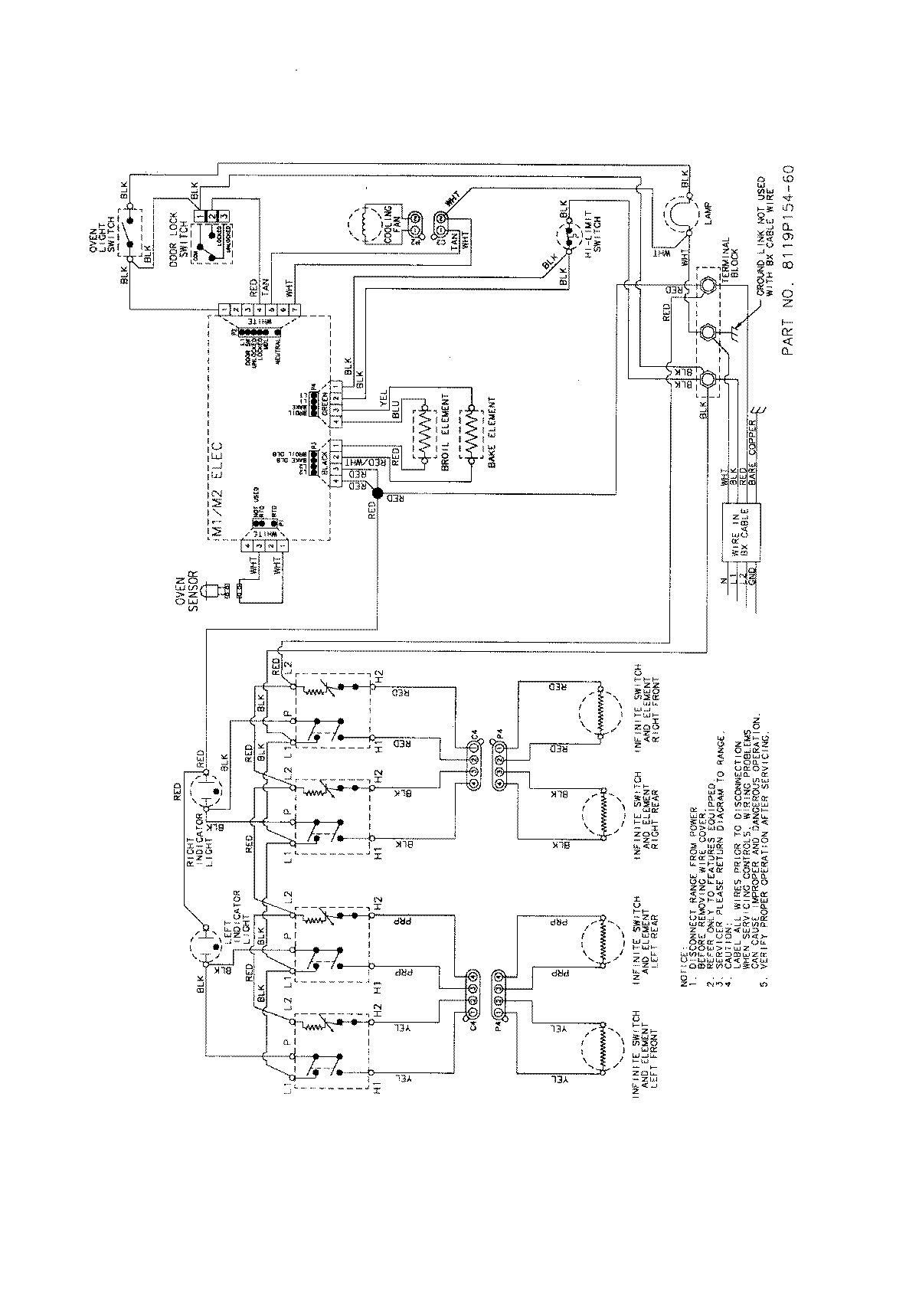

WIRING INFORMATION MAY 15003705 Contact Us For Availability
