Model Maytag AER5845RAW ELECTRIC RANGE – Common Parts & Diagrams

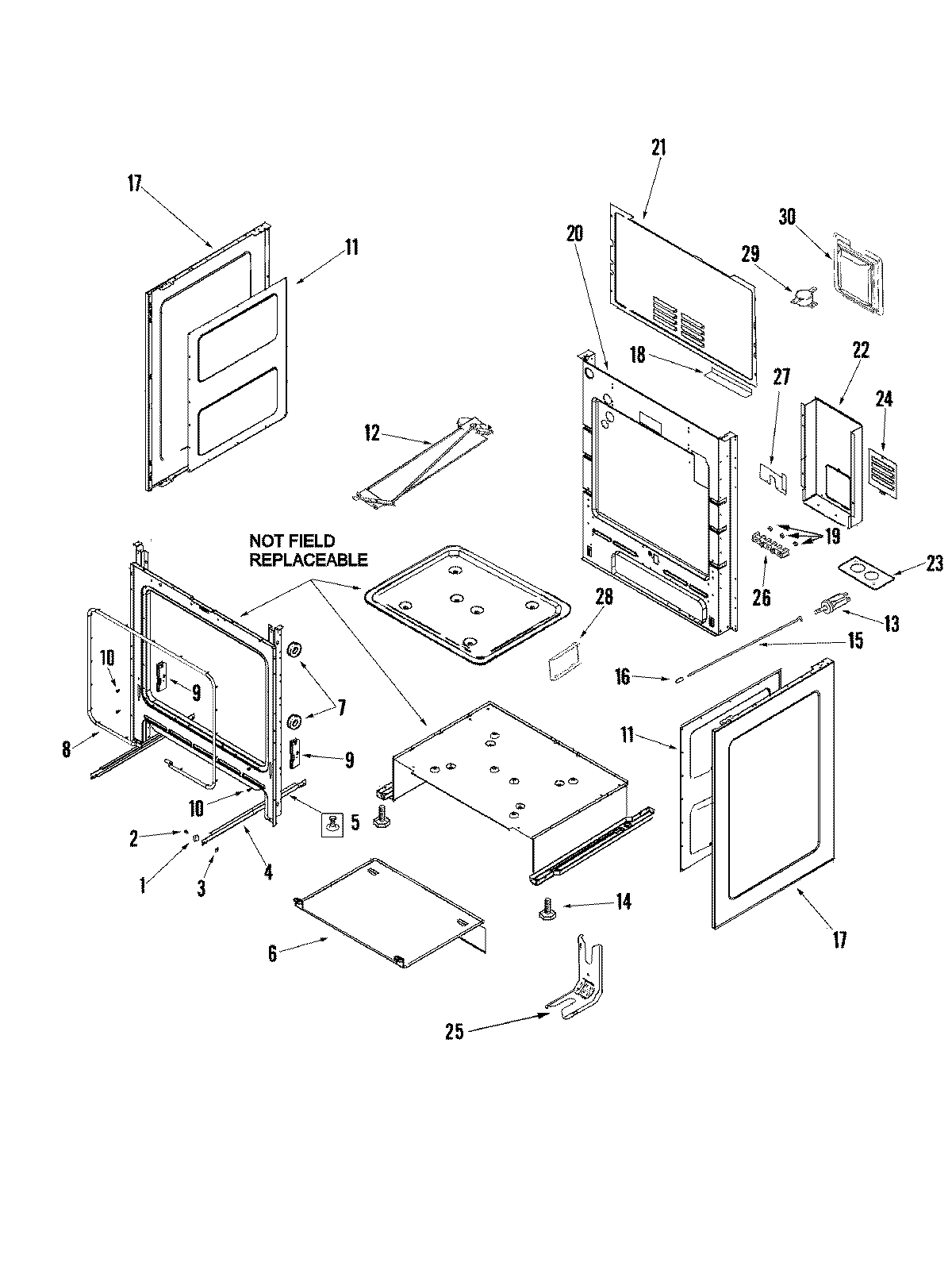

01 - CABINET

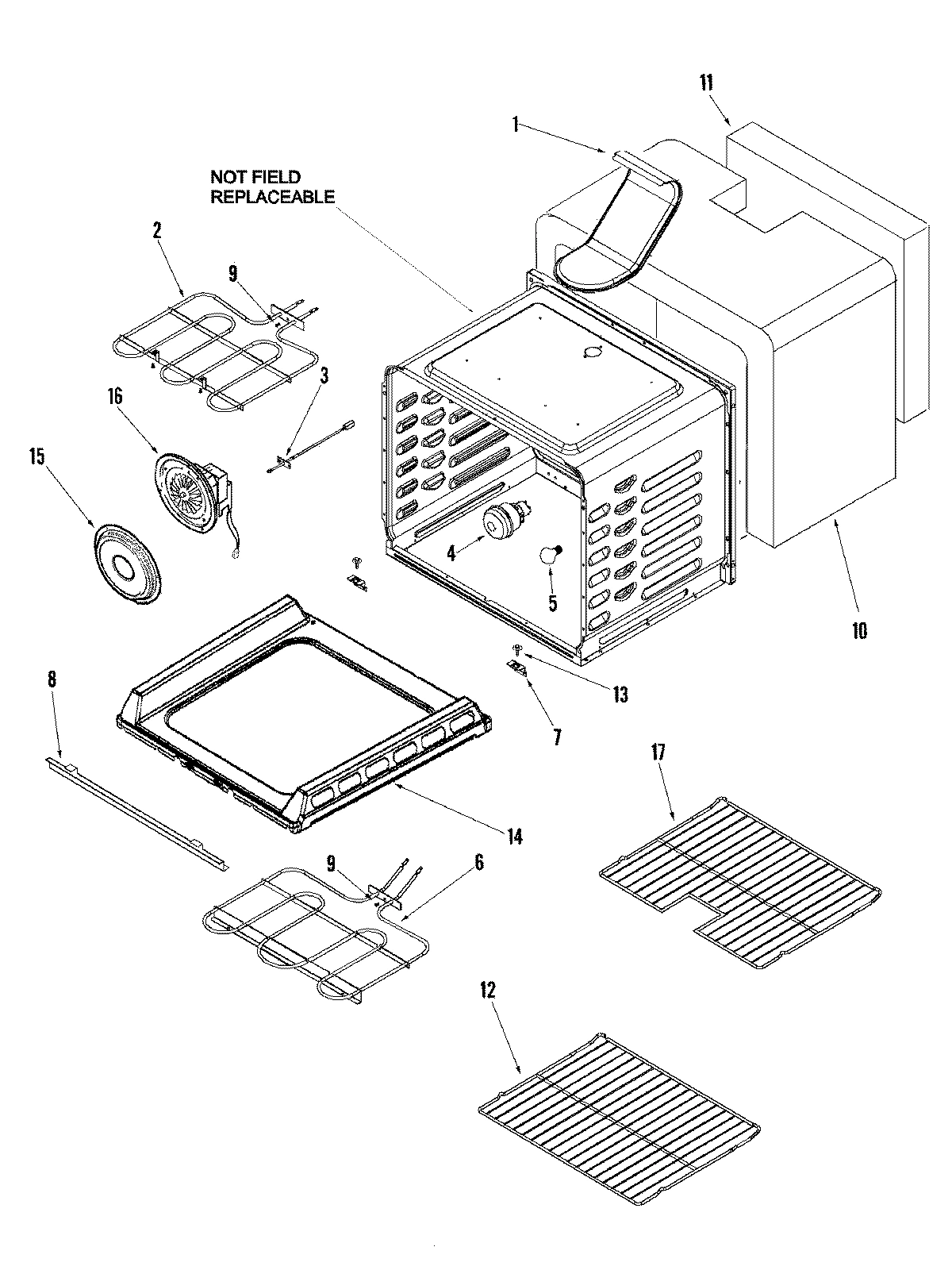

02 - CAVITY
03 - CONTROL PANEL/TOP ASSEMBLY
04 - DOOR/DRAWER
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION
Common parts from model Maytag AER5845RAW ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74011424 MAY 74011424 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P408-60 MAY 8113P408-60 Contact Us For Availability
1
MAY 8113P548-60 MAY 8113P548-60 Contact Us For Availability
1
MAY 8113P733-60 MAY 8113P733-60 Contact Us For Availability
2
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
2
MAY 74008716 MAY 74008716 Contact Us For Availability
2
MAY 74009031 MAY 74009031 Contact Us For Availability
2
MAY W10129620 MAY W10129620 Contact Us For Availability
3
MAY 74006589 MAY 74006589 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 5171P858-60 MAY 5171P858-60 Contact Us For Availability
3
MAY 74008893 MAY 74008893 Contact Us For Availability
4
LENS, LIGHT BULB MAY 74011299 Contact Us For Availability
4
MAY 5171P860-60 MAY 5171P860-60 Contact Us For Availability
4
MAY 74011427 MAY 74011427 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74010564 MAY 74010564 Contact Us For Availability
5
MAY 74011426 MAY 74011426 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
MAY 74008638 MAY 74008638 Contact Us For Availability
7
TRIM, SIDE (WHT) MAY 74010561 Contact Us For Availability
7
MAY 74009330 MAY 74009330 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-WHT) MAY 74009077 Contact Us For Availability
8
END CAP (LT-WHT) MAY 74009079 Contact Us For Availability
8
MAY 20001080 MAY 20001080 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74009444 MAY 74009444 Contact Us For Availability
10
HANDLE, DOOR (WHT) MAY 74008322 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
SHIELD, HEAT VISOR (WHT) MAY 74009203 Contact Us For Availability
11
MAY 74008747 MAY 74008747 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
INSULATION, BOTTOM (FIBERGLASS) MAY 7002P361-60 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74010983 MAY 74010983 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) MAY 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) MAY 74009413 Contact Us For Availability
15
COVER, CONVECT MAY 74005783 Contact Us For Availability
15
MAY 74008911 MAY 74008911 Contact Us For Availability
15
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
16
Fan Assy, Convect MAY 74011168 Contact Us For Availability
16
MAY 74011397 MAY 74011397 Contact Us For Availability
16
MAY 74008853 MAY 74008853 Contact Us For Availability
16
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
17
MAY 74008898 MAY 74008898 Contact Us For Availability
17
MAY 74009045 MAY 74009045 Contact Us For Availability
17
DRAWER, SERVICE MAY 3405F037-80 Contact Us For Availability
17
MAY 74008337 MAY 74008337 Contact Us For Availability
18
BRACKET, MOUNTING MAY 3605P337-51 Contact Us For Availability
18
MAY 74008755 MAY 74008755 Contact Us For Availability
18
PANEL, DRAWER (WHT) MAY W10163040 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
21
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
24
MAY 74009082 MAY 74009082 Contact Us For Availability
NI
MAY 15003862 MAY 15003862 Contact Us For Availability
× ![]()
