Model Maytag AER5823XAS1 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

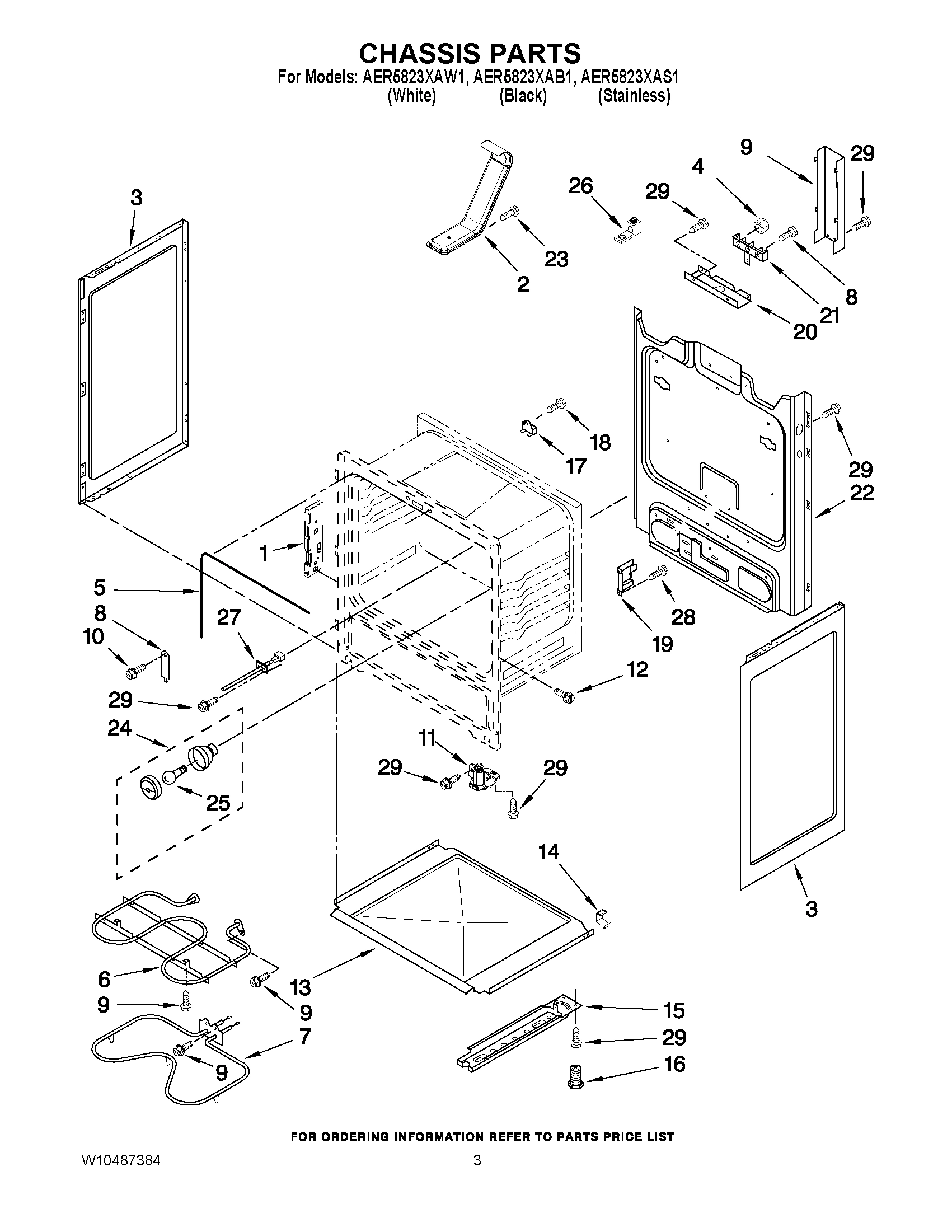

03 - CHASSIS PARTS

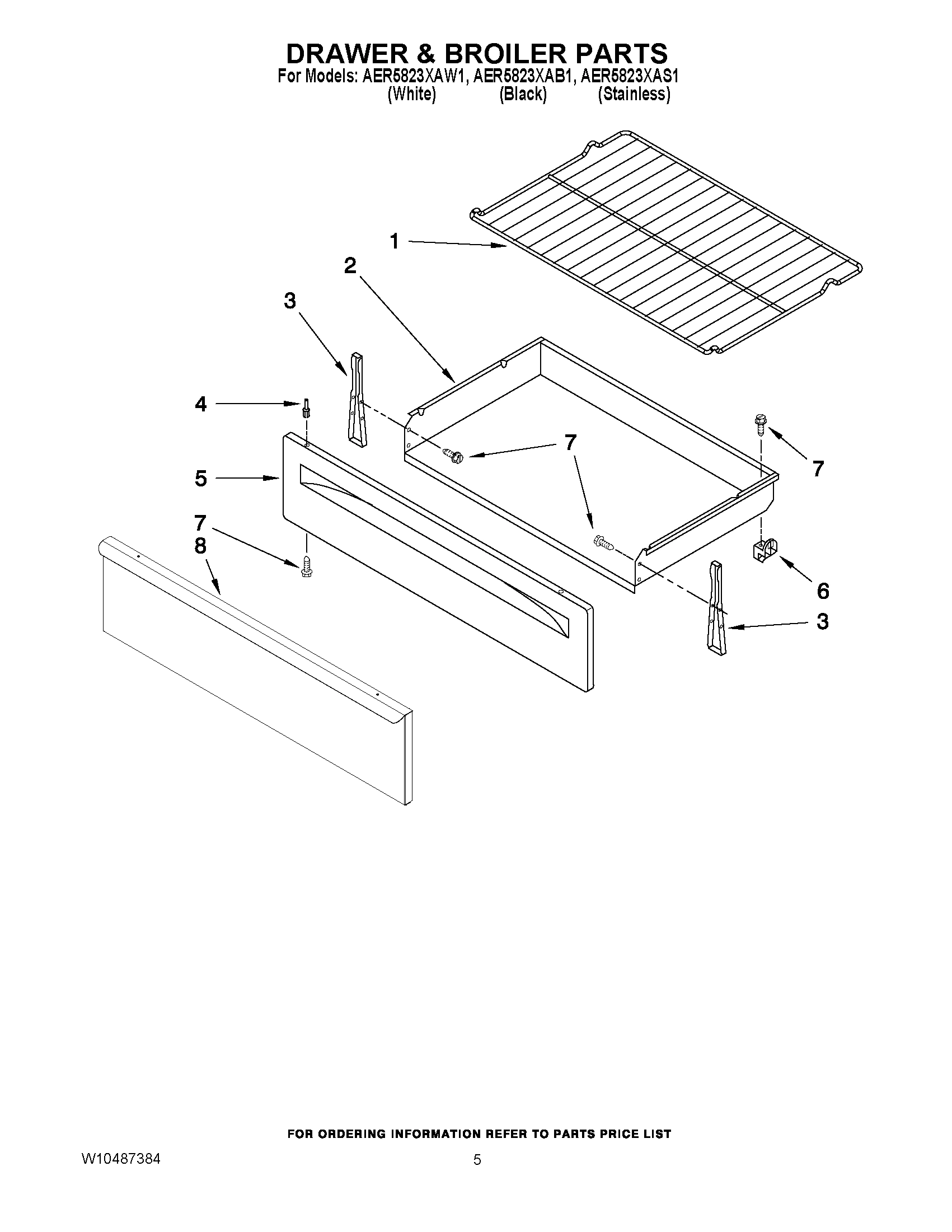

04 - DRAWER & BROILER PARTS

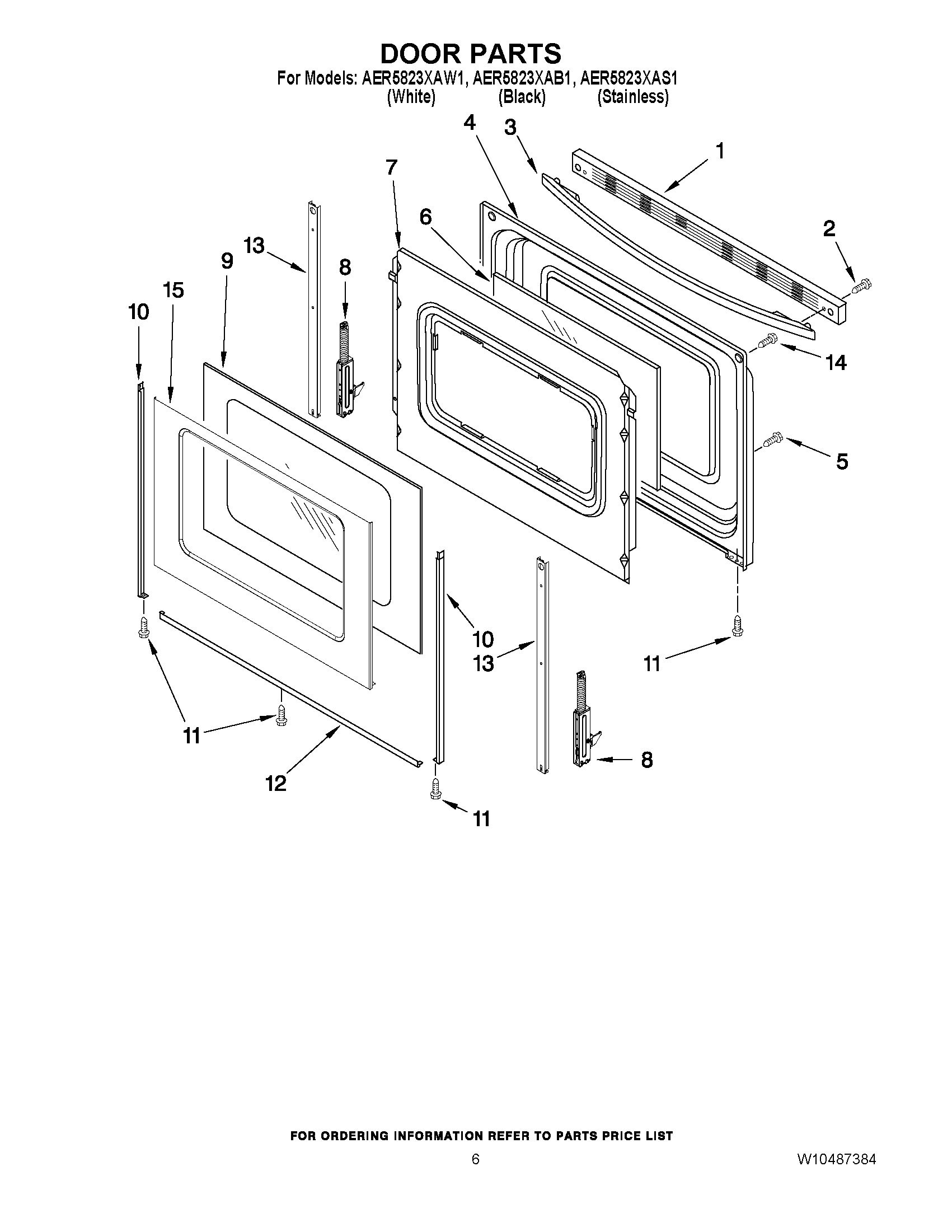

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AER5823XAS1 ELECTRIC RANGE
1
TECH SHEET MAY W10384447 Contact Us For Availability
1
INSTRUCTIONS INSTALLATIONS MAY W10403811 Contact Us For Availability
1
MAY W10419394 MAY W10419394 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
BRKT - MOUNTING MAY 9760407 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
SPRING, LOCATOR MAY W10225448 Contact Us For Availability
2
MAY 3196200 MAY 3196200 Contact Us For Availability
2
Flue MAY W10134285 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY 3196165 MAY 3196165 Contact Us For Availability
3
MAY W10106409 MAY W10106409 Contact Us For Availability
3
MAY W10170011 MAY W10170011 Contact Us For Availability
3
MAY W10170012 MAY W10170012 Contact Us For Availability
3
MAY W10170014 MAY W10170014 Contact Us For Availability
3
PANEL, SIDE (WHITE-TEXTURED) MAY 8053830 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY 8053832 Contact Us For Availability
3
BRACKET, DRAWER (STAINLESS ONLY) MAY W10462910 Contact Us For Availability
3
BRACKET, DRAWER (WHITE/BLACK) MAY W10462912 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Steel) MAY W10144890 Contact Us For Availability
4
MAY W10202162 MAY W10202162 Contact Us For Availability
4
COOKTOP (WHITE) MAY W10202165 Contact Us For Availability
4
SWITCH, INFINITE (LF/RF (YELLOW)) MAY 3148952 Contact Us For Availability
4
SWITCH, INFINITE (LR/RR (GREEN)) MAY 3148953 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 8523045 MAY 8523045 Contact Us For Availability
5
MAY W10242957 MAY W10242957 Contact Us For Availability
5
LIGHT, INDICATOR (SURFACE UNIT) MAY 8523265 Contact Us For Availability
5
Seal, Oven Door MAY W10129032 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
6
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
6
Window, Inner MAY 9758162 Contact Us For Availability
7
MAY 3195060 MAY 3195060 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10119705 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY W10119706 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY 9761501 MAY 9761501 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
CLIP,DOOR MNTG MAY 9761517 Contact Us For Availability
8
PANEL(STLS. MODEL) MAY W10237657 Contact Us For Availability
8
HINGE, DOOR (ACTIVE) MAY W10299225 Contact Us For Availability
8
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
9
MAY 3400882 MAY 3400882 Contact Us For Availability
9
Glass, Outer (White) MAY W10118454 Contact Us For Availability
9
Glass, Outer (Black) MAY W10118455 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Glide, Drawer Frnt MAY W10114344 Contact Us For Availability
10
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
10
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
10
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
10
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
11
Clip MAY 8273564 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
MAY 3196160 MAY 3196160 Contact Us For Availability
12
CONTROL, LCC180 (WHITE) MAY W10363661 Contact Us For Availability
12
CONTROL, LCC180 (BLACK) MAY W10363662 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
Trim, Lower (White) MAY 8523175 Contact Us For Availability
12
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
STRAP, DOOR MAY W10113759 Contact Us For Availability
14
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10200660 MAY W10200660 Contact Us For Availability
15
MAY W10182322 MAY W10182322 Contact Us For Availability
15
RAIL, BASE (RIGHT) MAY W10390007 Contact Us For Availability
15
RAIL, BASE (LEFT) MAY W10390008 Contact Us For Availability
15
STAINLESS MAY W10144884 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
17
Thermal, Fuse MAY 3196548 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
24
LIGHT SOCKET ASSY MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
ADAPTER BLOCK, BARE WIRE MAY W10281322 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 3196169 MAY 3196169 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
NI
Screw (Grnd Wire / Back) MAY 3196174 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8212473 MAY 8212473 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
MAY W10144763 MAY W10144763 Contact Us For Availability
NI
MAY W10174459 MAY W10174459 Contact Us For Availability
NI
MAY W10233340 MAY W10233340 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10273584 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273585 Contact Us For Availability
× ![]()
