Model GE AEM497*21500 General Electric Model AEM497*21500 – Common Parts & Diagrams

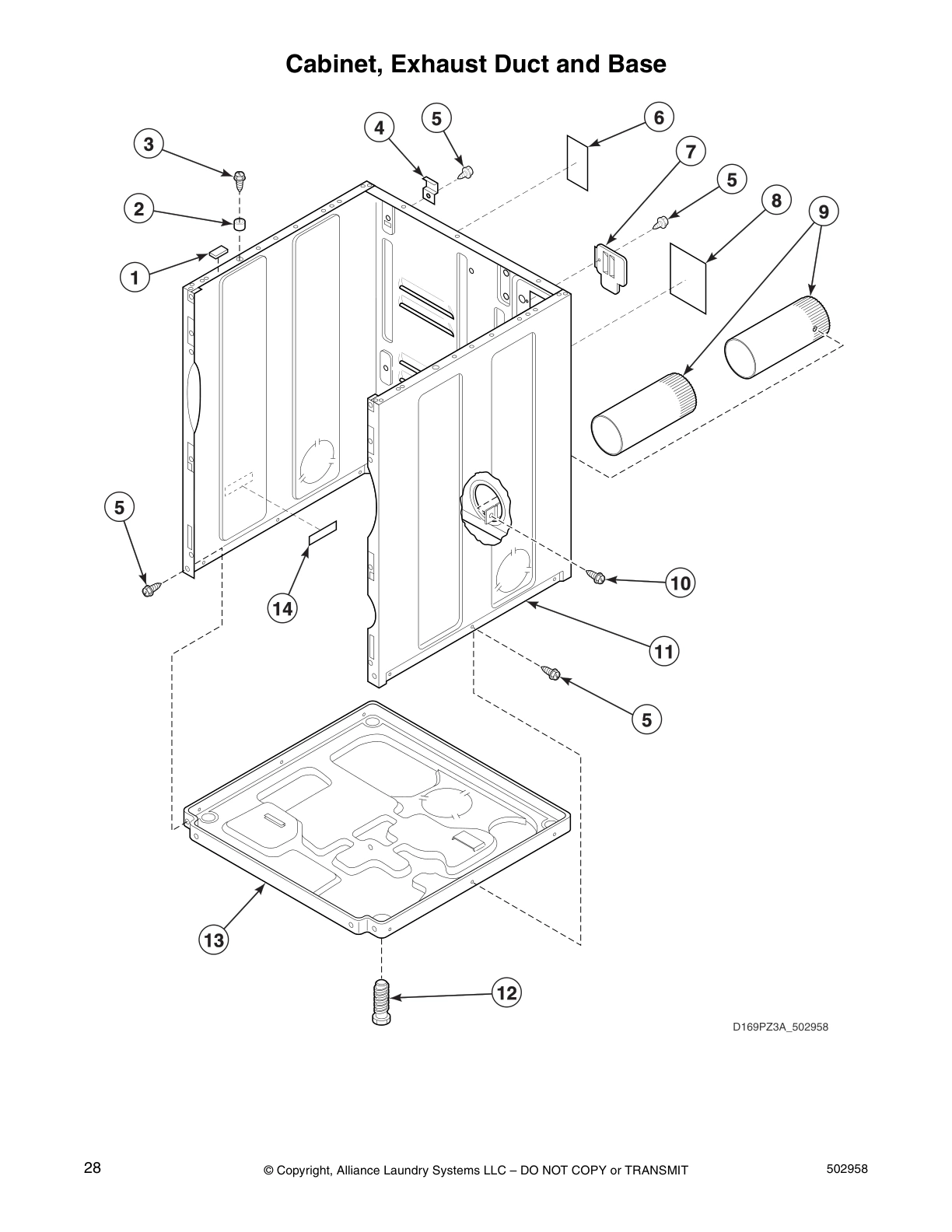

Cabinet, Exhaust Duct and Base

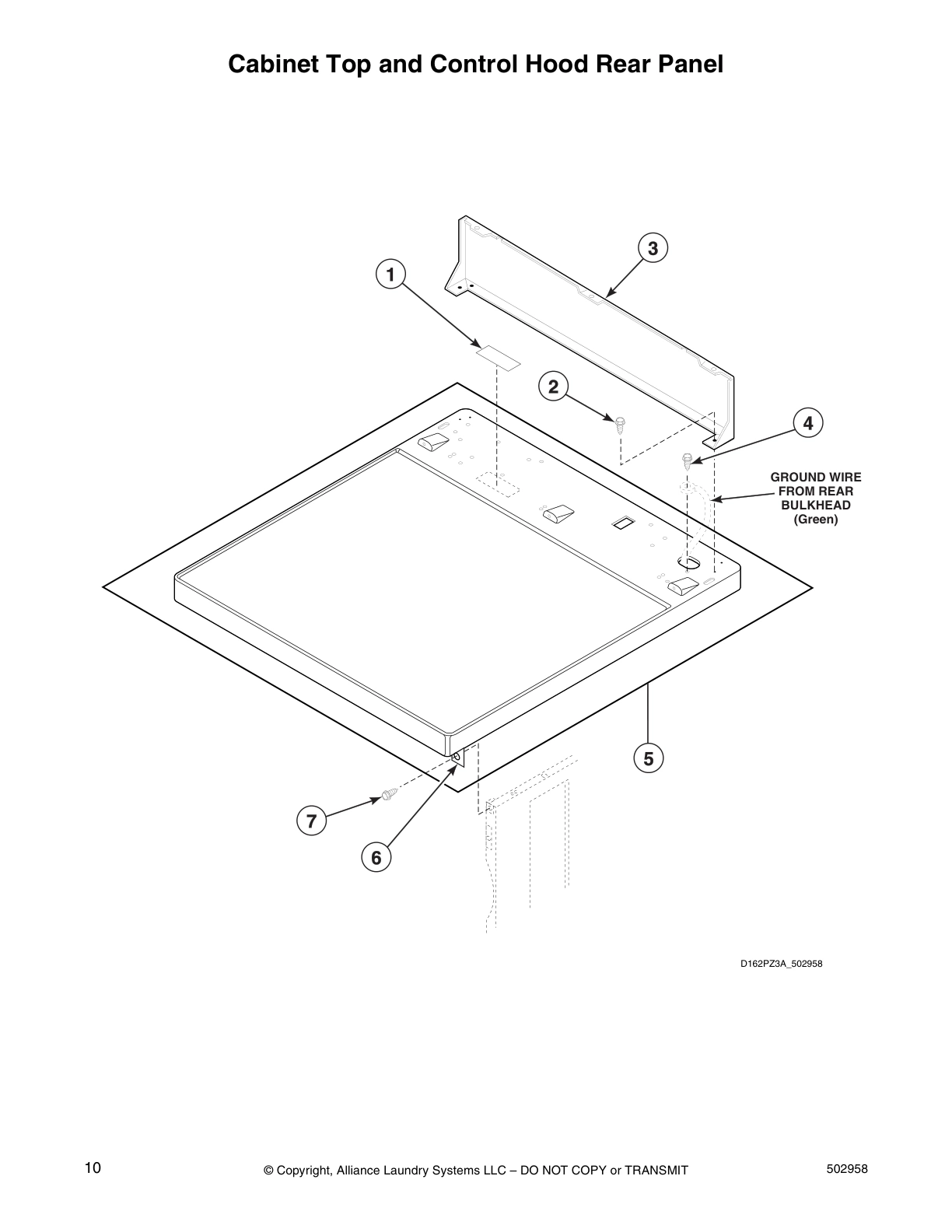

Cabinet Top and Control Hood Rear Panel

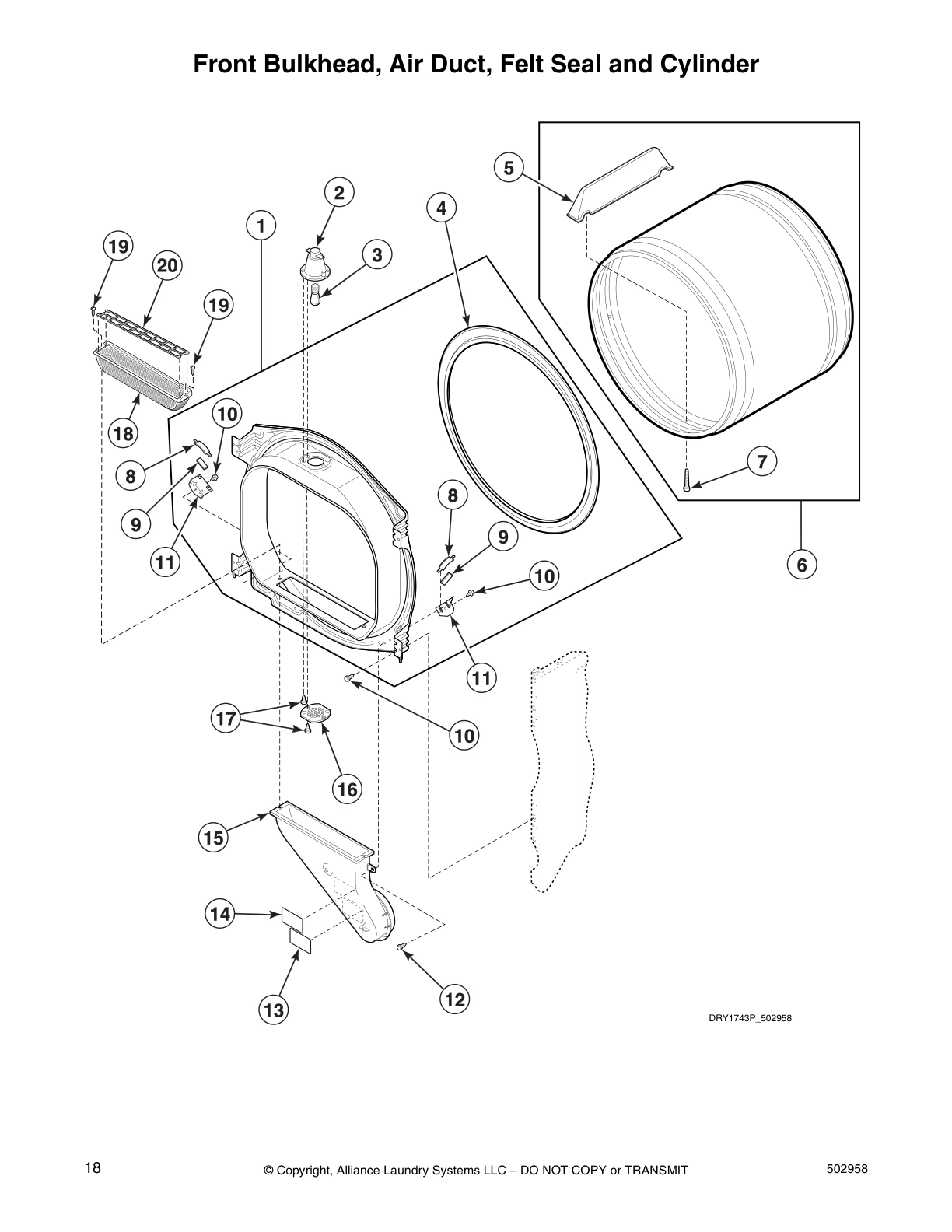

Front Bulkhead, Air Duct, Felt Seal and Cylinder

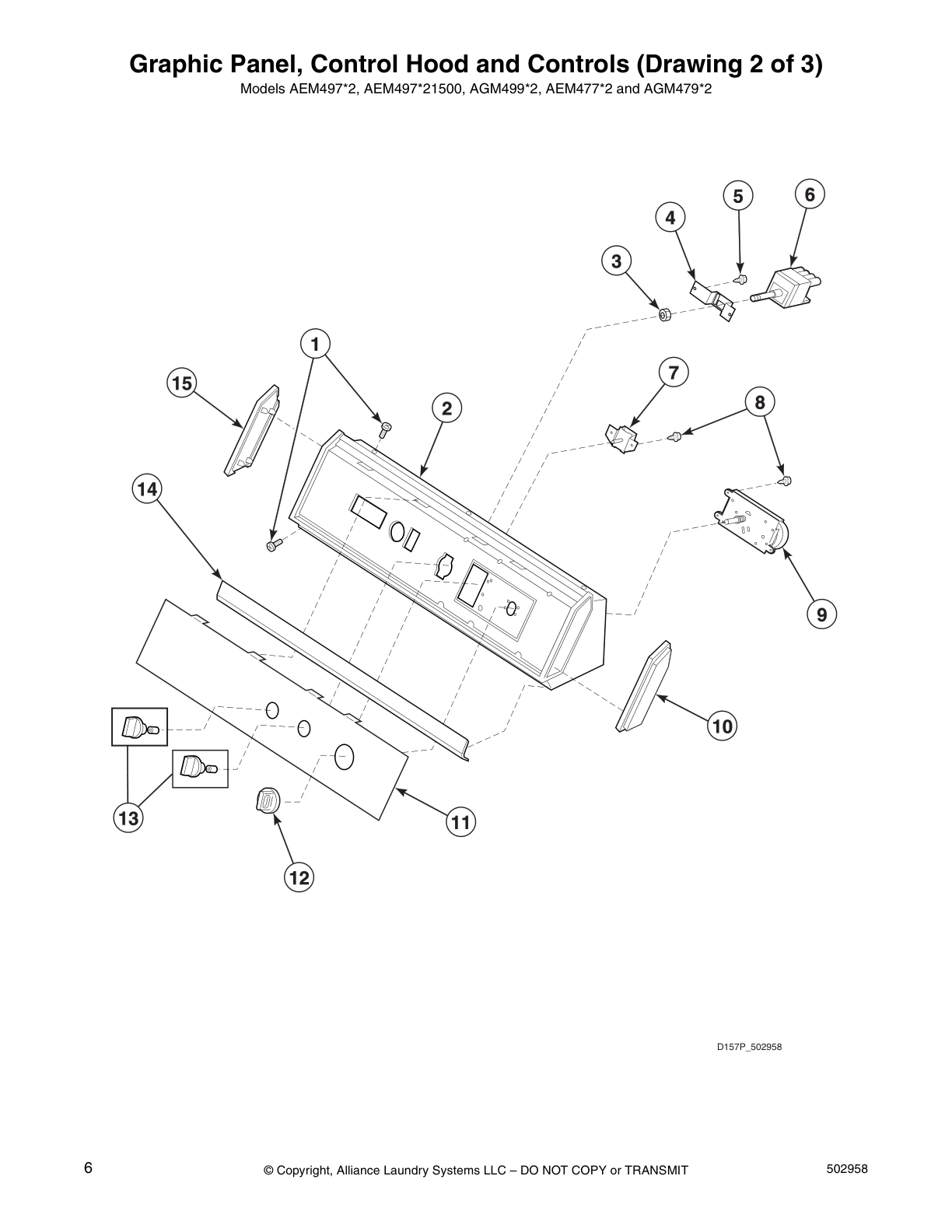

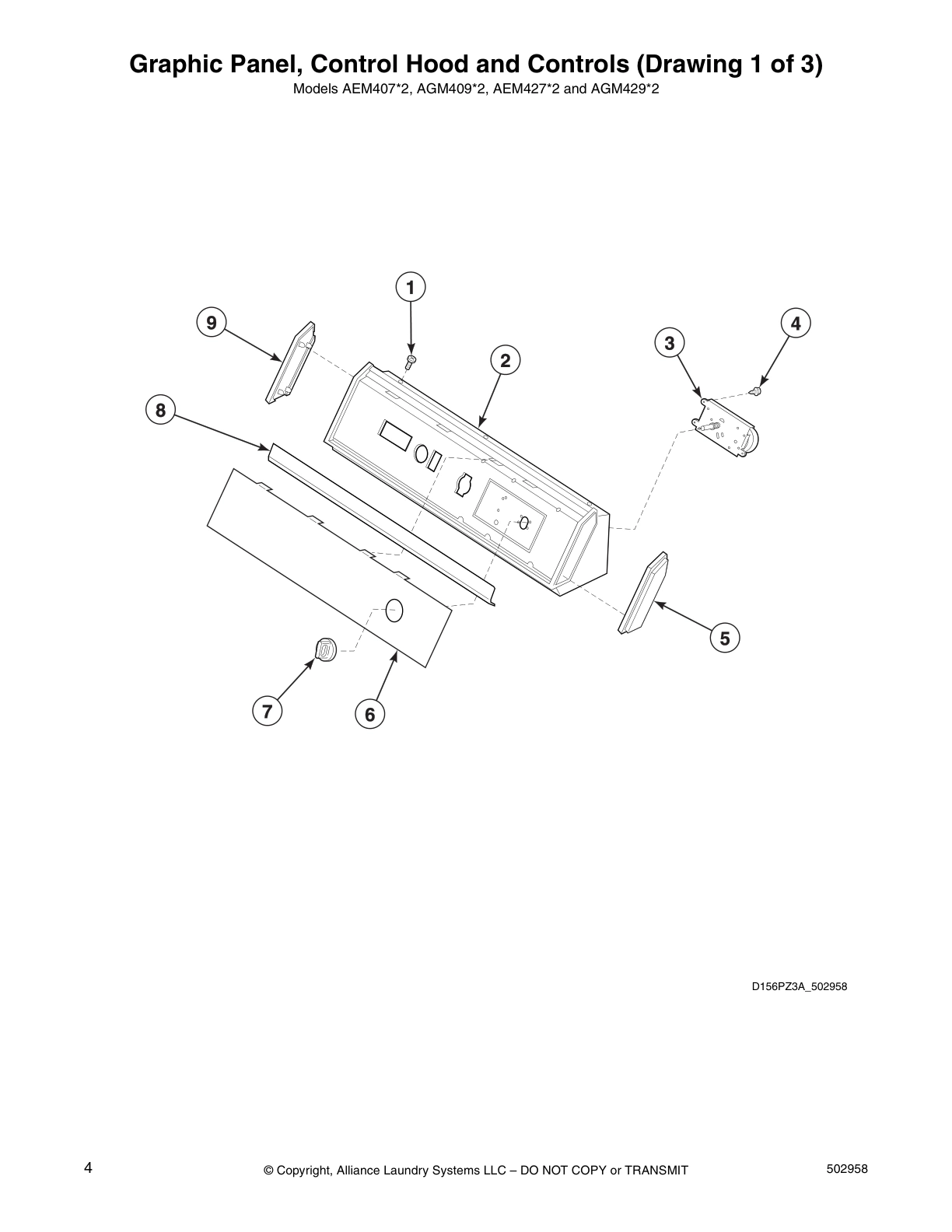

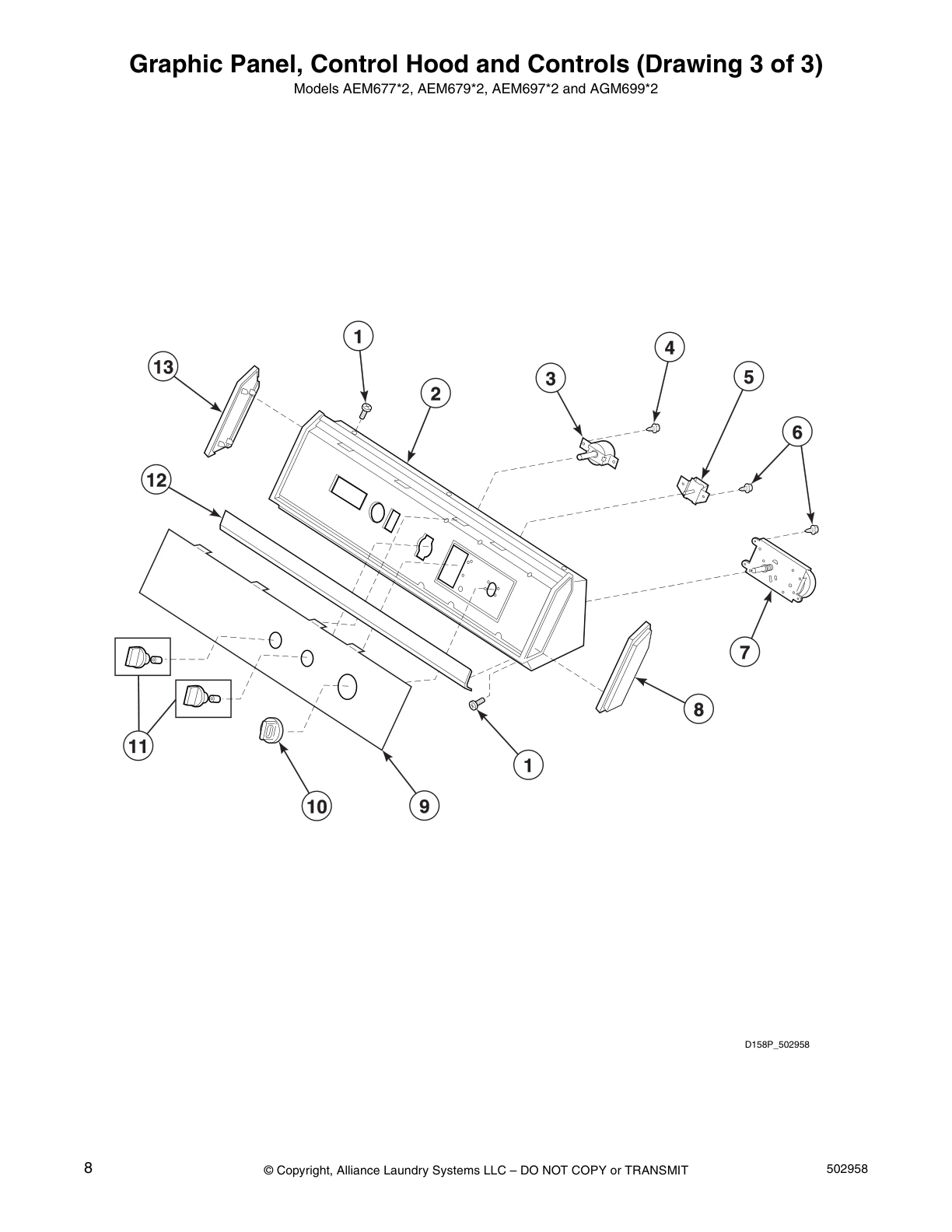

Graphic Panel, Control Hood and Controls (Drawing 2 of 3)

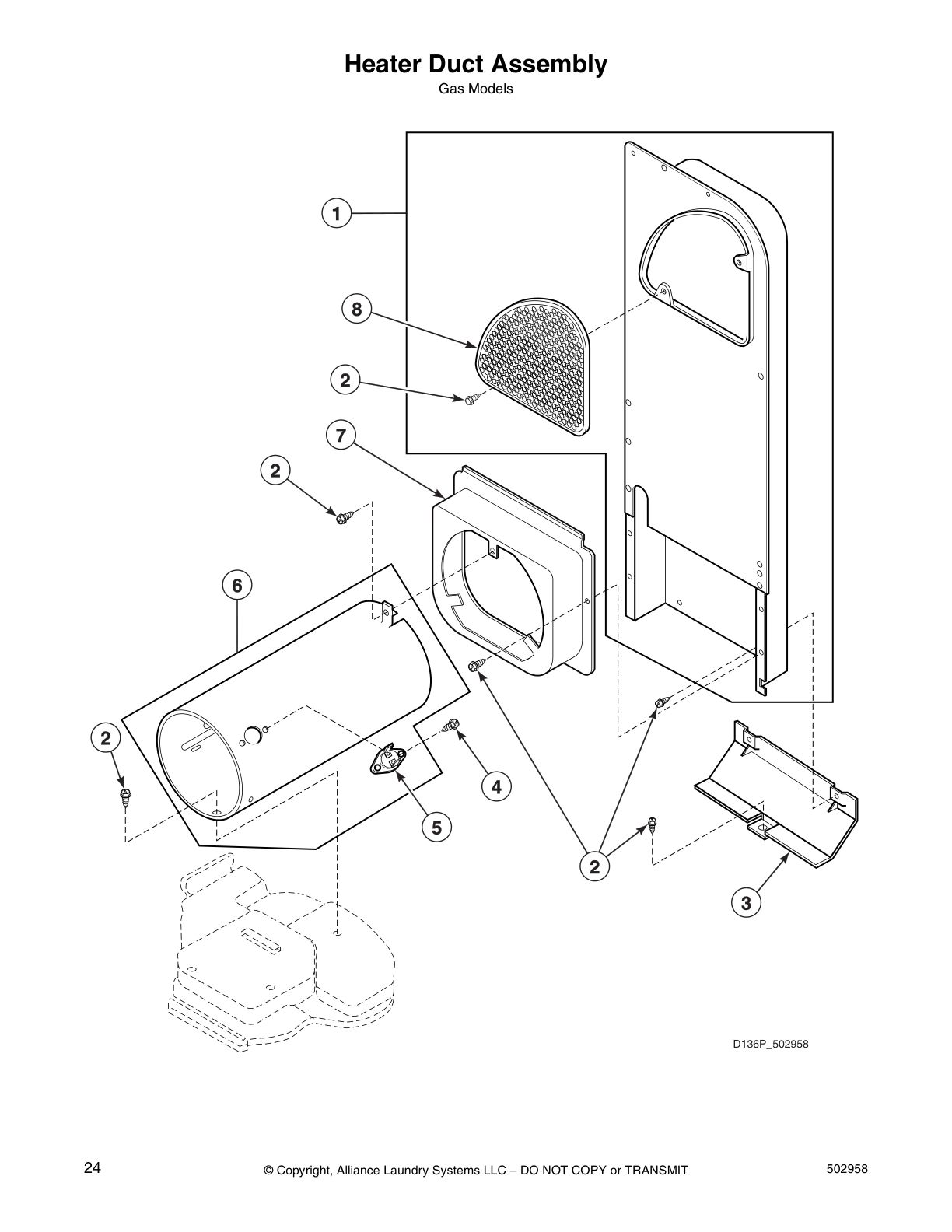

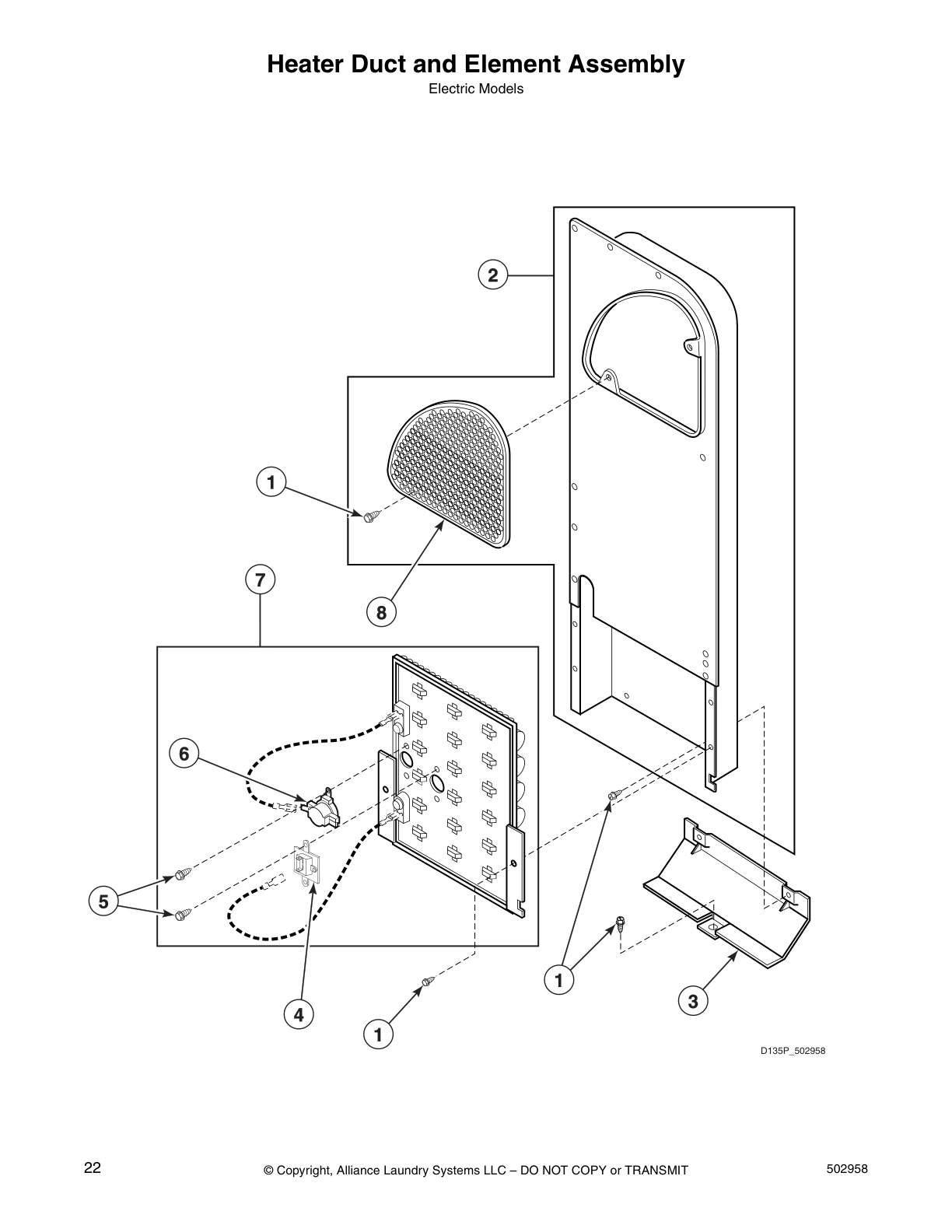

Heater Duct and Element Assembly

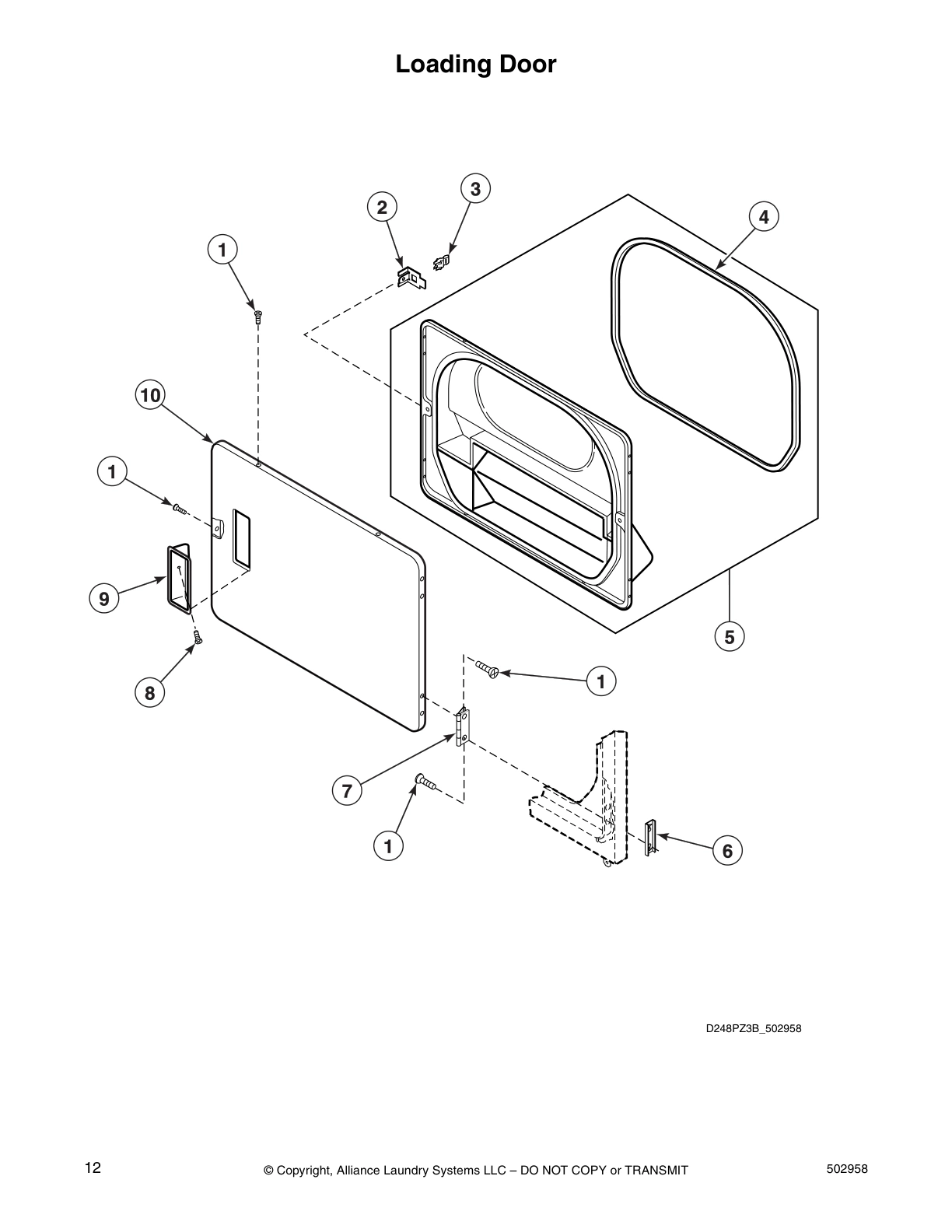

Loading Door

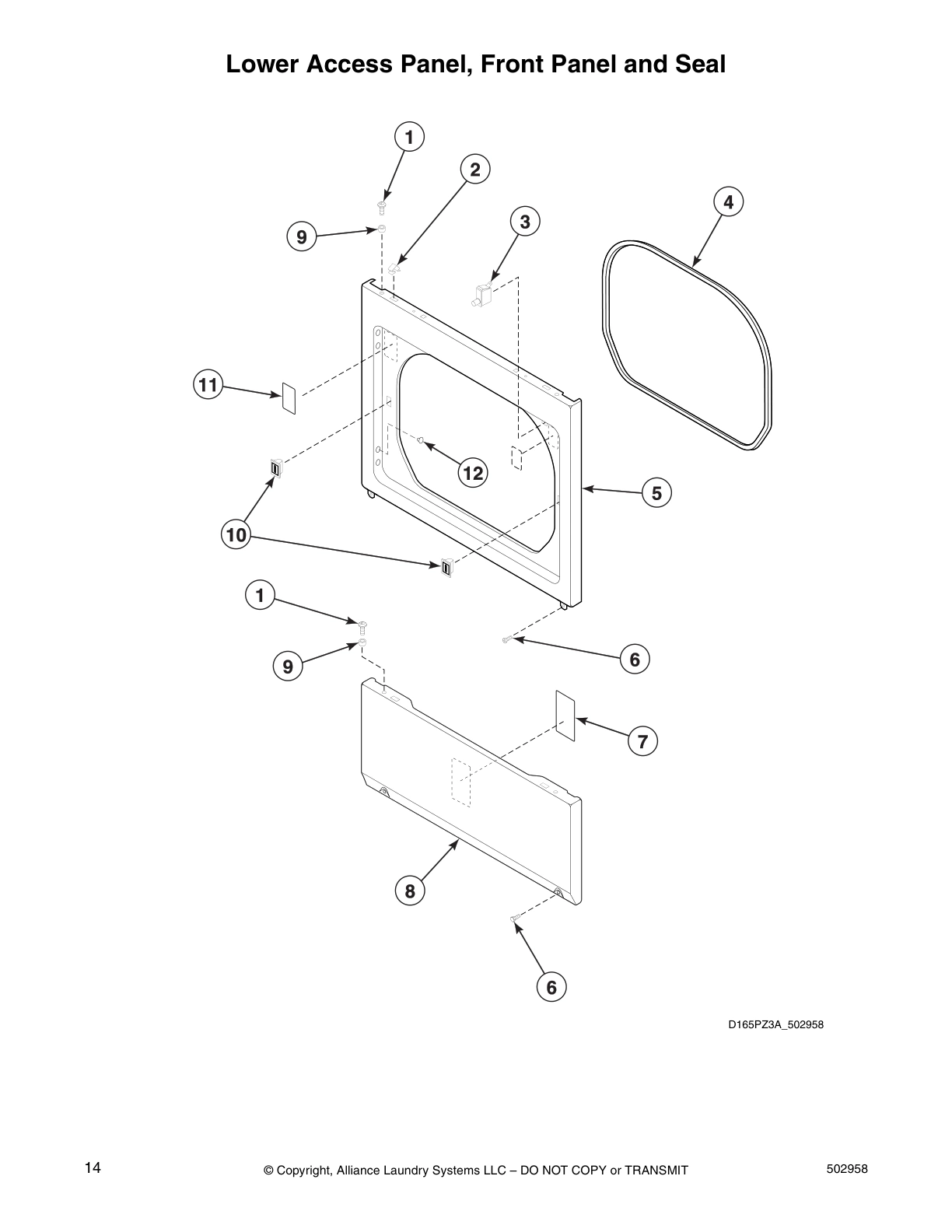

Lower Access Panel, Front Panel and Seal

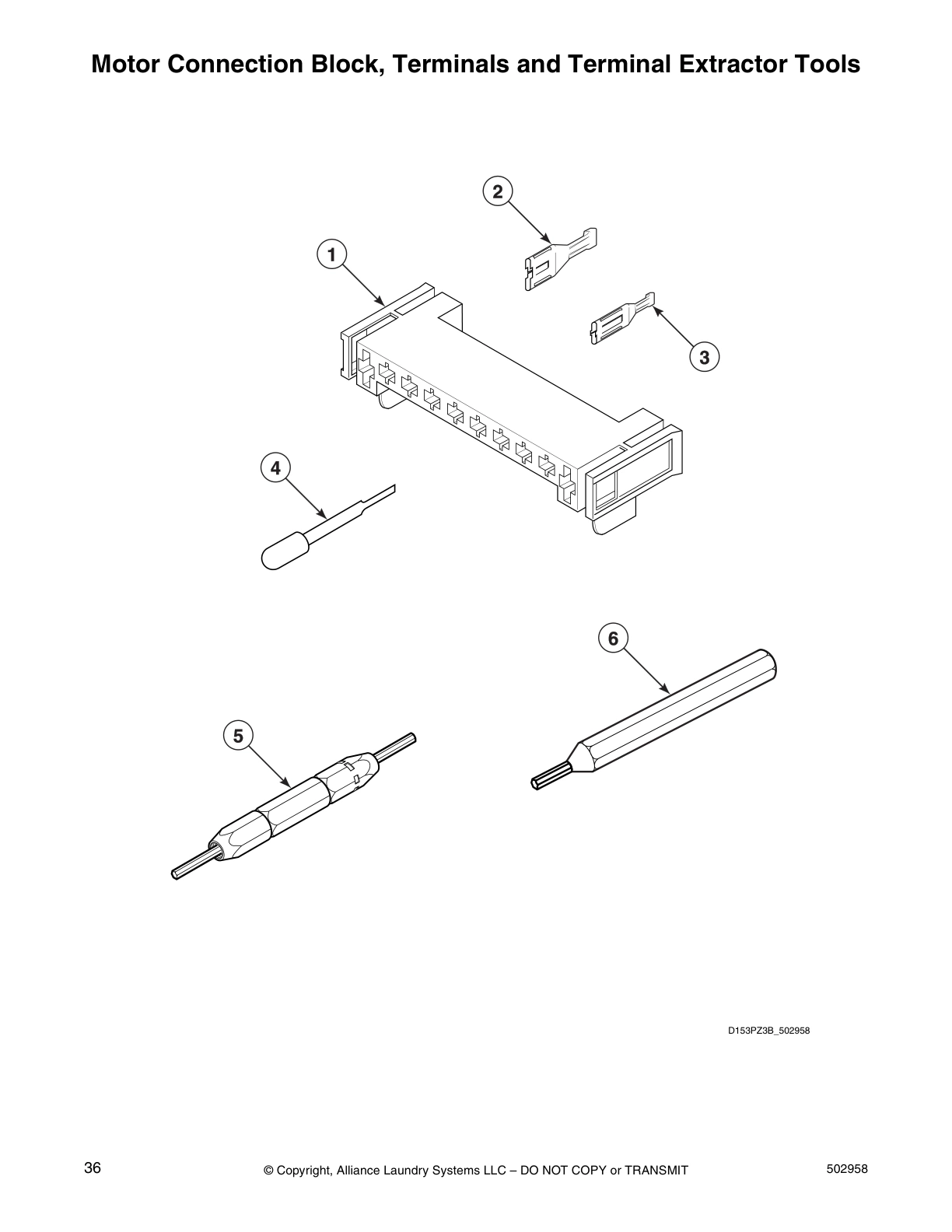

Motor Connection Block, Terminals and Terminal Extractor Tools

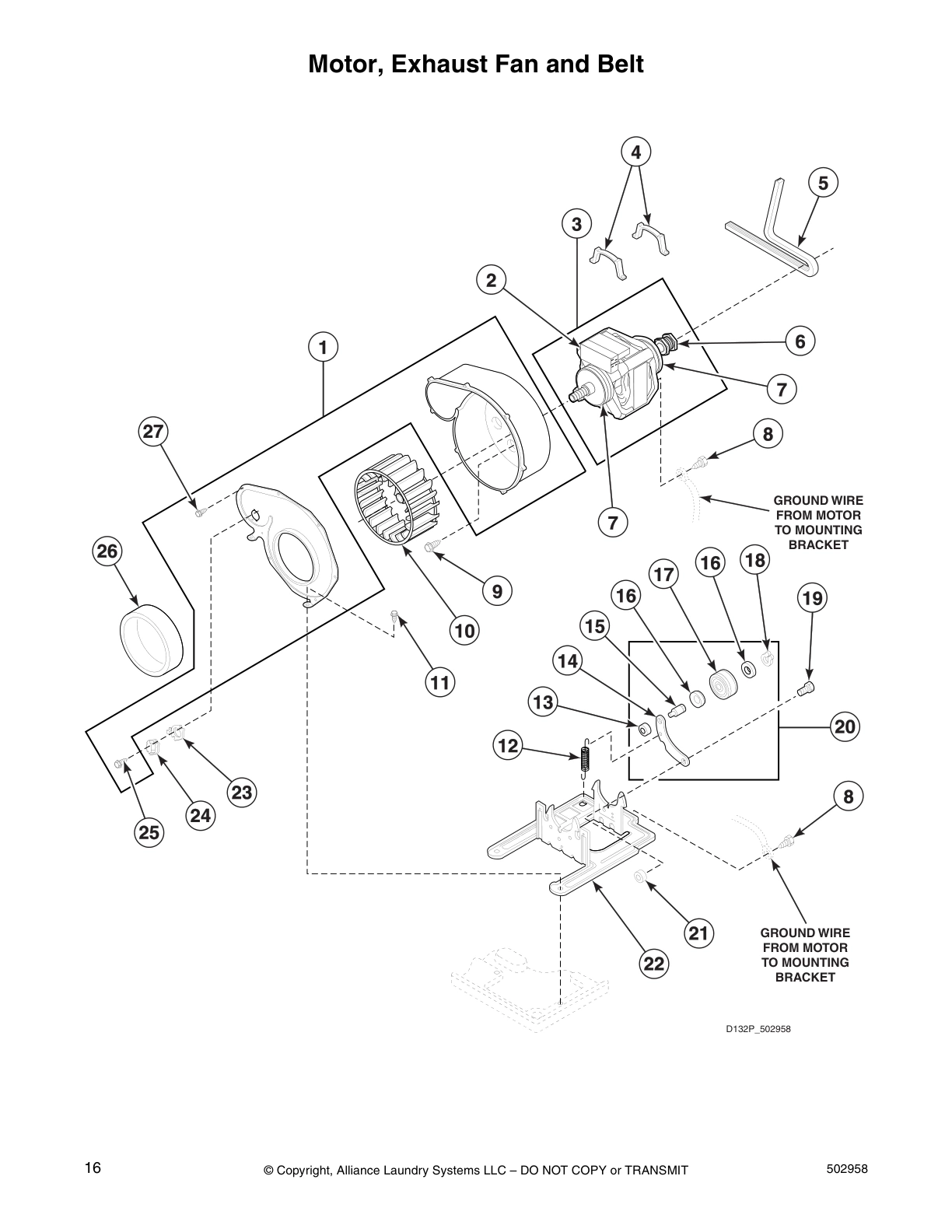

Motor, Exhaust Fan and Belt

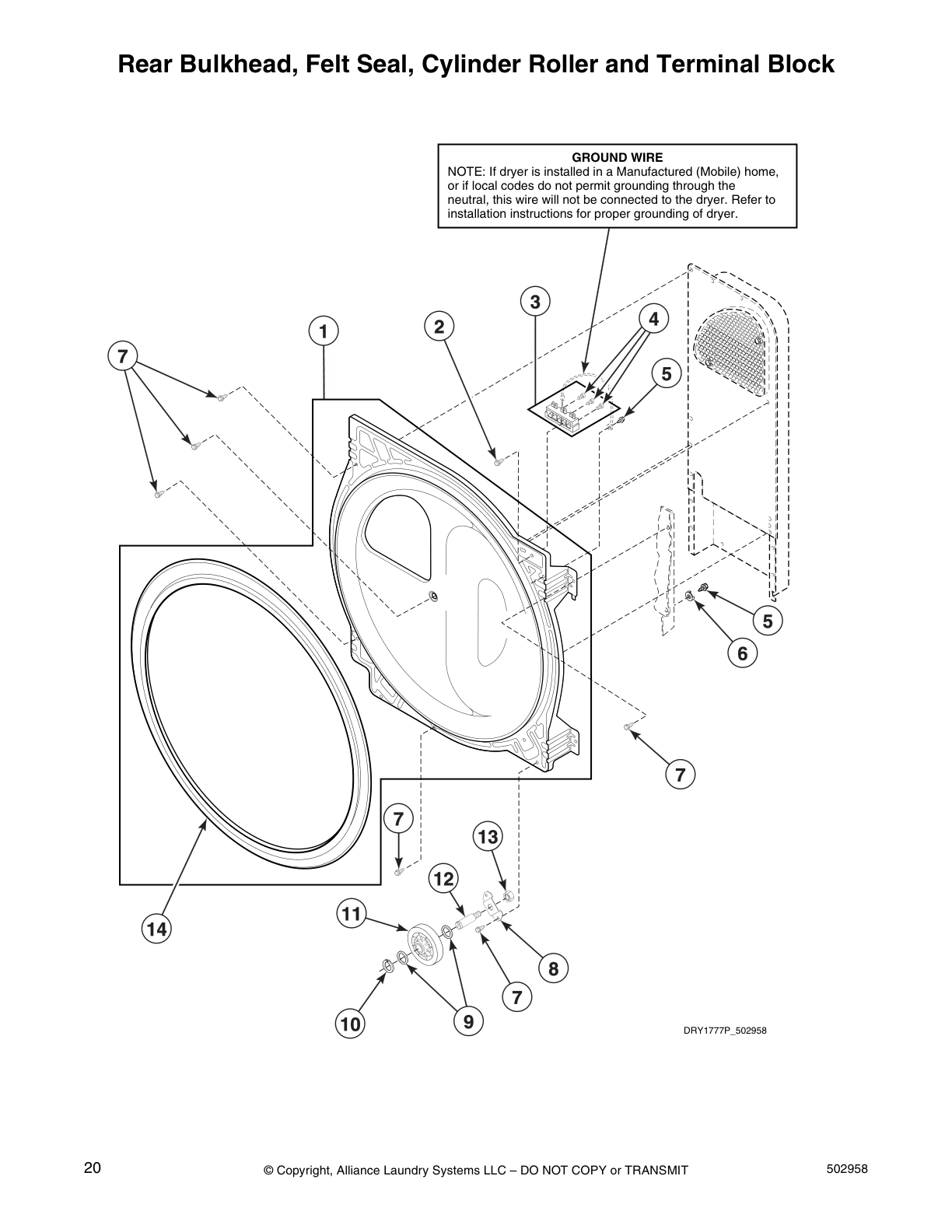

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

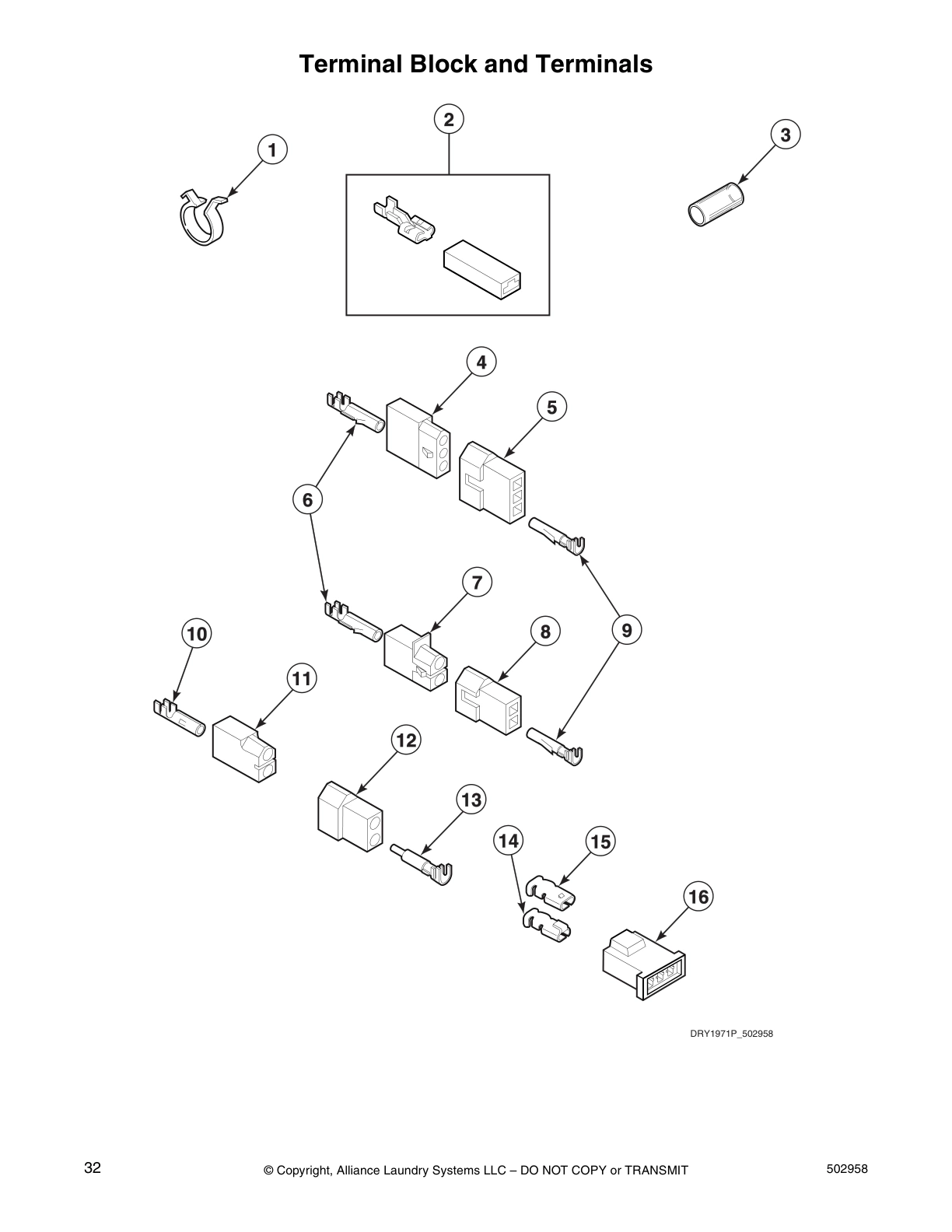

Terminal Block and Terminals

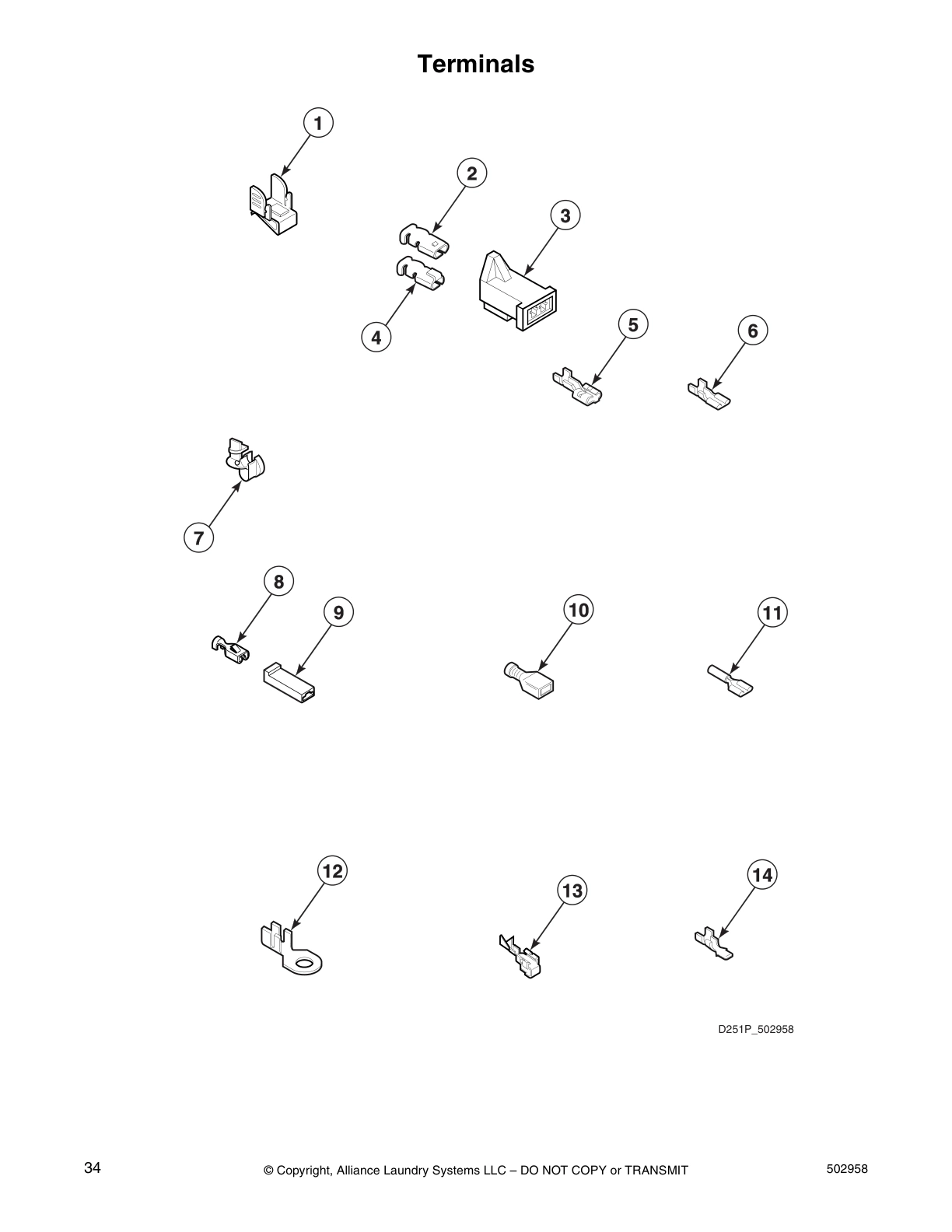

Terminals
Common parts from model GE AEM497*21500 General Electric Model AEM497*21500
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Screw GEN 39733 Contact Us For Availability
1
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Includes it GEN D511033W Contact Us For Availability
1
Screw GEN 31752 Contact Us For Availability
1
Screw GEN D500226 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Blower Housing and Cover Kit (Comment: Includ GEN D511969*P Contact Us For Availability
1
Rear Bulkhead Assembly (Comment: Includes ite GEN D510905W Contact Us For Availability
1
Wire Clip GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
2
Screw GEN D501285 Contact Us For Availability
2
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
2
Door Strike Mount GEN D510127 Contact Us For Availability
2
Speed Clip GEN 28835 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) 12 ga GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) or (2 GEN 00256 Contact Us For Availability
2
Motor Switch (Comment: Does not include therm GEN D501218 Contact Us For Availability
2
Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
3
Hood Back Panel GEN D510099 Contact Us For Availability
3
Drum Light Bulb GEN 60954 Contact Us For Availability
3
Nut GEN 57584 Contact Us For Availability
3
Heat Duct Shield GEN 60952 Contact Us For Availability
3
Door Strike GEN D510181 Contact Us For Availability
3
Switch GEN D512973 Contact Us For Availability
3
Female Terminal (Comment: Molex, For 1 or 2 w GEN 00188 Contact Us For Availability
3
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
3
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
3
Insulator Sleeve GEN D503670 Contact Us For Availability
3
2 Circuit Connector GEN 58799 Contact Us For Availability
4
Top Hinge GEN D510136 Contact Us For Availability
4
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
4
Door Seal GEN D500200 Contact Us For Availability
4
Front Panel Seal GEN D500034 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Motor Mount Clamp GEN D510180 Contact Us For Availability
4
Screw GEN 61199 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
Female Piggyback Terminal (Comment: Receptacl GEN 00361 Contact Us For Availability
5
Screw GEN 20530 Contact Us For Availability
5
Top Panel Kit (Comment: Includes 2 of item 6, GEN D510029LP Contact Us For Availability
5
Top Panel Kit (Comment: Includes 2 of item 6, GEN D510029WP Contact Us For Availability
5
Cylinder Baffle GEN D503703 Contact Us For Availability
5
Liner and Seal Assembly (Comment: Includes it GEN D500199 Contact Us For Availability
5
Front Panel (Comment: White) GEN D500033W Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
5
Cylinder Belt GEN D511255 Contact Us For Availability
5
Plug (Comment: 3 circuit) GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Bracket GEN D510146 Contact Us For Availability
6
Cylinder Assembly (Comment: Painted, Includes GEN D510159W Contact Us For Availability
6
Fabric Selector Switch GEN 61511 Contact Us For Availability
6
Limit Thermostat GEN D510701 Contact Us For Availability
6
Door Hinge Mounting Clip GEN D500236 Contact Us For Availability
6
Motor Pulley GEN D500011 Contact Us For Availability
6
Washer GEN 51474 Contact Us For Availability
6
Female Pin Terminal GEN 00117 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (2 GEN 00209 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Screw GEN D503688 Contact Us For Availability
7
Screw GEN 62588 Contact Us For Availability
7
Rotary Signal GEN D500823 Contact Us For Availability
7
Heater Kit Assembly (Comment: 208 Volt, 4750 GEN 61928 Contact Us For Availability
7
Door Hinge GEN D510519 Contact Us For Availability
7
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Electric Clearance Label GEN D511005 Contact Us For Availability
8
Screw GEN D501086 Contact Us For Availability
8
Cylinder Glide (Comment: 1 required per side) GEN D513710 Contact Us For Availability
8
Outlet Cover (Comment: Replaceable on D510025 GEN D500820 Contact Us For Availability
8
Access Panel (Comment: Almond) GEN D510069L Contact Us For Availability
8
Access Panel (Comment: White) GEN D510069WP Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
8
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
8
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00321 Contact Us For Availability
9
Panel Locator GEN 56079 Contact Us For Availability
9
Exhaust Duct (Comment: 2 required per dryer) GEN D510137 Contact Us For Availability
9
Felt Pad GEN D510189 Contact Us For Availability
9
Timer (Comment: 3 cycle) GEN D502963 Contact Us For Availability
9
Door Pull GEN D500042W Contact Us For Availability
9
Washer GEN 52549 Contact Us For Availability
9
Male Pin Terminal GEN 00116 Contact Us For Availability
9
Receptacle Housing GEN 90789 Contact Us For Availability
10
Screw GEN 52864 Contact Us For Availability
10
End Cap (Comment: Right) GEN 31248 Contact Us For Availability
10
Dryer Door (Comment: Almond) GEN D500040L Contact Us For Availability
10
Dryer Door (Comment: White) GEN D500040W Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Blower Fan Assembly GEN D510139 Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
10
Female Pin Terminal GEN 00130 Contact Us For Availability
10
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
10
Ultra Pod Terminal (Comment: 1/4 inch) GEN 00359 Contact Us For Availability
11
Screw GEN 33562 Contact Us For Availability
11
Panel Kit (Comment: Almond) GEN 727P3L Contact Us For Availability
11
Panel Kit (Comment: White) GEN 727P3W Contact Us For Availability
11
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
11
Pre-Insulated Spade Terminal (Comment: 1/4 in GEN N/A Contact Us For Availability
11
Warning/Caution Label GEN D500281 Contact Us For Availability
11
Cylinder Roller GEN D510708P Contact Us For Availability
11
2 Circuit Receptacle GEN 56265 Contact Us For Availability
11
Pre-Insulated Spade Terminal (Comment: 1/4 in GEN 00215 Contact Us For Availability
12
Leveling Leg GEN D510135 Contact Us For Availability
12
Screw GEN D503661 Contact Us For Availability
12
Screw GEN D505870 Contact Us For Availability
12
Timer Knob Assembly (Comment: Black) GEN 62176 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Shaft GEN 56461 Contact Us For Availability
12
2 Circuit Plug GEN 56266 Contact Us For Availability
12
Ring Terminal (Comment: No. 10, (1) 18 gauge GEN 00110 Contact Us For Availability
12
Ring Terminal (Comment: No. 10, (2) 18 gauge GEN 00111 Contact Us For Availability
13
Dryer Base GEN D510084 Contact Us For Availability
13
Nut GEN 56156 Contact Us For Availability
13
Male Pin Terminal GEN 00127 Contact Us For Availability
13
GEN 00114 GEN 00114 Contact Us For Availability
14
Fuse Notice Label GEN 61294 Contact Us For Availability
14
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
14
Warning Label GEN D500049 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
GEN 00139 GEN 00139 Contact Us For Availability
15
Front Air Duct GEN D502231 Contact Us For Availability
15
End Cap (Comment: Left) GEN 31249 Contact Us For Availability
16
Drum Light Lens GEN D512106 Contact Us For Availability
16
3 Circuit Connector GEN 58800 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142 Contact Us For Availability
18
Lint Filter (Comment: Poly mesh) GEN D503627 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Lint Filter Cover GEN D502092 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
Thermostat Heater (Comment: Use with 61372 Th GEN 61401 Contact Us For Availability
24
Thermostat (Comment: Orange, starting Serial GEN 61372 Contact Us For Availability
24
Thermostat (Comment: Orange, through Serial N GEN D503551 Contact Us For Availability
25
Screw (Comment: Use with 56410 Thermostat) GEN 23222 Contact Us For Availability
25
Screw (Comment: Use with 61372 Thermostat) GEN 33561 Contact Us For Availability
26
Blower Housing Seal GEN D500313 Contact Us For Availability
27
Screw GEN 31260 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Wire Harness Assembly GEN D500694 Contact Us For Availability
NA
Flexible Venting Kit GEN 521P3 Contact Us For Availability
NA
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
NA
Adhesive (Comment: For cylinder seal) GEN D511637 Contact Us For Availability
× ![]()
