Model GE AEM14AQL1 – Common Parts & Diagrams

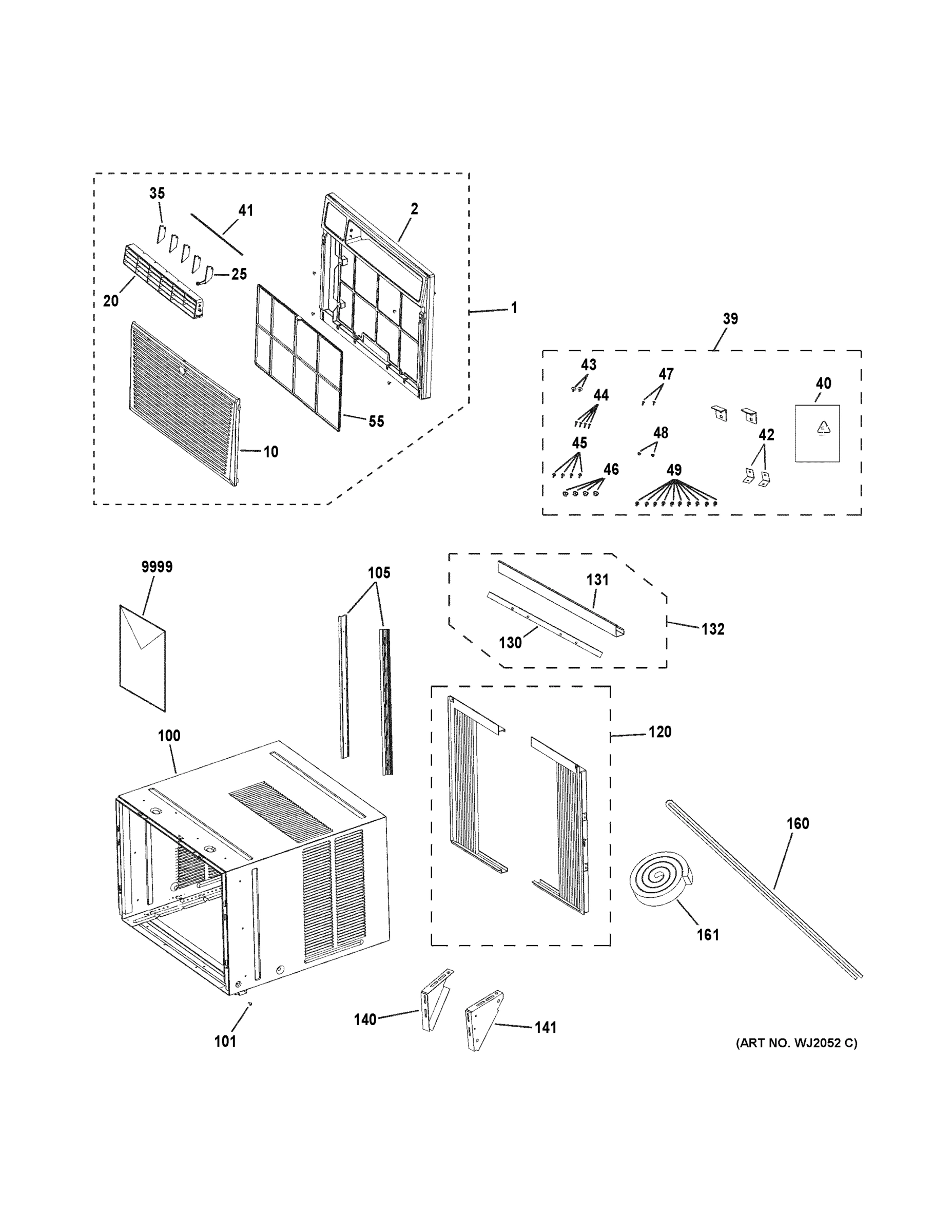

GRILLE & CHASSIS PARTS
CONTROL PARTS
BASE PAN PARTS
UNIT PARTS
Common parts from model GE AEM14AQL1
44
SCREW GEN WJ01X10351 Contact Us For Availability
45
BOLT M5X13 GEN WJ05X10057 Contact Us For Availability
46
NUT M5X5 GEN WJ01X10377 Contact Us For Availability
47
SCREW GEN WJ01X10414 Contact Us For Availability
48
NUT M6X6 GEN WJ01X10378 Contact Us For Availability
49
SCREW M4.8X8 GEN WJ01X10379 Contact Us For Availability
55
FILTER SUB-ASSY GEN WJ71X10668 Contact Us For Availability
59
ELEC BOX SUPPORTING GEN WJ05X10058 Contact Us For Availability
100
CABINET ASSY GEN WJ90X10126 Contact Us For Availability
101
SELF-TAPPING SCREW GEN WJ01X10352 Contact Us For Availability
105
SUPPORT TO CABINET GEN WJ68X10065 Contact Us For Availability
120
CURTAIN ASM GEN WJ69X10018 Contact Us For Availability
130
FORM GASKET GEN WJ43X10078 Contact Us For Availability
132
TOP GUIDE SUB-ASSY GEN WJ14X10087 Contact Us For Availability
141
BRKT, CASE MOUNT RH GEN WJ67X10003 Contact Us For Availability
160
FORM GASKET 2 GEN WJ43X10080 Contact Us For Availability
161
FORM GASKET 1 GEN WJ43X10079 Contact Us For Availability
201
ESCUTCHEON GEN WJ07X10258 Contact Us For Availability
205
PANEL, CONTROL GEN WJ82X10077 Contact Us For Availability
210
BOARD, DISPLAY GEN WJ26X10356 Contact Us For Availability
215
POWER CORD GEN WJ35X10170 Contact Us For Availability
218
CABLE CLAMP GEN WJ03X10077 Contact Us For Availability
240
BOARD, MAIN GEN WJ26X10358 Contact Us For Availability
244
SENSOR, TUBE GEN WJ27X10140 Contact Us For Availability
245
TERMINAL BOARD GEN WJ26X10310 Contact Us For Availability
246
RELAY 841-S-1A-D 120V GEN WJ24X10008 Contact Us For Availability
250
PCB SUPPORT GEN WJ01X10354 Contact Us For Availability
260
TRANSFORMER 41X26.5K GEN WJ27X10108 Contact Us For Availability
265
CAPACITOR GEN WJ20X10189 Contact Us For Availability
301
NUT - WASHER GEN WJ01X10265 Contact Us For Availability
304
WASHER GEN WJ01X10266 Contact Us For Availability
306
GASKET (DIA 10MM) GEN WJ43X10075 Contact Us For Availability
310
CENTRIFUGAL FAN GEN WJ73X10204 Contact Us For Availability
315
FOAM (AIR OUTLET) GEN WJ76X10307 Contact Us For Availability
318
PROPELLER HOUSING GEN WJ76X10308 Contact Us For Availability
320
MOTOR SUPPORTING GEN WJ82X10061 Contact Us For Availability
322
FOAM (WATER TRAY) GEN WJ05X10054 Contact Us For Availability
325
TOP COVER GEN WJ79X10215 Contact Us For Availability
330
CONDENSER COVER GEN WJ79X10216 Contact Us For Availability
338
TOP COVER (REAR) GEN WJ79X10217 Contact Us For Availability
345
MOTOR, FAN GEN WJ94X10334 Contact Us For Availability
347
SPRING WASHER(DIA 6MM) GEN WJ01X10373 Contact Us For Availability
348
NUT GEN WJ01X10329 Contact Us For Availability
355
AXIAL FLOW FAN GEN WJ73X10190 Contact Us For Availability
361
GASKET (DIA 8MM) GEN WJ43X10076 Contact Us For Availability
363
GASKET (DIA 8MM) GEN WJ43X10077 Contact Us For Availability
365
NUT (M8)(LEVO) GEN WJ01X10374 Contact Us For Availability
401
EVAPORATOR ASM GEN WJ88X10248 Contact Us For Availability
403
SENSOR SUPPRT GEN WJ02X10036 Contact Us For Availability
410
COMPRESSOR ASM GEN WJ98X10307 Contact Us For Availability
416
NUT WITH WASHER M8 GEN WJ01X10335 Contact Us For Availability
418
GROMMET, RUBBER GEN WJ01X10429 Contact Us For Availability
420
CONDENSER ASM GEN WJ87X10269 Contact Us For Availability
450
TUBE, SUCTION GEN WJ57X10038 Contact Us For Availability
453
CAPILLARY ASM GEN WJ53X10243 Contact Us For Availability
455
TUBE, DISCHARGE GEN WJ49X10034 Contact Us For Availability
2401
FUSE, PCB GEN WJ23X10172 Contact Us For Availability
9999
MINI MANUAL GEN 3161670 Contact Us For Availability
9999
PM OWNERS MANUAL/INSTALL GEN 497660 Contact Us For Availability
× ![]()
