Model Maytag ADG20L1W GAS DRYER – Common Parts & Diagrams

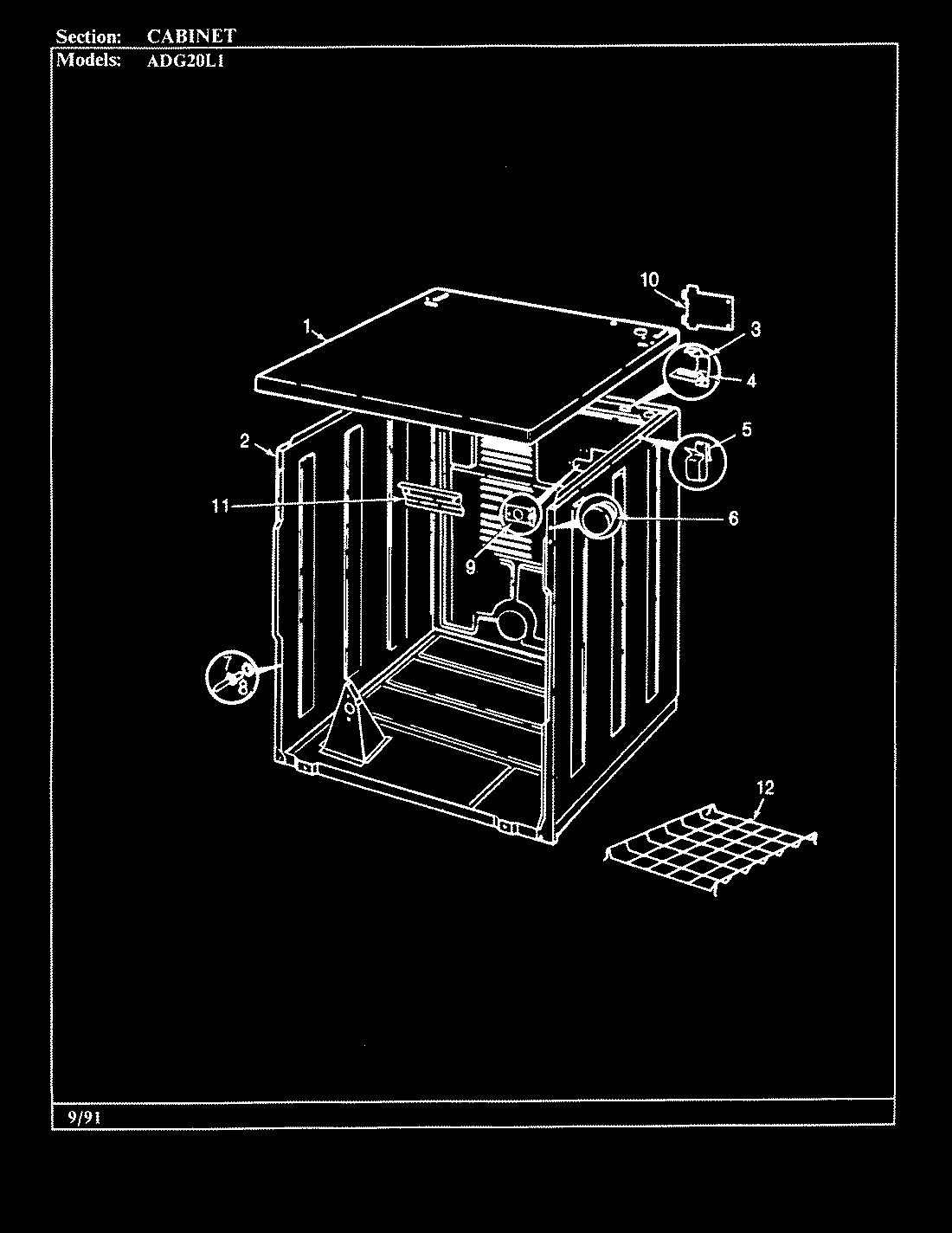

01 - CABINET (REV. A-C)

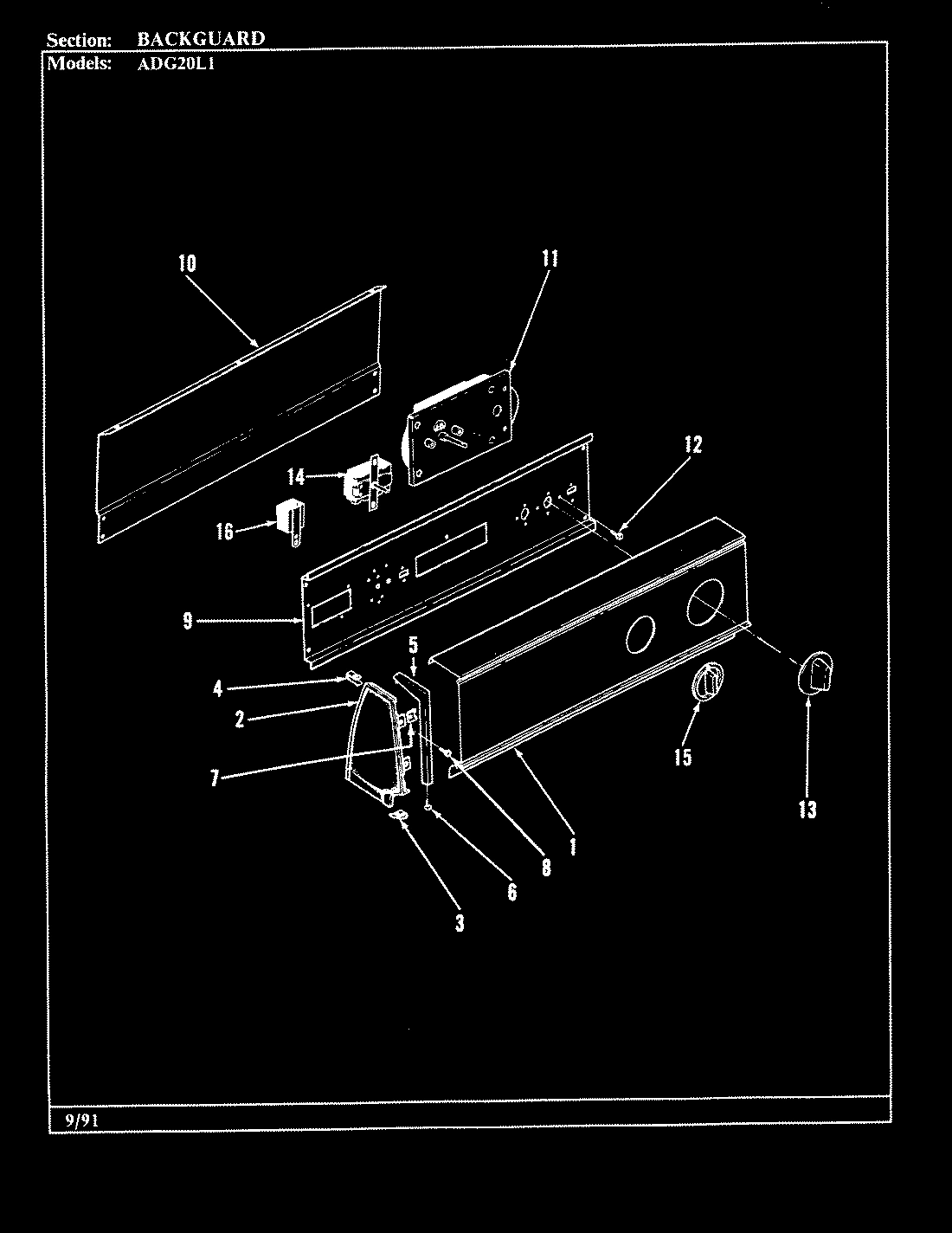

02 - CONTROL PANEL (REV. A-C)

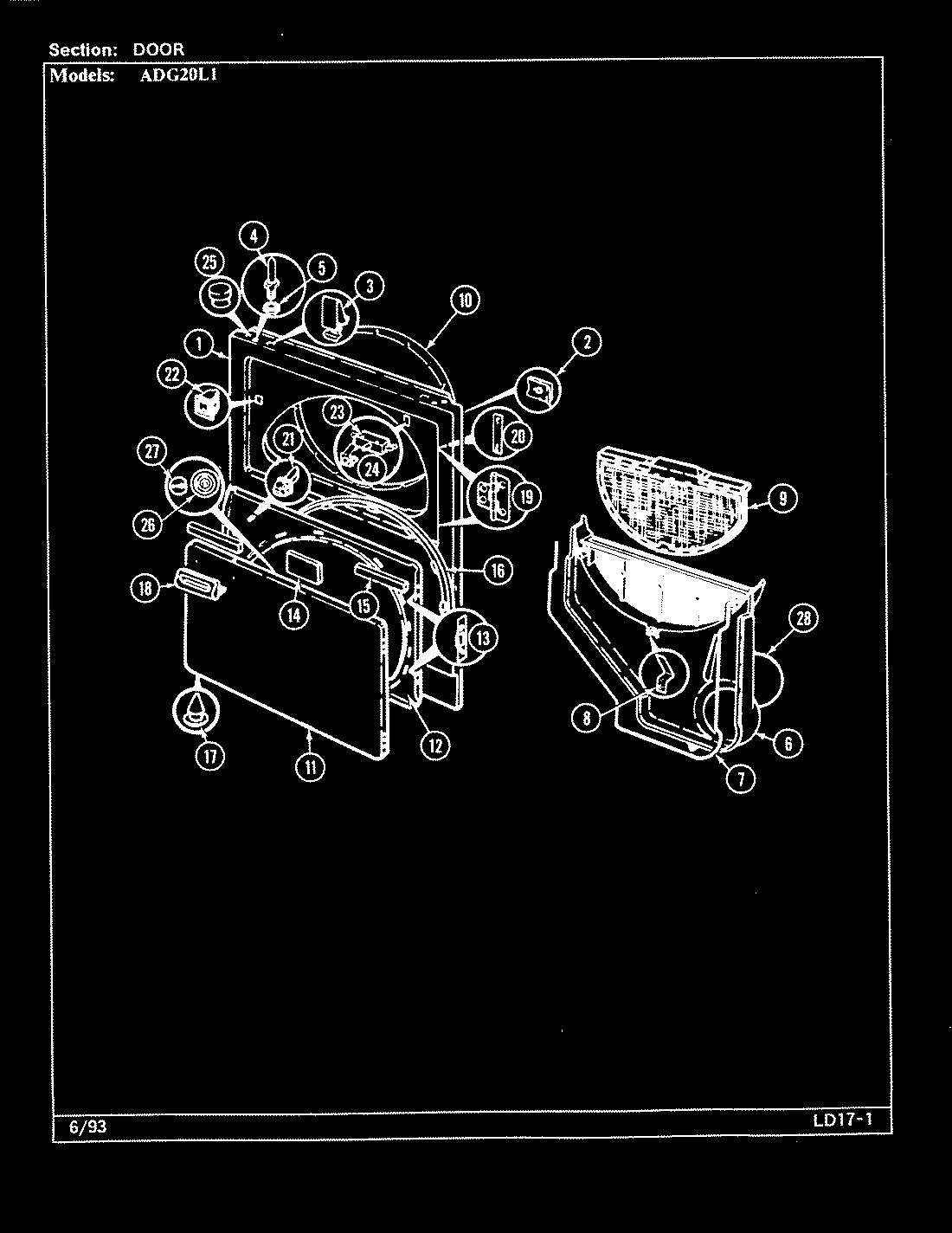

03 - DOOR (REV. A-C)

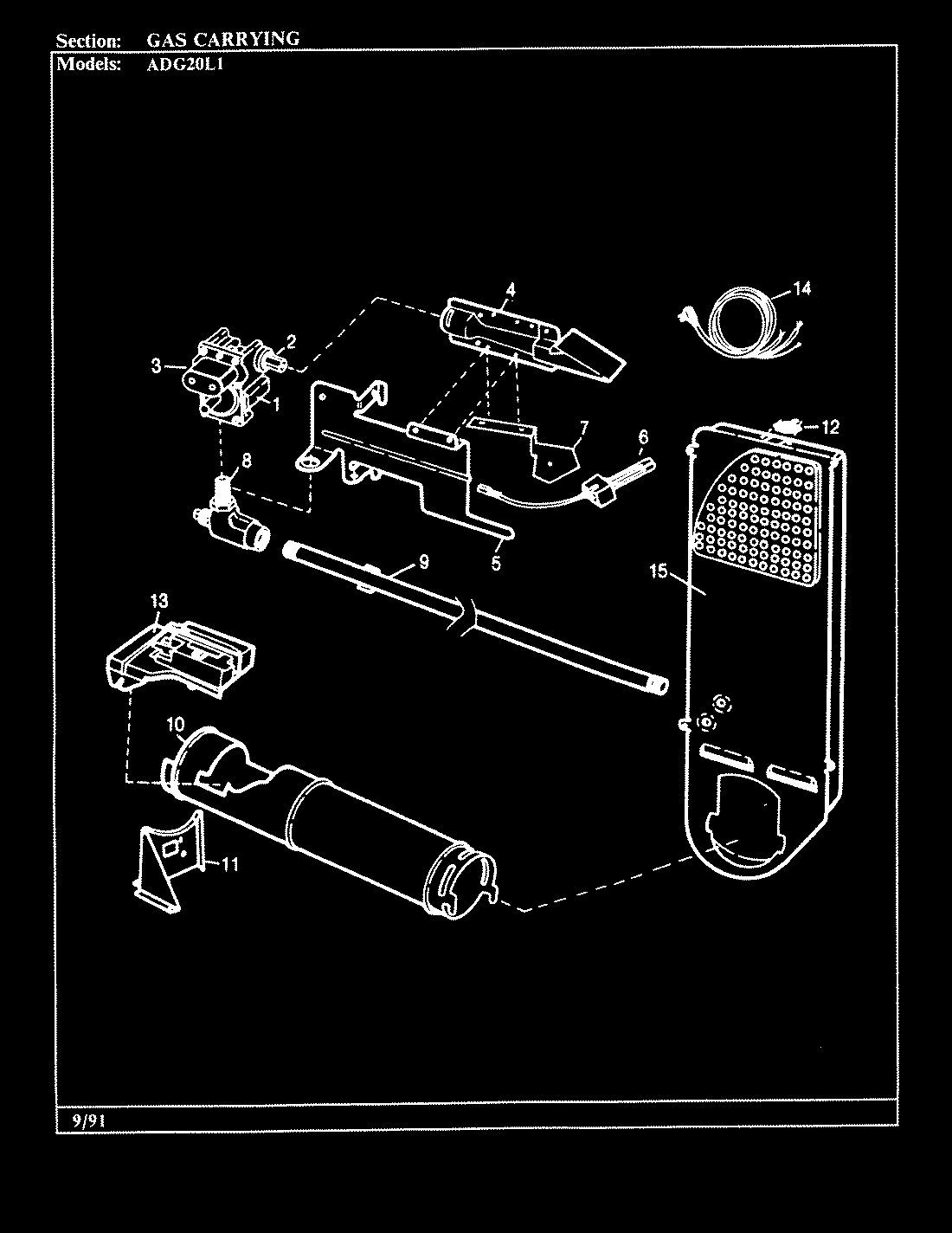

04 - GAS CARRYING (REV. A-C)

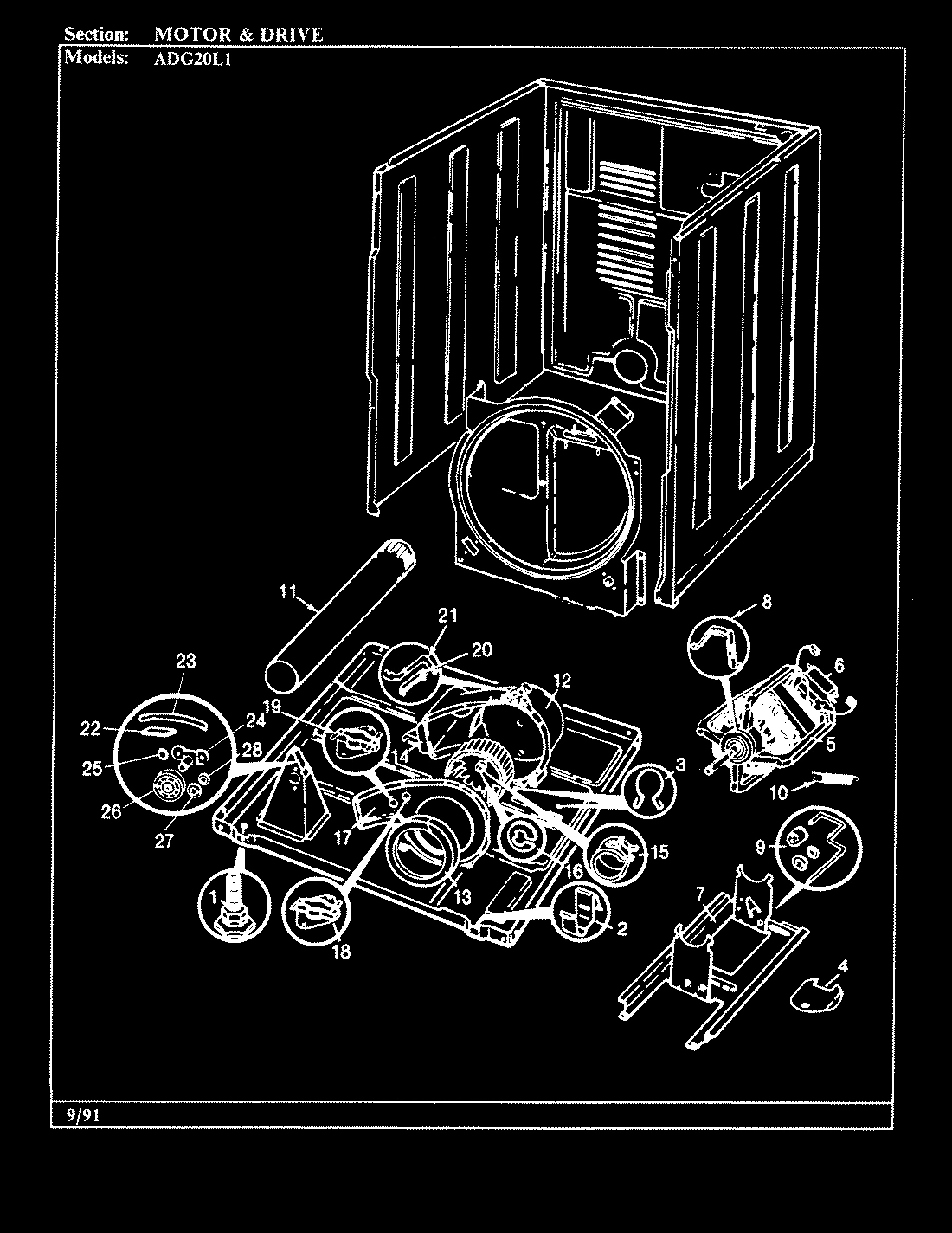

05 - MOTOR & DRIVE (REV. A-C)

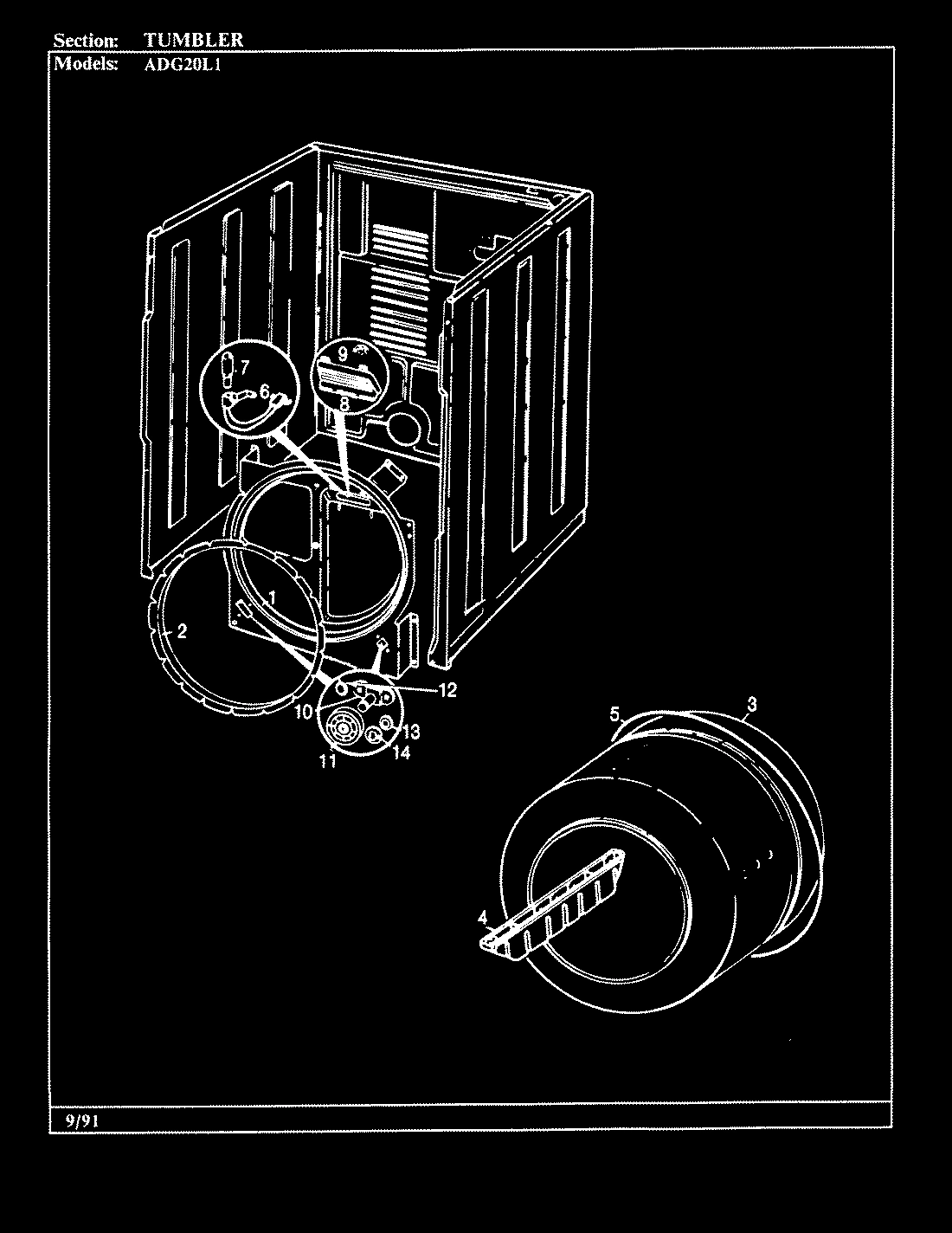

06 - TUMBLER (REV. A-B)
Common parts from model Maytag ADG20L1W GAS DRYER
1
MAY 53-0727 MAY 53-0727 Contact Us For Availability
1
MAY 53-0194 MAY 53-0194 Contact Us For Availability
1
MAY 25-7733 MAY 25-7733 Contact Us For Availability
1
MAY 53-1703 MAY 53-1703 Contact Us For Availability
2
MAY 63-3570 MAY 63-3570 Contact Us For Availability
2
MAY 25-7817 MAY 25-7817 Contact Us For Availability
2
MAY 53-0282 MAY 53-0282 Contact Us For Availability
3
MAY 25-7691 MAY 25-7691 Contact Us For Availability
3
MAY 25-7851 MAY 25-7851 Contact Us For Availability
3
MAY 63-6614 MAY 63-6614 Contact Us For Availability
3
MAY 63-6615 MAY 63-6615 Contact Us For Availability
3
MAY 25-7027 MAY 25-7027 Contact Us For Availability
3
MAY 53-0178 MAY 53-0178 Contact Us For Availability
4
MAY LA-1004 MAY LA-1004 Contact Us For Availability
4
MAY 25-7852 MAY 25-7852 Contact Us For Availability
4
MAY 63-6148 MAY 63-6148 Contact Us For Availability
4
MAY 63-6682 MAY 63-6682 Contact Us For Availability
4
MAY 25-7741 MAY 25-7741 Contact Us For Availability
4
MAY 53-0153 MAY 53-0153 Contact Us For Availability
4
MAY 25-7759 MAY 25-7759 Contact Us For Availability
4
MAY 53-0117 MAY 53-0117 Contact Us For Availability
5
MAY 53-0277 MAY 53-0277 Contact Us For Availability
5
MAY 53-0278 MAY 53-0278 Contact Us For Availability
5
MAY 25-0224 MAY 25-0224 Contact Us For Availability
5
MAY 53-0200 MAY 53-0200 Contact Us For Availability
5
MAY 53-0140 MAY 53-0140 Contact Us For Availability
5
MAY 53-1041 MAY 53-1041 Contact Us For Availability
5
MAY 53-2275 MAY 53-2275 Contact Us For Availability
5
MAY 53-1512 MAY 53-1512 Contact Us For Availability
6
MAY 25-7760 MAY 25-7760 Contact Us For Availability
6
MAY 53-1299 MAY 53-1299 Contact Us For Availability
6
MAY 25-3034 MAY 25-3034 Contact Us For Availability
6
MAY 53-0693 MAY 53-0693 Contact Us For Availability
7
MAY 25-7702 MAY 25-7702 Contact Us For Availability
7
MAY 25-7744 MAY 25-7744 Contact Us For Availability
7
MAY 53-0686 MAY 53-0686 Contact Us For Availability
7
MAY 25-7811 MAY 25-7811 Contact Us For Availability
7
MAY 53-0852 MAY 53-0852 Contact Us For Availability
7
MAY 53-1932 MAY 53-1932 Contact Us For Availability
8
MAY 53-0123 MAY 53-0123 Contact Us For Availability
8
MAY 53-0101 MAY 53-0101 Contact Us For Availability
8
MAY 25-7674 MAY 25-7674 Contact Us For Availability
8
MAY 25-7699 MAY 25-7699 Contact Us For Availability
9
MAY 25-7957 MAY 25-7957 Contact Us For Availability
9
MAY 53-1676 MAY 53-1676 Contact Us For Availability
9
MAY 53-0173 MAY 53-0173 Contact Us For Availability
9
MAY 25-7815 MAY 25-7815 Contact Us For Availability
9
MAY 53-0764 MAY 53-0764 Contact Us For Availability
9
MAY 53-1628 MAY 53-1628 Contact Us For Availability
9
MAY 53-1650 MAY 53-1650 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE CLIP, LENS TO B MAY W10124350 Contact Us For Availability
10
MAY 35-2688 MAY 35-2688 Contact Us For Availability
10
MAY 25-3032 MAY 25-3032 Contact Us For Availability
10
MAY 53-1884 MAY 53-1884 Contact Us For Availability
10
MAY 53-1648 MAY 53-1648 Contact Us For Availability
11
MAY 53-1547 MAY 53-1547 Contact Us For Availability
11
MAY 53-1803 MAY 53-1803 Contact Us For Availability
11
MAY 63-6752 MAY 63-6752 Contact Us For Availability
11
MAY 53-0154 MAY 53-0154 Contact Us For Availability
11
MAY 53-0139 MAY 53-0139 Contact Us For Availability
11
MAY 53-0134 MAY 53-0134 Contact Us For Availability
11
MAY 53-0642 MAY 53-0642 Contact Us For Availability
12
MAY 25-7435 MAY 25-7435 Contact Us For Availability
12
MAY 25-0205 MAY 25-0205 Contact Us For Availability
12
MAY 53-0740 MAY 53-0740 Contact Us For Availability
12
MAY 25-0168 MAY 25-0168 Contact Us For Availability
12
MAY 53-0143 MAY 53-0143 Contact Us For Availability
12
MAY 53-0774 MAY 53-0774 Contact Us For Availability
12
MAY 53-1801 MAY 53-1801 Contact Us For Availability
12
MAY 25-7813 MAY 25-7813 Contact Us For Availability
13
MAY 53-1533 MAY 53-1533 Contact Us For Availability
13
MAY 53-0119 MAY 53-0119 Contact Us For Availability
13
MAY 25-7814 MAY 25-7814 Contact Us For Availability
14
MAY 53-0106 MAY 53-0106 Contact Us For Availability
14
MAY 53-1267 MAY 53-1267 Contact Us For Availability
14
MAY 53-0251 MAY 53-0251 Contact Us For Availability
14
MAY 63-6259 MAY 63-6259 Contact Us For Availability
15
MAY 35-2185 MAY 35-2185 Contact Us For Availability
15
MAY 53-0252 MAY 53-0252 Contact Us For Availability
15
MAY 53-0169 MAY 53-0169 Contact Us For Availability
15
MAY 25-7823 MAY 25-7823 Contact Us For Availability
16
MAY 25-7855 MAY 25-7855 Contact Us For Availability
16
MAY 53-1639 MAY 53-1639 Contact Us For Availability
16
MAY 25-7770 MAY 25-7770 Contact Us For Availability
16
MAY 53-0112 MAY 53-0112 Contact Us For Availability
17
MAY 25-3534 MAY 25-3534 Contact Us For Availability
17
MAY 25-2134 MAY 25-2134 Contact Us For Availability
17
MAY 25-7807 MAY 25-7807 Contact Us For Availability
17
MAY 53-1023 MAY 53-1023 Contact Us For Availability
17
MAY 53-1026 MAY 53-1026 Contact Us For Availability
17
MAY 53-1934 MAY 53-1934 Contact Us For Availability
18
MAY 25-7810 MAY 25-7810 Contact Us For Availability
18
MAY 53-0928 MAY 53-0928 Contact Us For Availability
19
MAY 53-0122 MAY 53-0122 Contact Us For Availability
20
MAY 53-0121 MAY 53-0121 Contact Us For Availability
20
MAY 53-0182 MAY 53-0182 Contact Us For Availability
21
MAY 73-0033 MAY 73-0033 Contact Us For Availability
21
MAY 53-0183 MAY 53-0183 Contact Us For Availability
23
MAY LA-1008 MAY LA-1008 Contact Us For Availability
23
MAY 53-0147 MAY 53-0147 Contact Us For Availability
24
MAY 63-5990 MAY 63-5990 Contact Us For Availability
24
MAY 53-0198 MAY 53-0198 Contact Us For Availability
25
MAY 33-2653 MAY 33-2653 Contact Us For Availability
26
MAY 53-0155 MAY 53-0155 Contact Us For Availability
27
MAY 53-0156 MAY 53-0156 Contact Us For Availability
28
MAY 53-0204 MAY 53-0204 Contact Us For Availability
NI
MAY 53-1446 MAY 53-1446 Contact Us For Availability
× ![]()
