Model Whirlpool ADE20K3W ELECTRIC DRYER – Common Parts & Diagrams
06 - EXTERIOR (REV. E-G)

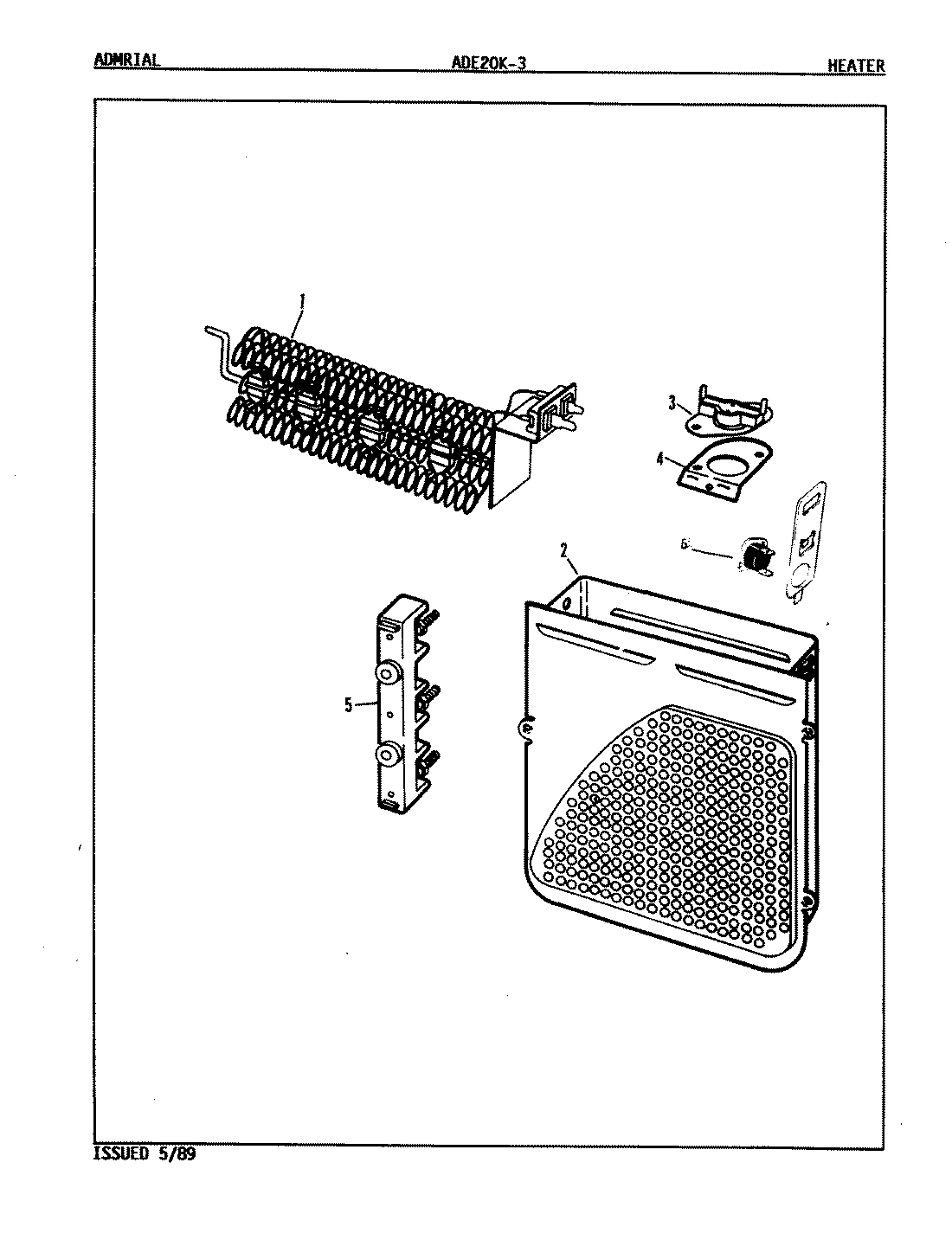

07 - HEATER (REV. A-D)
02 - CONTROL PANEL (REV. E-G)
04 - CYLINDER & DRIVE (REV. E-G)

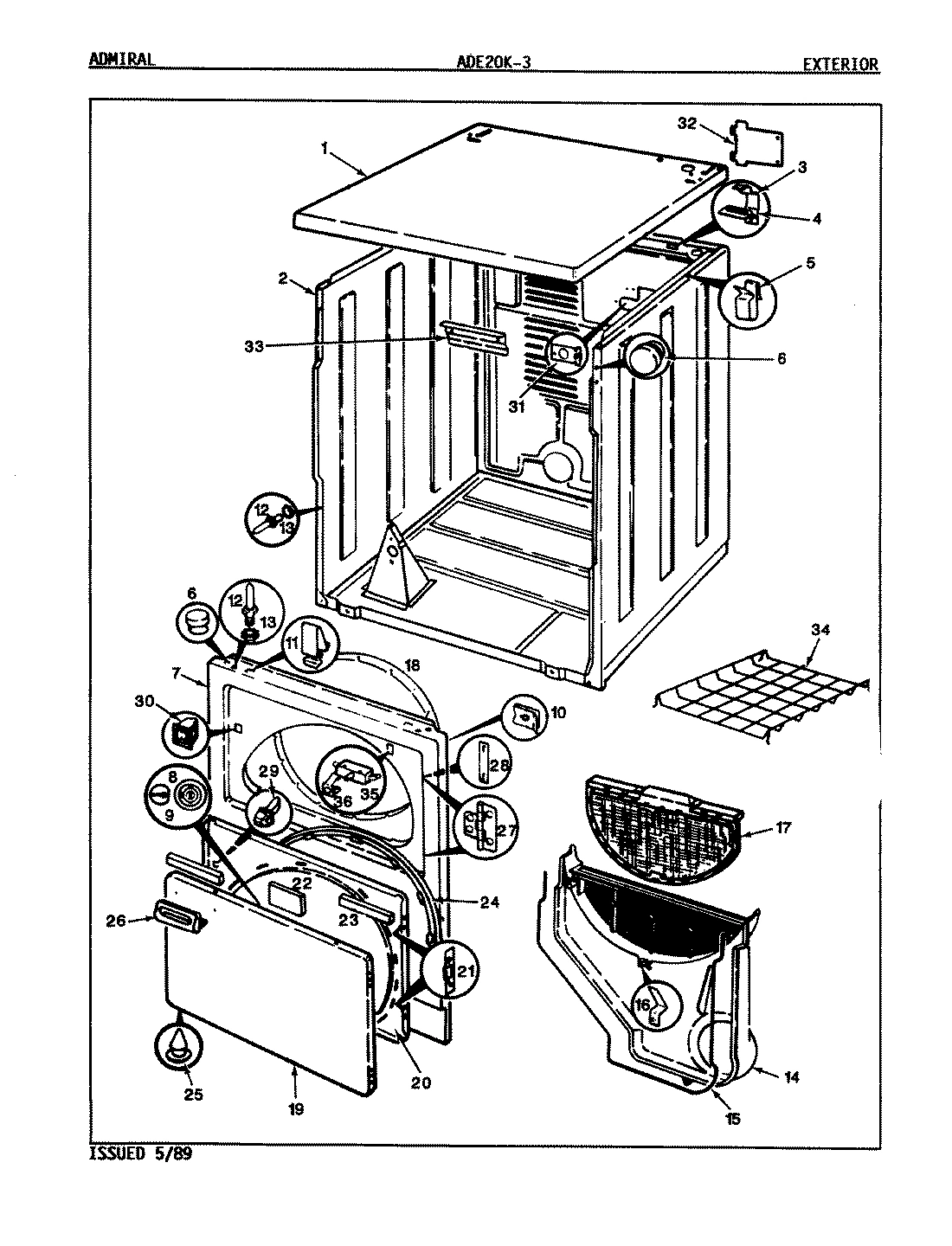

05 - EXTERIOR (REV. A-D)
08 - HEATER (REV. E-G)

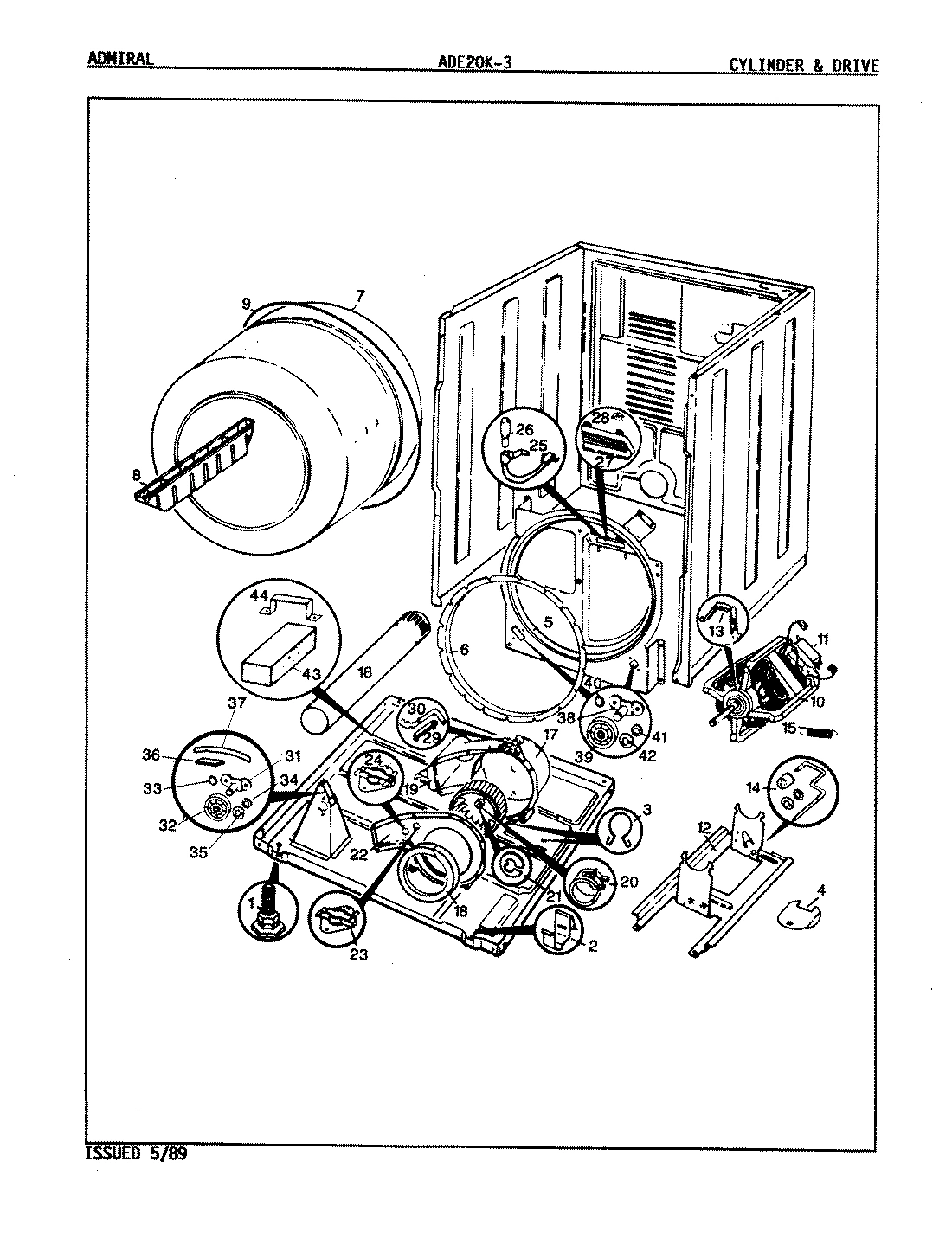

03 - CYLINDER & DRIVE (REV. A-D)

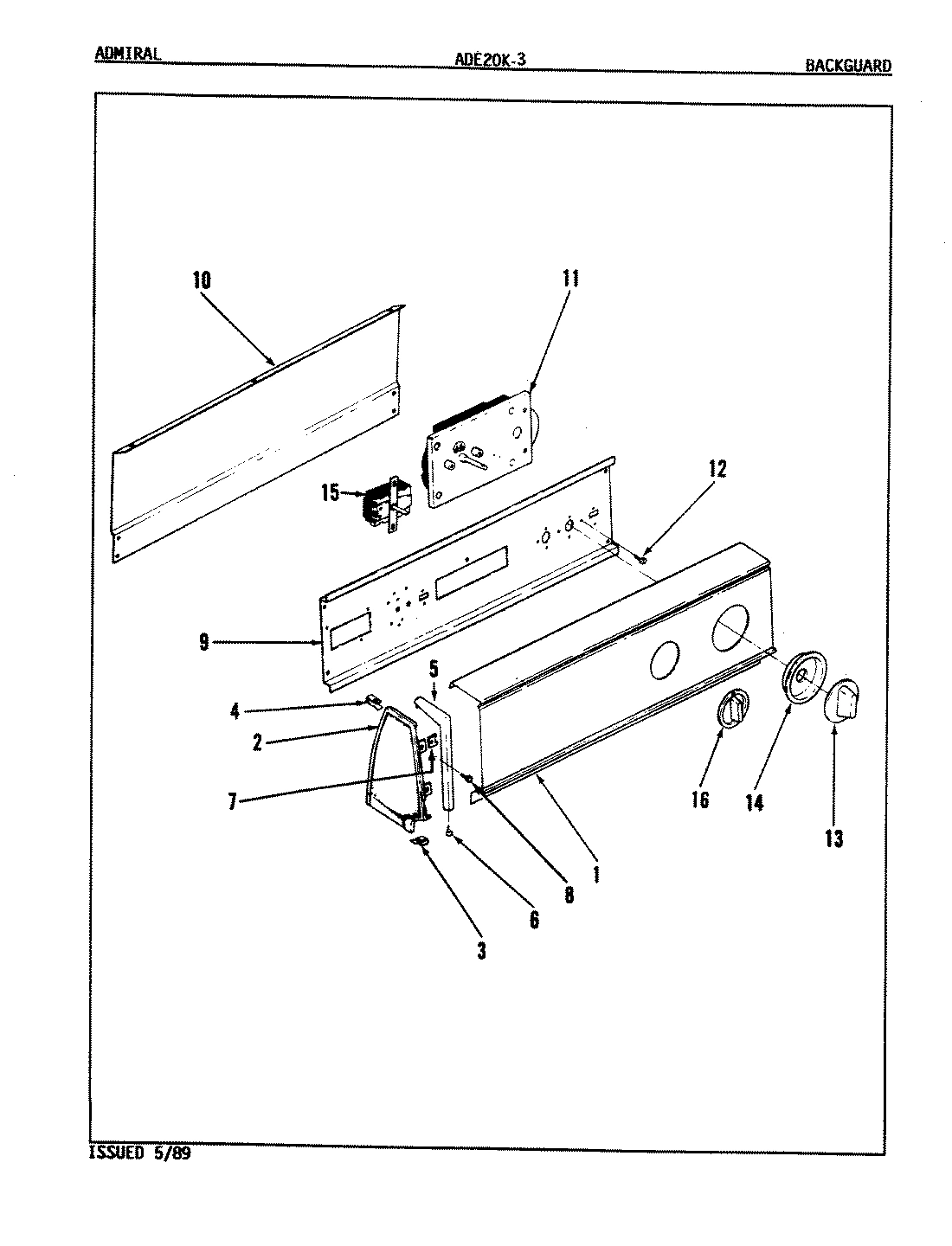

01 - CONTROL PANEL (REV. A-D)
Common parts from model Whirlpool ADE20K3W ELECTRIC DRYER
1
CABINET TOP (DRYER) WPL 531711 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
HEATER ELEMENT WPL 530919 Contact Us For Availability
1
CONTROL PANEL WPL 531281 Contact Us For Availability
1
LEG, LEVELING WPL 635519 Contact Us For Availability
1
CABINET TOP WPL 530314 Contact Us For Availability
2
CABINET & BASE ASSY. (WHT) WPL 531644 Contact Us For Availability
2
SCREW No.8-18X1/2 PAN HD WPL 257819 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
SCREW, BACKGUARD TO TOP WPL 257696 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
CLIP, FRONT PANEL WPL 530120 Contact Us For Availability
2
CABINET ASM WPL 530667 Contact Us For Availability
2
RH ENDCAP WPL 530264 Contact Us For Availability
2
LH ENDCAP WPL 530265 Contact Us For Availability
3
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
SCREW, END CAP TO TOP WPL 257691 Contact Us For Availability
3
CLIP, WIRING WPL 257027 Contact Us For Availability
4
PAD, TOP HINGE WPL 330930 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SHIELD, WIRING WPL 530153 Contact Us For Availability
5
CLIP, WIRING WPL 253034 Contact Us For Availability
5
NUT (No.10-32) WPL 250027 Contact Us For Availability
5
WASHER, FLAT WPL 253122 Contact Us For Availability
5
WASHER, CUP WPL 253123 Contact Us For Availability
5
NUT WPL 256124 Contact Us For Availability
5
SCREW WPL 257803 Contact Us For Availability
5
TERMINAL BLOCK WPL 530166 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530277 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530278 Contact Us For Availability
5
SCREW WPL 257733 Contact Us For Availability
5
BULKHEAD WPL Y02100001 Contact Us For Availability
6
BUMPER, CABINET WPL 332653 Contact Us For Availability
6
SEAL ASSY (GRAY) WPL 530282 Contact Us For Availability
6
FUSE, THERMAL WPL 531182 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
7
PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability
7
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
7
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
8
SCREW WPL 257759 Contact Us For Availability
8
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
9
CYLINDER BELT WPL 531080 Contact Us For Availability
9
MOTOR MTG. KIT (DRYER) WPL LA1004 Contact Us For Availability
9
CONTROL SHIELD WPL 530365 Contact Us For Availability
10
CLIP, U-TYPE WPL 257817 Contact Us For Availability
10
SCREW, FRONT PANEL TO CABINET WPL 257820 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
MOTOR/PULLY ASM WPL 530189 Contact Us For Availability
10
MOTOR & PULLEY ASSY (115V,60HZ WPL 532275 Contact Us For Availability
10
REAR SHIELD WPL 530268 Contact Us For Availability
11
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
11
TIMER WPL 531303 Contact Us For Availability
11
TIMER WPL 531758 Contact Us For Availability
11
RESISTOR ASSY. WPL 636743 Contact Us For Availability
11
TIMER MOTOR WPL 636752 Contact Us For Availability
11
SWITCH, MOTOR WPL 530693 Contact Us For Availability
11
MOTOR WPL 530936 Contact Us For Availability
12
PIN, LOCATOR WPL 636148 Contact Us For Availability
12
SCREW WPL 250205 Contact Us For Availability
12
SCREW WPL 257811 Contact Us For Availability
12
BRACKET WPL 530105 Contact Us For Availability
13
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
13
SLEEVE, LOCATOR PIN WPL 530200 Contact Us For Availability
13
KNOB & SKIRT ASSY. WPL 531533 Contact Us For Availability
13
SCREW WPL 257674 Contact Us For Availability
13
STRAIN RELIEF WPL 257699 Contact Us For Availability
13
CLAMP, MOTOR WPL 530214 Contact Us For Availability
14
COLLECTOR DUCT WPL 531299 Contact Us For Availability
14
KNOB SKI WPL 531356 Contact Us For Availability
14
WASHER WPL 257815 Contact Us For Availability
14
PUSHNUT WPL 257957 Contact Us For Availability
14
PULLEY, IDLER WPL 531628 Contact Us For Availability
14
IDLER ASSY WPL 531650 Contact Us For Availability
14
ARM, IDLER WPL 532250 Contact Us For Availability
14
IDLER ASSY. WPL 532287 Contact Us For Availability
14
COLLECTOR DUCT WPL 530917 Contact Us For Availability
14
IDLER ARM WPL 530199 Contact Us For Availability
15
ROTARY SWITCH WPL 531265 Contact Us For Availability
15
IDLER SPRING WPL 531648 Contact Us For Availability
15
SPRING, IDLER WPL 532209 Contact Us For Availability
15
SEAL WPL 531298 Contact Us For Availability
15
IDLER SPRING WPL 530207 Contact Us For Availability
16
SCREW WPL 253092 Contact Us For Availability
16
CLIP WPL 530123 Contact Us For Availability
16
KNOB, SELECTOR (BLK) WPL 352185 Contact Us For Availability
16
BUZZER WPL 636731 Contact Us For Availability
16
DUCT, EXHAUST WPL 530134 Contact Us For Availability
17
LINT SCREEN WPL 530701 Contact Us For Availability
17
BLOWER HOUSING WPL 530774 Contact Us For Availability
17
HOUSING, BLOWER WPL 531801 Contact Us For Availability
18
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
18
BLOWER HSG COVER & SEAL WPL 531103 Contact Us For Availability
19
PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability
19
BLOWER WHEEL WPL 530106 Contact Us For Availability
20
INNER PANEL WPL 530104 Contact Us For Availability
20
CLAMP WPL 257823 Contact Us For Availability
21
CLIP, HINGE WPL 530119 Contact Us For Availability
21
RETAINING RING WPL 257812 Contact Us For Availability
22
PAD, DOOR WPL 530251 Contact Us For Availability
22
SCREW WPL 257807 Contact Us For Availability
22
BLOWER COVER WPL 531024 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
22
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
23
PAD, DOOR WPL 530252 Contact Us For Availability
23
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
24
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
24
DOOR SEAL WPL 530648 Contact Us For Availability
24
SCREW WPL 252134 Contact Us For Availability
24
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
25
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
25
LAMP SOCKET WPL 530152 Contact Us For Availability
26
SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability
26
HANDLE, DOOR (CHR) WPL 530928 Contact Us For Availability
26
SCREW, SEMS WPL 253457 Contact Us For Availability
26
CYL LIGHT BULB WPL 530570 Contact Us For Availability
27
HINGE, DOOR WPL 530122 Contact Us For Availability
27
LENS, BULB WPL 530174 Contact Us For Availability
28
SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability
28
TWIN NUT WPL 530121 Contact Us For Availability
28
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
29
STRIKE, DOOR WPL 730033 Contact Us For Availability
29
RH GLD CUSHION WPL 530182 Contact Us For Availability
30
DOOR CATCH WPL 530882 Contact Us For Availability
30
RH CYL GLIDE WPL 530183 Contact Us For Availability
31
SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability
31
SUPPORT, POWER CORD WPL 530135 Contact Us For Availability
31
SUPPORT ASM WPL 530198 Contact Us For Availability
32
SCREW WPL 257857 Contact Us For Availability
32
COVER, SUPPLY CORD WPL 530136 Contact Us For Availability
32
FRONT ROLLER WPL 530665 Contact Us For Availability
33
SHIELD, HEAT WPL 530133 Contact Us For Availability
34
RACK, DRYING WPL 530772 Contact Us For Availability
34
SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability
35
SWITCH, DOOR WPL 530147 Contact Us For Availability
36
CLIP, SWITCH WPL 635990 Contact Us For Availability
36
LH GLD CUSHION WPL 530184 Contact Us For Availability
37
LH CYL GLIDE WPL 530185 Contact Us For Availability
37
ROLLER WPL LA1008 Contact Us For Availability
38
SCREW WPL 257101 Contact Us For Availability
38
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
39
CYLINDER ROLLER WPL 530163 Contact Us For Availability
40
SPACER WPL 257813 Contact Us For Availability
41
WASHER WPL 257814 Contact Us For Availability
42
RETAINING RING WPL 257574 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 6355771 Contact Us For Availability
× ![]()
