Model Whirlpool ADB2500AWB2 DISHWASHER – Common Parts & Diagrams

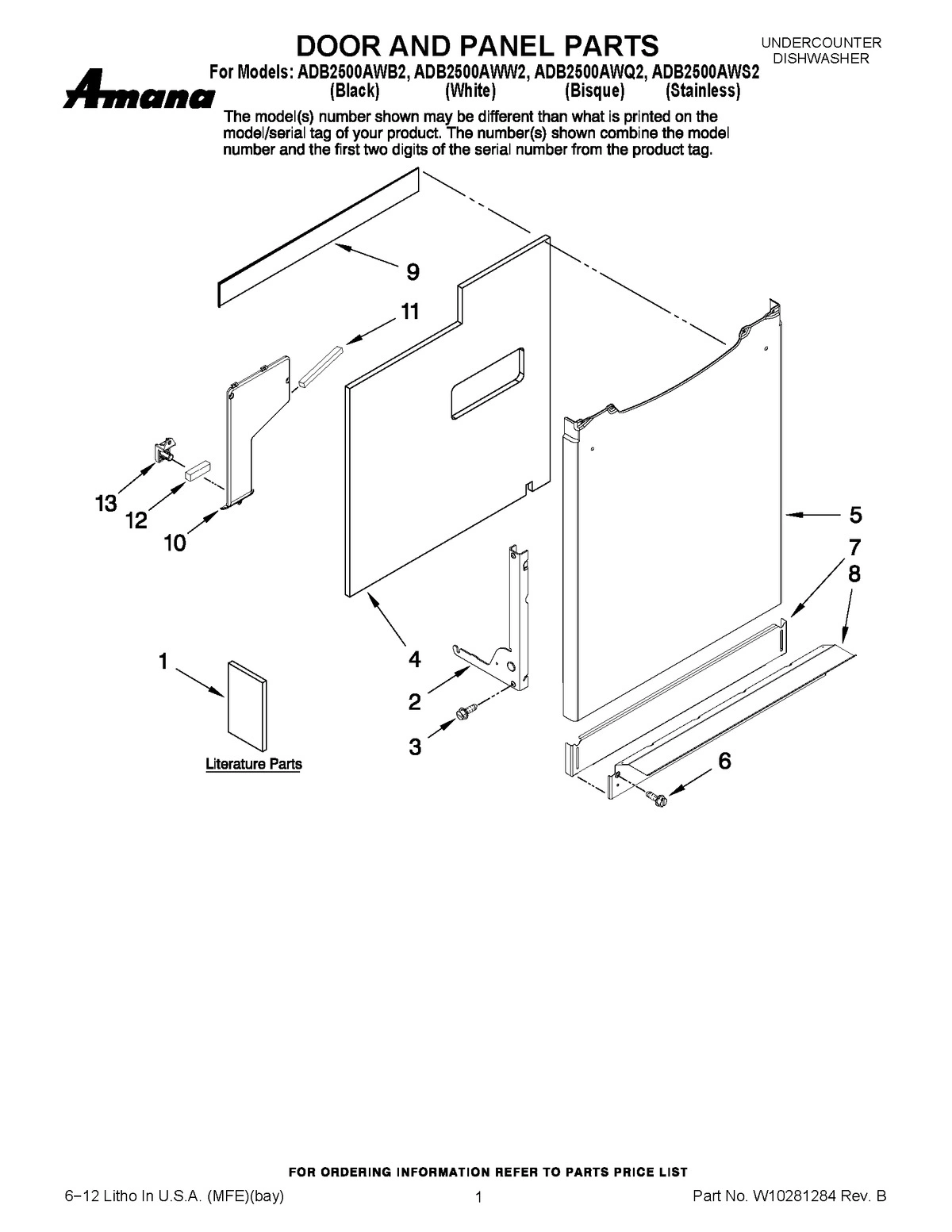

01 - DOOR AND PANEL PARTS

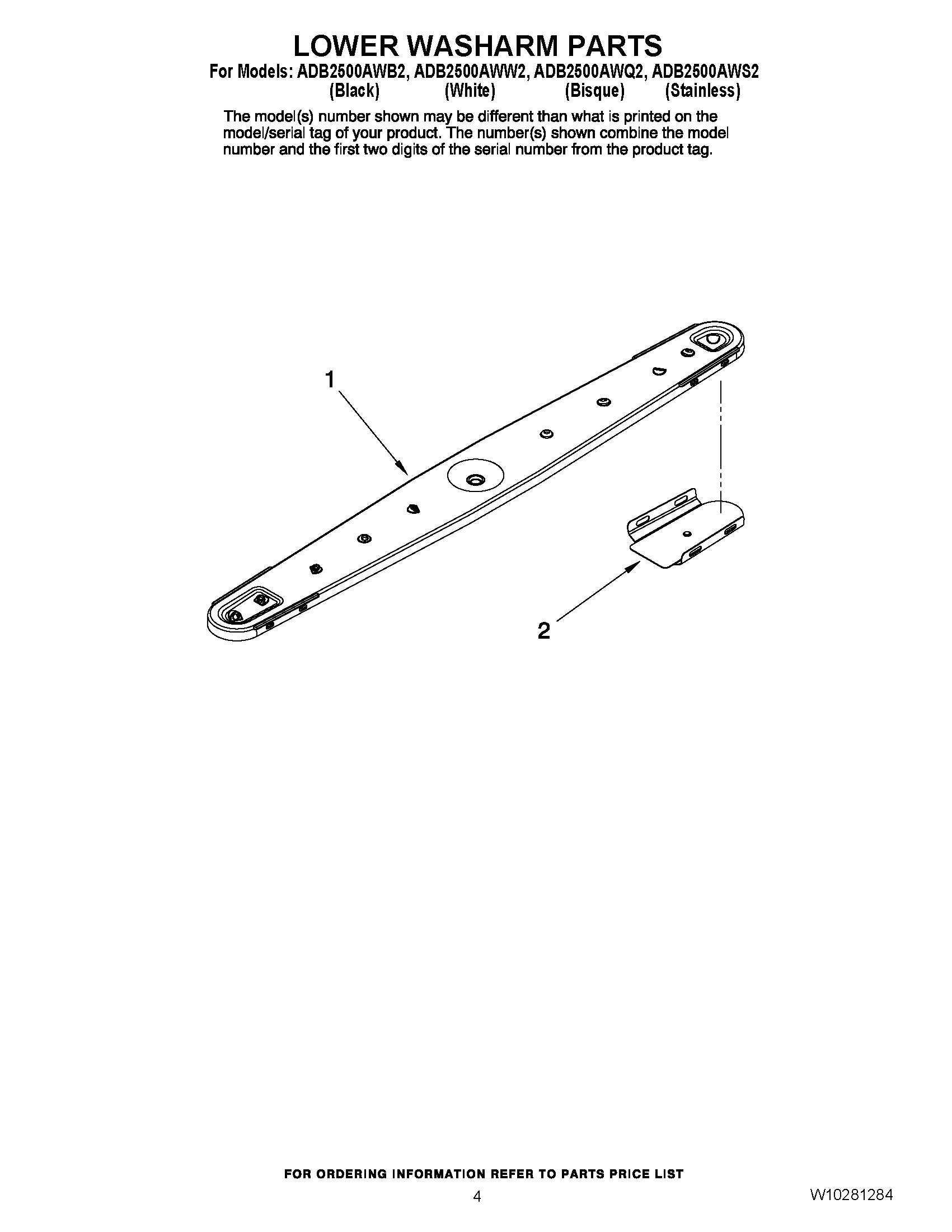

04 - LOWER WASHARM PARTS

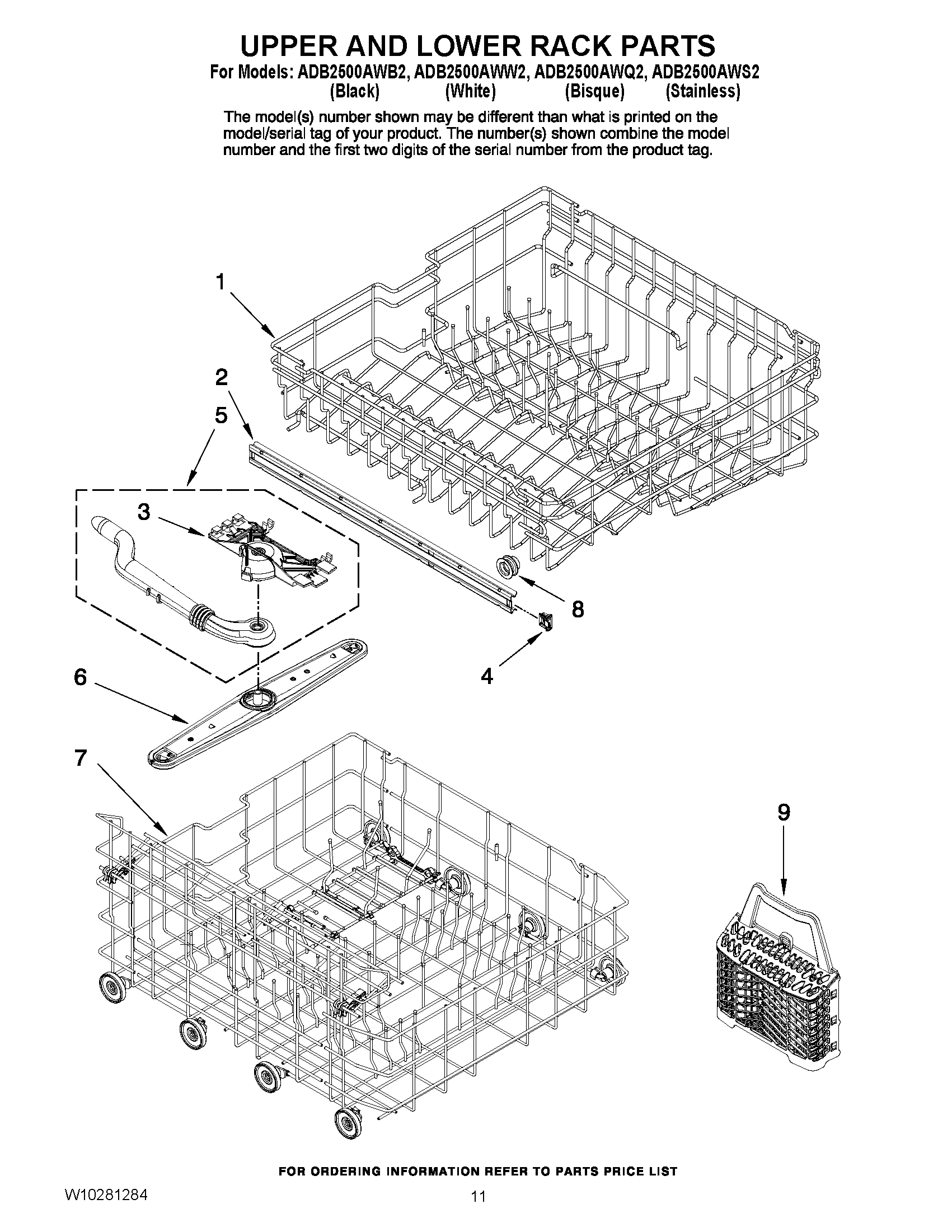

09 - UPPER AND LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)

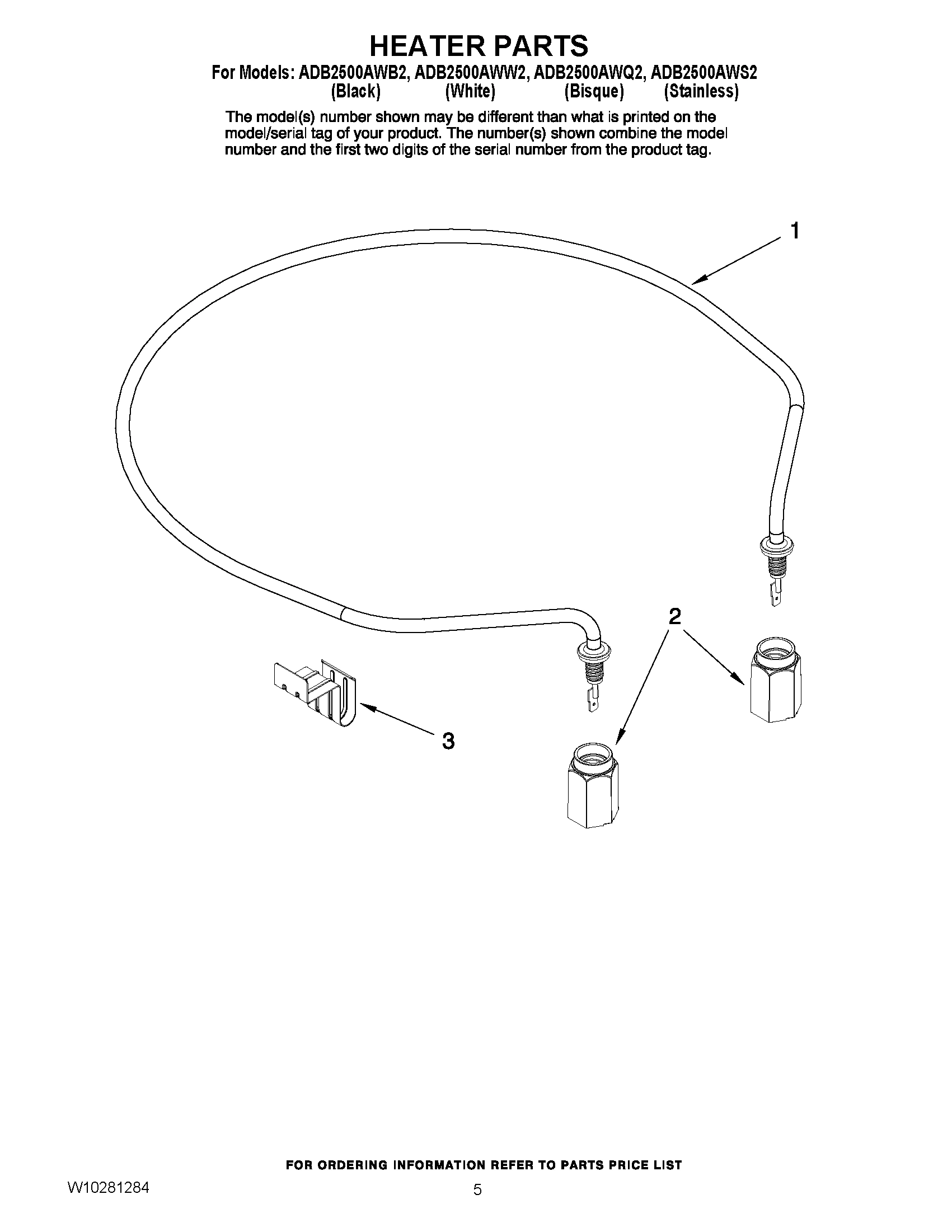

05 - HEATER PARTS

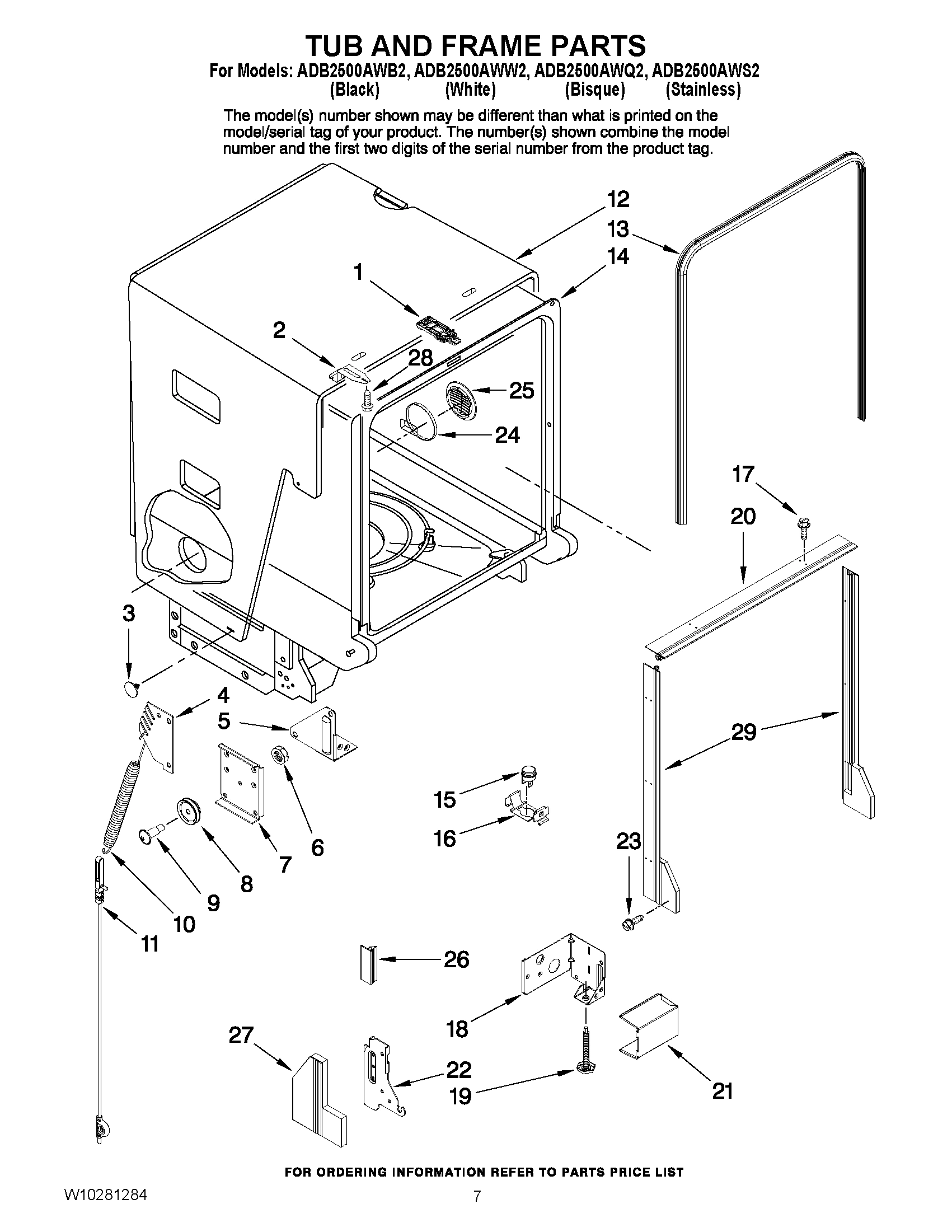

07 - TUB AND FRAME PARTS

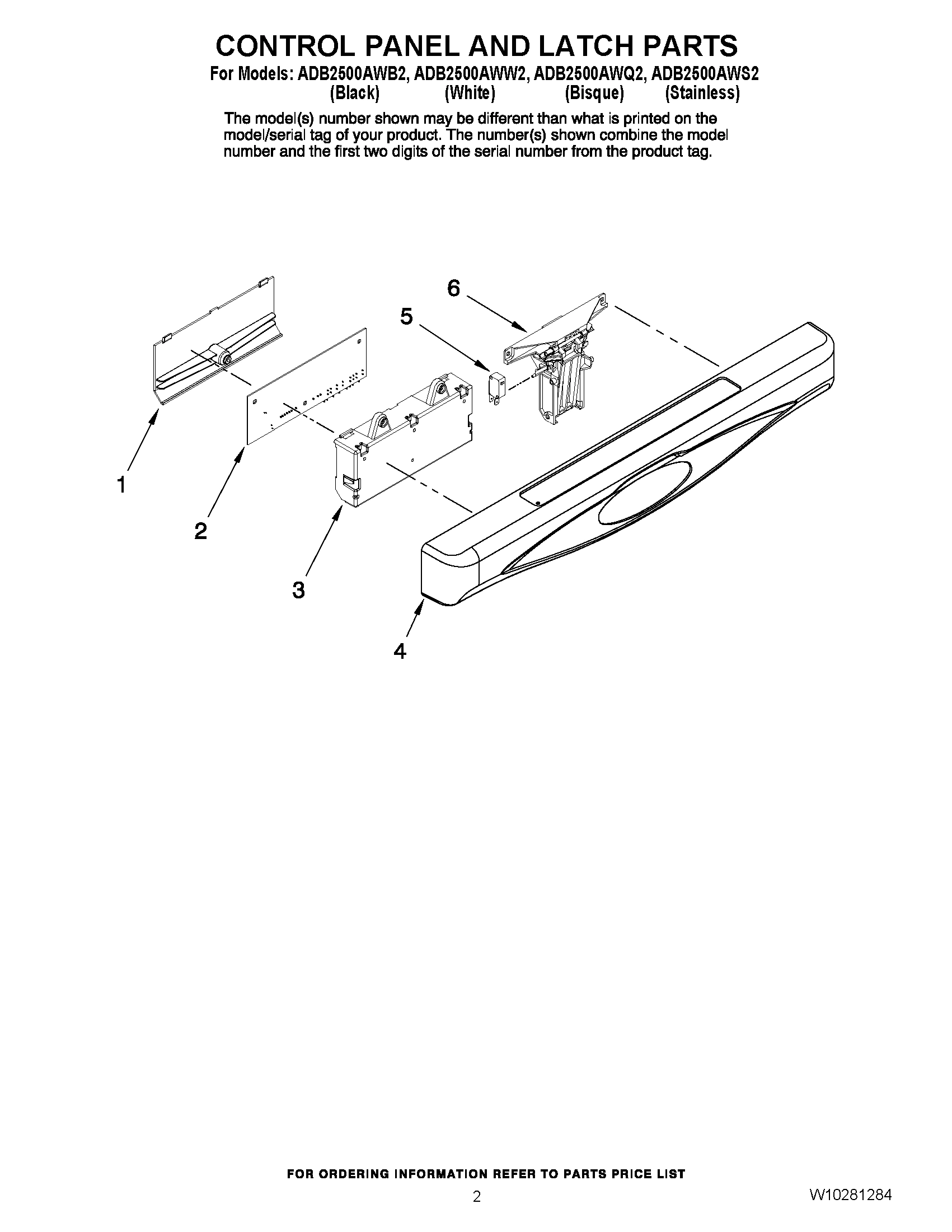

02 - CONTROL PANEL AND LATCH PARTS

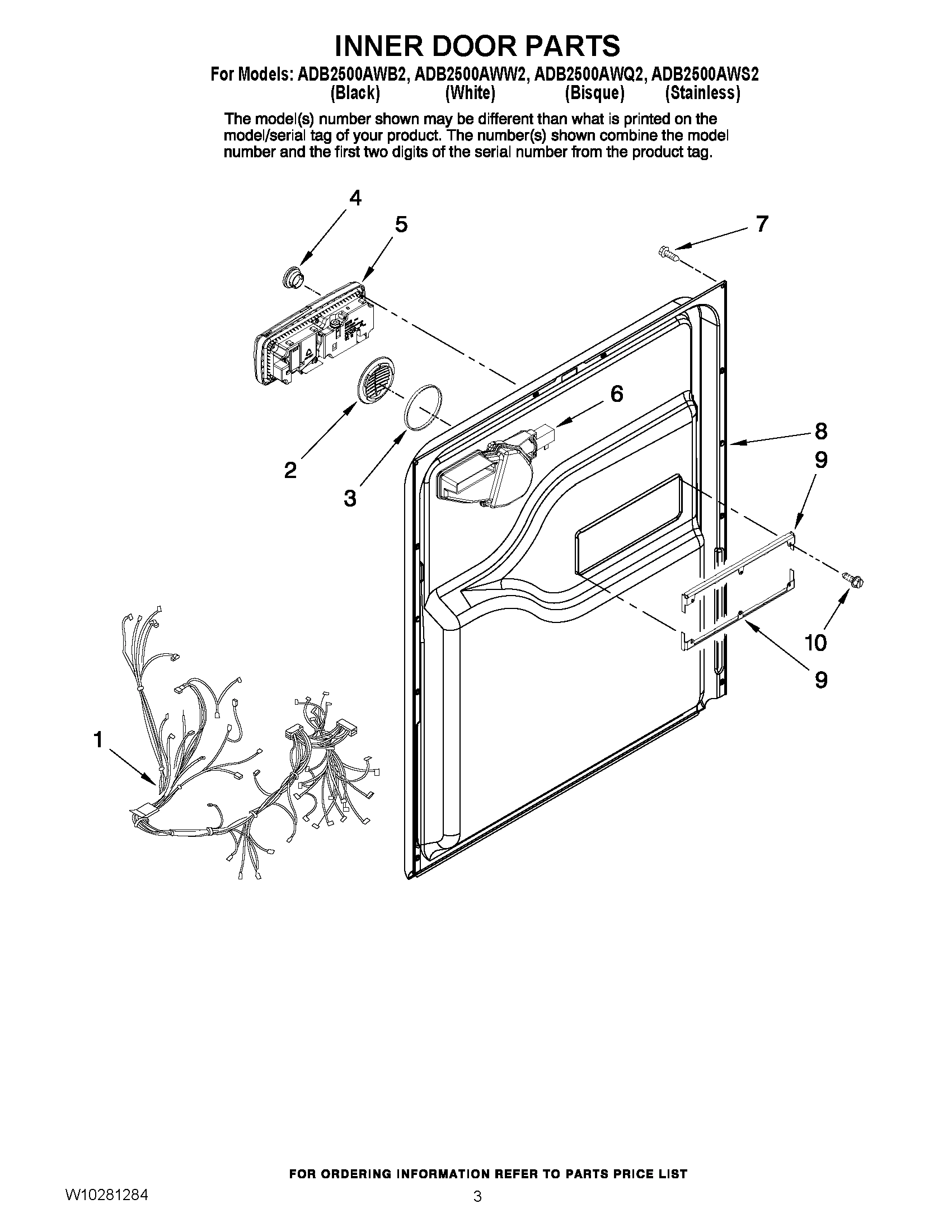

03 - INNER DOOR PARTS

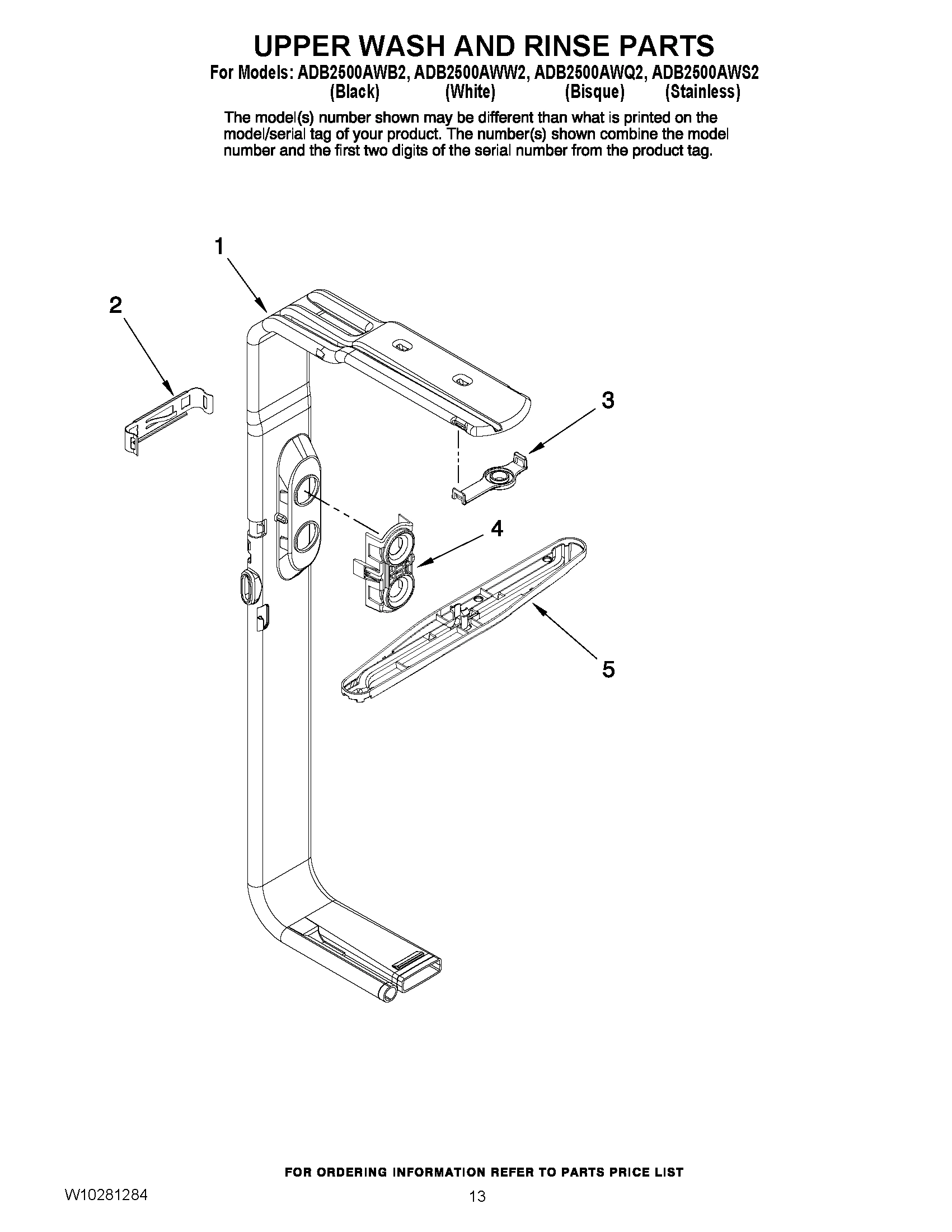

10 - UPPER WASH AND RINSE PARTS

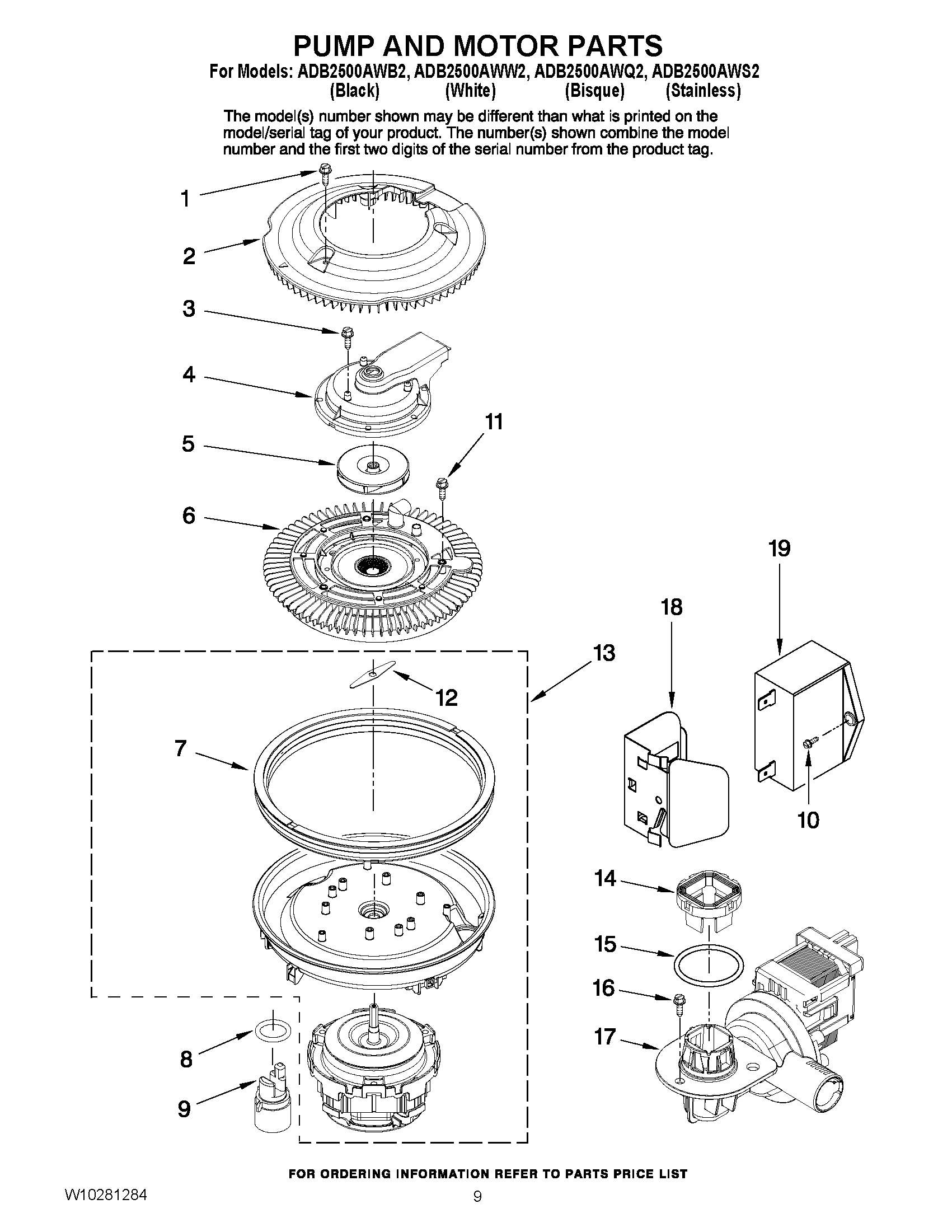

08 - PUMP AND MOTOR PARTS

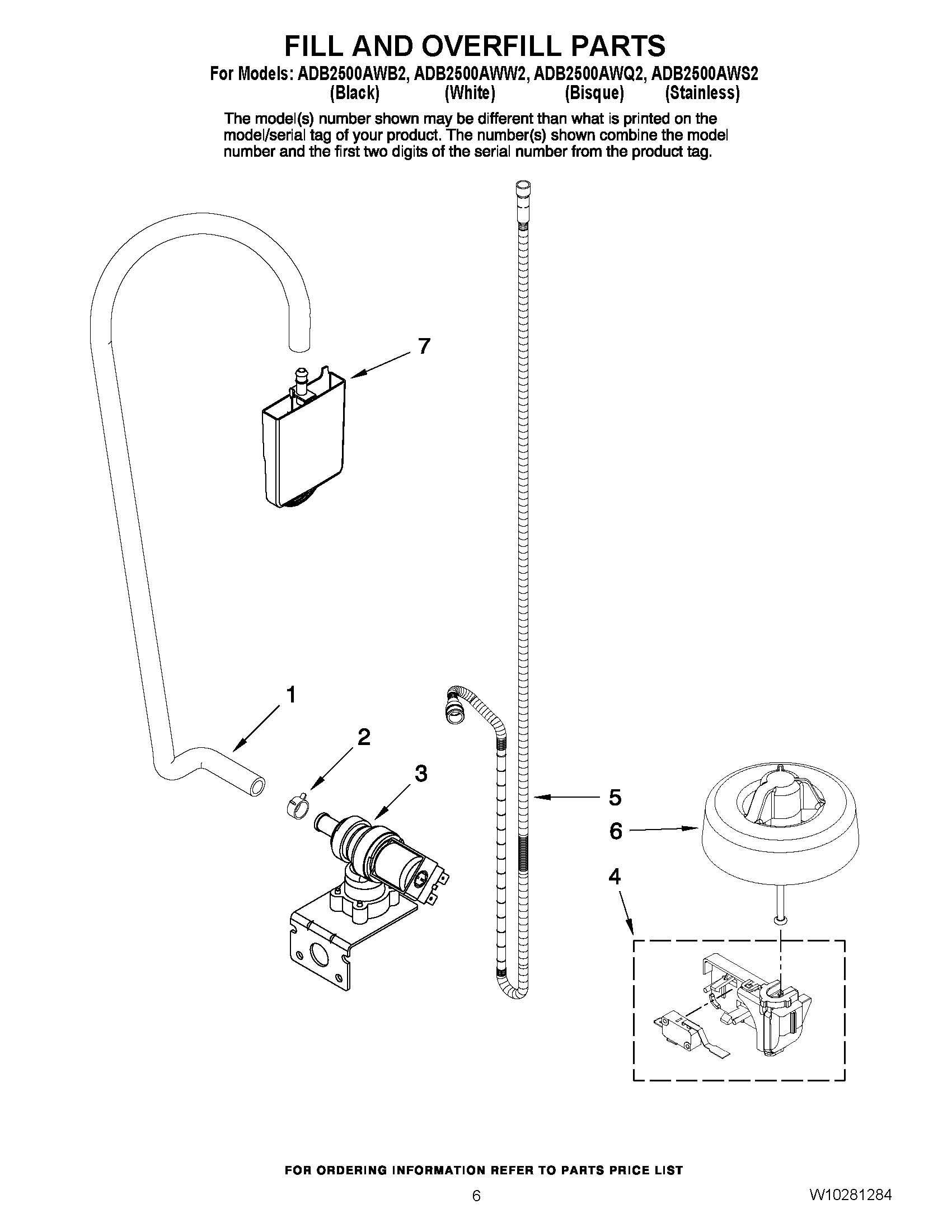

06 - FILL AND OVERFILL PARTS
Common parts from model Whirlpool ADB2500AWB2 DISHWASHER
1
Strike, Door WPL W10119337 Contact Us For Availability
1
Dishrack, Upper WPL W10203878 Contact Us For Availability
1
HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability
1
Harness, Wiring WPL W10237911 Contact Us For Availability
1
SCREW WPL 99002666 Contact Us For Availability
2
Board, Control WPL W10218837 Contact Us For Availability
2
Guard, Filter WPL W10166788 Contact Us For Availability
2
Shield, Radiant WPL W10218606 Contact Us For Availability
2
Rail, Inner Slide WPL 99002621 Contact Us For Availability
2
NUT-HEATER WPL 6920168 Contact Us For Availability
2
Bracket, Cabinet Mounting WPL 6916881 Contact Us For Availability
2
BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability
2
CLAMP, SPRING WPL 6911856 Contact Us For Availability
3
Clip, Upper Wash Manifold (Front) WPL 99002669 Contact Us For Availability
3
BRACKET, HEATER SUPPORT WPL 6917262 Contact Us For Availability
3
Fastener WPL 99002640 Contact Us For Availability
3
SEAL, DOOR VENT WPL 99002186 Contact Us For Availability
3
SCREW WPL W10202904 Contact Us For Availability
3
VALVE, WATER WPL 6920534 Contact Us For Availability
4
Float, Housing WPL W10205539 Contact Us For Availability
4
Stop, Rail WPL 6919925 Contact Us For Availability
4
BRACKET, SPRING ADJUSTMENT WPL 6918346 Contact Us For Availability
4
PANEL- CONTROL (BLACK) WPL 6919803 Contact Us For Availability
4
PANEL- CONTROL (BISQUE) WPL 6919804 Contact Us For Availability
4
PANEL- CONTROL (WHITE) WPL 6919805 Contact Us For Availability
4
Cap, Rinse Aid WPL 99002992 Contact Us For Availability
4
Station, Docking (with Flapper) WPL 99002674 Contact Us For Availability
4
Discharge, Housing Assembly WPL W10212440 Contact Us For Availability
5
WASH MANIFOLD ASSY, (UPPER) WPL 6917643 Contact Us For Availability
5
Bracket, Support WPL 6916979 Contact Us For Availability
5
SWITCH, DOOR WPL 99002751 Contact Us For Availability
5
Dispenser, Rinse Aid WPL 99003321 Contact Us For Availability
5
Wash Arm, Top (with Retainer) WPL 99002676 Contact Us For Availability
6
Housing, Vent Assy WPL W10190890 Contact Us For Availability
6
Arm, Wash (Upper) WPL 99002624 Contact Us For Availability
6
Nut WPL 99003688 Contact Us For Availability
6
FLOAT WPL W10130095 Contact Us For Availability
7
Dishrack, Lower WPL W10203924 Contact Us For Availability
7
Bracket, Cable WPL W10173920 Contact Us For Availability
7
GASKET, MOTOR MOUNT WPL 6917025 Contact Us For Availability
7
INLET, AIR/WATER WPL 99002645 Contact Us For Availability
8
Wheel Assembly WPL W10180776 Contact Us For Availability
8
INNER DOOR W/ DAMPER WPL 6919865 Contact Us For Availability
8
O-RING, TURBIDITY 3 SENSOR WPL 6916444 Contact Us For Availability
9
Insulation, Door WPL W10117748 Contact Us For Availability
9
BASKET, SILVERWARE WPL W10129577 Contact Us For Availability
9
Bolt, Shoulder WPL 99003687 Contact Us For Availability
9
BRACKET, DISPENSER WPL 6918900 Contact Us For Availability
10
Liner, Door Secondary WPL W10185633 Contact Us For Availability
10
SPRING, DOOR WPL 99002598 Contact Us For Availability
10
Screw WPL 99002601 Contact Us For Availability
11
Screw WPL 99002664 Contact Us For Availability
11
Strip, Foam (Long) WPL 99003481 Contact Us For Availability
12
STRIP, FOAM (SHORT) WPL 99003482 Contact Us For Availability
12
CHOPPER WPL 6919353 Contact Us For Availability
13
BRACKET, SECONDARY DOOR LINER WPL 99003541 Contact Us For Availability
13
SEAL, DOOR WPL 99002588 Contact Us For Availability
13
Wash Motor Assy. WPL W10118627 Contact Us For Availability
14
Tub Assembly WPL W10142297 Contact Us For Availability
14
FLAPPER, DRAIN PUMP INLET WPL 6919119 Contact Us For Availability
15
THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability
15
O-RING, DRAIN PUMP WPL 6917029 Contact Us For Availability
16
CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability
16
Screw WPL 99002740 Contact Us For Availability
17
SCREW, TRIM MOUNTING WPL 6917273 Contact Us For Availability
17
Drain Pump Assy. WPL W10119816 Contact Us For Availability
18
BRACKET, JUNCTION BOX WPL 6917103 Contact Us For Availability
18
Shield, Capacitor WPL W10167912 Contact Us For Availability
19
Capacitor WPL 99002665 Contact Us For Availability
20
Strip, Top WPL W10236659 Contact Us For Availability
21
Cover, Junction Box WPL 6916711 Contact Us For Availability
22
Support, Hinge (Right) WPL W10137495 Contact Us For Availability
22
Support, Hinge (Left) WPL W10137496 Contact Us For Availability
24
Seal, Air/Water Inlet WPL 6919082 Contact Us For Availability
25
Grill,Air/Water Inlet WPL 99002948 Contact Us For Availability
26
GAP,SEAL KICK (BLACK) WPL W10163633 Contact Us For Availability
26
GAP,SEAL KICK (BISQUE) WPL W10163634 Contact Us For Availability
26
GAP,SEAL KICK (WHITE) WPL W10163635 Contact Us For Availability
27
Backer,Hng Seal (Left) WPL 99003306 Contact Us For Availability
27
Backer,Hng Seal (Right) WPL 99003307 Contact Us For Availability
28
Screw WPL 6912799 Contact Us For Availability
29
Trim, Sides WPL W10236658 Contact Us For Availability
× ![]()
