Model Whirlpool ACQ189XR2 AIR CONDITIONER – Common Parts & Diagrams

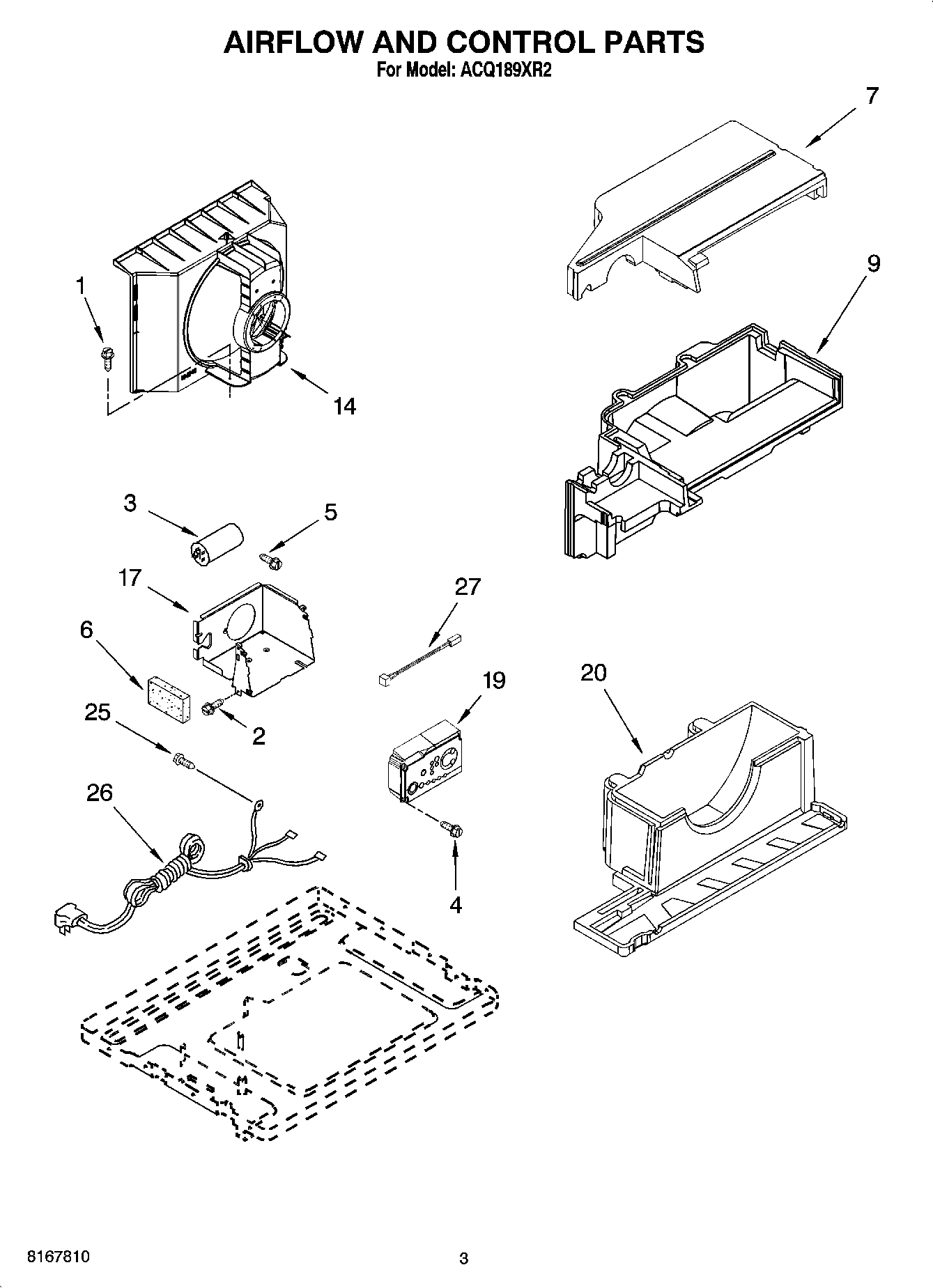

02 - AIR FLOW AND CONTROL PARTS

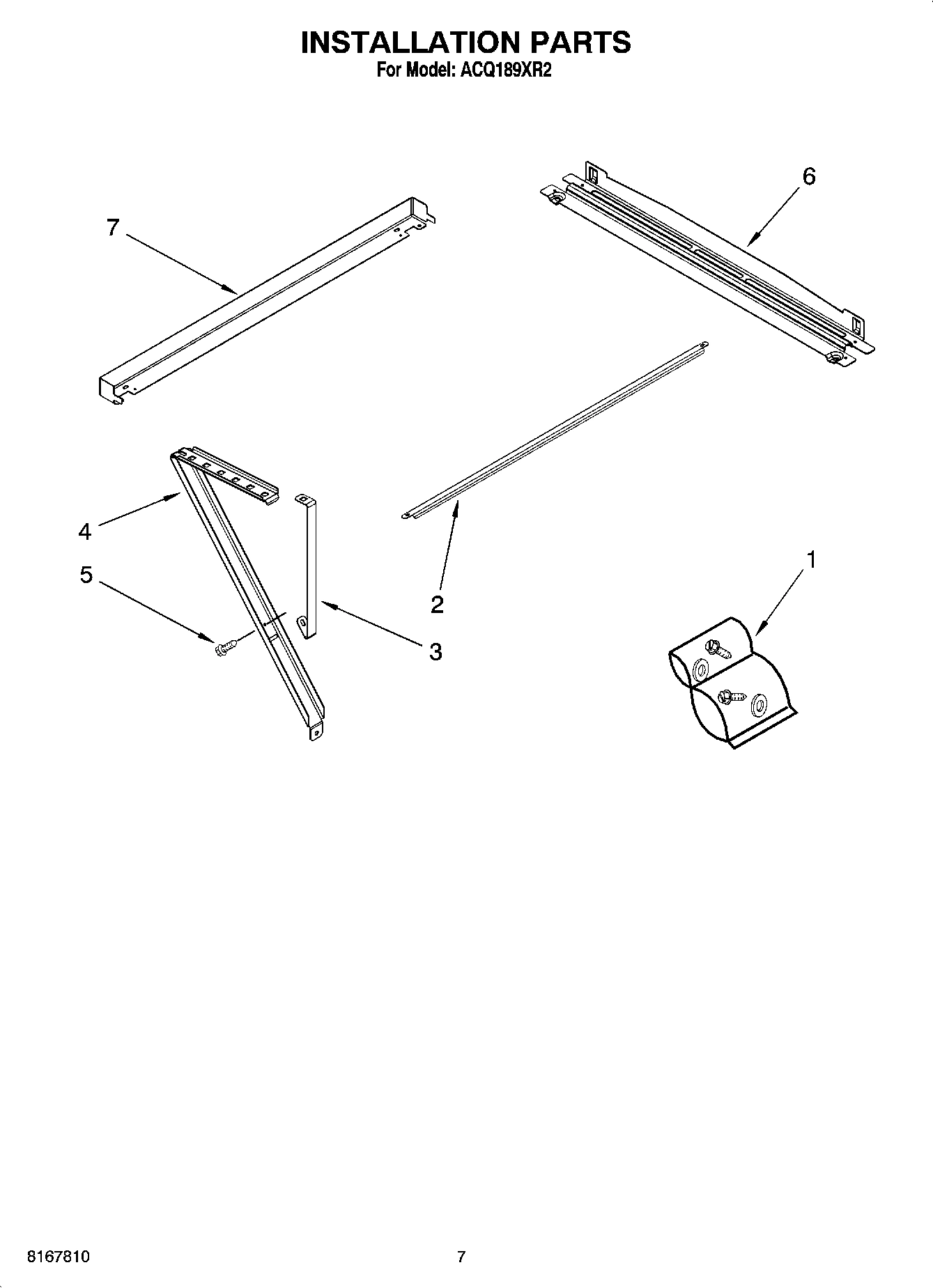

04 - INSTALLATION PARTS

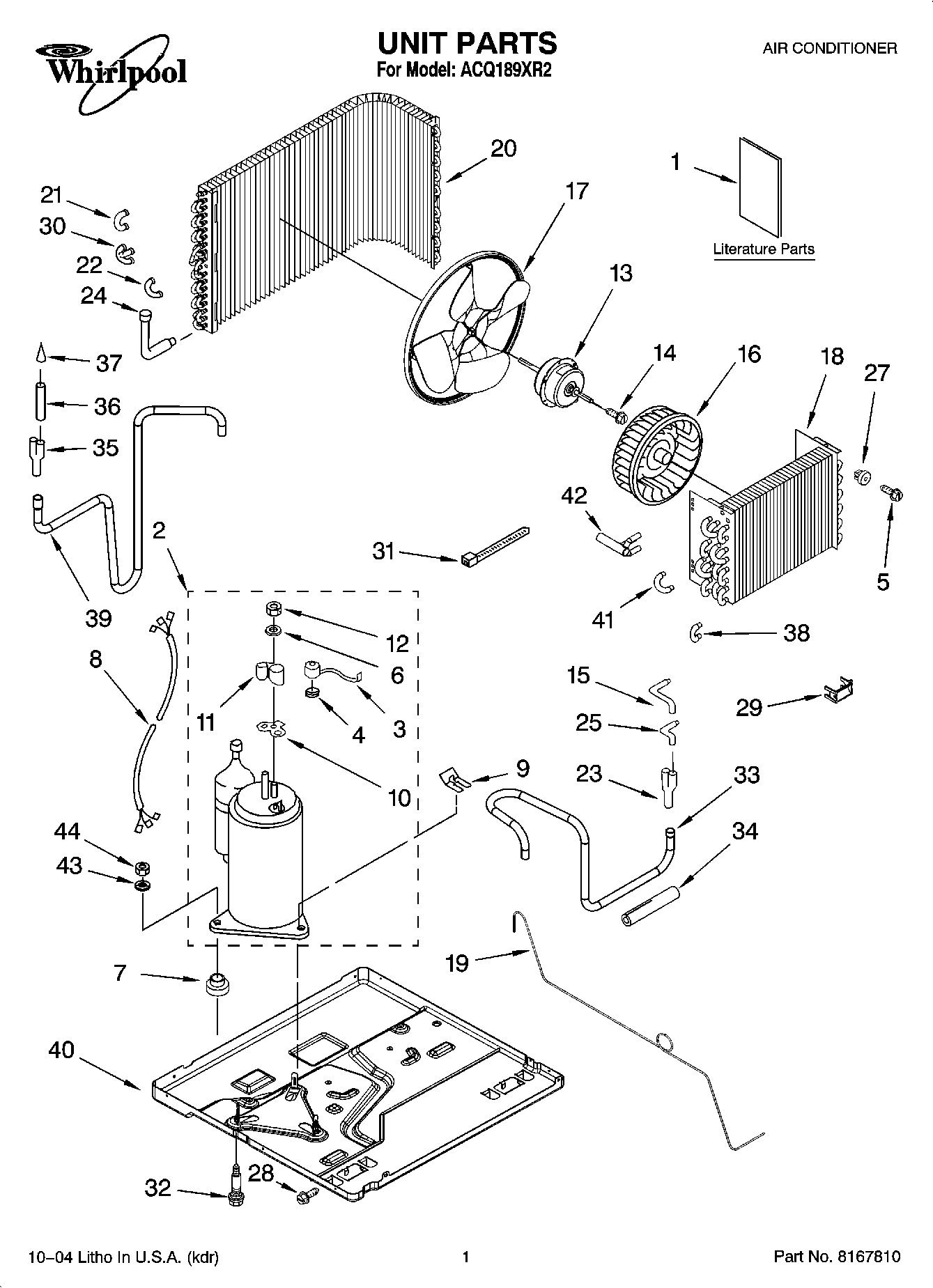

01 - UNIT PARTS

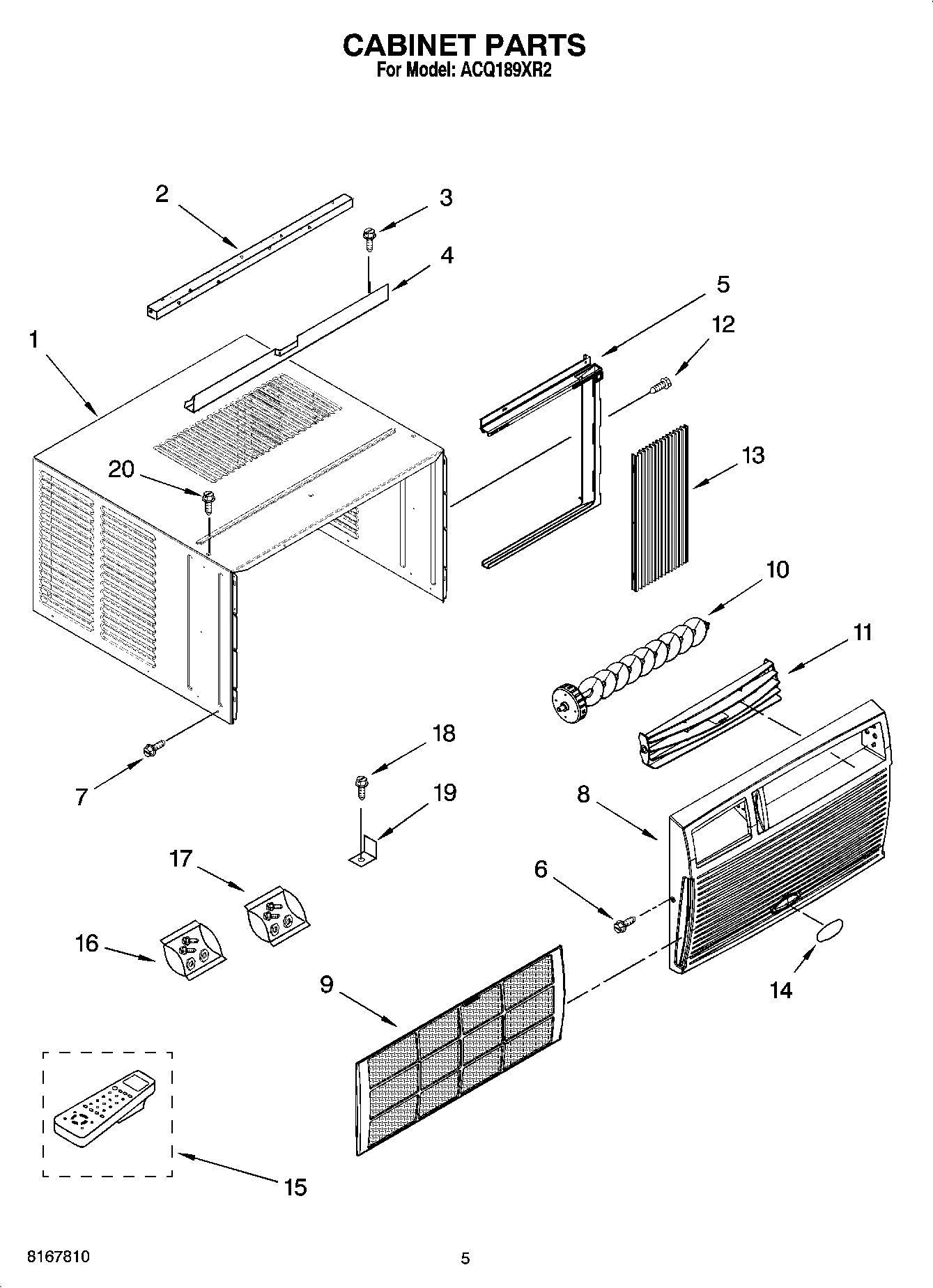

03 - CABINET PARTS

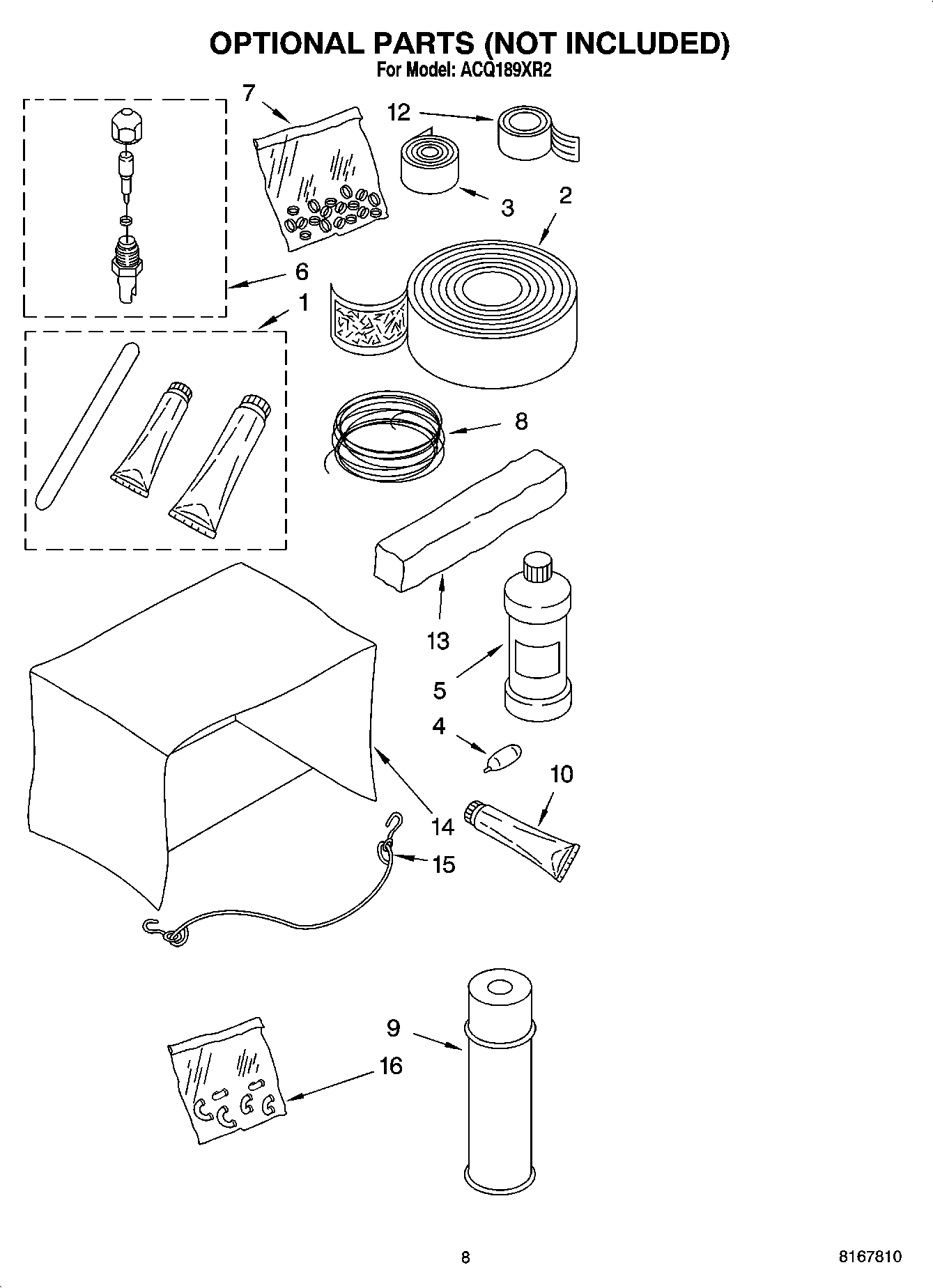

05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ACQ189XR2 AIR CONDITIONER
1
Use & Care Guide WPL 1188018 Contact Us For Availability
1
Energy Guide WPL 1188035 Contact Us For Availability
1
Wiring Diagram WPL 1188126 Contact Us For Availability
1
CABINET WPL 1187194 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1188221 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
OVERLOAD WPL 1187489 Contact Us For Availability
4
Support, Vertical (2) WPL 1187202 Contact Us For Availability
4
Spring, Overload WPL 1185795 Contact Us For Availability
4
Channel, Top WPL 1187203 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Frame, Curtain (Right Side) WPL 1187530 Contact Us For Availability
5
Frame, Curtain (Left Side) WPL 1187531 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Side (2) WPL 1187283 Contact Us For Availability
6
Washer WPL 1185794 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Support, Back WPL 1187284 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1187606 Contact Us For Availability
8
FRONT WPL 1187196 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Filter WPL 1187389 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Louver, Vertical WPL 1187260 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
11
Louver Horizontal WPL 1187259 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
13
Motor, Fan WPL 1187177 Contact Us For Availability
13
CURTAIN WPL 1187532 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Tube, Feeder WPL 1187659 Contact Us For Availability
15
Control, Remote WPL 1187760 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Wheel, Blower WPL 1187186 Contact Us For Availability
16
Bag, Accessory WPL 476180 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Blade, Fan WPL 1187178 Contact Us For Availability
17
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
18
EVAPORATOR WPL 1187187 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1187648 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
CONDENSER WPL 1187179 Contact Us For Availability
21
Bend, Return WPL 1187604 Contact Us For Availability
22
Bend, Return WPL 1187691 Contact Us For Availability
23
Tube, Flow Divider WPL 1159832 Contact Us For Availability
24
Tube, Connecting WPL 1187660 Contact Us For Availability
25
Tube, Feeder WPL 1187373 Contact Us For Availability
27
Grommet, Screw WPL 1187495 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 1185337 Contact Us For Availability
30
Bend, Return WPL 8031285 Contact Us For Availability
32
Screw WPL 1165674 Contact Us For Availability
33
Tube, Suction (Includes Item 34) WPL 1187787 Contact Us For Availability
34
Seal, Suction Tube WPL 1187638 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Tube, Outlet (Includes Item 37) WPL 1155598 Contact Us For Availability
37
Strainer WPL 49599 Contact Us For Availability
38
Bend, Returm WPL 855199 Contact Us For Availability
39
Tube, Discharge WPL 1187562 Contact Us For Availability
40
BASE WPL 1187554 Contact Us For Availability
41
Bend, Return WPL 855644 Contact Us For Availability
42
Manifold, Suction WPL 1187190 Contact Us For Availability
44
Nut, Lock WPL 858121 Contact Us For Availability
44
REFRIGERANT CHARGE 33.50 oz. WPL ARI144124A Contact Us For Availability
× ![]()
