Model Whirlpool ACQ158XR1 AIR CONDITIONER – Common Parts & Diagrams
05 - OPTIONAL PARTS (NOT INCLUDED)
03 - CABINET PARTS

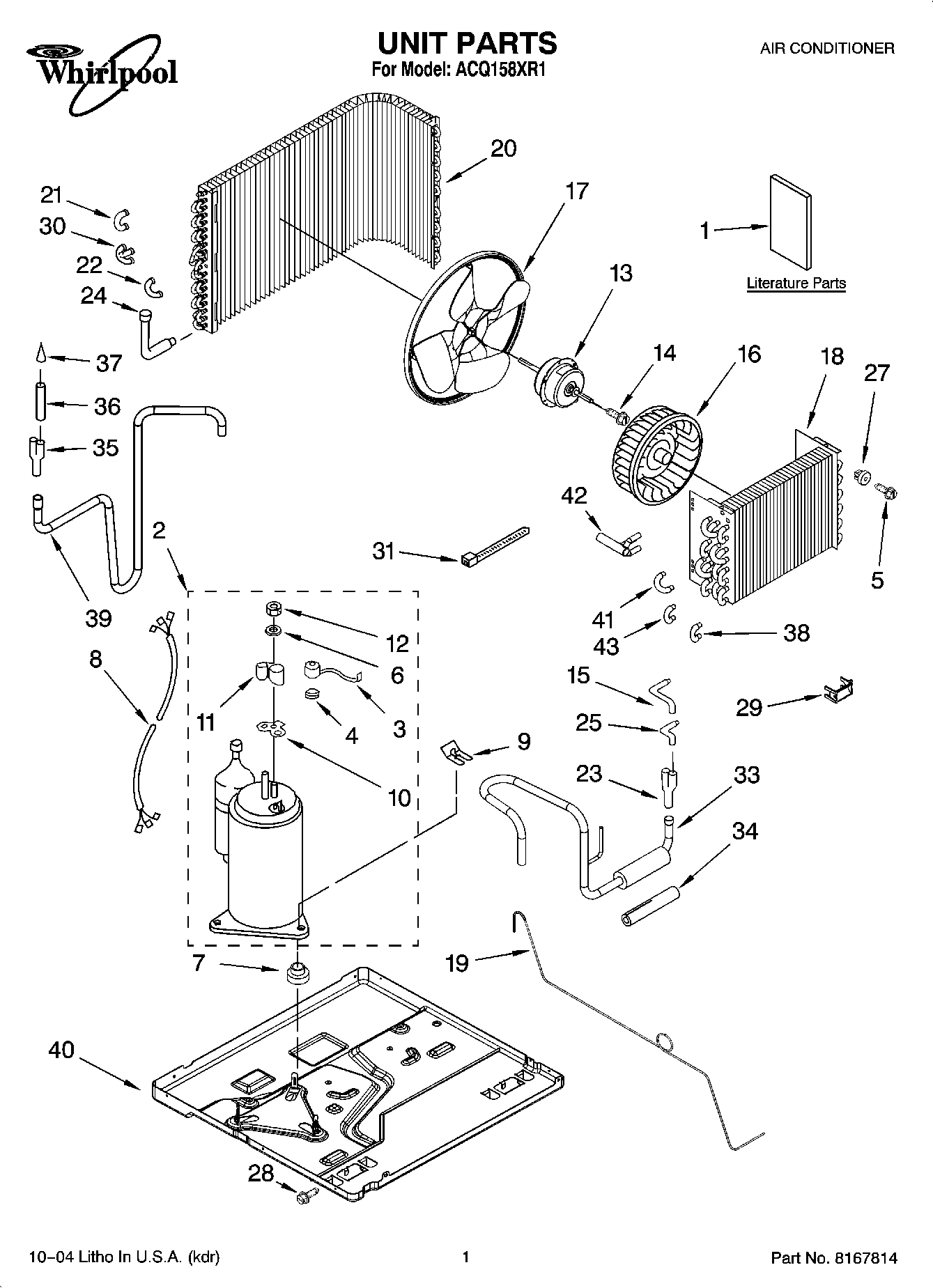

01 - UNIT PARTS

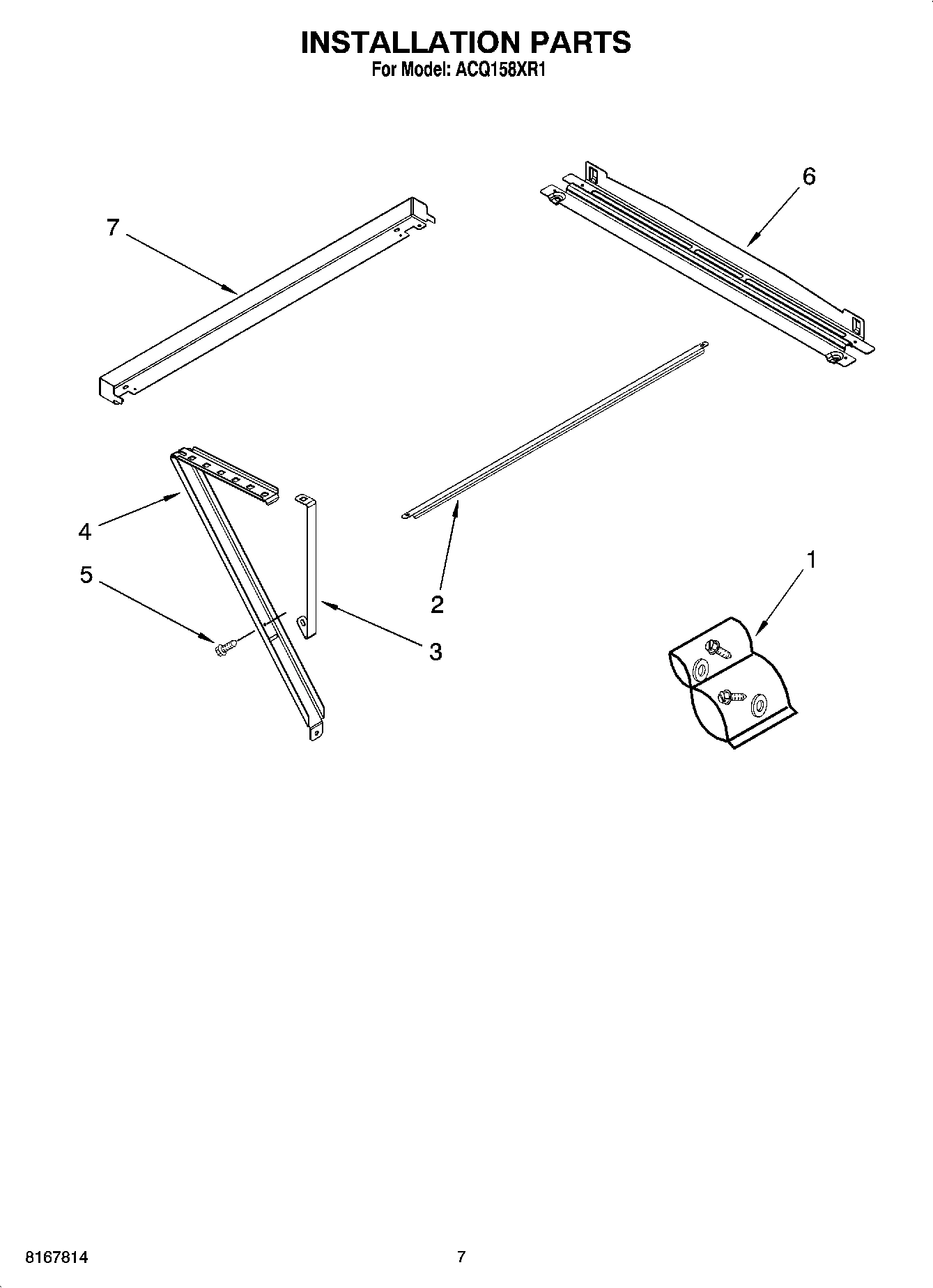

04 - INSTALLATION PARTS

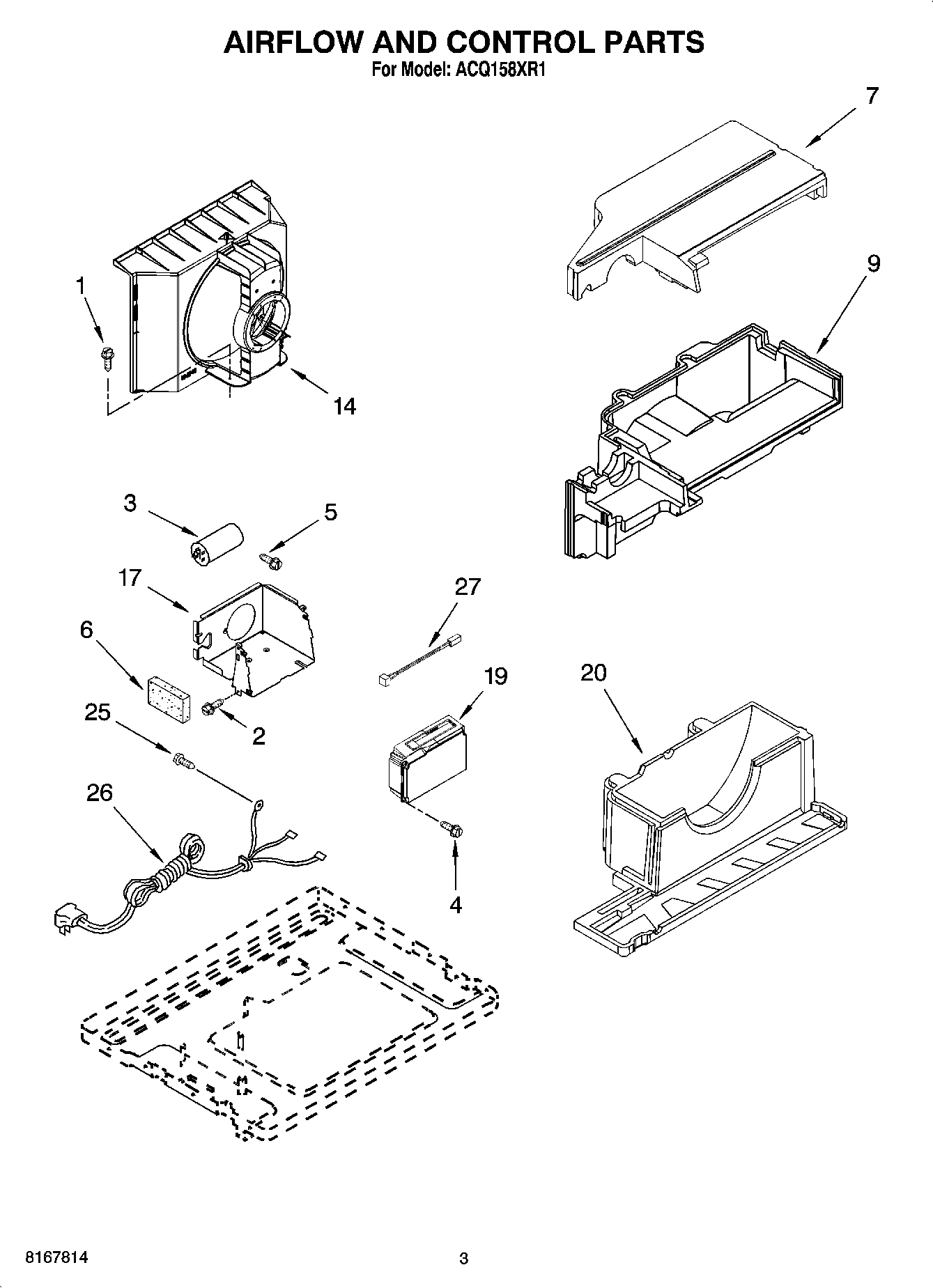

02 - AIR FLOW AND CONTROL PARTS
Common parts from model Whirlpool ACQ158XR1 AIR CONDITIONER
1
Use & Care Guide WPL 1188018 Contact Us For Availability
1
Wiring Diagram WPL 1188126 Contact Us For Availability
1
Energy Guide WPL 1188262 Contact Us For Availability
1
Bag, Mounting Hardware WPL 1187201 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 1188220 Contact Us For Availability
2
Support, Center WPL 1187285 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1188224 Contact Us For Availability
3
Strap, Vertical (2) WPL 1187286 Contact Us For Availability
4
Channel, Top WPL 1187203 Contact Us For Availability
4
Spring, Overload WPL 1185795 Contact Us For Availability
4
Support, Vertical (2) WPL 1187202 Contact Us For Availability
5
Frame, Curtain (Right Side) WPL 1187530 Contact Us For Availability
5
Frame, Curtain (Left Side) WPL 1187531 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Washer WPL 1185794 Contact Us For Availability
6
Support, Side (2) WPL 1187283 Contact Us For Availability
6
Seal, Control Box WPL 1187690 Contact Us For Availability
7
Support, Back WPL 1187284 Contact Us For Availability
7
Hood, Air Housing WPL 1187193 Contact Us For Availability
8
FRONT WPL 1187196 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1187606 Contact Us For Availability
9
Filter WPL 1187197 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Housing, Top WPL 1187191 Contact Us For Availability
10
Louver, Vertical WPL 1187260 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
11
Louver Horizontal WPL 1187259 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
13
Motor, Fan WPL 1187470 Contact Us For Availability
13
CURTAIN WPL 1187532 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 1187176 Contact Us For Availability
15
Control, Remote WPL 1187760 Contact Us For Availability
15
Tube, Feeder WPL 1187372 Contact Us For Availability
16
Bag, Accessory WPL 476180 Contact Us For Availability
16
Wheel, Blower WPL 1187186 Contact Us For Availability
17
Blade, Fan WPL 1187178 Contact Us For Availability
17
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
17
Box, Control WPL 1187147 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
18
Evaporator WPL 1187441 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
19
Tube, Restrictor WPL 1188259 Contact Us For Availability
19
Panel, Control (Includes Item 27) WPL 1187923 Contact Us For Availability
20
Condenser WPL 1187517 Contact Us For Availability
20
Housing, Air- Bottom WPL 1187185 Contact Us For Availability
21
Bend, Return WPL 1187604 Contact Us For Availability
22
Bend, Return WPL 1187691 Contact Us For Availability
23
Tube, Flow Divider WPL 1159832 Contact Us For Availability
24
Tube, Connecting WPL 1187660 Contact Us For Availability
25
Tube, Feeder WPL 1187373 Contact Us For Availability
25
Screw WPL 1159222 Contact Us For Availability
26
Cable, Appliance WPL 1187842 Contact Us For Availability
27
Grommet, Screw WPL 1187495 Contact Us For Availability
27
Thermistor WPL 1188148 Contact Us For Availability
28
Screw WPL 488624 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 1185337 Contact Us For Availability
30
Bend, Return WPL 8031285 Contact Us For Availability
33
Tube, Suction (Includes Item 34) WPL 1187528 Contact Us For Availability
34
Seal, Suction Tube WPL 1187638 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Tube, Outlet (Includes Item 37) WPL 1155598 Contact Us For Availability
37
Strainer WPL 49599 Contact Us For Availability
38
Bend, Return WPL 708531 Contact Us For Availability
39
Tube, Discharge WPL 1187527 Contact Us For Availability
40
Base WPL 1187184 Contact Us For Availability
41
Bend Return WPL 1158407 Contact Us For Availability
42
Manifold, Suction WPL 1187513 Contact Us For Availability
43
Bend, Return WPL 708532 Contact Us For Availability
43
REFRIGERANT CHARGE 24.00 oz. WPL ARI144112A Contact Us For Availability
× ![]()
