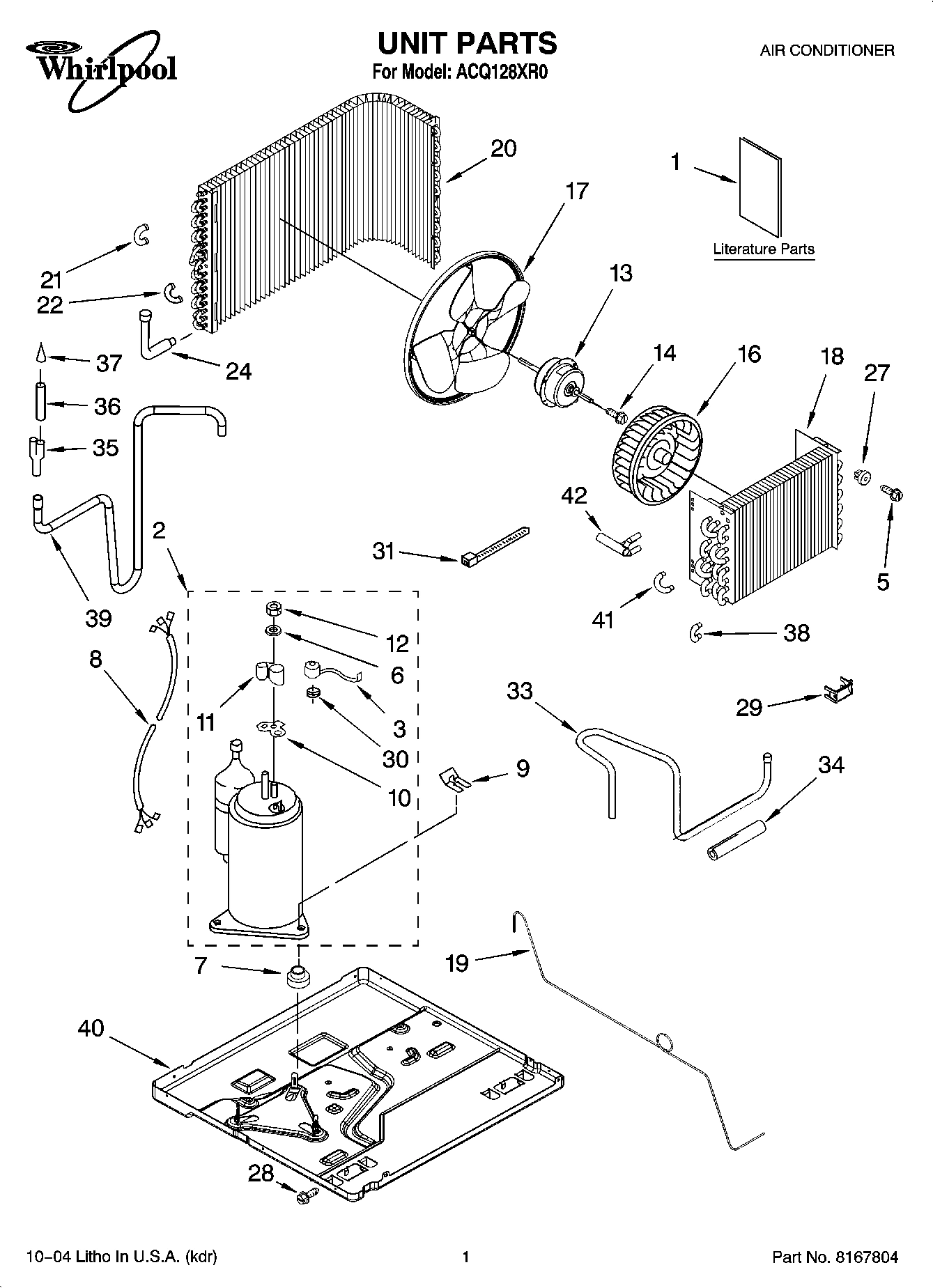

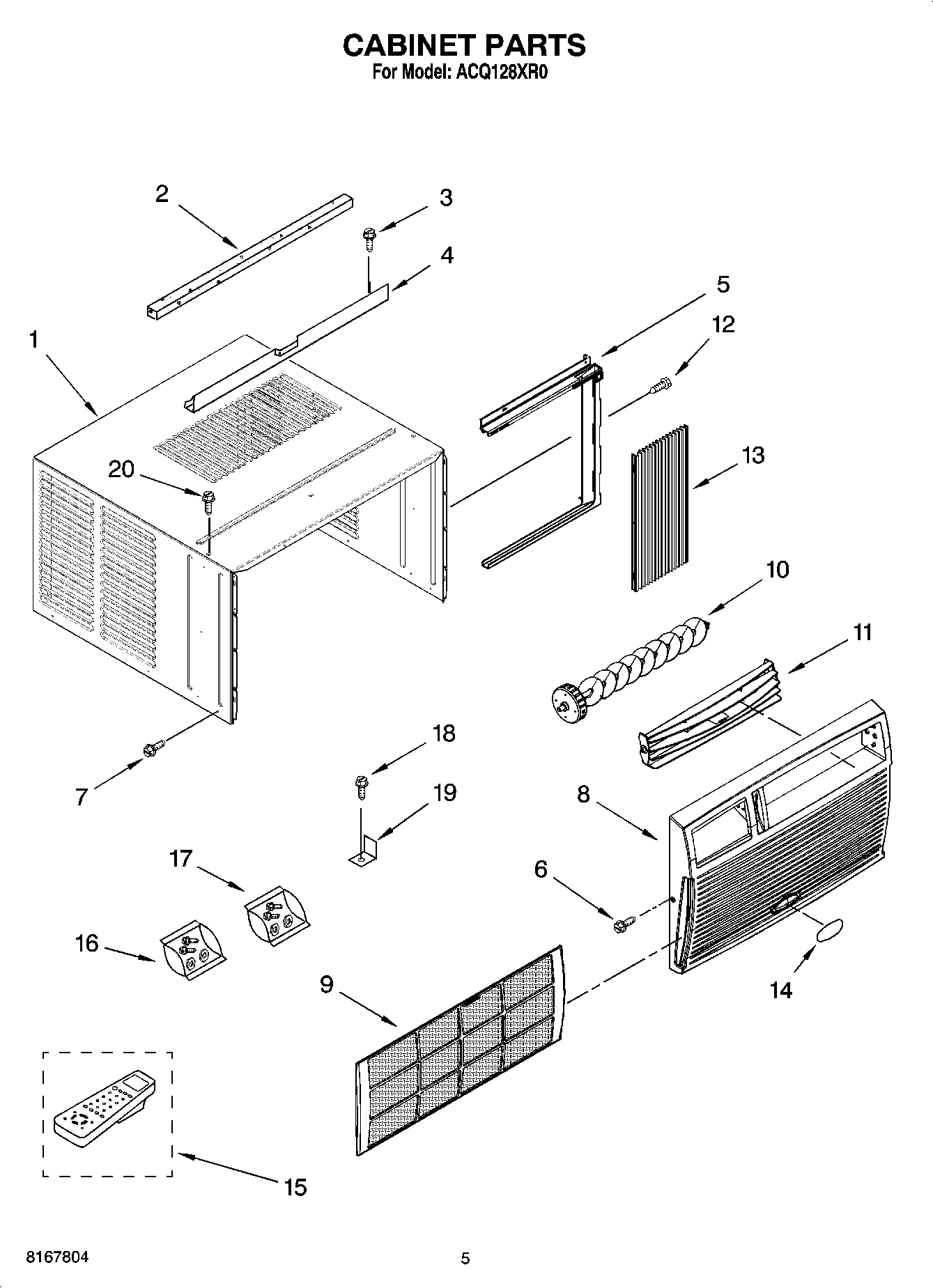

Model Whirlpool ACQ128XR0 AIR CONDITIONER – Common Parts &amp; Diagrams

1

CABINET WPL 1187194 Contact Us For Availability

1

Bag, Mounting Hardware WPL 1187201 Contact Us For Availability

1

Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Tape, No Drip 30` WPL 505168 Contact Us For Availability

2

Seal, Meeting Rail WPL 469877 Contact Us For Availability

2

Support, Center WPL 1187285 Contact Us For Availability

3

WP1187485 Whirlpool Air Conditioner Capacitor Backorder WPL WP1187485 $101.61

3

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

3

Tape, Vinyl 36` WPL 479502 Contact Us For Availability

3

Strap, Vertical (2) WPL 1187286 Contact Us For Availability

4

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

4

Channel, Top WPL 1187203 Contact Us For Availability

4

Support, Vertical (2) WPL 1187202 Contact Us For Availability

4

Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability

5

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

5

Frame, Curtain (Right Side) WPL 1187530 Contact Us For Availability

5

Frame, Curtain (Left Side) WPL 1187531 Contact Us For Availability

5

Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability

6

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

6

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

6

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

6

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

6

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

6

Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability

6

Support, Side (2) WPL 1187283 Contact Us For Availability

6

Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability

6

Seal, Control Box WPL 1187690 Contact Us For Availability

7

Screw, 8-15 x .375 WPL 488624 Contact Us For Availability

7

Support, Back WPL 1187284 Contact Us For Availability

7

Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability

7

Hood, Air Housing WPL 1187193 Contact Us For Availability

8

FRONT WPL 1187196 Contact Us For Availability

8

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

8

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

8

Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability

8

Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability

8

Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability

9

Filter WPL 1187389 Contact Us For Availability

9

Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability

9

Housing, Top WPL 1187505 Contact Us For Availability

10

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

10

Louver, Vertical WPL 1187260 Contact Us For Availability

11

Louver Horizontal WPL 1187259 Contact Us For Availability

12

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

12

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

13

4318168 Whirlpool Refrigerator Primary Permag In Stock WPL 4318168 $24.72

13

Motor, Fan WPL 1187769 Contact Us For Availability

13

CURTAIN WPL 1187532 Contact Us For Availability

484184 Whirlpool Air Conditioner Winter Cover Backorder WPL 484184 $38.05

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability

Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability

Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability

Shroud, Condenser WPL 1187499 Contact Us For Availability

15

Control, Remote WPL 1187760 Contact Us For Availability

15

Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability

Wheel, Blower WPL 1187494 Contact Us For Availability

Bag, Accessory WPL 476180 Contact Us For Availability

Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability

Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability

17

Blade, Fan WPL 1187178 Contact Us For Availability

17

Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability

17

Box, Control WPL 1187147 Contact Us For Availability

18

Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability

19

Bracket, Window Lock WPL 644228 Contact Us For Availability

19

Panel, Control (Includes Item 27) WPL 1187923 Contact Us For Availability

20

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

20

Housing, Air- Bottom WPL 1187500 Contact Us For Availability

24

Tube, Connecting WPL 1187660 Contact Us For Availability

25

Screw WPL 1159222 Contact Us For Availability

26

Cable, Appliance WPL 1187842 Contact Us For Availability

27

Grommet, Screw WPL 1187495 Contact Us For Availability

27

Thermistor WPL 1188148 Contact Us For Availability

29

Clip, Temperature Anticipator WPL 1185337 Contact Us For Availability

30

Spring, Overload WPL 1185795 Contact Us For Availability

31

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

33

Tube, Suction (Includes Item 34) WPL 1187729 Contact Us For Availability

34

Seal, Suction Tube WPL 1187637 Contact Us For Availability

35

Tube, Flow Divider WPL 947364 Contact Us For Availability

36

Tube, Outlet (Includes Item 37) WPL 951437 Contact Us For Availability

37

Strainer WPL 49599 Contact Us For Availability

38

Bend, Returm WPL 855199 Contact Us For Availability

39

Tube, Discharge WPL 1187504 Contact Us For Availability

40

Base WPL 1187184 Contact Us For Availability

41

Bend, Return WPL 855644 Contact Us For Availability

42

Manifold, Suction WPL 1187524 Contact Us For Availability

42

REFRIGERANT CHARGE 19.50 oz. WPL ARI144102A Contact Us For Availability
