Model Whirlpool ACQ122XJ1 AIR CONDITIONER – Common Parts & Diagrams

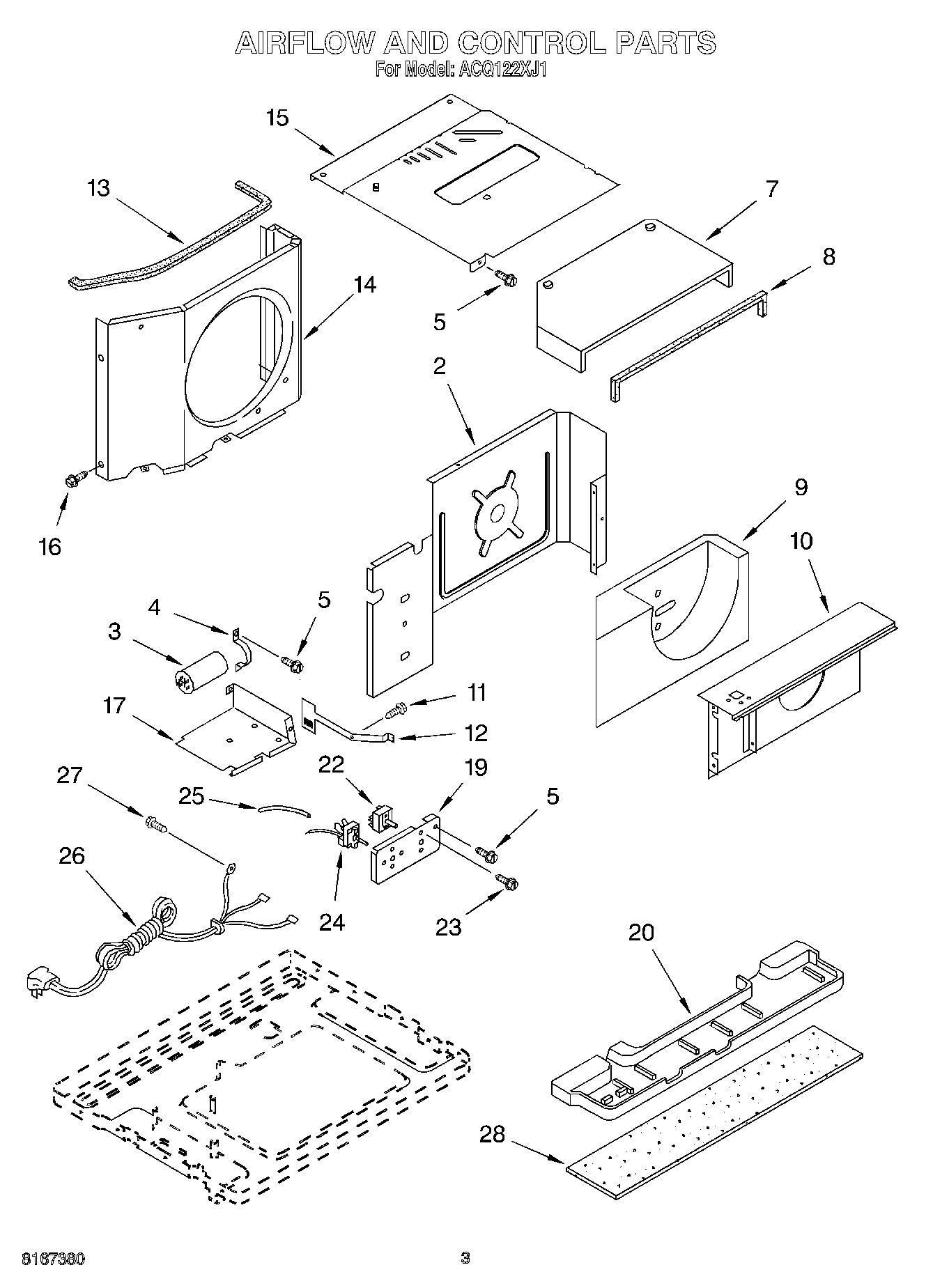

02 - AIRFLOW AND CONTROL

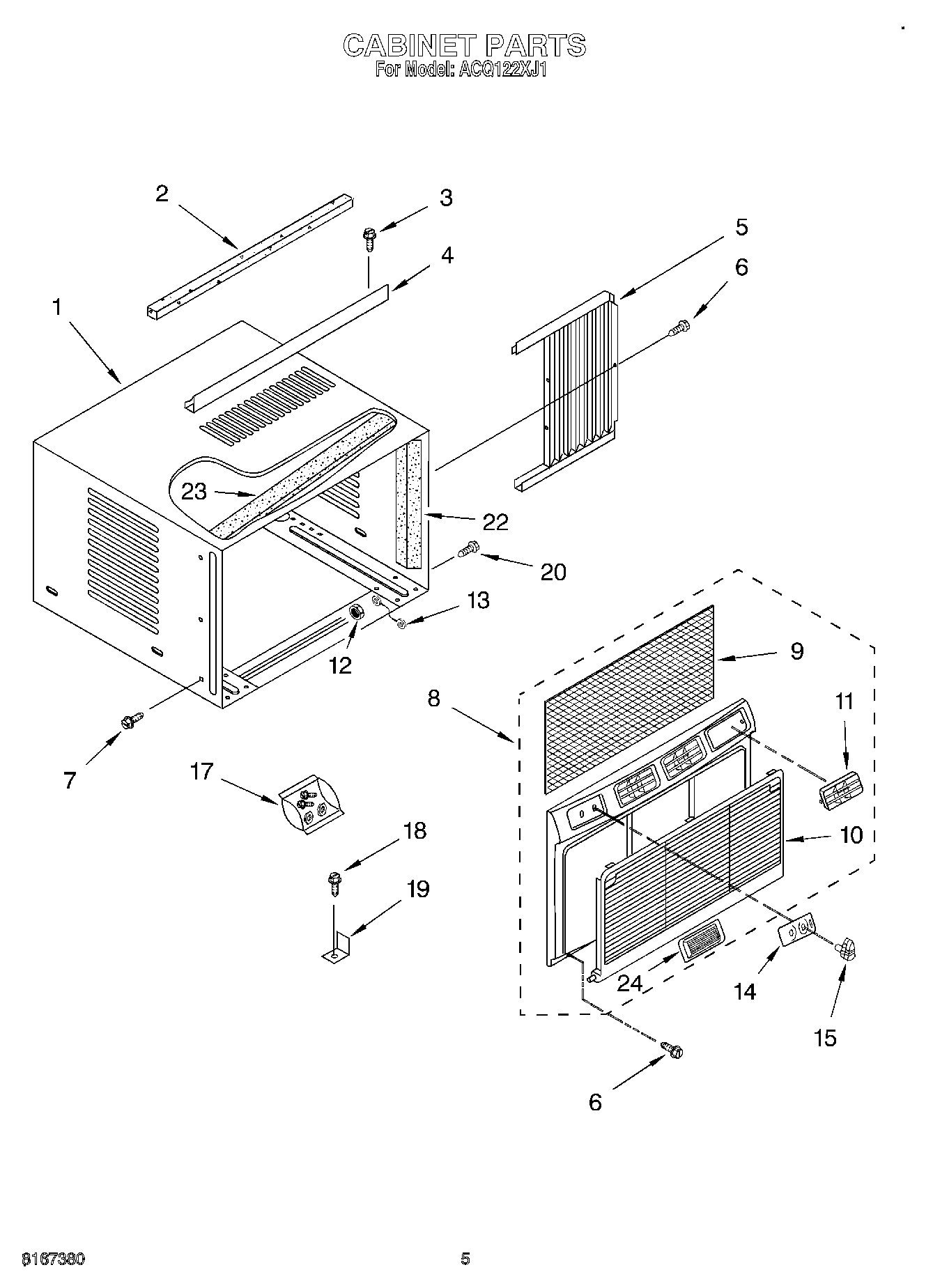

03 - CABINET

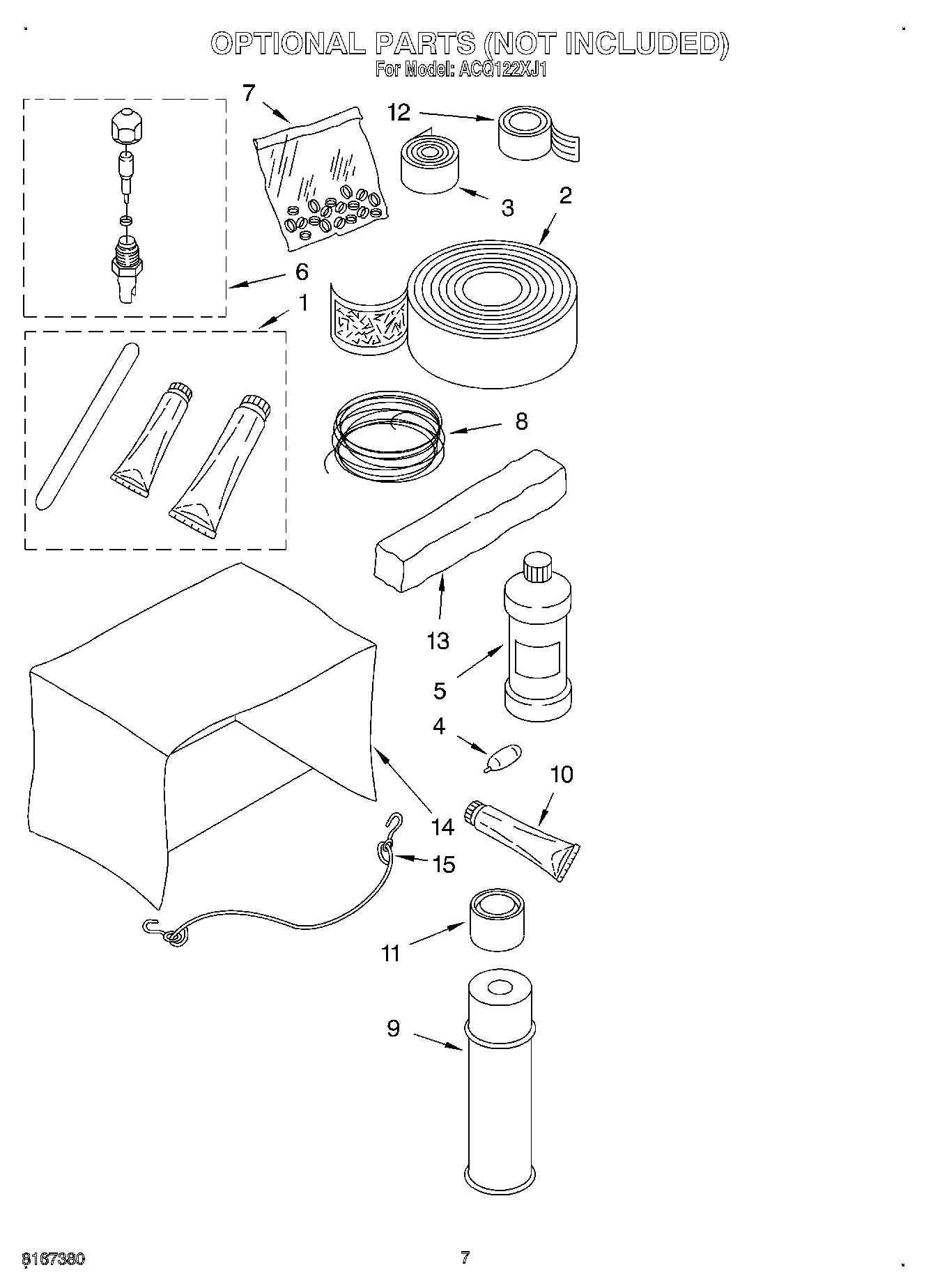

04 - OPTIONAL

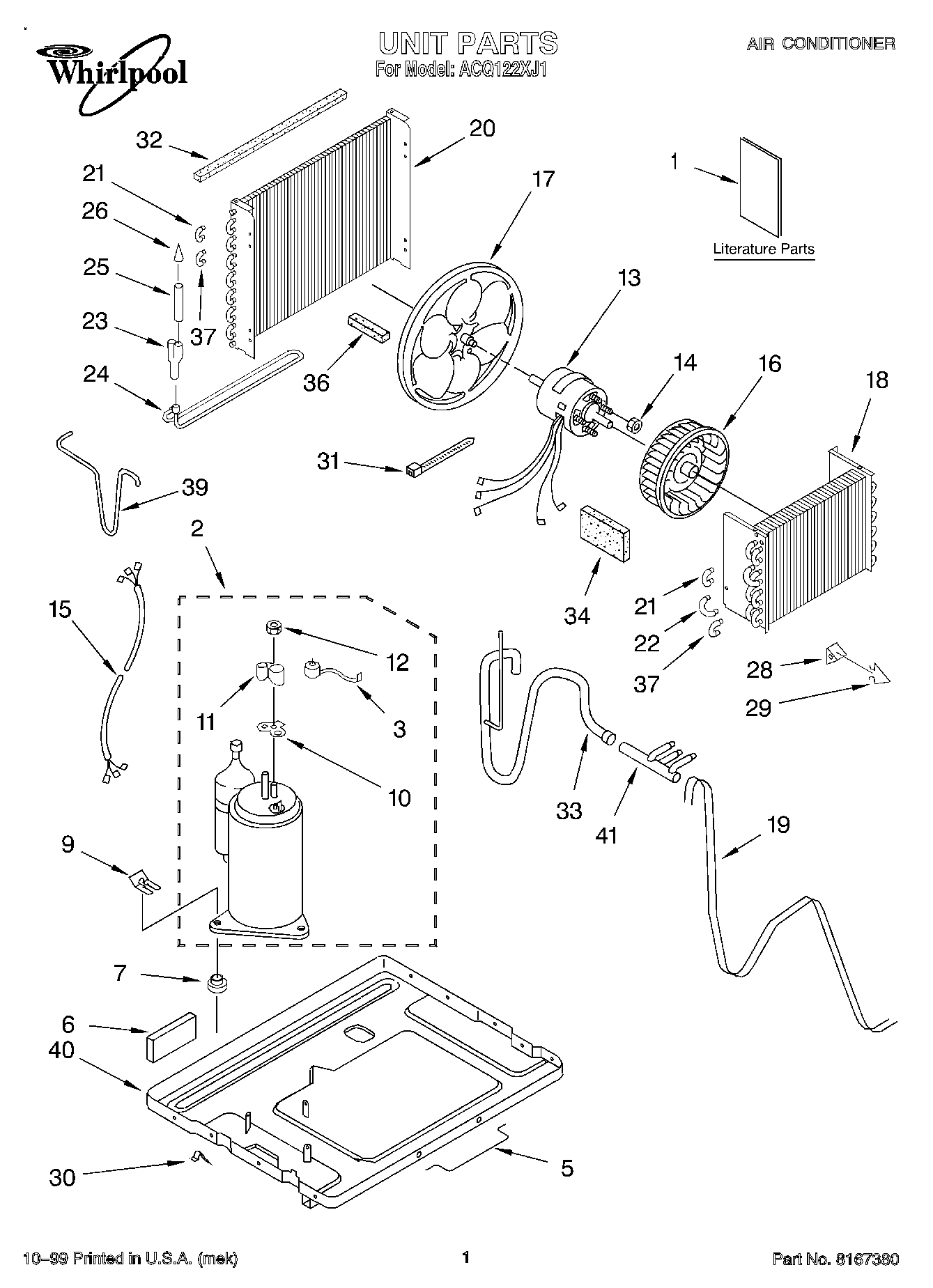

01 - UNIT, LITERATURE
Common parts from model Whirlpool ACQ122XJ1 AIR CONDITIONER
1
Cabinet WPL 8031388 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Use & Care Guide WPL LIT1182584 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8031275 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Compressor WPL 1182157 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1182158 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031397 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031399 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Handle, Base WPL 8031320 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
8
Front WPL 8031139 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
10
Grille, Front WPL 8031124 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1168449 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cover, Terminal WPL 1182200 Contact Us For Availability
12
Nut, Hex WPL 1168451 Contact Us For Availability
13
Wire, Ground WPL 856094 Contact Us For Availability
13
Motor, Fan WPL 1183433 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Escutcheon WPL 8031159 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wiring Harness, Compressor WPL 8031581 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Accessory, Bag WPL 1157654 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
19
Tube, Restrictor WPL 8031487 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
21
Bend, Return Evaporator (5) Condenser (1) WPL 8031222 Contact Us For Availability
22
Switch, Rotary WPL 8031151 Contact Us For Availability
22
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
22
Bend, Return (5) WPL 8031224 Contact Us For Availability
23
Seal, Top Cover WPL 8031322 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Door, Control WPL 8031132 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950816 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
33
Tube, Suction WPL 8031521 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
37
Bend, Return Evaporator (5) Condenser (15) WPL 8031223 Contact Us For Availability
39
Tube, Discharge WPL 8031522 Contact Us For Availability
40
Base WPL 8031393 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
× ![]()
