Model Whirlpool ACQ082XP0 AIR CONDITIONER – Common Parts & Diagrams

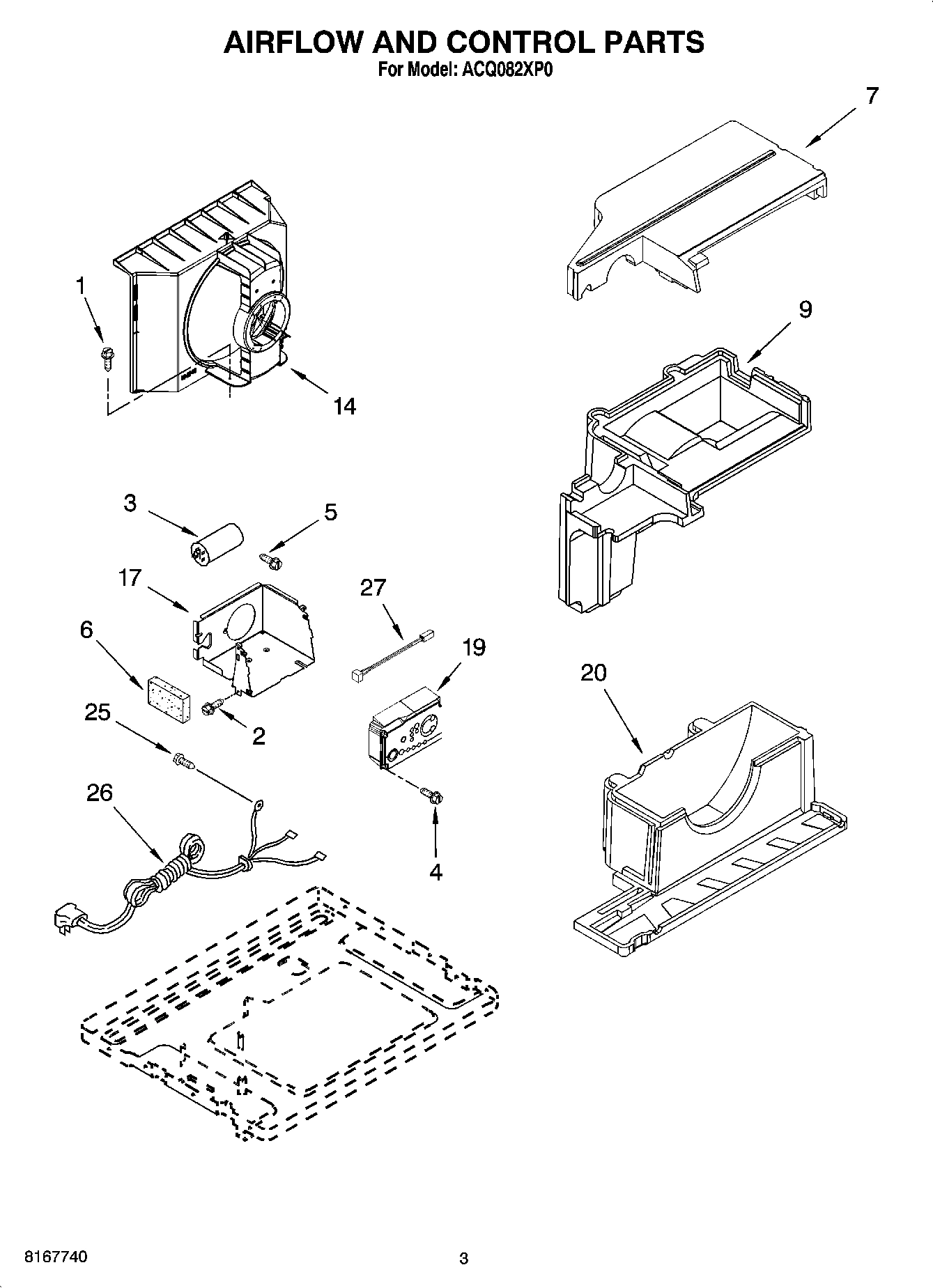

02 - AIR FLOW AND CONTROL PARTS

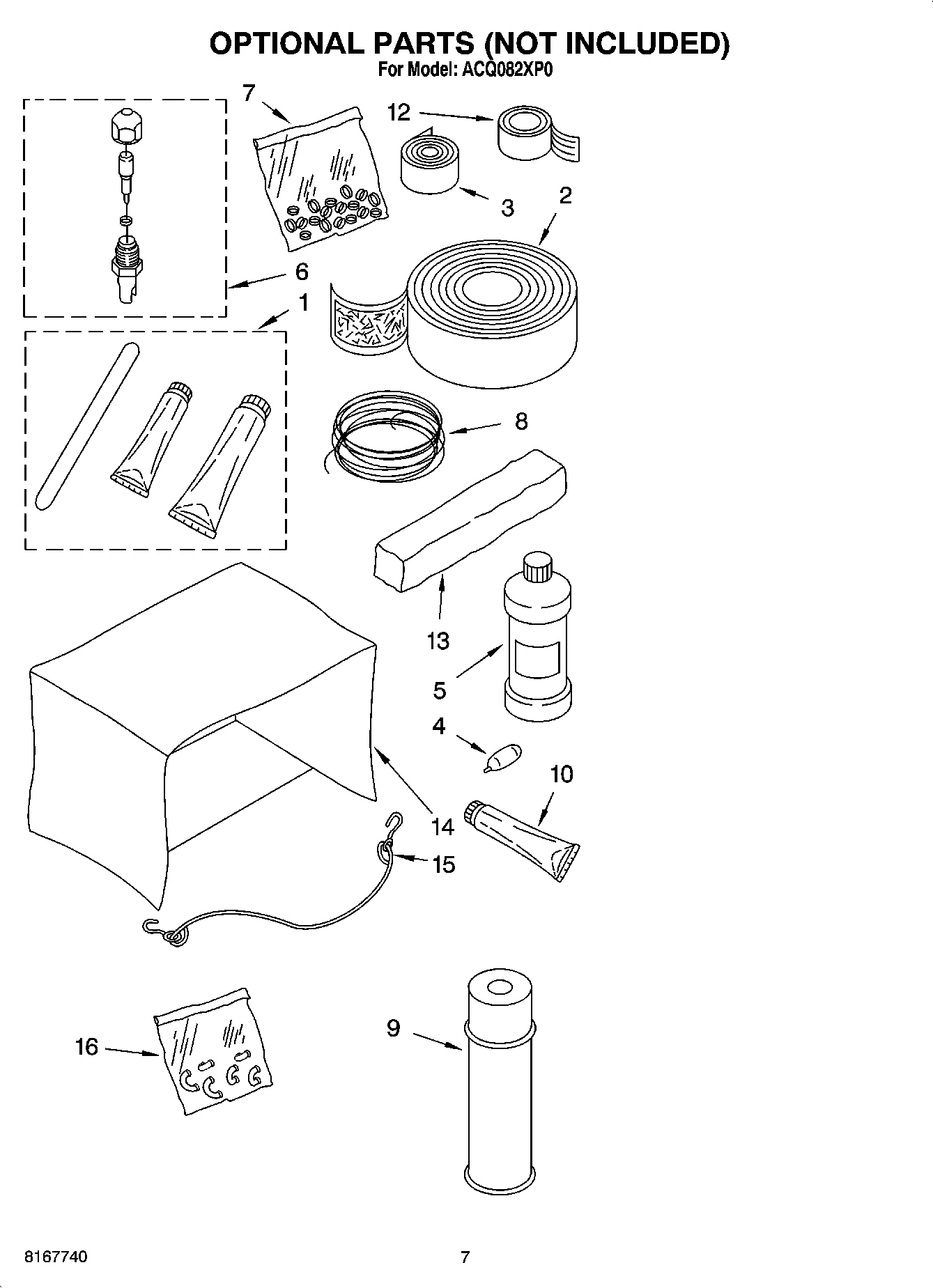

04 - OPTIONAL PARTS (NOT INCLUDED)
01 - UNIT PARTS
03 - CABINET PARTS
Common parts from model Whirlpool ACQ082XP0 AIR CONDITIONER
1
LITERATURE PARTS (Wiring Diagram) WPL LIT1185264 Contact Us For Availability
1
Use & Care Guide WPL LIT1187360 Contact Us For Availability
1
Energy Guide WPL LIT1187640 Contact Us For Availability
1
Cabinet WPL 1187130 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
COMPRESSOR WPL 1187376 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
OVERLOAD WPL 1187489 Contact Us For Availability
4
Spring, Overload WPL 1185795 Contact Us For Availability
4
Channel, Top WPL 1187139 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Frame, Curtain (Right Side) WPL 1187165 Contact Us For Availability
5
Frame, Curtain (Left Side) WPL 1187166 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Washer WPL 1185794 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Wiring Harness, Compressor WPL 1187606 Contact Us For Availability
8
Front WPL 1187161 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Compressor WPL 8011446 Contact Us For Availability
9
Filter WPL 1187133 Contact Us For Availability
10
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
10
Louver, Vertical WPL 1187138 Contact Us For Availability
11
Cover, Terminal WPL 1185792 Contact Us For Availability
11
Louver Horizontal WPL 1187137 Contact Us For Availability
13
Motor, Fan WPL 1187170 Contact Us For Availability
13
Curtain WPL 1187167 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Tube, Feeder WPL 1187736 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Wheel, Blower WPL 1187144 Contact Us For Availability
16
Bag, Accessory WPL 1187644 Contact Us For Availability
17
Blade, Fan WPL 1187142 Contact Us For Availability
17
Bag, Accessory (for Curtains) WPL 1185948 Contact Us For Availability
18
EVAPORATOR WPL 1187156 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Tube, Restrictor WPL 1187567 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
CONDENSER WPL 1187215 Contact Us For Availability
21
Bend, Return Evaporator (7) Condenser (9) WPL 8031223 Contact Us For Availability
21
Control, Remote WPL 1186156 Contact Us For Availability
22
Bend, Return WPL 8031222 Contact Us For Availability
23
Tube, Flow Divider WPL 1159832 Contact Us For Availability
24
Tube, Outlet WPL 1187613 Contact Us For Availability
25
Tube, Feeder WPL 1187741 Contact Us For Availability
27
Thermistor WPL 1187375 Contact Us For Availability
27
Grommet, Screw WPL 1187495 Contact Us For Availability
29
Clip, Anticipator WPL 1185337 Contact Us For Availability
30
Bend, Return WPL 8031224 Contact Us For Availability
33
Tube, Suction (Includes Item 34) WPL 1187692 Contact Us For Availability
34
Seal, Suction Tube WPL 1187636 Contact Us For Availability
39
Tube, Discharge WPL 1187565 Contact Us For Availability
40
Base WPL 1187127 Contact Us For Availability
40
REFRIGERANT CHARGE 13.00 oz. WPL ARI144087A Contact Us For Availability
× ![]()
